altimo 40LED01 User manual

Instruction Manual

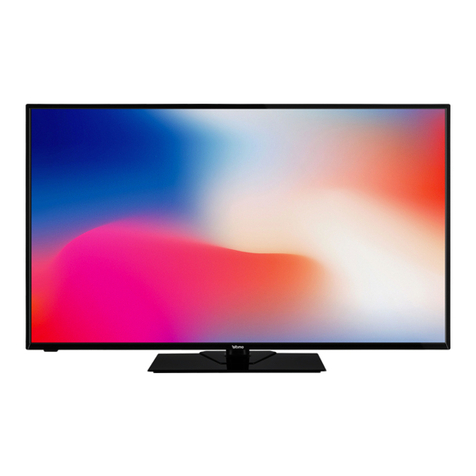

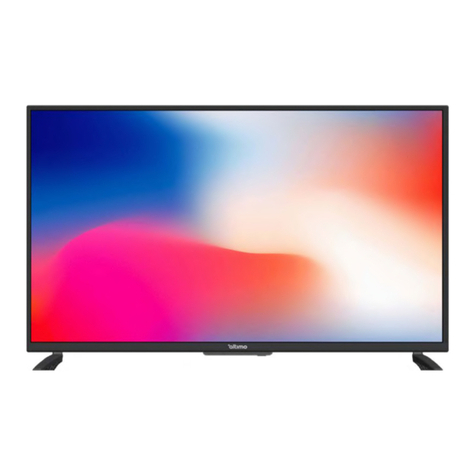

40" Full HD 1080P LED TV
40LED01

1
CONTENTS
Important Safety Instructions 2
Safety Information 3
4noitaraperP
What is Included 4
Front View 5
Rear View 6
Installing the Stand 7
Removing the Stand for Wall-Mounting 7
Wall-Mounting Screws 7
Remote Control 8
Connecting External Devices 10
Basic Operations 11
First Time Installation 11
Quick Settings 13
Picture 14
Sound 16
Channel 18
EPG 21
Nextwork 24
Time 25
System 27
Movies30
Music 31
Photos 32
Sources 33
CI (Common Interface)(DTV mode)
Specification
34
39
Parental Control 35
Troubleshooting 36
Maintaining 38
Plug Replacement-UK 38
Disposal Information 39

2
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions – All the safety and operating instructions should be read before this product is
operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide
an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
such as vases should not be placed on apparatus.
• WARNING:
• WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
• WARNING:
triangle is intended to alert the user to the presence of non-
insulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double insulated electrical appliance. It has been designed
in such a way that it does not require a safety connection to electrical earth.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator,
Inc in the United States and other countries.

3
SAFETY INFORMATION
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of
Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instruction.
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in
this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the label at the
rear of the product.
• To prevent overload, do not share the same power supply socket with too many other electronic
components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
•
switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such
as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid
is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user-serviceable parts inside. Trying to service the unit
this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long
period, or when the batteries are exhausted.
•
•
• Install only new batteries of the same type in your product.
• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the
life of the batteries or cause batteries to leak.
• Do not mix old and new batteries.
•
batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• Do not attempt to recharge disposable batteries.
• Do not short circuit battery terminals.
• Keep away from children.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the
remote control.
•
• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade, or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
•
normally or if the apparatus, including the power supply cord or plug, has been damaged in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the
apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.

4
Remote Control with BatteriesTV Set
PREPARATION
What is Included
User Manual &
Quick Start Guide
Base Stand Screws x4
MINI YPBPR cable
Quick
Start Guide
User Manual
MINI AV cable

5
PREPARATION
Front View
• VOL +/- button
Press to adjust the volume.
• CH /button
Press to select the channel.
• Menu button
Display the main menu.
• Source button
• STANDBY button
Switch the TV between On/Standby mode.
• POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
• IR (Infrared Receiver)
Receive IR signals from the remote control.
POWER Indicator
IR (Infrared Receiver)

6
PREPARATION
Rear View
1. Power Cord
Connect to AC power outlet.
2. LAN
Network connection port.
4. COAX
Connect a digital sound system to this
jack.
11. Headphone Socket
Connect to the Headphones.
3. SCART Socket
Connect to SCART cable between
the SCART socket on the TV and the
SCART socket on the external device.
6. HDMI Input
output device.
5. DTV/TV Input
Connect to the antenna (75Ω VHF/UHF)
socket with the RF coaxial cable.
7. USB Input
Connect to a USB storage device to play
8. MINI AV
Connect to the composite VIDEO and
AUDIO (L/R) output sockets on external
video devices.
9. MINI YPBPR
Connect to AV devices with component
(Y/Pb/Pr) video and audio output
sockets. COMPONENT&VIDEO share
with AUDIO IN(L/R)subscribe to.
10. CI Slot
swolladracICA.dracICatresniotdesU
you to view all the channels that you
subscribe to.
21 3
7
8
9
10
11
4 5 6
6

7
PREPARATION
Installing the Stand
1.
cushioned surface to avoid damaging
or scratching.
2. gnisuVTehtotylbmessadnatsehtxiF
the 4 pcs provided screws.
1.
cushioned surface to avoid damaging
or scratching.
2. Untighten the 4 pcs screws holding
the stand assembly and remove them.
3. Attach the wall-mount bracket to the
TV using the mounting holes on the
back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
Removing the Stand for Wall-Mouting
Wall-Mounting Screws
• Mount the VESA bracket using 4*M6*10 isometric threaded screws (not included).
accordance with the installation instruction.
WARNING:
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be acoided by taking
simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture(for example, cupboards or bookcases)
without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between
the television set and supporting furniture.
• Attention should be drawn to the environmental aspects of battery disposal.
• Educating children about the dangers of climbing on furniture to reach the television
set or its controls
If your existing television set is being retained and relocated, the same considerations
as above should be applied.

8
PREPARATION
Remote Control
1. : Switch the TV between and standby
mode.
2. : Mute and restore your TV sound.
3. 0~9:
4. CH.LIST: Display channel list.(ATV/DTV
5. : Return to previous viewing channel.
6. P.MODE : Select picture mode:
standard/ mild/ personal/ dynamic.
7. S.MODE : Select sound mode: standard/
music/ movie / personal.
8. ASPECT: Select from the following
mode settings: 16:9/Zoom1/Zoom2/
Auto/4:3.
9. TV.RD: Select TV program or Radio
10. MENU: Display the OSD(on screen
11. SOURCE:
input singal sources:Antenna/Cable/
Satellite/ATV/AV/YPbPr/HDMI/PC/
Media Player.
12. OK:
13. : Allows you to navigate the
OSD menus and adjust the syestem
setting to your perference.
14. DISPLAY: Display the present screen
information such as the current channel
and the input source .
15. EXIT: Exit the OSD menu.
16. EPG: Display the EPG(Electronic
17. VOL+/-: Adjust the volume.
18. CH+/-: Select a channel.
19. :Record the current programme.
20. : To start or pause the timeshift
TIMESHIFT: Start the time-shift function.
3
4
6
10
14
17
21
22
28
29
27
16
20
12
9
5
8
11
15
18
23
25
26
30
32
31
19
24
13
7
2
1

9
PREPARATION
21. :
TTX :
22. :
CANCEL :
23. :
HOLD :
24. :
FAV :
25. :
REVEAL : Reveals hidden information such as the answer to a quiz in teletext.(ATV/DTV/
26.COLOUR BUTTON:Access to corresponding function in APP service.(ATV/DTV/AV/
27.SIZE : To enlarge the picture on the TV in teletext.(ATV/DTV/
28.INDEX : To select the page number of the index from teletext.(ATV/DTV/
29.NICAM :
LANG :
30.SUBPAGE :
31.SUBTITLE :
32.SLEEP : Set the TV sleep timer.
Remote Control

10
CONNECTING EXTERNAL DEVICES
Coaxial Cable

Connect an RF cable from the Tv’s input called “RF-In” and to your TV Aerial socket
Press OK button to select the Start Setting.
Press ▼▲ ◄ ► button to select
Press OK button to
【 】/【 】/【 】/【 】 the language.
sure.
Press ▼▲ ◄ ► button to select
Press OK button to
【 】/【 】/【 】/【 】 the country.
sure.
BASIC OPERATIONS

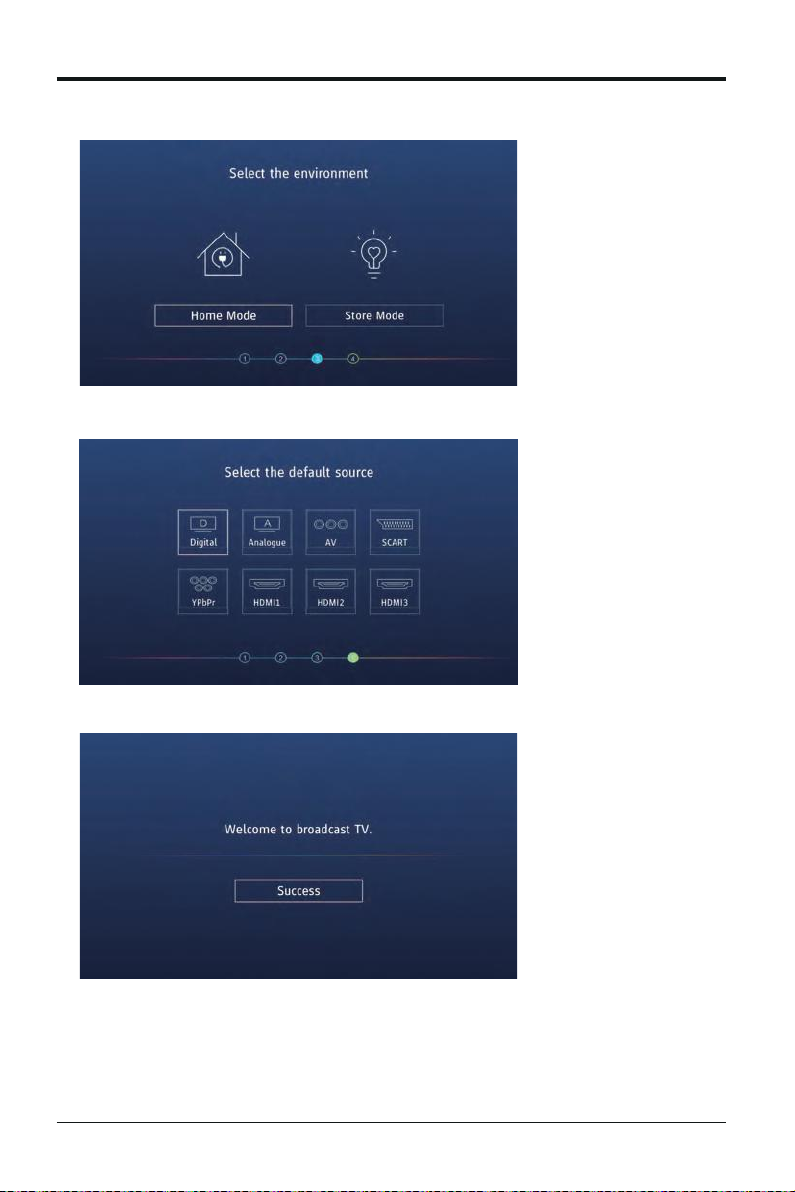

First Time Installation
11

Press OK button to into home page.
Press ◄ ► button to select
Press OK button to
【 】/【 】 the environment.
sure.
Press ▼▲ ◄ ► button to select
Press OK button to
【 】/【 】/【 】/【 】 the default source.
sure.
12
BASIC OPERATION

1. ▼▲:
2.
Press【 】/【 】to select
Press OK to adjust or select.
Audio Langua Select the audio language.
Subtitle Language Select the subtitle language.
Record List View the program list you have record.
Event List View the event list that you have make an appointment to record.
Audio Language/Subtitle Language/Record List/Event List.
Press ◄ ► button to select Quick Settings .
Press OK to enter setting.
【 】/【 】
13
BASIC OPERATION
Quick Settings

1. ▼▲: Aspect Ratio/ Advanced Settings
2. ◄ ►
Press【 】/【 】to select
Press【 】 /【 】to adjust or select.
Picture Mode/
Press ◄ ► button to select PICTURE .
Press OK to enter setting.
【 】/【 】
Picture Mode
【 】/【 】 【 】/【 】
ptional Standard /Personal/ Dynamic/ Movie/ Economy)
Standard The default mode, to make users experience high-quality images under normal light.
Personal Personal-defined picture settings.
Dynamic Image colors more beautiful, more vivid picture.
Movie This mode is more suitable for watching movies.
Economy Reduce screen brightness, improved contrast for energy saving.
(NOTE:The Brightness/ Contrast/ Colour/ Tint / Sharpness/ Backlight function could be adjusted
only in Personal picture mode.)
Press ▼▲button to select Picture Mode, then press ◄ ► button to select.
(O :
14
BASIC OPERATION

Aspect Ratio
Select the picture size: Auto/ 16:9/ 4:3/ Zoom1/ Zoom2
Advanced Settings
Select the settings:OverScan/ Colour Temperature/ Dynamic Contrast/ Noise Reduction.
Over Scan Select ON/OFF.
Colour Temperature Select to a : Standard/ Cold/ Warm
Dynamic Contrast Select to adjust image contrast:
Noise Reduction Select to
djust the overall color of the image
eliminate image noise intensity: Off/ Low/ Medium/ High
ON/OFF.
15
BASIC OPERATION

ess utt elec Sound Mode e ess utt elect
us c S t ).
Sound Mode
【 】/【 】 【 】/【 】
t al Sta da d e e s al
es utt elec
es OK t te ett
【 】/【 】
1. ▼ ▲ : Su u u d/ S eake A Ad a ce ett s
2.
ess【 】/【 】t select
ess【 】/ 【 】t djus elect
S u de
a ce cal ud
Standard duce ala ce u l e ts
Music ese e a u d us ca a s
Sports
Movie a ce e l as c u e e ce
Personal elec ust ctu ett s
16
BASIC OPERATION
Sound

AVC
AVCPress ▼▲button to select , then press ◄ ► button to choose ON/OFF.
(NOTE:
【 】/【 】 【 】/【 】
After opening the AVC,Once the volume is set, regardless of any difference TV Version printed
on each channel, it can make the speaker volume remained stable.)
Advanced Settings
Select the settings:Balance/ Equalizer
Balance Adjust the balance of left and right channel output.
Equalizer Adjust the equalizer.
Audio Description Select description On/Off.
Digital Audio Output Select PCM/ RAW/ Off.
Digital Audio Delay
Lip Sync
A
Adjust the Lip Sync.
djust the delay time.
Surround Sound
Set the Surround Sound control.Select ON/OFF.
Speaker
Set the Audio Out/ Digital Audio Delay.
17
BASIC OPERATION

Press OK to enter setting.
Auto Scan
Auto Scan,.Press ▼▲button to select p OK【 】/【 】 ress to search program automatically
Press ◄ ► button to select Channel.【 】/【 】
1. ▼▲:
2. ◄ ►
P
Signal Information.
ress【 】/【 】to select
Press【 】 /【 】 to adjust or select.
DVB Antenna/Auto Scan/Digital Manual Scan/CAM Setting/
Analogue
Digital
Digital+Analogue
18
BASIC OPERATION
Channel

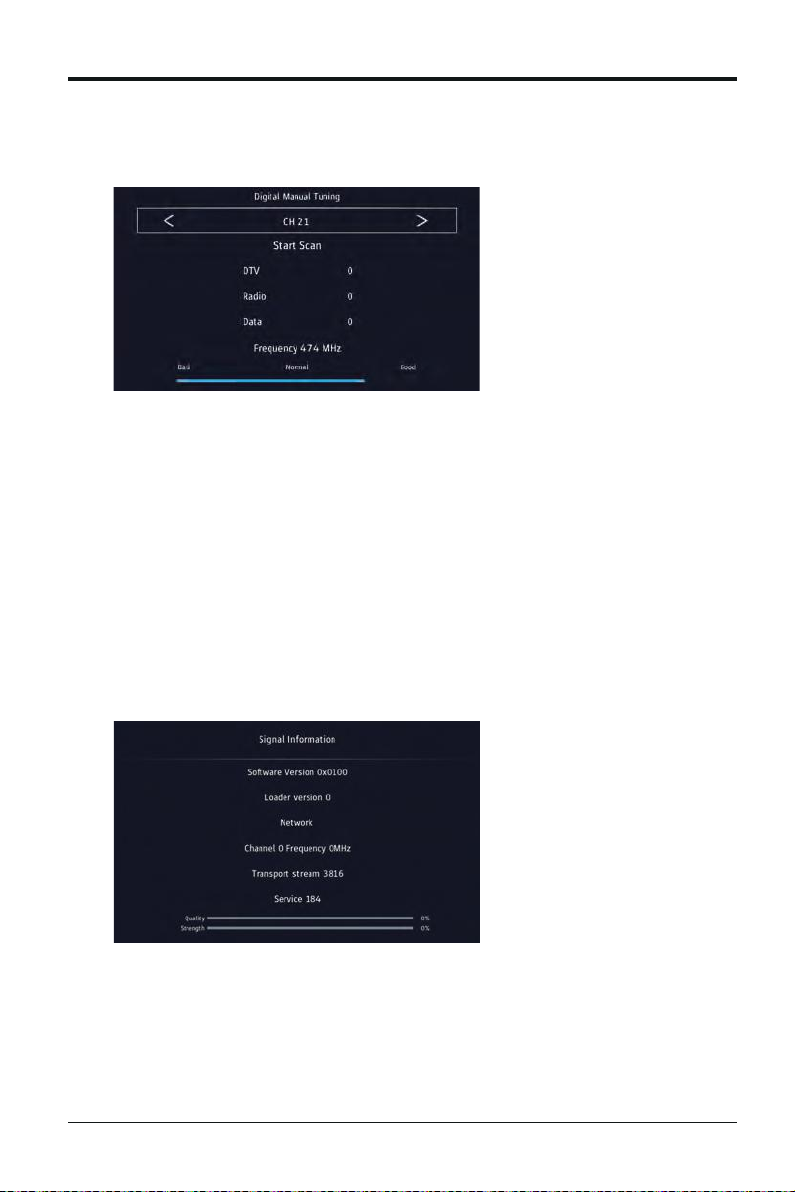

Digital Manual Scan
Digital Manual Scan.
ATV Manual Scan
Analog Manual Scan.
Press ▼▲button to select
Press ▼▲button to select
【 】/【 】
【 】/【 】
Signal Information
Press 【 】/【 】▼▲button to view the signal information.
19
BASIC OPERATION
Table of contents
Other altimo LED TV manuals
