Airwash®MultiPRO BOSS Operating and Maintenance Manual for AH2000 CART (26-A-1KME-00)
All manuals and user guides at all-guides.com

i
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
Warning:
This equipment should
be operated by trained
personnel only.
Warning:
For dry indoor use only.
Warning:
Do not operate equipment
without all access panels
and components in place.
Warning:
Risks include electric
shock, injury due to contact
with high speed rotating
machinery.
Before cleaning or other
maintenance, the appliance
must be disconnected from
the power supply.
Warning:
Risk of hazards associated
with airborne contaminants
including inhalation and
dust explosion. Can cause
respiratory problems. Can
cause illness.
Wear appropriate clothing
and mask when servicing
filters.
Caution:
For industrial/commercial
use.
SAFETY
Standards
This equipment meets the technical standard of:
CSA C22.2 No.113-15 -Fans and Ventilators- Tenth Edition, Dated May 2015
UL 507-Electric Fans-Ninth Edition; Dated December 13, 1999, including revisions through Nov. 18, 2015
READ AND KEEP THIS MANUAL
!
All manuals and user guides at all-guides.com

ii
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000

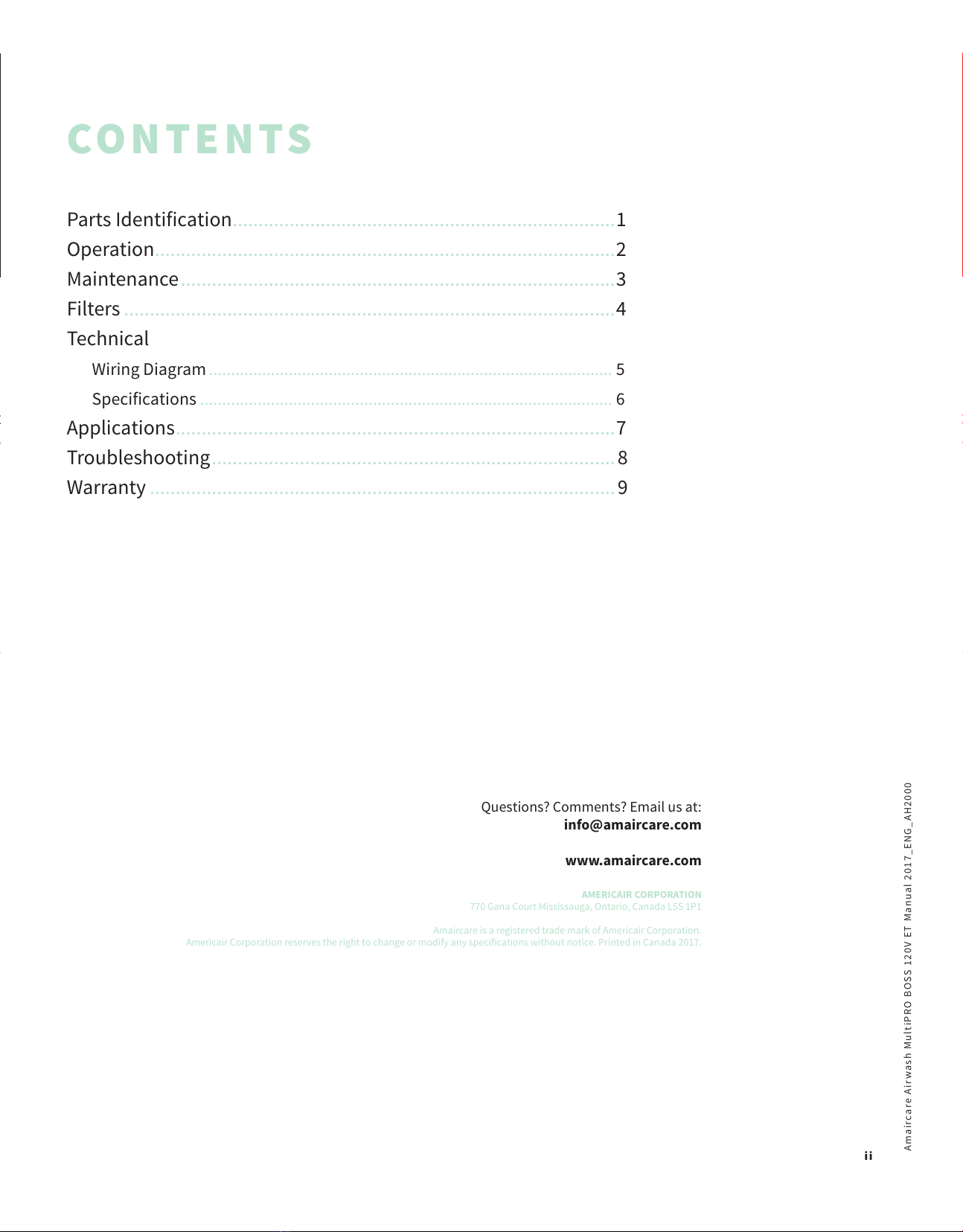

CONTENTS
Parts Identification..........................................................................1
Operation.........................................................................................2
Maintenance....................................................................................3
Filters ...............................................................................................4
Technical
Wiring Diagram ........................................................................................... 5
Specifications ............................................................................................. 6
Applications.....................................................................................7
Troubleshooting..............................................................................8
Warranty ..........................................................................................9
Questions? Comments? Email us at:
[e-mail]
www.amaircare.com
AMERICAIR CORPORATION
770 Gana Court Mississauga, Ontario, Canada L5S 1P1
Amaircare is a registered trade mark of Americair Corporation.
Americair Corporation reserves the right to change or modify any specifications without notice. Printed in Canada 2017.
Warning:
Do not operate equipment
without all access panels
and components in place.
Caution:
For industrial/commercial
use.
Standards
This equipment meets the technical standard of:
CSA C22.2 No.113-15 -Fans and Ventilators- Tenth Edition, Dated May 2015
UL 507-Electric Fans-Ninth Edition; Dated December 13, 1999, including revisions through Nov. 18, 2015
READ AND KEEP THIS MANUAL
All manuals and user guides at all-guides.com

Page.1
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000

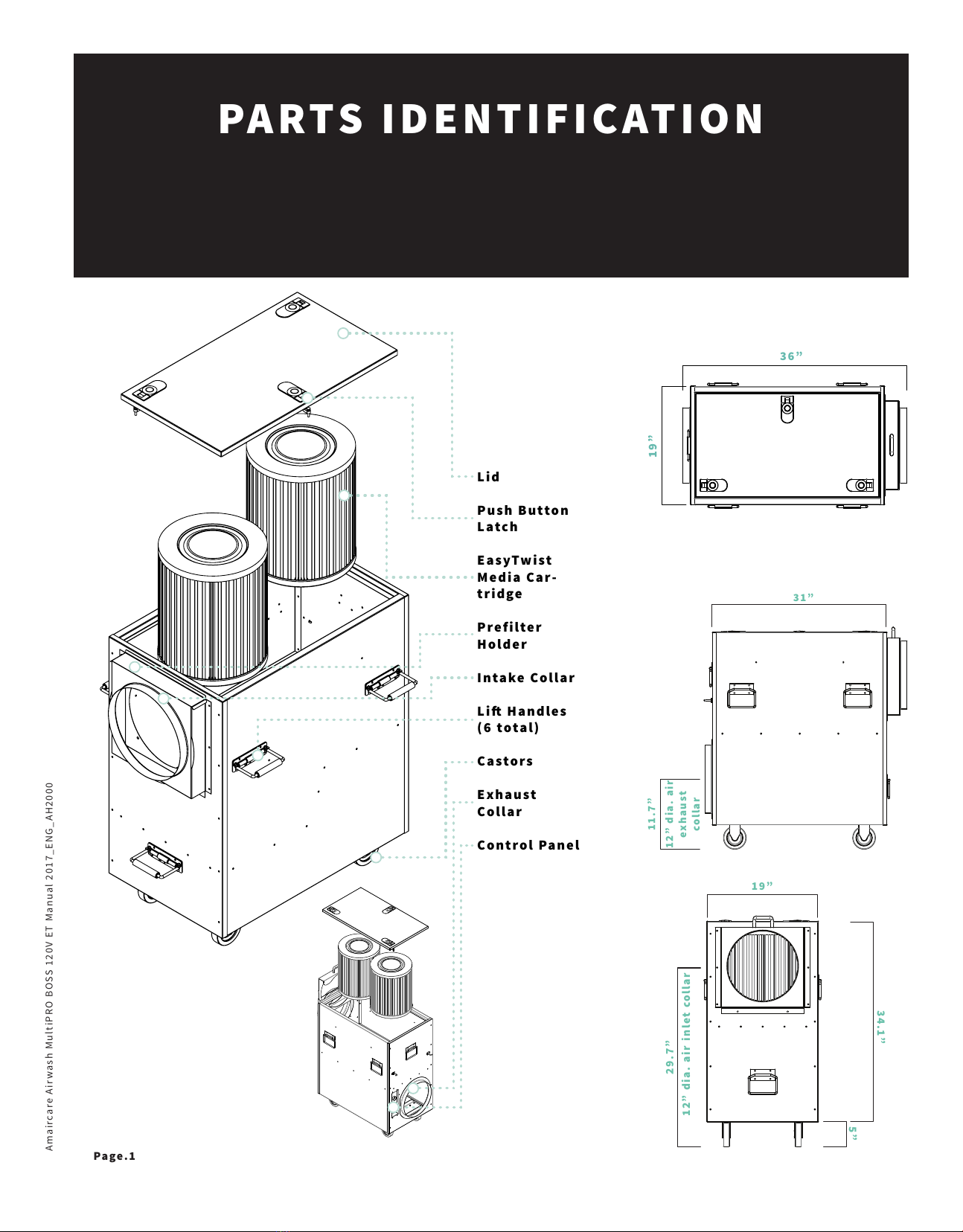

PARTS IDENTIFICATION
36”
19”
31”
12” dia. air
exhaust
collar
11.7”
19”
34.1”
5”
12” dia. air inlet collar
29.7”
Lid
Push Button
Latch
EasyTwist
Media Car-
tridge
Prefilter
Holder
Intake Collar
Li Handles
(6 total)
Castors
Exhaust
Collar
Control Panel
All manuals and user guides at all-guides.com

Page.2
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
OPERATION
Pre-Start:
a. Unplug unit.
b. Access the inside of the cabinet by opening all three (3) push button latches before liing
the lid o.
c. Confirm the inside of the unit is clean and free of contaminants.
d. The Stage 3 Media Cartridge should be secured to the bulkhead and sealed with an
O-Ring at the filter/bulkhead connection.
e. Confirm the Prefilter is clean and fitted in the prefilter holder.
f. Return the lid to the cabinet and secure it by closing the three (3) latches.
Operation:
• Do not operated any fan with a damaged cord or plug.
• Plug the unit power cord into a suitable supply receptacle. Do not route cord through
high traic areas where it can be damaged or tripped over.
• Rotate the speed control fully clockwise to the lowest operating speed. Air is drawn into
the unit, first through any Prefilters and then through the HEPA Cartridge. The clean air
is exhausted through the fan guard at the housing outlet. The amber “Power On” LED
should illuminate.
• A red ”Change Filter” LED will illuminate to indicate reduced or no airflow through the
unit. The unit will operate with red LED illuminated (and reduced CFM) until the cause
of the restriction has been remedied. Check operating speed, inlet port blockage and
individual air filter loading.
• Rotate the control knob counter clockwise to increase the amount of airflow. The red
“Change Filter” LED should not be illuminated with clean filters when operating at full
speed.
• To stop the unit operation, rotate the control knob, fully counter clock-wise to the “OFF”
position.
36”
19”
31”
12” dia. air
exhaust
collar
11.7”
All manuals and user guides at all-guides.com

Page.3
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
MAINTENANCE
Filter Inspection or Replacement:
Unplug the unit from the electrical
supply and allow the unit fan/motor to
stop rotating.
Use caution and established procedures
to avoid unnecessary release of
contaminants from the main housing,
access panel, Prefilters and HEPA
Cartridge during inspection or filter
replacement.
Dispose of used filters carefully using
appropriate procedures.
Foam sleeve and blanket type Prefilters
can be rolled inside out as they are
removed from service.
Stage 1 - Metal Mesh Prefilter (Option):
• Remove the Prefilter Holder from the
Inlet by pulling the handle upwards.
• The Metal Mesh Prefilter can be
cleaned by gently blowing out with
compressed air.
• Return the Prefilter Holder with the
Metal Mesh Prefilter to the frame on
the Inlet.
• It is recommended that the Metal
Mesh Prefilter be replaced regularly.
Stage 1 - Media Pad Prefilter (Option):
• Dispose and replace the Media
Pad Prefilter when it is covered in
particulate.
• Remove the Prefilter Holder from the
Inlet by pulling the handle upwards.
• Pull the used Prefilter from the
Holder and dispose appropriately.
• Fit the new Media Pad Prefilter into
the holder.
• Return the Prefilter Holder with the
Media Pad Prefilter to the frame on
the Inlet.
Stage 2 - Foam Filter:
• Follow directions for removing HEPA
Cartridge from the unit.
• Slowly pull the foam filter up and off
the HEPA Cartridge to avoid releasing
particles back into the air.
• Dispose appropriately.
• Pull the new Foam Filter over the
HEPA Cartridge (like a sock) and into
place.
Stage 3 -HEPA Cartridge:
• Inspect the HEPA Cartridge with the
lid removed.
• Unfasten the restraining strap(s)
holding the filter(s) in place.
• Place hands flat against the end cap of
the HEPA Cartridge to grip and rotate
the cartridge counter clockwise to
release it from the bulkhead.
• The loaded HEPA Cartridge and O-ring
should be bagged and disposed with
suitable procedures.
• Clean the empty housing before
fitting the replacement O-ring and
HEPA Cartridge.
• Press down firmly to compress the
O-ring as the HEPA Cartridge is
rotated clockwise to lock it on the
bulkhead.
Stage 3 - VOC Ultra Canister (Option)
• Follow instructions for HEPA Cartridge
installation.
Stage 4 - VOC Blanket (Optional):
• With the HEPA Cylinder removed from
the bulkhead, look inside the HEPA
Cylinder to locate the two ends of the
VOC blanket.
• Pull one end of the old inner carbon
filter in and bend it into a loose roll
so it can be removed.
• Remove the inner carbon filter from
the HEPA Cylinder and dispose.
• Remove plastic shrink wrap from the
new inner carbon filter.
• Unroll the inner carbon filter and
roll it up in the opposite direction
(this makes the filter follow a more
contoured profile against the inner
HEPA filter surfaces and helps keep
it in place), place the rolled inner
carbon filter inside the HEPA Cylinder
and gently unroll it until the ends
‘butt’ together and the filter is snug
against the HEPA filter.
Stage 4 - VOC Canister (Option):
• Remove old carbon canister (if
installed) by pulling it out from the
inside of the HEPA filter or housing.
• If replacing an inner carbon blanket
with the carbon canister, remove
inner carbon filter by following the
steps for removing the VOC Blanket.
• Remove the plastic shrink wrap from
the new carbon canister.
• Slide the carbon canister into the
HEPA Cylinder, smaller end first. The
carbon canister should slide all the
way in until the metal edges at the
base meet the HEPA filter.
• Support the carbon canister with your
fingers so it does not slide out when
replacing the HEPA Cylinder assembly
into the unit.
All manuals and user guides at all-guides.com

Page.4
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
FILTERS
Filters can be installed in various combinations for 4-stage filtration in a wide variety
of applications.
Stage 1:
Metal Mesh Prefilter
13” x 13”
Part: 91-A-DA06-NA
- OR -
Media Pad Prefilter
13” x 13” x 1”
Part: 91-A-D919-NA
Stage 2:
Foam Filter
Part: 91-A-1607-ET Stage 3:
HEPA Cartridge
Part: 90-A-16ME-ET
- OR -
VOC Ultra Canister
Part: 94-A-1602-UL
Stage 4:
Carbon Inner Blanket
Part: 92-A-1601-ET
- OR -
16ET VOC Canister
Part: 94-A-1602-ET
All manuals and user guides at all-guides.com

Page.5
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
TECHNICAL: Wiring Diagram
PE
Green/
Yellow
Blue
Black
Brown
C-1 C-1
Brown
Black Blue
Green/
Yellow
PE
120 VAC
SUPPLY
GREEN
WHITE
WHITE
BLACK
M-1 M-1
R
BLACK
1
3
SW-1
PS-1
PC-1
"POWER ON"
"CHANGE FILTER"
A
ITEM DESCRIPTION
M-1
MOTOR, 235W.
C-1 CAPACITOR 25uF.
PC-1 PLUG AND CABLE
SW-1
MOTOR SPEED
CONTROL SWITCH
PS-1
PRESSURE SWITCH
A
AMBER LED
R
RED LED
All manuals and user guides at all-guides.com

Page.6
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000

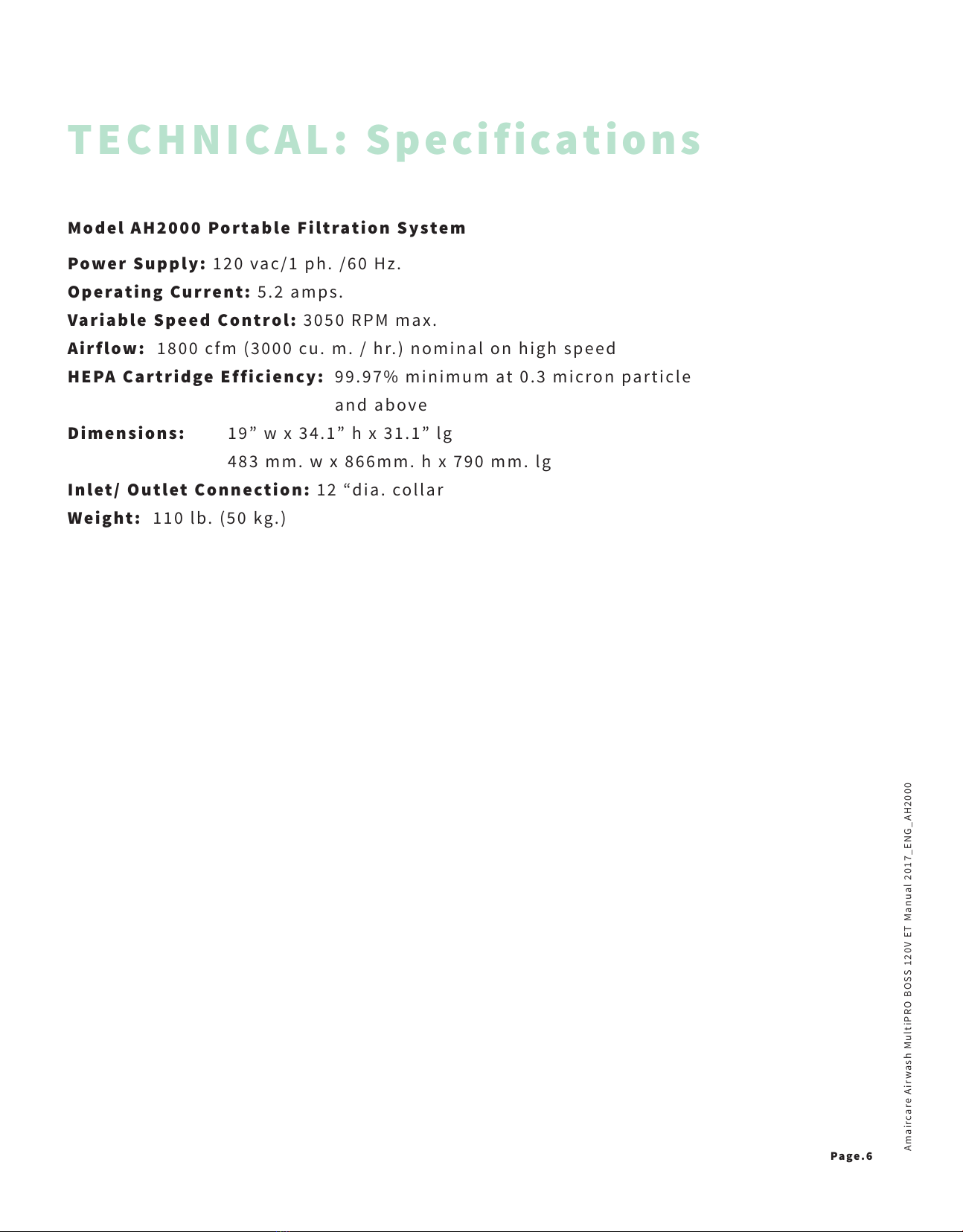

TECHNICAL: Specifications
Model AH2000 Portable Filtration System
Power Supply: 120 vac/1 ph. /60 Hz.
Operating Current: 5.2 amps.
Variable Speed Control: 3050 RPM max.
Airflow: 1800 cfm (3000 cu. m. / hr.) nominal on high speed
HEPA Cartridge Efficiency: 99.97% minimum at 0.3 micron particle
and above
Dimensions: 19” w x 34.1” h x 31.1” lg
483 mm. w x 866mm. h x 790 mm. lg
Inlet/ Outlet Connection: 12 “dia. collar
Weight: 110 lb. (50 kg.)
All manuals and user guides at all-guides.com

Page.7
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000

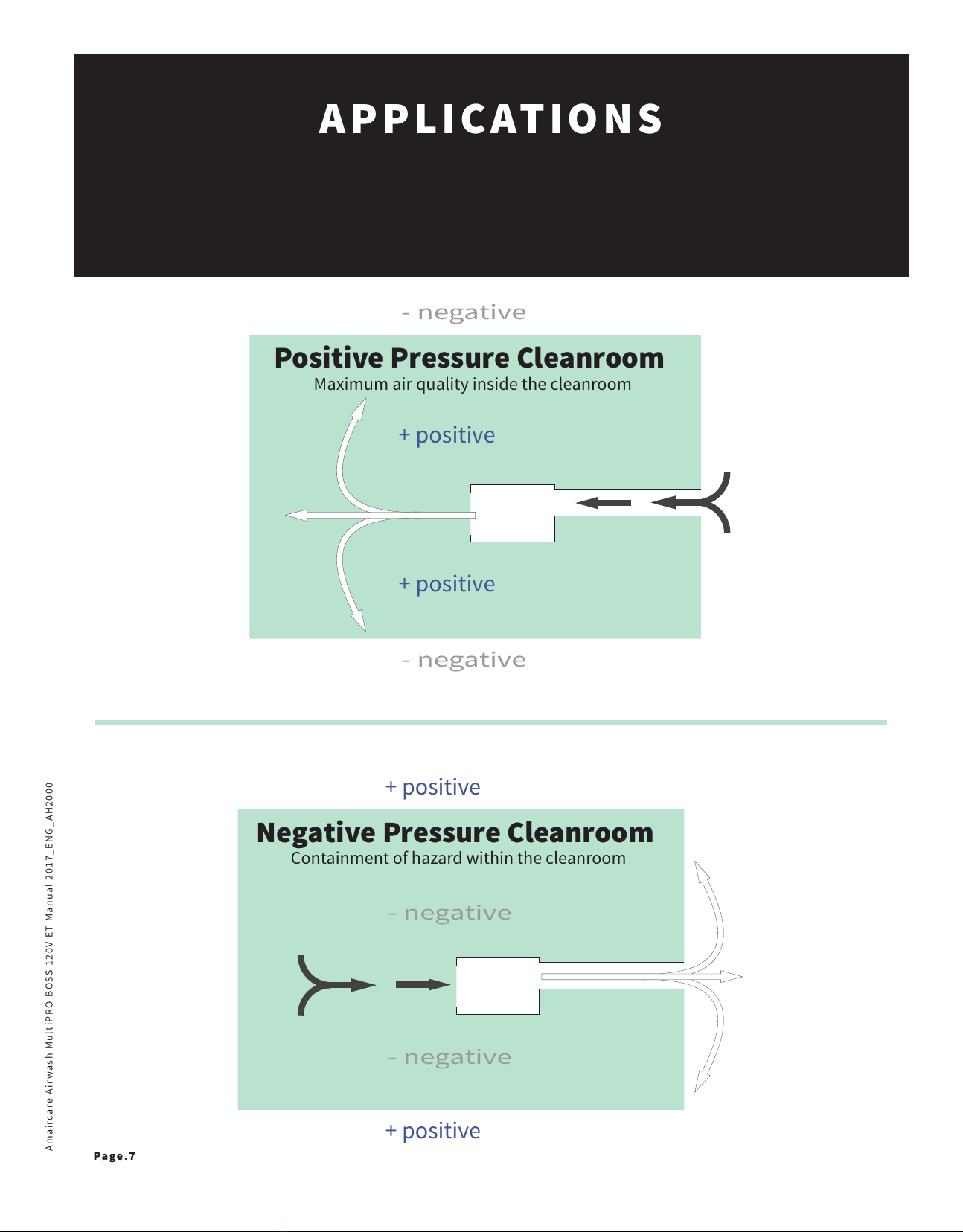

APPLICATIONS
- negative
- negative
+ positive
+ positive
Positive Pressure Cleanroom
Maximum air quality inside the cleanroom
- negative
- negative
+ positive
+ positive
Negative Pressure Cleanroom
Containment of hazard within the cleanroom
All manuals and user guides at all-guides.com

Page.8
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000

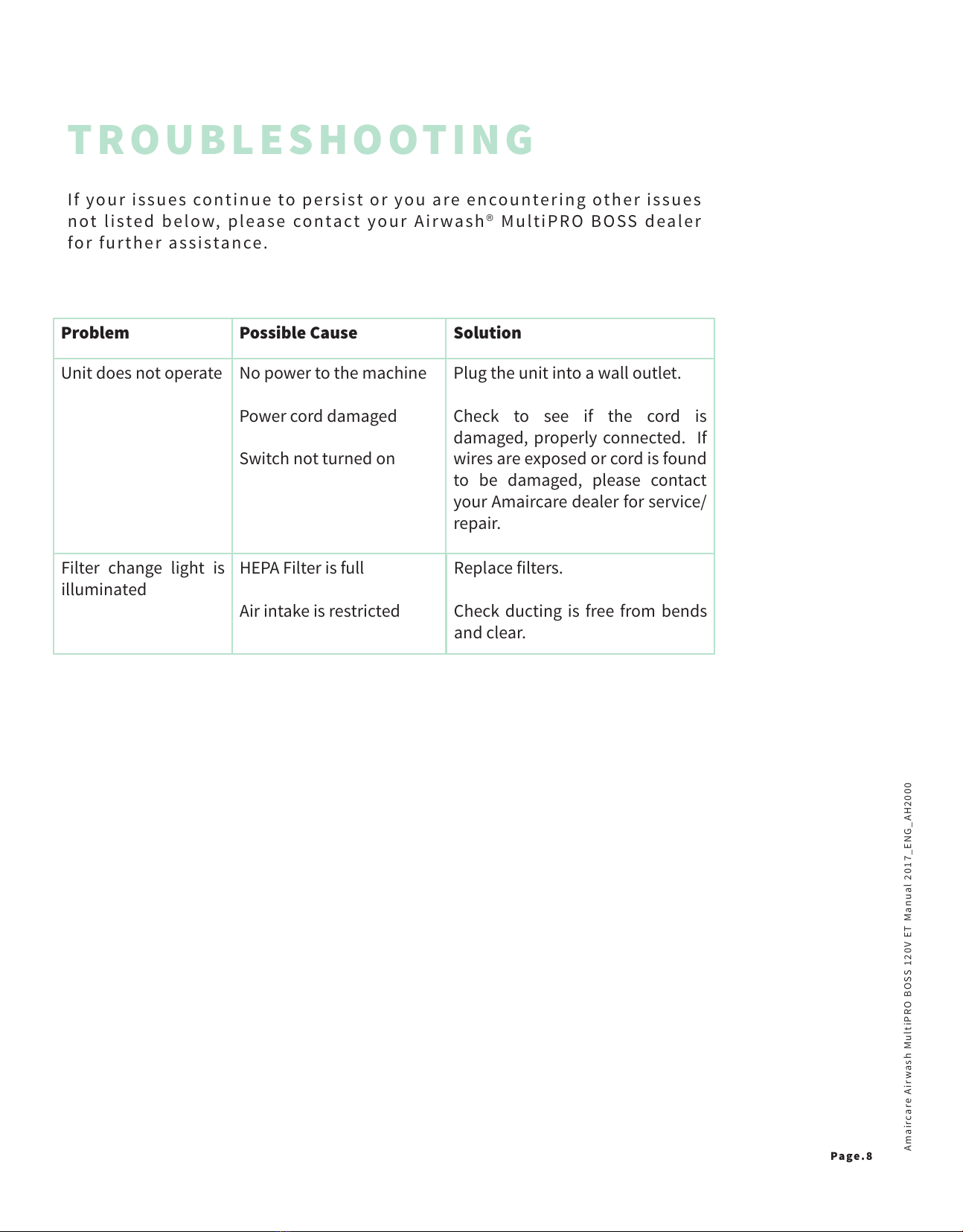

TROUBLESHOOTING
If your issues continue to persist or you are encountering other issues
not listed below, please contact your Airwash®MultiPRO BOSS dealer
for further assistance.
Problem
Filter change light is
illuminated
Unit does not operate
Possible Cause
HEPA Filter is full
Air intake is restricted
No power to the machine
Power cord damaged
Switch not turned on
Solution
Replace filters.
Check ducting is free from bends
and clear.
Plug the unit into a wall outlet.
Check to see if the cord is
damaged, properly connected. If
wires are exposed or cord is found
to be damaged, please contact
your Amaircare dealer for service/
repair.
All manuals and user guides at all-guides.com

Page.9
Amaircare Airwash MultiPRO BOSS 120V ET Manual 2017_ENG_AH2000
LIMITED WARRANTY
Americair Corporation warrants
Amaircare HEPA Air Filtration
Systems to the original retail
purchaser as follows:
1. The motor/fan part is warranted
for five (5) years from the date
of purchase under the following
conditions:
2. All other component parts
(except filters) are warranted
for one (1) year from the date
of purchase under the following
conditions:
i. The Amaircare HEPA Air Filtration
System has failed under normal
use, due to defects in material or
workmanship.
ii. The Amaircare HEPA Air Filtration
System has been operated
according to the manufacturers
recommendations.
iii. The Amaircare HEPA Air Filtration
System has been operated in
compliance with the voltages
specified on the product.
iv. An authorized Amaircare dealer or a
service provider agreed upon by both
the consumer and the manufacturer
has performed an inspection.
v. There have been no attempts to
modify the Amaircare HEPA Air
Filtration System from its original
condition.
Actions contrary to the above will
void the Amaircare warranty.
Amaircare HEPA Air Filtration
Systems that have qualified for
warranty and met all of the above
conditions will, at the discretion
of the manufacturer, have the
failing components repaired or
replaced or, at the option of the
manufacturer, be replaced with a
new system.
MAKING A WARRANTY CLAIM
The consumer may make a warranty
claim by contacting any authorized
Amaircare dealer. The dealer will
then contact the manufacturer,
Americair Corporation, to obtain a
Repair Return Authorization.
If the consumer is unable to contact
an authorized dealer in their
area, they should directly contact
the manufacturer, Americair
Corporation, at 1 800 268 7732 or
[e-mail] to obtain a
Repair Return Authorization.
To obtain a Repair Return
Authorization, a valid serial
number and original proof of
purchase must be presented to the
manufacturer.
RETURNING THE SYSTEM FOR
WARRANTY INSPECTION AND/OR
REPAIR
Prior to returning any product for
warranty inspection and/or repair,
the consumer must remove all
filter components.
In the interest of consumer
and employee safety, Americair
Corporation will not receive any
filter media that has left the
manufacturer’s premises. Any
Systems returned for inspection
and/or repair with the filters
included WILL NOT BE RECEIVED by
Americair Corporation and will be
returned to the consumer/dealer
at the consumer/dealer’s expense.
Excluding the filters, the consumer
is required to return all other
original system components,
including adapt ors if applicable.
Due to issues of hygiene, consumer
safety and the safety of Americair
Staff, Americair Corporation will
not accept returned products on
the basis of buyer’s remorse.
All manuals and user guides at all-guides.com
