Amana A CO15ZOA User manual

®
,\,
IBUILT IBETTEIR THAN _T HAS TO IBE_
Owner's Manual
Covering model A CO15ZOA
Electric Microwave
Keep instructions for future reference.
Be sure manual stays with microwave.
Contents
importantSafety instructions......................................3
Installation....................................................................6
Features .....................................................................22
Operation....................................................................25
Cooking ......................................................................36
Maintenance ..............................................................41
Recommended Utensil..............................................43
Troubleshooting.........................................................44
Amana Warranty........................................................46
Part No. 3828W5A2026

" l

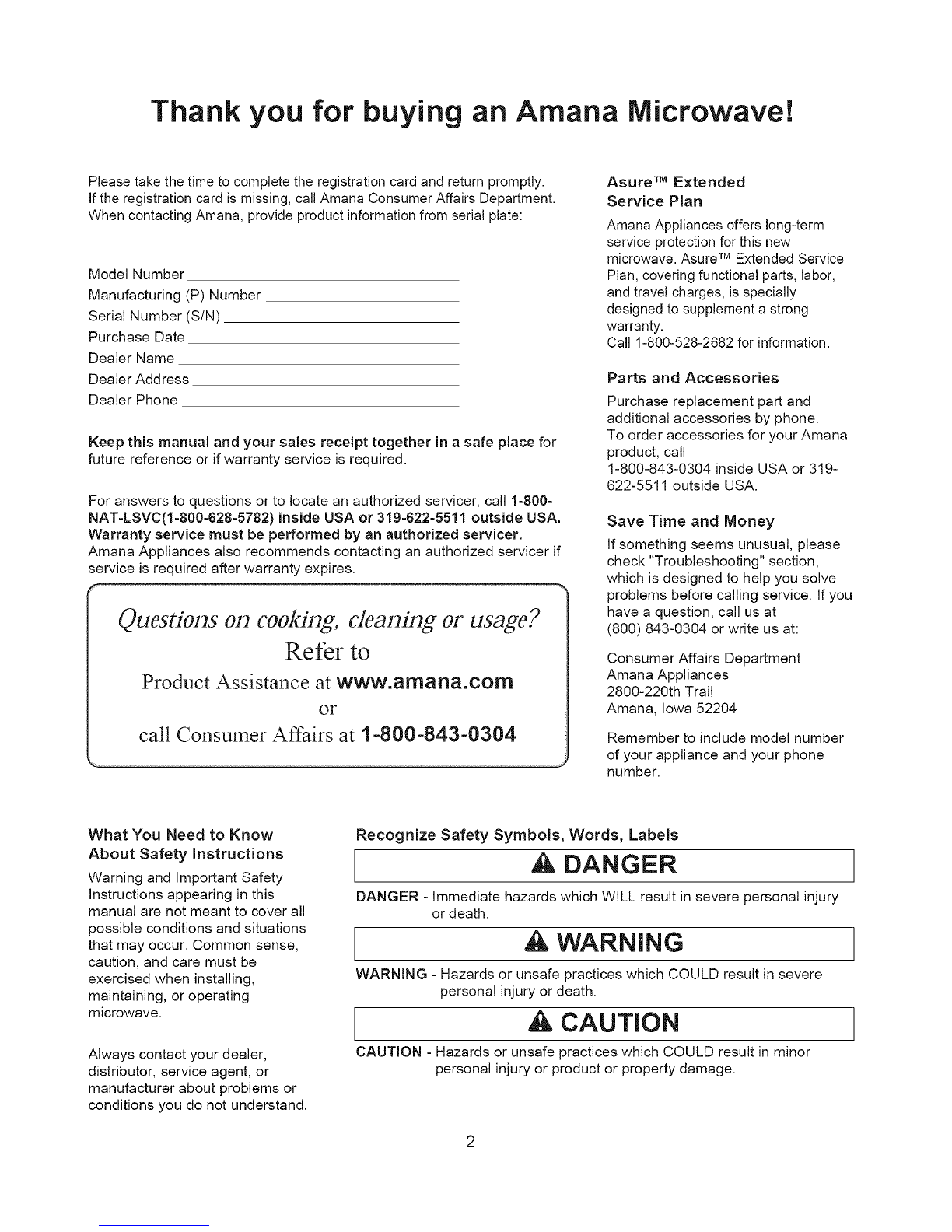

Thank you for buying an Amana M|crowave.
Please take the time to complete the registration card and return promptly.
If the registration card is missing, call Amana Consumer Affairs Department.
When contacting Amana, provide product information from serial plate:
Model Number
Manufacturing (P) Number
Serial Number (S/N)
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this manual and your sales receipt together in a safe place for
future reference or if warranty service is required.
For answers to questions or to locate an authorized servicer, call 1-800-
NAT-LSVC(1-800-628-5782) inside USA or 319-622-5511 outside USA.
Warranty service must be performed by an authorized servicer.
Amana Appliances also recommends contacting an authorized servicer if
service is required after warranty expires.
ir Questions on cooking, cleaning or usage? _
Refer to
Product Assistance at www.amana.com
or
L. call Consumer Affairs at 1-800-843-0304
Asure TM Extended
Service Plan
Amana Appliances offers long-term
service protection for this new
microwave. Asure TM Extended Service
Plan, covering functional parts, labor,
and travel charges, is specially
designed to supplement a strong
warranty.
Call 1-800-528-2682 for information.
Parts and Accessories
Purchase replacement part and
additional accessories by phone.
To order accessories for your Amana
product, call
1-800-843-0304 inside USA or 319-
622-5511 outside USA.
Save Time and Money
If something seems unusual, please
check "Troubleshooting" section,
which is designed to help you solve
problems before calling service. If you
have a question, call us at
[phone] or write us at:
Consumer Affairs Department
Amana Appliances
2800-220th Trail
Amana, Iowa 52204
Remember to include model number
of your appliance and your phone
number.
What You Need to Know
About Safety Instructions
Warning and Important Safety
Instructions appearing in this
manual are not meant to cover all
possible conditions and situations
that may occur. Common sense,
caution, and care must be
exercised when installing,
maintaining, or operating
microwave.
Always contact your dealer,
distributor, service agent, or
manufacturer about problems or
conditions you do not understand.
Recognize Safety Symbols, Words, Labels
DANGER
DANGER - Immediate hazards which WILL result in severe personal injury
or death. WARNING
WARNING - Hazards or unsafe practices which COULD result in severe
personal injury or death,
CAUTION
CAUTION - Hazards or unsafe practices which COULD result in minor
personal injury or product or property damage.

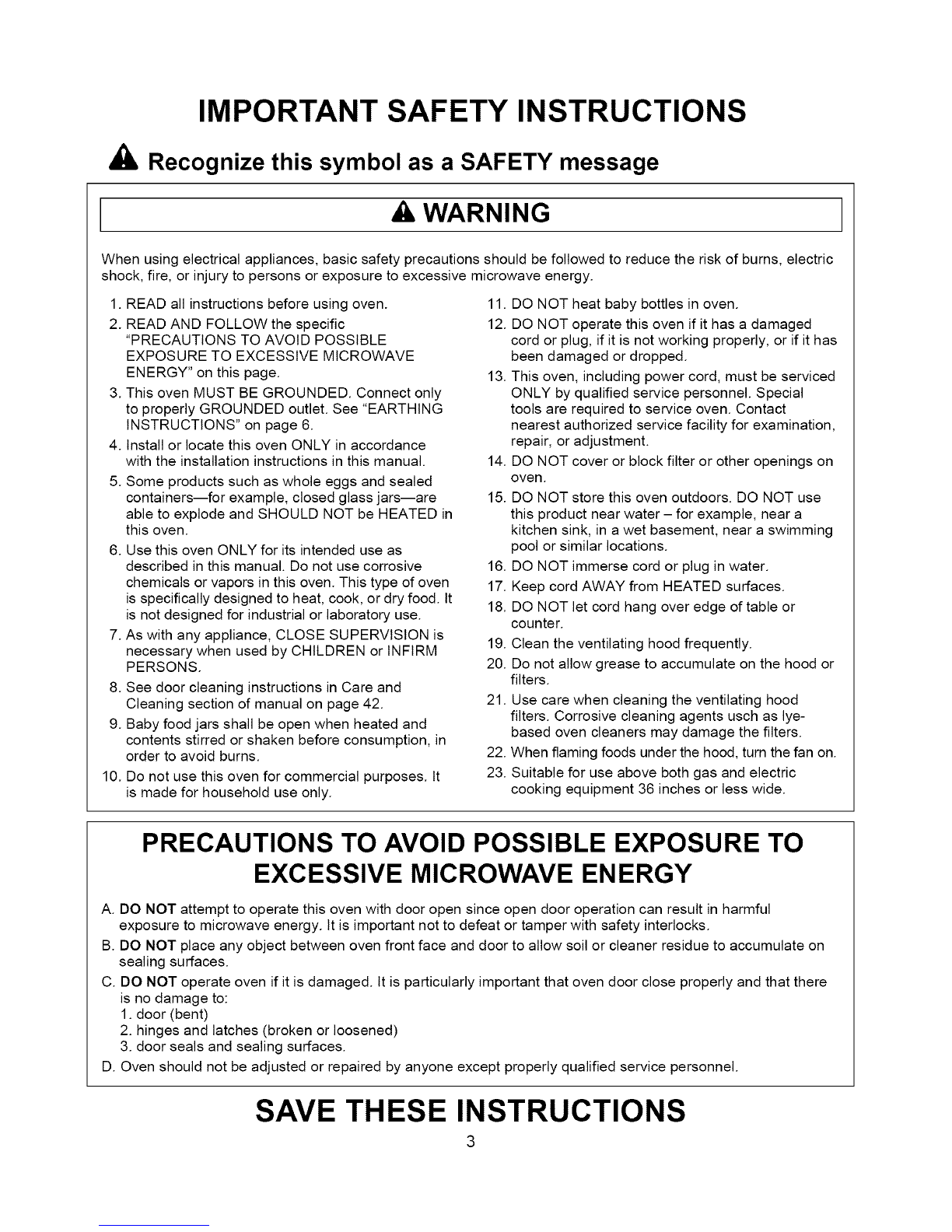

&IMPORTANT SAFETY INSTRUCTIONS
Recognize this symbol as a SAFETY message
WARNING
When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric
shock, fire, or injury to persons or exposure to excessive microwave energy.
1. READ all instructions before using oven.
2. READ AND FOLLOW the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" on this page.
3. This oven MUST BE GROUNDED. Connect only
to properly GROUNDED outlet. See "EARTHING
INSTRUCTIONS" on page 6.
4. Install or locate this oven ONLY in accordance
with the installation instructions in this manual.
5. Some products such as whole eggs and sealed
containers--for example, closed glass jars--are
able to explode and SHOULD NOT be HEATED in
this oven.
6. Use this oven ONLY for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this oven. This type of oven
is specifically designed to heat, cook, or dry food. It
is not designed for industrial or laboratory use.
7. As with any appliance, CLOSE SUPERVISION is
necessary when used by CHILDREN or INFIRM
PERSONS.
8. See door cleaning instructions in Care and
Cleaning section of manual on page 42.
9. Baby food jars shall be open when heated and
contents stirred or shaken before consumption, in
order to avoid burns.
10. Do not use this oven for commercial purposes. It
is made for household use only.
11.
12.
13.
14.
15.
16.
17.
18.
DO NOT heat baby bottles in oven.
DO NOT operate this oven if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
This oven, including power cord, must be serviced
ONLY by qualified service personnel. Special
tools are required to service oven. Contact
nearest authorized service facility for examination,
repair, or adjustment.
DO NOT cover or block filter or other openings on
oven.
DO NOT store this oven outdoors. DO NOT use
this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming
pool or similar locations.
DO NOT immerse cord or plug in water.
Keep cord AWAY from HEATED surfaces.
DO NOT let cord hang over edge of table or
counter.
19. Clean the ventilating hood frequently.
20. Do not allow grease to accumulate on the hood or
filters.
21. Use care when cleaning the ventilating hood
filters. Corrosive cleaning agents usch as lye-
based oven cleaners may damage the filters.
22. When flaming foods under the hood, turn the fan on.
23. Suitable for use above both gas and electric
cooking equipment 36 inches or less wide.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
A. DO NOT attempt to operate this oven with door open since open door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with safety interlocks.
B. DO NOT place any object between oven front face and door to allow soil or cleaner residue to accumulate on
sealing surfaces.
C. DO NOT operate oven if it is damaged. It is particularly important that oven door close properly and that there
is no damage to:
1. door (bent)
2. hinges and latches (broken or loosened)
3. door seals and sealing surfaces.
D. Oven should not be adjusted or repaired by anyone except properly qualified service personnel.
SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
WARNING

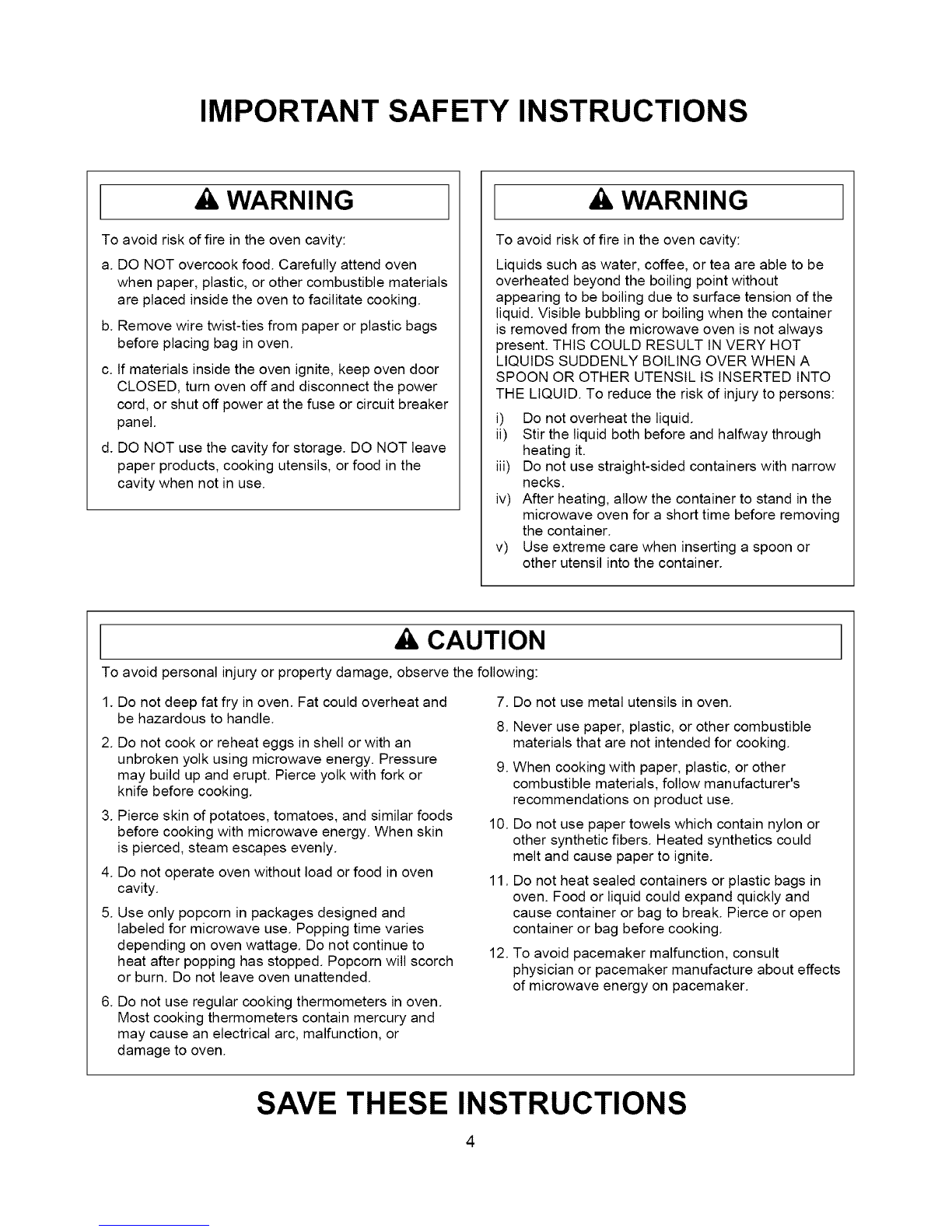

To avoid risk of fire in the oven cavity:
a. DO NOT overcook food. Carefully attend oven
when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c. If materials inside the oven ignite, keep oven door
CLOSED, turn oven off and disconnect the power
cord, or shut off power at the fuse or circuit breaker
panel.
d. DO NOT use the cavity for storage. DO NOT leave
paper products, cooking utensils, or food in the
cavity when not in use.
A WARNING
To avoid risk of fire in the oven cavity:
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to be boiling due to surface tension of the
liquid. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN A
SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through
heating it.
iii) Do not use straight-sided containers with narrow
necks.
iv) After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
v) Use extreme care when inserting a spoon or
other utensil into the container.
ACAUTION
To avoid personal injury or property damage, observe the following:
1. Do not deep fat fry in oven. Fat could overheat and 7.
be hazardous to handle. 8.
2. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or
knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar foods
before cooking with microwave energy. When skin
is pierced, steam escapes evenly.
4. Do not operate oven without load or food in oven
cavity.
5. Use only popcorn in packages designed and
labeled for microwave use. Popping time varies
depending on oven wattage. Do not continue to
heat after popping has stopped. Popcorn will scorch
or burn. Do not leave oven unattended.
6. Do not use regular cooking thermometers in oven.
Most cooking thermometers contain mercury and
may cause an electrical arc, malfunction, or
damage to oven.
.
10.
11.
12.
Do not use metal utensils in oven.
Never use paper, plastic, or other combustible
materials that are not intended for cooking.
When cooking with paper, plastic, or other
combustible materials, follow manufacturer's
recommendations on product use.
Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
Do not heat sealed containers or plastic bags in
oven. Food or liquid could expand quickly and
cause container or bag to break. Pierce or open
container or bag before cooking.
To avoid pacemaker malfunction, consult
physician or pacemaker manufacture about effects
of microwave energy on pacemaker.
SAVE THESE INSTRUCTIONS

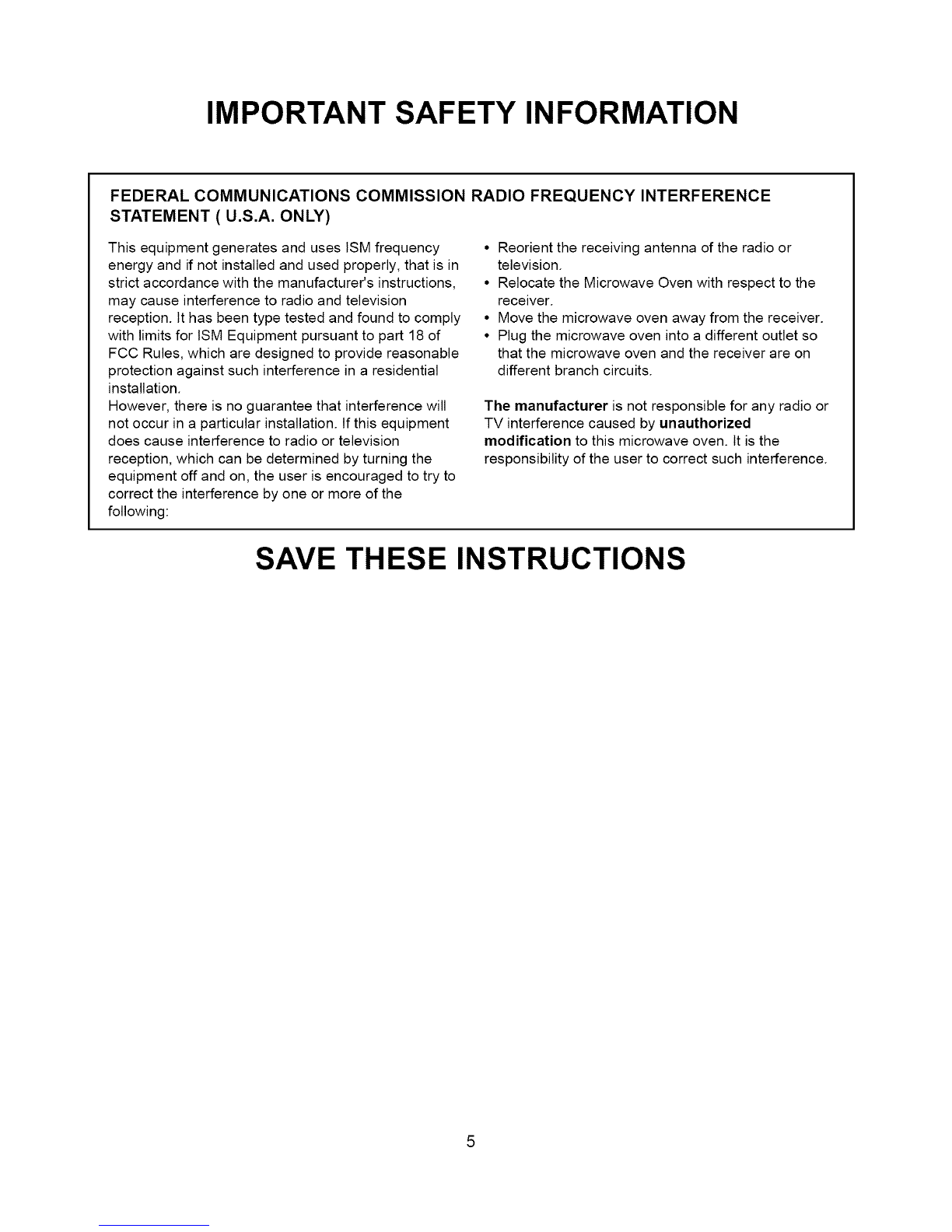

IMPORTANT SAFETY INFORMATION
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE
STATEMENT ( U.S.A. ONLY)
This equipment generates and uses tSM frequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions,
may cause interference to radio and television
reception. It has been type tested and found to comply
with limits for ISM Equipment pursuant to part 18 of
FCC Rules, which are designed to provide reasonable
protection against such interference in a residential
installation.
However, there is no guarantee that interference will
not occur in a particular installation, tf this equipment
does cause interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the
following:
• Reorient the receiving antenna of the radio or
television.
• Relocate the Microwave Oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modification to this microwave oven. tt is the
responsibility of the user to correct such interference.
SAVE THESE INSTRUCTIONS

INSTALLATION
A. GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
/
Ensure proper ground
exists before use
C. RADIO INTERFERENCE
1. Microwave oven operation may interfere with TV or
radio reception.
2. When there is interference, it may be reduced or
eliminated by taking the following measures:
a. Clean the door and the sealing surfaces of the oven.
b. Reorient the receiving antenna of radio or television.
c. Relocate the microwave oven in relation to the TV or
radio.
d. Move the microwave oven away from the receiver.
e. Plug the microwave oven into a different outlet so that
microwave oven and receiver are on different branch
circuits.
WARNING
To avoid risk of electrical shock or death, this oven
must be earthed.
AWARNING
To avoid risk of electrical shock or death, do not
alter the plug.
B. UNPACKING OVEN
• Inspect oven for damage such as dents in door or
inside oven cavity.
• Report any dents or breakage to source of purchase
immediately.
Do not attempt to use oven if damaged.
• Remove all materials from oven interior.
• If oven has been stored in extremely cold area, wait a
few hours before connecting power.

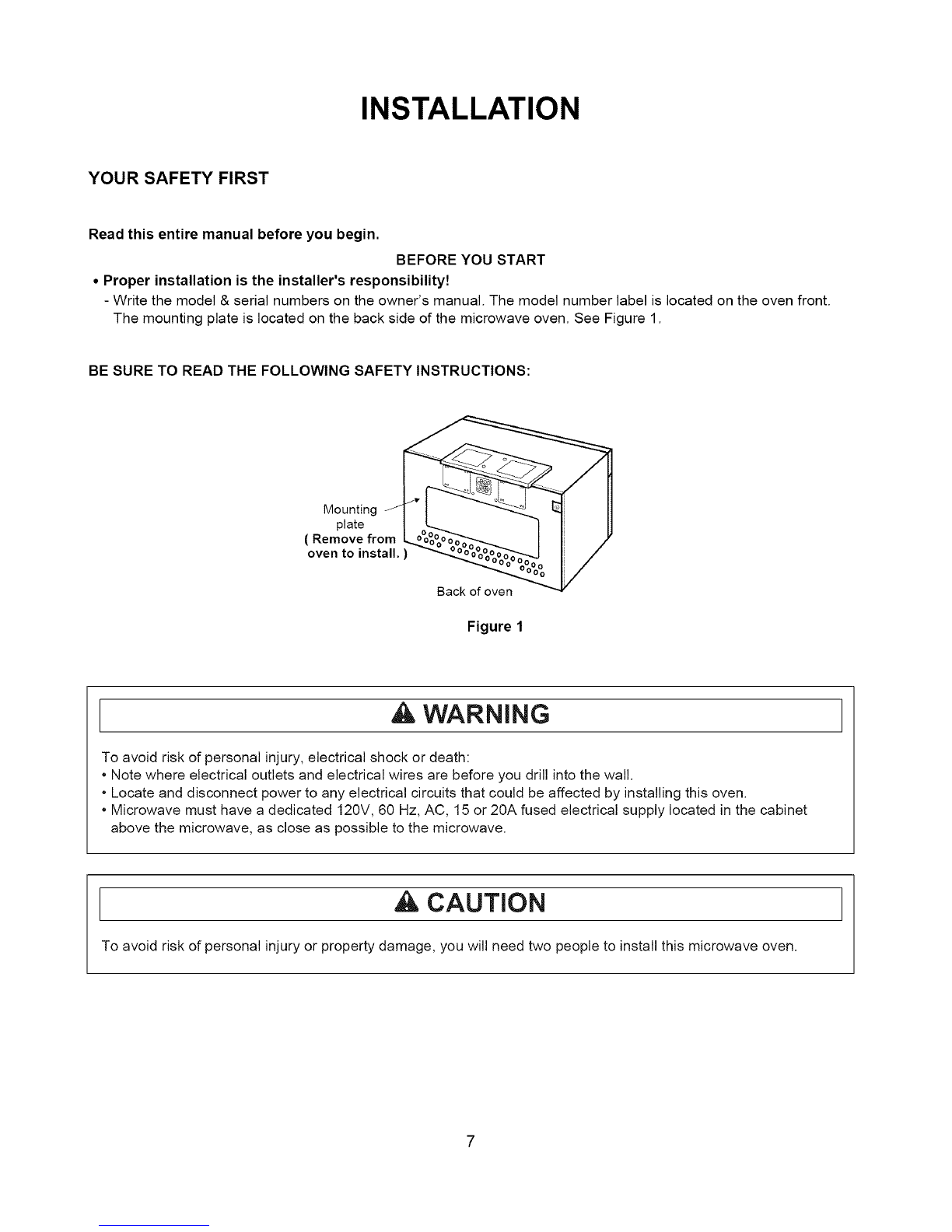

INSTALLATION
YOUR SAFETY FIRST
Read this entire manual before you begin.
BEFORE YOU START
•Proper installation is the installer's responsibility!
- Write the model & serial numbers on the owner's manual. The model number label is located on the oven front.
The mounting plate is located on the back side of the microwave oven. See Figure 1.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
Mounting
plate
(Remove from
oven to install. )
Back of oven
Figure 1
[WARNING ]
To avoid risk of personal injury, electrical shock or death:
*Note where electrical outlets and electrical wires are before you drill into the wall.
*Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
*Microwave must have a dedicated 120V, 60 Hz, AC, 15 or 20A fused electrical supply located in the cabinet
above the microwave, as close as possible to the microwave.
[ CAUTION ]
To avoid risk of personal injury or property damage, you will need two people to install this microwave oven.

INSTALLATION
YOUR SAFETY FIRST
[CAUTION ]
To avoid risk of personal injury, install microwave oven only as instructed.
[ CAUTION ]
To avoid risk of personal injury, place a piece of the carton or other heavy material, such as a blanket, over the
countertop or cooktop to protect it. DO NOT use a plastic cover.
•MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
- Mount the oven against a flat, vertical wall, so it is supported by the wall.
The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
- DO NOT mount the microwave oven to an island or peninsula cabinet.
- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of any items you
place inside the oven or upper cabinet.
- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
- BE SURE you have enough space. See Figure 3 below for minimum vertical and horizontal clearance.
- This microwave oven can be installed over gas or electric cooking products no more than 36 inches wide.
- IF cabinet depth EXCEEDS 13 1/2", microwave oven must be uninstalled to gain access to the two vent grille
mounting screws on top of unitl. Grille must be removed to replace the oven light bulb and charcoal filter. See
Maintenance section for more information.
/
30" min. cabinet opening width
_Grounded Plug
====4 (inside upper cabinet)
Power Supply
Cord Hole
30" min. clearancefrom bottom
of cabinet to cooking surface
or countertop
(Use templates included
with installation instructions)
/
P_9
Figure 3

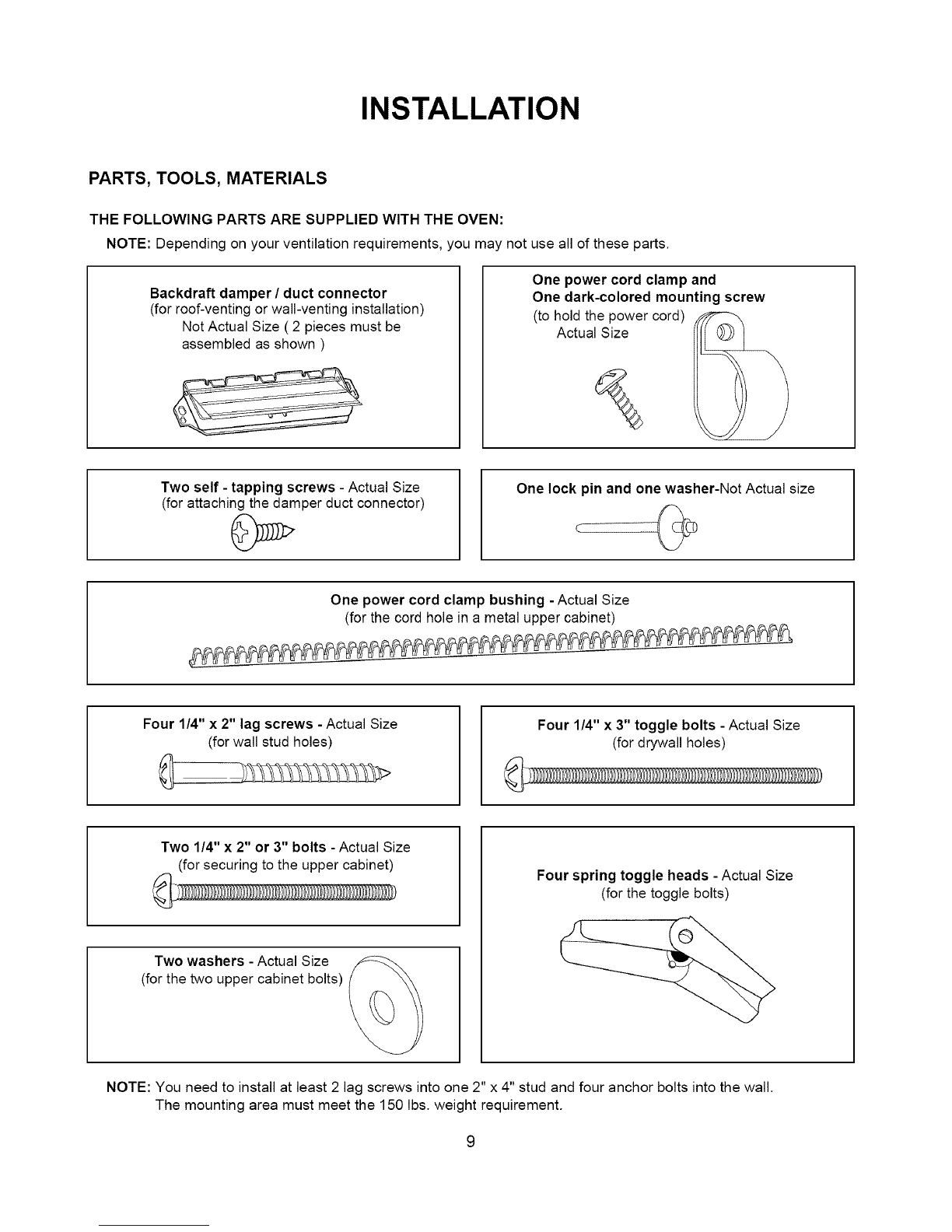

INSTALLATION
PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Backdraft damper /duct connector
(for roof-venting or wall-venting installation)
Not Actual Size ( 2 pieces must be
assembled as shown )
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)
Actual Size
Two self - tapping screws - Actual Size
(for attaching the damper duct connector) One lock pin and one washer-Not Actual size
One power cord clamp bushing - Actual Size
(for the cord hole in a metal upper cabinet)
Four 1/4" x 2" lag screws -Actual Size
(for wall stud holes) Four 1/4" x 3" toggle bolts -Actual Size
(for drywall holes)
Two 1/4" x 2" or 3" bolts -Actual Size
(for securing to the upper cabinet)
Two washers - Actual Size
(for the two upper cabinet bolts)
Four spring toggle heads - Actual Size
(for the toggle bolts)
NOTE: You need to install at least 2 lag screws into one 2" x 4" stud and four anchor bolts into the wall.
The mounting area must meet the 150 Ibs. weight requirement.

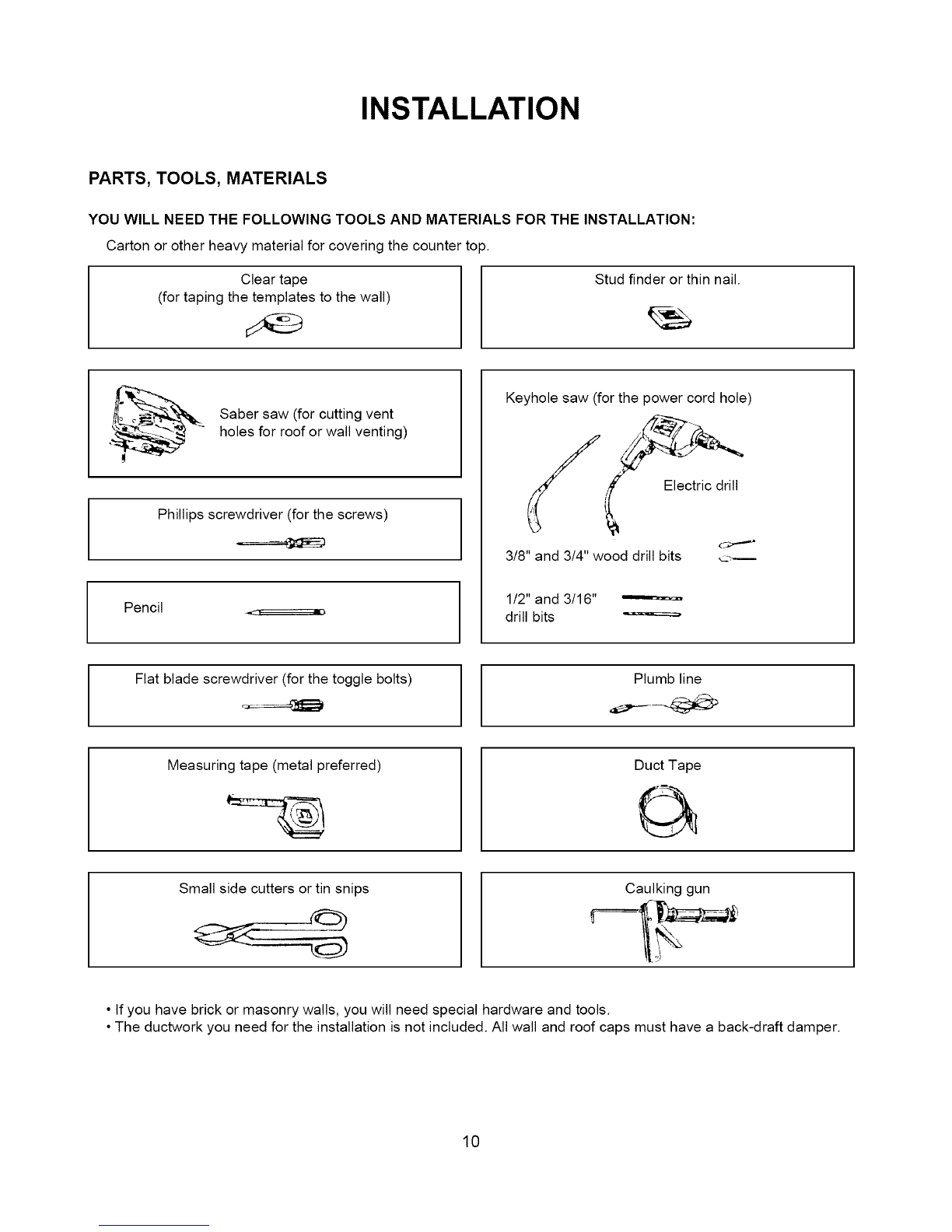

INSTALLATION
PARTS, TOOLS, MATERIALS
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:
Carton or other heavy material for covering the counter top.
Clear tape
(for taping the templates to the wall) Stud finder or thin nail.
Saber saw (for cutting vent
holes for roof or wall venting)
Phillips screwdriver (for the screws)
Pencil _ _,
Flat blade screwdriver (for the toggle bolts)
r--.,_=---a_J
Keyhole saw (for the power cord hole)
3/8" and 3/4" wood drill bits ,__.
1/2" and 3/16"
drill bits
Plumb line I
Measuring tape (metal preferred) Duct Tape
Small side cutters or tin snips Caulking gun
• If you have brick or masonry walls, you will need special hardware and tools.
•The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft damper.
10

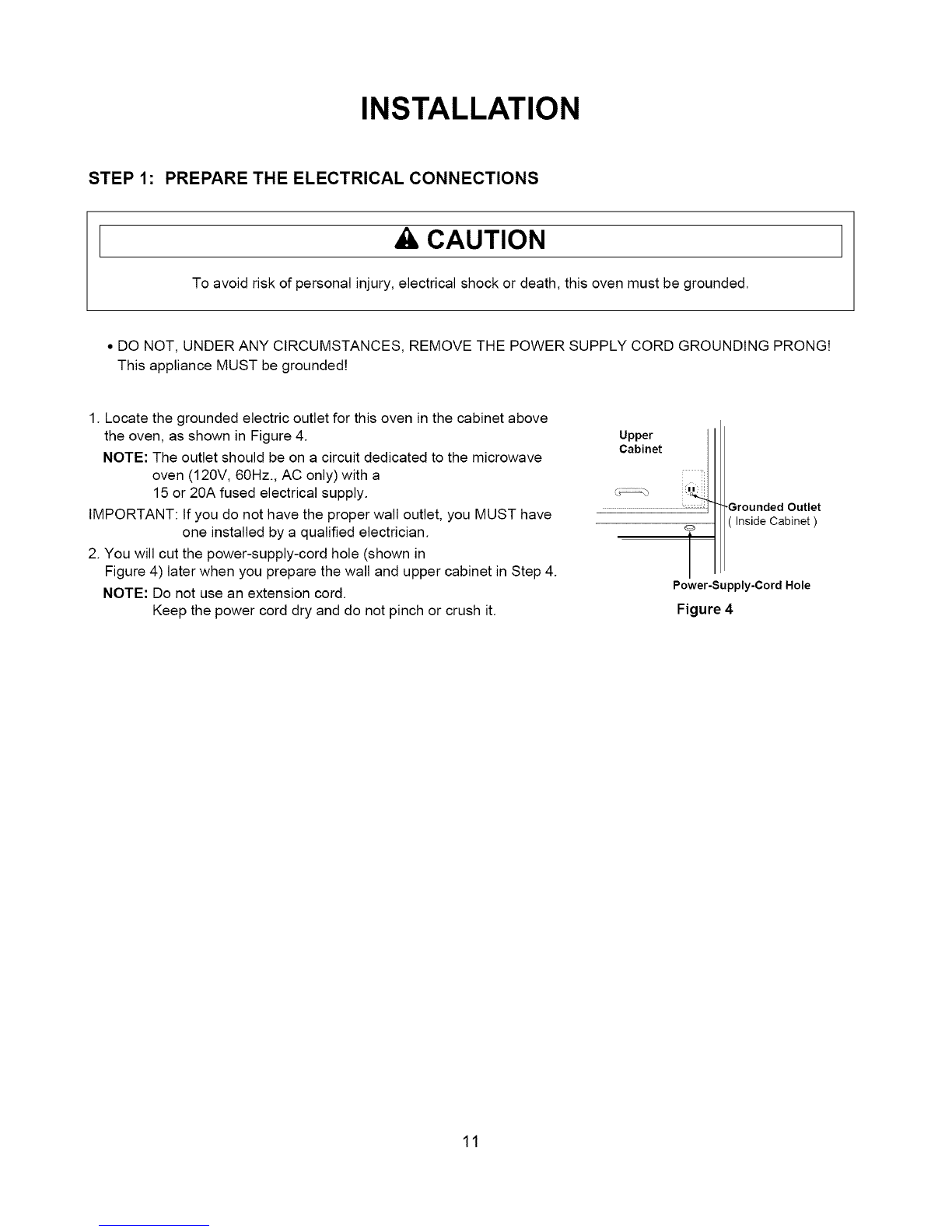

INSTALLATION
STEP 1: PREPARE THE ELECTRICAL CONNECTIONS
[CAUTION ]
To avoid risk of personal injury, electrical shock or death, this oven must be grounded.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
1. Locate the grounded electric outlet for this oven in the cabinet above
the oven, as shown in Figure 4.
NOTE: The outlet should be on a circuit dedicated to the microwave
oven (120V, 60Hz., AC only) with a
15 or 20A fused electrical supply.
IMPORTANT: tf you do not have the proper wall outlet, you MUST have
one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in
Figure 4) later when you prepare the wall and upper cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Upper IIII
Cabinet
............ ........................._ GIroUdnedecdaOUetI; t
Power-Supply-Cord Hole
Figure 4
11

INSTALLATION
STEP 2: PREPARE THE VENTING SYSTEM
[_ CAUTION ]
To avoid risk of personal injury, property damage, or fire this microwave oven must be properly vented.
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings
and length are shown in Figure 9.
You may vent your oven in one of three ways. However, do NOT vent into a wall cavity, an attic, or an unused area.
Roof-venting If your oven is located on an outside wall near the roof, as in Figures 6 (31/4" X 10" duct) and Figure 8
(6" round duct.)
Wall-venting If your oven is located on an outside wall of your house, as in Figure 5 (3I/4" X 10" duct) and Figure 8 (6"
round duct.)
Room-venting If your oven is located on an inside wall of your house, as in Figure 7.
NOTE: Ifyou choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance within the
wall for the exhaust duct.
cabinet
Wall Venting
_-walI cap
/
oven 3 1/4"x10" through-the-wall
" duct
Wall venting
Figure 5
Roof Venting
cab_ / roof cap
3 !/4"x10" I I
duct _
oven ; II through-the-roof
Roof venting
Figure 6
• DO NOT exhaust air into a wall, ceiling or a
concealed space of a building.
• DO NOT install 2 elbow fittings next to each
other. This creates unusual air patterns and
can result in poor ventilation.
• ALWAYS vent outside. Do not vent into an
attic or crawlspace.
• Seal all joints in venting system with duct
tape to avoid smoke or odor in home.
• DO NOT use laundry wall caps.
RoomVenting
cabine_
ove:
Figure 7
roof cap
6" min.
diameter wall cap
round duct
elbow
3 1/4"to round _J
duct transition
3 1/4"to round
ductworktransition
Figure 8
12

INSTALLATION
STEP 2: PREPARE THE VENTING SYSTEM
STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust damper's sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows, and keep length as short as possible.
Below are the standard fittings and their equivalent length in feet.
3 1/4"x10"
to 6"=5ft.
2
3 1/4"x!0" roof
cap=24ft.
3
3 1/4"x!0" 90°
elbow=25ft.
4
90° elbow
=lOft.
3 !/4"x10"
wall cap
=40ft.
6
45 °elbow
=5ft.
7
3 1/4"x10"
fiat elbow
=lOft.
Figure 9
To calculate the equivalent length of each ductpiece used, see the examples below.
I
Examples
For 3 1/4"x10" SYSTEMS
3 1/4"x10" _ 6ft. _ wall cap
90 elbow _.,_ I[_
H2_t.
1-3 1/4" x 10" 90 °elbow = 25 ft.
1-Wall Cap 40 ft.
8 feet straight duct 8 ft.
TOTAL LENGTH 73 ft.
For 6" ROUND SYSTEMS wall cap
90 elbows _ 6ft.
transi_ / "---11¢
1-transition = 5 ft.
2-90 °elbows = 20 ft.
1-Wall Cap = 40 ft.
8feet straight = 8 ft.
TOTAL LENGTH = 73 ft.
13

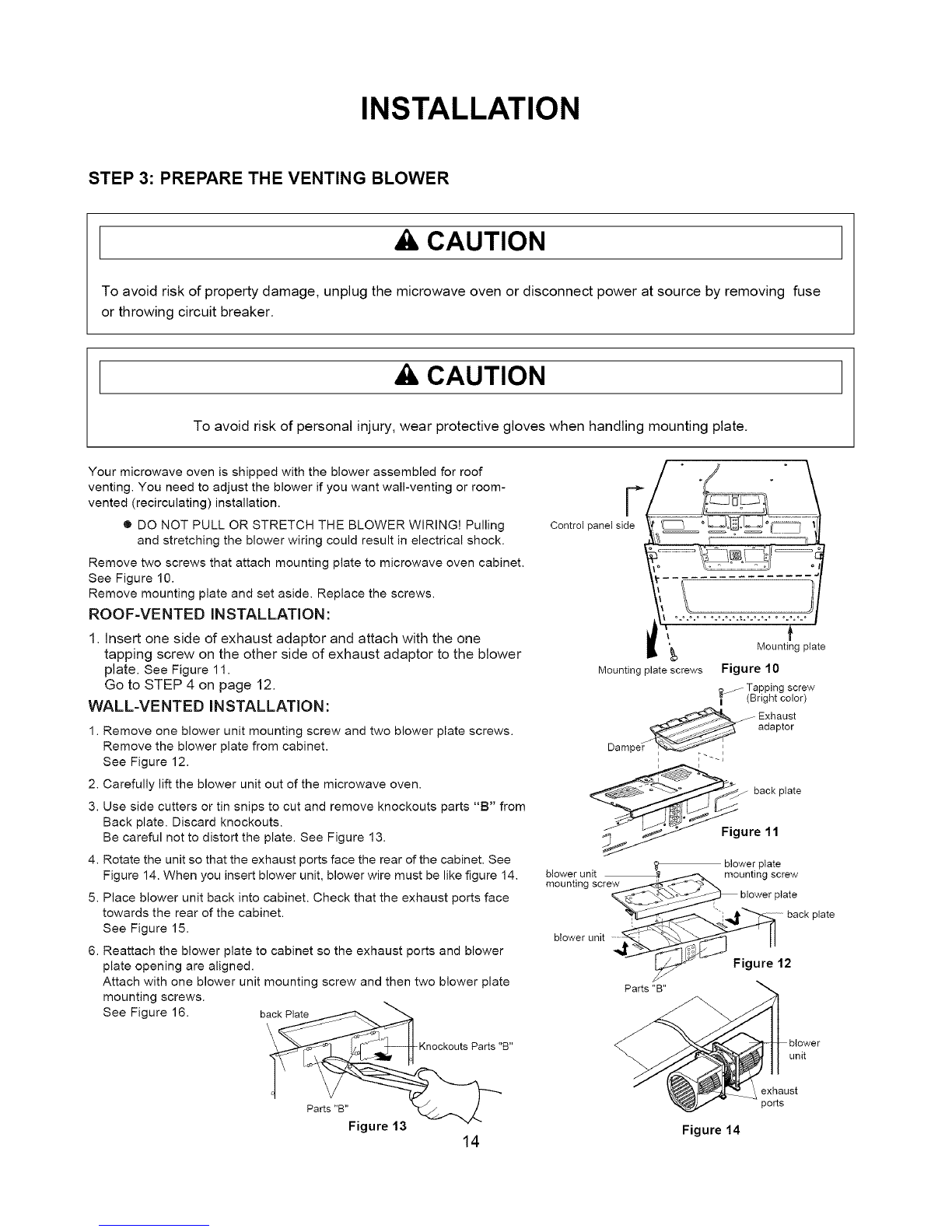

INSTALLATION
STEP 3: PREPARE THE VENTING BLOWER
[CAUTION ]
To avoid risk of property damage, unplug the microwave oven or disconnect power at source by removing fuse
or throwing circuit breaker.
[CAUTION ]
To avoid risk of personal injury, wear protective gloves when handling mounting plate.
Your microwave oven is shipped with the blower assembled for roof
venting. You need to adjust the blower if you want wall-venting or room-
vented (recirculating) installation.
• DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling
and stretching the blower wiring could result in electrical shock.
Remove two screws that attach mounting plate to microwave oven cabinet.
See Figure 10.
Remove mounting plate and set aside. Replace the screws.
ROOF-VENTED INSTALLATION:
1. Insert one side of exhaust adaptor and attach with the one
tapping screw on the other side of exhaust adaptor to the blower
plate. See Figure 11.
Go to STEP 4 on page 12.
WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and two blower plate screws.
Remove the blower plate from cabinet.
See Figure 12.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove knockouts parts "B" from
Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 13.
4. Rotate the unit so that the exhaust ports face the rear of the cabinet. See
Figure 14. When you insert blower unit, blower wire must be like figure 14.

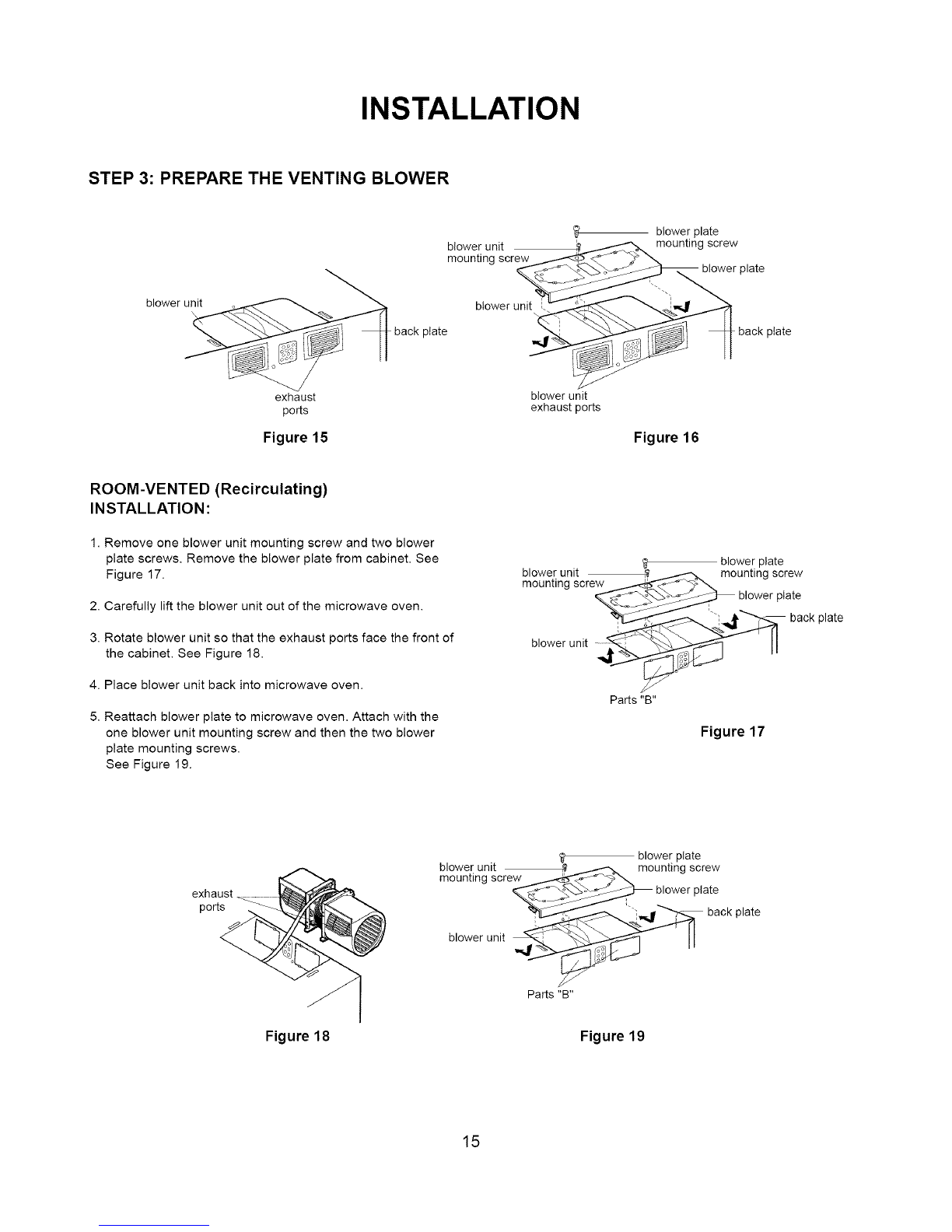

5. Place blower unit back into cabinet. Check that the exhaust ports face
towards the rear of the cabinet.
See Figure 15.
6. Reattach the blower plate to cabinet so the exhaust ports and blower
plate opening are aligned.
Attach with one blower unit mounting screw and then two blower plate
mounting screws.
See Figure 16. back Plate
-Knockouts Parts "B"
F
Control panel side
\
Mounting plate screws
Mounting plate
Figure 10
_ Tapping screw
(Bright color)
J Exhaust
adaptor
i
Dampe
back plate
Figure 11
t
blower unit
mounting scre_
blower unit ,_<_
blower plate
unting screw
blower plate
back plate
_Figure 12
Parts "B"
unit
exhaust
po_s
Parts "B"
Figure 13 Figure 14
14

INSTALLATION
STEP 3: PREPARE THE VENTING BLOWER
blower unit
exhaust
ports
Figure 15
blower unit
mounting screw
blower unit L
back plate
blower unit
exhaust ports
blower plate
mounting screw
blower plate
back plate
Figure 16
ROOM-VENTED (Recirculating)
INSTALLATION:
1. Remove one blower unit mounting screw and two blower
plate screws. Remove the blower plate from cabinet. See
Figure 17.
2. Carefully lift the blower unit out of the microwave oven.
3. Rotate blower unit so that the exhaust ports face the front of
the cabinet. See Figure 18.
4. Place blower unit back into microwave oven.
5. Reattach blower plate to microwave oven. Attach with the
one blower unit mounting screw and then the two blower
plate mounting screws.
See Figure 19.
blower unit
mounting screw
blower unit
Parts"B"
blower plate
mounting screw
blower plate
back plate
Figure 17
exhaust
ports
blower unit
mounting screw
blower unit
blower plate
mounting screw
plate
plate
Parts"B"
Figure 18 Figure 19
15

INSTALLATION

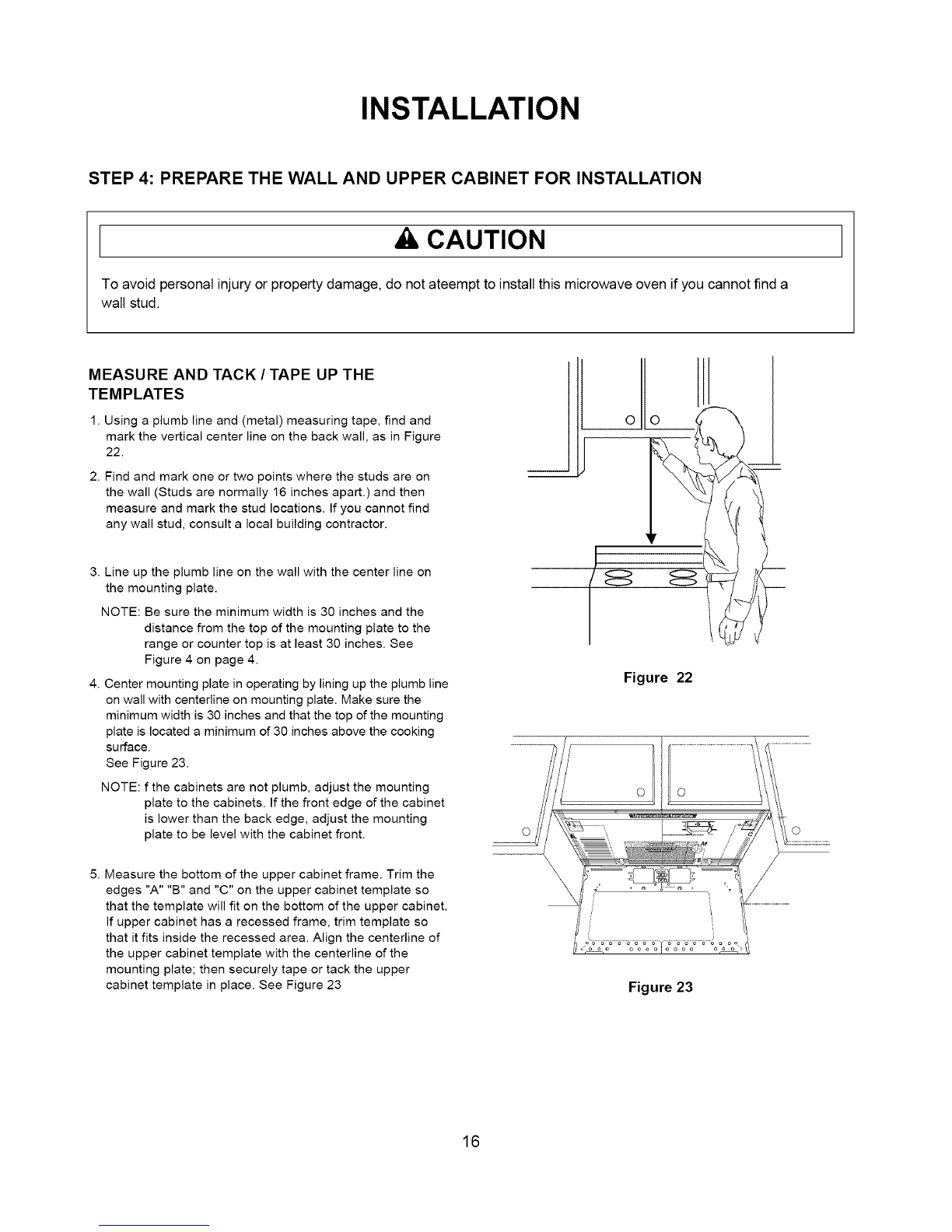

STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
[_ CAUTION ]
To avoid personal injury or property damage, do not ateempt to install this microwave oven if you cannot find a
wall stud.
MEASURE AND TACK /TAPE UP THE
TEMPLATES
1. Using a plumb line and (metal) measuring tape, find and
mark the vertical center line on the back wall, as in Figure
22.
2. Find and mark one or two points where the studs are on
the wall (Studs are normally 16 inches apart.) and then
measure and mark the stud locations. If you cannot find
any wall stud, consult a local building contractor.
3. Line up the plumb line on the wall with the center line on
the mounting plate.
NOTE: Be sure the minimum width is 30 inches and the
distance from the top of the mounting plate to the
range or counter top is at least 30 inches. See
Figure 4 on page 4.
4. Center mounting plate in operating by lining up the plumb line
on wall with centerline on mounting plate. Make sure the
minimum width is 30 inches and that the top of the mounting
plate is located a minimum of 30 inches above the cooking
surface.
See Figure 23.
NOTE: f the cabinets are not plumb, adjust the mounting
plate to the cabinets• If the front edge of the cabinet
is lower than the back edge, adjust the mounting
plate to be level with the cabinet front.
5. Measure the bottom of the upper cabinet frame. Trim the
edges "A" "B" and "C" on the upper cabinet template so
that the template will fit on the bottom of the upper cabinet.
If upper cabinet has a recessed frame, trim template so
that it fits inside the recessed area. Align the centerline of
the upper cabinet template with the centerline of the
mounting plate; then securely tape or tack the upper
cabinet template in place. See Figure 23
O
O
Figure 22
O O
==_ • •
Figure 23
O
16

INSTALLATION
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
[ WARNING ]
To avoid risk of personal injury, electrical shock or death:
• Note where electrical outlets and electrical wires are before you drill into the wall.
• Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
[ & WARNING ]
To avoid risk of personal injury, electrical shock or death, cover the edge of the power supply cord hole with the
power supply cord bushing.
1. Find the points on the mounting plate labeled "A", "B", "C", and "D". Drill a 3/16" diameter hole at any points that are over a
wall stud. Drill a 3/4" diameter hole at any points over drywall.
2. Drill a 3/8" hole at points "J", "K", and "N" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks (not included) to provide
additional support for the bolts. See Figure 24.
• Mark the center of each filler block and drill a 3/8" diameter hole at the marks.
• Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to cabinet with masking
tape. See Figure 25.
3. Cut or drill a 2" diameter hole at the area marked "M".
Power supply cord hole on the upper cabinet template. If the
upper cabinet is metal, you will need to cover the edge of the
hole with the power supply cord bushing (supplied) to prevent
damage to the cord from the rough metal edge.
cabinet front filler block cabinet
bottom shelf
4. Cut out the venting areas (with the saber saw):
• Roof-Vented: cut out the shaded area marked "L" on the
upper cabinet template.
• Wall-Vented: go to STEP 5, INSTALL THE MOUNTING
PLATE, located on page 19. Figure 24
5. Complete whichever venting system you have chosen. Use
caulking compound to seal the exterior wall or roof opening
around the wall cap or roof cap.
Figure 25
17

iNSTALLATiON

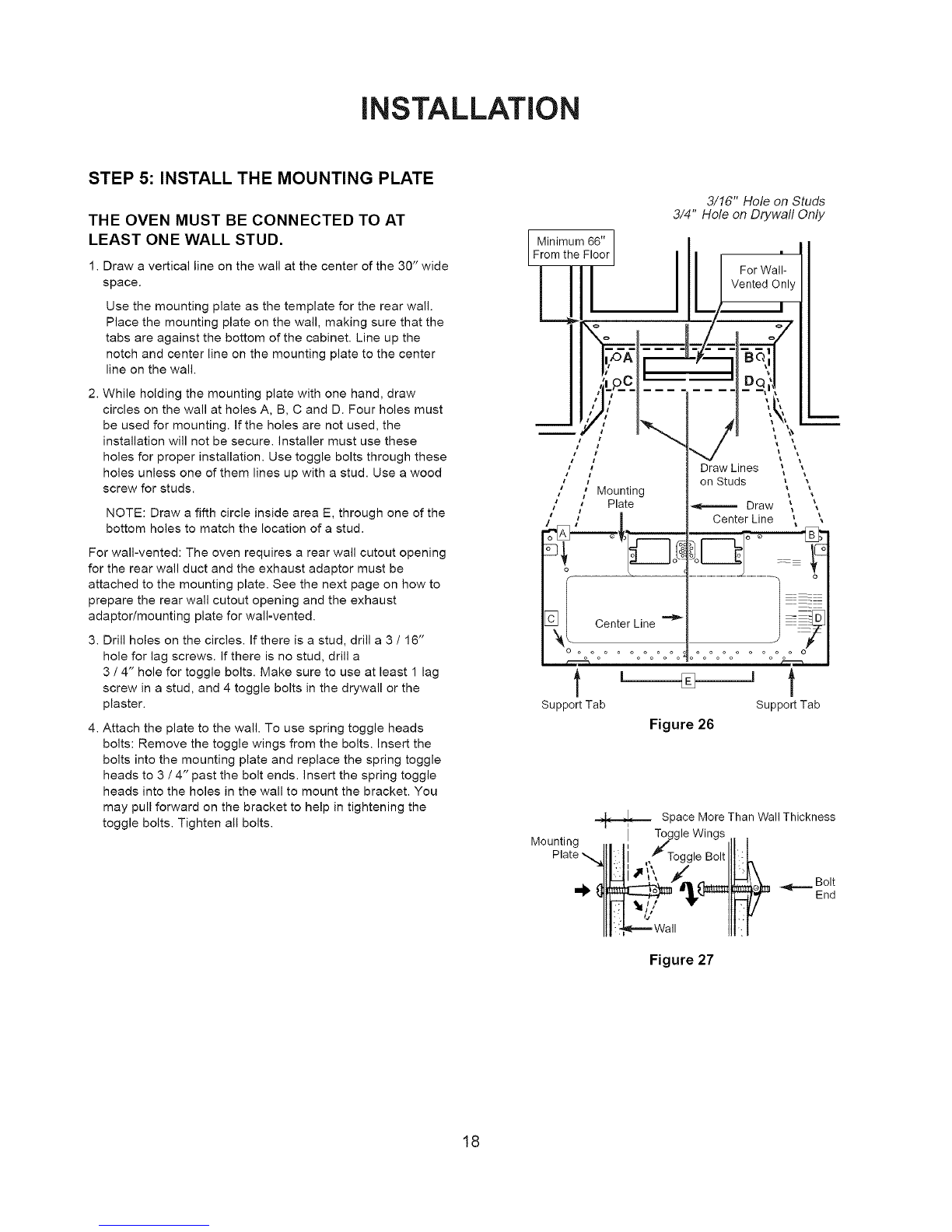

STEP 5: INSTALL THE MOUNTING PLATE
THE OVEN MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.
1. Draw a vertical line on the wall at the center of the 30" wide
space.
Use the mounting plate as the template for the rear wall.
Place the mounting plate on the wall, making sure that the
tabs are against the bottom of the cabinet. Line up the
notch and center line on the mounting plate to the center
line on the wall.
2. While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D. Four holes must
be used for mounting. If the holes are not used, the
installation will not be secure, installer must use these
holes for proper installation. Use toggle bolts through these
holes unless one of them lines up with a stud. Use a wood
screw for studs.
NOTE: Draw a fifth circle inside area E, through one of the
bottom holes to match the location of a stud.
For wall-vented: The oven requires a rear wall cutout opening
for the rear wall duct and the exhaust adaptor must be
attached to the mounting plate. See the next page on how to
prepare the rear wall cutout opening and the exhaust
adaptor/mounting plate for wall-vented.
3. Drill holes on the circles. If there is a stud, drill a 3 /16"
hole for lag screws. If there is no stud, drill a
3/4" hole for toggle bolts. Make sure to use at least 1 lag
screw in a stud, and 4 toggle bolts in the drywall or the
plaster.
4. Attach the plate to the wall. To use spring toggle heads
bolts: Remove the toggle wings from the bolts. Insert the
bolts into the mounting plate and replace the spring toggle
heads to 3 /4" past the bolt ends. insert the spring toggle
heads into the holes in the wall to mount the bracket. You
may pull forward on the bracket to help in tightening the
toggle bolts. Tighten all bolts.
Minimum 66"
From the F oor
/i
pc.
_ /
3/16" Hole on Studs
3/4" Hole on Drywall Only
IFor Wall-
lVented Only
=
/Draw Lines --
/on Studs _ \
/Mounting _ _
i Plate _ Draw _
// Center Line _ \
.07 I_' ,_, ,° ,
..............................:t
C_I Center Line - 1_i_ S
o o o o o o o o o c_ o o o o o o o o o
m [] m
Support Tab Support Tab
Figure 26
Space More Than Wall Thickness
,_ggle Wings
Figure 27
18

INSTALLATION
STEP 5: INSTALL THE MOUNTING PLATE
TO PREPARETHE REAR WALL CUTOUT
OPENING AND EXHAUST
ADAPTOR/MOUNTING PLATE FOR WALL-
VENTED:
1. Place the mounting plate against the rear wall as
described in step 5 item 1 (page 14).
2. Using a pencil, put dots through slots F and G, and
through holes H and I. Remove the mounting plate and
draw lines extending through the points. This will give the
location and size of the box cutout for the rear wall duct.
• Attach the exhaust adaptor to the rear mounting plate by
sliding it into the guides at the top center of the plate on
the wall side. Push in securely until it is past the top
locking tabs and in the lower locking tabs. Take care to
assure the damper hinge is installed so that it is at the top
and that the damper swings freely.
• Carefully guide the exhaust adaptor, now attached to the
mounting plate, into the house duct, before using the
screws to attach the plate to the wall. This will assure
proper alignment for installation.
• Return to step 5, item 3 (page 14) to continue. After
completing the installation of the mounting plate, again
check the rear damper for free movement to assure it will
operate properly.
Figure 28
Exhaust Adaptor
Slide exhaust
adaptor into
guides on
rear panel
Figure 29
Damper
(hinge side up)
Mounting Plate
(wall side)
Guides
19

INSTALLATION
STEP 6: ATTACH THE OVEN TO THE WALL
[CAUTION ]
To avoid risk of personal injury or property damage, you will need two people to install this microwave oven.
1. Carefully lift microwave oven and hang it on support tabs
(See Figure 26) at the bottom of the mounting plate.
Reaching through upper cabinet, thread power supply cord
through the power supply cord hole in the bottom of the
upper cabinet. See Figure 30.
I
power cord
power cord
hole
2. Rotate the microwave oven upward so the top of oven is
against the bottom of the upper cabinet or cabinet frame.
3. Drop the lock pin and washer assembly into hole "N" (left
side hole) and push the pin down as far as it will go. See
Figure 31.
Figure 30
!
4. Place washers over two 1/4"x3" bolts. Then insert a bolt
down through each hole in the upper cabinet bottom.
Tighten the bolts until the gap between the upper cabinet
and microwave oven is closed. See Figure 32.
5. Remove lock pin and washer.
If wall-vented or room-vented installation is used, go to No.
8 on the next page.
Figure 31
Figure 32
20
