Use&CoreGuide
Model AMV5164AA/AC
Important Safety Instructions .................. 2-4
Features ........................................................ 5-6
Operating Instructions ............................ 7-20
Care and Cleaning ................................. 21-22
Cooking Utensils .......................................... 23
Troubleshooting ..................................... 24-25
Warranty ......................................................... 26
Guide d'utilisation et d'entretien .............. 27
Guia de Uso y Cuidado ................................ 53
Keep instructions for future reference.
Be sure Use & Care Guide stays with oven.
Form No. A/04/04 _2004 Maytag Appliances 3828WSA3927 Part No. 8112P262-60

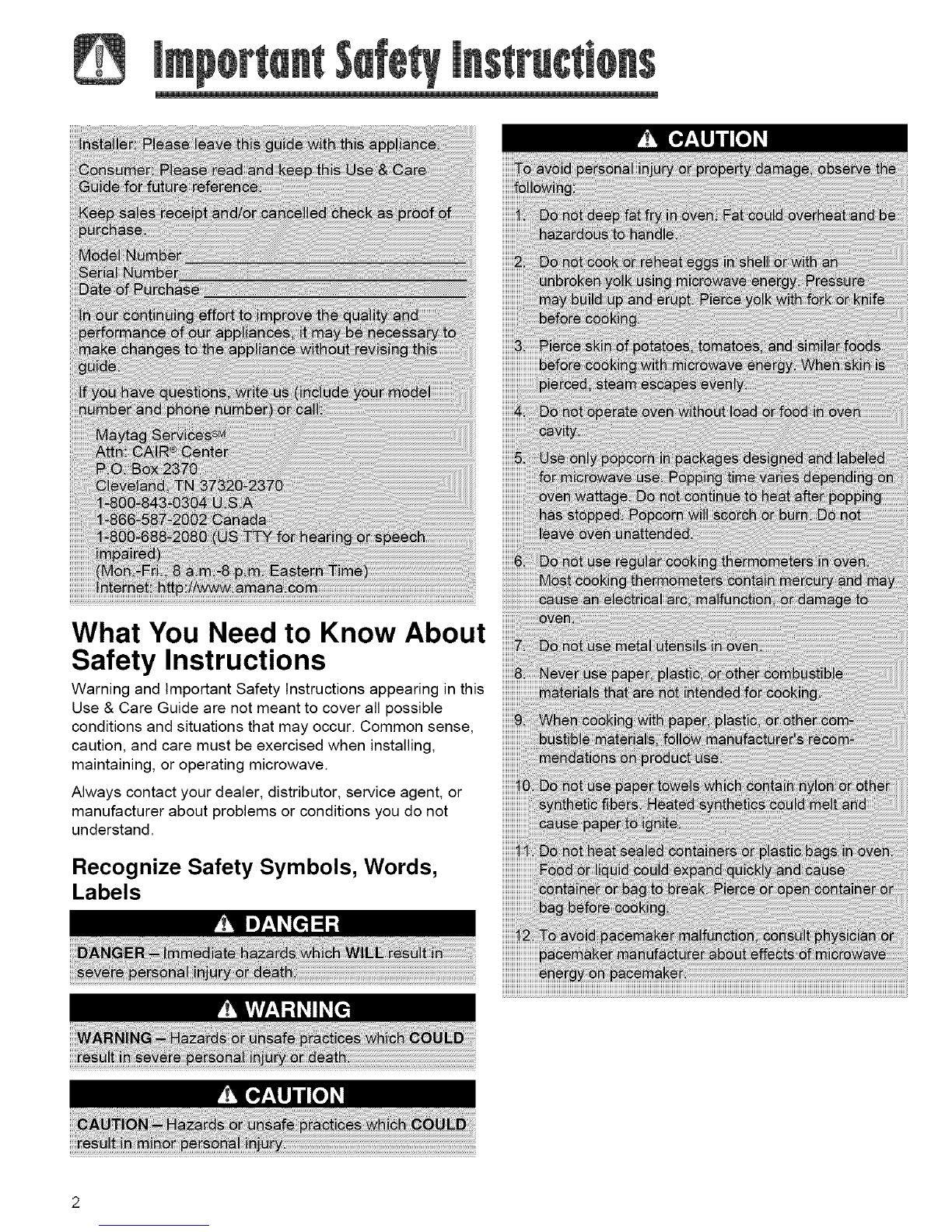

What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in this
Use & Care Guide are not meant to cover all possible
conditions and situations that may occur. Common sense
caution, and care must be exercised when installing,
maintaining, or operating microwave.
Always contact your dealer, distributor, service agent, or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels

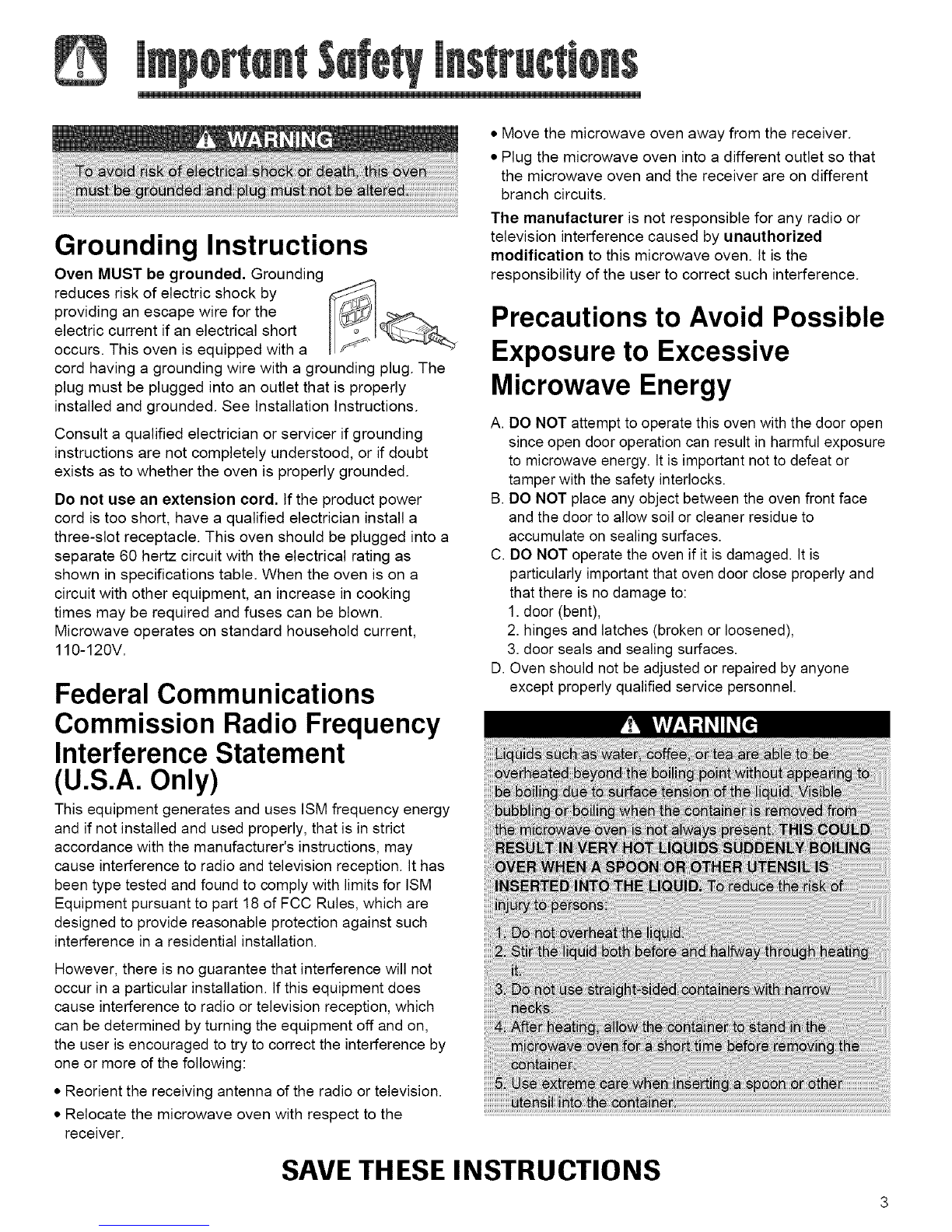

Grounding Instructions
Oven MUST be grounded, Grounding
reduces risk of electric shock by _1_1
providing an escape wire for the
electric current if an electrical short
occurs. This oven is equipped with a
cord having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded. See Installation Instructions.
Consult a qualified electrician or servicer if grounding
instructions are not completely understood, or if doubt
exists as to whether the oven is properly grounded.
Do not use an extension cord, If the product power
cord is too short, have a qualified electrician install a
three-slot receptacle. This oven should be plugged into a
separate 60 hertz circuit with the electrical rating as
shown in specifications table. When the oven is on a
circuit with other equipment, an increase in cooking
times may be required and fuses can be blown.
Microwave operates on standard household current,
110-120V.
Federal Communications
Commission Radio Frequency
Interference Statement
(U.S.A. Only)
This equipment generates and uses ISM frequency energy
and if not installed and used properly, that is in strict
accordance with the manufacturer's instructions, may
cause interference to radio and television reception. It has
been type tested and found to comply with limits for ISM
Equipment pursuant to part 18 of FCC Rules, which are
designed to provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following:
• Reorient the receiving antenna of the radio or television.
• Relocate the microwave oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that
the microwave oven and the receiver are on different
branch circuits.
The manufacturer is not responsible for any radio or
television interference caused by unauthorized
modification to this microwave oven. tt is the
responsibility of the user to correct such interference.
Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy
A. DO NOT attempt to operate this oven with the door open
since open door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
B. DO NOT place any object between the oven front face
and the door to allow soil or cleaner residue to
accumulate on sealing surfaces.
C. DO NOT operate the oven if it is damaged. It is
particularly important that oven door close properly and
that there is no damage to:
1. door (bent),
2. hinges and latches (broken or loosened),
3. door seals and sealing surfaces.
D. Oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
SAVE THESE INSTRUCTIONS

SAVE TH ESE I NSTRUCTIONS

|entures
Window with
Metal Shield
Door Handle
Model and Serial
Number Plate Vent Grille
Glass Turntable
Cooking Guide
Metal Rack
Door Safety
Lock System
Cooktop/Countertop Light
Grease Filter
@
@
@
@
@
@
@
8@ B88 ['00 F<(_© S
Hi/L_s/[Nf
ib:i
H_/kc/Uf_
I
Panel
@
®
@
@
@
@
@
@
@
@
@
OVEN SPECIFICATIONS
Power Supply 120 VAC,
60 Hz
Input Power 1,500 W
Cooking Power 1,000 W
(IEC 60705
Standard)
Frequency 2,450 MHz
Rated Current 13 A
Outer Dimensions 291W_6"x 1670
(WxHxD) x 153h''
Cavity Volume 1.6 Cu. Ft.
Net Weight 52 Ibs.
FEATURES
,
,
,
DISPLAY: The Display includes
a clock and indicators to tell you time
of day, cooking time settings and
cooking functions selected.
POPCORN: Touch this pad when
popping popcorn in your microwave
oven. The oven's sensor will tell the
oven how long to cook depending on
the amount of humidity itdetects
from the popcorn. See page 11 for
more information.
BAKED POTATO: Touch this pad to
cook potatoes. The oven's sensor will
tell the oven how long to cook
depending on the amount of humidity
it detects from the potato.See page 12
for moreinformation.
REHEAT: Touch this pad to reheat
casserole, dinner plate, and
soup/sauce. The oven's sensor will
tell the oven how long to cook
depending on the amount of humidity
coming from the food. See page 12
for more information.

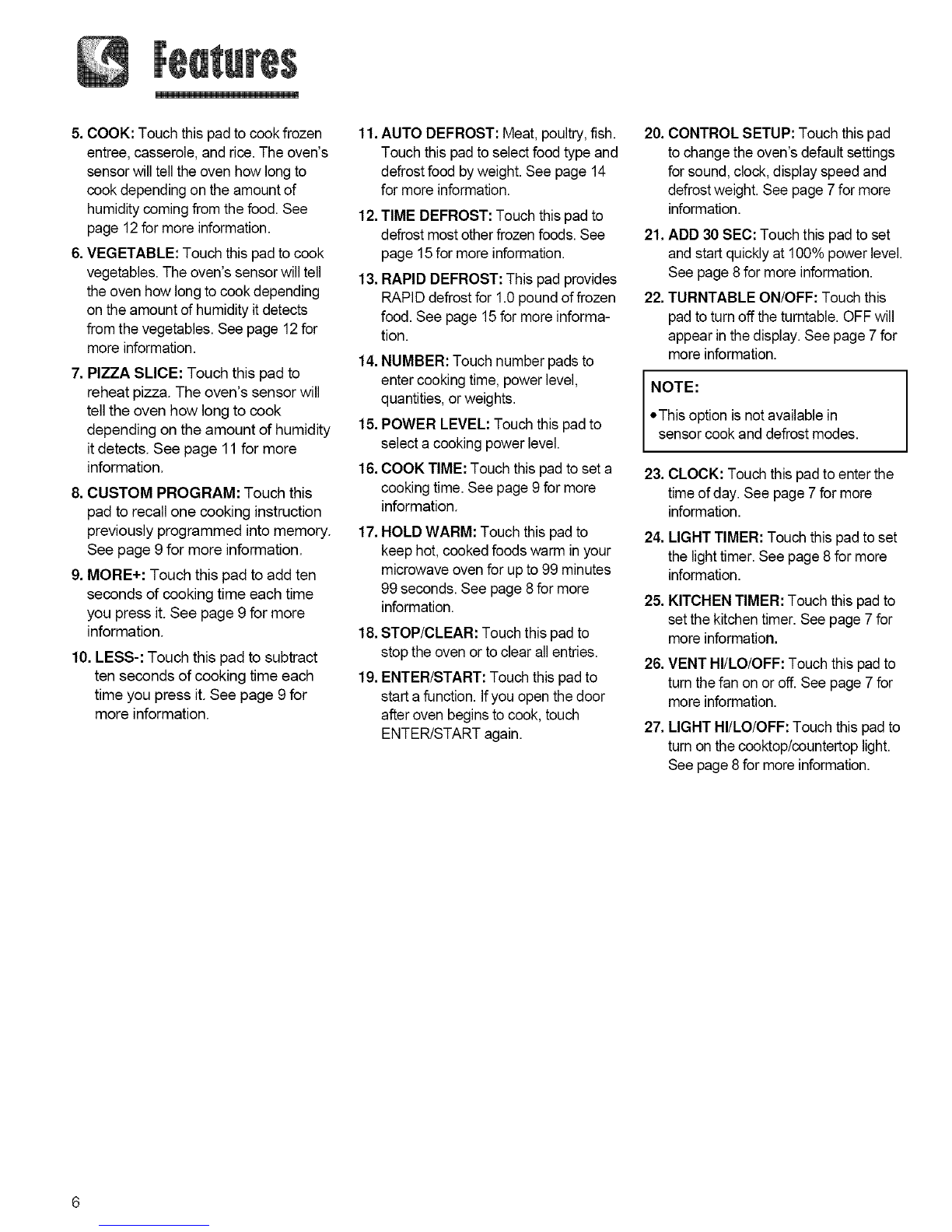

5,COOK:Touchthispadtocookfrozen
entree,casserole,andrice.Theoven's
sensorwilltelltheovenhowlongto
cookdependingontheamountof
humiditycomingfromthefood.See
page12formoreinformation.
6.VEGETABLE:Touchthispadtocook
vegetables.Theoven'ssensorwilltell
theovenhowlongtocookdepending
ontheamountofhumidityitdetects
fromthevegetables.Seepage12for
moreinformation.
7,PIZZASLICE:Touchthispadto
reheatpizza.Theoven'ssensorwill
telltheovenhowlongtocook
dependingontheamountofhumidity
itdetects.Seepage11formore
information.
8.CUSTOMPROGRAM:Touchthis
padtorecallonecookinginstruction
previouslyprogrammedintomemory.
Seepage9formoreinformation.
9,MORE+:Touchthispadtoaddten
secondsofcookingtimeeachtime
youpressit.Seepage9formore
information.
10.LESS-:Touchthispadtosubtract
tensecondsofcookingtimeeach
timeyoupressit.Seepage9for
moreinformation.
11,AUTODEFROST:Meat,poultry,fish.
Touchthispadtoselectfoodtypeand
defrostfoodbyweight.Seepage14
formoreinformation.
12.TIMEDEFROST:Touchthispadto
defrostmostotherfrozenfoods.See
page15formoreinformation.
13,RAPIDDEFROST:Thispadprovides
RAPIDdefrostfor1.0poundoffrozen
food.Seepage15formoreinforma-
tion.
14.NUMBER:Touchnumberpadsto
entercookingtime,powerlevel,
quantities,orweights.
15.POWERLEVEL:Touchthispadto
selectacookingpowerlevel.
16.COOKTIME:Touchthispadtoseta
cookingtime.Seepage9formore
information.
20,CONTROLSETUP:Touchthispad
tochangetheoven'sdefaultsettings
forsound,clock,displayspeedand
defrostweight.Seepage7formore
information.
21,ADD30SEC:Touchthispadtoset
andstartquicklyat100%powerlevel.
Seepage8formoreinformation.
22.TURNTABLEON/OFF:Touchthis
padtoturnofftheturntable.OFFwill
appearinthedisplay.Seepage7for
moreinformation.
23.
17,HOLDWARM:Touchthispadto 24.
keephot,cookedfoodswarminyour
microwaveovenforupto99minutes
99seconds.Seepage8formore
information. 25,
NOTE:
oThisoptionisnotavailablein
sensorcookanddefrostmodes.
18,STOP/CLEAR:Touchthispadto
stoptheovenortoclearallentries. 26,
19,ENTER/START:Touchthispadto
startafunction.Ifyouopenthedoor
afterovenbeginstocook,touch
ENTER/STARTagain. 27,
CLOCK:Touchthispadtoenterthe
timeofday.Seepage7formore
information.
LIGHTTIMER:Touchthispadtoset
thelighttimer.Seepage8formore
information.
KITCHENTIMER:Touchthispadto
setthekitchentimer.Seepage7for
moreinformation,
VENTHI/LO/OFF:Touchthispadto
turnthefanonoroff.Seepage7for
moreinformation.
LIGHTHI/LO/OFF:Touchthispadto
turnonthecooktop/countertoplight.
Seepage8formoreinformation.

Operndn9Instructions
LEARN ABOUT YOUR
MICROWAVE OVEN
This section discusses the concepts
behind microwave cooking and
introduces you to the basics you
need to know to operate your
microwave oven. Please read this
information before use.
CLOCK
This oven includes a 12-hour clock.
Example: To set 8:00 AM,
Ck_ <
1. Touch CLOCK
pad.(Press once
for AM, twice for
PM)
800
CI k
2. Enter the time
by using the
number key
pad.
3. Touch CLOCK
pad.
KITCHEN TIMER
You can use your microwave oven
as a timer. Use the Timer for timing
up to 99 minutes, 99 seconds.
Example: To set for 3minutes.
1. Touch
KITCHEN
°rim__¢ TIMER pad.
2. Enter the time
by using the
3OC_ number key
pad.
_St; ;';
3. Touch ENTER/
START pad.
When the time
is over, you will
hear beeps and
END wiJJ
display.
CONTROL SETUP
You can change the default values
for beep sound, clock, display speed
and defrost weight.
See following chart for more information.
1 BeepON/ 1 Sound ON
OFF control 2 Sound OFF
2 Clock display 1 Clock ON
control 2 Clock OFF
Display 1 Slow speed
2 Normal speed
3 Fast speed
Defrost weight 1 Lbs.
mode selected 2 Kg.
Example: To change defrost
weight mode (from Lbe. to Kg).
1. Touch
or r'_l CONTROL
_;_l_ SETUP pad.
2
2. Touch number 4
pad.
Touch number 2
pad.
VENT HI/LO/OFF
The VENT moves
w:;_' steam and other
Hi/Lo/©ff vapors from the
cooking surface. The vent will
operate at low speed whenever the
oven is on.
To operate the vent manually: Touch
VENT once for High fan speed, twice
for Low fan speed, or three times to
turn the fan off.
NOTE:
• If the temperature gets too hot
around the microwave oven, the fan
in the vent hood will automatically
turn on at the HIGH setting to cool
the oven. It may stay on up to an
hour. When this occurs, the vent
cannot be turned off.
TURNTABLE ON/OFF
For best cooking
off/of results, leave the
turntable on. tt can
be turned off for large dishes.
Press TURNTABLE ON/OFF to turn
the turntable on or off.
NOTES:
• This option is not available in sen-
sor cook and defrost modes.
• Sometimes the turntable can
become hot to touch, Be careful
touching the turntable during and
after cooking.
•Do not run the oven empty.

CHILD LOCK
You may lock the control panel to
prevent the microwave from being
accidentally started or used by
children.
The Child Lock feature is also useful
when cleaning the control panel.
Child Lock prevents accidental
programming when wiping the
control
panel.
Example: To set the child lock.
1. Touch STOP/
CLEAR pad.
2. Touch and hold
ENTER/START
_;;_"_; pad more than 4
seconds.
LOCKED will
appear in the
display window
with two beeps.
Example: To cancel the child lock,
1. Touch and hold
_t_, ENTER/START
_}_uu _' pad more than 4
seconds.
LOCKED will
disappear and
you hear two
beeps.
LIGHT HI/LO/OFF
Touch LIGHT
HIiLO/OFF pad
once for bright
n/Lo/_ light, twice for
night light, or three
times to turn the
light off.
ADD 30 SEC.
A time-saving pad, this simplified
control lets you quickly set and start
microwave cooking without the need
to touch the ENTER/START pad.
Example: To set ADD 30 SEC. for 2
minutes,
1.TouchADD30
SEC.pad4 times.
The ovenbegins
cookingand display
showstime
countingdown.
LIGHT TIMER
You can set the LIGHT to turn on
and off automatically at any time.
The light comes on at the same time
every day until reset.
Example: Turn on 2:00 AM, turn off
7:00 AM.
/ itr;_H" 1. Touch LIGHT
TIMER
pad.(Press once
for AM, twice for
PM.)
2. Enter the time
you want the
LIGHT to turn
on.
2 0 O
3. Touch LIGHT
TIMER pad
L I_t again.(Press
once for AM,
twice for PM.)
4. Enter the time
71 C_ C} you want the
LIGHT to turn
off.
5. Touch ENTER/
_ _ _, START pad.
NOTE:
• To reset the time to turn on and
off the LIGHT, repeat steps 1 to 5.
Example: To cancel the LIGHT
TIMER.
1. Touch LIGHT
r m_, TIMER pad.
2. Touch STOP/
CLEAR pad.
NOTE:
• If you want to cancel the LIGHT
TIMER in operation, touch
the l.gh_ pad.
Hi/Lo/Off
HOLD WARM
You can keep cooked food warm in
your microwave oven for up to 99
minutes 99 seconds. You can use
HOLD WARM by itself or to follow a
cooking cycle automatically.
Example: To use HOLD WARM.
1. Touch HOLD
vv_m WARM pad.
2. Touch ENTER/
START pad.
NOTES:
•HOLD WARM operates for up to
99 minutes 99 seconds.
• Food cooked covered should be
covered during HOLD WARM.
• Pastry items (pies, turnovers,
etc.) should be uncovered during
HOLD WARM.
• Complete meals kept warm on a
dinner plate can be covered
during HOLD WARM.
Liquid 1-2 cups
Dry 5-10 ozs.
To make HOLD WARM automati-
cally follow another cycle:
• While you are programming the
cooking instructions, touch HOLD
WARM before touching ENTER/
START.
• When the last cooking cycle is
over, you will hear two beeps and
"HOLD WARM" will appear in the
oven display.
• You can set HOLD WARM to
follow AUTO DEFROST, or multi-
cycle cooking.

Operndn9Instructions

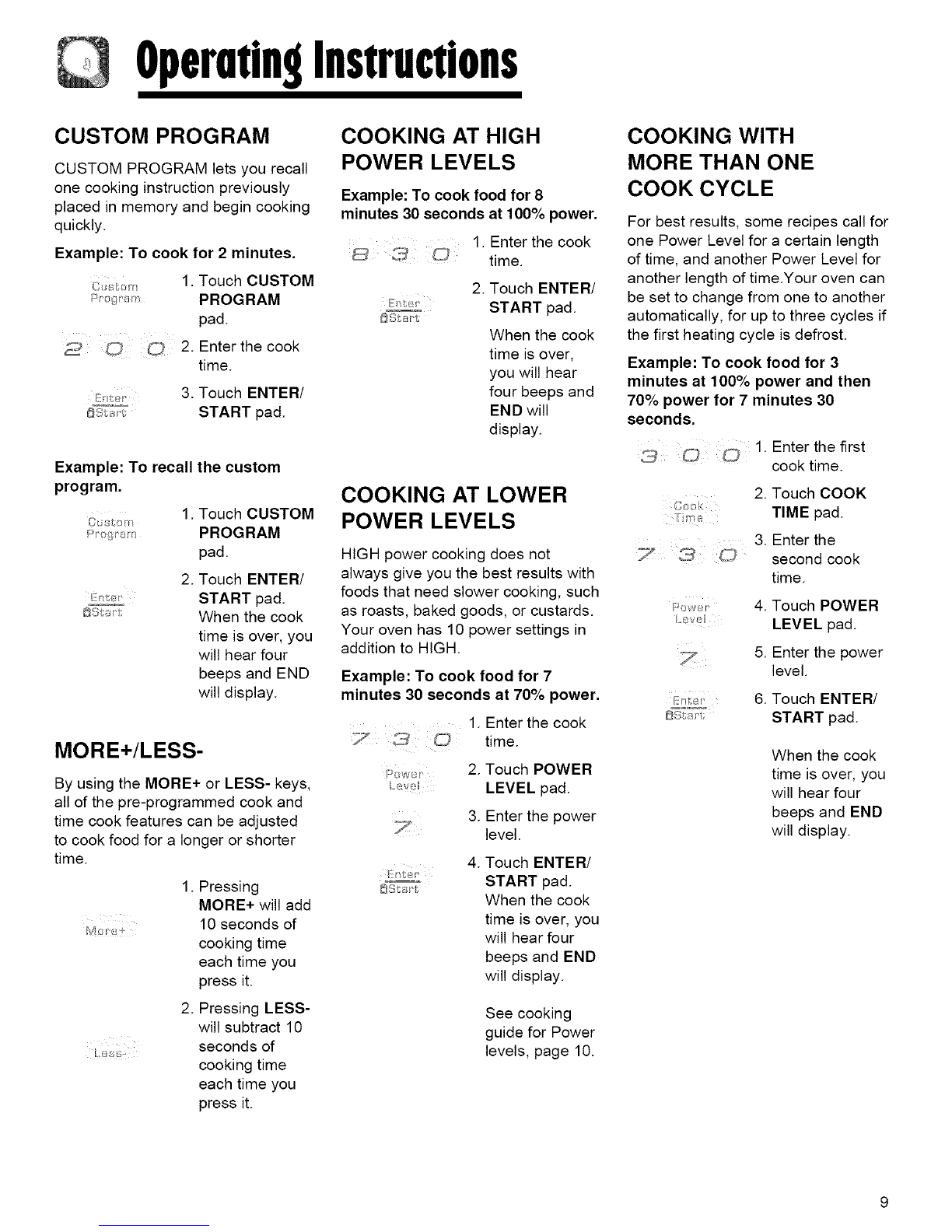

CUSTOM PROGRAM
CUSTOM PROGRAM lets you recall
one cooking instruction previously
placed in memory and begin cooking
quickly.
Example: To cook for 2 minutes.
1. Touch CUSTOM
_:__,tr'÷:_T_ PROGRAM
pad.
2 C} 2. Enter the cook
time.
3. Touch ENTER/
6,':_::'--°'_=:_T START pad.
Example: To recall
program. 1.
.
Ent@/'
the custom
Touch CUSTOM
PROGRAM
pad.
Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.
MORE+/LESS-
By using the MORE+ or LESS- keys,
all of the pre-programmed cook and
time cook features can be adjusted
to cook food for a longer or shorter
time.
Less-
1. Pressing
MORE+ will add
10 seconds of
cooking time
each time you
press it.
2. Pressing LESS-
will subtract 10
seconds of
cooking time
each time you
press it.
COOKING AT HIGH
POWER LEVELS
Example: To cook food for 8
minutes 30 seconds at 100% power,
1. Enter the cook
time.
_St,_Pt
2. Touch ENTER/
START pad.
When the cook
time is over,
you will hear
four beeps and
END will
display.
COOKING AT LOWER
POWER LEVELS
HIGH power cooking does not
always give you the best results with
foods that need slower cooking, such
as roasts, baked goods, or custards.
Your oven has 10 power settings in
addition to HIGH.
Example: To cook food for 7
minutes 30 seconds at 70% power.
1. Enter the cook
7 _Z_ C_ time.
2. Touch POWER
l..,_v_:1 LEVEL pad.
3. Enter the power
level.
4. Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.
See cooking
guide for Power
levels, page 10.
COOKING WITH
MORE THAN ONE
COOK CYCLE
For best results, some recipes call for
one Power Level for a certain length
of time, and another Power Level for
another length of time.Your oven can
be set to change from one to another
automatically, for up to three cycles if
the first heating cycle is defrost.
Example: To cook food for 3
minutes at 100% power and then
70% power for 7 minutes 30
seconds.
3 0 0 1. Enter the first
cook time.
2. Touch COOK
/::rYvk TIME pad.
3. Enter the
7' second cook
time.
4. Touch POWER
Io,,,_! LEVEL pad.
5. Enter the power
level.
6. Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.

Operndn9Instructions

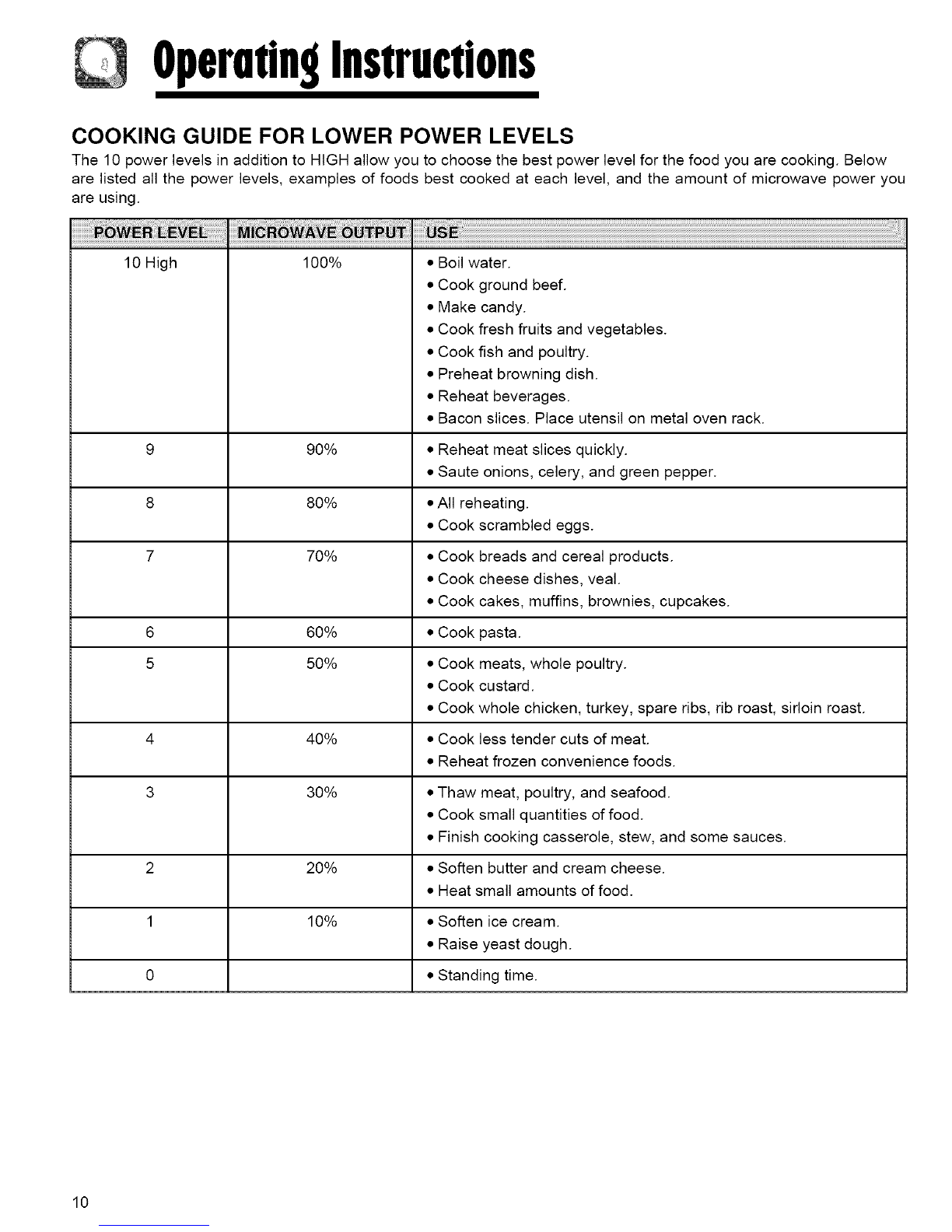

COOKING GUIDE FOR LOWER POWER LEVELS
The 10 power levels in addition to HIGH allow you to choose the best power ]eve] for the food you are cooking. Below
are listed all the power levels, examples of foods best cooked at each level, and the amount of microwave power you
are using.
10 High 100% •Boil water.
9 9O%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
0
•Cook ground beef.
•Make candy.
• Cook fresh fruits and vegetables.
• Cook fish and poultry.
• Preheat browning dish.
• Reheat beverages.
• Bacon slices. Place utensil on metal oven rack.
• Reheat meat slices quickly.
• Saute onions, celery, and green pepper.
• All reheating.
• Cook scrambled eggs.
• Cook breads and cereal products.
• Cook cheese dishes, veal.
• Cook cakes, muffins, brownies, cupcakes.
• Cook pasta.
• Cook meats, whole poultry.
• Cook custard.
• Cook whole chicken, turkey, spare ribs, rib roast, sirloin roast.
• Cook less tender cuts of meat.
• Reheat frozen convenience foods.
• Thaw meat, poultry, and seafood.
• Cook small quantities of food.
• Finish cooking casserole, stew, and some sauces.
• Soften butter and cream cheese.
• Heat small amounts of food.
• Soften ice cream.
• Raise yeast dough.
• Standing time.
10
