Operating Manual
az
DMC 6000-2
DMC 6000-2C
Trailed seed drill
MG6489
BAG0175.3
07.18
Printed in Germany
Please read this operating
manual before first commi
s-
sioning.
Keep it in a safe place
for future use.
en

2
Primera BAG0175.3
07.18
Reading the instruction
Manual and following it should seem to be in-
convenient and superfluous as it is not
enough to hear from others and to realize that a
machine is good, to buy it and to believe that now
everything should work by itself. The person in
question would not only harm himself but also
make the mistake of blaming the machine for pos-
sible failures instead of himself. In order to ensure
success one should enter the mind of a thing,
make himself familiar with every part of the ma-
chine and get acquainted with how it's handled.
Only in this way could you be satisfied both with
the machine and with yourself. This goal is the
purpose of this instruction manual.
Leipzig-Plagwitz 1872.

Identification data
Primera
BAG0175.3 07.18
3
Identification data
Enter the machine identification data here. You will find the identifica-
tion data on the rating plate.
Machine identification number:
(ten-digit)
Type: Primera
Year of manufacture:
Basic weight (kg):
Approved total weight (kg):
Maximum load (kg):
Manufacturer's address
AMAZONEN-WERKE
H. DREYER GmbH & Co. KG
Postfach 51
D-49202
Tel.:
Fax:
E-mail:
Hasbergen
+ 49 (0)5405 501-0
+ 49 (0)5405 501-234
[e-mail]
Spare part orders
Online spare parts catalogue: www.amazone.de
When ordering spare parts, always specify the (ten-digit) machine
identification number.
Formalities of the operating manual
Document number:
MG6489
Compilation date:
07.18

Copyright AMAZONEN-WERKE H. DREYER GmbH & Co. KG, 2018
All rights reserved.
Reprinting, even of sections, only possible with the approval of
AMAZONEN-WERKE H. DREYER GmbH & Co. KG.

Foreword
4
Primera BAG0175.3
07.18
Foreword
Dear Customer,
You have chosen one of the quality products from the wide product
range of AMAZONEN-WERKE, H. DREYER GmbH & Co. KG. We
thank you for your confidence in our products.
On receiving the machine, check to see if it was damaged during
transport or if parts are missing. Using the delivery note, check that
the machine was delivered in full including the ordered special equip-
ment. Damage can only be rectified if problems are signalled immedi-
ately.
Before first commissioning, read and understand this operating man-
ual, and particularly the safety information. Only after careful reading
will you be able to benefit from the full scope of your newly purchased
machine.
Please ensure that all the machine operators have read this operating
manual before commissioning the machine.
Should you have any questions or problems, please consult this op-
erating manual or contact your local service partner.
Regular maintenance and timely replacement of worn or damaged
parts increases the lifespan of your machine.
User evaluation
Dear Reader,
We update our operating manuals regularly. Your suggestions for
improvement help us to create ever more user-
friendly manuals. Send
us your suggestions by fax.
AMAZONEN-WERKE
H. DREYER GmbH & Co. KG
Postfach 51
D-49202
Tel.:
Fax:
E-mail:
Hasbergen
+ 49 (0)5405 501-0
+ 49 (0)5405 501-234
[e-mail]

Table of Contents
Primera
BAG0175.3 07.18
5
1User Information..........................................................................................8
1.1 Purpose of the document.........................................................................................................8
1.2 Locations in the operating manual...........................................................................................8
1.3 Diagrams used.........................................................................................................................8
2General Safety Instructions ........................................................................9
2.1 Obligations and liability............................................................................................................9
2.2 Representation of safety symbols..........................................................................................11
2.3 Organisational measures.......................................................................................................12
2.4 Safety and protection equipment...........................................................................................12
2.5 Informal safety measures.......................................................................................................12
2.6 User training...........................................................................................................................13
2.7 Safety measures in normal operation....................................................................................14
2.8 Dangers from residual energy................................................................................................14
2.9 Maintenance and repair work, fault elimination .....................................................................14
2.10 Constructive changes ............................................................................................................14
2.10.1 Spare and wear parts and aids..............................................................................................15
2.11 Cleaning and disposal............................................................................................................15
2.12 User workstation ....................................................................................................................15
2.13 Warning pictograms and other signs on the machine ...........................................................16

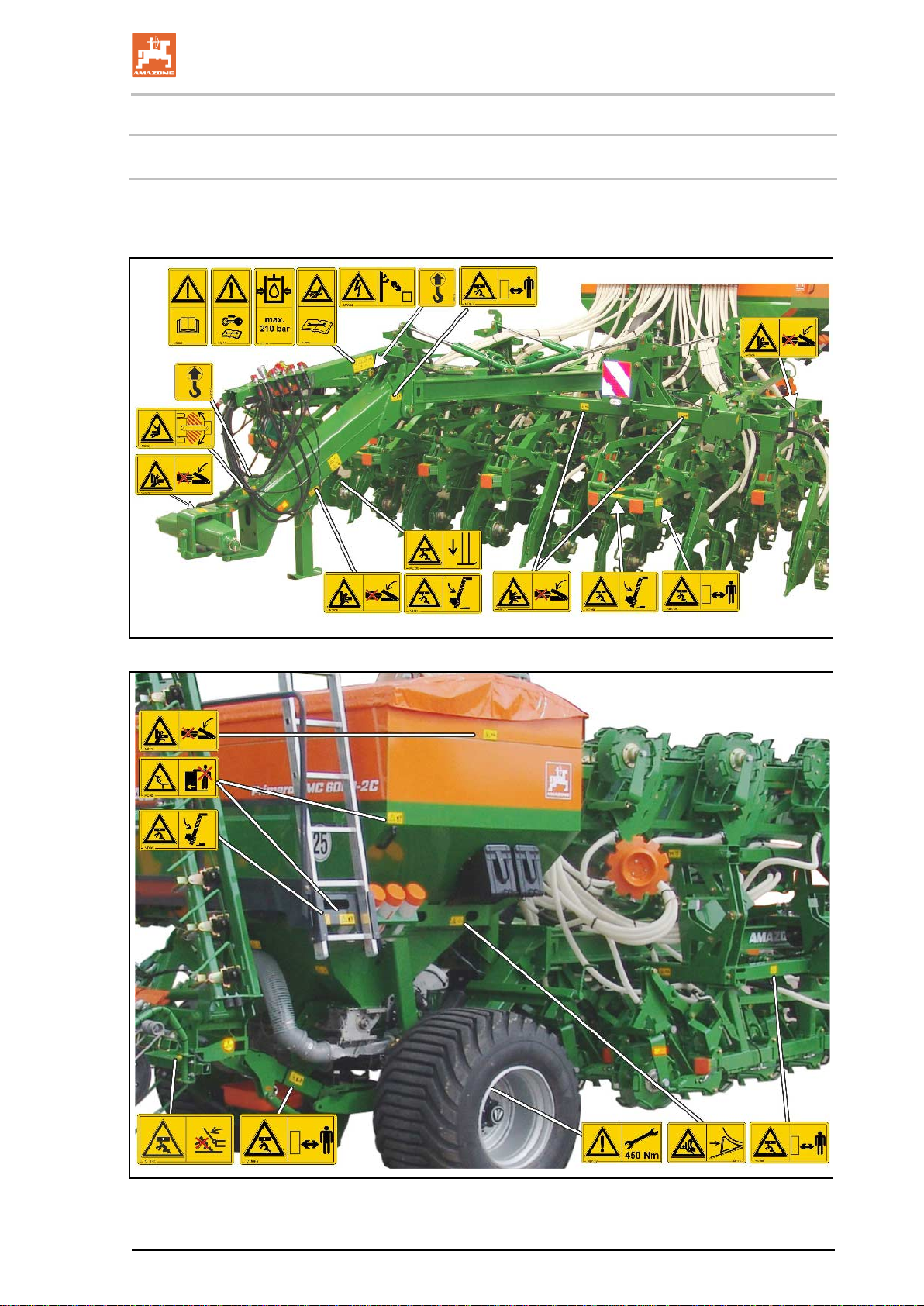

2.13.1 Positioning of warning pictograms and other labels ..............................................................17
2.14 Hazards if safety information is not observed........................................................................22
2.15 Safety-conscious working......................................................................................................22
2.16 Safety information for users...................................................................................................23
2.16.1 General safety and accident prevention information .............................................................23
2.16.2 Hydraulic system....................................................................................................................26
2.16.3 Electrical system....................................................................................................................27
2.16.4 Universal joint shaft operation................................................................................................28
2.16.5 Attached machines ................................................................................................................29
2.16.6 Brake system .........................................................................................................................30
2.16.7 Tyres ......................................................................................................................................31
2.16.8 Operation of the seed drill......................................................................................................31
2.16.9 Cleaning, maintenance and repairs.......................................................................................31
3Loading and unloading .............................................................................32
4Product description...................................................................................33
4.1 Overview of subassemblies...................................................................................................33
4.2 Safety and protection equipment...........................................................................................34
4.3 Overview – Supply lines between the tractor and the machine.............................................35
4.4 Transportation equipment......................................................................................................35
4.5 Intended use ..........................................................................................................................36
4.6 Danger area and hazard points .............................................................................................37
4.7 Rating plate and CE marking.................................................................................................38
4.8 Technical data........................................................................................................................39
4.8.1 Permissible total weight and payload ....................................................................................40
4.9 Necessary tractor equipment.................................................................................................41
4.10 Noise production data............................................................................................................41
5Structure and function ..............................................................................42
5.1 Mode of operation..................................................................................................................42
5.2 Hydraulic connections............................................................................................................43
5.2.1 Coupling the hydraulic hose lines..........................................................................................44
5.2.2 Uncoupling the hydraulic hose lines ......................................................................................45
5.3 On-board hydraulic system (optional)....................................................................................45

Table of Contents
6
Primera BAG0175.3
07.18
5.4 Dual-circuit service brake system ......................................................................................... 47
5.4.1 Coupling the brake and supply lines..................................................................................... 49
5.4.2 Uncoupling the brake and supply lines ................................................................................. 50
5.4.3 Parking brake ........................................................................................................................ 51
5.5 Hydraulic operating brake system......................................................................................... 52
5.5.1 Coupling the hydraulic operating brake system.................................................................... 52
5.5.2 Uncoupling the hydraulic service brake system.................................................................... 52
5.5.3 Emergency brake.................................................................................................................. 52
5.6 Safety chain for implements without brake system (option).................................................. 53
5.7 Vario gearbox........................................................................................................................ 54
5.8 Dosing unit ............................................................................................................................ 54
5.8.1 Metering rollers...................................................................................................................... 55
5.9 Seed sluice / fertiliser sluice.................................................................................................. 57
5.10 Calibration trough.................................................................................................................. 57
5.11 Spreading fertiliser (option)................................................................................................... 58
5.12 Seeding maize (option) ......................................................................................................... 61
5.12.1 Overview of closed outlets in the distributor and switched-off coulters ................................ 64
5.13 Blower ................................................................................................................................... 70
5.14 Chisels................................................................................................................................... 71
5.15 Stone release ........................................................................................................................ 72
5.16 Exact harrow ......................................................................................................................... 73
5.16.1 Roller harrow (optional)......................................................................................................... 73
5.17 Stony ground rollers (optional).............................................................................................. 74
5.18 Track markers ....................................................................................................................... 74
5.19 ISOBUS control terminal....................................................................................................... 75
5.20 Twin Terminal (optional)........................................................................................................ 75
5.21 Distributor head and tramline circuit...................................................................................... 76
5.21.1 Tramline rhythm .................................................................................................................... 77
5.22 Jack....................................................................................................................................... 81
5.23 Jack for the drawbar eye / ball coupling................................................................................ 82
5.24 Hopper with swivelable cover................................................................................................ 83
5.25 Working platform ................................................................................................................... 84
5.26 Camera system ..................................................................................................................... 85
5.27 Work lights............................................................................................................................. 85
5.28 Level sensor.......................................................................................................................... 86
5.29 Filling auger (optional)........................................................................................................... 87
5.30 Tramline marker (optional).................................................................................................... 88
6Commissioning ......................................................................................... 89
6.1 Checking the suitability of the tractor.................................................................................... 90
6.1.1 Calculating the actual values for the total tractor weight, tractor axle loads and load
capacities, as well as the minimum ballast ........................................................................... 91
6.1.2 Requirements for tractor operation with attached machines................................................. 95
6.1.3 Machines without their own brake system ............................................................................ 98
6.2 Securing the tractor / machine against unintentional start-up and rolling............................. 99
7Coupling and uncoupling the machine ................................................. 100
7.1 Coupling the tensioned crosspiece..................................................................................... 102
7.2 Coupling the towing eye / ball coupling............................................................................... 103
7.2.1 Manoeuvring the uncoupled machine................................................................................. 104
8Settings.................................................................................................... 105
8.1 Selecting the dosing roller................................................................................................... 106
8.1.1 Table - metering rollers, seed ............................................................................................. 106
8.1.2 Replacing the dosing roller.................................................................................................. 107
8.2 Setting the spread rate - Performing the calibration test..................................................... 109

Table of Contents
Primera
BAG0175.3 07.18
7
8.2.1 Calibration test.....................................................................................................................109
8.3 Setting the fill level sensor...................................................................................................111
8.4 Adjusting blower fan speed..................................................................................................112
8.4.1 Blower speed table ..............................................................................................................112
8.4.2 Adjusting the blower speed on the machine pressure limiting valve...................................112
8.5 Adjusting the placement depth of the seed..........................................................................113
8.6 Adjusting the double rollers..................................................................................................113
8.7 Adjusting the track marker...................................................................................................114
8.7.1 Setting the track marker length (on the field).......................................................................114
8.7.2 Adjusting the working intensity of the track markers (DMC 602).........................................115
8.7.3 Adjusting the working depth of the track markers................................................................115
8.8 Adjusting the exact harrow...................................................................................................116
9Transportation .........................................................................................117
9.1 Placing the machine in the transport position......................................................................119
10 Use of the machine..................................................................................120
10.1 Filling the seed hopper.........................................................................................................121
10.2 Placing the machine in the working position........................................................................122
10.3 Sowing operation .................................................................................................................123
10.4 Headland..............................................................................................................................125
10.5 Emptying the dosing unit or hopper and dosing unit ...........................................................126
11 Faults........................................................................................................128
12 Cleaning, maintenance and repairs........................................................129
12.1 Cleaning...............................................................................................................................131
12.1.1 Cleaning the distributor head (workshop)............................................................................132
12.2 Lubrication specifications (workshop work).........................................................................133
12.2.1 Lubrication point overview ...................................................................................................133
12.2.2 Lubricating axles..................................................................................................................135
12.3 Service plan – overview.......................................................................................................136
12.4 Axle and brake.....................................................................................................................138
12.4.1 Inspection instructions for the dual circuit service brake system.........................................143
12.5 Parking brake.......................................................................................................................144
12.6 Check the coupling device...................................................................................................145
12.7 Tyres / wheels......................................................................................................................146
12.7.1 Tyre pressures.....................................................................................................................146
12.7.2 Fitting tyres...........................................................................................................................147
12.8 Hydraulic system..................................................................................................................148
12.8.1 Labelling hydraulic hose lines..............................................................................................149
12.8.2 Maintenance intervals..........................................................................................................149
12.8.3 Inspection criteria for hydraulic hose lines...........................................................................149
12.8.4 Installation and removal of hydraulic hose lines..................................................................150
12.9 On-board hydraulics.............................................................................................................151
12.9.1 Checking the hydraulic fluid filter.........................................................................................152
12.10 Upper and lower link pins.....................................................................................................152
12.11 Setting the tramline to the tractor's track spacing (specialist workshop).............................153
12.11.1 Adjusting the track (activate or deactivate the sliders) ........................................................155
12.12 Hydraulics diagram ..............................................................................................................157
12.13 Bolt tightening torques.........................................................................................................161

User Information
8
Primera BAG0175.3
07.18
1 User Information
The User Information section supplies information on use of the oper-
ating manual.
1.1 Purpose of the document
This operating manual
•Describes the operation and maintenance of the machine.
•Provides important information on safe and efficient handling of
the machine.
•Is a component part of the machine and should always be kept
with the machine or the traction vehicle.
•Keep it in a safe place for future use.
1.2 Locations in the operating manual
All the directions specified in the operating manual are always seen
from the direction of travel.
1.3 Diagrams used
Handling instructions and reactions
Activities to be carried out by the user are given as numbered instruc-
tions. Always keep to the order of the handling instructions. The reac-
tion to the handling instructions is given by an arrow.
Example:
1. Handling instruction 1
→Machine response to instruction 1
2. Handling instruction 2
Lists
Lists without an essential order are shown as a list with bullets.
Example:
•Point 1
•Point 2
Number items in diagrams
Numbers in round brackets refer to item numbers in diagrams. The
first number refers to the diagram and the second number to the item
in the figure.
Example: (Fig. 3/6)
•Figure 3
•Item 6

General Safety Instructions
Primera
BAG0175.3 07.18
9
2 General Safety Instructions
This section contains important information on safe operation of the
machine.
2.1 Obligations and liability
Comply with the instructions in the operating manual
Knowledge of the basic safety information and safety regulations is a
basic requirement for safe handling and fault-free machine operation.
Obligations of the operator
The operator is obliged only to let those people work with/on the ma-
chine who
•Are aware of the basic workplace safety information and acci-
dent prevention regulations.
•Have been trained in working with/on the machine.
•Have read and understood this operating manual.
The operator is obliged
•To keep all the warning pictograms on the machine in a legible
state.
•To replace damaged warning pictograms.
If you still have queries, please contact the manufacturer.
Obligations of the user
Before starting work, anyone charged with working with/on the ma-
chine is obliged
•To comply with the basic workplace safety instructions and acci-
dent prevention regulations.
•To read and understand the section "General safety information"
of this operating manual.
•To read the section "Warning symbols and other labels on the
machine" (page 16) of this operating manual and to follow the
safety instructions represented by the warning symbols when
operating the machine.
•To get to know the machine.
•To read the sections of this operating manual, important for car-
rying out your work.
If the user discovers that a function is not working properly, then they
must eliminate this fault immediately. If this is not the task of the user
or if the user does not possess the appropriate technical knowledge,
then they should report this fault to their superior (operator).

General Safety Instructions
10
Primera BAG0175.3
07.18
Risks in handling the machine
The machine has been constructed to the state-of-the art and the
recognised rules of safety. However, there may be risks and re-
strictions which occur when operating the machine
•For the health and safety of the user or third persons,
•For the machine,
•For other goods.
Only use the machine
•For the purpose for which it was intended.
•In a perfect state of repair.
Eliminate any faults immediately which could impair safety.
Guarantee and liability
Our "General conditions of sales and business" are always applicable.
These shall be available to the operator, at the latest on the comple-
tion of the contract. Guarantee and liability claims for damage to peo-
ple or goods will be excluded if they can be traced back to one or
more of the following causes:
•Improper use of the machine.
•Improper installation, commissioning, operation and mainte-
nance of the machine.
•Operation of the machine with defective safety equipment or
improperly attached or non-functioning safety equipment.
•Non-compliance with the instructions in the operating manual
regarding commissioning, operation and maintenance.
•Independently-executed construction changes to the machine.
•Insufficient monitoring of machine parts which are subject to
wear.
•Improperly executed repairs.
•Disasters through the impact of foreign bodies and acts of God.

General Safety Instructions
Primera
BAG0175.3 07.18
11
2.2 Representation of safety symbols
Safety instructions are indicated by the triangular safety symbol and
the highlighted signal word. The signal word (DANGER, WARNING,
CAUTION) describes the gravity of the risk and has the following sig-
nificance:
DANGER
Indicates an immediate high risk which will result in death or
serious physical injury (loss of body parts or long term damage)
if not avoided.
If the instructions are not followed, then this will result in imme-
diate death or serious physical injury.
WARNING
Indicates a medium risk, which could result in death or (serious)
physical injury if not avoided.
If the instructions are not followed, then this may result in death
or serious physical injury.
CAUTION
Indicates a low risk which could incur minor or medium level
physical injury or damage to property if not avoided.
IMPORTANT
Indicates an obligation to special behaviour or an activity re-
quired for proper machine handling.
Non-compliance with these instructions can cause faults on the
machine or in the environment.
NOTE
Indicates handling tips and particularly useful information.
These instructions will help you to use all the functions of your
machine to the optimum.

General Safety Instructions
12
Primera BAG0175.3
07.18
2.3 Organisational measures
The operator must provide the necessary personal protective equip-
ment in accordance with the information provided by the manufactur-
er of the crop protection agent to be used, such as:
•Chemical-resistant gloves,
•A chemical-resistant overall,
•Water-resistant footwear,
•A face mask,
•Breathing protection,
•Safety glasses;
•Skin protection agents etc.
The operation manual
•
Must always be kept at the place at which the machine is
operated.
•
Must always be easily accessible for the user and mainte-
nance personnel.
Check all the available safety equipment regularly.
2.4 Safety and protection equipment
Before each commissioning of the machine, all the safety and protec-
tion equipment must be properly attached and fully functional. Check
all the safety and protection equipment regularly.
Faulty safety equipment
Faulty or disassembled safety and protection equipment can lead to
dangerous situations.
2.5 Informal safety measures
As well as all the safety information in this operating manual, comply
with the general, national regulations pertaining to accident prevention
and environmental protection.
When driving on public roads and routes, then you should comply with
the statutory road traffic regulations.

General Safety Instructions
Primera
BAG0175.3 07.18
13
2.6 User training
Only those people who have been trained and instructed may work
with/on the machine. The operator must clearly specify the responsi-
bilities of the people charged with operation, maintenance and repair
work.
People being trained may only work with/on the machine under the
supervision of an experienced person.
People
Activity
Person special-
ly trained for the
activity 1)
Trained person
2) Person with specialist
training (specialist work-
shop)3)
Loading/Transport X X X
Commissioning -- X --
Set-up, tool installation -- -- X
Operation -- X --
Maintenance -- -- X
Troubleshooting and fault elimina-
tion -- X X
Disposal X -- --
Legend:
X..permitted
--..not permitted
1) A person who can assume a specific task and who can carry out
this task for an appropriately qualified company.
2) A person shall be considered as having been instructed, if they
have been instructed in the tasks they have to carry out and in
the possible risks in the case of improper behaviour and also
have been informed about the necessary protective equipment
and measures.
3) People with specialist technical training shall be considered as a
specialist. Due to their specialist training and their knowledge of
the appropriate regulations, they can evaluate the work with
which they have been charged and detect possible dangers.
Comment:
A qualification equivalent to specialist training can be obtained
through long term activity in the appropriate field of work.
If maintenance and repair work on the machine is additionally marked
"Workshop work", only a specialist workshop may carry out such
work. The personnel of a specialist workshop shall possess the ap-
propriate knowledge and suitable aids (tools, lifting and support
equipment) for carrying out the maintenance and repair work on the
machine in a way which is both appropriate and safe.

General Safety Instructions
14
Primera BAG0175.3
07.18
2.7 Safety measures in normal operation
Only operate the machine if all the safety and protection equipment is
fully functional.
Check the machine at least once a day for visible damage and check
the function of the safety and protection equipment.
2.8 Dangers from residual energy
Note that there may be residual mechanical, hydraulic, pneumatic and
electrical/electronic energy on the machine.
Use appropriate measures to info
rm the operating personnel. You can
find detailed information in the relevant sections of this operating
manual.
2.9 Maintenance and repair work, fault elimination
Carry out prescribed setting, maintenance and inspection work in
good time.
Secure all media such as compressed air and the hydraulic system
against unintentional start-up.
Carefully fix and secure larger subassemblies to lifting gear when
carrying out replacement work.
Check all the screw connections for a firm seat. On completing
maintenance work, check the function of safety and protection equip-
ment.
2.10 Constructive changes
You may make no changes, expansions or modifications to the ma-
chine without the authorisation of AMAZONEN-WERKE. This is also
valid when welding support parts.
Any expansion or modification work shall require the written approval
of AMAZONEN-WERKE. Only use the modification and accessory
parts released by AMAZONEN-WERKE so that the operating permit,
for example, remains valid in accordance with national and interna-
tional regulations.
Vehicles with an official type approval or with equipment connected to
a vehicle with a valid type approval or approval for road transport
according to the German road traffic regulations must be in the state
specified by the approval.
WARNING
Risk of contusions, cuts, dragging, catching or knocks from
support parts.
It is forbidden to:
•Drill holes in the frame or on the running gear.
•Increasing the size of existing holes on the frame or the running
gear.
•Welding support parts.

General Safety Instructions
Primera
BAG0175.3 07.18
15
2.10.1 Spare and wear parts and aids
Immediately replace any machine parts which are not in a perfect
state.
Use only genuine AMAZONE spare and wear parts or the parts
cleared by AMAZONEN-WERKE so that the operating permit retains
its validity in accordance with national and international regulations.
The use of wear and spare parts from third parties does not guaran-
tee that they have been constructed in a way as to meet the require-
ments placed on them.
AMAZONEN-WERKE accepts no liability for damage arising from the
use of non-released spare parts, wear parts or auxiliary materials.
2.11 Cleaning and disposal
Handle and dispose of any materials used carefully, in particular
•When carrying out work on lubrication systems and equipment
and
•When cleaning using solvents.
2.12 User workstation
The machine may only be operated by one person sitting in the driv-
er's seat of the tractor.

General Safety Instructions
16
Primera BAG0175.3
07.18
2.13 Warning pictograms and other signs on the machine
Always keep all the warning pictograms of the machine clean and in a
legible state. Replace illegibl
e warning pictograms. You can obtain the
warning pictograms from your dealer using the order number (e.g. MD
075).
Warning pictograms - structure
Warning pictograms indicate dangers on the machine and warn
against residual dangers. At these points, there are permanent or
unexpected dangers.
A warning pictogram consists of two fields:
Field 1
is a pictogram describing the danger, surrounded by triangular safety
symbol.
Field 2
is a pictogram showing how to avoid the danger.
Warning pictograms - explanation
The column Order number and explanation provides an explanation
of the neighbouring warning pictogram. The description of the warning
pictograms is always the same and specifies, in the following order:
1. A description of the danger.
For example: danger of cutting.
2. The consequence of nonobservance of the danger protection
instructions.
For example: causes serious injuries to fingers or hands.
3. Instructions for avoiding the danger.
For example: only touch machine parts when they have come to
a complete standstill.

General Safety Instructions
Primera
BAG0175.3 07.18
17
2.13.1 Positioning of warning pictograms and other labels
Warning pictograms
The following diagrams show the arrangement of the warning picto-
grams on the machine.
Fig. 1
Fig. 2

General Safety Instructions
18
Primera BAG0175.3
07.18
Order number and explanation
Warning pictograms
MD 078
Risk of fingers or hands being crushed
caused by accessible moving parts in the
machine.
This danger can cause extremely serious injuries
and the loss of body parts.
Never reach into the danger area when the trac-
tor engine is running with a PTO shaft / hydraulic
/ electronic system connected.
MD 082
Risk of falling as a result of persons riding on
treads or platforms.
This danger can cause extremely serious and
potentially fatal injuries.
It is prohibited to ride on the machine as a pas-
senger or to climb onto machines while they are
running. This ban also applies to machines with
treads or platforms.
Ensure that no-one rides with the machine.
MD 084
Risk of the entire body being crushed, as a
result due to standing in the swivel range
when machine parts are being lowered.
This risk can cause extremely serious and poten-
tially fatal injuries.
•It is prohibited to stand in the swivel range
of the machine when machine parts are be-
ing lowered.
•Instruct personnel to leave the swivel range
of any parts which can be lowered before
you lower the parts on the machine.
MD 086
Risk of the entire body being crushed as a
result of unavoidable periods spent under
raised, unsecured machine parts.
This risk can cause extremely serious and poten-
tially fatal injuries.
Before spending time in the danger area under-
neath raised machine parts, secure the raised
parts to prevent them being accidentally lowered.
To do this, use the mechanical support device or
the hydraulic locking device.

General Safety Instructions
Primera
BAG0175.3 07.18
19
MD 089
Risk of the entire body being crushed as a
result of standing under suspended loads or
raised machine parts.
This risk can cause extremely serious and poten-
tially fatal injuries.
•It is prohibited to stand under suspended
loads or raised machine parts.
•Maintain an adequate safety distance from
any suspended loads or raised machine
parts.
•Ensure that all persons maintain an ade-
quate safety distance from suspended
loads or raised machine parts.
MD 095
Read and understand the operating manual safe-
ty information before starting up the machine.
MD 096
Hazard from escaping high-pressure hydrau-
lic fluid due to leaking hydraulic hose lines.
This hazard may cause serious injuries, perhaps
even resulting in death, if escaping high-
pressure
hydraulic fluid passes through the skin and into
the body.
•Never attempt to stop leaks in hydraulic
hose lines with your hand or fingers.
•Read and observe the information in the
operating manual before carrying out
maintenance and repair work on the hy-
draulic hose lines.
•If you are injured by hydraulic fluid, contact
a doctor immediately.
MD 100
This symbol indicates anchorage points for fas-
tening slinging gear when loading the machine.

General Safety Instructions
20
Primera BAG0175.3
07.18
MD 101
This symbol indicates jacking points for lifting
gear (jack).
MD 102
Hazards from work operations on the ma-
chine, e.g. installation, adjustment, trouble-
shooting, cleaning, maintenance and repair,
due to the tractor and the machine being
started unintentionally and rolling away.
These dangers can cause extremely serious and
potentially fatal injuries.
•Secure the tractor and the machine against
unintentional start-up and rolling before any
intervention in the machine.
•Depending on the type of intervention, read
and understand the information in the rele-
vant sections of the operating manual.
MD 114
This symbol indicates a lubrication point
MD139
The torque of the screw connection is 450 Nm.
MD 174
Danger from unintended continued move-
ment of the machine.
Causes serious, potentially fatal injuries any-
where on the body.
Secure the machine against unintended contin-
ued movement before uncoupling the machine
from the tractor. For this, use the parking brake
and/or the wheel chock(s).
