Ameba SD-436R User manual

SD-436R
USER’S MANUAL
VER. : 1.0 2012

1
Table of Contents
1 Precautions…. ………………………………………………………… 2
2 Features……... ………………………………………………………… 3
2.1 Built-in Decoder………………………………………………….. 3
2.2 Integrated Universal Speed Change Rotator…………………3
2.3 Built-in High Definition Color Camera……………………….. 3
2.4 All-weather Outdoor Design…………………………………… 3
3 Technical Data ……………………………………………………….… 4
3.1 Technical Parameters of the High-speed Dome…………… 4
4 Installation Guide……………. …………………………………….. 5
4.1 Installation Preparation…………………………………………. 5
4.2 Structure…………………………………………………………… 5
4.3 Installation Size…………………………………………………… 6
4.4 Installation Procedures…………………………………………. 6
5Settings………………… ……………………………………….….… 8
5.1 Interface…………………………………………………………… 8
5.2 Dome Address, Transmission Speed, Protocol Setting….. 9
6 The OSD Menu Setting…………………… …………………….. 11
6.1 Operations Method of the Menu……………………………… 11
6.2 OSD Menu Tree………..…………………………………………. 13
7 Trouble Shooting… …………………………………………………… 26

2
1 Precaution
1. Transportation Security
No heavy stress, violent vibration or water splash are allowed during transportation, storage. The
unit should be transported in separated packing. In shipments of distributor and delivery of
maintenance, any damages caused by integral packing are not covered by warranty.
2. Installation
Avoid heavy stress and violent vibration during installation. Don’t touch the dome cover directly
by hand. When connecting the power source, please follow all electric safety standards and only
use the power supply designated for this device. Keep the video and control signal in a decent
distance from high voltage devices and cable. Don’t apply power to the dome before finishing the
installation.
3.Dismantlement
Please don’t dismantle the devices in the dome body. Only the professional personnel authorized
can operate the maintenance.
4. Internal Environment
Keep metal and inflammable material away from dome body to avoid fire, short circuit and
damage. Please prevent all liquids material from entering the dome. If occur this, please shut
down the power and pull out the plug. Then inform the technical personnel immediately.
5. Electrical Safety
The video image would be interfered when the dome is installed near television, radio transmitter,
voltage changer and audio amplifier.
6. Camera Protection
Avoid shooting very bright objects directly into the camera’s CCD (such as the sun or light
fittings).
7. Cleaning Method
Please don’t use abrasive and violent detergent to clean the dome. Please choose dry fabric and
neutral detergent. Use lens paper to clean the lens.

3
2 Features
2.1Built-in Decoder
● Power-off protection, no data loss
● 220 programmable presets
● 8 cruising tracks, each cruising track has 32 preset positions
● 8 pattern tours, each one with 180s memory
● RS-485 bus
● 8 groups of auto scan, the left and right boundary and scan speed can be set
● Pelco_P and Pelco_D compatible
● 6 alarm inputs and 2 outputs
● Message display function, lens coordinate value, temperature and alarm information can be
showed
● Guard location, the dome can operate preset, auto scan, cruising and pattern tours functions
after a short pause
● Alarm triggering, the alarm can trigger preset, auto scan, cruising and pattern tours functions
2.2Integrated Universal Speed Change Rotator
● Delicate stepping motor, stable, sensitive and accurate
● 360°
°°
°continuous pan without blind area
● Stepless speed change, auto zoom/speed matching
● Auto overturn function
● Manual speed: Pan: 0.01°
°°
°- 300°
°°
°/S, Tilt: 0.01°
°°
°- 150°
°°
°/S
● Presets calling speed: 500°
°°
°/S
2.3Built-in High Definition Day/Night Camera
● Auto iris, auto back light compensation
● Auto/manual white balance
● Auto/manual focus
● Auto/manual brightness control
● 520/530TV line
● Multiple kinds of camera for options
2.4All-weather Outdoor Design
● Built-in heater
● Built-in fan, can operate in 60℃
℃℃
℃
● High Die-cast Aluminum Construction
● IP66 water proof
●
●●
●3000V lightning and surge current proof

4
3 Technical Data
3.1 Technical Parameters of the High-speed Dome
Model SD-436R
Power Supply AC24V/2.5A
Operating Temperature -35 °C —
——
—60°C
Operating moisture < 95%
Power Consumption 50W
Communication RS-485 bus,
Communication transmission speed 2400/4800/9600BPS
Protocols Pelco-D, Pelco-P Compatible
Pan Rotation 0.01°-300°/s
Tilt Rotation 0.01°-150°/s
Pan/Tilt Accuracy +/- 0.07°
Preset Speed 500°/s
Pan Angle 360°Continuously
Tilt Angle 90°
Size 364 x 350 x 202mm
Weight 5.6kg
Preset Positions 220
Auto Scan 8 Groups
Cruise Track 8 Groups
Cruise Points Qty per cruise group 32 Preset Positions
Pattern Tours 8 Groups
Alarm 6 alarm inputs and 2 outputs
Privacy Zone 8 zones (depend on camera module)
Protection IP66 water proof/3000V lightning proof
Fan, Heater Fan and heater auto-starts 24VAC

5
Camera Module Specification
Items SD-436R
Image Sensor 1/4" SONY Super HAD II (Double Scan)CCD
Picture Elements NTSC:768(H)x494(V)/PAL:752x582(V)
Resolution 700 TV Line(Max)
Video Output 1Vp-p Composite Video(75Ω)
SYNC System Internal/External (V-Lock)
Lens 3.4mm~122.4mm, 1.6~F4.5
Zoom 1152X, 36X Optical,32X Digital
S/N Ratio 50dB
Mini. Illumination
Color :0.5lux
B/W:0.2lux
Color DSS:0.001lux
B/W DSS:0.0004lux
White Balance ATW/Indoor/Outdoor/Manual/AWB/One Push WB
Gain ON/OFF (30dB Max)
4 Installation Guide
4.1 Installation Preparation
Video Coaxial Cables
Mode Max Distance
RG59/U 750ft(229m)
RG6/U 1,000ft(305m)
RG11/U 1,500ft(457m)

6
4.2 Structure
4.3 Installation Size

7
4.4 Installation Procedures
*Notice: The wall must be thick enough to install the expansion screws and can bear 4 times the
weight of the dome camera itself.
(1) Bore 4 holes by using templates included on the wall.
(2) Mount 4 expansion screws into the holes.
(3) Put the cables through the bracket. Fix the dome base and the bracket with M6 screws
(4) Use M 8 screw-caps and shims to fix the bracket on the wall.

8
(5) Attach the dome cover to the dome base with rope.
(6) Set the dome address, system baud rate and protocol by configuring DIP switches SW1 and
SW3 located on the side of dome body. The Plug-in on the dome body must be seated rightly
with the socket on the dome base.
(7) To lock the dome body to the dome base, line up the A and B tabs on the dome body with the A
and B label on the dome base. Push in on the tabs. Insert one side and then the other side.
Continue pushing one the ends of the tabs until both sides click into place. Make sure the
plug-in on the dome body is fully locked by the socket on the dome base. Then press the
dome body lightly and check if the dome body is fully locked to avoid shedding and abrasion

9
with the dome cover.

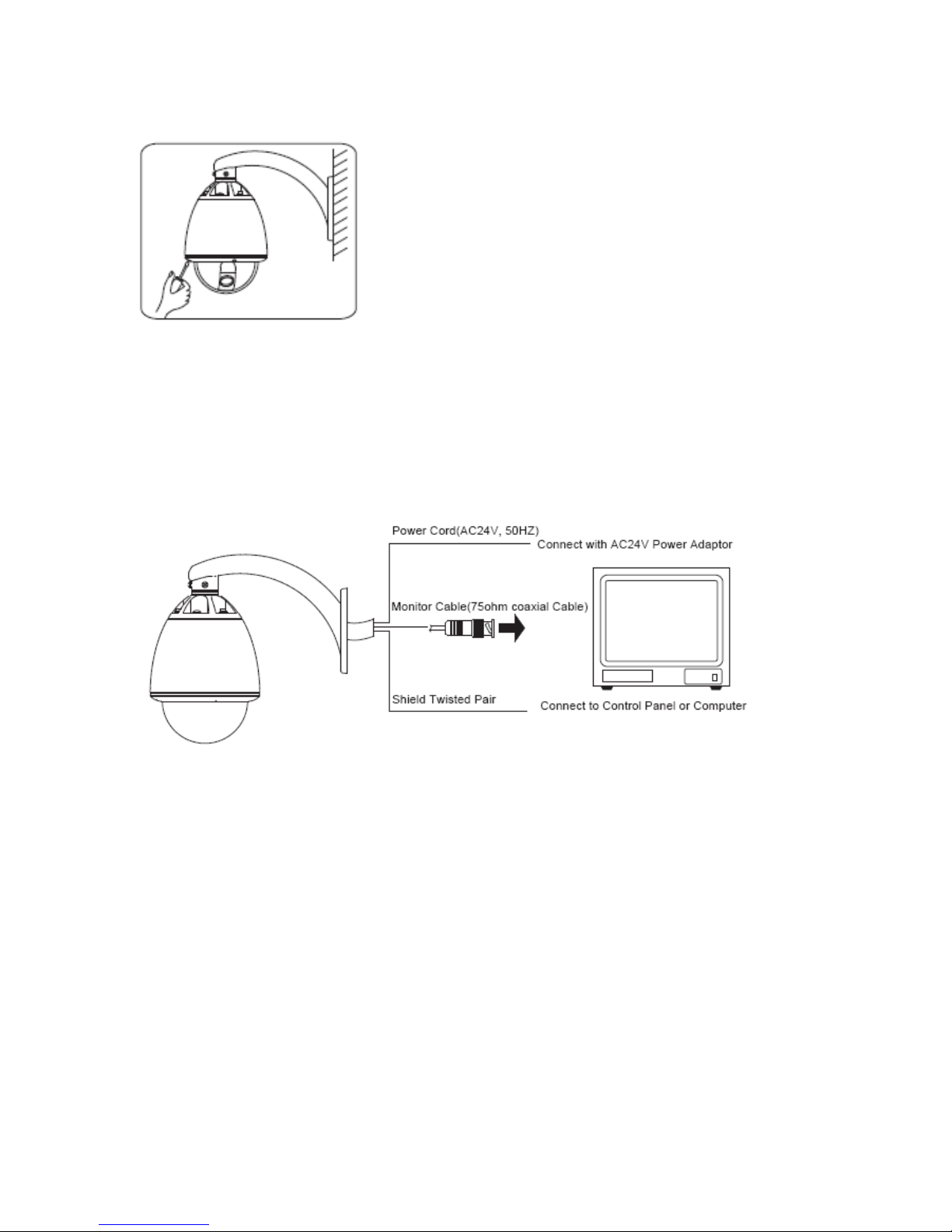

(8) Fix the dome cover with screws.
(9)Cable Connection:
5 Settings
5.1 Interface

10
5.2 Dome Address, Transmission Speed, Protocol Setting
Before the dome is installed, the communication protocol, baud rate and dome address, should
be confirmed. Set the DIP switch, keeping the setting consistent with the control system. The
relative DIP switch site and connecting wires are diagramed below for reference.
SW2:
SW1:

11
*Notice: “1” means “on” status and “0” means “off” status.
Protocol Setting
Protocols Bit 1 Bit 2 Bit 3
PELCO_P 1 0 0
PELCO_D 0 1 0
PRESET … … …
*Notice: The factory default protocol is PELCO_D
Transmission Speed Setting
Baud Rate 4 Bit 5 Bit
9600 0 0
4800 1 0
2400 0 1
PRESET 1 1
Dome Address Setting
PELCO-P:
Address Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 8
1 0 0 0 0 0 0 0 0
2 1 0 0 0 0 0 0 0
3 0 1 0 0 0 0 0 0
4 0 0 1 0 0 0 0 0
5 0 0 0 1 0 0 0 0
… … … … … … … … …
254 1 0 1 1 1 1 1 1
255 0 1 1 1 1 1 1 1
PELCO-D:

12
Address Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 8
1 1 0 0 0 0 0 0 0
2 0 1 0 0 0 0 0 0
3 1 1 0 0 0 0 0 0
4 0 0 1 0 0 0 0 0
5 1 0 1 0 0 0 0 0
… … … … … … … … …
253 1 0 1 1 1 1 1 1
254 0 1 1 1 1 1 1 1
6 The OSD Menu Setting
6.1 Operation Method of the Menu
The user can call upon preset position 95 to enter the setting interface of the OSD menu. After
entering the setting menu, a row of information will be displayed as follows (the screen can only
show a single-step item of the following menu):
The operations will be implemented by commands as “Focus in/out” and “Iris open/close”.
“Focus in”: Up
“Focus out”: Down

13
“Iris open”: Confirm
“Iris close”: Cancel
Note: While installing COP camera module after exiting the menu, please do not operate with iris open
which may caused abnormal video, and it is suggested to adjust manually again or adjust in the
camera menu.
The user can also operate the OSD menu by Joystick
“Up”: Move the joystick upward to select.
“Down”: Move the joystick downward to select.
“Left”: Move the joystick leftward to confirm.
“Right”: Move the joystick rightward to cancel.
For example:
1. In status as the previous picture showed, the user press “Iris open” to enter BACKLIGHT
setting:
1. BACKLIGHT ON/OFF
2. Press “Focus in/out” to select wanted item.
3. And then press “Iris open” to preserve the selected items or press “Iris close” to cancel the
selected item and go back to previous Menu. Move the joystick leftward to cancel and move
the joystick rightward to confirm.
4. After all the function settings are settled down, switch to the item No.16 and press “Iris open”
to quit from the menu. Move the joystick leftward to cancel and move the joystick rightward to
confirm.
Note: Samsung and cop camera module can not support privacy mask function.
6.2 OSD Menu Tree

14

15
MOTION
A
B
C
D
E
F
G
LANGUAGE: ENGLISH
<SYSTEM INFORMATION>
<DISPLAY SETUP>
<DOME SETTINGS>
<CAMERA>
<MOTION>
RESTART
FACTORY DEFAULTS
HELP
EXIT
MAIN MENU
――――――――――――――
MOTION
<PRESET>
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――――――――
<SCAN>
A. PRESET
A1
B1
C1
D1
E1
MOTION
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――――――――
<SCAN>
<PRESET>
PRESET
TITLE : PRESET 01
CALL
<SET>
DELETE
BACK
EXIT
――――――――――――――
PRESET NO. : 001
――――――――――――――
A1. PRESET NO.
Move the cursor to PRESET NO.，
，，
，press the key IRIS OPEN(key on control keyboard) to enter the
edition mode of preset No., move the joystick upward and downward to select number. Then
press IRIS OPEN to confirm.
B1. TITLE
Move the cursor to TITLE and press IRIS OPEN to enter the edition mode of preset title.
C1.CALL
MOVE the cursor to CALL and press IRIS OPEN to call upon the current preset position.
D1.SET
Move the cursor to SET and press IRIS OPEN the enter preset setting mode. Then the sentence

16
“PRESS IRIS OPEN TO CONFIRM”will appear on the screen. Move the joystick to do PTZ move
and press IRIS OPEN to confirm the preset you want.
E1.DELETE
Move the cursor to DELETE and press IRIS OPEN to delete the current preset position.
B.SCAN
A1
B1
C1
D1
E1
MOTION
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――――――――
<SCAN>
<PRESET>
SCAN
TITLE : SCAN 1
<LEFT LIMIT>
<RIGHT LIMIT>
SCAN SPEED : 20
BACK
EXIT
――――――――――――――
SCAN NO. : 01
――――――――――――――
START
F1
A1.SCAN NO.
Move the cursor to SCAN NO. and press the key IRIS OPEN(key on control keyboard) to enter the
edition mode of scan No., move the joystick upward and downward to select number. Then press
IRIS OPEN to confirm.
B1. TITLE
Move the cursor to TITLE and press IRIS OPEN to enter the edition mode of scan title.
C1.START
MOVE the cursor to START and press IRIS OPEN to start the current scan.
D1.<LEFT LIMIT>
Move the cursor to <LEFT LIMIT> and press IRIS OPEN to start setting the left limit of the current
scan. Then the sentence “PRESS IRIS OPEN TO “ CONFIRM ” will appear on the screen. Move the
joystick and press IRIS OPEN to confirm.
E1. <RIGHT LIMIT>
Move the cursor to <RIGHT LIMIT> and press IRIS OPEN to start setting the right limit of the
current scan. Then the sentence “PRESS IRIS OPEN TO ” CONFIRM ” will appear on the screen.
Move the joystick and press IRIS OPEN to confirm.
F1. SCAN SPEED
Move the cursor to SCAN SPEED and press IRIS OPEN to enter the edition mode of scan speed.

17
Move the joystick upward and downward to select a speed scale, then press IRIS OPEN to confirm.
The speed scale ranges from 1~30.
C.SEQUENCE
MOTION
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――――――――
<SCAN>
<PRESET>
SEQUENCE
SEQ NO. : 1
TITLE : SEQ 1
START
<SEQUENCE SET>
DELETE
――――――――――――――
A1
B1
C1
D1
E1
BACK
EXIT
A1.SEQ NO.
Move the cursor to SEQ NO. and press the key IRIS OPEN(key on control keyboard) to enter the
edition mode of sequence No., move the joystick upward and downward to select number. Then
press IRIS OPEN to confirm.
B1. TITLE
Move the cursor to TITLE and press IRIS OPEN to enter the edition mode of sequence title.
C1.START
MOVE the cursor to START and press IRIS OPEN to start the current sequence.
D1.<SEQUENCE SET>
Press IRIS OPEN to enter into the sequence setting

18
SEQUENCE
SEQ NO. : 1
TITLE : SEQ 1
START
<SEQUENCE SET>
DELETE
――――――――――――――
BACK
EXIT
SEQUENCE
NO.
――――――――――――――
PRESET INTERVAL
0 1 0 0 2 0 3
0 2 0 0 1 0 3
0 3 - - - - -
- -
- -
- - -
- - -
- - - - -
0 4
0 5
0 6
EDIT 0 1 0 0 3 0 3 INS
BACK
>>
EXIT
Move the cursor to EDIT and press IRIS OPEN to enter edition mode. Move the joystick rightward
and leftward to select item.
a. When the < > is on the item NO., move joystick upward and downward to select the NO.of the
preset in a sequence. There are up to 32 presets in a single sequence.
b. When the < > is on the item PRESET, move the joystick upward and downward to select the
preset NO. you want to add in the sequence.
c.When the < > is on the item INS, move the joystick upward and downward to select edition mode
as “insert”, “ok” and “delete”.
d. Press IRIS CLOSE to quit the edition.
D. PATTERN
MOTION
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――― ――― ――
<SCAN>
<PRESET>
PATTERN
PATTERN NO. : 1
TITLE : PATTERN 1
START
<SET>
DELETE
BACK
EXIT
――――――― ―――― ―――
A1
B1
C1
D1
E1
A1.PATTERN NO.
Move the cursor to PATT and press the key IRIS OPEN(key on control keyboard) to enter the
edition mode of sequence No., move the joystick upward and downward to select number. Then

19
press IRIS OPEN to confirm.
B1. TITLE
Move the cursor to TITLE and press IRIS OPEN to enter the edition mode of sequence title.
C1.START
MOVE the cursor to START and press IRIS OPEN to start the current Pattern.
D1. <SET>
Move the cursor to SET and press IRIS OPEN the enter pattern setting mode. Then the sentence
“PRESS IRIS OPEN TO CONFIRM”will appear on the screen. Move the joystick to do PTZ move
and press IRIS OPEN to confirm.
E1.DELETE
Move the cursor to DELETE and press IRIS OPEN to delete the current pattern.
E.<ZONES>
MOTION
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<AUTO TRACKING>
BACK
EXIT
――――――――――――――
<SCAN>
<PRESET>
ZONES
BACK
EXIT
――――――――――――――
A1
B1
C1
D1
E1
－ ZONE IS NOT SET －
ZONE NO. : 1
TITLE NO. : ZONE 1
<LEFT LIMIT>
<RIGHT LIMIT>
DELETE
F1
A1.ZONE INFORMATION
B1.ZONE NO.
Move the cursor to ZONE NO. and press the key IRIS OPEN(key on control keyboard) to enter the
edition mode of zone No., move the joystick upward and downward to select number. Then press
IRIS OPEN to confirm.
B1. TITLE
Move the cursor to TITLE and press IRIS OPEN to enter the edition mode of zone title.
