User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
Thank you for your patronage. We are confident that our excellent products and service can satisfy
you. For your own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction

XM745-V1.0-NR
1
strictly.
Unplug mains lead before opening the housing.
CAUTION!
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional LED lighting.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. Two XLR waterproof connection cables
2. One waterproof power cables
3. One safety rope
4. Manual
5. One warranty card and certification
Please check carefully that there is no damage caused by transportation. Should there be any, consult
your dealer and don’t install this device.
1. FEATURES
•Equipped with 9 x 10W RGBW four color leds
•100 000 hours LED life
·4 DMX channel mode: 4/5/6/8/36 channels
•Strobe-effect with 1-18 flashes per second
•Stepless RGBW colour changing
•Programmable color-change speed and strobe effect
•4digit LED display
·Display: Can be changed 180° reverse to fit for different installation position
•DMX-controlled operation or stand alone operation with Master/Slave-function
·Software-upload by optional accessory via DMX line

XM745-V1.0-NR
2
2. FIXTURE OVERVIEW
3. SAFETY INSTRUCTIONS
3.1) Important safety warns
This device has left the factory in perfect condition. In order to maintain this condition and to ensure
a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device. Leave the device switched off
until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
If protection screen,lens or ultraviolet screen in the fixture is apparently damaged or is damaged
to exceed their own effective degree, such as cracked and gashed, it must be replaced.
The electric connection must carry out by qualified person.

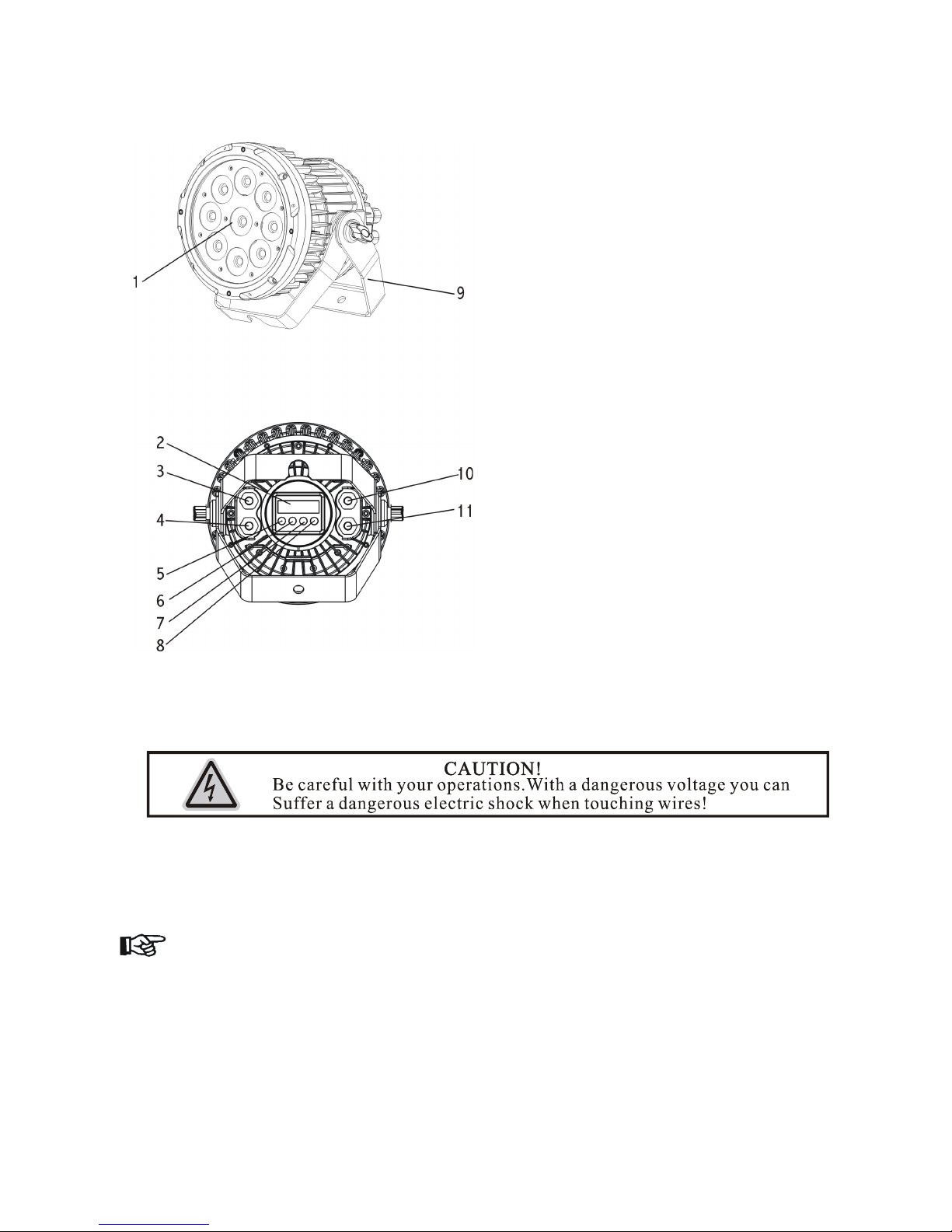

1) LEDS
2) Display
3) Power output
4) DMX output
5) Menu-button
6) Up-button
7) Down-button
8) Enter- button
9) Floor-stand
10) Power input
11) DMX-input

XM745-V1.0-NR
3
No move at operating mode.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to the device are not subject to
warranty. Keep away from children and non-professionals.
3.2) GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor and outdoor use.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may ensure
that the device will serve you for a long time without defects.
Do not shake the device.Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. Please don't project the beam onto combustible substances.The minimum distance
between light-output from the projector and the illuminated surface must be more than 0.5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.

XM745-V1.0-NR
4
If this device will be operated in any way different to the one described in this manual, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
short-circuit, burns, electric shock, lamp explosion, crash, etc.
4. INSTALLATION INSTRUCTIONS
4.1) Mounting the device
The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under
or above the temperature.
The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are approved by
an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
T h e$el ec tr i c $ c o n n e c ti o n $ m u s t$o n l y $ b e$ c a rr i ed $o u t$ b y $a $q u al i f i ed $ el ec tri c i an .$
Before mounting make sure that the installation area can hold a minimum point load of 10 times the
device’s weight.
Connect the fixture to the mains with the power plug.
Installation via the Omega holders：

XM745-V1.0-NR
5
Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the
middle of the bracket. Pass the safety rope through the connecting hole under the side panel, hanging
on the fixed bracket or other fixed station, and can also be floor-mounted(or on any other flat surface)
without fixing, remaining steady no matter what the angle of the head. Fully operational in any
mounting position, hanging upside-down, side mounted, or set on a flat level surface, etc. When
clamp mounting; always use and install the supplied safety cable as an added safety measure to
prevent accidental damage in the event of a clamp failure. Be sure this fixture is kept at least 0.1m
away from any flammable materials (decoration etc.).
Notice: this step is quite important to ensure that the fixture will not drop out by the damage
of the clamp.

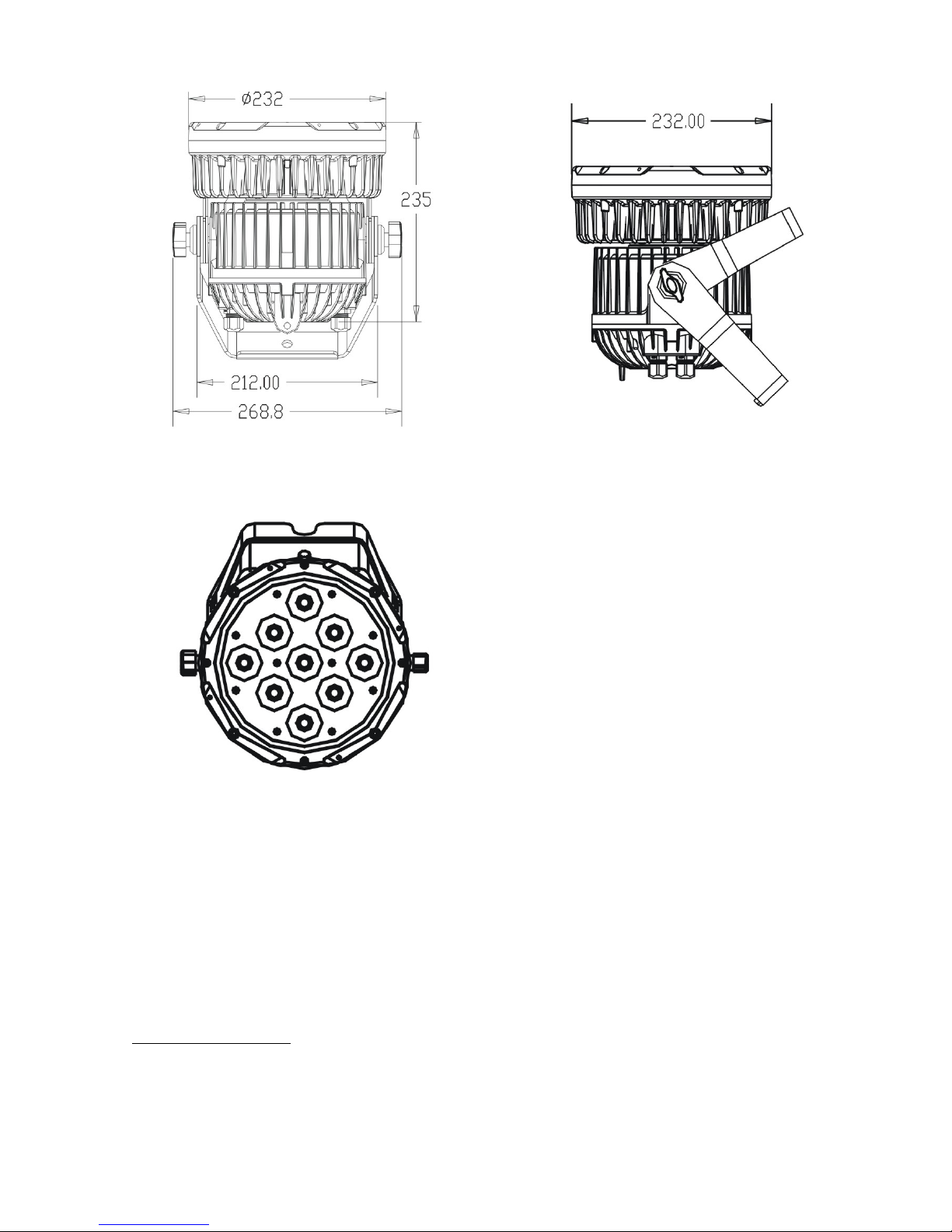

Layout Drawings:

XM745-V1.0-NR
6
Layout Drawings:

XM745-V1.0-NR
7
Mounting points
Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
Overhead mounting requires extensive experience, including amongst others calculating working
load limits, a fine knowledge of the installation material being used, and periodic safety inspection of
all installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
5. DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened cable
with XLR input and output connectors. Please refer to the diagram below.

XM745-V1.0-NR
8
Address 9 Address 5 Address 1
Please note: to ensure maximal stability, when the voltage is 120V, only six devices may be
connected together in this manner! From the seventh device, please connect to power supply to get
power for the second link; when the voltage is over 220V, only twelve devices may be connected
together in this manner! From the thirteenth device, please connect to power supply to get power for
the second link.
6. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in
preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply
an XLR plug with a 120 Ωresistor connected between pins 2 and 3,which is then plugged into the
output XLR socket of the last fixture in the chain. Please see illustrations below.
7. Projector DMX start address selection
All fixtures should be given a DMX starting address when using a DMX signal, so that the correct
fixture responds to the correct control signals. This digital starting address is the channel number
from which the fixture starts to “listen” to the digital control information sent out from the DMX
controller. The allocation of this starting address is achieved by setting the correct number on the
display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures, or make different address
for each fixture individually.
If you set the same address, all the units will start to “listen” to the same control signal from the
same channel number. In other words, changing the settings of one channel will affect all the fixtures
simultaneously.
If you set a different address, each unit will start to “listen” to the channel number you have set,
based on the quantity of control channels of the unit. That means changing the settings of one
channel will affect only the selected fixture.

XM745-V1.0-NR
9
In the case of the move head, which is a 4 channel fixture, you should set the starting address of the
first unit to 1, the second unit to 5 (4 + 1), the third to 9(4 + 5), and so on.
Note:
The modes of DMX 512 data are shown via the display:
DMX OK NO DMX
1. After switching on, the device will automatically detect whether DMX 512 data is received or not.
If the data is received, the display will show "A.001" with the actually set address. If there is no data
received at the DMX-input, the display will flash "A001" with the actually set address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the
device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires
are swap in the input connector.
It’s necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in
order to ensure proper transmission on the DMX data link.
8. Control Board
There are four keys on the control panel , which could be used to set the address, turn ON/OFF,
operating the program and reset.
[MENU] press this key to enter into edit mode. Press this key under the edit mode if you want to
return to previous Mode/Esc. it will exit from edit mode 60 seconds after the last keypress
[UP] screen will flash when pressing this key in normal mode, the adress value will increasing. Keep
pressing this key, the address value will increase rapidly. it will exit from flash 60 seconds after the
last keypress. Press this key under edit mode, you can choose the function you want from the buttom
up in the Mode/Esc.
[DOWN] screen will flash when pressing this key in normal mode, the adress value will idecreasing.
Keep pressing this key, the address value will decrease rapidly. it will exit from flash 60 seconds
after the last keypress. Press this key under edit mode, you can choose the function you want from
the top down in the Mode/Esc.
[ENTER] this key is functionless when in normal mode. Press this key under the edit mode, it will
enter into next Mode/Esc.
Display menu

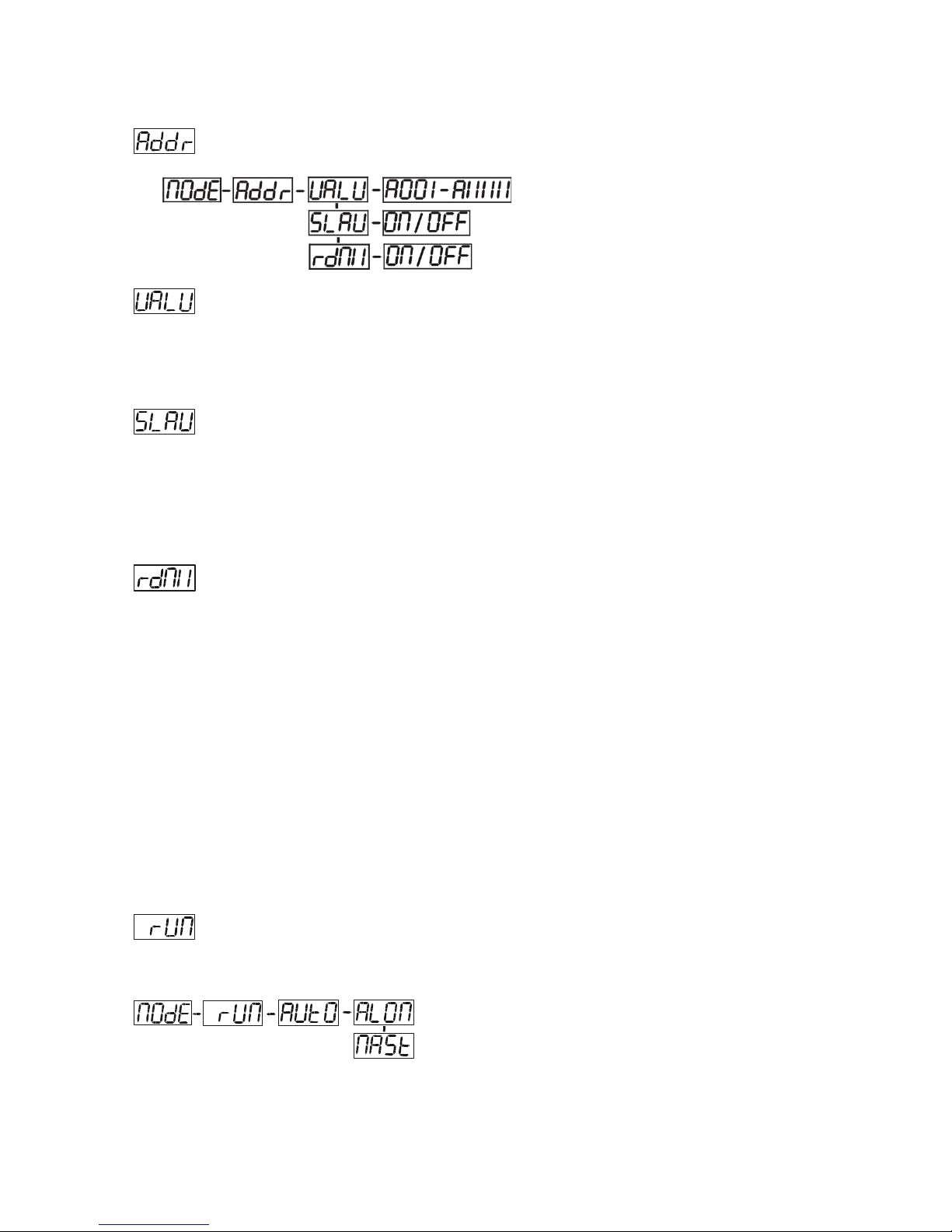

MODE
<ADDR>
VALU
A001~AXXX (AXXX)
DMX address setting
SLAV
ON/OFF
Set as Slave
RDMX
ON/OFF
Change address via DMX
<RUN>
AUTO
ALON/MAST
Run Auto program

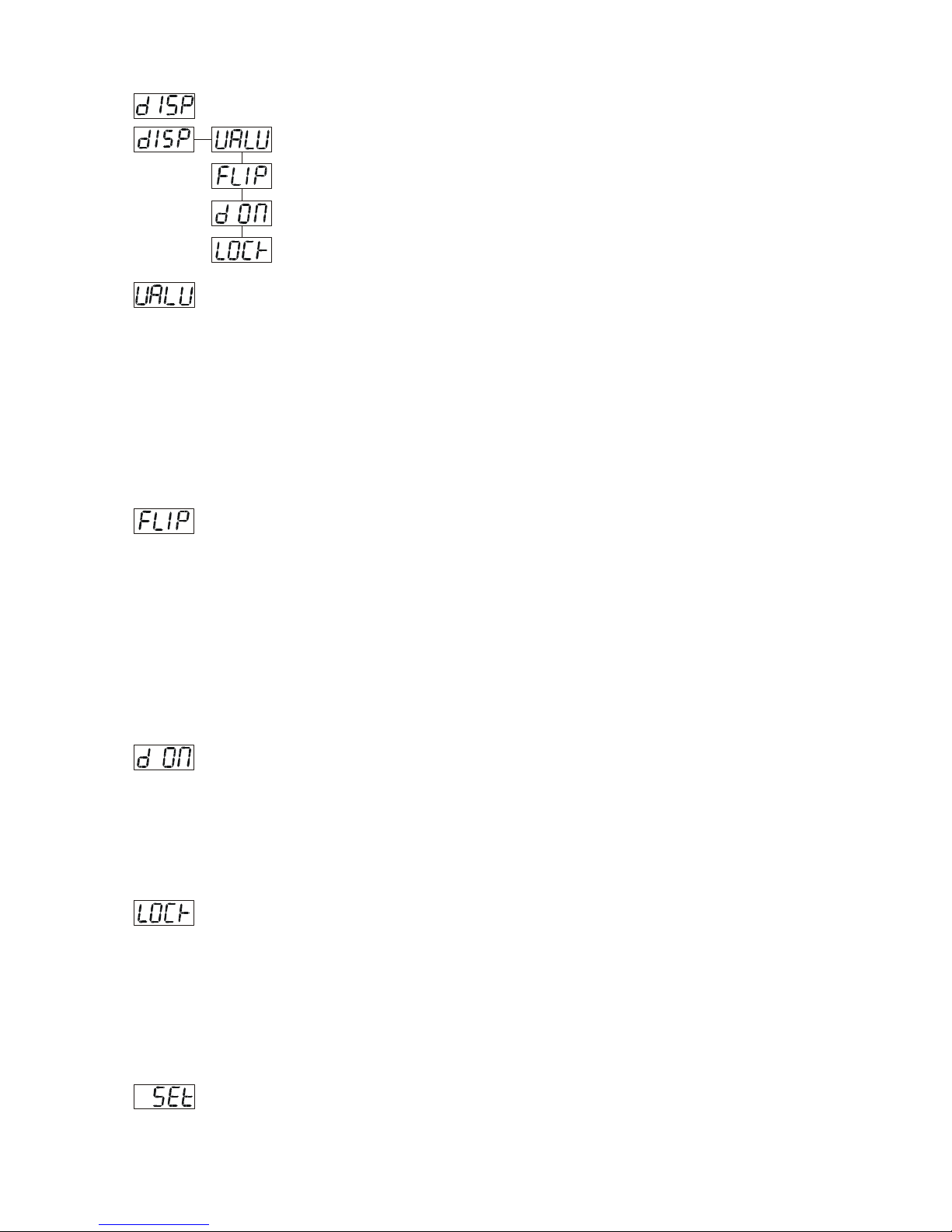

<DISP>
VALU
D-XX D-00(DXXX)
Display DMX value

XM745-V1.0-NR
10
FLIP
ON/OFF
Flip display
D ON
ON/OFF
Delay shutting off LED display
LOCK
ON/OFF
Key lock
(Press the MODE/ESC button for 3
seconds to activate)
SET
<CHAN>
4CH/5CH/6CH/8CH/36CH
DMX channel Mode
<FAIL>
OFF/HOLD/AUTO
Status while there is no DMX
<DFSE>
ON/OFF
Default setting
<POHO>
ON/OFF
Power on to preserve the MANL
settings
<VER>
V-1.0~V-9.9
Software version
MANL
STRB
:
S XXX(000~255)
:
Manual adjust intensity Manual
adjust intensity.
TIME
<LIFE>
0000~9999(HOURS)
Life time of machina running
<CODE>
CXXX
Passord of clear time ”038”
<CLFE>
ON/OFF
Clear machina running time
EDIT
<STEP>
S-01~S-48
Select steps of program
REC.
RE.XX
Auto Save Scene
<SC01>
~<SC48>
STRB
:
S XXX(000~255)
:
Edit the internal scenes
FADE
XXX
TIME
XXX.X(000.1S~999.9S)
CEDT
ON/OFF
Edit program via controller
Default settings shaded
Main functions:
- Main menu
1. Press [MENU] to enter the main menu "MODE" (display flashing)
2. Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP] or [DOWN] button.
3. Press [ENTER] for selecting the desired sub menu.

XM745-V1.0-NR
11
——DMX address setting, Slave setting
- DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
1. Select “VALU” by pressing [UP] or [DOWN] button.
2. Press [ENTER], adjust the DMX address by pressing [UP] or [DOWN] button.
3. Press [ENTER] to confirm or pressing [MENU] to return to main menu.
- Slave setting
With this function, you can define the device as slave.
1. Select “SLAV” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] to select “OFF”
if you don’t.
4. Press [ENTER] to confirm or press [MENU] to return to main menu.
-DMX address setting via controller
With this function, you can adjust the desired DMX-address via an external controller.
This function can only be activated when the DMX-value of all other channels is set to "0" on the
controller.
Select “EBOC” by pressing [UP] or [DOWN].
Press [ENTER], the display shows “ON” or “OFF”.
Press [UP] to select “ON” if you wish to enable this function or [DOWN] to select “OFF” if you
don’t.
Press [MENU] to confirm.
Press [ENTER] in order to return to the main menu.
On the controller, set the DMX-value of channel 1 to "7".
Set the DMX-value of channel 2 to "7"or "8". When set to "7" you can adjust the starting address
between 1 and 255. When set to "8" you can adjust the starting address between 256 and 510.
Set the DMX-value of channel 3 to the desired starting address. If you want to set the starting
address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you want to set the
starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420).
Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is
set.
- Program Run, Master setting
With the function "RUN", you can run the internal program. You can set the number of steps under
Step. You can edit the individual scenes under Edit.
1. Select “ALON” or “MAST” by pressing [UP] or [DOWN] button.
2. Press [ENTER] to confirm or Press [MENU] to return to the main menu.

XM745-V1.0-NR
12
——Display the DMX-value, Reverse display, Shut off LED display
- Display the DMX 512 value of each channel
With this function you can display the DMX 512 value of each channel.
1. Select "VALU" by pressing [UP] or [DOWN] button.
2. Press [ENTER] to confirm; the display shows“D-00”. In this setting, the DMX-adjustment of
every channel
will be displayed.
3. Press [UP] or [DOWN] button in order to select the desired channel. If you select “D-00” the
display will only
show the DMX-value of the xxth channel.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
5. The display shows "D- XX”, ”X” stands for the DMX-value of the selected channel.
- Reverse display
Keyboard shortcuts：press down the "MENU" and the "UP" button at the same time，the
words showed on the digital display of the control panel can overturn 180°, also can use the
following instructions below to enter the Menu to configure the settings.
1. Select "FLIP" by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to
“OFF” if you don’t; the display will rotate by 180°.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
- Shut off LED display
With this function you can shut off the LED display after 2 minutes.
1. Select "D ON" by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to
“OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
——locked keys the display
With this function you can activate the automatic keylock status. If this function is activated, the
keys will be locked automatically after exiting the edit mode for 15 seconds. keeping press the
[MENU] key for 3seconds if you do not need this function.
1. Tap the [UP] button until “LOCK” is displayed and tap the [ENTER] button.
2. Press the [UP] button to select “ON” to activate this function, or “OFF” to deactivate this
function. Press [ENTER] to confirm.
3. Press [MENU] to return to the main menu.
——Main menu

XM745-V1.0-NR
13
1. Press [MENU] to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button. to select “SET”.
——“CHAN”DMX channel MODE
With this function you can choose DMX channel Mode
1. Select “CHAN” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows“4CH”，“5CH”，“6CH” ，“8CH” ，“36CH”.
3. Press [UP] or [DOWN] button to select“4CH”，“5CH”，“6CH” ，“8CH” ，“36CH”, the default
is “4CH”.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
-Automatic Run by no DMX
With this function you can automatic run the device by no DMX.
1. Select “FAIL” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “OFF”, “HOLD” or “AUTO”.
3. Press [UP] or [DOWN] button to select “OFF”, “HOLD” or “AUTO”, the default is “HOLD”.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
- Restore factory settings
With this function you can restore the factory settings of the device. All settings will be set back to
the default values (shaded). Any edited scenes will be lost.
1. Select “DFSE”by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to
“OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
——Power on to preserve the MANL settings
With this function you can activate. The fixture will return to the scene manual set
before automatically after re-power on.
1. Tap the [UP] button until “POHO”is displayed and tap the [ENTER] button.
2. Press the [UP] button to select “ON” to activate this function, or “OFF” to deactivate this
function. Press [ENTER] to confirm.
3. Press [MENU] to return to the main menu.
- Software version
With this function you can display the software version of the device.
1. Select “VER” by pressing [UP] or [DOWN] button.
2. Press [ENTER], The display will show “V-XX”, "XX" stands for the version number, such as
the display may also show,"V-1.0"~"V-9.9"etc.
3. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
——Manual adjust intensity
With this function you can Manual adjust intensity
1. Select “MANL” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows“STRB”, ··· ····.
3. Press [UP] or [DOWN] button to select“STRB”, ··· ····.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu.

XM745-V1.0-NR
14
——Main menu
1. Press [MENU] to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button to select “TIME”.
3. Press [MODE/ESC] to enter the main menu (display flashing).
4. Press [UP] or [DOWN] button to select “TIME”.
- Fixture running time
With this function you can display the running time of the device.
1. Select “LIFE” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “XXXX”, “X” stands for the number of hours.
3. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
- Time password
With this function you can display the running time of the lamp.
1. Select “CODE” by pressing [UP] button.
2. Press [ENTER], the display shows “C038”, “038” is password of clear open time.
3. Press [MENU] to return to the main menu.
- Clear fixture time
With this function you can clear the running time of the device.
1. Select “CLFE”by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to
“OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU] to return to the main menu。
——Main menu
1. Press [MENU] to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button to select
“EDIT”.
- Define the number of steps in Run
With this function you can define the number of
steps in the Program Run.
1. Select “STEP” by pressing [UP] or
[DOWN] button.
2. Press [ENTER], the display shows “S-XX”,
“X” stands for the total amount of steps you
want to save, so you can call up to 48 scenes in
“RUN”. For example if the “XX” is 05, it
means that “RUN” will run the first 5 scenes
you saved in “EDIT”.
3. Press [ENTER] to confirm or Press [MENU]
to return to the main menu.

XM745-V1.0-NR
15
-Auto Save
With this function you can automatic save the number of steps in the Program Run.
1. Select “REC” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “RE.XX”,“XX” stands for the number from 1 to 400.
3. Press [ENTER] to confirm or Press [MENU] to return to the main menu.
- Editing the channels of the individual scenes
With this function you can edit the program to be called up in Run.
1. Select “SC01” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “SCXX”, “X” stands for the scene no. to be
edited.
3. Select the channel no. you would like to edit by pressing [UP] or [DOWN] button.
4. Adjust the desired DMX value by pressing [UP] or [DOWN] button.
5. Press [ENTER] in order to edit other channels of this scene.
6. Repeat steps 3-5 until you finish setting all the DMX values for all channels of this scene.
7. Once all the channels completed, the display will flash “TIME”
8. Press [ENTER] to edit the time needed, the display shows “TXXX” , “XXX” stands for the
time needed to run the current scene, value “001-999”. E.g., “002” means you need 0.4ms
(002*0.2ms) to run the current scene. Adjust the desired time by pressing [UP] or [DOWN]
button.
9. Press [ENTER] to save the settings for the scene you are editing, the display will change to the
next scene automatically.
10. Repeat step 3-8 to edit and other scenes, you can edit and save a maximum of 48 scenes.
11. Press [MENU] to exit. The number of steps can be defined under “STEP” and the scenes can be
called up under “RUN”.
b) Editing via the external controller
Call up the first scene in your controller now.
1. Press [ENTER], the display to be edited.
2. Select “SC01” by pressing [UP] or [DOWN] button.
3. Select the channel no. you would like to edit by pressing [UP] or [DOWN] button.
4. Press [ENTER], the display shows “C-01”.
5. Press [UP] or [DOWN] button .the display shows " FADE ".（Adjust fade speed）
6. Press [ENTER], the display to be adjust fade speed.
7. Select "CEDT" by pressing [UP] or [DOWN] button.
8. Press [ENTER], the display shows "OFF".
9. Press [UP] or [DOWN] button .the display shows "ON".
10. Press [ENTER], the display shows "SC02". You successfully downloaded the first scene.
11. Adjust the Step-time as described above under point 12.
12. Call up the second scene in your controller now.
13. Repeat steps 5-11 until all desired scenes are downloaded.
14. Press [MENU] to exit. The number of steps can be defined under “STEP” and the scenes can be
called up under “RUN”.
9. INSTRUCTIONS ON USE:

XM745-V1.0-NR
16
DMX channel´s functions and their values (36 DMX channels):
Mode/Channel
Value
Function
4
5
6
8
36
1
1
1
1
Red LED -all arrays :
0-255
Red ( 0-Black , 255-100% Red )
2
2
2
2
Green LED-all arrays :
0-255
Green ( 0-Black , 255-100% Green )
3
3
3
3
Blue LED -all arrays :
0-255
Blue ( 0-Black , 255-100% Blue )
4
4
4
4
White LED -all arrays :
0-255
White ( 0-Black , 255-100% White )
1
Red LED -array 1 :
0-255
Red ( 0-Black , 255-100% Red )
2
Green LED-array 1 :
0-255
Green ( 0-Black , 255-100% Green )
3
Blue LED -array 1 :
0-255
Blue ( 0-Black , 255-100% Blue )
4
White LED -array 1 :
0-255
White ( 0-Black , 255-100% White )
5
Red LED -array 2 :
0-255
Red ( 0-Black , 255-100% Red )
6
Green LED-array 2 :
0-255
Green ( 0-Black , 255-100% Green )
7
Blue LED -array 2 :
0-255
Blue ( 0-Black , 255-100% Blue )
8
White LED -array 2 :
0-255
White ( 0-Black , 255-100% White )
9
Red LED -array 3 :
0-255
Red ( 0-Black , 255-100% Red )
10
Green LED-array 3 :
0-255
Green ( 0-Black , 255-100% Green )
11
Blue LED -array 3 :
0-255
Blue ( 0-Black , 255-100% Blue )

XM745-V1.0-NR
17
12
White LED -array 3:
0-255
White ( 0-Black , 255-100% White )
13
Red LED -array 4 :
0-255
Red ( 0-Black , 255-100% Red )
14
Green LED-array 4 :
0-255
Green ( 0-Black , 255-100% Green )
15
Blue LED -array 4 :
0-255
Blue ( 0-Black , 255-100% Blue )
16
White LED -array 4 :
0-255
White ( 0-Black , 255-100% White )
17
Red LED -array 5 :
0-255
Red ( 0-Black , 255-100% Red )
18
Green LED-array 5 :
0-255
Green ( 0-Black , 255-100% Green )
19
Blue LED -array 5 :
0-255
Blue ( 0-Black , 255-100% Blue )
20
White LED -array 5 :
0-255
White ( 0-Black , 255-100% White )
21
Red LED -array 6 :
0-255
Red ( 0-Black , 255-100% Red )
22
Green LED-array 6 :
0-255
Green ( 0-Black , 255-100% Green )
23
Blue LED -array 6 :
0-255
Blue ( 0-Black , 255-100% Blue )
24
White LED -array 6 :
0-255
White ( 0-Black , 255-100% White )
25
Red LED -array 7 :
0-255
Red ( 0-Black , 255-100% Red )
26
Green LED-array 7 :
0-255
Green ( 0-Black , 255-100% Green )
27
Blue LED -array 7 :
0-255
Blue ( 0-Black , 255-100% Blue )
28
White LED -array 7:
0-255
White ( 0-Black , 255-100% White )

XM745-V1.0-NR
18
29
Red LED -array 8 :
0-255
Red ( 0-Black , 255-100% Red )
30
Green LED-array 8 :
0-255
Green ( 0-Black , 255-100% Green )
31
Blue LED -array 8 :
0-255
Blue ( 0-Black , 255-100% Blue )
32
White LED -array 8 :
0-255
White ( 0-Black , 255-100% White )
33
Red LED -array 9 :
0-255
Red ( 0-Black , 255-100% Red )
34
Green LED-array 9 :
0-255
Green ( 0-Black , 255-100% Green )
35
Blue LED -array 9 :
0-255
Blue ( 0-Black , 255-100% Blue )
36
White LED -array 9 :
0-255
White ( 0-Black , 255-100% White )
5
5
Shutter, strobe:
0-31
Led trun off
32-63
Led turn on
64-95
Strobe effect slow to fast
96-127
Led turn on
128-159
Pulse-effect in sequences
160-191
Led turn on
192-223
Random strobe effect slow to fast
224-255
Led turn on
5
6
6
Dimmer intensity:
0-255
Intensity 0 to 100%
7
Chasing effect:
0-10
Led trun off
11-40
Chase 1
41-70
Chase 2
71-100
Chase 3
101-130
Chase 4

XM745-V1.0-NR
19
131-160
Chase 5
161-190
Chase 6
191-220
Chase 7
221-255
Chase 8
8
Speed chase :
0-255
Value 0 to 255

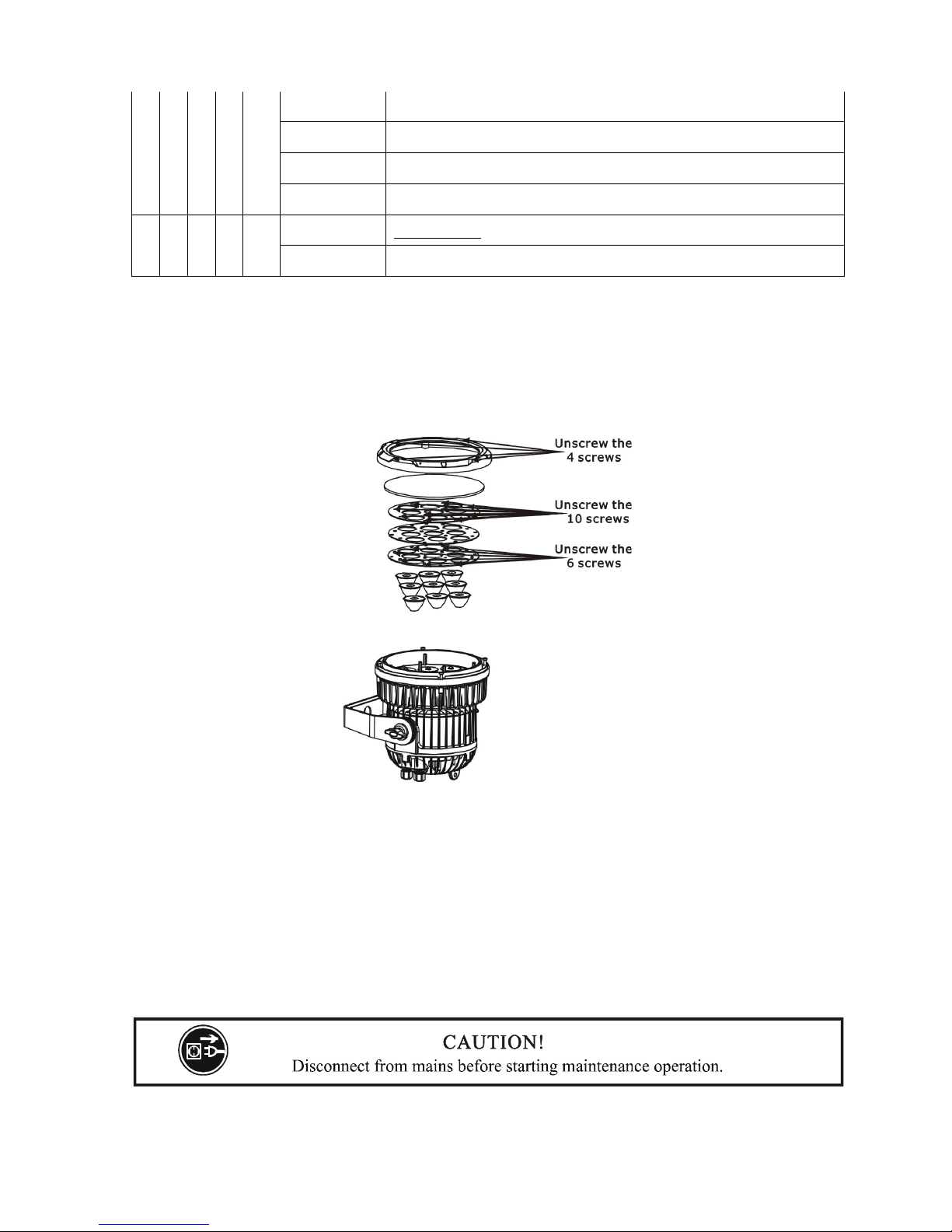

10. The following to change the lens for the different angle
11. CLEANING AND MAINTENANCE
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and must
not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and installation spots
(ceiling, suspension, trussing).
3)The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled
installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning
to the lights.
