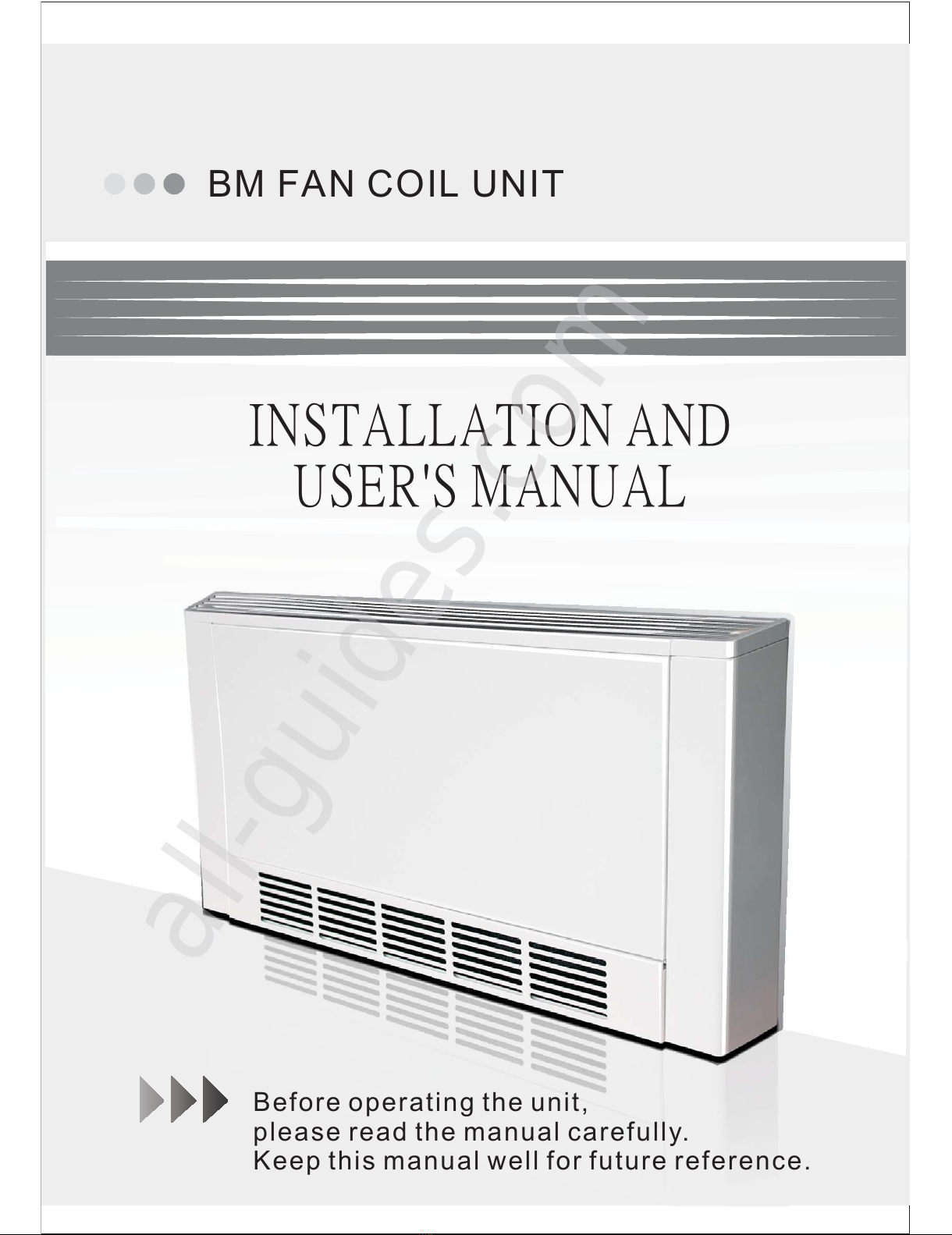

Amitime BM150A-NW User manual

Before operating the unit,
please read the manual carefully.
Keep this manual well for future reference.
INSTALLATION AND
USER'S MANUAL
BM FAN COIL UNIT
All manuals and user guides at all-guides.com
all-guides.com

Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

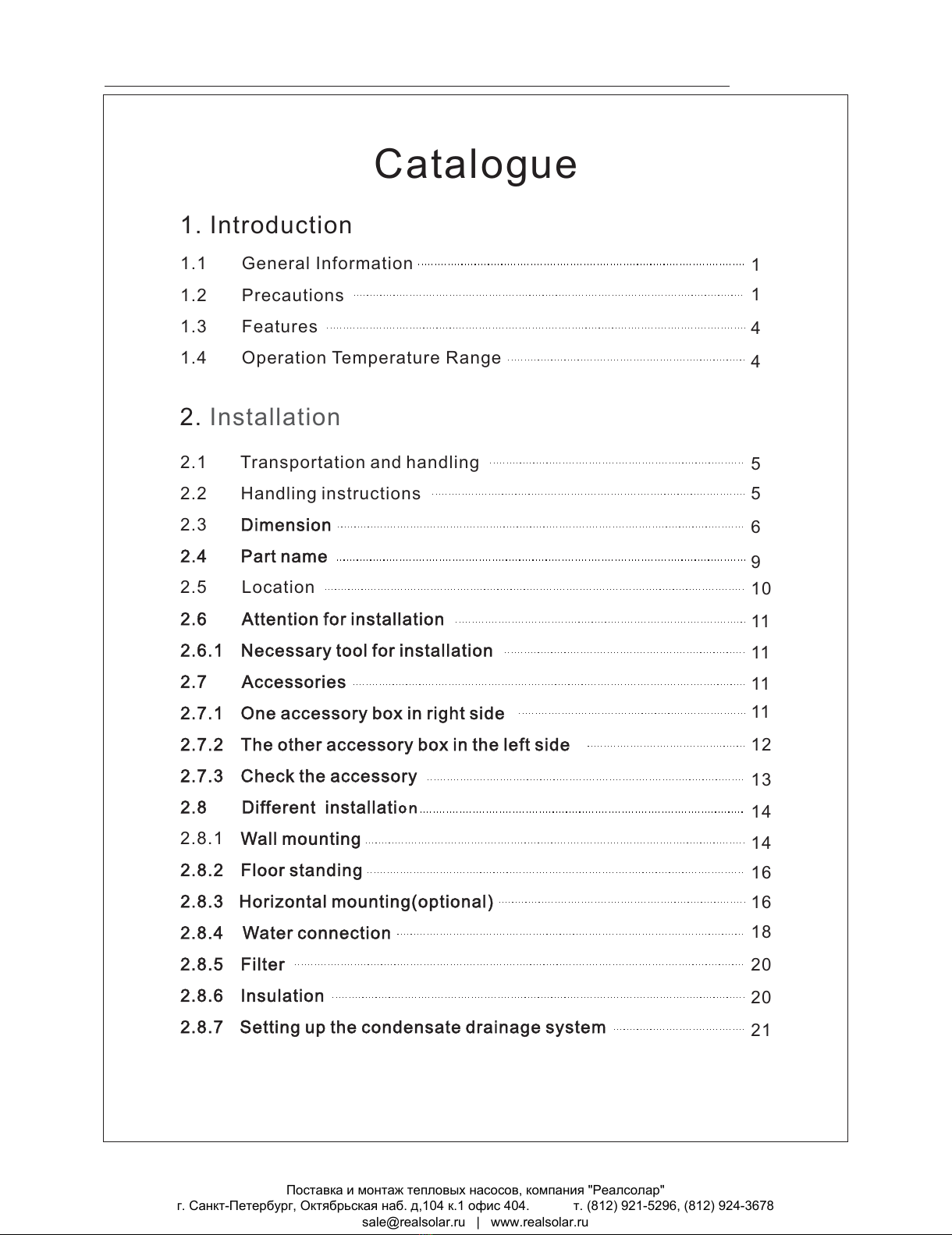

Catalogue
4
4
1
1
1. Introduction
1.1 General Information
1.3 Features
1 4
1.2 Precautions
. Operation Temperature Range
9
6
5
5
2.1 Transportation and handling
2.2 Handling instructions
2.3
2.5 Location
2.8.1
Dimension
2.4 Part name
2.6 Attention for installation
2.6.1 Necessary tool for installation
2.7 Accessories
2.7.1 One accessory box in right side
2.7.2 The other accessory box in the left side

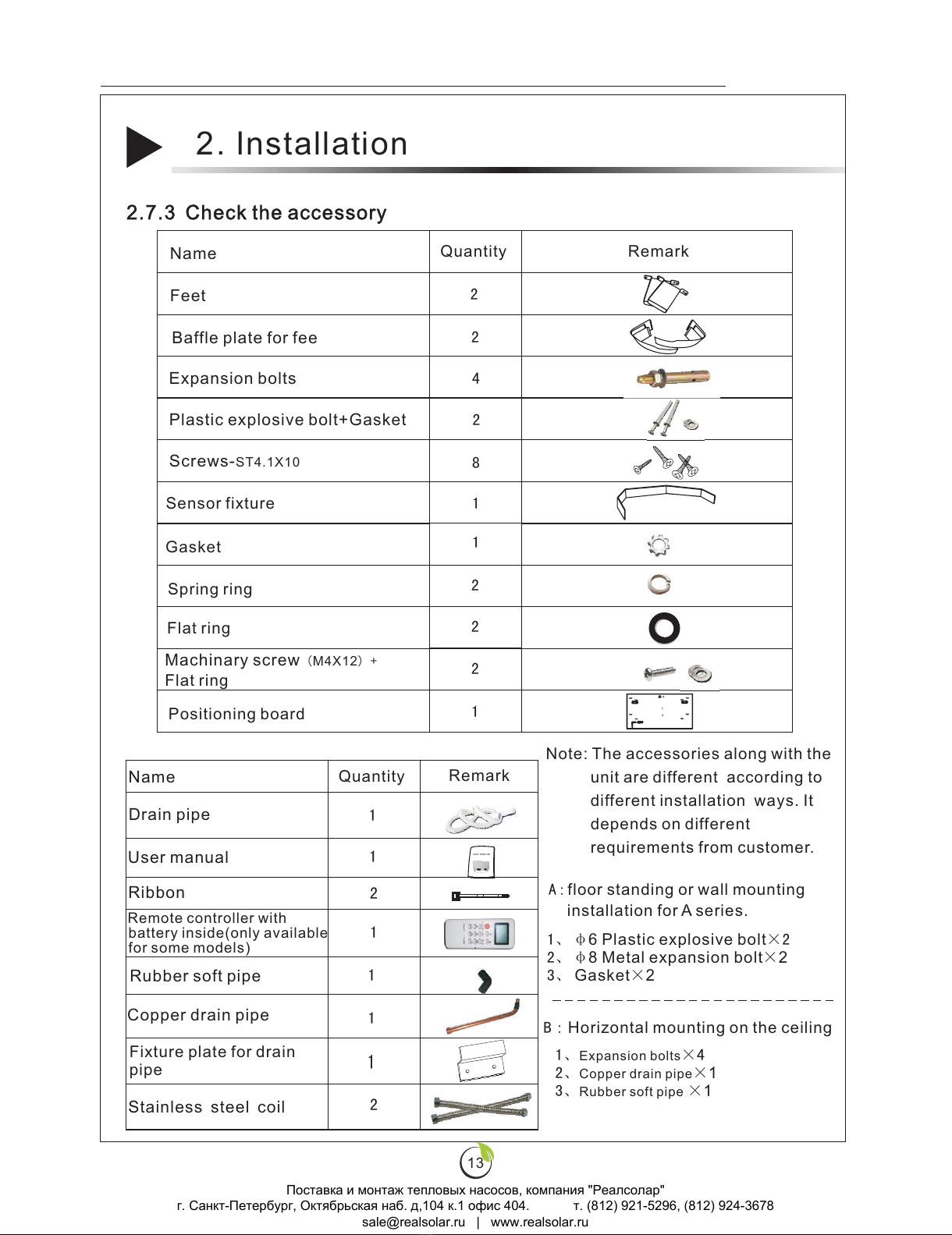

2.7.3 Check the accessory
2.8 Different installation

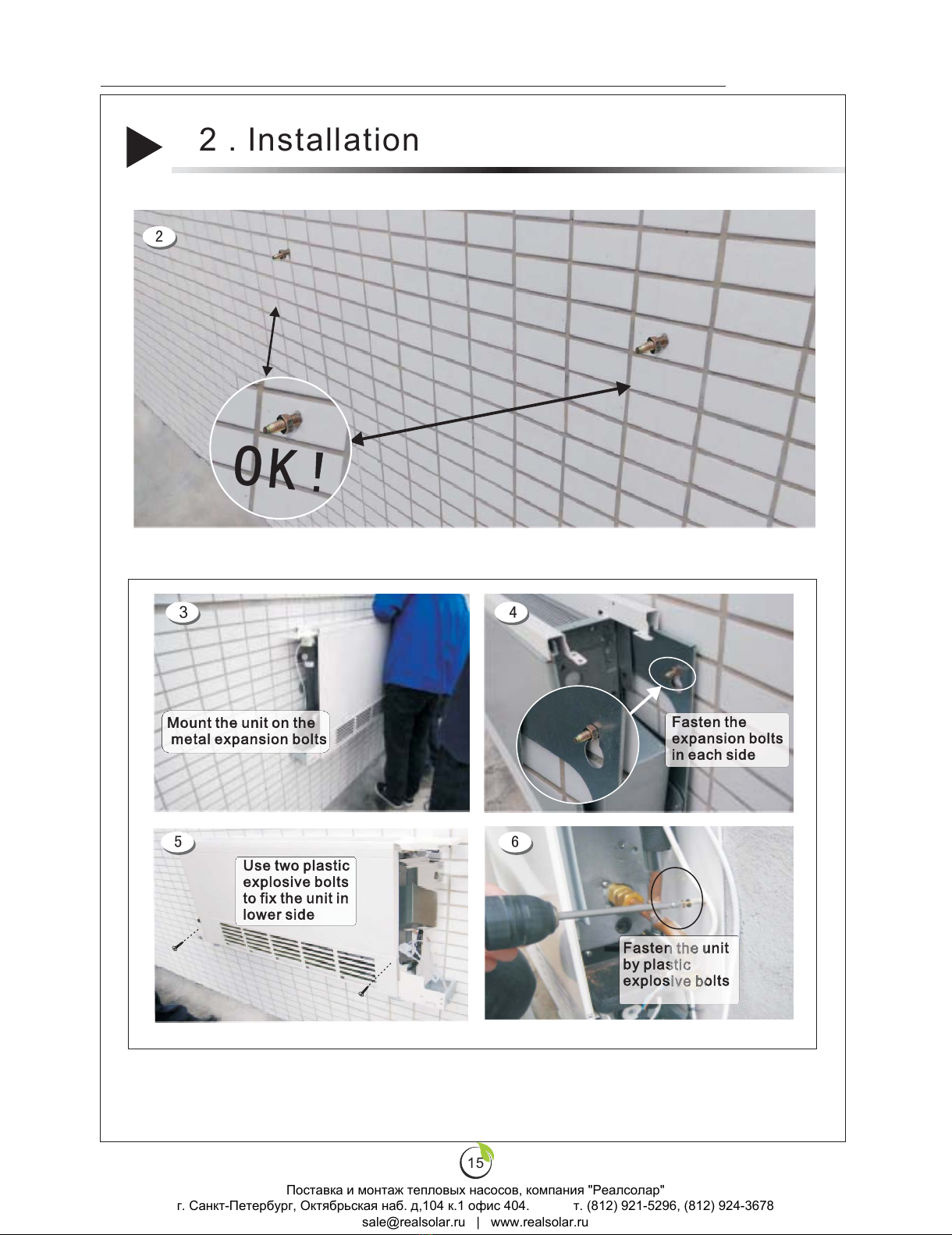

Wall mounting
2.8.2 Floor standing
2.8.3 Horizontal mounting(optional)
2.8.4 Water connection
2.8.5 Filter
2.8.6 Insulation
2.8.7 Setting up the condensate drainage system
11
11
11
10
11
12
13
14
14
16
16
18
20
2. Installation
21
20
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

22
21
21
2.9.1
2.9.2
2.9.3
2.9 Test run
Air purging
Per Start-up
Unit Start-up 22
23
24
28
29
30
30
31
31
3.1 Wired controlled
3.2 Operation instructions
3.4 Remote controller
3.3 Protection
3. Operation Instructions
4.1 Precautions
4.4 Drainage
4.2 Cleaning the air filter
4.3 Check and clean the air inside water system occasionally
4.5 Service to electric parts
4.6 Service to fan blade and fan motor
4. Precautions
31
32
33
35
5.1 Exploded view
5.2 Wiring diagram
5.3 Technical Data
5. Appendix
36
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

01

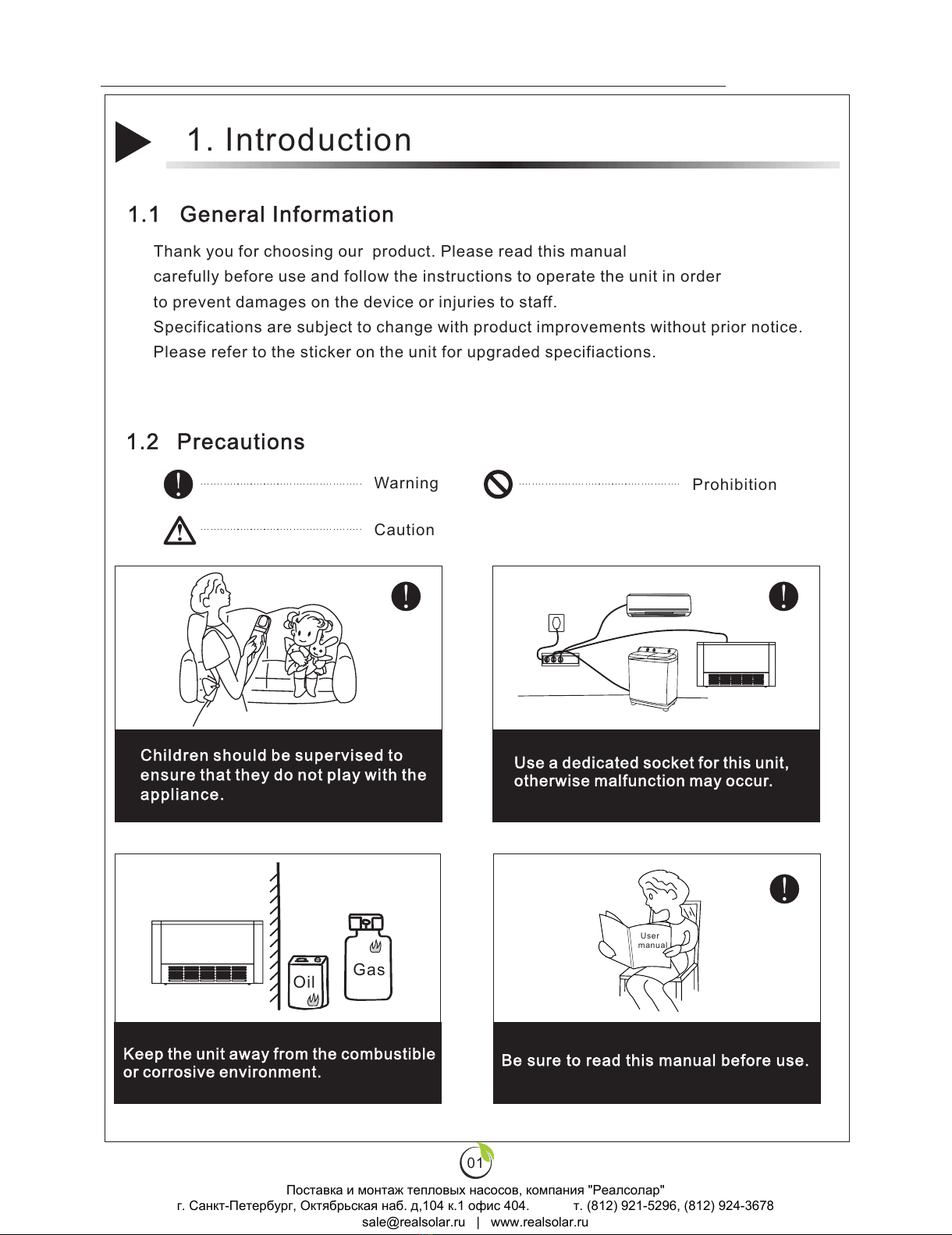

1.2 Precautions
Children should be supervised to
ensure that they do not play with the
appliance.
Use a dedicated socket for this unit,
otherwise malfunction may occur.
Caution
Warning
Prohibition
Keep the unit away from the combustible
or corrosive environment.
1. Introduction
1.1 General Information
Be sure to read this manual before use.
Gas
Oil
Thank you for choosing our product. Please read this manual
carefully before use and follow the instructions to operate the unit in order
to prevent damages on the device or injuries to staff.
Specifications are subject to change with product improvements without prior notice.
Please refer to the sticker on the unit for upgraded specifiactions.
User
manual
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

02
The power supply to the unit unit
must be grounded.
The installation, dismantlement and
maintenance of the unit must be performed
by qualified personnel. It is forbidden to
do any changes to the structure of the unit.
Otherwise injury of person or unit damage
might happen.
Make sure no water or other liquid drips
into the electric box of the unit Otherwise
the unit might be damaged.
When the power cord gets loose or is
damaged,always get a qualified person
to fix it.
Do not insert any foreign objects into the
all outlet grill when the fan motor is
running. Otherwise injury of person or
unit damage might happen.
Do not clog air inlet or outlet by paper or
any other foreign objects, to keep the
unit well ventilated.
1. Introduction
grovnd line
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com
all-guides.com

03
Make sure the power supply to the heat
pump unit is off before any operations
are done on the unit.
If there is a burning smell or in thunder
stop the unit and cut the power, weather.
It is mandatory to use a suitable circuit
breaker for the heat pump and make
sure the power supply to the heater
corresponds to the specifications.
Otherwise the unit might be damaged.
1. Introduction
Children should be supervised to
ensure that they do not play with the
appliance.
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

04
1. Introduction

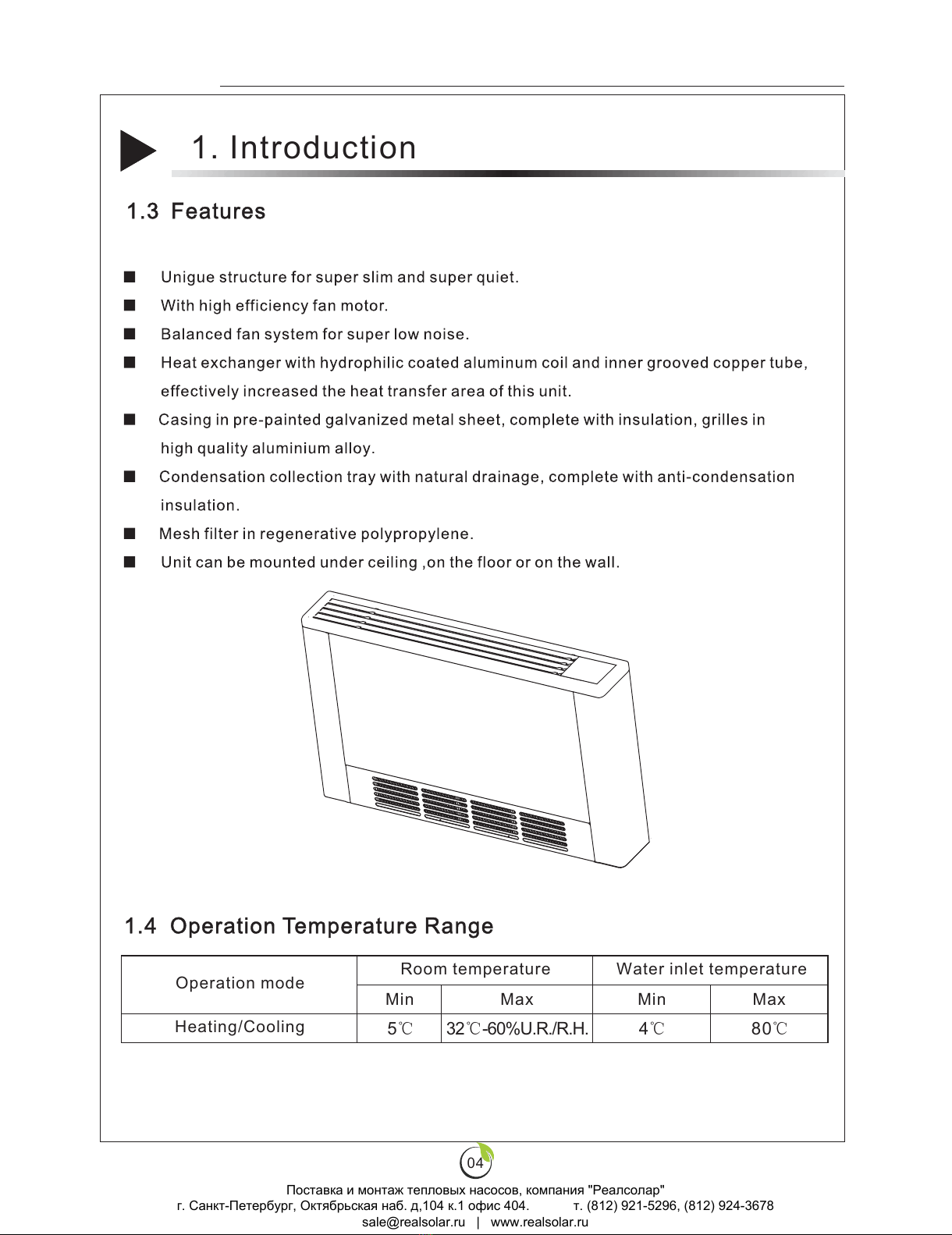

1.3 Features
1 4 . Operation Temperature Range
Water inlet temperature
Max
80℃
Operation mode
Heating/Cooling
Room temperature
Min
Max
Min
5℃
32℃-60%U.R./R.H.
4℃
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

05
Danger！
！

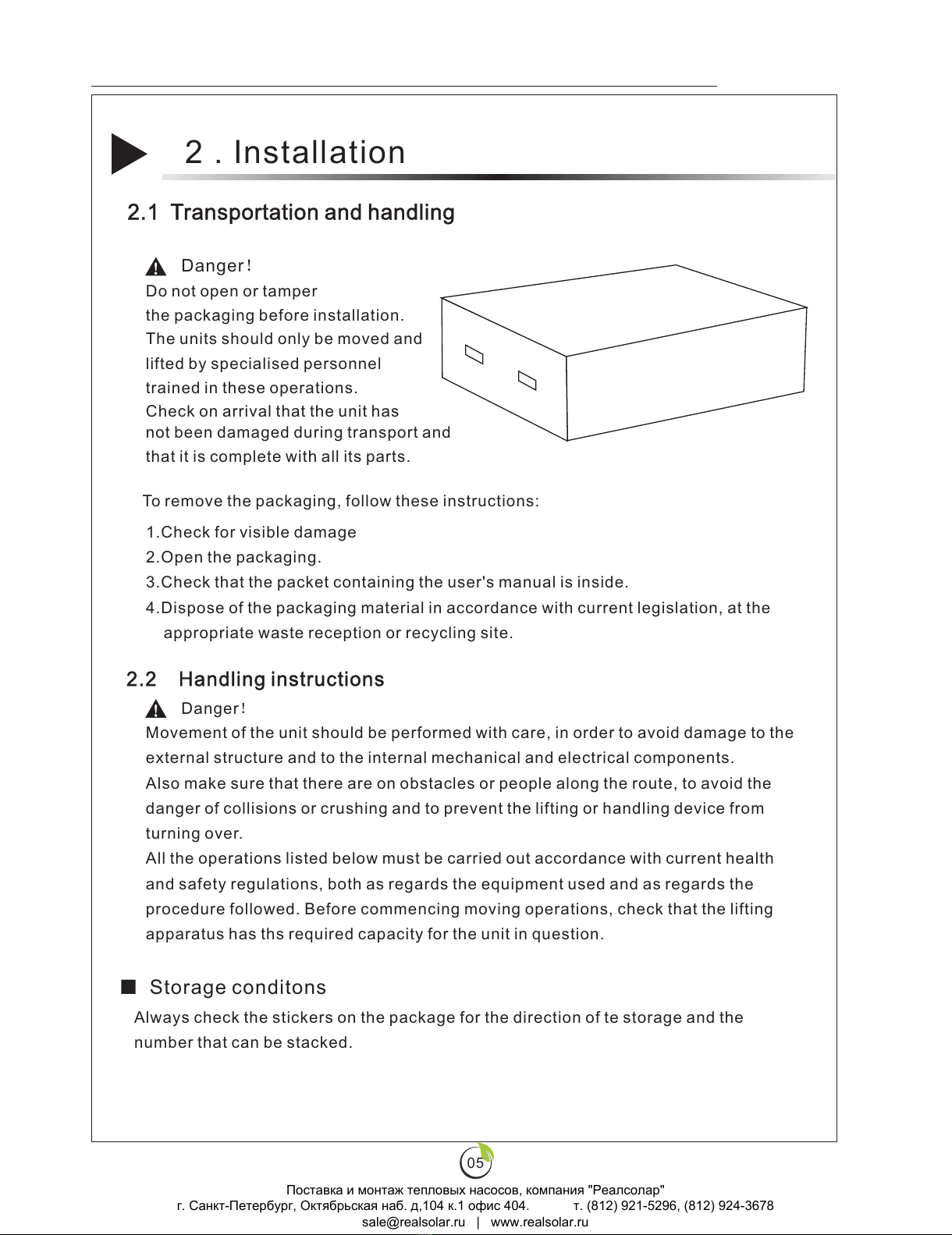

To remove the packaging, follow these instructions:
2.2 Handling instructions
！
Danger！
■ Storage conditons
Always check the stickers on the package for the direction of te storage and the
number that can be stacked.
Do not open or tamper
the packaging before installation.
The units should only be moved and
lifted by specialised personnel
trained in these operations.
Check on arrival that the unit has
not been damaged during transport and
that it is complete with all its parts.
1.Check for visible damage
2.Open the packaging.
3.Check that the packet containing the manual is inside.
4.Dispose of the packaging material in accordance with current legislation, at the
appropriate waste reception or recycling site.
user's
Movement of the unit should be performed with care, in order to avoid damage to the
external structure and to the internal mechanical and electrical components.
Also make sure that there are on obstacles or people along the route, to avoid the
danger of collisions or crushing and to prevent the lifting or handling device from
turning over.
All the operations listed below must be carried out accordance with current health
and safety regulations, both as regards the equipment used and as regards the
procedure followed. Before commencing moving operations, check that the lifting
apparatus has ths required capacity for the unit in question.
2.1 Transportation and handling
. Installation2
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

06
The fan coil unit without motorized water valve
1094
1294
894
694
G1/2"
16
22
28
32
BM150*-NW
BM350*-NW
BM450*-NW
BM550*-NW
G1/2"
G1/2"
G1/2"
2.3 Dimension
A（m m）Connector size Net weight（Kg）
Model no.
. Installation2
Connect water
pipe on the right side
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

07
The fan coil with two-way valve
1094
1294
894
694
G1/2"
16
22
28
32
BM150*-2W
BM350*-2W
BM450*-2W
BM550*-2W
G1/2"
G1/2"
G1/2"
. Installation2
A（m m）Connector size Net weight（Kg）
Model no.
2.3 Dimension
Connect water
pipe on the right side
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com
all-guides.com

08
1094
1294
894
694
G1/2"
16
22
28
32
BM150*-3W
BM350*-3W
BM450*-3W
BM550*-3W
G1/2"
G1/2"
G1/2"
The fan coil with three-way valve
. Installation2
Connect water
pipe on the right side
A（m m）Connector size Net weight（Kg）
Model no.
2.3 Dimension
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

Front panel
Feet assembly
Feet assembly
Left panel
Air inlet grille
Right panel
Air outlet grille
2.4 Part name
. Installation2
Wired controller
09
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

10
If the wall can't support the weight of 28kg, the unit can't be installed on the wall. It's suggested
to put the unit on the floor, with the feet to support the weight.
2.5 Location
In order to obtain optimum efficiency and performance, and to prevent any failures or
hazardous situation, the location must meet the following requirements:
1）For floor standing, the minimum distance between air outlet grille and other objects is
140mm. The distance from side panel to the wall is no less than 20mm to make it easy to
remove the side panels.
2）For wall mounting, the unit should be mounted no less than 80mm higher than floor.
3）For ceiling installation, the unit needs to be at least 2.5m far away from the floor, and
don't allow to blow the cold air to the body directly. The wall should be strong enough to
support the unit.
4）The clearance between air inlet grille and other objects is around 400mm. the unit should
lean a little bit(≤2 degrees) to the area of water discharge for good condensate discharge.
. Installation2
unit:mm
Wall mounting Ceiling mounting
Other object
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

1 2
3 4
a
b
11
PRESS
2.6.1 Necessary tool for installation
2.7 Accessories
The installation must be performed by qualified and professional installer. Before
any operation on the unit, make sure the power supply to the unit is cut.
(1)Press " " on the operation panel, then the operation panel will bounce (fig. 1 and
fig. 2).Screw out 2pcs screws under the operation panel(fig. 3), simply remove the side
corner slight to the right so as to make the reference of the upper profile, and then lift the
right panel upwards and pull it out.
Spanner
2.7.1 One accessory box in right side
Scissors
"+" type screwdriver drill bit
. Installation2
φ6- drill bitφ8
remove 2pcs screws
2.6 Attention for installation
measuring reel
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

12
take out the
accessory box
5
Check the accessory box
2.7.2 The other accessory bag in the left side
(2)Take out the accessory box in the right side(refer fig. 5).
1. Use screwdriver to remove 2pcs screws on the left and right side of air outlet grille, and
then take off the air outlet grille(refer fig 1 and 2).
2. Open the baffle plate on the left side, remove 2pcs screws(refer fig. 3), simply remove the
side corner slightly to the right so as to make the reference of the upper profile, and then lift
the left panel upwards and pull it out.
3. Take out the accessory bag from left side(refer fig. 5).
12
2
3
a
b
4
take out the
accessory box
screw out
the screws
screw out
the screws
check the
accessory
5
Installation2.
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com
all-guides.com

13
A:floor standing or wall mounting
installation for A series.
B：Horizontal mounting on the ceiling
2.7.3 Check the accessory
Installation2.
1、φ6 Plastic explosive bolt
φ8 Metal expansion bolt
Gasket
×2
2、 ×2
3、 ×2
1、Expansion bolts
Copper drain pipe
Rubber soft pipe
×4
2、 ×1
3、 ×1
2
2
4
2
8
1
1
2
2
2
1
Feet
Screws-ST4.1X10
Baffle plate for fee
Expansion bolts
Plastic explosive bolt+Gasket
Quantity
Name Remark
Quantity Remark
2
1
1
1
1
1
1
Name
Drain pipe
User manual
Ribbon
Remote controller with
battery inside(only available
for some models)
Fixture plate for drain
pipe
Rubber soft pipe
Copper drain pipe
Note: The accessories along with the
unit are different according to
different installation ways. It
depends on different
requirements from customer.
Gasket
Sensor fixture
Spring ring
Flat ring
Machinary screw（
Flat ring
M4X12）+
Positioning board
user manual
Stainless steel coil 2
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

14
2.8.1 Wall mounting
. Installation2
2.8 Different installation
Take out the positioning board from accessory. Please put the positioning board up
against the wall. According to the anchor point ②.
1. After a suitable place for installation is selected, the unit must be fastened to the wall
in place by two expansion bolts in each side. To fasten the unit to a wooden wall, use
suitable bolts.
2. Mark on the wall where the mounting holes will be drilled. Drill the wall with a power
drill.Put the ∮8 explosive bolts in the holes, mount the gasket on expansion bolt to
avoid the friction between unit and wall.
3. Mount the unit on the explosive bolts(refer fig. 3) and position the unit properly using
a spirit-level, so that it slightly bend to the area of water discharge for good condensate
discharge.
1
Unit : mm
≥80
Positioning Board
BM550*-*W
BM450*-*W
BM350*-*W
BM150*-*W 1294
1094
894
694
1147
947
747
547
964
764
564
364
The positioning board is available for all kinds of installations.
Please choose the corresponding anchor point according to
different installations:
①—
②—
③—
Horizontal mounting
Wall mounting
Floor standing
Model AB C
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

15
. Installation2
OK!
2
Mount the unit on the
metal expansion bolts
34
Fasten the
expansion bolts
in each side
65
Use two plastic
explosive bolts
to fix the unit in
lower side
Fasten the unit
by plastic
explosive bolts
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru
All manuals and user guides at all-guides.com

16
. Installation2
2.8.2 Floor standing
①Fix the feet on the unit by fastening the screws on two sides of feet.After a suitable place
is selected, put the unit against the wall, fasten expansion bolts on left and right side of
back panel to fix the unit on the wall. Mount the gasket on expansion bolt to avoid the
friction between unit and wall.
1 2
Please insert the baffle plate into the feet after
water connection is finished(Water connection
according to the chapter 2.8.4).
The depth for inserting the baffle plate into the
feet can be adjusted according to the thickness
of base board, so that the baffle plate can be
close to base board.
② Installation of baffle plate for feet
Horizontal mounting is only available for some models which
has special drain pan for installation under ceiling.
2.8.3 Horizontal mounting(optional)
1. the unit must be fastened to the ceiling, using expansion
bolts on each side. To fasten the unit to a wooden ceiling,
use suitable bolts.
2. Take out the positioning board from accessory. According
to the anchor points ① in the chapter 2.8.1, Mark on the
ceiling where the mounting holes will be drilled. Drill 4 holes
in order to insert the expansionbolts. Put the expansion bolts
(∮8) in the holes, mount the gasket on the expansion bolt to
avoid vibration between unit and ceiling.
φ8
φ8
φ8
φ8
