Open Your Box
10.1” Rugged Android™ Handheld Device with Octa-core Processor
Rechargeable Li-ion battery pack (Pre-installed)
Universal power adapter
Earphone
User Manual
1Power key
* Press-and-hold to power on/off the device.
* Press to turn on/off the display.
9HDMI jack with rubber cover
10 USB connector with rubber cover
11 Rear camera
2Volume rocker 12 Camera ash
3Front camera 13 Barcode scanner
4Light sensor 14 Dual-SIM & microSD card slot (inside)
5Barcode scanner trigger button 15 Speaker
6Microphone 16 Battery chamber (inside)
7Touch screen
8Headset jack with rubber cover
16
3
6
5
7
8
15
15
14
4
9
10
11
12 13
21

2
Step 4: Locate the double-stacked SIM card
slots and the microSD card slot. The above
graphics illustrate the correct card orientation.
To install the SIM card(s) or the microSD card,
orient the card as indicated, and fully insert the
card into the slot until it locks into place.
Step 5: Restore the battery and then use a coin
or at-head screwdriver to secure the back cover
with the six screws.
Install SIM & microSD Cards

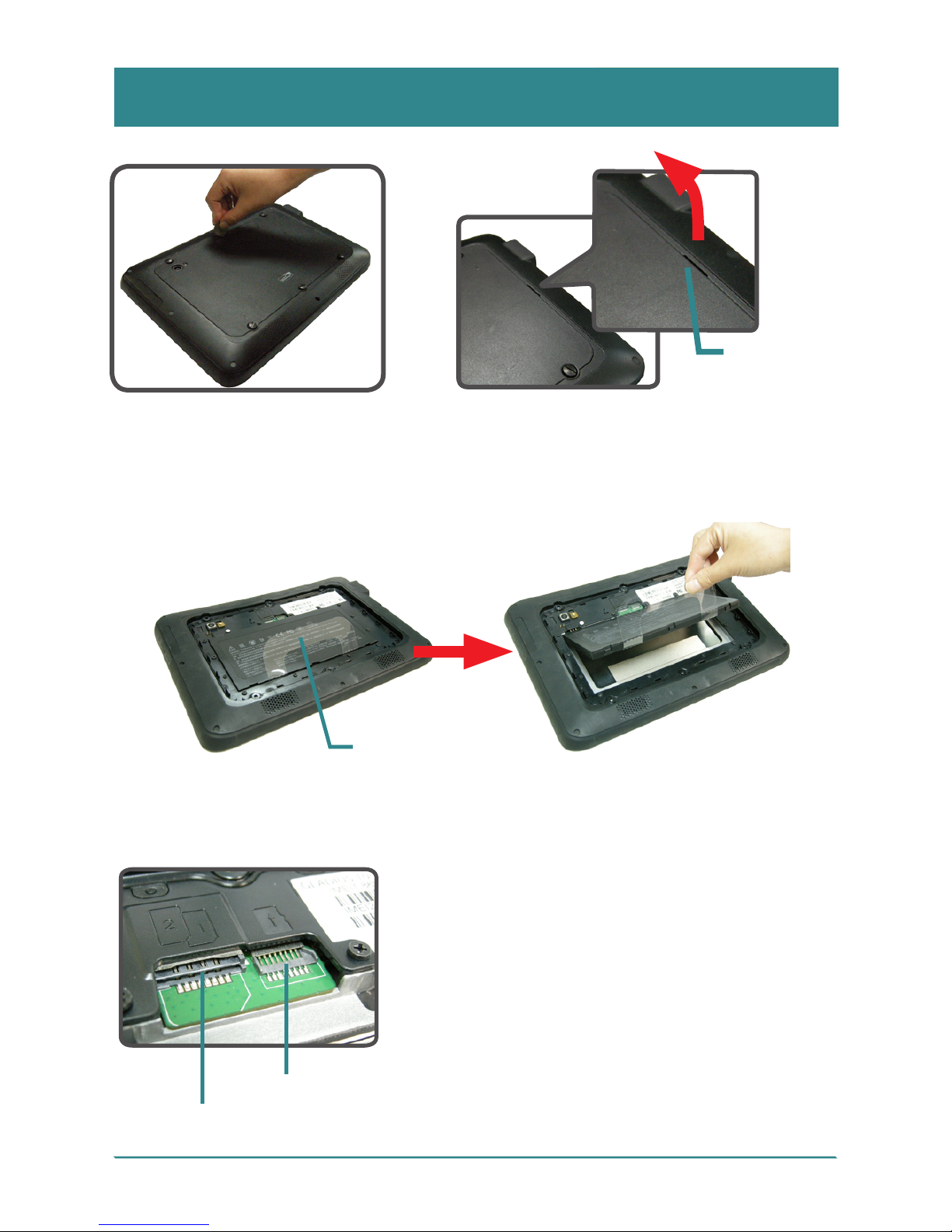

Step 2:
Insert a small at-head screwdriver into
the notch on the side of the cover and
gently pry up the cover.
Step 3:
Use the clear plastic pull tab on the battery to lift the battery out of the battery
chamber.
Battery
cover notch
Plastic pull tab
Dual SIM card slots
microSD card slot
Step 1:
Place the device on a at surface,
with the rear side facing up. Loosen
the six retaining screws on the
back cover with a coin of at-head
screwdriver.

3
Charging the Battery

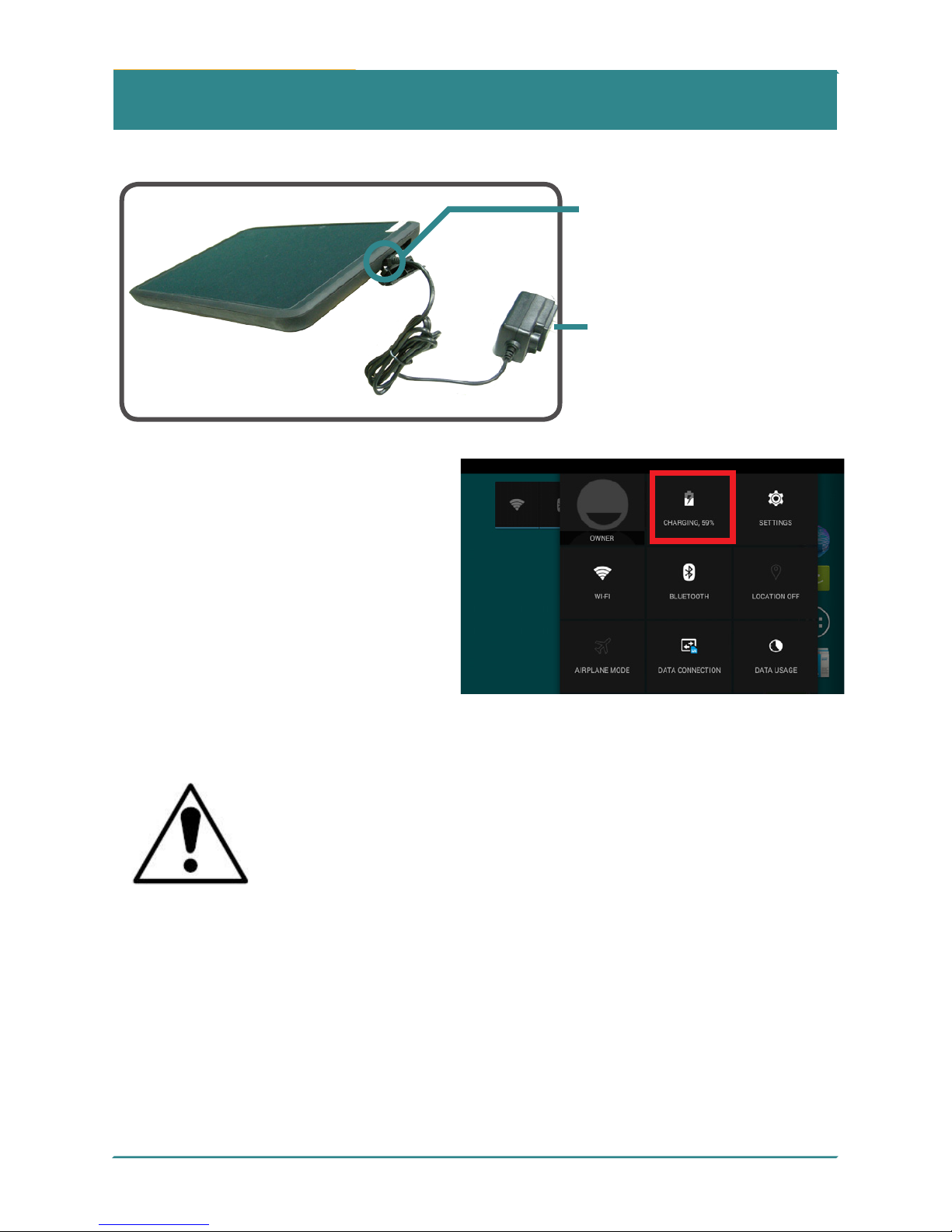

Step 1: Connect the USB
end of the power adapter to
the USB port on the device..
Step 2: Connect the power
adapter to a power outlet.
Warning: Use only the power adapter that comes with your
device. Using a different power adapter may damage your
device and may result in poor performance. It may also
invalidate warranty applying to the device.
Step 3: When the battery is fully charged, unplug the USB cable from the device
When the charging is in process,
a battery indicator will appear
in the status bar showing the
charging status. To view the charge
percentage, swipe down the Status
Bar and you will see the charging
percentage.

4
TITAN 10概覽
包裝內容:
TITAN 10 強固式物連網裝置
抽換式鋰電池 (己安裝)
充電器
耳機
使用手冊
1電源紐
* 長按關閉/開啟裝置
* 按一下關閉/開啟螢幕
9HDMI插孔 (保護蓋內
10 USB插孔 (保護蓋內
11 後置相機
2音量鍵 12 LED 閃光燈
3前置相機 13 條碼掃描器
4光度感測器 14 雙SIM 卡& microSD卡插槽 (保護蓋內)
5條碼掃描鍵 15 喇叭
6麥克風 16 電池 (背蓋內)
7觸控螢幕
8耳機插孔(含保護蓋）
16
3
6
5
7
8
15
15
14
4
9
10
11
12 13
21

5
步驟 4: 找到雙SIM卡插槽及microSD卡插槽，依照
圖示所指示方向將SIM卡/microSD卡插入插槽，插
卡時請確定將卡插到底。.
步驟 5: 將電池安裝回原位，蓋上背蓋，然後利用硬
幣或一字螺絲起子將背蓋上的六顆螺絲鎖緊。
安裝 SIM & microSD 卡
步驟 1:
將產品置於平坦桌面上，背面朝上，
利用硬幣或一字螺絲起子將背蓋上的
六顆螺絲鬆開。
步驟 2:
利用一字螺絲起子插入背蓋側邊的溝
槽，將背蓋微微翹開，然後取下背蓋。
步驟 3:
利用電池的透明塑膠片將電池取出。
電池蓋溝槽
透明塑膠片
雙SIM卡插槽
microSD 卡插槽

6
為裝置充電
步驟 1: 將充電器的USB端插
入裝置的USB插孔。
步驟 2: 將充電器插入電源
插座。
警告:請使用裝置隨附的充電器為裝置進行充電，使用其它充
電器可能造成機器毀損，或是影響機器效能，也會造成產品保
固無效。
步驟 3: 裝置完成充電後，請將USB線拔除裝置。
充電進行時，您可以向下滑動狀態
列，即可查看充電圖示所顯示的目
前充電進度。

7
產品規格
產品額定電壓 /Rating Voltage: D.C. 5V
產品額定電流 /Rating Current: 2.0A
操作溫度範圍 /Operate temp.: -10~50℃
請注意以下要求!!
1.請更換相同型號之電池以免產生爆炸的風險
2.使用過之廢電池請依當地政府單位要求處理
3.不得拆解、開啟、短路或撕裂二次單電池或電池組
4.不得使單電池或電池組曝露於熱或火源。避免存放在陽光直射處。
5.當單電池發生洩漏時，不得使液態電解質接觸皮膚或眼睛。
若不慎接觸時請以大量清水沖洗換部並尋求醫療協助。
6.不得使用任何非設計搭配設備使用支單電池或電池組。
7.二次單電池與電池組需於使用前充電。務必使用正確之充電器並依設備之使用
手冊，以正確之程序進行充電。

This equipm ent has been tested and found to comply wit h the lim its for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipm ent generates, uses and can ra diate radio frequency ener gy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that in terference will not
occur in a particular installation. If this equipment does cause harm ful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interfer ence by one of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipm ent into an outlet on a circuit dif ferent from that to which
the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or m odifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device com plies with Part 1 5 of the FCC Rules. Operation is subjec t to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this d evice must accep t any interference re ceived, includin g interferen ce th at m ay
cause undesired operation.
IMPORTANT NOTE:
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is com pliance with SA R for general population/uncontrolled exposure
limits in A NSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement m ethods and procedures spec ified in OET Bulletin 65 Supplem ent C.
