Amprobe TIME-10 User manual

Users Manual
• Mode d’emploi
• Bedienungshandbuch
• Manual d’Uso
• Manual de uso

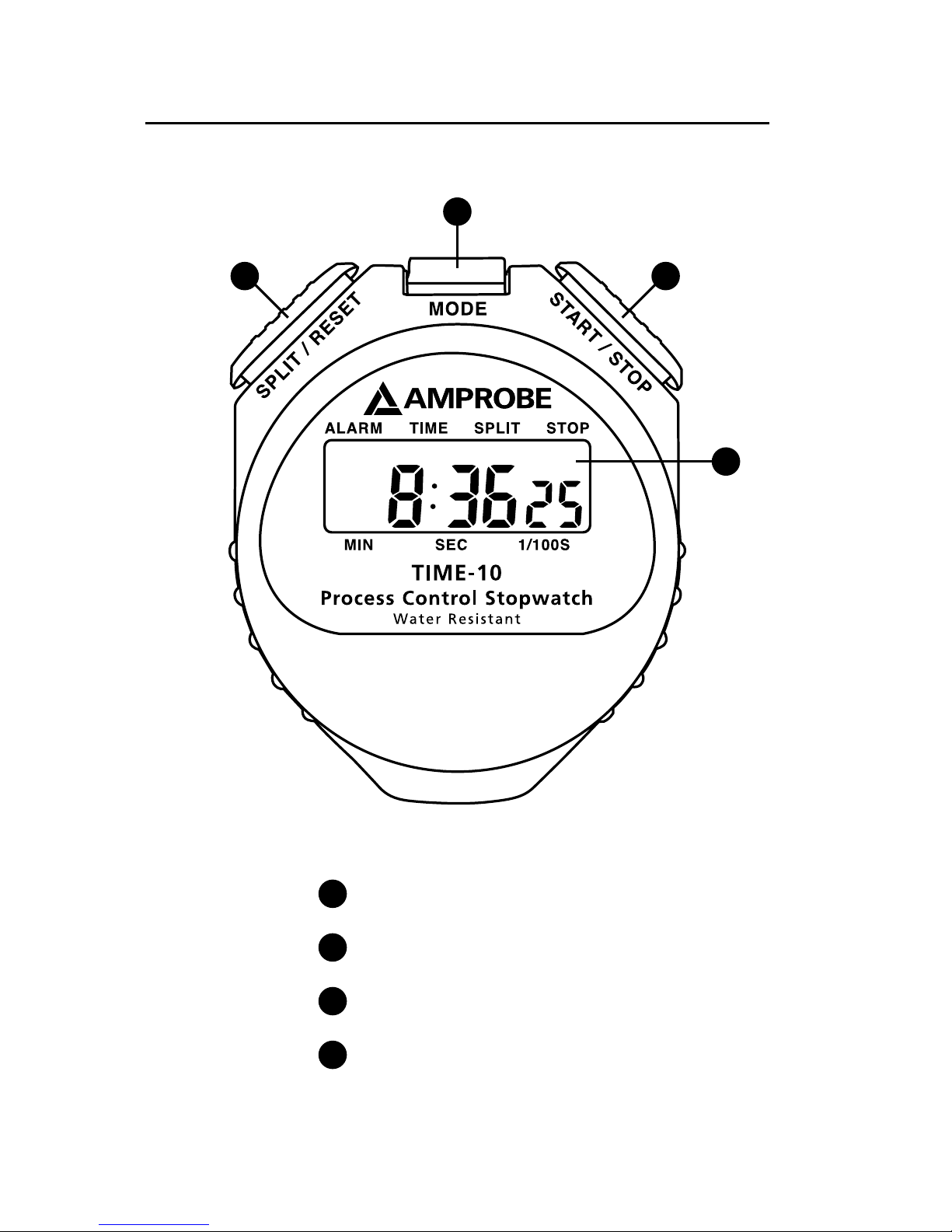

TIME-10
Process Control Stopwatch

TIME-10
Process Control Stopwatch
Users Manual
July 2009, Rev.1
©2009 Amprobe Test Tools.
All rights reserved. Printed in China
English

Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material
and workmanship for 1 year from the date of purchase. This
warranty does not cover fuses, disposable batteries or damage
from accident, neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling. Resellers are not
authorized to extend any other warranty on Amprobe’s behalf.
To obtain service during the warranty period, return the product
with proof of purchase to an authorized Amprobe Test Tools
Service Center or to an Amprobe dealer or distributor. See Repair
Section for details. THIS WARRANTY IS YOUR ONLY REMEDY.
ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR
STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR
A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY
DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limitation of an
implied warranty or of incidental or consequential damages, this
limitation of liability may not apply to you.
Repair
All test tools returned for warranty or non-warranty repair or
for calibration should be accompanied by the following: your
name, company’s name, address, telephone number, and proof of
purchase. Additionally, please include a brief description of the
problem or the service requested and include the test leads with
the meter. Non-warranty repair or replacement charges should be
remitted in the form of a check, a money order, credit card with
expiration date, or a purchase order made payable to Amprobe®
Test Tools.
In-Warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before
requesting repair. During the warranty period any defective test
tool can be returned to your Amprobe® Test Tools distributor
for an exchange for the same or like product. Please check the
“Where to Buy” section on www.amprobe.com for a list of
distributors near you. Additionally, in the United States and
Canada In-Warranty repair and replacement units can also be sent
to a Amprobe® Test Tools Service Center (see address below).

Non-Warranty Repairs and Replacement – US and Canada
Non-warranty repairs in the United States and Canada should be
sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test
Tools or inquire at your point of purchase for current repair and
replacement rates.
In USA In Canada
Amprobe Test Tools Amprobe Test Tools
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: 877-AMPROBE (267-7623) Tel: [phone]
Non-Warranty Repairs and Replacement – Europe
European non-warranty units can be replaced by your Amprobe®
Test Tools distributor for a nominalv charge. Please check the
“Where to Buy” section on www.amprobe.com for a list of
distributors near you.
European Correspondence Address*
Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
Tel.: [phone] - 0
*(Correspondence only – no repair or replacement available from
this address. European customers please contact your distributor.)

1
TIME-10
Process Control Stopwatch
1
3
2
4
Split / Reset Button
Mode Button
Start / Stop Button
Display Screen (LCD)
AM
TU
4
2
1 3

1
CONTENTS
SYMBOLS........................................................................... 2
UNPACKING AND INSPECTION ......................................... 2
INTRODUCTION ................................................................. 2
OPERATION........................................................................ 3
SPECIFICATIONS................................................................. 4
MAINTENANCE AND REPAIR ............................................ 5

2
3
SYMBOLS
Caution! Refer to the explanation in this Manual
Conforms to relevant Australian standards
Complies with European Directives
Do not dispose of this stopwatch as unsorted
municipal waste. Contact a qualified recycler for
disposal.

WARNING and PRECAUTIONS
• Do not operate the stopwatch in explosive gas
(material), combustible gas (material) steam or
filled with dust.
UNPACKING AND INSPECTION
Your shipping carton should include:
1 TIME-10 Process control stopwatch
1 Battery (Installed)
1 Users manual
If any of the items are damaged or missing, return
the complete package to the place of purchase for an
exchange.
INTRODUCTION
Optimize process phases by analyzing and precisely
timing each task. When improving process flow, verify
improvement times and cost savings on production
floors or assembly lines with precise stopwatches.
• Chronograph: 1/100 stop watch, split/lap time
• Time display: hour, minute, second, day, week day,
month and year
• Alarm function
• Hourly chime
• Water resistant

2
3
OPERATION
FUNCTION READING
Normal display Hour, minutes, second and day of the
week
Push A Alarm time
Push B Mode
Push C Month, date, day of the week
STOP FUNCTION
Push B for stop function
Push C for count & stop
Push A for lap & reset
ALARM & CHIME ON / OFF
Chime is auto-built-in into the IC, no more chime flag
is required.
• In normal time hold A then push C
• Alarm ag appears alarm on/alarm ag disappears,
alarm off
ALARM TIME SETTING
• Press B, 2 times makes hour ashing, press C to
advance
• Push A again to make minute ashing, press C to
advance
• Push B, 1 time back to normal time
AM
TU
A
B
C

4
5
NORMAL TIME SETTING
• Press B, 3 times then push A once to make ashing
of minute, push C to advance
• Press A again to make ashing of hour, push C to
advance
• Repeat the sequence until the week days to be set,
then press B once back to normal time.
• Select 12/24 hour cycle option in normal time
• Press B, 3 times, then A, 2 times so that hour is
ashing, press C to advance 1 cycle to select 12/24
hour, after selected, press B 1 time back to normal
time.
SPECIFICATIONS
Range : 0.00~10.00ppt, 10.1~70.0ppt
Resolution : 0.01ppt or 0.1ppt
Normal Time : Days, Month, Date, Hour, Minute, Second,
AM/PM, 12/24 Hours, Alram Sign Hourly Chime
Alarm Time : Hour, Minute, Alram Sign Hourly Chime
Chronograph : 1/100 Stop watch, Max Count: 50:59
(Minute : Second) (99/100Sec)
Water Resistant : Yes
Dimensions : 65(L) x 56(W) mm (2.56 x 2.20 in)
Weight : Approx. 47 g ( 0.10 lb)
Battery : LR44
Compliance : Complied with CE Regulation

4
5
MAINTENANCE AND REPAIR
If there appears to be a malfunction during the
operation of the stopwatch, the following steps should
be performed in order to isolate the cause of the
problem.
1. When readout becomes dim or no displays, it is
time to replace the battery, remove the back cover
by loosening the screw and replace with Toshiba
LR44.
2. Review the operating instructions for possible
mistakes in operating procedure.
Except for the replacement of the battery, repair of the
meter should be performed only by a Factory Authorized
Service Center or by other qualified instrument service
personnel. The front panel and case can be cleaned with
a mild solution of detergent and water. Apply sparingly
with a soft cloth and allow to dry completely before
using. Do not use aromatic hydrocarbons or chlorinated
solvents for cleaning.
