AMX Multi-Disc Loader System MAX MDL200 Parts list manual

Operation/Reference Guide
MAX MDL200
Multi-Disc Loader System
MAX-MDLD Multi-Disc Loader
MAX MDL200 Software v4.20
Windows®Desktop PC
Last Revised: 9/14/2007
MAX by AMX®

AMX Limited Warranty and Disclaimer
AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from
the date of purchase from AMX, with the following exceptions:
• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch
overlay components that are warranted for a period of one (1) year.
• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one
(1) year.
• AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting
products, as long as the AMX Lighting products are under warranty. AMX does guarantee the control of dimmable
loads that are properly connected to our lighting products. The dimming performance or quality cannot be guaran-
teed due to the random combinations of dimmers, lamps and ballasts or transformers.
• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.
• AMX Software is warranted for a period of ninety (90) days.
• Batteries and incandescent lamps are not covered under the warranty.
This warranty extends only to products purchased directly from AMX or an Authorized AMX Dealer.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained
from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is
valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent
with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a
valid RMA number.
AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any
lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a
third party or by an AMX Dealer for a third party.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim
(including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot
be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized represen-
tative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not
apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or
exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of
the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also
have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determina-
tion of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED
WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF
THIS LIMITED WARRANTY.

Software License and Warranty Agreement
LICENSE GRANT.
AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is
licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists
of generally available programming and development software, product documentation, sample applications, tools and utilities, and
miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding
the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement.
LICENSEE MAY NOT SUBLICENSE, RENT, OR LEASE THE AMX SOFTWARE. Licensee may not reverse engineer, decompile, or
disassemble the AMX Software.
INTELLECTUAL PROPERTY.
The AMX Software is owned by AMX and is protected by United States copyright laws, patent laws, international treaty provisions, and/or state
of Texas trade secret laws. Licensee may make copies of the AMX Software solely for backup or archival purposes. Licensee may not copy
the written materials accompanying the AMX Software.
TERMINATION.
AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON AND UPON WRITTEN
NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or destroy all originals and copies of the
AMX Software to AMX and certify in writing that all originals and copies have been returned or destroyed.
PRE-RELEASE CODE.
Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRE-RELEASE CODE and such
code may not be at the level of performance, compatibility and functionality of the final code. The PRE-RELEASE CODE may not
operate correctly and may be substantially modified prior to final release or certain features may not be generally released. AMX is
not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS PROVIDED "AS IS" WITH NO
WARRANTIES.
LIMITED WARRANTY.
AMX warrants that the AMX Software will perform substantially in accordance with the accompanying written materials for a period of ninety
(90) days from the date of receipt. AMX DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE
AMX SOFTWARE. THIS LIMITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX
SOFTWARE, including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day
Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.
LICENSEE REMEDIES.
AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited
Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or
misapplication. Any replacement AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days,
whichever is longer. Outside the United States, these remedies may not available.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE,
EVEN IF AMX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION
MAY NOT APPLY TO LICENSEE.
U.S. GOVERNMENT RESTRICTED RIGHTS.
The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the Government is subject to
restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and Computer Software clause at DFARS 252.227-
7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL.
The United States Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site
may be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other country to
which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially Designated Nation-
als or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or exporting of any software or tech-
nical data from this site to any jurisdiction prohibited by the United States Export Laws.
This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of the State of Texas,
and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concerning this Agreement, or to contact AMX
for any reason, please write: AMX, 3000 Research Drive, Richardson, TX 75082.

Table of Contents
i
MAX-MDL200 Multi-Disc Loader System
Table of Contents
MAX-MDL200 Multi-Disc Loader System ............................................................1
Overview ........................................................................................................................... 1
MAX-MDLD Multi-Disc Loader .......................................................................................... 1
MAX-MDLD Product Specifications ......................................................................................... 2
Windows® PC ................................................................................................................... 3
MAX MDL200 Software..................................................................................................... 4
MAX MDL200 - Installation and Configuration ......................................................................... 4
Connecting the MAX-MDLD to the MAX Server and PC................................................... 5
Direct Connection (Recommended Method)............................................................................ 5
Connecting via LAN ................................................................................................................. 5
Online Database ...................................................................................................................... 6
Verifying Communication Between the PC, MAX-MDLD and MAX Server....................... 6
Troubleshooting Ethernet Communications Problems............................................................. 7
Using MAX MDL200 and the MAX-MDLD ..........................................................9
Overview ........................................................................................................................... 9
Loading Discs Into the MAX-MDLD................................................................................... 9
Additional Notes on Loading Discs ........................................................................................ 10
Two Disc Drives in the MAX-MDLD ....................................................................................... 10
Loading Media to the Target MAX Server ....................................................................... 11
Step One: Verify the Transfer Settings .................................................................................. 11
Step Two: Transfer Discs....................................................................................................... 11
Additional Notes on Transferring Discs.................................................................................. 12
If One Or More Discs Cannot Be Identified ..................................................................... 12
Verifying Disc Information ...................................................................................................... 13
Manually Entering Disc Information ....................................................................................... 14
Identifying Discs - Without Transferring Media ...................................................................... 14
Removing Discs From The MAX-MDLD.......................................................................... 15
Clearing Disc Information From the Disc/Slot Window .......................................................... 15
MAX-MDLD - DVD Region Code Settings ........................................................17
Overview ......................................................................................................................... 17
DVD Region Codes ......................................................................................................... 17
Changing the Region Code Settings on the MAX-MDLD................................................ 18
MAX-MDLD Region Code Settings - Additional Information .................................................. 18
MAX MDL200 Application - Reference .............................................................19
Overview ......................................................................................................................... 19
The MAX MDL200 User Interface ................................................................................... 20

ii MAX-MDL200 Multi-Disc Loader System
Table of Contents
Menu Bar................................................................................................................................ 20
Drive 1 and Drive 2 Controls .................................................................................................. 21
Disc/Slot Window ................................................................................................................... 22
Disc Context Menu................................................................................................................. 23
Status Bar .............................................................................................................................. 24

MAX-MDL200 Multi-Disc Loader System
1
MAX-MDL200 Multi-Disc Loader System
MAX-MDL200 Multi-Disc Loader System
NOTICE: MAX Products are not designed or intended to, and may not be used to, violate anyone’s
copyright or other intellectual property rights. Each user of the Products may only use the Products in
connection with materials legally owned or licensed by such user and only to the extent such ownership
or license rights permit such use.
Overview
The MAX-MDL200 Multi-Disc Loader System (FIG. 1) allows you to bulk-load up to 200 discs (DVD
or CD) to a MAX (HT or MMS) server. The MAX-MDL200 Multi Disc Loader System includes the
MAX-MDLD Multi-Disc Loader and a Windows®PC pre-loaded with all required software, including
the MAX MDL200 application, pre-configured for plug and play operation.
MAX-MDLD Multi-Disc Loader
The MAX-MDLD (FIG. 2) has three IEEE 1394 ports for communication with the PC, and includes all
cables necessary to get started.
FIG. 1 MAX-MDL200 Multi-Disc Loader System
FIG. 2 MAX-MDLD Multi Disc Loader
IEEE 1394 ports Power cable connector
(rear)
Power button
Disc Loading Slot
(front)
(insert discs
here to load the
internal carousel).
front panel controls (see Note below)

MAX-MDL200 Multi-Disc Loader System
2MAX-MDL200 Multi-Disc Loader System
To use the MAX-MDLD, you’ll connect the MAX-MDLD to the PC and to the target MAX server as
described in this document. The MAX MDL200 software (already loaded and configured on the PC)
manages the process of loading discs into the MAX-MDLD and transferring the media to a target MAX
server.
Refer to Connecting the MAX-MDLD to the MAX Server and PC section on page 5 for instructions.
MAX-MDLD Product Specifications
When used with the PC that comes with it (pre-configured with the MAX MDL200
application), there is no need to use the front-panel controls on the MAX-MDLD.
Instead, use the controls provided in the MAX MDL200 application as described in
this manual.
MAX-MDLD (FG 2179-12) Specifications
Storage Capacity: 200 discs, 4.7 GB/disc
Power Requirements: • Voltage: 110 – 240V AC (autosensing)
• Frequency: 50/60 Hertz
• Consumption: 45 watts (peak), 35 watts (normal)
AC Current Draw (AMP): • .45A - Bootup/Power Cycle Peak
• .45A - Normal Usage Peak
Interface Specifications
(IEEE 1394):
• Bus interface IEEE-1394 compliant
• Data transfer rate 100, 200, and 400Mbps
• Three 6-pin IEEE-1394 ports
Number of Drives: Two DVD-ROM drives
Drive Specifications: • Supports most popular CD & DVD formats
(DVD-RAM, DVD-RW and DVD+ are not supported).
• Random seek: 90 ms (DVD-ROM); 80 ms (CD-ROM)
• Random access: 110 ms (DVD-ROM); 85 ms (CD-ROM)
• Data Transfer Rate:
- Sustained DVD 8,112KBps (6x)
- CD (Mode 1) 4,800KBps (32x)
- CD (Mode 2) 5,475KBps (32x)
Front Panel Components: • Power switch
• Disc-loading slot
• Front panel transport controls and display (not used - use the MAX
MDL200 software to control the MAX-MDLD.
Rear Panel Connectors: • Three IEEE 1394 ports
• Power Cable connector: IEC connector for AC power cable.
Reliability: • Mechanism MTBF: 1,000,000 swaps
• Power On Hours: 100,000
Operating Environment: • Operating Temperature: 5° to 40° C; 41° to 104° F
• Storage Temperature: -10° to 60° C; 14° to 140° F
• Operating Humidity: 10% - 90% relative humidity
• Storage Humidity: 5% - 95% relative humidity, non-condensing
Average Disc to Disc Access Time: 4 seconds
Data Transfer Rate: • Sustained DVD 8,112KBps (6x)
• CD (Mode 1) 4,800KBps (32x)
• CD (Mode 2) 5,475KBps (32x)
Dimensions (HWD): 8 3/4" x 17” x 20" (22.22cm x 43.18cm x 50.80cm)
Weight: 30 lbs (13.60 kg)

MAX-MDL200 Multi-Disc Loader System
3
MAX-MDL200 Multi-Disc Loader System
Windows® PC
As previously mentioned, the MAX-MDL200 Multi-Disc Loader System includes a PC, pre-loaded with
the latest version of the MAX MDL200 software application and configured for use with the
MAX-MDLD.
DO NOT LOAD ANY SOFTWARE ON THIS COMPUTER
 This computer is part of a system called the MAX-MDL200 Multi-Disc-Loader. The software
loaded on this machine requires a certain environment to operate properly in enabling up to
200 CD/DVD loading.
 Any changes to this machine may cause it to stop performing its intended task of loading CD/
DVD. AMX cannot be responsible for this operation if you change the operational software
environment.
 Loading Microsoft Windows updates could cause this system to cease working as intended.
 Loading any virus software or other resource intensive software will cause this system to cease
working as intended.
 If this PC chassis is desired to be used as a general personal machine for anything other than
the functions of the MAX-MDL200 Multi-Disc Loader, you must acquire another hard drive
from Dell to load the OS and other software.
 If AMX tech support finds any other software loaded on this system they will require you to
return the system to AMX HQ to be re-imaged at your expense.
If you have any questions please either call AMX Tech Support or Customer Service.
MAX-MDLD (FG 2179-12) Specifications (Cont.)
Included Accessories: • Windows® PC (P4 with IEEE 1394 capabilities, configured with MAX
MDL200 software for managing the MAX-MDLD.
• LCD Monitor (for the PC)
• 6’ (1.83m) IEEE 1394 cable
• 6’ (1.83m) Ethernet Crossover cable
• 6’ (1.83m) AC Power cable
• 6” (1.83m) HDMI-to-DVI Conversion cable

MAX-MDL200 Multi-Disc Loader System
4MAX-MDL200 Multi-Disc Loader System
MAX MDL200 Software
MAX MDL200 (FIG. 6) is a software application from AMX that allows you to manage the
MAX-MDLD Multi-Disc Loader in transferring large numbers of discs (up to 200 DVDs/CDs) to a
specified target MAX server.
 Refer to the Using MAX MDL200 and the MAX-MDLD section on page 9 for instructions on
using the MAX-MDLD and MAX MDL200 to transfer media to the target MAX server.
 Refer to the MAX MDL200 Application - Reference section on page 19 for a detailed
descriptions of the elements in the MAX MDL200 application.
MAX MDL200 - Installation and Configuration
MAX MDL200 comes pre-installed on the PC that is included as part of the MDL200 kit, so in most
cases you will not be required to download or install the software yourself. If you believe that you need
to re-install MAX MDL200, contact AMX Technical Support for instructions on downloading, installing
and configuring the application.
In order to use MAX MDL200 to load media onto a target MAX server, the PC loaded with MAX
MDL200 must be connected and communicating with the MAX-MDLD Multi-Disc Loader and the
target MAX Server. Refer to the next section (Connecting the MDL200 to the MMS Server and Laptop
PC) for instructions.
FIG. 3 MAX MDL200 application (main window)

MAX-MDL200 Multi-Disc Loader System
5
MAX-MDL200 Multi-Disc Loader System
Connecting the MAX-MDLD to the MAX Server and PC
The MAX-MDLD first needs to be connected to the PC and the MAX server that you will be loading the
media to, as described below.
1. Connect one of the IEEE 1394 ports on the rear of the MAX-MDLD to the IEEE 1394 port on the
PC, using the included IEEE 1394 cable.
2. Connect the PC to the MAX server, either with a direct connection or via a LAN:
Direct Connection (Recommended Method)
Use the included Ethernet crossover cable to connect the PC directly to the MAX server’s ETHERNET
CONTROL port (FIG. 4).
3. Connect the MAX server’s power cable(s).
4. Power up the MAX-MDLD, PC and MAX server, allowing up to one minute for the server to boot
up.
Connecting via LAN
If you intend to connect the PC to the MAX server via a LAN connection, first verify that the PC is
communicating properly with the network. Use an RJ-45 twisted pair cable to connect the ETHERNET
CONTROL port on the MAX server to the LAN that your PC is on (FIG. 5).
Static electricity can damage electronic circuitry. Before connecting the MAX-MDLD,
discharge any accumulated static electricity from your body and screwdriver by
touching a grounded metal object.
FIG. 4 Example configuration - direct connection
FIG. 5 Example configuration - via LAN
Ethernet Crossover Cable (included)
MAX-MDLD Windows® PC
IEEE 1394
cable
MAX Server
Windows® PC
MAX-MDLD
RJ-45 twisted
pair cable LAN
RJ-45 twisted
pair cable
MAX Server
IEEE 1394
cable
Using the MAX-MDLD on a LAN connection may result in slow loading, due to
network configuration and the amount of other (non-MAX-MDLD related) network
traffic.

MAX-MDL200 Multi-Disc Loader System
6MAX-MDL200 Multi-Disc Loader System
Online Database
MAX systems (firmware version 4.34 or higher) rely on an online media database for disc recognition.
The online database provides all media information (such as disc title, track/chapter information, artist
information, etc.). In order to identify discs (CDs and/or DVDs) as they are added to the MAX Server,
the MAX Server must have permanent access to the internet.
Without access to the internet, all media information must be entered manually.
Verifying Communication Between the PC, MAX-MDLD and
MAX Server
Once the MAX-MDLD, PC and MAX server are connected and powered up:
1. Launch the MAX MDL200 application on the PC (double-click the MAX MDL200 desktop icon to
launch the program and access the main window).
2. The PC and the MAX MDL200 application are pre-configured to allow communication between the
PC, the MAX-MDLD and the MAX. The status bar (at the bottom of the dialog) should indicate that
you have successfully connected to the MAX-MDLD and the MAX server (see FIG. 6):
The center area of the status bar should indicate that the MAX-MDLD is connected and
running, and the icon on the right side of the status bar should be green to indicate
communication with the MAX server.
If you are not communicating with either the MAX-MDLD or the MAX server, first verify that
your cables are connected properly. Then select File > Settings to open the Settings dialog
(FIG. 7):
Previous versions of the MAX Servers utilize a database that resides on the server,
and therefore do not require a permanent connection to the internet. The shift from an
onboard media information database (updated periodically) to a dynamic online
database will provide more accurate and consistent results when identifying new
media as they are added to the MAX Server.
FIG. 6 MAX MDL200 Status Bar
FIG. 7 Settings dialog (select File > Settings to open)
Indicates the MAX-MDLD model number,
Indicates whether the PC is connected
Status Bar
and communicating with the MAX server
and whether the MAX-MDLD is
connected to the PC and running
Enter IP Address of the target MAX Server here

MAX-MDL200 Multi-Disc Loader System
7
MAX-MDL200 Multi-Disc Loader System
Verify that the IP address indicated here matches that of the target MAX server.
3. Click OK to save your changes and close the Settings dialog.
Once the status bar indicates that you are connected to both the MAX-MDLD and the MAX server, then
you are ready to load discs (DVDs and CDs) into the MAX-MDLD.
Refer to the Using MAX MDL200 and the MAX-MDLD section on page 9 for instructions on using MAX
MDL200 and the MAX-MDLD to load, identify and transfer discs to the target MAX server.
Troubleshooting Ethernet Communications Problems
 The Link (L) LED next to the Ethernet port on the MAX server should be on (FIG. 8). If not,
check your cables and connectors.
 Verify that the IP address and Subnet Mask settings are appropriate for your network
configuration.
 If you are connecting to the server via a direct connection with a PC (using a crossover
Ethernet cable), be sure that the IP Address of the Network card in your PC is in the same
range as the server, but not the same address as the server.
For example, a network card setting of 192.168.1.31 will work with the default server IP
address of 192.168.1.30.
With the "Record discs with multiple matches option" selected, the MAX-MDLD will
attempt to identify each unidentified disc before transferring.
FIG. 8 Ethernet port LEDs
L - Link LED
lights (full-on when the Ethernet cables
are connected and terminated correctly
A - Activity LED
lights when receiving data packets

MAX-MDL200 Multi-Disc Loader System
8MAX-MDL200 Multi-Disc Loader System

Using MAX MDL200 and the MAX-MDLD
9
MAX-MDL200 Multi-Disc Loader System
Using MAX MDL200 and the MAX-MDLD
Overview
Once the MAX-MDLD is communicating with both the PC and the target MAX server (see previous
section), it is ready to be used for transferring media to the server. The main steps in the process are:
1. Loading Discs Into the MAX-MDLD: physically loading the discs into the MAX-MDLD carousel.
2. Transferring the Disc Images: Loading the contents of the discs to the target MAX server.
Depending on the settings specified (in the Settings dialog), you may need to manually identify any
discs that were not automatically identified. See the Verifying Communication Between the PC,
MAX-MDLD and MAX Server section on page 6 for details.
3. Unloading the Discs: Physically removing the discs from the MAX-MDLD. Refer to the Removing
Discs From The MAX-MDLD section on page 15 for details.
Each of these steps are described in the following sub-sections.
Loading Discs Into the MAX-MDLD
Discs are physically loaded into the MAX-MDLD through the vertical slot on the front panel of the unit
(see FIG. 1), using the Changer > Load Range and Load All options in MAX MDL200.
1. First verify that the MAX-MDLD is powered up (the power switch is located on the lower-left of the
front panel), and communicating with the PC and the target MAX Server (refer to the Verifying
Communication Between the PC, MDL200 and MMS Server section on page 12 for details).
2. Select Changer > Load Range or Load All from the MAX MDL200 menu bar.
If MAX MDL200 is not already running on the PC, launch the software before
beginning.
FIG. 1 Loading Discs Into the MAX-MDLD
Disc slot
(load discs here)
(front)
Label side faces
to the right
Front panel controls not used
(use the transport controls provided in MAX MDL200 instead)
The Changer > Load Range and Load All options operate the same, except that
Load Range allows you to specify a range of slots to load (in the Start Disc/End Disc
fields).

Using MAX MDL200 and the MAX-MDLD
10 MAX-MDL200 Multi-Disc Loader System
3. This prompts the MAX-MDLD to present each open slot on the disc carousel so that you can load a
disc into each one. If there are already some discs loaded in the carousel, the MAX-MDLD will
automatically skip any slot positions that are already occupied and present the next open slot for
loading.
You will hear the MAX-MDLD’s internal carousel spin to the next available empty slot and
stop. At this point you have approximately 10 seconds to insert a disc.
Note that at this point the discs that have been loaded are indicated on the MAX MDL200 main
screen, but without any title or media information since they have not yet been identified by the
program (FIG. 2).
Additional Notes on Loading Discs
 A silk-screen below the Disc Slot indicates the proper orientation of the disc: the label side of
the disc must always face to the right.
 Discs must be clean and without any labels that could come off during the transfer process.
 For best results, always load discs into the MAX-MDLD contiguously, avoiding leaving
empty slots within a range of occupied slots.
 Keep the disc cases in the order that you loaded the discs to make the unloading process easy.
Two Disc Drives in the MAX-MDLD
The MAX-MDLD features two DVD-ROM drives. Since you configure each of the DVD-ROMs
independently, you can take advantage of the fact that they each can be set to a different region code.
For example, if you intend to load a large number of DVDs with multiple region codes, consider setting
different region codes on the two drives to accommodate the majority of DVDs/region codes in the set.
Since you can specify which drive you load each movie to, you could reduce the number of times you
would have to change the region code settings.
In effect, having two DVD-ROMs in the MAX-MDLD allows you to make up to a total of 10 region
code setting changes, even though the standard limit of five changes per DVD-ROM is still
hardware-enforced.
FIG. 2 MAX MDL200 indicating that discs have not yet been identified

Using MAX MDL200 and the MAX-MDLD
11
MAX-MDL200 Multi-Disc Loader System
Loading Media to the Target MAX Server
Once all of the disks have been loaded into the MAX-MDLD, you are ready to load DVD and CD media
to the MAX server.
Step One: Verify the Transfer Settings
Before you start, select File > Settings to open the Settings dialog (FIG. 3) and set the Record discs with
multiple matches option to the desired setting:
 If set to Yes : Discs that were not positively identified will be transferred. As a result, these
discs will not have any disc information associated with them.
 If set to No: This option causes the MAX-MDLD to skip transferring any discs that have
multiple title matches, or that are not positively identified. These discs can later be identified
manually, by transferring the same range of discs again. Since MAX MDL200 will not
attempt to transfer any disc that has already been marked as transferred, it will only transfer
the discs that were manually identified.
This is the default (and recommended) setting.
Step Two: Transfer Discs
Once the discs have been loaded into the MAX-MDLD, you can begin the process of transferring the
media:
1. Set the First Disc/Last Disc range on the targeted drive.
2. Press the Record button to begin transferring (on the drive that you want to use), and let the
MAX-MDLD run until the process is complete.
3. The status of each disc is indicated in the Status column as it is being identified and transferred.
Once complete, the Status message indicates that the media was successfully loaded on the MAX.
Note that the MAX-MDLD loads one disc at a time.
4. As each disc is read it is automatically loaded to the MAX Server.
5. MAX MDL200 notifies you when all discs in the specified range have been transferred to the server.
6. Once the transfer process is complete, you should verify the contents of the MAX server via the
WinMAX application (Movies and Music tabs).
FIG. 3 Settings dialog
Specify a transfer option
Enter IP Address of the target MAX Server here
You can use the WinMAX application to re-identify any discs that display with
incorrect or incomplete disc information If necessary. You can also use WinMAX to
manually enter/edit disc information as needed. Refer to the WinMAX Instruction
Manual (available online at www.amx.com) for details.

Using MAX MDL200 and the MAX-MDLD
12 MAX-MDL200 Multi-Disc Loader System
Additional Notes on Transferring Discs
 The amount of time it takes to load each disc will vary, relative to the amount and type of data
on the disc. Most DVDs take between 15-45 minutes to load. Audio CDs are typically much
faster.
 MAX MDL200 will indicate when the entire process is complete with the "Ready" message in
the Status Bar, as well as a popup window notification.
If One Or More Discs Cannot Be Identified
While MAX MDL200 settings can allow you to proceed with transferring disc images that could not be
positively identified, it is recommended that you set MAX MDL200 to skip discs with multiple matches.
Once the transfer process is complete, these discs can be identified manually by selecting the best title
match for each from the multiple possible title matches found in the database.
1. Double-click on a title in MAX MDL200 to open the Multiple Matches dialog (FIG. 4).
2. Specify a search method (Title - default setting or UPC). Enter the disc title (or UPC code) in the
Search field. The results are displayed in the lower window.
 If you selected to search by Title, enter part of the title of the desired CD or DVD. For best
results, enter a single word and let the program return a list of all titles that contain that word.
Use a multi-word search to refine the results if necessary.
 If you selected to search by UPC, enter the UPC code as it appears on the disc packaging (see
FIG. 5 on page 13).
 For either search method, avoid using asterisks or other wild-card characters to achieve the
best results.
3. Click the Search button.
4. Select the best match and click OK to assign the selected title (and associated media information) to
the disc.
FIG. 4 Multiple Matches dialog
Double-click on a title to open
the Multiple Matches dialog
Use the Eject
and Load buttons
to eject the disc
momentarily, so you
can discern which of
the possible matches
best describes this
disc. See Verifying
Disc Information
for details.

Using MAX MDL200 and the MAX-MDLD
13
MAX-MDL200 Multi-Disc Loader System
Verifying Disc Information
In some cases in which the program has indicated more than one possible match for a disc, it may not be
obvious which of the possible matches represents the best match for the disc. In these cases you should
eject the disc momentarily so that you can visually check the physical label on the disc. The Eject and
Load buttons on the Multiple Matches dialog allow you do this quickly:
1. Double-click on the disc/slot in question (in the Disc/Slot Window) to access the Multiple Matches
dialog (FIG. 4). Review the list of possible title matches in this dialog.
2. Click on the Eject button in the Multiple Matches dialog. This option ejects the disc from the
MAX-MDLD. Remember that you have approximately 10 seconds to remove the disc from the slot.
3. Look at the disc label to discern which of the possible title matches best matches this disc.
4. Press the Load button in the Multiple Matches dialog, and replace the disc in the Disc Loading Slot.
5. Select the best possible match in the Multiple Matches dialog and click OK.
FIG. 5 Finding the UPC Code on a DVD or CD case
Example back cover of
In this example the UPC code is "097360962925".
a typical DVD case
UPC codes are unique 12-digit catalog
They can usually be found on the back cover
Make sure you include any smaller numerals that
appear to the left or right of the main barcode numerals.
numbers that identify a particular item.
of the DVD or CD case.
Note that by using the Eject and Load buttons in the Multiple Matches dialog, the
program retains any disc information that exists for this disc.
This is also true for the Load and Eject buttons in the New Title Entry dialog (see
FIG. 6).
By contrast, if you eject a disc from the MAX-MDLD via the Eject options in the
Changer menu, or the Disc Context Menu, all disc information is lost. These options
are intended to be used at the point that the disc is being permanently removed from
the MAX-MDLD, once the loading process is complete.
If you eject the disc via the Multiple Matches or New Title Entry dialogs, be sure to
reload the same disc. If you eject a disc and then load a different one, the disc
identification information will be incorrect.
Do not close the Multiple Matches (or New Title Entry dialog) until the disc has been
reloaded. If the dialog is closed while the disc is still ejected, the slot will be set to
<empty>, and all disc information will be lost.

Using MAX MDL200 and the MAX-MDLD
14 MAX-MDL200 Multi-Disc Loader System

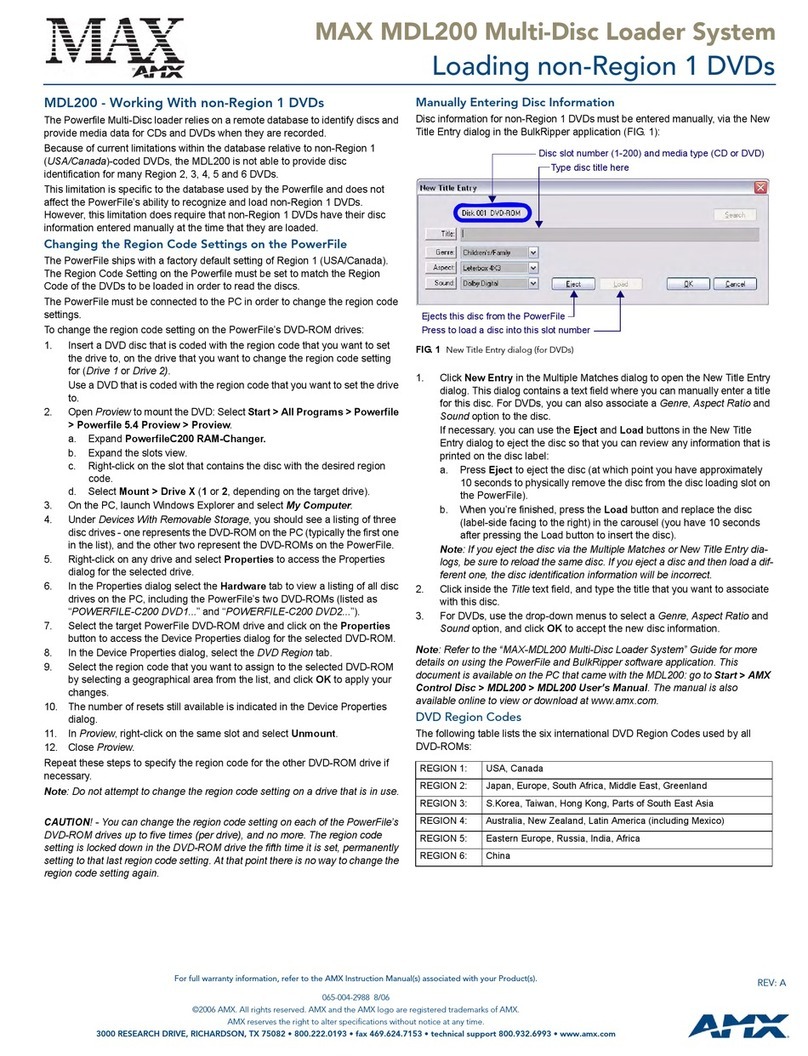

Manually Entering Disc Information
If no suitable title matches are found, then you may enter the information manually via the New Title
Entry dialog (FIG. 6):
1. Click New Entry in the Multiple Matches dialog to open the New Title Entry dialog. This dialog
contains a text field where you can manually enter a title for this disc. For DVDs, you can also
associate a Genre, Aspect Ratio and Sound option to the disc.
If necessary. you can use the Eject and Load buttons in the New Title Entry dialog to eject the
disc so that you can review any information that is printed on the disc label:
a. Press Eject to eject the disc (at which point you have approximately 10 seconds to physically
remove the disc from the disc loading slot on the MAX-MDLD).
b. When you’re finished, press the Load button and replace the disc (label-side facing to the right)
in the carousel (you have 10 seconds after pressing the Load button to insert the disc).
2. Click inside the Title text field, and type the title that you want to associate with this disc.
3. For DVDs, use the drop-down menus to select a Genre, Aspect Ratio and Sound option, and click
OK to accept the new disc information.
Identifying Discs - Without Transferring Media
The MAX-MDLD can be used to identify loaded discs without performing the transfer function. To
identify the discs loaded in the MAX-MDLD:
1. Specify a range of discs to be identified, using the First Disc and Last Disc fields (on the MAX
MDL200 main screen) for each drive.
2. Click the Identify button.
MAX MDL200 uses color coding to indicate whether each disc has been successfully
identified (see the Disc/Slot Window section on page 22 for details).
The Status column indicates the status of each disc:
 Identified: Disc was identified
 Error - Region Mismatch: The region code on the DVD does not match the region code setting
for the DVD-ROM drive (Drive 1 or Drive 2) being used by the MAX-MDLD.
FIG. 6 New Title Entry dialog (for DVDs)
Type disc title here
Disc slot number (1-200) and
media type (CD or DVD)
Ejects this disc from the MAX-MDLD
Press to load a disc into this slot number
If you eject the disc via the Multiple Matches or New Title Entry dialogs, be sure to
reload the same disc. If you eject a disc and then load a different one, the disc
identification information will be incorrect.
