Angioscan Electronics RADIASCAN-501 User manual

"ANGIOSCAN-ELECTRONICS" LLC
RADIOACTIVITY INDICATOR
RADIASCAN-501(701)
OPERATIONS MANUAL

2
C O N T E N T S
1DESCRIPTION AND OPERATION OF INDICATOR RADIASCAN-501(701).............................. 4
1.1 Purpose and Scope of Application............................................................................................4
1.2 Specifications............................................................................................................................4
1.3 Radiation registration method .................................................................................................5
1.4 Exterior appearance of the product .........................................................................................6
1.5 Indicator operating modes .......................................................................................................7
1.6 Displaying and alarm ................................................................................................................8
1.7 Elements of Graphical Interface...............................................................................................9
1.8 Event log .................................................................................................................................16
2SETTING UP THE DEVICE................................................................................................ 17
2.1 General principles...................................................................................................................17
2.2 Information on the Product....................................................................................................17
2.3 Restoring the factory settings ................................................................................................17
2.4 Language of the interface.......................................................................................................17
2.5 Setting the date ......................................................................................................................17
2.6 Setting the time ......................................................................................................................18
2.7 Setting the Time Zone ............................................................................................................18
2.8 Enabling/Disabling Daylight Saving Time ...............................................................................18
2.9 Setting the display contrast....................................................................................................18
2.10 Automatic shutdown of the display ...................................................................................18
2.11 Enabling/Disabling the sound.............................................................................................18
2.12 Enabling/Disabling particular sounds.................................................................................18
2.13 Testing alarm signals ..........................................................................................................19
2.14 Control of LEDs ...................................................................................................................19
2.15 Automatic enabling/disabling the device by the schedule ................................................19
2.16 Parameters of GAMMA mode ............................................................................................19
2.17 Setting conduct of measurements by schedule .................................................................21
2.18 Parameters of SEARCH mode .............................................................................................22
2.19 Parameters of BETA mode..................................................................................................22
2.20 Parameters of ALPHA mode ...............................................................................................23
2.21 Parameters of DETECTION mode .......................................................................................23
2.22 Event Log parameters.........................................................................................................24
3CONDUCT OF MEASUREMENTS ..................................................................................... 25
3.1 Operational restrictions and safety measures .......................................................................25
3.2 Preparation to work ...............................................................................................................25
3.3 Order of activation of the Indicator .......................................................................................25
3.4 Procedure for switching off the Indicator ..............................................................................25
3.5 Order of connection to USB ...................................................................................................25
3.6 Order of disconnection from USB ..........................................................................................26
3.7 GAMMA mode........................................................................................................................26
3.8 SEARCH mode.........................................................................................................................26
3.9 BETA mode (only for RadiaScan-701).....................................................................................27
3.10 ALPHA mode (only for RadiaScan-701) ..............................................................................27
3.11 DETECTION mode ...............................................................................................................28
4PACKAGE ...................................................................................................................... 29
5TRANSPORTATION AND STORAGE................................................................................. 29
6MAINTENANCE ............................................................................................................. 29
6.1 Safety measures .....................................................................................................................29

3
6.2 Maintenance procedure.........................................................................................................29
7INFORMATION ABOUT THE DEVELOPERS ...................................................................... 30

4
1DESCRIPTION AND OPERATION OF INDICATOR RADIASCAN-501(701)
1.1 Purpose and Scope of Application
Portable stand-alone radioactivity indicator RadiaScan-501(701) (hereinafter referred to as the
Indicator or product) is intended to alert the user of potential radiation hazard of the
surrounding area, or individual items.
The Indicator is designed for:
assessment of current radiation situation;
assessment of the level of radiation by magnitude of ambient dose rate (hereinafter
referred to as the dose rate) of photon (gamma and X-ray) radiation;
assessment of integral ambient dose (hereinafter referred to as the dose) of photon
radiation;
assessment of statistical error of each measurement in confidence interval 0.95;
issuing alarm signals when the background radiation exceeds the defined thresholds;
assessment of the beta particles flux density (only RadiaScan-701);
assessment of alpha particles flux density (only RadiaScan-701);
search of radiation contaminated areas and objects.
1.2 Specifications
RadiaScan-501(701) has the specifications shown in Table 1.
Table 1
Parameter
Value
Dose indication range , mSv
from 0,001 to 1000
Dose rate indication range, µSv/h
from 0,01 to 10000
Range of photon energies, MeV
from 0,05 to 3,0
*beta particles flux density indication range (by 90Sr),
part/(cm2·min)
from 5 to 3·104
*lower threshold of energy of registered beta-radiation (by
medium energy of beta-spectrum 14C), MeV, not more than
0,05
*alpha particles flux density indication range (by 239Pu),
part/(cm2·min)
from 5 to 3·104
Operating mode setting time, min, not more than
1
Amount of dose thresholds for issuing alarm signals
2
Range of values of dose thresholds , mSv
from 0,001 to 999,999
Amount of thresholds of dose rate for issuance of alarm signals
2
Range of values of dose rate thresholds, µSv/h
from 0,1 to 9999,9
Time of assessment of photon radiation dose rate, sec
from 1 to 30
*Range of values of thresholds of beta particles flux density,
part/(cm2·min)
from 1 to 29999
*amount of thresholds of beta particles flux density for issuance
of alarm signals
2
*Range of values of thresholds of alpha particles flux density,
part/(cm2·min)
from 1 to 29999
*amount of thresholds of alpha particles flux density for issuance
of alarm signals
2
Connection with computer
USB
Log volume, amount of records, not less than
2000

5
Parameter
Value
Powered from USB
Available
batteries
2 (accumulator cells or
batteries) of type AAA
Duration of contibuous operation at the background of less than
0,30 µSv/h and display contrast level 50%, not less than, h:
From 2 alcaline batteries
10
When powered from USB
unlimited
Total voltage of batteries, V
from 1,9 to 3,2
Possibility for charging accumulator cells
No
Means of indication
Color OLED display, LEDs,
buzzer
Current consumed from USB, mА, not more than
500
Current consumed from batteries at deactivated USB:
Indicator is off, µA, not more than
5
Indicator is on, µA, not more than
500
Reverse current of batteries at activated USB, Indicator µA, not
more than
100
Work temperatures range, °C
from minus 20 to +50
overall dimensions, mm
110x60x23
Weight without batteries, g, not more than
110
*only for RadiaScan-701.
1.3 Radiation registration method
1.3.1 Radiation detector
Terminal Geiger-Muller counter is used in the Indicator as radiation detector. The flux of
photons of gamma and X-ray radiation, flux of alpha particles and beta particles are converted
by the detector into the sequence of electrical signals. These signals are formed by duration
and amplitude, and then are delivered to microprocessor registration circuit which provides
automatic processing and displaying the measurement results.
1.3.2 Displaying of measuring data on the display
Depending on the selected measurement mode, the display shows:
averaged numerical value of the dose or dose rate with indication of units of
measurement;
averaged numerical value of beta-particles flux density with indication of units of
measurement;
averaged numerical value of alpha particles flux density with indication of units of
measurement;
time from the beginning of the current measurement;
graphic representation of measured value and user defined alarm thresholds;
current statistical measurement error in confidence interval of 0.95;
current alarm level;
current time or date;
prompts, if measurement technique requires any additional actions by the user.

6
1.3.3 Signal of registration of particles
The indicator makes sound signals (clicks) on registration of photons, or particles of ionizing
radiation. The higher is the level of radiation, the higher is the average frequency of clicks.
These signals can be disabled using the settings of the Indicator.
1.3.4 Alarm signals
When any alarm threshold is exceeded the Indicator makes a corresponding sound. Alarm
signals can be disabled using the settings of the Indicator.
1.4 Exterior appearance of the product
Appearance of the front side of RadiaScan-501(701) is shown in Fig. 1.
1 –USB slot
2 –LEDs
3 –OLED display
4 –"Power" button –Indicator power supply
on/off
5 –"Up" button
6 –"Left" button
7 –"Down" button
8 –"Menu" button
9 –"Right" button
Fig. 1 Appearance of the front side of RadiaScan-501(701)
Appearance of the rear side of RadiaScan-501 is shown in Fig. 2.
1 –mark of the center of the detector
2 –cover of the battery compartment
Fig. 2 Appearance of the rear side of RadiaScan-501

7
Appearance of the rear side of RadiaScan-701 with installed filter-cover is shown in Fig. 3.a,
with removed cover –Fig. 3.b.
1 –Removable filter-cover
2 –marks of the axis of the detector
3 –detector window
4 –mark of the metal filter
5 –mark of the filter without metal
6 –cover of the battery compartment
Fig. 3 Appearance of the rear side of RadiaScan-701
Removable cover can be installed in one of two positions, at which:
detector window is covered with metal filter, as shown in Fig. 3.a;
detector window is covered with the filter without metal.
1.5 Indicator operating modes
Setting of the Indicator is done in setting mode. To evaluate the level of radiation, automatic or
manual measurements are used.
Measurements in automatic modes will start immediately after their activation in the main
menu of setting modes. Measurements are made continuously and are completed with the
activation of another measurement mode. Automatic modes are:
Mode for constant control of gamma-radiation (hereinafter referred to as GAMMA
mode);
radiation sources search mode (hereinafter referred to as SEARCH Mode).
GAMMA is the main mode. The indicator switches to this mode after switching on.
Measurements in manual modes start only after the user presses the corresponding button,
they are stopped either automatically or upon pressing of a button. Manual modes are:
Mode of evaluation of beta particles flux density (hereinafter referred to as BETA mode)
–only for RadiaScan-701;
Mode of evaluation of alpha particles flux density (hereinafter referred to as ALPHA
mode) –only for RadiaScan-701;
Radiation sources DETECTION mode (hereinafter referred to as the DETECTION mode).
1.5.1 GAMMA mode
It is intended for assessment of cumulative dose and dose rate of the current level of gamma
and X-ray radiation.
This is the basic mode of operation. It is activated immediately after the Indicator switching-on.

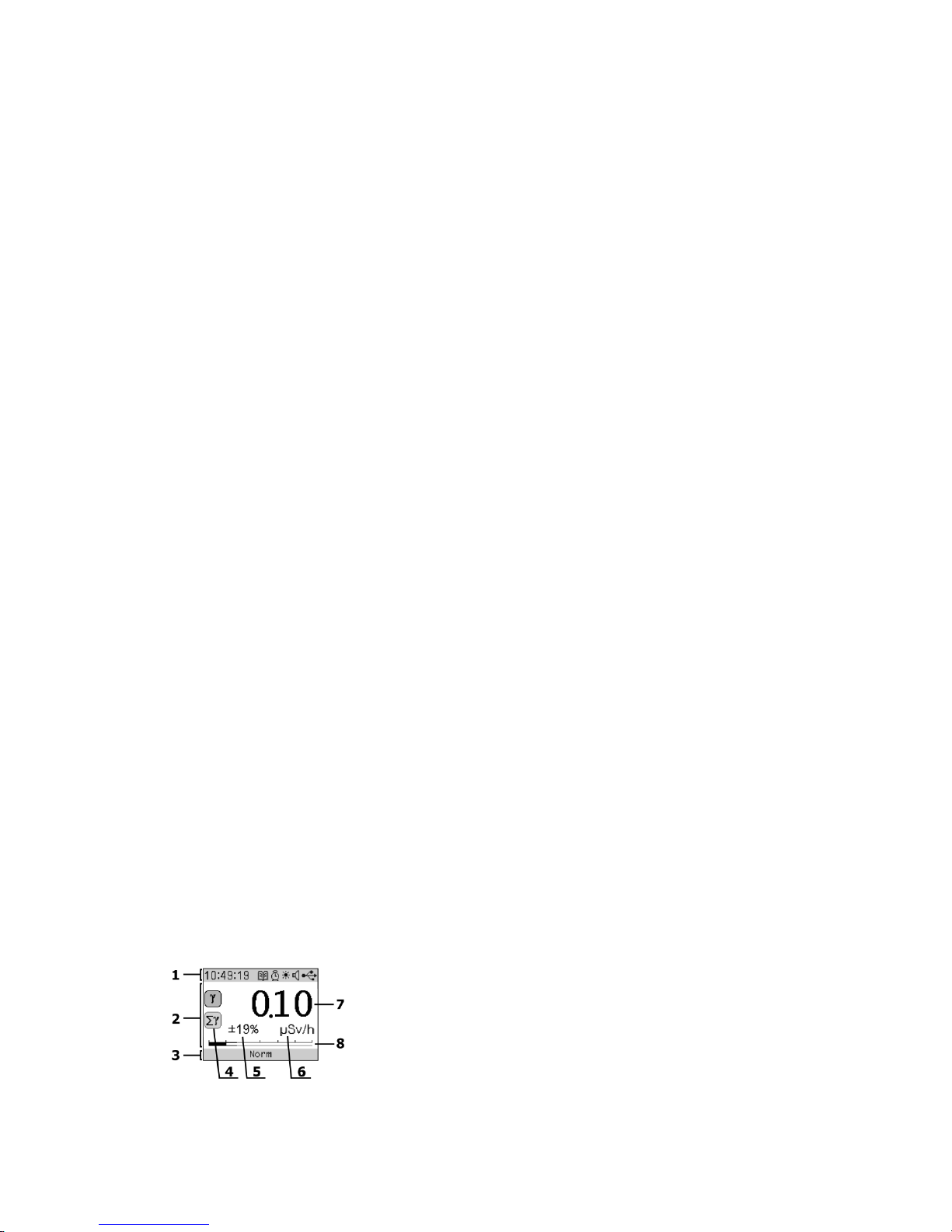

The graphical interface of the mode, setting of parameters and order of use are described in
chapters 1.7.1, 2.16. и3.7 correspondingly.

8
1.5.2 SEARCH mode
The mode is used for search for sources of radiation on the area by moving the Indicator above
the surface being examined and for defining areas with the highest readings. This mode is much
more responsive to changes in radiation background compared to GAMMA mode, but due to
significant decrease in the accuracy of readings.

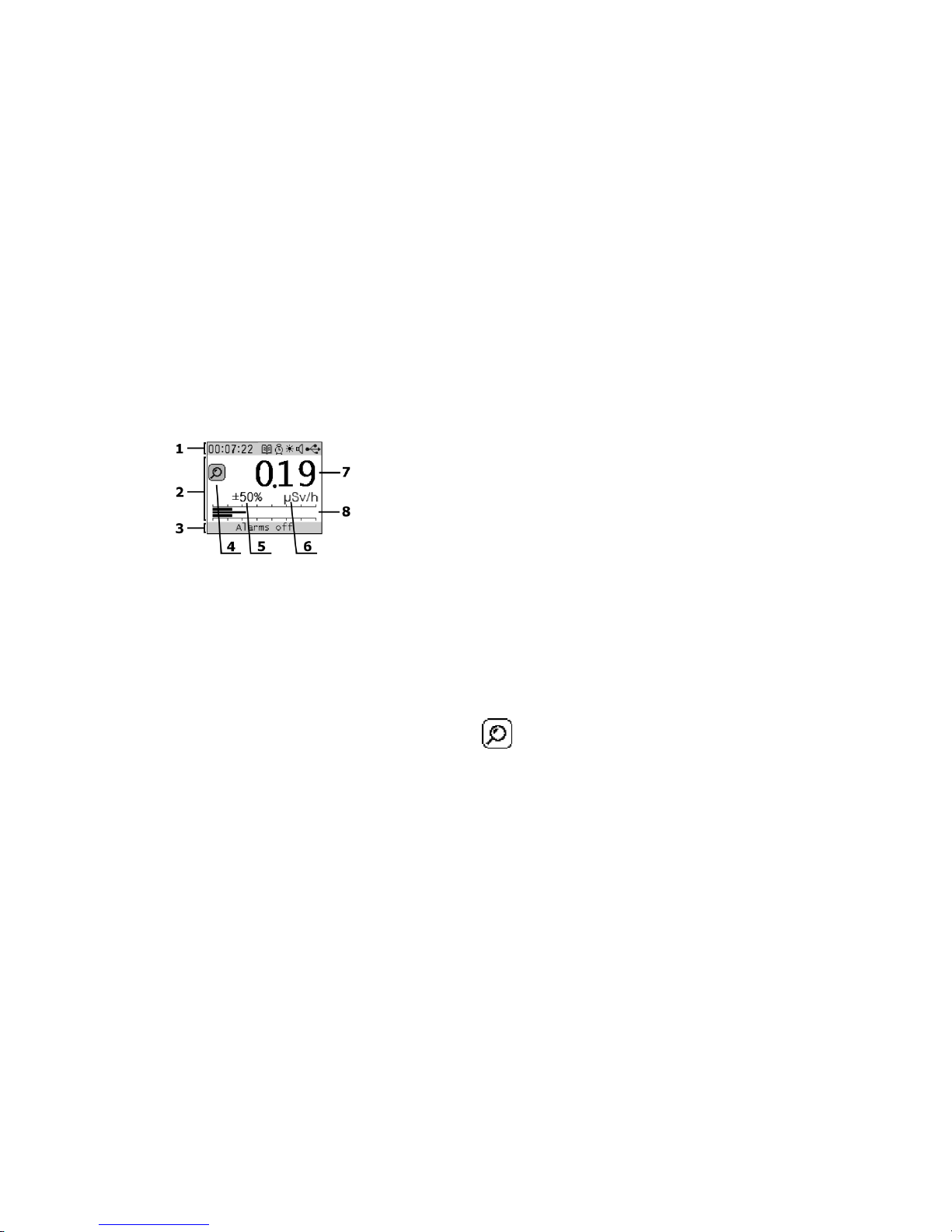

The graphical interface of the mode, setting of parameters and order of use are described in
chapters 1.7.2, 2.18 и3.8 correspondingly.
1.5.3 BETA mode
The mode is intended for assessment of beta-particles flux density by two measurements.
Measurements are taken over long intervals of time (from several minutes to several hundred
minutes). Duration of one measurement can be limited explicitly or implicitly by specifying the
required level of statistical error.
The graphical interface of the mode, setting of parameters and order of use are described in
chapters 1.7.3, 2.19 and 3.9 correspondingly.
1.5.4 ALPHA mode
The mode is intended for assessment of alpha particles flux density by two measurements.
Measurements are taken over long intervals of time (from several minutes to several hundred
minutes). Duration of one measurement can be limited explicitly or implicitly by specifying the
required level of statistical error.
The graphical interface of the mode, setting of parameters and order of use are described in
chapters 1.7.4, 2.20 and 3.10 correspondingly.
1.5.5 DETECTION mode
The mode is used to detect the fact of radioactive contamination of the surfaces of objects,
food products, and other objects, by two measurements. Measurements are taken over long
intervals of time (from several minutes to several hundred minutes). Duration of the
measurement can be limited explicitly or implicitly by specifying the required level of statistical
error.
The graphical interface of the mode, setting of parameters and order of use are described in
chapters 1.7.5, 2.21 и3.11 correspondingly.
1.6 Displaying and alarm
To display the special statuses of the Indicator and specific events recorded by it, LEDs, buzzer
and display are used. With the help of these means the Indicator gives the following signals to
the user:
1.6.1 Signal of LED explicit power on/off
In this case, the green LED lights up for 2 seconds once, and goes out.
1.6.2 Signal of LED passive state at presence of power supply at USB-slot
Green LED generates short pulses of minimum brightness with the frequency of 1 pulse per
4 seconds. In this state, the Indicator does not perform any measurements and is waiting for
explicit or implicit power-up.
1.6.3 Signal of LED implicit switching on
If the Indicator is off, then for conduct of measurement by schedule it may switch on implicitly,
and green LED generates short pulses with minimum brightness at the frequency of 2 pulses
per second.

9
1.6.4 Battery discharge signal
Upon detection of excessive battery discharge the Indicator delivers the following signals with
the frequency of 2 times per second:
red LED lights up and goes out;
buzzer emits short tone signals;
low battery symbol lights up and goes out on the display.
These signals are issued for 30 seconds or until the user presses any button, then the Indicator
turns off.
1.6.5 Signal of registration of alpha, beta particles and photons of ionizing radiation
Upon a photon or particle registered by the detector:
1. LEDs form a light pulse:
green, if none of the alarm thresholds is exceeded;
red, if at least one alarm threshold is exceeded or radioactive contamination was
detected in DETECTION mode;
2. The buzzer makes a click.
1.6.6 Signal of manual measurements start / ending
The buzzer emits a short single tone signal.
1.6.7 Alarm signals
Upon exceedance of any of the thresholds of the current measurement mode, or upon
detection of radioactive contamination in DETECTION mode, the buzzer emits a particular (for
each type of alarm) sequence of tone signals.
1.7 Elements of Graphical Interface
Graphical interface of the Indicator is represented by the following screens:
measurement modes screens;
menu screens;
settings screens (dialogues);
tip screens (prompts).
The screens are divided into zones. In the top part of the display there is the line of header of
the screen (hereinafter referred to as the header), at the bottom there are one or two message
bars. Between the header bar and message bar there is the screen work area where the
measurement results, menu, dialogues elements and background information are displayed.
1.7.1 GAMMA mode screen.
In GAMMA mode the screen looks as shown in Fig. 4.
1 –screen header
2 –screen work area
3 –message bar
4 –icons, representing the type of displayed readings
5 –statistical error of the measured value
6 –measurement units
7 –meaning of the measured value
8 –analog indicator
Fig. 4 GAMMA mode screen

10
Header
In gamma-radiation control mode the screen title has the following elements (listed from the
left to the right):
1. time/date display field (current time is displayed by default, and when pressing and
holding "Right" button –current date is displayed) –time format: "HH:MM:SS", date
format: "DD:MM:YYYY";
2. The degree of filling of the log memory is displayed by the following icons:
icon –active, if there are less than 17% pages open in the log;
icon –active, if there are from 17 to 33% pages open in the log;
icon –active, if there are from 33 to 50% pages open in the log;
icon –active, if there are from 50 to 67% pages open in the log;
icon –active, if there are from 67 to 83% pages open in the log;
icon –active, if there are from 83 to 98% pages open in the log;
icon –active, if the last page of the log is open;
icon –inactive, if the log is fully filled;
3. icon –active, if schedule-based Indicator operation mode is allowed;
4. icon –active, if LED indication is allowed;
5. icon –active, if sound indication is allowed;
6. state of power supply source is indicated as follows:
–the battery is fully discharged;
–the battery is discharged;
–the battery is charged;
–powered from USB, connection with computer is not set;
–powered from USB, connection with computer is set.
Work area
On the left side of the screen there are two icons showing the type of displayed readings:
If icon is active, the dose rate of gamma radiation is displayed;
If icon is active, the integral dose of gamma radiation is displayed.
If "Down" button is pressed, the integral dose is displayed, otherwise the dose rate is displayed.
Large digits (see. Fig. 4, field 7) show the numerical value of the dose or dose rate. If the
statistical error is greater than ±50% (value is not valid), gray dashes are displayed instead of
the numbers. Values below the first threshold are shown in green. Values higher than the first,
but lower than the second threshold are shown in yellow, values above the second threshold
are shown in red.
Along with value (of dose or dose rate), the screen displays the corresponding statistical error
(field 5), and measurement units (field 6).
At the bottom of the screen the measured value is displayed on analog display with logarithmic
scale. One indicator scale division corresponds to tenfold change of displayed value. Green,
yellow and red areas correspond to the levels of alarm.

11
Message bar
The message bar (see. Fig. 4) shows the current alarm level. The following are the messages
displayed in descending order of priority:
"No data" –the measured value is invalid;
"Dangerous" or "Alarm level 2" –the value is greater than or equal to the second
threshold;
"Radiation" or "Alarm level 1" –value is greater than or equal to the first threshold and
less than the second threshold;
"Norm" –value is less than the first threshold.
"Radiation" and "Dangerous" messages are issued for the values of the dose rate, and "Alarm
level 1" and "Alarm level 2" messages are issued for values of the cumulative dose.
1.7.2 Screen of SEARCH mode.
In SEARCH mode the screen looks as shown in Fig. 5.
1 –screen header
2 –screen work area
3 –message bar
4 –icon of SEARCH mode
5 –statistical error of the measured value
6 –measurement units
7 –meaning of the measured value
8 –analog indicator
Fig. 5 Screen of SEARCH mode
Header
In SEARCH mode the screen title by its contents and behavior is similar to the title of GAMMA
mode (see par. 1.7.1).
Work area
In the left part of the screen there is an icon –attribute of SEARCH mode.
Big green digits (see Fig. 5, field 7) display the numeric value of dose rate.
Besides dose rate values the screen displays the statistical error (field 5) and measurement
units (field 6) corresponding to it.
At the bottom of the screen the measured value is displayed on the analog display with a
logarithmic scale. One indicator scale division corresponds to tenfold change of displayed value.
The upper and lower green stripes reflect the value of field 7, central gray bar represents the
dose rate measured in the last second.
Message bar
In SEARCH mode Alarm signals are not issued, so the message line (see Fig. 5) shows either "No
data", if the measured value is invalid, or "Alarms off" prompt.
1.7.3 BETA mode screen (for RadiaScan-701 only).
For assessment of beta-particles flux density two measurements need to be taken:
measurement of the contribution of gamma radiation only (at installed back cover in
position: filter with metal) –background;
measurement of total impact of gamma radiation and beta particles (at back cover
removed) –the cumulative effect.

12
Both at measurement of the background, and at measurement of the total impact the screen is
as shown in Fig. 6.
1 –screen header
2 –screen work area
3 –upper message bar
4 –lower message bar
5 –icons indicating the current type of measurement
6 –meaning of the measured value
7 –statistical error of the measured value
8 –value of density of the current of beta-particles
9 –measurement units
Fig. 6 BETA mode screen
Header
In BETA mode the screen title contains the same elements as the Header of GAMMA mode (see
par. 1.7.1). The only difference is the type of information displayed in the time field.
Depending on the type of measurement selected and on the current stage of measurement, the
following is displayed in the time field:
in the intervals between measurements –duration of the last measurement of the
background or the total cumulative impact;
during measurement, if it is limited by time only –the time remaining until the end of
the measurement;
during measurement, if it is not time-limited, or is limited by allowable statistical error –
the time from the start of measurement.
Work area
The left part of the work area has two icons which reflect the type of current measurement:
if icon is active, the background measurement is selected;
if icon is active, the mode of measuring the total impact is selected.
By clicking "Up" button you switch to background measurement mode, by clicking
"Down" button you switch to mode of measuring the total impact.
Field 6 (see Fig. 6) shows either the background value or the value of total exposure. Field 7
displays the statistical error of the value from field 6.
Numeric value of density of the current of beta-particles net of background is displayed in
field 8. If the statistical error of the background or the sum exceeds ±50% (value is not valid),
dashes are displayed in field 8.
The color of field 8 reflects the properties of the current measurement only, but not of the
result calculated by two measurements. The color is chosen based on the following rules, listed
according to descending priority:
1. Red –if the value is higher than the second threshold;
2. Yellow –if the value is higher than the first threshold but below the second threshold;
3. gray –if statistic error exceeds ±20%;
4. green –if the value is lower than the first threshold.
In Fig. 6 in field 9 measurement units are displayed.

13
Message bars
The screen has two message bars (Fig. 6).
The top bar displays user help tips on the current type of measurement:
"Put the cover" –when you switch to the background measurement mode;
"Remove the cover" –when you switch to the mode of measurement of total radiation
exposure;
"Measuring..." –during the measurement process;
"Terminated" –upon completion of measurement, if statistical error not exceeding
±50% is achieved;
"Finished" –upon completion of measurement, if the statistical error exceeds ±50%.
The bottom message bar displays alarm levels. The following are the messages displayed in
descending order of priority:
"No data" –measured value is invalid;
"Alarm level 2" –the value is greater than or equal to the second threshold;
"Alarm level 1" –the value is greater than or equal to the first threshold and below the
second threshold;
"Norm" –the value is lower than the first threshold.
1.7.4 ALPHA mode screen (for RadiaScan-701 only).
For assessment of the density of alpha-particles flux, two measurements at removed back cover
shall be taken:
measurement of the contribution of gamma rays and beta particles only (investigated
surface is covered, for example, with a thin sheet of paper) –the background;
measurement of the total exposure of gamma radiation and alpha particles
(investigated surface is completely open) –the cumulative effect.
Both at measurement of the background, and at measurement of the total impact the screen
looks as shown in Fig. 6.
1 –screen header
2 –screen work area
3 –upper message bar
4 –lower message bar
5 –icons indicating the current type of measurement
6 –meaning of the measured value
7 –statistical error of the measured value
8 –value of density of the current of ALPHA particles
9 –measurement units
Fig. 7 ALPHA mode screen
Header
Header of the window in ALPHA mode is fully consistent with the header in BETA mode (see
par. 1.7.3).
Work area
The left part of the work area has two icons which reflect the view of current measurement:
if icon is active, the background measurement mode is selected;
if icon is active, the cumulative impact measurement mode is selected.

14
Clicking "Up" button means switching to the background measurement mode, clicking "Down"
button means switching to cumulative impact measurement mode.
As for the rest, the work area of ALPHA mode corresponds to the work area of BETA mode (see
par. 1.7.3).
Message lines
ALPHA mode message lines are similar to BETA mode message lines (see par. 1.7.3).
1.7.5 DETECTION mode screen.
Method of detection of radioactive contamination of the surfaces of objects provides for
conduct of two measurements:
Measurement of the level of natural radiation background;
Measurement of the level of radiation near the surface of the object being examined.
Both at measurement of the background and at the measurement at the object surface the
screen looks as shown in Fig. 8.
1 –screen header
2 –screen work area
3 –upper message bar
4 –lower message bar
5 –icons indicating the current type of measurement
6 –statistical error of the measured value
7 –meaning of the measured value
8 –measurement units
Fig. 8 DETECTION mode screen
Header
In DETECTION mode the screen title by its contents and behavior is similar to the title of BETA
mode (see par. 1.7.3).
Work area
The left part of the work area has two icons which reflect the type of current measurement:
if icon is active, the background measurement mode is selected;
if icon is active, the mode of measuring radiation levels near the object is selected.
By clicking "Up" button you switch to background measurement mode, by clicking"Down"
button you switch to mode of measuring radiation levels near the object.
In field 7 (see Fig. 8) either the background value, or the value of the level of radiation near the
obect is displayed. If the statistical error of the current measurement is greater than ±50%
(value not valid), then dashes are displayed instead of the numeric values.
Color of field 7 reflects the properties of the current measurement and is selected by the
following rules, listed according to descending priority:
1. red–if the value is higher or equal to the second threshold;
2. yellow –if the value is higher or equal to the first threshold, but less than the second;
3. gray –if statistic error exceeds ±50%;
4. green –if the value is lower than the first threshold.
In field 6 the statistical error of the values from field 7 is displayed, and in field 8 measurement
units are displayed.

15
Message bars
The screen has 2 Message bars (see Fig. 8).
In the top bar the user help tips for the current type of measurement are displayed:
"Background" –when switching to the background measurement mode;
"Object" –when switching to measurement of the level of radiation near the object;
"Measuring..." –during the measurement process;
"Finished" –upon completion of measurement if the statistical error specified in the
settings is achieved;
"Terminated" –upon completion of measurement, unless if the statistical error specified
in the settings is not achieved.
The bottom message bar shows alarm levels. The following are the messages displayed in
descending order of priority:
"No data" –measured value is invalid;
"Radiation found" –in the case of detection of radioactive contamination;
"Alarm level 2" –the value is higher or equal to the second threshold;
"Alarm level 1" –the value is higher or equal to the first threshold, but less than the
second threshold;
"Norm" –the value is lower than the first threshold.
1.7.6 Main menu screen.
RadiaScan-501 main menu screen looks as shown in Fig. 9.
1 –screen header
2 –screen work area
3 –message bar
Fig. 9 RadiaScan-501 main menu screen
RadiaScan-701 main menu screen looks as shown in Fig. 10.
1 –screen header
2 –screen work area
3 –message bar
Fig. 10 RadiaScan-701 main menu screen
The main menu:
activates one of the allowable measurement modes;
calls Indicator settings menu.
Header
In the header of the screen of the main menu the name of the highlighted menu item is
displayed.
Work area
The work area has icons corresponding to menu items. Some of the icons are responsible for
activation of the required measurement mode (mode icons):

16
–activates ALPHA mode (only for RadiaScan-701);
–activates BETA mode (only for RadiaScan-701);
–activates GAMMA mode;
–activates SEARCH mode;
–activates DETECTION mode.
Icon is used to call up the "Options" menu.
One of the icons is always highlighted. Highlighting can be moved by buttons "Left", "Right",
"Up", "Down".
The icon for the current measurement mode is displayed in a specific way highlighted in yellow.
To select new measurement mode or to call "Options" menu move the highlighting to the
appropriate icon and press "Menu" button.
To exit from the main menu, press "Power" button.
Message bar
Button functions are indicated in the message bar:
Left –"Power" buttons;
Right –"Menu" buttons.
The name of the current measurement mode is indicated as the function of "Power" button.
If by "Menu" button the measurement mode is changed, the message bar will show "Mode",
and in other cases –"Ok".
1.8 Event log
The non-volatile memory of the Indicator has an event log. Both measured values and
attributes of some important events and statuses of the Indicator are recorded in it. Each entry
contains indication of current time. It is possible to view the contents of the log only by
connecting the Indicator to the computer using support program RadiaScan.exe (included in
the supply package). The Support Program downloads, views and saves all the log entries of the
Indicator in the the database of the computer.
The following modes of the log operation are implemented:
"Normal" –in this mode the results of measurements and characteristics of the most
important events and statuses of the Indicator are logged;
"Advanced" –in this mode the results of measurements and characteristics of all
registered events and statuses of the Indicator are logged.
Memory of the log has 60 pages. After filling the current page the Indicator opens a new one
and continues recording. Erasing the memory of the log is made page-by-page and can be made
both automatically or manually. In the case of automatic erasure at a shortage of space for new
records the Indicator empties a page with the oldest records. When manually erasing the
memory the user can choose either complete erasure of the log, or specify the number of pages
(with the oldest records) to be deleted. When deleted all pages with the records are lost
forever.

17
2SETTING UP THE DEVICE
2.1 General principles
Setting of the Indicator is done by means of menu. Some parameters can be changed directly
from the menu, for others dialogues are used. Moreover, the indicator settings can be made
also using support program RadiaScan.exe, included in the supply package.
2.1.1 Using the menu
The main menu (see par. 1.7.6) is used to select the measurement mode and configure the
parameters of the device through "Options" menu.
From any measurement mode, the main menu is called by pressing "Menu" button. Return to
current measurement mode is made by pressing "Power" button.
After calling "Options" menu the title of the screen displays the name of the current menu, and
in the message bar displays the functions of the buttons: on the left –"Power" button, on the
right –"Menu" button.
To select a menu item, use "Up" and "Down" buttons.
To enter a submenu or to replace the value of the selected parameter, use "Right" or "Menu"
buttons.
To return from the menu to the higher level press "Left" or "Power" button.
For a menu item associated with the parameter, by pressing "Right" or "Menu" button either
the parameter value will change or a corresponding dialog wil be brought up.
2.1.2 Use of dialogues
Dialogues usually contain one or more fields for entering values. Group of one or more
characters of parameter of one of the fields is active. To change its value use "Up" and "Down"
buttons. "Left" and "Right" buttons are used to activate other groups.
To exit the dialog use buttons:
"Menu" –in this case, new value of the parameter will be used;
"Power" –in this case, the old value of the parameter will still be used.
2.2 Information on the Product
To display information about the product, enter "Options" menu, then menu "Other", "Device
info" and press "Menu" button. The certificate wil be displayed containing the model name,
serial number, product software version. To exit the help window, click "Power" button.
2.3 Restoring the factory settings
To restore the factory settings, go to "Options" menu, then to menu "Other", "Factory settings"
and press "Menu" button. This will display a dialog box consisting of elements "No" and "Yes."
Select "Yes" and press "Menu" or "Right" button.
2.4 Language of the interface
To select the interface language, enter "Options" menu, then menu "Screen", "Language". In
"Language" menu select the language and press "Menu" or "Right" button.
2.5 Setting the date
To change the date enter "Options" menu, then menu "Clock", select "Date" and press "Menu"
button. This will display a dialog box consisting of three fields:
day field –marked on the bottom with "DD" letters;
month field –marked on the bottom with "MM" letters;

18
year field –marked on the bottom with "YY" letters.
The order of use of the dialogue is described in Chapter 2.1.2.
2.6 Setting the time
To change the time, enter "Options" menu, then menu "Clock", select "Time" and press "Menu"
button. This will display a dialog box consisting of three fields:
hours field –marked on the bottom with letters "HH";
minutes field –marked on the bottom with letters "MM";
seconds field –marked on the bottom with letters "SS".
The order of use of the dialogue is described in Chapter 2.1.2.
2.7 Setting the Time Zone
To change the time zone, enter "Options" menu, then menu "Clock", select "Zone" and press
"Menu" button. This will display a dialog box consisting of one field, reflecting the time
difference between selected time zone and Greenwich Mean Time (UTC).
The order of use of the dialogue is described in Chapter 2.1.2.
2.8 Enabling/Disabling Daylight Saving Time
To enable/disable daylight saving time, enter "Options" menu, then menu "Clock" and select
"Daylight Saving ". Pressing "Menu" or "Right" button, you can enable or disable the mode of
summer time. If the mode of summer time is enabled, the right side of the menu will show
"On", otherwise it will read "Off".
2.9 Setting the display contrast
To change the contrast of the display, enter "Options" menu, then "Screen" menu, select
"Contrast" and press "Menu" button. This will display a dialog box consisting of two-digit
numeric field. When you change the value of the field the contrast of the display will change.
The order of use of the dialogue is described in Chapter 2.1.2.
2.10 Automatic shutdown of the display
To set the time of automatical shutdown of the display, enter "Options" menu, then "Screen"
menu, select "Turn off" and press "Menu" button. The dialog with a list of five options will
open:
"Never" –display is always on;
"15 sec" –turning off after 15 seconds;
"30 sec" –turning off after 30 seconds;
"2 min" –turning off after 2 minutes;
"10 min" –turning off after 10 minutes.
Select the desired option and press "Menu" or "Right" button.
To exit the dialog, click "Power" button.
2.11 Enabling/Disabling the sound
To enable/disable the sound, enter "Options" menu, then "Signals" menu, "Sounds" menu and
select "All sounds". Pressing "Menu" or "Right" button, you can enable or disable the sound. If
the sounds are on, the right side of the menu will show "On", otherwise it will read "Off".
2.12 Enabling/Disabling particular sounds
To enable/disable particular sounds enter "Options" menu, then "Signals" menu, "Sounds"
menu. Select one of the items: "Buttons", "Clicks" or "Alarm". "Menu" button or "Right" button

19
enables or disables the selected sound. If the sound is turned on, the right side of the menu will
show "On", otherwise it will read "Off".
2.13 Testing alarm signals
To listen to the alarm signals, enter "Options" menu, then "Signals" menu, "Alarm" menu.
Select one of the items: "Alarm-1" or "Alarm-2". Press "Menu" or "Right" button. While the
button is pressed, the Indicator will issue one-time alarm sound corresponding to the selected
threshold. When you release "Menu" button, the sound will stop.
2.14 Control of LEDs
To control LEDs enter "Options" menu, then "Signals" menu and "LEDs" menu.
2.14.1 Enabling/Disabling LEDs
To enable/disable the LEDs, in "LEDs" menu choose "Enable" item. "Menu" or "Right" button
enables or disables the LED indication. If the indication is enabled, the right side of the menu
will show "Yes", if not, it will read "No".
2.14.2 Setting brightness of green LED
To enable/disable the LEDs, select "Brightness" in "LEDs" menu and press "Menu" or "Right"
button. In the opening dialog box "Brightness", set the brightness of the green LED, which will
flash at the same time with the frequency of about 2 times per second.
2.15 Automatic enabling/disabling the device by the schedule
To control automatic enabling/disabling of the device, there are four configurable schedules. To
set any of them enter "Options" menu, then "Clock" menu and select "Schedules" item. A menu
with schedules will be displayed. In each line of the menu on the left there is schedule response
time in HH: MM, and on the right there is the action performed by the schedule:
Power on –activation of the device;
Power off –deactivation of the device;
No –the schedule is not active.
Each schedule can be triggered once a day at a specified (up to minutes) time.
Using "Up" and "Down" buttons select the desired schedule. Using button "Menu" or "Right"
open the menu of settings of this schedule consisting of three points, "Enable", "Time" and
"Power".
2.15.1 Enable/disable the schedule work
Select "Enable" item. Using "Menu" or "Right" button set "Yes" value to enable the schedule, or
"No" to disable the schedule.
2.15.2 Setting the schedule triggering time
Select "Time" item and press "Menu" or "Right" button. The dialogue "Start time" will open,
which consists of two fields for entry of hours (HH) and minutes (MM) of the schedule
triggering time.
The order of use of the dialogue is described in Chapter 2.1.2.
2.15.3 Selecting action
Select "Power" item. Using "Menu" or "Right" button set to "Off" to set up the deactivation of
the device by this schedule, or the "On" to set up activation of the device.
2.16 Parameters of GAMMA mode
To set parameters of the mode of continuous monitoring of gamma radiation enter "Options"
menu, then "Modes" menu, "Gamma" menu.

20
2.16.1 Setting the units of measurement of the dose and dose rate
To switch the units of measurement of the dose and dose rate, select "Gamma" menu, "Dose
units" item and press "Menu" or "Right" button.
When "Sv" (sievert) is chosen for the dose measurement unit, then Sv/h will be used for dose
rate.
When "R" (roentgen) is chosen for the dose measurement unit, then R/h will be used for dose
rate.
This parameter affects the choice of the units of measurement in the SEARCH and DETECTION
mode.
2.16.2 Setting alarm thresholds for dose rate
From menu "Gamma" go to "Dose rate" menu.
To set default values, select "Factory settings" and press "Menu" or "Right" button. In
the opening menu, select "Yes" and press "Menu" or "Right" button.
To set the first threshold, select "Alarm-1" and press "Menu" or "Right" button.
To set the second threshold, select "Alarm-2" and press "Menu" or "Right" button.
When selecting "Alarm-1" or "Alarm-2" a dialog will be displayed for setting a new value of the
corresponding threshold. The dialogue consists of one numeric field. The order of use of the
dialogue is described in Chapter 2.1.2.
If for the first threshold a value greater than the second threshold is entered, the second
threshold value becomes equal to the value of the first one.
If for the second threshold a value smaller than the first threshold is entered, then the value of
the first threshold becomes equal to the value of the second one.
2.16.3 Setting alarm thresholds for dose
From "Gamma" menu go to "Dose" menu
To set default values, select "Factory settings" and press "Menu" or "Right" button. In
the opening menu, select "Yes" and press "Menu" or "Right" button.
To set the first threshold, select "Alarm-1".
To set the second threshold, select "Alarm-2".
When selecting "Alarm-1" or "Alarm-2" a dialog box will be displayed for setting the new value
of the corresponding threshold. The dialogue consists of one numeric field. The order of use of
the dialogue is described in Chapter 2.1.2.
If for the first threshold a value greater than the second threshold is entered, the second
threshold value becomes equal to the value of the first one.
If for the second threshold a value smaller than the first threshold is entered, then the value of
the first threshold becomes equal to the value of the second one.
2.16.4 Setting of automatic recording of the readings in the log (capture)
From "Gamma" menu, go to "Capture" menu.
To enable/disable capturing, select "Enable" item. Using "Menu" button or "Right" button set
to "Yes" to allow capture. To prevent capture, set to "No".
To set the interval between captures, select "Interval" item. In the opening dialog box, set the
time interval in HH:MM:SS. The interval value can be set in the range from 1 second to 11 hours
59 minutes 59 seconds.
The order of use of the dialogue is described in Chapter 2.1.2.
