Anritsu MZ1225A User manual

Document No.: M-W3485AE-2.0
ANRITSU CORPORATION
MZ1225A
Adapter for QSFP+
Operation Manual
For safety and warning information, please read this
manual before attempting to use the equipment.
Keep this manual with the equipment.
Second Edition

ii
Safety Symbols
To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Corporation uses the
following safety symbols to indicate safety-related information. Ensure that you clearly understand the meanings of
the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu
equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this
manual.
Symbols used in manual
This indicates a very dangerous procedure that could result in serious injury or
death if not performed properly.
This indicates a hazardous procedure that could result in serious injury or death if
not performed properly.
This indicates a hazardous procedure or danger that could result in light-to-severe
injury, or loss related to equipment malfunction, if proper precautions are not taken.
Safety Symbols Used on Equipment and in Manual
The following safety symbols are used inside or on the equipment near operation locations to provide information
about safety items and operation precautions. Ensure that you clearly understand the meanings of the symbols and
take the necessary precautions BEFORE using the equipment.
This indicates a prohibited operation. The prohibited operation is indicated
symbolically in or near the barred circle.
This indicates an obligatory safety precaution. The obligatory operation is
indicated symbolically in or near the circle.
This indicates a warning or caution. The contents are indicated symbolically in or
near the triangle.
This indicates a note. The contents are described in the box.
These indicate that the marked part should be recycled.
MZ1225A
Adapter for QSFP
Operation Manual
21 June 2011 (First Edition)
10 August 2011 (Second Edition)
Copyright © 2011, ANRITSU CORPORATION.
All rights reserved. No part of this manual may be reproduced without the prior written permission of the
publisher.
The contents of this manual may be changed without prior notice.
Printed in Japan
CAUTION
WARNING
DANGER

For Safety
iii
WARNING
ALWAYS refer to the operation manual when working near locations
at which the alert mark shown on the left is attached. If the advice in
the operation manual is not followed there is a risk of personal injury
or reduced equipment performance. The alert mark shown on the left
may also be used with other marks and descriptions to indicate other
dangers.
CAUTION
This instrument is designed for an industrial environment.
In a residential environment this instrument may cause radio
interference in which case the user may be required to take adequate
measures.
Use in a residential
environment

iv
Equipment Certificate
Anritsu Corporation certifies that this equipment was tested before shipment
using calibrated measuring instruments with direct traceability to public
testing organizations recognized by national research laboratories, including
the National Institute of Advanced Industrial Science and Technology, and
the National Institute of Information and Communications Technology, and
was found to meet the published specifications.
Anritsu Warranty
Anritsu Corporation will repair this equipment free-of-charge if a malfunction
occurs within one year after shipment due to a manufacturing fault.
However, software fixes will be made in accordance with the separate
Software End-User License Agreement. Moreover, Anritsu Corporation will
deem this warranty void when:
The fault is outside the scope of the warranty conditions described in the
operation manual.
The fault is due to mishandling, misuse, or unauthorized modification or
repair of the equipment by the customer.
The fault is due to severe usage clearly exceeding normal usage.
The fault is due to improper or insufficient maintenance by the customer.
The fault is due to natural disaster including fire, flooding, earthquake,
etc.
The fault is due to use of non-specified peripheral equipment, peripheral
parts, consumables, etc.
The fault is due to use of a non-specified power supply or in a
non-specified installation location.
In addition, this warranty is valid only for the original equipment purchaser. It
is not transferable if the equipment is resold.
Anritsu Corporation shall assume no liability for injury or financial loss of the
customer due to the use of or a failure to be able to use this equipment.
Anritsu Corporation Contact
In the event that this equipment malfunctions, contact an Anritsu Service and
Sales office. Contact information can be found on the last page of the printed
version of this manual, and is available in a separate file on the CD version.

v
Crossed-out Wheeled Bin Symbol
Equipment marked with the Crossed-out Wheeled Bin Symbol complies with
council directive 2002/96/EC (the "WEEE Directive") in European Union.
For Products placed on the EU market after August 13, 2005, please contact
your local Anritsu representative at the end of the product's useful life to
arrange disposal in accordance with your initial contract and the local law.

vi
Notes On Export Management
This product and its manuals may require an Export License/Approval by
the Government of the product's country of origin for re-export from you
r
country.
Before re-exporting the product or manuals, please contact us to confirm
whether they are export-controlled items or not.
When you dispose of export-controlled items, the products/manuals need
to be broken/shredded so as not to be unlawfully used for military purpose.
Notice
The following actions are strictly prohibited for all of the software installed
in this product or otherwise provided by Anritsu:
1. This product should be installed indoors. The product performances
are not guaranteed under the following conditions; extreme vibrations,
dust, direct sunlight, activated gas, variable atmospheric pressure,
condensation and static electricity.
2. This product should be used for private industries. It should not be
used for medical care, military, aerospace.
3. The support and service of this product is available only in Japan. In
addition, the reception time for repairs and inquiries is 8:30 am to 5:00
pm, Monday through Friday, excluding Saturday, Sunday, national
holidays, and holidays specified by Anritsu.

vii
CE Conformity Marking
Anritsu affixes the CE Conformity marking on the following product(s) in
accordance with the Council Directive 93/68/EEC to indicate that they
conform to the EMC and LVD directive of the European Union (EU).
CE marking
1. Product Model
Model: MZ1225A Adapter for QSFP+
2. Applied Directive and Standards
When the MZ1225A Adapter for QSFP+ is installed in the MD1260A, the
applied directive and standards of this unit conform to those of the
MD1260A 40/100G Ethernet Analyzer.
PS: About main frame
Please contact Anritsu for the latest information on MD1260A that
MZ1225A can be used with.

viii
C-tick Conformity Marking
Anritsu affixes the C-tick marking on the following product(s) in accordance
with the regulation to indicate that they conform to the EMC framework of
Australia/New Zealand.
C-tick marking
1. Product Model
Model: MZ1225A Adapter for QSFP+
2. Applied Directive and Standards
When the MZ1225A Adapter for QSFP+ is installed in the MD1260A, the
applied directive and standards of this unit conform to those of the
MD1260A main frame.
PS: About main frame
Please contact Anritsu for the latest information on MD1260A that
MZ1225A can be used with.

I
About This Manual
The operation manual for the MZ1225A Adapter for QSFP+ covers the
usage precautions, product outline and installation method.
1 Product Outline
This section explains the purpose of this product usage.
2 Before Use
This section explains the items and each part name confirmed when
purchasing the product.
3 How to Use
This section explains how to use this product.
4 Storage
This section explains the procedures and precautions when storing this
product.
5 Transportation/ Disposal
This section explains the precautions when transporting and disposing
this product.

II.
Table of Contents
For safety .................................................... iii
1 Outline ............................................ 1
2 Before Use...................................... 3
2.1 Standard Configuration.............................................. 3
2.2 Applicable Parts......................................................... 3
2.3 Part Names ................................................................ 3
3 How to Use ..................................... 4
3.1 Connection Precautions............................................. 4
3.2 Installation Method..................................................... 4
3.3 Display on MD1260A ................................................. 8
3.4 Remote Control for MD1260A Display Items............. 9
4 Storage Precautions...................... 10
5 Transporting and Disposal ........... 11

1 Outline
1 Outline
MZ1225A Adapter for QSFP+ is an adapter to convert the QSFP+ module
to the CFP module form.
The MZ1225A is used being inserted to the measurement port (CFP
module installation part) of the MD1260A 40/100G Ethernet analyzer
(hereinafter referred to as MD1260A).
QSFP+: Quad Small Form factor Pluggable plus Module
CFP: 100Gigabit Form factor Pluggable Module

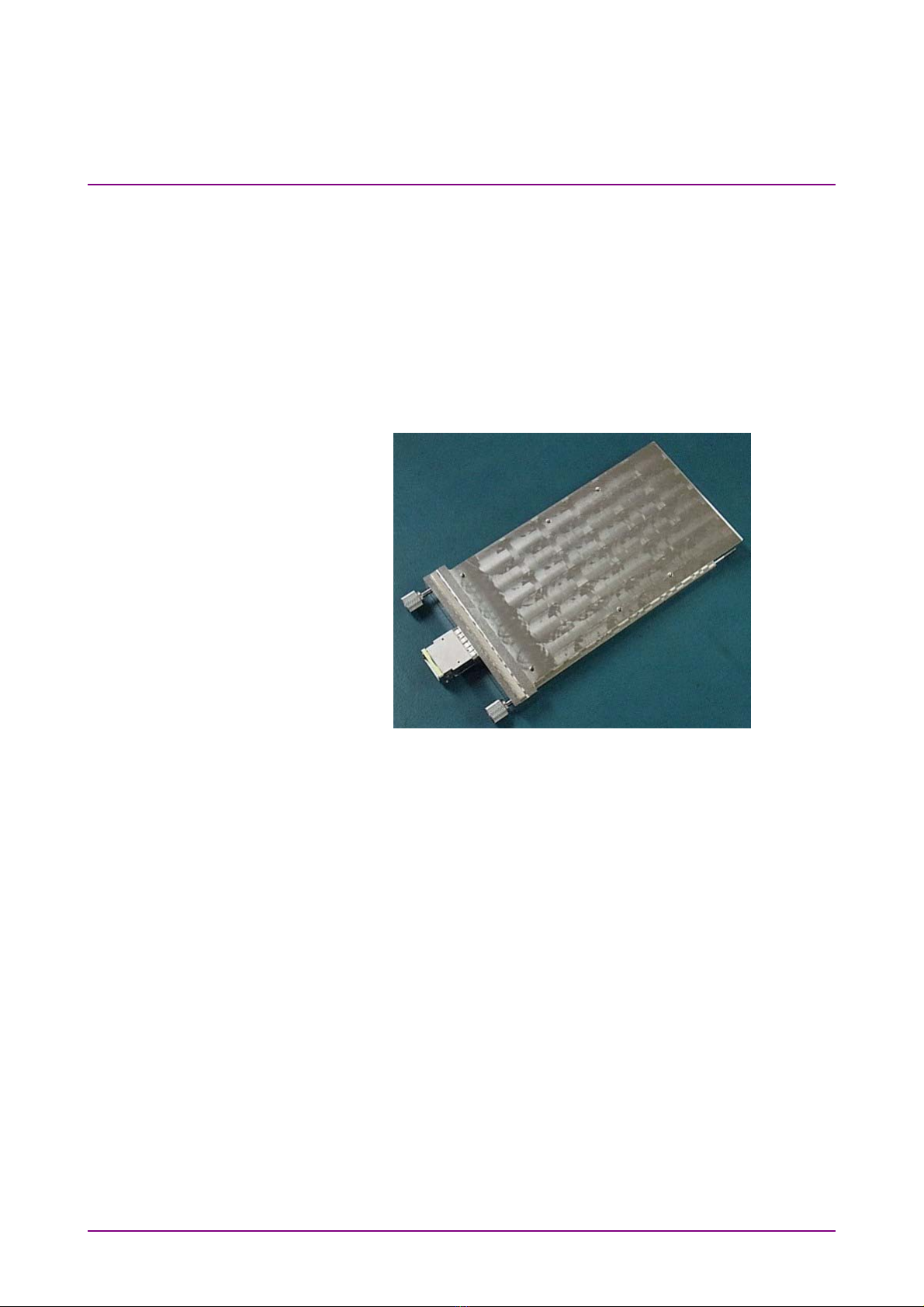

Figure 1-1 Appearance of MZ1225A Adapter for QSFP+
1

1 Outline
QSFP+
Register
Tx1
Tx2
Tx3
Tx4
Rx1
Rx2
Rx3
Rx4
SCL
SDA
MZ1225A
Logic
circuit
QSFP+
connector
Tx1
Tx2
Tx3
Tx4
Tx5
Tx6
Tx7
Tx8
Tx9
Tx10
Rx1
Rx2
Rx3
Rx4
Rx5
Rx6
Rx7
Rx8
Rx9
Rx10
CFP
connector
O
p
tical connector
SCL: 2-wire serial interface clock
SDA: 2-wire serial interface data
MDIO Bus
Address Bus
Figure 1-2 Block Diagram of the MZ1225A Adapter for QSFP+
2

2 Before Use
2 Before Use
2.1 Standard Configuration
At unpacking, check that all items are included. See the attached file
including the standard configuration table (see Table 2.1-1). Contact your
Anritsu Service and Sales Office or agent if any parts are missing or
damaged.
Table 2.1-1 Standard Configuration
Item Product Name Quantity Remarks
Main Unit MZ1225A
Adapter for QSFP+
1
Accessory Z1442A
MD1260A
Software/Manual
CD-ROM
1 CD-ROM
Includes Adapter
for QSFP+
Operation
Manual
2.2 Applicable Parts
Table 2.2-1 Applicable Parts
Model Product Name Remarks
G0296A QSFP+ 40GBASE-SR4
J1519A Optical Fiber Code Multi-mode fiber,
MPO connector, 3 m
2.3 Part Names
The parts names of the MZ1225A are as shown in Figure 2.3-1.
QSFP+ connector
CFP connector
FastenerEMI Finger
Figure 2.3-1 Parts Names
3

3 How to Use
4
3 How to Use
This section explains how to use the MZ1225A.
3.1 Connection Precautions
To use the MZ1225A properly, you must keep the connection precautions
written below:
1. The insert/remove cycles of the CFP connector are about 180. Even
though the insert/remove cycles are repeated, the maximum cycles
are defined as 180.
Exceeding the maximum cycle may cause contact resistance increase,
damage, or distortion of the CFP connector.
2. The insert/remove cycles of the QSFP+ connector are about 180
cycles. Even though the insert/remove cycles are repeated, the
maximum cycles are defined as 180.

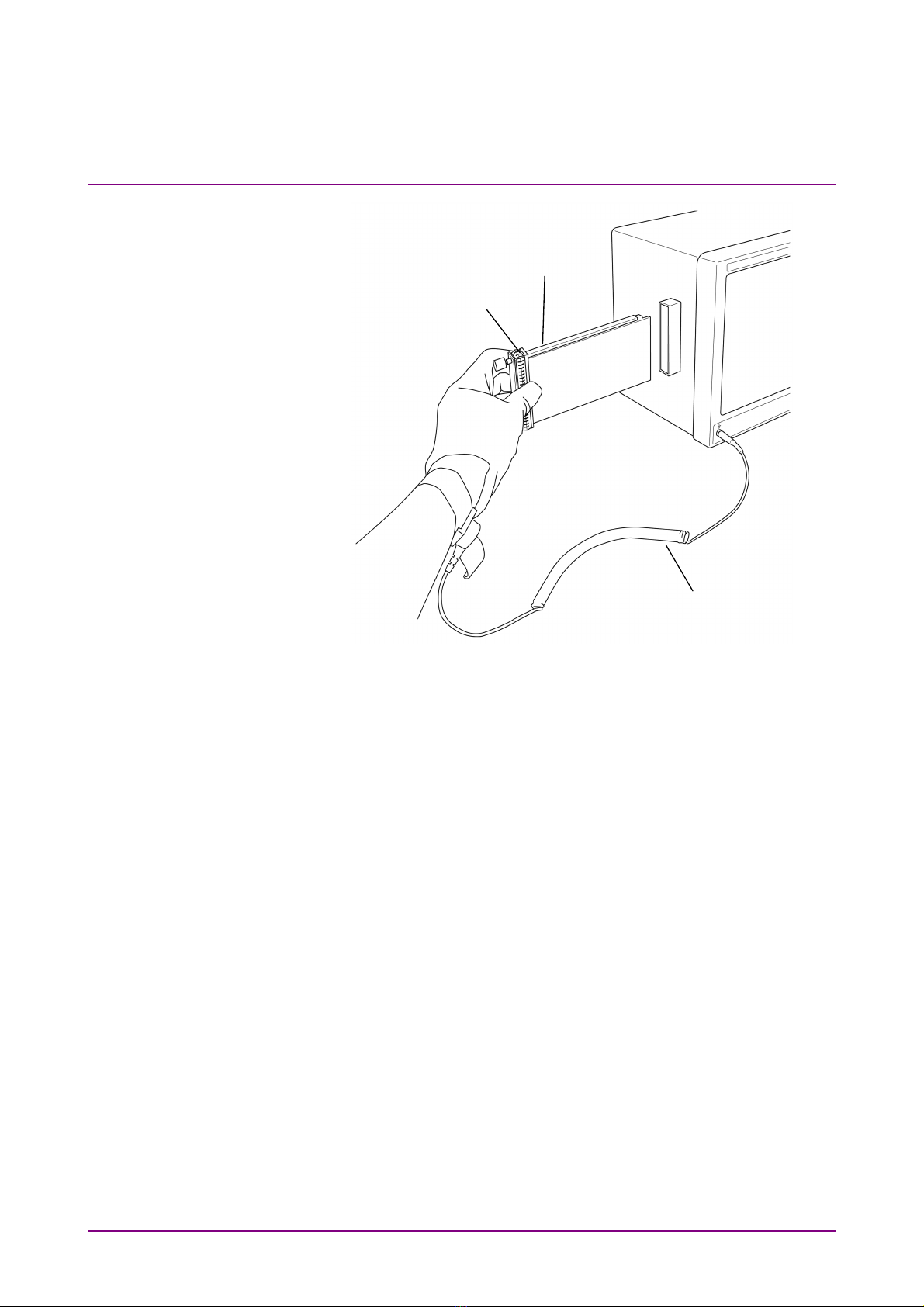

3.2 Installation Method
How to install the QSFP+ module
1. Hold both sides of the QSFP+ module between the tips of your first
two fingers.
2. Insert the QSFP+ module in the MD1260A until it clicks.
3. Move the lever of the QSFP+ module up and connect the optical
connector.

3 How to Use
How to remove the QSFP+ module
1. Remove the module when the optical connector is attached.
2. Move the lever of the QSFP+ module down.
3. Hold both sides of the QSFP+ module between the tips of your first
two fingers.
4. Pull out the QSFP+ module.
MZ1225A
Lever
Figure 3.2-1 How to Remove the QSFP+ Module
5

3 How to Use
How to install the MZ1225A in MD1260A
CAUTION
Some devices installed in the MZ1225A and MD1260A may
be damaged by impressed static electricity and short
circuit.
As a countermeasure against static electricity, the operator
should wear an electrostatic discharge wrist strap.
Make sure that no dust is in the card edge part when
installing the MZ1225A in the MD1260A. If dust enters the
card edge part, it may cause connector failures and
measurement problems.
When not connecting the MZ1225A with the MD1260A,
cover the CFP slot of the MD1260A to keep the slot inside
free of dust.
1. Wear an electrostatic discharge wrist strap and connect the
MZ1225A to the ground terminal of the MD1260A front panel.
2. Slowly press the front end of the MZ1225A along the railing into the
port socket, until the flange makes contact.
Make sure not to damage the EMI gasket of the MZ1225A.
There is a riding heat sink inside the measurement port for
ventilation of CFP. Be careful of the friction between the MZ1225A
and the riding heat sink when inserting the module.
3. Tighten the fixing screws clockwise (2 locations).
6

3 How to Use
MZ1225A
EMI gasket
Strap
Figure 3.2-2 Countermeasure Against Static Electricity
7

3 How to Use
3.3 Display on MD 1260A
For the MD1260A operation method, refer to the MD1260A 40/100G
Ethernet Analyzer Operation Manual.
When connecting the QSFP+ module to the MD1260A using the MZ1225A,
the following items are displayed on the Opt. Tab.
Table 3.3-1 Items Displayed on Opt Tab
Item Explanation
LOS Displayed in red when LOS occurs on one or more
receivers of the QSFP+ module.
Tx Fault Displayed in red when an error occurs on one or more
transmitters of the QSFP+ module.
Temp Alarm Displayed in red when abnormal temperature occurs
within the QSFP+ module.
Rx Power
Alarm
Displayed in red when the optical level is too high or
too low on one or more receivers of the QSFP+
module.
Global Alarm Status of IntL pin of the QSFP+ module
Displayed in red when an error occurs in the QSFP+
module.
For the error occurrence conditions, refer to the specifications of the
QSFP+ module.
Figure 3.3-2 Items Displayed on Opt Tab When Using the MZ1225A
8

3 How to Use
9
3.4 Remote Control for MD1260A Display Items
For the MD1260A remote operation method, refer to the MD1260A
40/100G Ethernet Analyzer Operation Manual (remote control).
The items displayed on the MD1260A Opt tab when using the MZ1225A
can be read out by the CALClate:DATA command.
The ID specifying the read-out items and response data format are listed
in the following table.
Table 3.4-1 ID for CALClate:DATA
Item ID Response Data
Format
LOS LOS <status>
Tx Fault TX_FAULT <status>
Temp Alarm TEMP_ALARM <status>
Rx Power Alarm POWER_ALARM <status>
Global Alarm GALARM <status>
Optical Power OPOWER <NR2> (dBm)
The response data format is as follows.
Table 3.4-2 Response Data Format
Format Explanation
<status> 0|1|2
The vale corresponding to the color status
displayed on the screen will be returned.
0 Normal (green)
1 Abnormal (red)
2 History (orange)
<NR2> Displays the numeric value.
Example) 123, –5.00
Example of Use
To read out the status of Global Alarm:
CALC:DATA? GALARM
> 0
To read out Optical Power:
CALC:DATA? OPOWER
> -0.14,-0.18,-0.34,-0.22

4 Storage Precautions
10
4 Storage Precautions
Remove the QSFP+ module from the MZ1225A before storing this device.
Wipe dust, fingerprints, stains, spots, etc., from the surface of the
MZ1225A before storing it.
Wrap the MZ1225A in plastic or a similar material to protect against
dust.
Avoid storing the MZ1225A:
Places that are exposed to direct sunlight
Dusty places
Damp places where condensation may occur on the MZ1225A surface
Places where there are active gases causing corrosion
Places where the MZ1225A may be oxidized
Places where the MZ1225A may be exposed to strong vibration and
shock
Places where the MZ1225A might topple over.
Places with extreme temperatures and relative humidity such as:
Temperature: lower than –20°C or higher than 60°C
Humidity: 90% or more
Recommended storage conditions
The MZ1225A should be stored in a place that meets the ambient
conditions above, plus the following conditions if it is not to be used for a
long time:
Temperature 10° to 30°C
Humidity 40% to 80%
Slight daily change in temperature and humidity.
