Ansonic HD Network Cameras User manual

Shenzhen Enerson Technology
C o m p a n y L i m i t e d
ANSON (HK) Technology Co., LTD.
Address: 4F, Block 5, Wuzi
Industrial Park, Fada Road,
Bantian, Longgang District,
Shenzhen, China
E-Mail: info@cctv-ax. net
Website: www. cctv-ax. com
Address: 4F, Block 5, Wuzi Industrial Park, Fada
Road, Bantian, Longgang District, Shenzhen, China
E-Mail: info@cctv-ax. net Website: www. cctv-ax. com
High-definition
Network Cameras
High-definition Network Cameras

Introduction
Megapixel IP Camera is an embedded and 38*38 HD surveillance device designed for compressing and processing
audio and video data. It consists of audio and video compressing encoder, IO channel, network interface, audio
and video interface, RS422 serial interface, protocols interface and software interface. It also can process video,
which mainly responsible for capturing image data, compressing H.264 image data, process data transmitted
on internet and audio and video data, transmit real-time image and audio at the same time on network. It can
V1.0.0
compress bigger and clearer image because of faster digital processor. Its smoother transfer and clearer display
because of advanced OS and audio. Its reliable and stable running depend on embedded server, out of PC, high
scheduling efficiency, curing code in the flash. Accessing it by IE browser. Two-way voice intercom, dynamic IP
address and transfer image and audio conveniently are available.
FEATURE:
Two video and audio is independent, 60 frame activity video per second
H.264 video compression standard
Embedded WEB server and surveillance, configure, update by IE
Transfer two-way audio on internet; adjust frame rate according bandwidth automatically
Variable Bit rate, it can limit compressing stream of image while the image is fixed.
Two domains, dynamic IP or ADSL is easily
Bit rate range from 64 kbps to 4 Mbps, frame rate range 1 to 25 (30)
Capture picture and local record is available.
Motion detect alarm is available by setting checking area and Sensitivity
Prerecord while alarm is available
10/100 M Ethernet
IO interface connects external device is available
RS485 interface connect network transparent channel, control transparent channel of Megapixel IP Camera by client
Multi-user simultaneous accessing is available
Input and output alarm message is available
PC configuration: CPU 3.0GHZ; memory 1G; 128M graphics card; 2.1 sound card; audio output; Mic input,
windows 2000/XP/2003/Vista/7, IE6.0-8.0.
There may be technical inaccuracies and typographical errors in the manual. Products, updated in real time,
the contents of the manual will be updated from time to time without prior notice. The updated content will be
added in new version. If there is difference between manual and products, all product-based.

CONTENT
1 NETWORK SETUP
2 MEDIA SETUP
1.1 NETWORK STATUS
1.2 ETHERNET SETUP
1.3 WIFI SETUP
1.4 ADSL SETUP
1.5 DDNS SETUP
1.6 UPNP SETUP
1.7 FTP ACCOUNT
1.8 SMTP ACCOUNT SETUP
1.9 STREAM SETUP
1.10 PLATFORM SETUP
2.1 PLAY VIDEO
2.2 VIDEO CAPTURE
2.3 TIME AND TITLE SETUP
2.4 VIDEO ENCODE
2.5 PICTURE CAPTURE
2.6 AUDIO CAPTURE
2.7 AUDIO ENCODE
1
12
1
4
5
7
7
8
9
9
10
11
12
15
17
18
19
19
20
3 PTZ SETUP
4 RECORD AND REPLAY
5 ALARM SETUP
3.1 PTZ BASIC
3.2 PTZ ADVANCED
4.1 STORAGE INFO
4.2 PLAY BACK
4.3 RECORD SETUP
4.4 STORAGE MANAGE
5.1 MOTION DETECT ALARM SETUP
5.2 IO INPUT ALARM
5.3 VIDEO LOST ALARM
5.4 STORAGE FULL ALARM
4.3.1 Basic Setup
4.3.2 Motion Detect Alarm Record
4.3.3 Motion Detect Alarm Capture
4.3.4 IO Alarm Record
4.3.5 IO Alarm Picture Capture
4.3.6 Schedule Record
4.4.1 Unmount
4.4.2 Format
21
23
28
28
29
30
31
32
33
35
35
21
21
23
23
28
33
35
39
41
42

1 Network Setup
1.1 Network Status
The connection schematic diagram for the entire system frame of Megapixel IP Camera as figure 1.1. Connect PC
and Megapixel IP Camera directly and set network parameter as follow: 1. the default IP address is 192.168.0.123,
net mask is 255.255.255.0, so you must add a IP address make the PC can access the device (such as 192.168.0.88).
2. The net mask of the PC and the Megapixel IP Camera must be same. Make sure the direct network is through,
as follow: “Start”-“Run”-enter “cmd” then enter “ping 192.168.0.123” and press “enter” on the keyboard. As figure
1.3, 1.4, and1.5. While the network is not through, please check it.
Figure1.2 enter “cmd”
42
54
42
43
46
47
48
49
50
51
51
54
54
54
55
55
55
55
43
44
TS38ABFG Switch Surveillance Client(Static IP)
Figure1.1 connecting schematic diagram
01
6 SYSTEM SETUP
7 FREQUENTLY ASKED QUESTIONS
6.1 SERIAL NUMBER AND KERNEL VERSION
6.2 ACCOUNT MANAGE
6.3 TIME SETUP
6.4 LOG SETUP
6.5 LOG VIEW
6.6 LOG FILE
6.7 CONFIG MANAGE
6.8 RESTORE CONFIG
6.9 SYSTEM UPDATE
6.10 REBOOT
6.11 LANGUAGE
7.1 WHY CAN NOT ACCESS THE MEGAPIXEL IP CAMERA BY IE?
7.2 WHY THE PTZ CAN NOT CONTROL?
7.3 WHY CAN NOT SWITCH THE DATA?
7.4 WHY CAN NOT ACCESS THE MEGAPIXEL IP CAMERA AFTER UPDATE?
7.5 NO SOUND AFTER CLICK “VOICE TALK”
6.2.1 Add, Delete
6.2.2 User Group

HD Networ k Camera User ’s Manual
Fiure1.3 enter “ping 192.168.0.123-t”
Figure1.4 network is through
Figure 1.5 networks is not through
After then, power on. Enter the IP address in IE browser and press “enter”. Then it will display the following interface
as figure1.6, and then enter user name (admin) and password (123456) and click “Login”.
Figure 1.6 Login interface
0302

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
0504
After enter system select and click “Network Setup”, it will display interface as figure 1.7, displaying the IP address,
gateway, net mask and DNS and so on. The detail information please refers to the actual configuration.
1.2 Ethernet Setup
Ethernet setup as figure 1.8, all the parameter in the interface is needed to be reset. Also you can modify the IP
address by IP search (carried with UC2) or other tools. Make sure the IP address to be modified and IP address
of your PC are in the same network segment, and the IP address to be modified can not be the same as the IP
address of the PC in the network segment. After reset IP address the device will reboot, then use the new IP
address to access the camera.
Net mask match with IP address to distinguish network address with local address, as 255.255.255.0. the correct
net mask is the premise for saving it. Gate way is point between two networks such as router. So you can enter
the router IP address.
DNS server address is host IP address running the domain server, which provide by network operators. If enable
the DHCP then it will obtain dynamic IP.
Figure 1.7 Network status
Figure 1.8 Ethernet setup
1.3 WIFI Setup
WIFI setup as figure 1.9. First you need to set wireless router called AP for short. All parameters in this interface
must be the same with the router setting.

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
0706
Figure 1.9 WIFI Setup
1.4 ADSL Setup
ADSL setup as figure 1.10
The username and password of the ADSL are provided by network operators, enter the correct username and
password, enable ADSL and save it.
It can run correctly on premise that the username, password and the confirm password is correct.
It will prompt error while the password and confirm password is incorrect. In order to verify the ADSL is run correctly,
you can enable DDNS and access the device by domain name. enable DDNS as figure 1.11 DDNS Setup)
1.5 DDNS Setup
DDNS setup as figure 1.11
First you must have a domain name. www.3322.org is recommended; please remember the username, password
and domain name.
Then enable DDNS, select the DDNS Server as “3322.org”. if your domain name is “test.3322.org”, please enter
“test” in the DDNS Domain, and the User Name and Password is the username and password that applied in the
www.3322.org. set the Refresh Time as 1 minute, then DDNS will work after 1 minute.
Last you can access the device by domain name.
Figure 1.10 ADSL Setup

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
0908
Figure 1.11 DDNS Setup
1.6 UPNP Setup
UPNP setup as Figure1.12.
UPNP run by external address and port.
Figure1.12 UPNP Setup
1.7 FTP Account
FTP account setup as Figure1.13.
First a FTP server is indeed. Then apply a FTP account from the FTP server (username and password).
And you must create four directory as “alarm”, “log”, “set”, “update” or other directory name, also you can enter
“./” then the entire document will be save in the root of the FTP server.
The default port of FTP is 21. The information of the interface must be correct to make sure the FTP function run correct.
Alarm upload, log backup, configure backup and update can be uploaded by FTP.
1.8 SMTP Account Setup
SMTP account setup as figure1.14.
The SMTP function can run correctly on premise that the entire information in the interface is correct.
SMTP Server Address is the IP address of the SMIP server, the default port is 25, the authentication is enabling.
The public network mail is no available. The show account can be anything.
The user mail address can not be empty and must be efficacy.
The CC mail address can be empty or other information. But only the correct address can receive mail.
Figure1.13 FTP Setup

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
1110
Figure1.14 SMTP Account Setup
1.9 Stream Setup
Stream Setup as figure 1.15.
Access Protocol: while the device is in public network, TCP is a better choose, while the device and the user are
the same network then UDP is a better choose.
The default WEB port is 80. You can change it at will. But if you change it as 8080, then you enter 192.168.0.123:
8080 for accessing the device.
All the port in the interface can change at will but can not be the same. The unavailable port is a bad choose.
Figure1.15 Stream Setup
1.10 Platform Setup
Platform Setup as figure1.16.
Figure1.16 Platform Setup

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
1312
The device can login platform server on the premise that the server IP and Server port is corresponding to the
server. The server account and password can enter them wt will. Of course enable login server is indeed.
2 Media Setup

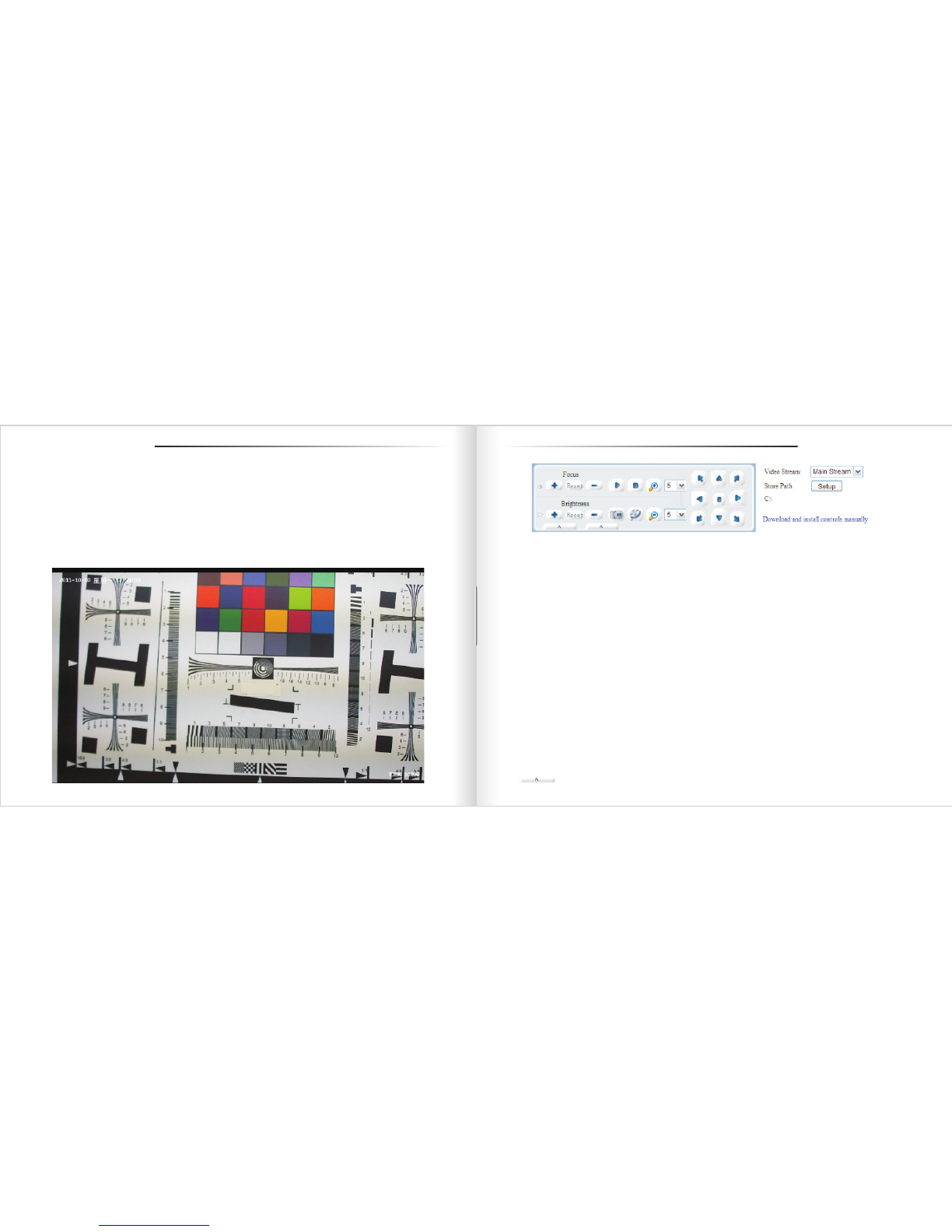

2.1 Play Video
The window for playing video as 2.1, it includes video window and PTZ control.
Figure2.1 Playing Video
Video window:Double click the real-time video then it will display video full-screen. Double click it again then
it will recovery default window.
Video Stream: Select “Main Stream” or “Sub Stream” to play in the video window.
Store Path: click “Setup” for resetting the store path.
Focus+: Focus far
Focus-: Focus near
Focus Reset: Reset default focus.
Brightness+: Increase brightness
Brightness-: Reduce brightness
Brightness Reset: Reset default brightness
Play: Click the button, it will play video while the video stop
Stop: Click the button to stop real-time video
Capture: Click the button once, it will capture a picture
Record: Click the button to start to record, re-click the button to stop to record.
Zoom In/ Zoom Out: Zoom lens
Left- Right/Up-Down Speed: The PTZ speed of rotation range from 0 to 10
Direction: Click the 9 buttons to control the PTZ
Click in the left, it will pop a new interface as figure2.2:

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
1514
Figure 2.2 Preset
You can add/delete/call preset in the interface, steps as follow:
Add Preset: the preset number range from 1 to 255, first turn lens and enter preset number then turn lens again
and enter preset number as so on.
Del. Preset: Select a preset number to be deleted from the option box and click “Del. preset” bottom
Call Preset: Select a preset number from the option box and click “Call preset” then the lens will turn automatically.
Click in the right, it will pop a new interface as figure2.3:
Note: it will not save the preset number greater than 65
Figure2.3 Advanced function
Detail as follow:
Scan Begin: Turn lens and select “Scan Begin” in the “Orbit/Scan List” and click “Run”, then the direction is a
“Scan Begin”
Scan End: Turn lens again and select “Scan End” in the “Orbit/Scan List” and click “Run”, then the direction is
a “Scan End”
Scan On: When the “Scan Begin” and “Scan End” is done, then select “Scan On” in the “Orbit/Scan List”, and
then the lens will turn between “Scan Begin” and “Scan End”
Scan Off: While the “Scan On” is running, select “Scan Off” to stop “Scan On”
Orbit: Select “Orbit” and click “Run” then the lens will turn among all preset number.
Orbit Stop: Select “Orbit Stop” and click “Run” to stop orbit.
Advanced Function: Includes “Black/White”, “Color”, “Mirror Off/On”, “Freeze Off/On”, “Steps Off /On”,
“Screen Off/On”, “Lumen Off/On”, “ILL Off/On”, “Camera Reset/Switch”, “B/W Auto”, “WB R/G/B/M”, “Initial Set”,
“Menu”, “Track Off/On”, “Path On/Off”, for example for “Black/White” and “Color”: we can see the preset number
of “Black/White” and “Color” is 64, but “Black/White” is “Set preset” and “Color” is “Call preset”. The work of the
advanced function is “set preset” and “call preset”. So select “Black/White”, it will play in black/white mode, while
select “Color” it will play in color mode. All the function are same with them, but different camera with difference,
please refer to the corresponding user manual of camera.
2.2 Video Capture
Video capture setup include “Brightness”, “Saturation”, “Sharpness” , “Contrast”, “Backlight Control” and so on ,
different country with different “Video Format”, in China just PAL format.

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
1716
Figure 2.4 Video Capture Setup
You can enter number manually or drag the slider; also click “default” is a good method. High “Saturation” means
color is more obvious; High “Contrast” means the effect is more obvious. All the parameters must according to
the physical environment.
2.3 Time and Title Setup
As we know, time and title are displayed in the video window. But you can hide them or set their transparency,
position and so on.
Transparency range from 0 to 100. 0 means the time and title is visible but 100 is not. (The parameter is reserved,
do not work)
There are 8 time format, you can choose under preference.
There are 4 time/title positions, time and title display position to be in a different horizontal position.
The max length of the title message is 31 byte. Do not forget to save it!
Figure2.5 Time and Title

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
1918
2.4 Video Encode
There is only one resolution with the main stream. But there are five resolutions with sub stream. All the encode
format are H.264.
As we know, I frame is a key frame. I frame interval is too e, the quality of the video will be poorer while the network
is poor. So good network is a promise.
When the message of the video increase imminently and the bandwidth is fixed, you can choose VBR (Bit rate
Control), mosaic and shaking is the result when choose CBR. Fixed bandwidths first when choose CVBR.
Larger frame rate means more fluent video. Smaller frame rate means slower image. 20 frames per seconds is a
best choose.
Bit rate related to the speed of video transmission. The speed of D1 is at least 1000 kbps, but CIF is only 50.But
when the resolution is 1080P, the “Bitrate” at least 6000 kbps and when the resolution is QVGA, the “Bitrate” at
least 300 kbps. The bit rate is too small result in poor image. Do not forget to save it!
Figure2.6 Video Encode
2.5 Picture Capture
In the interface, “Picture Source”, “Picture Quality” and “Capture Speed” need to be set. Of course, the default
parameter is another way.
Picture source include “Main Stream” and “Sub Stream”; Picture quality range from 20 to 100, you also can drag
the slider; Capture speed between 1 and 2, means 1 or 2 pictures per second.
2.6 Audio Capture
Only audio volume related to audio capture. Volume range from 1 to 100, you can enter number manually or
drag the slider. Do not forget to save it!
Figure2.7 Picture Capture
Figure2.8 Audio Capture

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
2120

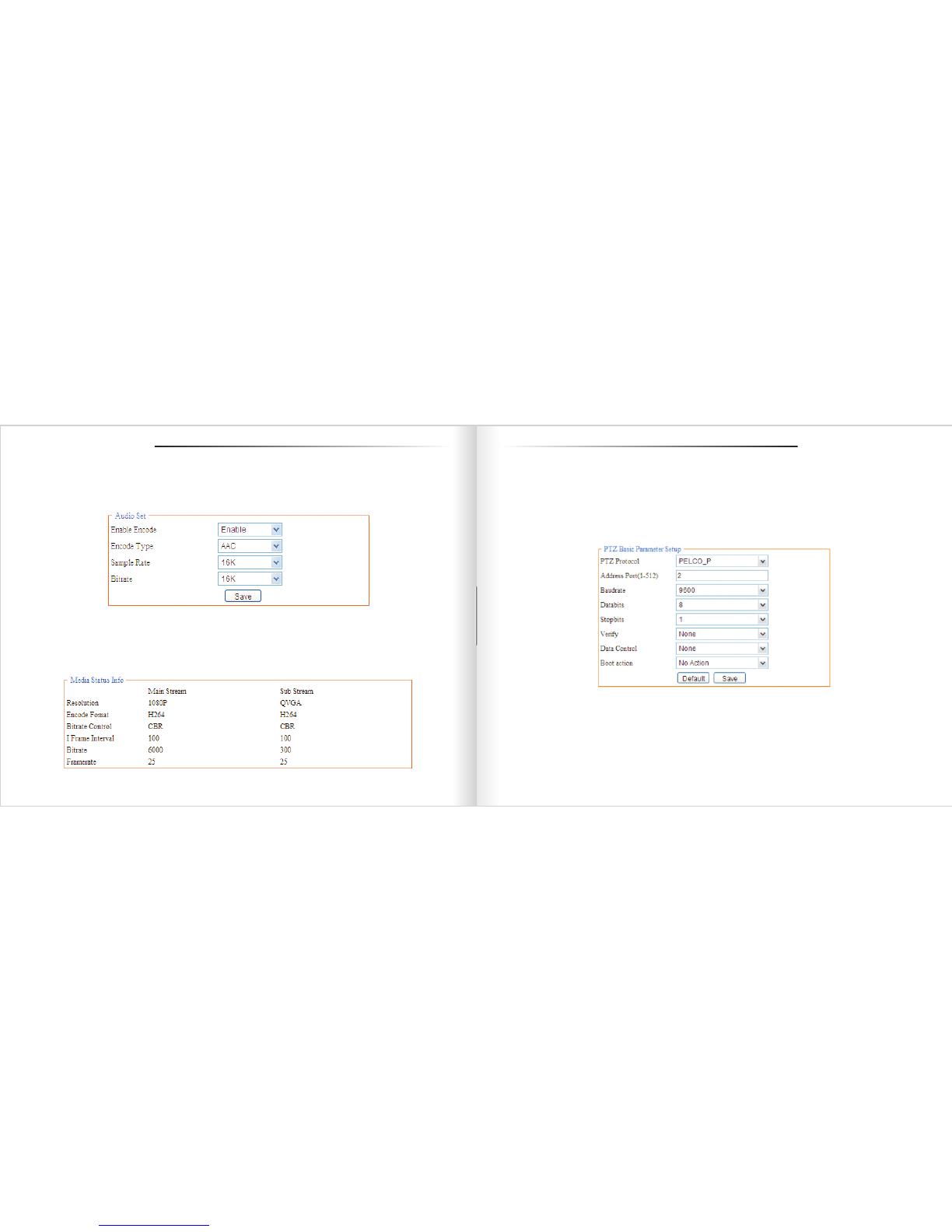

2.7 Audio Encode
Enable “Enable Encode”. There are two type of encode, one is AAC another is G.711. G.711 with a fixed sample
rate and bit rate, but AAC with three sample rate and bit rate such as 16K, 24K, 32K.
2.8 Media Status
In this interface, the main duty is display the status of video encodes.
Figure2.9 Audio Encode
Figure2.10 Media Status
3 PTZ Setup
3.1 PTZ Basic
There are 8 parameters about PTZ basic setup, for example “PTZ Protocol”, “Address Port”, “Baud rate”, “Data bits”,
“Stop bits”, “Verify”, “Data Control”, “Boot action”, as following figure:
The difference between PELCO-D and PELCO-P is different baud rate. All the parameter must be the same with
the setup of corresponding camera. You can refer to the camera user manual.
3.2 PTZ Advanced
All the parameter about PTZ advanced as figure 3.2. The detail information refers to the user manual of camera.
Figure3.1 PTZ Basic Parameter Setup

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
2322
Figure3.2 PTZ Advanced
4 Record and Replay
4.1 Storage Info
In this interface, just only show the statue of the storage, as figure 4.1
4.2 Play Back
First you can set the query conditions about querying record as figure 4.2. Be careful, “End Time” can not more
7 days than “Start Time”. Record type include schedule, motion detect, alarm and all type; Media type include
audio & video, video and picture; video stream include main stream, sub stream and all stream.
Figure4.1 Storage Information
Figure4.2 Query Condition

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
25
24
Then click “Search”, the file will display in list as figure 4.3. The file name is the record time.
Last, you can play or delete or download the files. Click “Download” behind the selected record to play.
As figure 4.4.
Figure4.3 Record File List
Figure4.4 Play record
Click “Delete” behind the selected record to delete. As figure 4.5.

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
2726
First right click “Download” for download the selected record then it will prompt a dialog figure 4.6, select a
Figure4.5 Delete record succeeded
Figure4.6 Dialog
directory and change a name for the record, last click “Save”, well the record save succeeded.

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
29
28
4.3 Record Setup
4.3.1 Basic Setup
In this option, you need to set 4 parameters “Local Storage”, “Storage Media”, “Storage Strategy” and “Max Time
Each File”. There are 7 methods about storage media. Storage strategy includes “Overwrite When Full” and “Stop
When Full”. “Overwrite When Full” means when all the storage is full, it will delete the old record and go on recording;
“Stop When Full” means when all the storage is full, it will stop to record. The max time of each file is 10 or 20 or
30 minutes. But in fact the max time of each file is 10 minutes, so “Max Time Each File” does not work there.
4.3.2 Motion Detect Alarm Record
Motion detect alarm record means it will start recording when motion alarm is coming.
Video stream include “Video Main Stream” and “Video Sub Steam”. The former means record with main stream;
the latter means record with sub stream. Media type includes “Audio And Video” which means record with audio
and video and “Video” which means record without audio. Prerecord time means it will prerecord when motion
alarm is coming, the max time is 5 seconds and the min time is 1 seconds. The record time range from 10 to 600
seconds. Also you can set the motion alarm record upload to FTP or send a email to you. Do not forget to save it!
Figure4.7 Basic Set
Figure4.8 Motion Detect Alarm Record
Figure4.9 Save
4.3.3 Motion Detect Alarm Capture
Another way for “motion detect” alarm is capture. Except precapture and capture time, the other parameter are
the same with the parameter of “Motion detect alarm record”. “Precapture” is the same meaning with”Prerecord”,
“Capture time” means the time of capturing.

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
3130
Figure4.10 Motion Detect Alarm Picture Capture
Before enable “Motion Detect Alarm Capture”, you must ensure “Picture Capture Setup” enabled.
4.3.4 IO Alarm Record
The setup method is the same with “Motion Detect Alarm Record”. The condition of alarm is not the same with
“Motion detect alarm”, it will alarm when the IO is changing.
Figure4.11 Picture Capture Setup
Figure4.12 IO Alarm Record
4.3.5 IO Alarm Picture Capture
The same method with “Motion Detect Alarm Capture”.
Figure4.13 IO Alarm Picture Capture

HD Networ k Camera User ’s ManualHD Networ k Camera User ’s Manual
3332
4.3.6 Schedule Record
Except “Video Stream” the other parameter is the same with “Motion Detect Alarm Record”, Video Stream include
“Snapshot” which means it will take photo during the schedule record time, “Video Main Stream” and “Video
Sub Stream”.
Figure4.14 Schedule Record
Figure4.15 Time Table
You can set time span for schedule record. The max number of time span is 24. And the time for schedule record
and motion detect alarm record can not be the same.
4.4 Storage Manage
4.4.1 Unmount
“Unmount” means remove the storage from the device. In order to prevent data destruction. When click “Unmount”
it will pop-up a dialog as figure 4.17 and click “OK”, it will remove the storage. It prompt a dialog as figure 4.18
means remove successfully.
