Quick Start Guide
Solar-Powered Wireless Security Camera& Spotlight
SolarCam D1 Max

Hi Customer
Thank you for choosing Aosu security products. We have always
put our customers first and foremost.
There are 3 things you should know before using this product：
1. Micro SD Card
If you don't have a Micro SD Card available at home now and don't
want to spend extra time choosing one, please contact us directly.
TIP: the Micro SD Card gotta be formated after inserting it up.
2. Select 2.4G Wi-Fi
The product only supports 2.4G Wi-Fi, please select 2.4G Wi-Fi
when setting up the app.
3. Select installation location.
Please use your mobile phone to test the coverage of the home
Wi-Fi signal at the planned installation position before installation,
so that the product can receive a better signal.
Get all the tutorial videos of using product including but no limit to
set up the app, installation and format micro sd card, visit:
aosulife.com
Join "Aosu Care" today as three ways below to get all of your
problems solved by one-on-one live chat and phone service tech
support.
Aosu Care
www.aosulife.com[email protected] @aosulife
United States: [phone] Mon-Fri 9AM-5PM（PST）
United Kingdom: [phone] Mon-Fri 9AM-5PM（GMT）
Germany: [phone] Mon-Fri 9AM-5PM（CET）
Japan: [phone] Mon-Fri 9AM-5PM ( JST )

TABLE OF CONTENTS
P01What's Included
01
Product Overview
02 P02
P04-12
Mounting the Camera
04
P03
Setting Up the System
03
Notice
05 P13-P15
Customer Service
06 P16

What's Included
01
Security Sticker
Mounting Bracket
Screw Pack
Quick Start Guide
USB-C Charging
Cable
SolarCam D1 Max
Solar Panel
Mounting Screws
and Anchors
Solar Panel Universal Joint Socket nut
Locking
Screw Cap
Base
Camera
（C9S2CH11）
Position Sticker

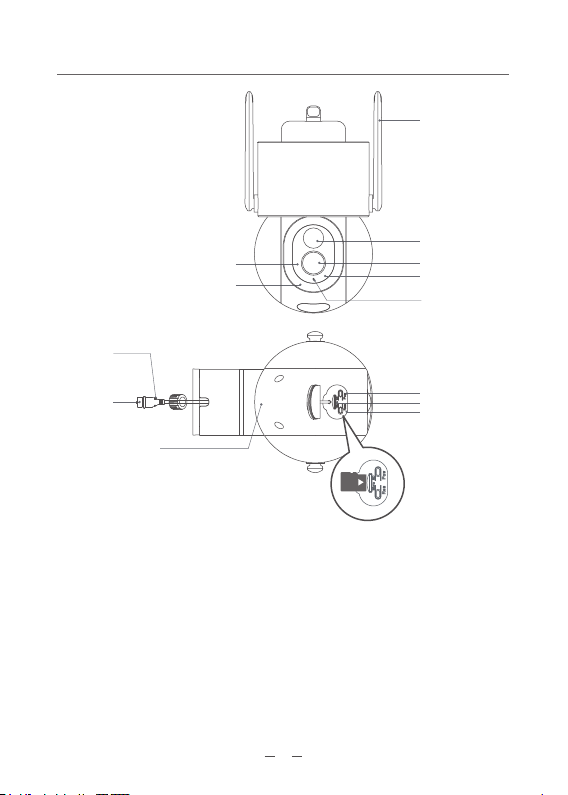

Product overview
02
Micro SD Card Port: Support Micro SD Card for local storage (Max
128GB).
Reset button: Press and hold the button for 3 seconds, and then the
device will be ready to be connected.
Card capacity requirements: 8-128GB.
Read and write speed requirements: class10 level.
File format: FAT32.
CAUTION: Please insert the Micro SD Card according to the direction
shown in the diagram. Micro SD Card might JAM if inserted incorrectly
and device could be damaged.
Charging
Indicator
USB-C Port
Speaker
Status LED
White LED spotlights
Microphone
Power
Micro SD Card Slot
Reset button
Antenna
PIR Motion Sensor
Lens
Infrared LEDs

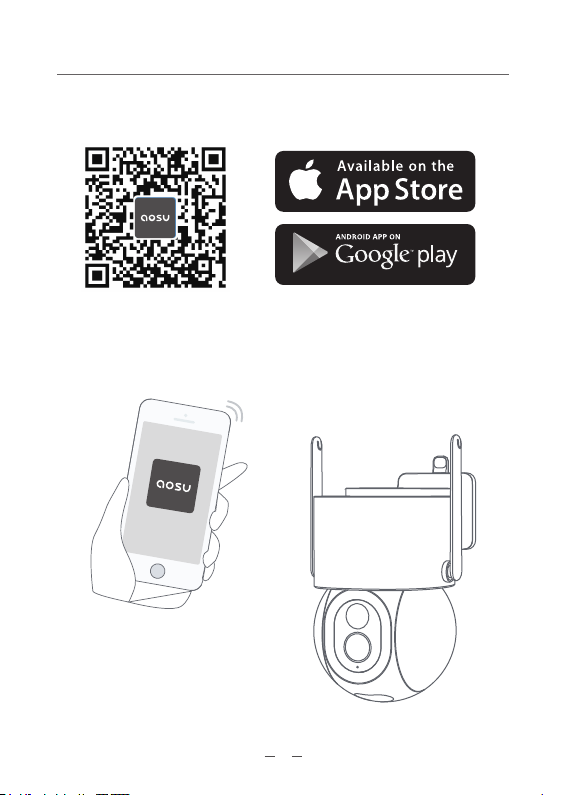

Download the Aosu App from the App Store (iOS devices) or
Google Play (Android devices).
Sign up for an Aosu App account, then follow the onscreen
instructions to complete the setup.
Setting Up the System
03

To find a spot to mount Camera, you need to test wireless
signal strength.
①Open the aosu App, go to Camera Settings > Mounting
Guide.
②To test the wireless signal strength, take your camera and
phone to the location where you want to mount the camera.
③Move the camera as close to the Wi-Fi Router as possible to
get a better signal.
Find a Good Mounting Spot
Mounting the Camera
04

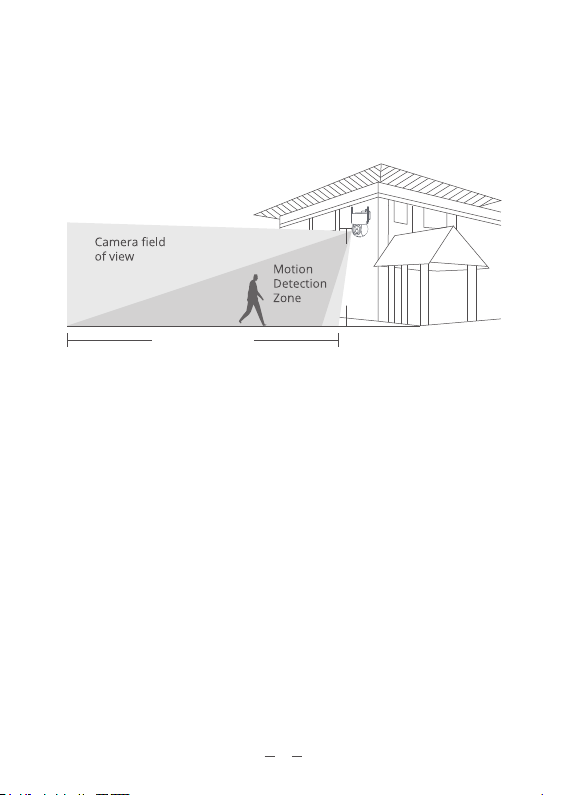

Select Height and location
Hang Camera 2-3meters above the ground. This height
maximizes the detection range of the motion sensor of
Camera. Avoid placing Camera under direct sunlight.
05
2-3meters
Up TO 10 Meters

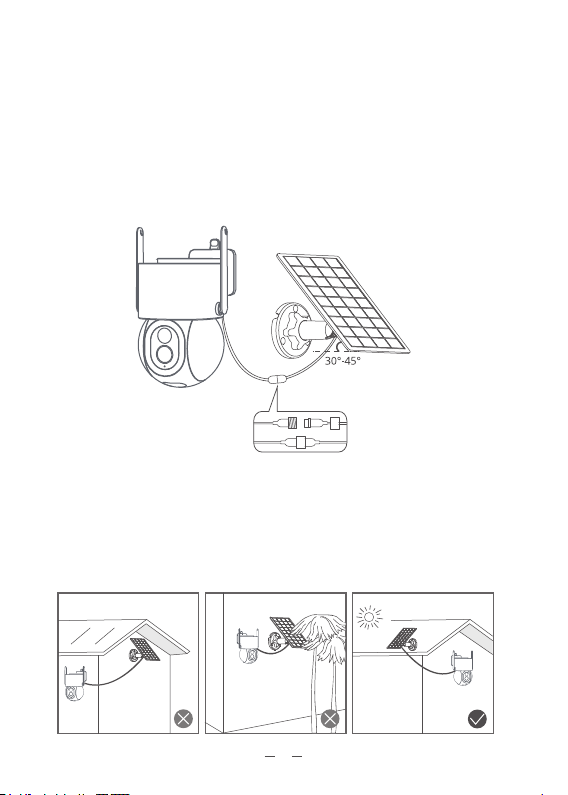

Installation instruction of solar panel
1. keep the installation angle of solar panels about 30-45° with the
horizontal plane, as shown in the picture below.
2. The installation between the solar panel and the camera is
shown in the following figure (open up the silicone cover at the
bottom of the camera, remove the small center part of the cover,
insert the power cord through the opening and plug it into the
USB-C Port and then close the cover taking up any slack in the
power cord from the solar panel) .
1. When installing in the northern hemisphere, face the panel to
the south, and when installing in the southern hemisphere, face
the panel to the north.
2. Take care to install the solar panel so that the sun is not blocked
by any items such as eaves, trees branches, etc.
Tips for the installation of solar panel
06

Test the Wi-Fi signal at installation position
Use cell phone to test Wi-Fi signal quality at the installation
position before installing camera, make sure the Wi-Fi router
can provide good Wi-Fi signal.
07

08
What is required:

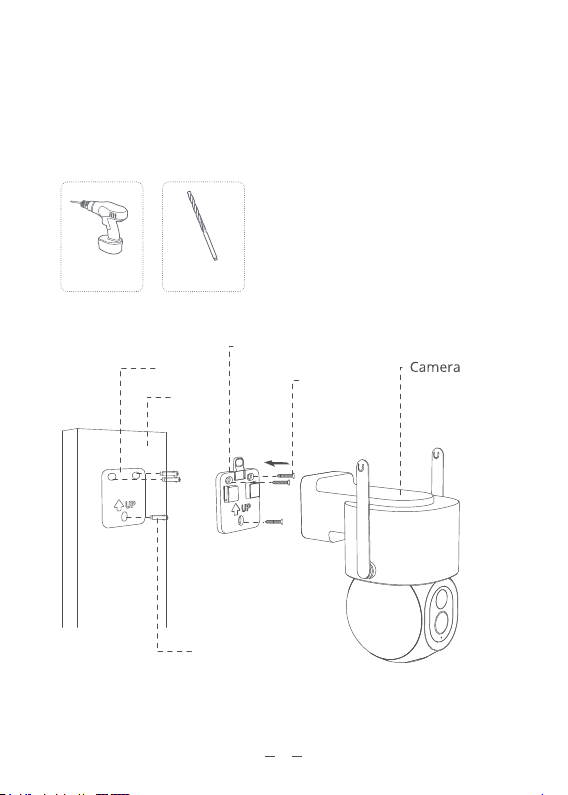

Installation
1. Drilling according to position sticker, drill bit: 15/64''(6 mm).
2. Insert the plugs.
3. Tighten the screws.
15/64”(6mm)
Drill Bit
Power Drill
(not provided)
Screws
Wall
Sticker
Base bracket
Wall Anchors

09
Wall Anchors
Wall
Base
Mounting
Screws
Place Solar Panel in an area with consistent sunlight through-
out the year.It only needs a few hours of direct sunlight each
day to keep your camera powered.
The amuont of energy that the solar panel produces is affected
by weather conditions,seasonal changes, geographic
loction,etc.

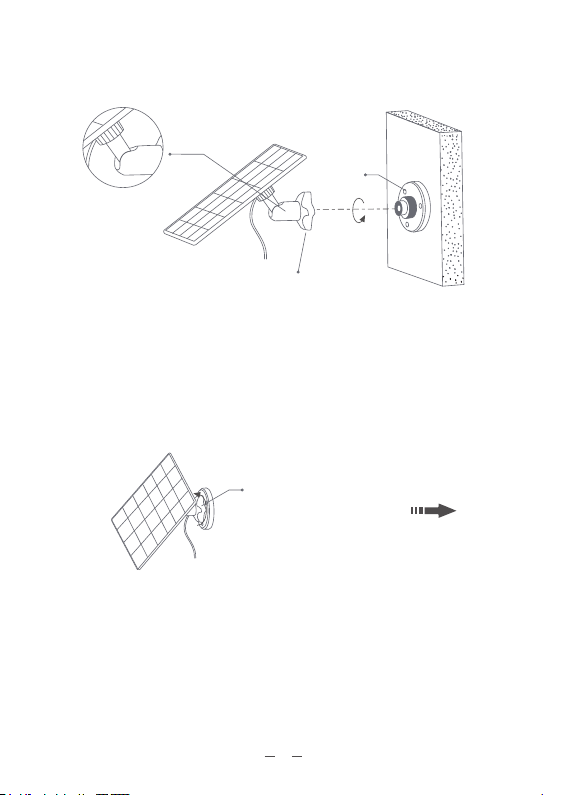

1. Fix the base to your mounting location using the included
screws.If the installation surface is soft or unstable,first use a φ
6.0 drill bit to drill a hole in the wall,then insert the anchor nail
into the hole,and fix thebase with screws.
Installation instruction of solar panel

10
Locking Screw Cap
Universal Joint Back
Front
Socket nut
Solar Panel

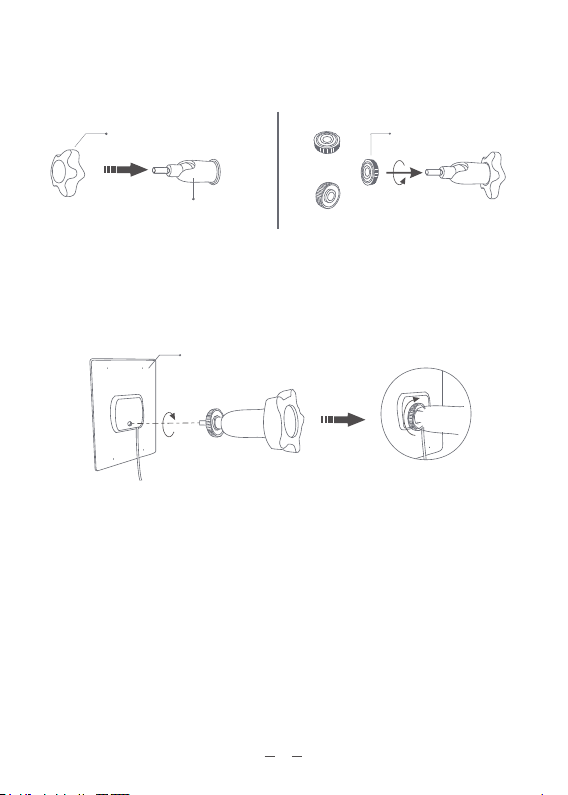

2. First,install the locking screw cap into the universal joint and
then screw the circular socket nut into the universal joint.
3. Screw the universal joint into the back of the solar
panel.Tighten it firmly with the attached nut.

11
Locking Screw Cap
①
Base
Locking Screw Cap
4. Screw the locking screw cap into the base.Make sure that
the universal joint is angled upward.

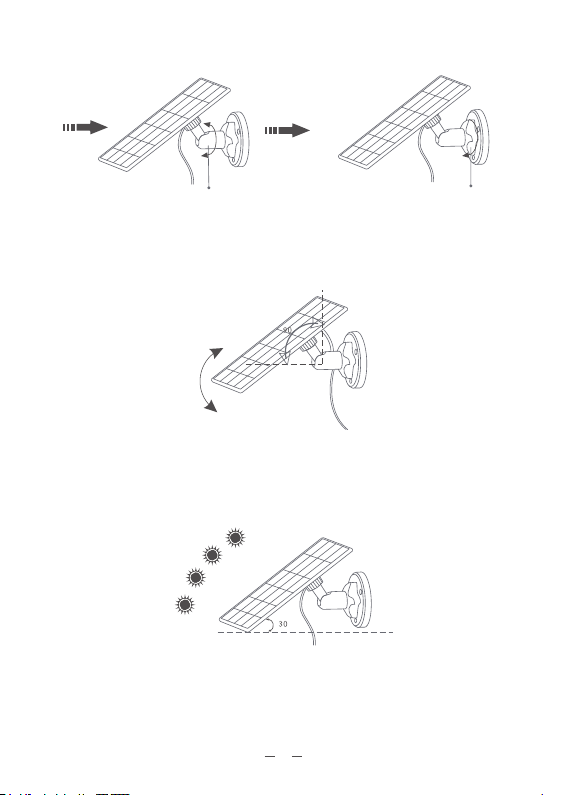

5. When adjusting the solar panel left or right,loosen thelock-
ing screw cap,turn the sleeve rod,and tighten thelocking screw
cap when the panel is in position.

12
Locking Screw CapSleeve Rod
°
② ③
°
6. Solar panel’s angle can be adjusted up and down up to 90°.
Tip: After the installation is complete,please check that all locking
mechanisms are tightly secured.
