Aplisens WW-11ALW User manual

USER’S MANUAL
Display WW-11ALW
–monitor of double circuit line
without auxiliary power system
IO.WW-11ALW(ENG)
Edition 01.B.002/02.16
APLISENS S.A., 03-192 Warszawa, ul. Morelowa 7
tel. [phone]; fax [phone]
www.aplisens.pl, e-mail: [email protected]

Symbols used
Symbol
Description
Warning to proceed strictly in accordance with the information contained in
the documentation in order to ensure the safety and full functionality of the
device.
Information particularly useful during installation and operation of the device
Information particularly useful during installation and operation of Ex versions.
Information on disposal of used equipment.
BASIC REQUIREMENTS AND SAFE USE
The manufacturer will not be liable for damage resulting from incorrect
installation, failure to maintain the device in a suitably functional condition, or
use of the device other than for its intended purpose.
Installation should be carried out by qualified personnel having the necessary
authorisation to install electrical and pressure measuring devices. The installer
is responsible for performing the installation in accordance with these
instructions and with the electromagnetic compatibility and safety regulations
and standards applicable to the type of installation.
In the installation with control and measurement instruments exists, in case of
leakage, a risk to personnel on the side where the medium is under pressure.
All safety and protection requirements must be observed during installation,
operation and inspections.
If a device is not functioning correctly, disconnect it and send it for repair to the
manufacturer or to a firm authorised by the manufacturer
In order to minimise the risk of malfunction and associated risks to personnel, the
device is not to be installed or used in particularly hostile conditions, where the
following risks occur:
Possibility of mechanical impacts, excessive shocks and vibration;
Excessive temperature fluctuation;
Condensation of water vapour, dust, icing
When using the device in potentially explosive areas, observe technical
requirements specified in this manual and applicable local (national) regulations.
Changes in the manufacture of devices can overtake the update's paper documentation.
Current manuals can be found on the manufacturer's website at www.aplisens.pl.

IO.WW-11ALW(ENG)
1
Edition 01.A.002/02.16
CONTENTS
1. INTRODUCTION..........................................................................................3
2. SAFETY PROCEDURES.............................................................................3
3. USER INFORMATION.................................................................................3
4. TRANSPORT AND STORAGE....................................................................4
4.1. Transport.....................................................................................................................4
4.2. Storage .......................................................................................................................4
5. WARRANTY................................................................................................4
6. CONSTRUCTION ........................................................................................5
6.1. Intended use and functions.........................................................................................5
6.2. Construction and dimensions......................................................................................5
6.3. Identification................................................................................................................6
7. CERTIFICATES FOR USE IN HAZARDOUS AREAS.................................7
7.1. Directive ATEX –intrinsic safety versions...................................................................7
7.2. Allowable parameters for supplying of the displays (based on the certificate KDB 16
ATEX 0006).................................................................................................................8
8. INSTALLATION...........................................................................................9
8.1. General recommendation.........................................................................................9
9. ELECTRICAL CONNECTIONS .................................................................10
9.1. General recommendation.......................................................................................10
9.2. Electrical connection in safe areas .......................................................................11
9.3. Electrical connection in hazardous areas.............................................................12
10.CONFIGURATION.....................................................................................14
10.1. Display configuration.................................................................................................14
10.2. Local Menu, error reports.......................................................................................16
10.3. View local LCD display...........................................................................................17
11.TECHNICAL DATA....................................................................................19
11.1. Electrical parameters ................................................................................................19
11.2. Metrological parameters............................................................................................19
11.3. Permitted environmental conditions..........................................................................19
11.3.1. Electromagnetic compatibility (EMC), immunity.................................................19
11.3.2. Electromagnetic Compatibility, emission............................................................20
11.3.3. Mechanical resistance........................................................................................20
11.3.4. Insulation resistance ..........................................................................................20
11.3.5. High Voltage Test...............................................................................................20
11.3.6. Housing ingress protection.................................................................................20
11.4. Construction..............................................................................................................20
11.4.1. Housing material................................................................................................20
11.4.2. Terminal block material......................................................................................20
10.4.3. Cross-section of wire of connecting conductor...................................................20

IO.WW-11ALW
2 Edition 01.A.002/02.16
12.INSPECTIONS. SPARE PARTS ................................................................21
12.1. Periodic inspections ..................................................................................................21
12.2. Unscheduled inspections ..........................................................................................21
12.3. Spare parts................................................................................................................21
13.SCRAPPING, DISPOSAL ..........................................................................21
14.ADDITIONAL INFORMATION....................................................................21
LIST OF FIGURES
Fig.1. Display WW-11ALW. Dimensions..................................................................................5
Fig.2. Example of the rating plate of WW-11ALW display in normal version...........................6
Fig.3. Example of the rating plate of WW-11ALW display in Ex version..................................7
Fig.4. Example of installation of WW-11ALW display on tube.................................................9
Fig.5. Connection diagram for WW-11ALW display without HART communication...............10
Fig.6. Connection diagram of WW-11ALW display in the safe zones....................................11
Fig.7. Connection diagram of display WW-11ALW in potentially explosive zones.................12
Fig.8. The recommended way to connect earthing for WW-11ALW display..........................13
Fig.9. View of disassembled display assembly......................................................................18
Fig.10. Backlighting jumper view at display WW-11ALW electric board................................18
LIST OF TABLES
Table 1. Allowable parameters for supplying of circuits with display .......................................8
Table 2. Table of markings of terminals in terminal block......................................................10

IO.WW-11ALW(ENG)
3
Edition 01.A.002/02.16
1. INTRODUCTION
The subject of this manual is display type WW-11ALW.
This manual contains data, information and recommendations concerning installation and
use of the display, as well as troubleshooting procedures.
Information about the of intrinsically safe displays are marked in the text
2. SAFETY PROCEDURES
The installation and commissioning of the device and any activities related to the
operation should be performed only after careful examination of the contents of
this manual.
Installation and maintenance should be carried out by qualified personnel having
necessary authorisation to install electrical equipment and measuring
instruments.
The device should be used according to its intended purpose (section 6.1) with
permissible parameters.
Before assembly or disassembly of the device, one must absolutely disconnect
the power source.
Under no circumstances may the electrical system of the device be repaired or
otherwise handled by the user. Damage assessments and repairs may only be
carried out by the manufacturer or its authorised dealer.
Do not use damaged device. If a device is not functioning correctly, disconnect it.
When using the device in potentially explosive areas, observe technical
requirements specified in this manual and applicable local (national) regulations.
3. USER INFORMATION
The user receives together with the digital display:
a) Product Certificate, which is also a warranty card;
b) Declaration of conformity (on request);
c) Copy of the certificate (on request for display in Ex version);
d) User Manual ref. No. „IO.WW-11ALW(ENG).”
Items b), c) and d) are available on the website www.aplisens.pl
Together with display WW-11ALW the user can order a mounting kit.

IO.WW-11ALW
4 Edition 01.A.002/02.16
4. TRANSPORT AND STORAGE
4.1. Transport
Devices should be transported in multi- or/and single-unit packaging. The packaging should
be protected against displacement and direct weathering effect.
4.2. Storage
Display should be stored in the original packaging, indoor rooms, free of vapours and
corrosive substances, the temperature and relative humidity should not exceed the permitted
conditions (see p.11.3).
5. WARRANTY
Manufacturer warrants to the conditions specified in the Product Certificate which is also
a guarantee card.
Warranty is in full force under the condition of using the devices properly along with
the purpose determined in the manual.
i

IO.WW-11ALW(ENG)
5
Edition 01.A.002/02.16
6. CONSTRUCTION
6.1. Intended use and functions

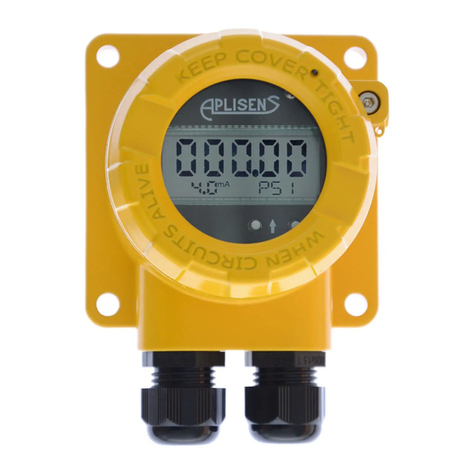

Programmable displays WW-11ALW are designed for use in various industrial applications
for digital display of physical quantities converted into a standard current signal 4 ... 20 [mA]
+ HART.
Programmable displays WW-11ALW are characterized by:
a) Serial operation in loop of output signal of the transmitter 4...20 [mA] with HART
transmission signal;
b) Digital processing of signal (filtering, rounding of readout);
c) No additional supply source;
d) Displaying values in units of measure of the measured value or current;
e) Linear dependency of display value on the value of input signal;
f) Tight housing.
6.2. Construction and dimensions
WW-11ALW displays consist of closed housing made of aluminium alloy with electronic unit
and terminal block located inside.
Three marked fields of terminal block are used for connection of the display, see Table 2.
Fig.1. Display WW-11ALW. Dimensions

IO.WW-11ALW
6 Edition 01.A.002/02.16
6.3. Identification
Every display is provided with rating plate containing the following information:
1. Logo or name of the manufacturer;
2. Display type designation;
3. Product code;
4. CE marking;
5. Serial number of the display;
6. Input signal;
7. Ambient temperature range;
8. Voltage drop;
9. Housing ingress protection
10.Symbol “Notice”: See relevant information contained in the manual.
Fig.2. Example of the rating plate of WW-11ALW display in normal version.

IO.WW-11ALW(ENG)
7
Edition 01.A.002/02.16
Additionally Ex display is equipped with the following information:
11. Marking of type of explosion-proof housing, certificate marking as in p.7 ;
12. Values of such parameters as Ui, Ii, Pi, Li, Ci and Uo, Io, Po;
13. Number of notified body supervising the Ex products.
Fig.3. Example of the rating plate of WW-11ALW display in Ex version.
7. CERTIFICATES FOR USE IN HAZARDOUS AREAS
7.1. Directive ATEX –intrinsic safety versions
Displays may be used in potentially explosive atmospheres in accordance with the following
explosion-proof designations:
II 2G Ex ia IIC T4 Gb
II 1D Ex ia IIIC T110°C Da
KDB 16 ATEX 0006
The displays are designed and manufactured in accordance with requirements of the
following standards: EN 60079-0:2012 + A11:2013, EN 60079-11:2012.
Connections in potentially explosive zones are presented in p. 9.3.
Allowable parameters based on the KDB 16 ATEX 0006. certificate are given in 7.2.

IO.WW-11ALW
8 Edition 01.A.002/02.16
7.2. Allowable parameters for supplying of the displays (based on
the certificate KDB 16 ATEX 0006)
Displays with cooperating transmitters shall be supplied from the supplying devices
having appropriate certificates of intrinsic safety, which parameters of outputs to
potentially explosive zones shall not exceed allowable supply parameters for the
displays.
Table 1. Allowable parameters for supplying of circuits with display
Allowable parameters for supplying of circuits with display
Ui, Uo
Ii, Io
Pi, Po
Li
Ci
Ta
Supply with linear characteristics
30 V
0,1 A
0,75 W
0 µH
25 nF
75ºC, T4
Supply with trapezoidal characteristics
24 V
50 mA
0,6 W
0 µH
25 nF
75ºC, T4
Supply with rectangular characteristics
24 V
50 mA
1,2 W
0 µH
25 nF
75ºC, T4
Substitute inductance of transmitter circuit with display Liz = Lip
where Lip - input inductance of the transmitter.
Substitute capacitance Ciz of circuit of the transmitter with display equals to:
Ciz = 25 nF for input capacitance of the transmitter Cip ≤ 25 nF
Ciz = Cip for input capacitance of the transmitter Cip > 25 nF
Calculated values of substitute inductance and capacitance of the circuit shall be increased
by inductance and capacitance of the cable.

IO.WW-11ALW(ENG)
9
Edition 01.A.002/02.16
8. INSTALLATION
8.1. General recommendation
WW-11ALW displays are intended for direct mounting on flat surface or on tube using
mounting kit.
Four openings for M6 screws, conforming spacing of the openings in housing of the display
(Fig.1).
shall be prepared to install display on flat surface, e.g. on the wall. Then the display shall be
fixed to the wall using screws.
Assembly on tube shall be carried out according to the Fig.4.
WW-11ALW display is adapted for assembly on vertical or horizontal tube with max.
diameter 65 mm. Prism-shape cut outs executed in the rear part of the housing are used for
this purpose.
Fig.4. Example of installation of WW-11ALW display on tube
Item No.
Description
Quantity
1
Display WW-11ALW
1
2
Clamping ring
2
3
Flat washer 6.4
4
4
Spring washer 6.1
4
5
Nut M6
4
6
Tube
-
The mounting kit includes: clamping rings (2), washers (3), (4) and nuts (5).
Place display unit on tube at the desired position. Place clamping rings (2) in openings of the
housing according to the fig. 4. Place washers (3) and (4) on the threaded parts of the
clamping rings and tighten with nuts (5).

IO.WW-11ALW
10 Edition 01.A.002/02.16
9. ELECTRICAL CONNECTIONS
9.1. General recommendation
All connecting and assembly operations must be done with a disconnected power
supply and disconnected input signal.
Fig.5. Connection diagram for WW-11ALW display without HART communication.
For WW-11ALW signal cables shall be led to the housing through cable ducts (cable glands)
and shall be connected to terminals (1), (2) and (3) of the terminal block according to the
diagram presented on the fig. 5, 6 or 7 and the below table containing numbers of the
terminals.
Maintain polarity of connection as in the following table.
Table 2. Table of markings of terminals in terminal block
Polarization
Terminal number
Power supply
+
3
-
2
Transmitter
+
1
-
2
Cables possible to be used:
Unshielded cable is recommended when using the analogue signal.
Shielded cable is recommended for HART communication.
It is recommended to:
Connect display using twisted pair cable or shielded twisted pair cable.
Avoid leading conductors near power cables from the other cable systems.
Use earthing according to the recommendations.

IO.WW-11ALW(ENG)
11
Edition 01.A.002/02.16
9.2. Electrical connection in safe areas
Fig.6. Connection diagram of WW-11ALW display in the safe zones
a). Diagram of connection with transmitter
b). Diagram of connection with transmitter with “Hart” communication
If user wants to communicate with a smart transmitter (through HART protocol) by
making local connection of communicator or converter then user shall make sure that
resistance Ro seen from the terminals (2) and (3) of the display towards supply
source includes in the range 240[Ω]≤Ro≤1100[Ω]. For Ro<240[Ω] communication will
not be established. In such case, Ro shall be increased to the minimum value equal
to 240 [Ω].

IO.WW-11ALW
12 Edition 01.A.002/02.16
9.3. Electrical connection in hazardous areas
In order obtain correct cooperation of the display with the rest of the system and
assure intrinsic safety conditions it is important to correctly connect the display with
particular emphasis on the requirements for the installation of intrinsically safe
systems (EN 60079-25, EN 60079-14) and meeting the input/output parameters.
Displays can be supplied from power supply and measurement equipment with
relevant intrinsic safety certificates, parameters of which for outputs to potentially
explosive areas should not exceed the limits for feeding parameters of displays
(permissible parameters of feeding the transmitters in hazardous areas see point
7.2).
Fig.7. Connection diagram of display WW-11ALW in potentially explosive zones
a). Diagram of connection with transmitter
b). Diagram of connection with transmitter with “Hart” communication
Communicator shall have approval for use in the hazardous zone and connecting it
to the signal line routed to the hazardous zone.
Transmitter shall be configured and calibrated in the safe area when such approval is
missing.
If we want to communicate with the smart transmitter (via the HART protocol) locally
connecting a communicator or converter we must make sure that resistance Ro seen
from terminals (2) and (3) of the display to the power source is in the range of
240[Ω]≤Ro≤1100[Ω]. When Ro<240[Ω] communication will not take place, then
increase the Ro to the minimum value of 240 [Ω].

IO.WW-11ALW(ENG)
13
Edition 01.A.002/02.16
9.4. Earthing
The display must be earthed in accordance with local electrical standards.
The recommended way to connect earthing for WW-11ALW display is shown in figure 8.
Shield of a cable shall be connected from the one side with earth terminal if cable in the
shield is used.
Fig.8. The recommended way to connect earthing for WW-11ALW display.

IO.WW-11ALW
14 Edition 01.A.002/02.16
10. CONFIGURATION
10.1. Display configuration
Changes to the display settings you can make using the buttons below the display. Access to
buttons will get after unscrewing the cover of the display.
The buttons are marked with symbols: [↓], [↑] and [●].
The buttons [↓], [↑] allow you to move up and down the menu tree structure while the button
[●] confirm and execute the selected option.
Pressing and holding any button for about 4s will cause enter to the local setting mode, and
appears on the display in the field LCD3 (the display fields are describe in p. 9.3) message
"EXIT".
No action in the area of MENU for longer than 2 minutes will automatically exit from the local
setting and move to the display of the process variable.
After approval the selected parameter display will confirm the party of command by the
"DONE".
The "← BACK" button allows you to jump to the higher level in the menu structure.
Ways to navigate in the local menu tree of display are shown in the diagram below.

IO.WW-11ALW(ENG)
15
Edition 01.A.002/02.16
Local Menu
Description
EXIT
Return from Local Menu to process variable display.
UNIT
Units setting.
PRESS
Switching to pressure units selection.
TEMP
Switching to temperature units selection.
MISC
Switching to various units selection.
USER
Switching to entering of user’s units.
______
Entering values of user’s units (six alphanumeric characters).
Buttons “↑” or “↓” are used to select each alphanumeric character of
the entered unit. Addition of successive character is made by
confirmation of the previous character (pressing [●] button). The
device will confirm acceptance of the command with “DONE”
message or will notify error number after confirmation of the last (6th)
character.
SET LRV /
SET URV
Function allows assigning the given
values corresponding to the output
signals 4 and 20 [mA]. Value after
linear scaling is displayed in the
LCD2 field. User may set any value
of start and the end of the range.
Percentage value of measured range
is displayed in the LCD2 field as a
standard.
Table. Exemplary settings LRV , URV
Unit
LRV
URV
LCD2
mA
4
20
Current in current loop
%
0
100
Output setting percentage
- set as a standard
Measurement
range unit
(e.g. kPa)
Range
beginning
(e.g. 0)
Range
end (e.g.
100)
Physical value measured
(e.g. pressure)
XX.XXX
UNIT
Actual value of start and end of the displayed range will be
presented.
Confirmation of this option allows assigning the given value to the
start and end of the displayed range.
+/-_____
Entering value of set range.
Buttons “↑” or “↓” are used to select entered character. Addition of
successive figure is made by confirmation of the previous one
(pressing [●] button). Change of the figure or setting a comma is
made using button “↑” or “↓”. The device will confirm acceptance of
the command with “DONE” message or will notify error number after
confirmation of the last (6th) figure.
Parameter is entered in UNIT units.
LCD2DP
Change of position of the decimal point of variable presented in the
LCD2 field of the display.
FILTR
Selection of averaging time of displayed process variable.

IO.WW-11ALW
16 Edition 01.A.002/02.16
LCD1VR
Type of process variable presented in the LCD1 field of the display.
CURREN
Value of current in current loop will be presented in the LCD1 field.
PERCEN
Percentage value of input setting will be presented on the display.
After modification of the measuring range of the transmitter connected to the WW-
11ALW display shall be unconditionally configured or the indications correctness
shall be checked.
10.2. Local Menu, error reports
During perform some functions in Local Menu may appear on LCD2 field an error message
EXXXX (the letter E and 4 digits error code). The error message evidences about no
realization of the command. The persistence of the error message for a long time indicates
malfunction or improper operation of the display.

IO.WW-11ALW(ENG)
17
Edition 01.A.002/02.16
10.3. View local LCD display
Changes of the display options in local MENU are possible via the buttons.
Display appearance is shown in figure below.
On the display can distinguish 3 main fields:
LCD1 - value of current or guidance percent preset range display. Depending on the
display configuration will be displayed the current value of the current line 4 ÷ 20mA
with a resolution of 0.1mA, or percent guidance the preset range with a resolution of
indications 1%.
LCD2 –digital value of measured pressure by display, value of pressure rescaled
according to the user's units or the error code. Decimal point position can be set in
local MENU.
LCD3 –information field. During normal operation is designed for continuous display of
the base unit or the user units. In case of errors in the display's work, it displays an error
number. In manual mode, the local change settings menu displays options of selecting
the setting. It also displays errors related to the implementation of commands in the
local menu of the settings change.
Display backlighting - local display is equipped in backlight which can be switched on or off
depending on needs. Turn on the backlight increases the minimum supply voltage for all
version of 3V. Enable or disable the backlight is possible using the jumper after removing the
back cover of the display. Enable or disable backlight is shown in Fig.9 and Fig.10.

IO.WW-11ALW
18 Edition 01.A.002/02.16
Fig.9. View of disassembled display assembly
+
Fig.10.Backlighting jumper view at display WW-11ALW electric board
(unit display back side)
Jumper in OFF position –
backlighting off.
Jumper in ON position –
backlighting on.
