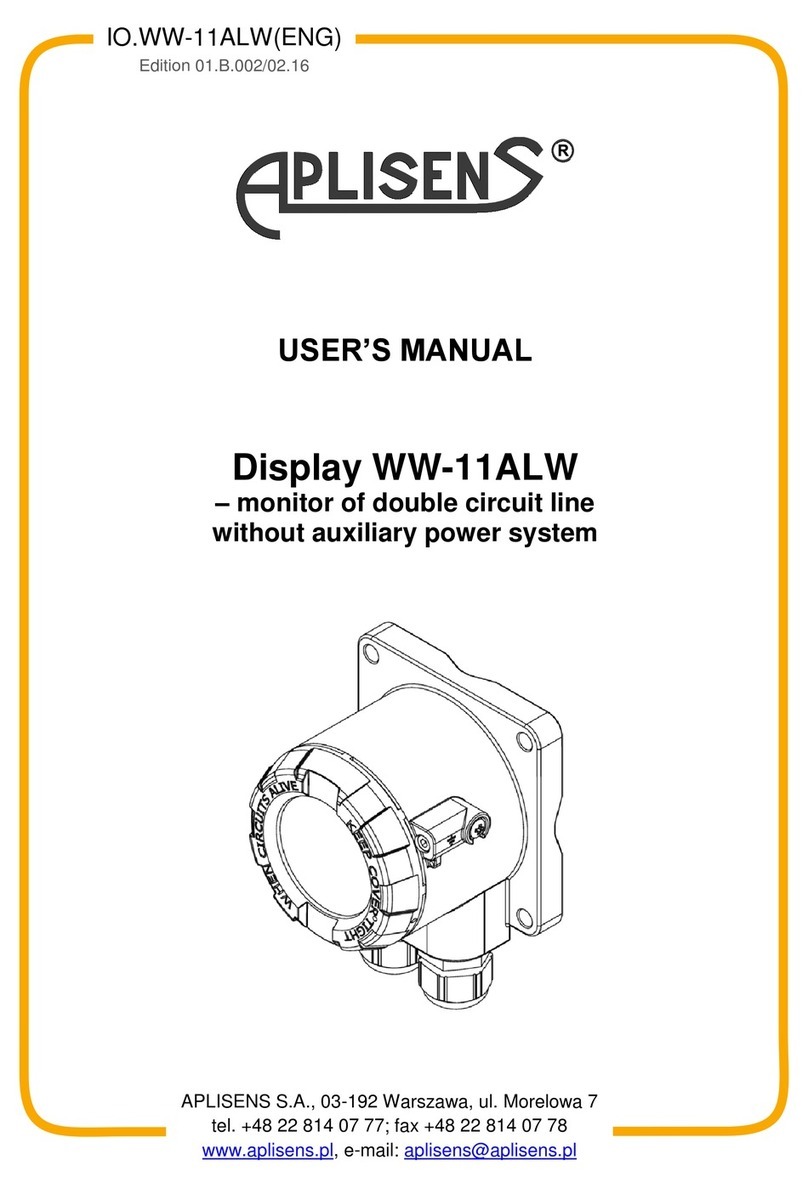

Aplisens WW-11ALW User manual
Symbols used
Symbol
Description
Warning to proceed strictly in accordance with the information contained in the doc-
umentation in order to ensure the safety and full functionality of the device.
Information particularly useful during installation and operation of the device.
Information particularly useful during installation and operation of an Ex type device.
Information on disposal of used equipment.
BASIC REQUIREMENTS AND SAFE USE
The manufacturer will not be liable for damage resulting from incorrect installation,
failure to maintain a suitable technical condition of the device or use of the device
other than for its intended purpose.
Installation should be carried out by qualified staff having the required authoriza-
tion to install electrical and I&C equipment. The installer is responsible for perform-
ing the installation in accordance with manual as well as with the electromagnetic
compatibility and safety regulations and standards applicable to the type of instal-
lation.
In systems with I&C equipment, in case of leakage, there is a danger to staff due
to the medium under pressure. All safety and protection requirements must be
observed during installation, operation and inspections.
If a malfunction occurs, the device should be disconnected and handed over to the
manufacturer or an authorized representative for repair.
In order to minimize the risk of malfunction and associated risks to staff, the device
is not to be installed or used in particularly unfavourable conditions, where the fol-
lowing hazards occur:
−possible mechanical impacts, excessive shocks and vibration;
−excessive temperature fluctuation;
−water vapour condensation, dusting, icing
Changes made to the manufacturing of products may be introduced before the paper version of the
manual is updated. The up-to-date manuals are available on the manufacturer’s website:
www.aplisens.com.
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 3
TABLE OF CONTENTS
1. INTRODUCTION ..........................................................................................5
2. SAFETY .......................................................................................................5
3. TRANSPORT AND STORAGE....................................................................6
3.1. Delivery check.......................................................................................................................6
3.2. Transport...............................................................................................................................6
3.3. Storage..................................................................................................................................6
4. GUARANTEE...............................................................................................6
5. IDENTIFICATION.........................................................................................7
5.1. Manufacturer’s address .........................................................................................................7
5.2. Display identification..............................................................................................................7
5.3. CE mark, declaration of conformity........................................................................................8
6. CERTIFICATES FOR USE IN HAZARDOUS AREAS .................................9
6.1. Directive ATEX –intrinsically safe version.............................................................................9
6.2. Allowable parameters for supplying of the displays (based on the certificate KDB 16 ATEX
0006).....................................................................................................................................9
7. INSTALLATION .........................................................................................10
7.1. General recommendation ....................................................................................................10
8. ELECTRICAL CONNECTION....................................................................11
8.1. Cable connection.................................................................................................................11
8.2. Cabling specification............................................................................................................11
8.3. Electrical connection of display in safe areas.......................................................................12
8.4. Electrical connection of display in hazardous areas.............................................................12
8.5. Earthing...............................................................................................................................13
9. OPERATION ..............................................................................................15
9.1. Display configuration ...........................................................................................................16
9.2. Local Menu, error messages................................................................................................19
10.MAINTENANCE.........................................................................................19
10.1. Periodic inspections.............................................................................................................19
10.2. Non-periodic inspections......................................................................................................19
10.3. Spare parts..........................................................................................................................19
10.4. Repair..................................................................................................................................19
10.5. Returns................................................................................................................................19
11.SCRAPPING, DISPOSAL ..........................................................................19
12.HISTORY OF REVISIONS .........................................................................19
EN.IO.WW.11.ALW
4 Revision 01.B.003/2020.09
LIST OF FIGURES
Figure 1. Nameplate of the display WW-11ALW in standard version...................................................7
Figure 2. Nameplate of the display WW-11ALW in Exi version............................................................8
Figure 3. Example of installation of WW-11ALW display on pipe.......................................................10
Figure 4. Connection diagram for WW-11ALW display without HART communication. .....................11
Figure 5. Connection diagram of WW-11ALW display in the safe zones...........................................12
Figure 6. Connection diagram of display WW-11ALW in potentially explosive zones........................13
Figure 7. The recommended way to connect earthing for WW-11ALW display. ................................14
Figure 8. Display information fields....................................................................................................15
Figure 9. View of disassembled display unit......................................................................................15
Figure 10. View of the backlighting jumper of WW-11ALW display in the electronics board (back side
of the electronics board).....................................................................................................................16
Figure 11. Structure of local setpoints MENU....................................................................................17
LIST OF TABLES
Table 1. Allowable parameters for supplying of circuits with display. ...................................................9
Table 2. Mounting kit list....................................................................................................................10
Table 3. Table of markings of terminals in terminal block...................................................................11
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 5
1. INTRODUCTION
The subject of manual is display type WW-11ALW. The manual applies to the standar and intrinsically
safe Exi versions.
The manual contains data, tips and general recommendations for safe installation and operation of
the display, as well as troubleshooting in case of possible failure.
2. SAFETY
−The installation and start-up of the device and any activities related to the operation shall
be carried out after thoroughl examination of the contents of user’s manual;
−installation and maintenance should be carried out by qualified staff having the required
authorizations to install electrical equipment and measuring devices;
−the device shall be used according to its intended purpose in line with the permissible
parameters specified on the nameplate (➔Display identification);
−the protection elements used by the manufacturer to ensure display safety may be less
effective if the device is operated in a manner not consistent with its intended purpose;
−before installing or disassembling the device, it is absolutely necessary to disconnect it
from the power source;
−no repairs or alterations to the display electronic system are permitted. Assessment of
damages and possible repair may only be performed by the manufacturer or authorized
representative;
−do not use instruments if damaged. In case of malfunction, the device must be put out of
operation;
−when using the device in potentially explosive areas, the technical requirements speci-
fied in the manual and the applicable local (national) regulations must be observed.
EN.IO.WW.11.ALW
6 Revision 01.B.003/2020.09
3. TRANSPORT AND STORAGE
3.1. Delivery check
After receiving the delivery of the equipment, it is necessary to:
−make sure that the packaging and its contents were not damaged during transport;
−check the completeness and correctness of the received order, and make sure no parts are
missing.
3.2. Transport
Transport of displays shall be carried out with the use of covered means of transport, in original pack-
ages. The packaging shall be protected against movement and direct impact of atmospheric factors.
3.3. Storage
Display shall be stored in a factory packaging, in a room without vapours and aggressive substances,
protected against mechanical impact.
Allowable range of storage temperature of the display depending on the version:
−standard version: -30…80°C (-22…176°F);
−Ex version: -50…75°C (-58…167°F).
4. GUARANTEE
General terms and conditions of guarantee are available on the manufacturer’s website:
www.aplisens.com/ogolne_warunki_gwarancji
The guarantee shall be repealed if the display is used against its intended use, failure to
comply with user’s manual or interference with the structure of the device.
i
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 7
5. IDENTIFICATION
5.1. Manufacturer’s address
APLISENS S.A.
03-192 Warsaw
Morelowa 7 St.
Poland
5.2. Display identification
Depending on the version of the display, the nameplates may differ in the amount of information and
parameters.
Figure 1. Nameplate of the display WW-11ALW in standard version.
1. Logo and name of the manufacturer.
2. CE mark.
3. Product code.
4. Display type designation.
5. Serial number of the display.
6. Input signal.
7. Permissible range of ambient temperature.
8. Voltage drop.
9. IP protection rating.
10. Note about the obligation to read the manual.
EN.IO.WW.11.ALW
8 Revision 01.B.003/2020.09
Figure 2. Nameplate of the display WW-11ALW in Exi version.
1. Logo and name of the manufacturer.
2. CE mark.
3. Number of notified body supervising the Ex products.
4. Product code.
5. Display type designation.
6. Input signal.
7. Permissible range of ambient temperature.
8. Voltage drop.
9. Serial number of the display.
10. Marking of type of explosion-proof housing, certificate marking as in p.6.
11. Manufacturer’s address.
12. IP protection rating.
13. Year of manufacture.
14. Note about the obligation to read the manual.
15. Input parameter values i.e. Ui, Ii, Pi, Li, Ci and Uo, Io, Po.
5.3. CE mark, declaration of conformity
The device has been designed to meet the highest safety standards, has been tested and has left the
factory in a condition that is safe for operation. The device complies with the applicable standards and
regulations listed in the EU Declaration of Conformity and has CE marking on nameplate.
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 9
6. CERTIFICATES FOR USE IN HAZARDOUS AREAS
6.1. Directive ATEX –intrinsically safe version
Displays may be used in potentially explosive atmospheres in accordance with the following explo-
sion-proof designations:
II 2G Ex ia IIC T4 Gb
II 1D Ex ia IIIC T110°C Da
KDB 16 ATEX 0006
The displays are designed and manufactured in accordance with requirements of the following stand-
ards: EN 60079-0:2012 + A11:2013, EN 60079-11:2012.
Connections in potentially explosive zones are presented in p.8.4.
Allowable parameters based on the KDB 16 ATEX 0006. certificate is given in 6.2.
6.2. Allowable parameters for supplying of the displays (based on the certificate KDB
16 ATEX 0006)
Displays with cooperating transmitters shall be supplied from the supplying devices having
appropriate certificates of intrinsic safety, which parameters of outputs to potentially explo-
sive zones shall not exceed allowable supply parameters for the displays.
Table 1. Allowable parameters for supplying of circuits with display.
Allowable parameters for supplying of circuits with display
Ui, Uo
Ii, Io
Pi, Po
Li
Ci
Ta
Supply with linear characteristics
30 V
0,1 A
0,75 W
0 µH
25 nF
75ºC, T4
Supply with trapezoidal characteristics
24 V
50 mA
0,6 W
0 µH
25 nF
75ºC, T4
Supply with rectangular characteristics
24 V
50 mA
1,2 W
0 µH
25 nF
75ºC, T4
Substitute inductance of transmitter circuit with display Liz = Lip
where Lip - input inductance of the transmitter.
Substitute capacitance Ciz of circuit of the transmitter with display equals to:
Ciz = 25 nF for input capacitance of the transmitter Cip ≤ 25 nF;
Ciz = Cip for input capacitance of the transmitter Cip > 25 nF.
Calculated values of substitute inductance and capacitance of the circuit shall be increased by induct-
ance and capacitance of the cable.
EN.IO.WW.11.ALW
10 Revision 01.B.003/2020.09
7. INSTALLATION
7.1. General recommendation
WW-11ALW displays are intended for direct mounting on flat surface or on pipe using mounting kit.
In order to mount the display on a flat surface, e.g. a wall, the holes fo M6 screws should be prepared
for its surface according to the spacing of the holes in the display housing. Then the display shall be
fixed to the wall using screws. Mounting on the pipe shall be carried out according to the figure 3.
WW-11ALW display is adapted for assembly on vertical or horizontal pipe with max. diameter
65 mm. Prism-shape cut outs executed in the rear part of the housing are used for this purpose.
Figure 3. Example of installation of WW-11ALW display on pipe.
Table 2. Mounting kit list.
Item No.
Description
Quantity
1
Display WW-11ALW
1
2
Clamping ring
2
3
Flat washer 6.4
4
4
Spring washer 6.1
4
5
Nut M6
4
6
Pipe
-
The mounting kit includes: clamping rings (2), washers (3), (4) and nuts (5).
Place display on the pipe in the desired position. Place clamping rings (2) in openings in the housing.
Place washers (3) and (4) on the threaded parts of the clamping rings and tighten with nuts (5).
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 11
8. ELECTRICAL CONNECTION
8.1. Cable connection
All connecting and installation operations shall be performed with disconnected power
supply voltage and other external voltages, if used.
Failure to provide proper connection of the device may result in danger.
Risk of electric shock and/or ignition in potentially explosive atmospheres.
Figure 4. Connection diagram for WW-11ALW display without HART communication.
In the WW-11ALW display signal cables shall be led to the housing through cable ducts (cable
glands) and shall be connected to terminals (1), (2) and (3) of the terminal block according to the dia-
gram presented on the fig.4, 5 or 6 and the below table containing numbers of the terminals.
Maintain polarity of connection as in the following table.
Table 3. Table of markings of terminals in terminal block.
Polarization
Terminal number
Power supply
+
3
-
2
Transmitter
+
1
-
2
8.2. Cabling specification
Cables:
−unshielded cable is recommended when using only analogue signal;
−shielded cable is recommended for HART communication.
It is recommended to:
−connect display using twisted pair cable or shielded twisted pair cable;
−avoid leading conductors near power cables from the other cable systems;
−use earthing according to the recommendations.
Cross-section of wire of connecting conductor: ≤2,5 mm2.
EN.IO.WW.11.ALW
12 Revision 01.B.003/2020.09
8.3. Electrical connection of display in safe areas
Figure 5. Connection diagram of WW-11ALW display in the safe zones.
a) Diagram of connection with transmitter;
b) diagram of connection with transmitter with Hart communication.
In order to communicate with the intelligent transmitter (via HART protocol), before connect-
ing the local communicator or converter, it is necessary to check whether the Ro resistance
seen from terminals (2) and (3) of the display towards the power source is in the range
240≤Ro≤1100 Ω.
8.4. Electrical connection of display in hazardous areas
In order obtain correct cooperation of the display with the rest of the system and assure in-
trinsic safety conditions it is important to correctly connect the display with particular empha-
sis on the requirements for the installation of intrinsically safe systems (EN 60079-25,
EN 60079-14) and meeting the input/output parameters.
Displays can be supplied from power supply and measurement equipment with relevant in-
trinsic safety certificates, parameters of which for outputs to potentially explosive areas
should not exceed the limits for feeding parameters of displays (permissible parameters of
feeding the transmitters in hazardous areas see point 6.2).
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 13
Figure 6. Connection diagram of display WW-11ALW in potentially explosive zones.
a) Diagram of connection with transmitter;
b) Diagram of connection with transmitter with “Hart” communication.
Communicator shall have approval for use in the hazardous zone and connecting it to the
signal line routed to the hazardous zone.
Transmitter shall be configured and calibrated in the safe area when such approval is miss-
ing.
In order to communicate with the intelligent transmitter (via HART protocol), before connect-
ing the local communicator or converter, it is necessary to check whether the Ro resistance
seen from terminals (2) and (3) of the display towards the power source is in the range
240≤Ro≤1100 Ω.
8.5. Earthing
The display must be earthed in accordance with local electrical standards.
The recommended way to connect earthing for WW-11ALW display is shown in figure 7.
Shield of a cable shall be connected from the one side with earth terminal if cable in the shield is
used.
EN.IO.WW.11.ALW
14 Revision 01.B.003/2020.09
Figure 7. The recommended way to connect earthing for WW-11ALW display.
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 15
9. OPERATION
The LCD has three primary information fields in the figure belowa as LCD1, LCD2, LCD3.
Figure 8. Display information fields.
LCD1 - value of current or guidance percent preset range display. Depending on the display
configuration will be displayed the current value of the current line 4…20 mA with a resolution of
0.1 mA, or percent guidance the preset range with a resolution of indications 1%.
LCD2 –display field for the digital value measured by display, the value rescaled by user’s units, and
error codes. The position of the decimal point can be set in the local MENU.
LCD3 –information field. During normal operation it is designed for continuous display of the base unit
or the user units. In the MENU operation mode it displays the setting options. It is also used to display
errors related to the execution of commands in the local setup MENU.
Display backlighting - local display is equipped in backlight which can be switched on or off depend-
ing on needs. Switching the backlight on increases the voltage drop for all versions by 3 V. Enable or
disable the backlight is possible using the jumper after removing the back cover of the display. The
method of switching the backlight on or off is shown in figures below.
Figure 9. View of disassembled display unit.
EN.IO.WW.11.ALW
16 Revision 01.B.003/2020.09
Figure 10. View of the backlighting jumper of WW-11ALW display in the electronics board (back side of the
electronics board).
9.1. Display configuration
The user can change the display settings using the buttons below the display. The buttons can be
accessed by unscrewing the display cover. The buttons are marked with symbols: [↓], [↑] and [●].
The buttons [↓], [↑] are used to move up and down the MENU structure, and the button [●] confirms
and executes the selected option. Pressing and holding any button for about 4 seconds will cause
enter to the local setting mode, and the following message “EXIT” appears on the display in the field
LCD3. No activity in the MENU area for longer than 2 minutes automatically exits the local setting
mode and goes to display process variable. After confirming the selected parameter, the display will
confirm the acceptance of the command with a "DONE" message. The "← BACK" button allows to
move up a level higher in the MENU structure.
The way of navigating in the MENU structure of the local display is shown in the diagram below.
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 17
Figure 11.Structure of local setpoints MENU.
EN.IO.WW.11.ALW
18 Revision 01.B.003/2020.09
Local Menu
Description
EXIT
Return from Local Menu to display the process variable.
UNIT
Set up of units.
PRESS
Switching to the selection of pressure units.
TEMP
Switching to the selection of temperature units.
MISC
Switching to the selection of different units.
USER
Switching to the user’s units entry.
______
Enter the user’s unit value (six alphanumeric characters).
Buttons “↑” or “↓” are used to select each alphanumeric character of
the entered unit. Addition of successive character is made by confir-
mation of the previous character (by pressing [●] button). After con-
firmation of the last (6th) character, the device will confirm the com-
mand with ‘’DONE” message or report an error number.
SET LRV /
SET URV
Function allows to assign the given
values corresponding to the output
signals 4 and 20 [mA]. Value after
linear scaling is displayed in the
LCD2 field. User can set any value of
start and end of the range. By default,
the LCD2 field displays the percent-
age of the measured range.
Table. Exemplary settings LRV, URV
Unit
LRV
URV
LCD2
mA
4
20
Current in current loop
%
0
100
Output setting percentage
- set as a standard
Measurement
range unit
(e.g. kPa)
Range
beginning
(e.g. 0)
Range
end (e.g.
100)
Measured physical value
(e.g. pressure)
XX.XXX
UNIT
Actual value of start and end of the displayed range will be present-
ed. Confirmation of this option allows to assign the given value to the
start and end of the displayed range.
+/-_____
Entering value of set range.
Buttons “↑” or “↓” are used to select entered character. Addition of
successive figure is made by confirmation of the previous one (press-
ing [●] button). Changing the digit or setting a comma is made using
button “↑” or “↓”.After confirmation of the last (6th) character, the de-
vice will confirm the command with ‘’DONE” message or report an
error number.
Parameter is entered in UNIT units.
LCD2DP
Change the position of the decimal point of variable presented in the
LCD2 field of the display.
FILTR
Selection of averaging time of displayed process variable.
LCD1VR
Type of process variable presented in the LCD1 field of the display.
CURREN
Value of current in current loop will be presented in the LCD1 field.
PERCEN
Percentage value of input setting will be presented on the display.
The WW-11ALW display must be configured or the correctness of indications must be
checked after changing the measuring range of the transmitter connected to the display.
EN.IO.WW.11.ALW
Revision 01.B.003/2020.09 19
9.2. Local Menu, error messages
During perform some functions in Local Menu may appear on LCD2 field an error message EXXXX
(the letter E and 4 digits error code). The error message indicates that the Local Menu command has
not been executed. The persistence of the error message for a long time indicates malfunction or im-
proper operation of the display.
10. MAINTENANCE
10.1.Periodic inspections
Periodical inspections shall be carried out in accordance with applicable standards. During the inspec-
tion, the condition of the electrical connections on terminals (reliability of the connections) and stability
of fixing of the display and mounting bracked (if used) shall be checked.
10.2.Non-periodic inspections
If the display at the installation site has been exposed to mechanical damage, overvoltage or incorrect
operation of the display is detected, the device should be inspected.
If there is no signal in the transmission line or its value is improper, check the condition of the
cable, connections on the terminals, etc. Check if the supply voltage and load resistance are
correct. If the transmission line is in good working order, check the functioning of the display
10.3.Spare parts
Parts of the display, which may be worn or damaged and thus replaced:
Name
Content
Description
Mounting kit
2x clamping rings
4x flat washers 6.4
4x spring washers 6.1
4x nut M6
Figure 3
10.4.Repair
Faulty or non-operational display shall be provided to the manufacturer.
10.5.Returns
In the following cases, display should be returned directly to the manufacturer:
−need for repair;
−replacement of improperly selected/shipped display.
11. SCRAPPING, DISPOSAL
Worn or damaged devices shall be scrapped in accordance with WEEE Directive
(2012/19/EU) on waste electrical and electronic equipment or returned to the manufacturer.
12. HISTORY OF REVISIONS
RevisionNo.
Document revision
Description of changes
-
01.A.001/2015.09
Initial version of document. Developed by DKD.
1
01.A.002/2016.02
ATEX version has been added. Editiorial changes. Developed by DKD.
2
01.B.003/2020.09
Editorial changes. Developed by the DBFD.
Other manuals for WW-11ALW
1
Table of contents
Other Aplisens Monitor manuals
