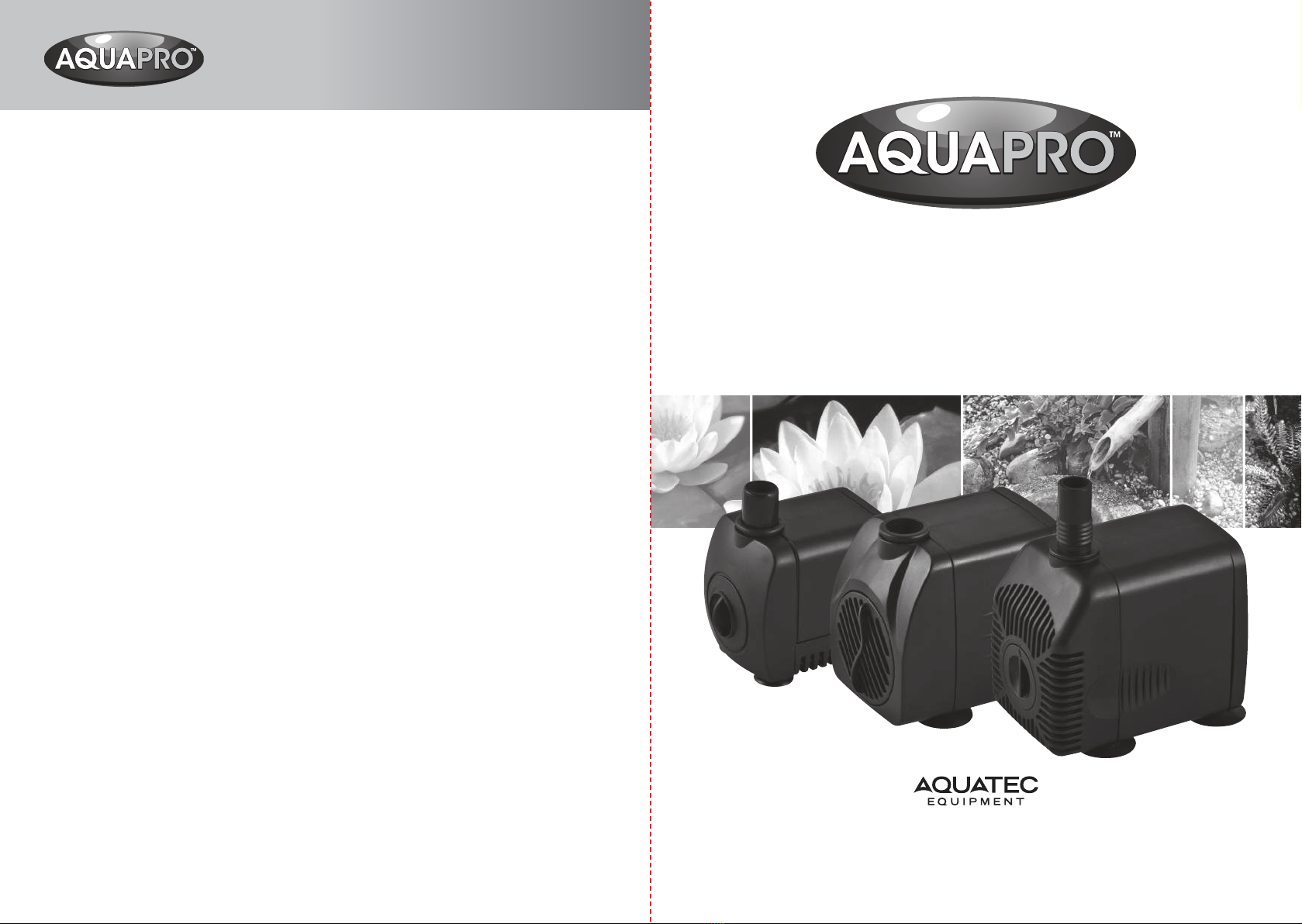

Aquatec Equipment Aquapro AP550 User manual

WATERFEATURE PUMPS
INSTRUCTIONS MANUAL
MANUFACTURED FOR
PO Box 648, Maddington, Western Australia, 6989
Telephone [phone]
Email [email protected]
www.aquatecequipment.com
www.aquatecequipment.com
IMPORTANT SAFEGUARDS
To guard against injury, basic safety precautions
should be observed including, but not limited to
the following;
•Thepumpshouldonlybeusedincleanwater. Do not use the pump in any solvent or
gasoline that is flammable.
•Donotoperatethepumpwithoutwateratany time, permanent damage may occur.
•Donotoperatethepumpifthepumporanyof the components of the pump such as the
power cable have been damaged.
•Thedriploopmethodshouldbeusedtoprevent water from traveling down the cord
onto the plug or power point. If the plug does
get wet, do not unplug the cord. Disconnect
the circuit breaker that supplies power to the
power point. Then unplug and examine the
plug and power point for presence of water. If
the power point has become wet, you should
consult an electrician before using the power
point again.
•Warning:Alwaysuseaproperlygroundedpower supply that is connected to an RCD
with a rated residual operating current
not exceeding 30mA as per AS/NZS
3350.2.41:1997.•Alwaysunplugthepumpfromthepowersupply when not in use or before performing
any maintenance on the pump or in the
pond. Never pull the cord to disconnect the
plug from the power supply. Grasp the plug
and pull to disconnect.
•Donotinstallorstorethepumpwhereit will be exposed to extreme hot or cold
temperatures.
•Donotcutthecordasthiswillresultinvoiding your warranty.
•Keepoutofreachofchildrenorpets.Thisappliance should not be used by children or
infirm persons without supervision.
•Careshouldbetakentoarrangethepowercord so that it cannot be accidently tripped
over or pulled.
•Donotattempttorepairthepumpyourself.Return to an authorized service centre or
place of purchase if a fault occurs.
•Donotuseinwaterabove35°C.LIMITED WARRANTY
•Warrantycoversonlyappliancedefectsandfaulty material and workmanship within a 2
year period.
•Ifthepumpfailsduetoamanufacturingfaultwithin the warranty period, the pump will be
either repaired or replaced free of charge.
•Faultsarisingdueto;accidents,misuse,not following manufacturer’s guidelines/
instructions or power surges/spikes/
brownouts will not be covered.
•Theimpellorsetisaconsumableitemandis therefore not covered under warranty.
Replacement parts are available from your
local retailer/special orders.
•Warrantywillbevoidifanytampering,removal of warranty labels, or electrical
circuitry is evident.
•Warrantywillbevoidifthepowercordiscutor damaged in any way.
•Warrantywillbevoidifanyvisiblesignsofoverheating are present.
•Themanufacturerordistributorshallnotbeheld responsible for any damages caused
by defective components or materials, or
for loss incurred because of the interruption
of services, or any consequential or
incidental damages or expenses arising
from the manufacture, sale, use, or misuse
of this product.
•Warrantyclaimscausedbyinstallationorservicing faults will not be covered.
•Itisthecustomer’sresponsibilitytoreturnthe faulty appliance for any warranty claim,
to Aquatec.
•Foranywarrantytobevalid,anoriginalproofof purchase must be provided.
•Ourgoodscomewithguaranteesthatcannot be excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major failure and
for compensation for any other reasonably
foreseeable loss or damage. You are also
entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
Note:PleaseconsultyourretailerforqualityoriginalAquaproreplacementpartsforyourAquaproproduct. Visit www.aquatecequipment.com for nearest stockists.

SUBMERSIBLE WATERFEATURE PUMPS
INSTRUCTIONS MANUAL
Congratulations on your purchase of this product by AquaPro,
the answers for your watergarden made easy!
DESCRIPTION AND FEATURES
Your Aquapro solar pump has been
manufactured with advanced technology to
provide you with the best quality system
for your pond or water feature.
•Aquapropumpsaresuitableforuseinmany different applications including;
fountains, water features, small ponds
and hydroponics.
•YourAquapropumphasasinglemovingpart (an impellor set) therefore enabling
easy cleaning and maintenance.
•Themotorandelectricalcomponentsareencapsulated in epoxy resin, ensuring
safe operation under water.
•Thepumphasarobustbearingandshaftdesign so no oil/grease lubrication is
required.
•TheAquapropumpsthathaveplasticencased impellor parts and ceramic
shafts (no exposed metal) may be used
in salt water applications.
•TheAquaproNo1fountainkitsuitsmostmodels of small Aquapro pumps.
•CheckouttheAquaprorangeofpondlights and accessories.
INSTALLATION
1. If required, have a qualified electrician
install weatherproof power point near
to the pond or water feature, (within the
cable length of the pump).
2. Place the pump in desired location,
ensure the pump is on a stable surface
that is free of sludge, sand and other
debris, and connect tubing to the outlet
or attach fountain kit.
3. Ensure pump is submerged, then plug
in power cord and switch on.
MAINTENANCE
Disconnect power cord from the power
supply before performing maintenance.
Never lift the pump by the power cord.
The only serviceable item is the impellor
set. The motor unit of the pump is
encapsulated with epoxy resin and does
not need lubrication.
All Aquapro submersible pumps are water
cooled; if pump becomes restricted it
will overheat and could cause permanent
damage. Ensure pump does not become
blocked or restricted.
The power cord cannot be replaced.
If the cord is damaged, the pump must
be discarded.
The impellor set is a wearing consumable
part. Regular inspections, cleaning and
maintenance of impellor is necessary to
ensure longer impellor life.
If the impellor set becomes worn or
damaged it should be replaced (available
from your dealer or special orders). Failure to
do so may cause serious damage to pump.
1. Disconnect the power cord from
the power supply before performing
maintenance.
2. Remove from water, detach tubing/
fountain kit and remove front cage
from pump.
3. Remove the impellor cover by
either turning anti-clockwise and pulling
out or pulling tab to unclip (depending
on model).
4. Gently remove the impellor and shaft,
use long nose pliers if needed. Take
care not to break ceramic shaft (if
applicable) because they are brittle.
5. Clean impellor, checking for any signs of
wear or damage.
6. Reinstall the shaft, and then carefully
slide the impellor onto the shaft. The
impellor will pull itself in by magnetic
force, this is normal (take care not to
pinch your fingers).
7.Replacetheimpellorcovermakingsurethe shaft is located properly on the
impellor cover.
8. Replace the front cage.
9. Re-attach tubing/fountain kit, submerse
in water, connect to power supply and
turn on.
AP550 AP750 AP1050/C AP1350
VOLTAGE (V) 240 240 240 240
POWER (WATTS) 10.5 12 18 28
MAX HEIGHT (M) 1. 10 1.50 1.80 2.80
FLOW MAX (L/H) 550 7501050 1350
CABLE LENGTH (M) 13mm 13mm 13mm 13mm
1 Motor & Casing
2 Impellor
3 Impellor Cover
4 Front Cage
12 3 4
AP750 Model shown. Picture for illustration purposes only.
