ARC FCW 32 H User manual
The information on this manual may change without notice
High Wall
Evaporator
Installation & Operation Manual
FCW Series
Model
FCW 10 H
FCW 12 H
FCW 18 H
FCW 20 H
FCW 25 H
FCW 32 H
The information on this manual may change without notice
The information on this manual may change without notice
Fig.2
FCW 10-12
FCW 25-32
FCW 18-20
The information on this manual may change without notice
The information on this manual may change without notice
The information on this manual may change without notice

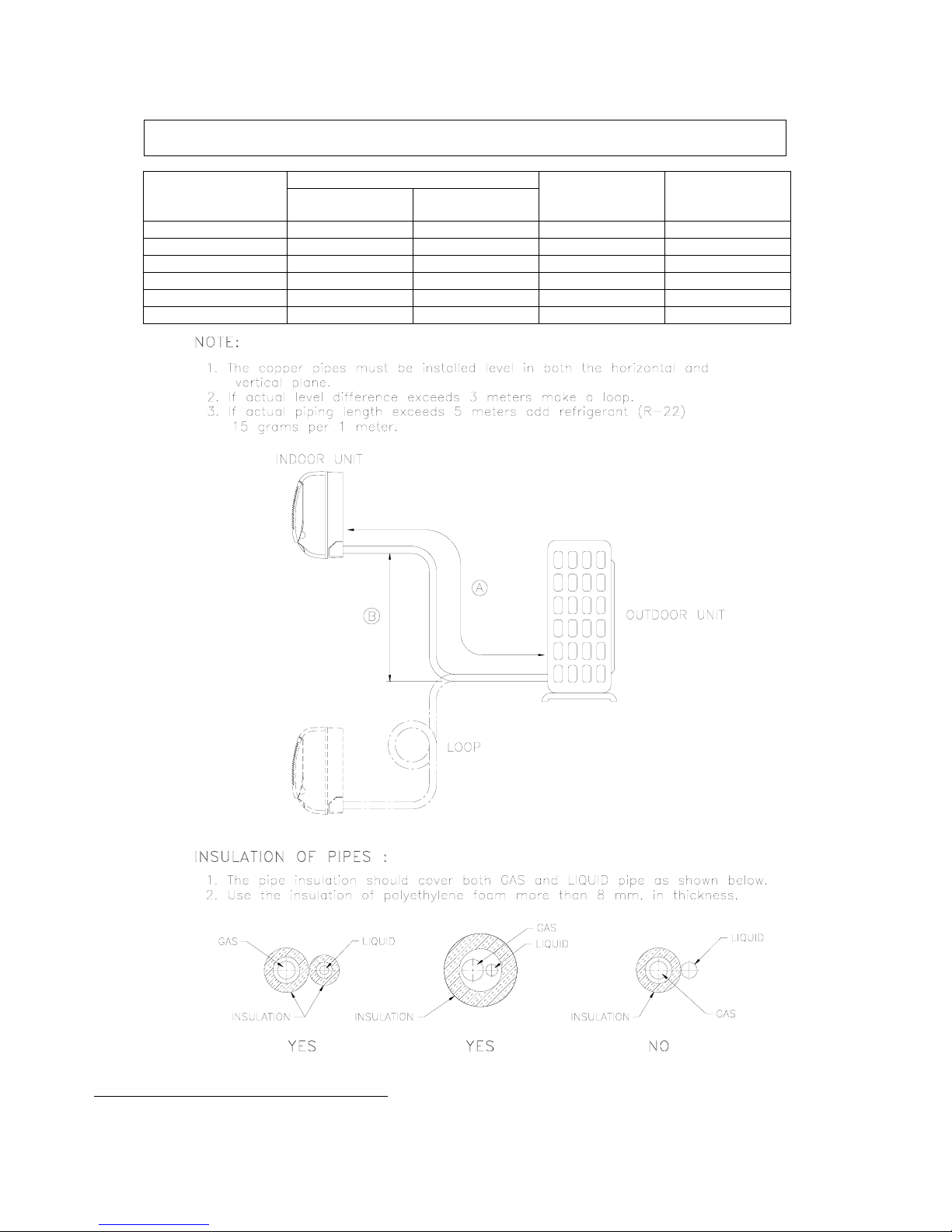

Using pipe diameter
MODEL
GAS
LIQUID
Max. Piping
Length
A (m)
Max. level
difference
B (m)
FCW-10 3/8” 1/4” 15 10
FCW-12 3/8” 1/4” 15 10
FCW-18 1/2” 5/16” 15 10
FCW-20 1/2” 5/16” 15 10
FCW-25 5/8” 3/8” 15 10
FCW-32 5/8” 3/8” 15 10
FIELD PIPING CONNECTIONS

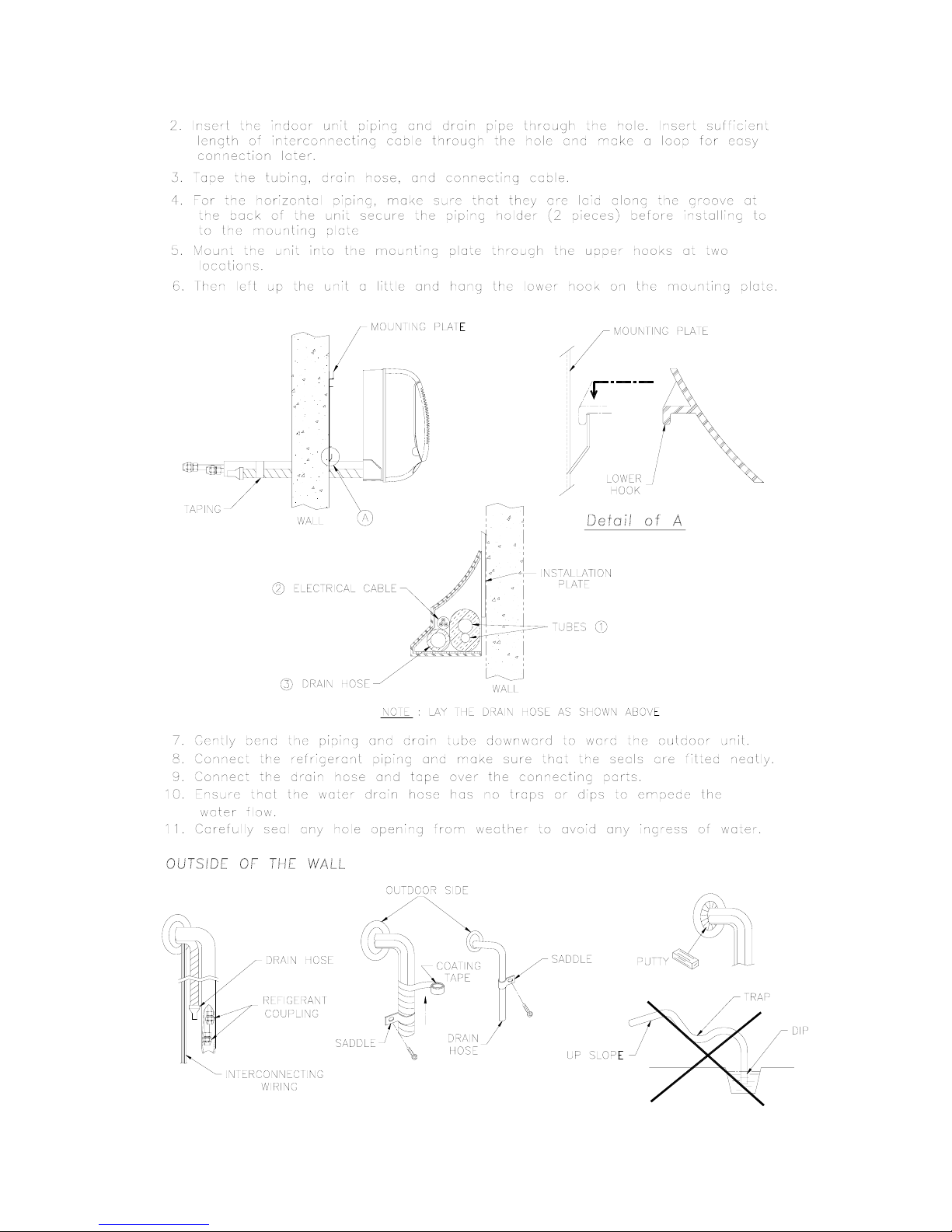

The information on this manual may change without notice
The information on this manual may change without notice
The information on this manual may change without notice
Terminal Block
FCW 10/18/20 H
FCW 25/32 H
The information on this manual may change without notice

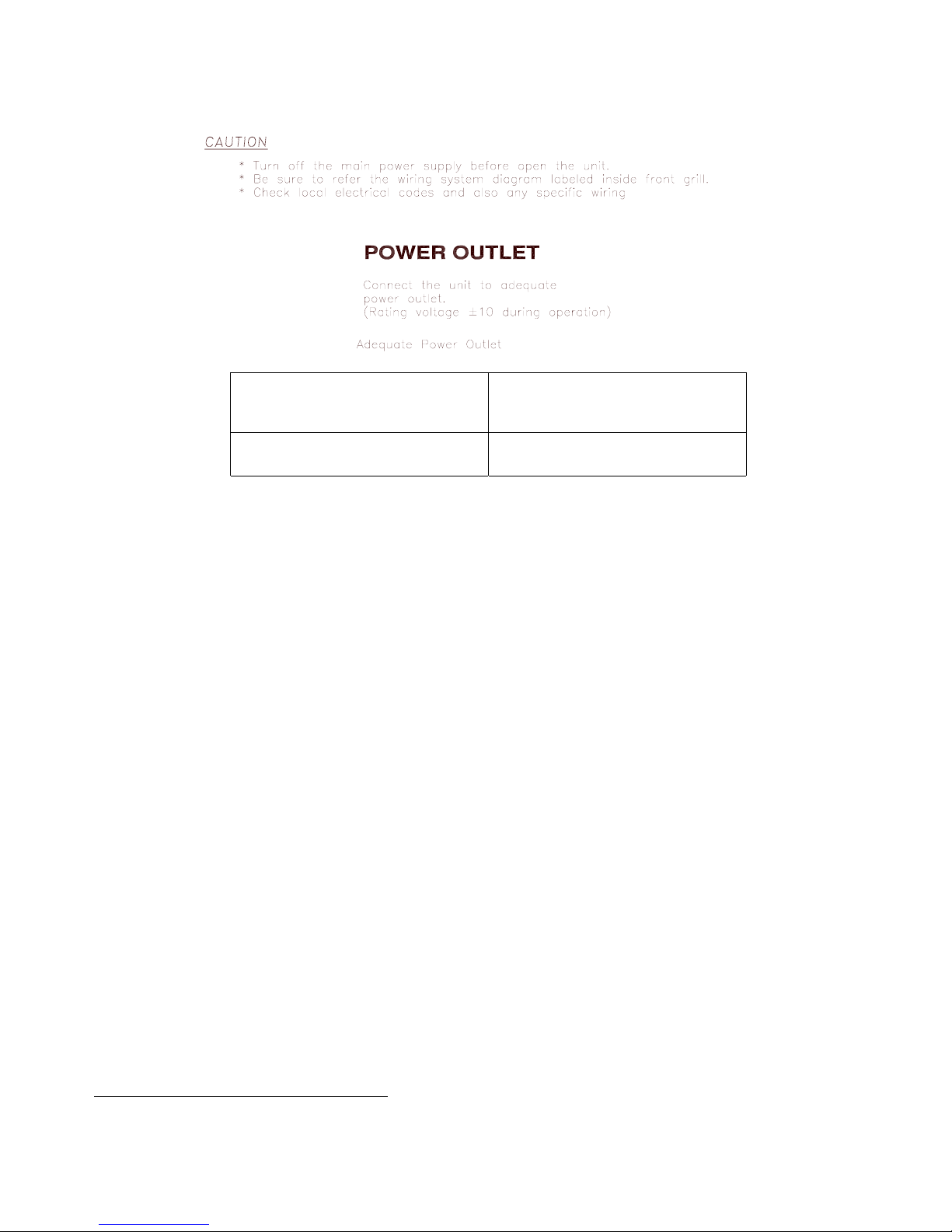

Time delay fuse
15A (FCW-10, FCW-12
20A (FCW-18, FCW-20)
25A (FCW-25,FCW-32)
Power outlet
2P for the power and
1P for the earth terminal

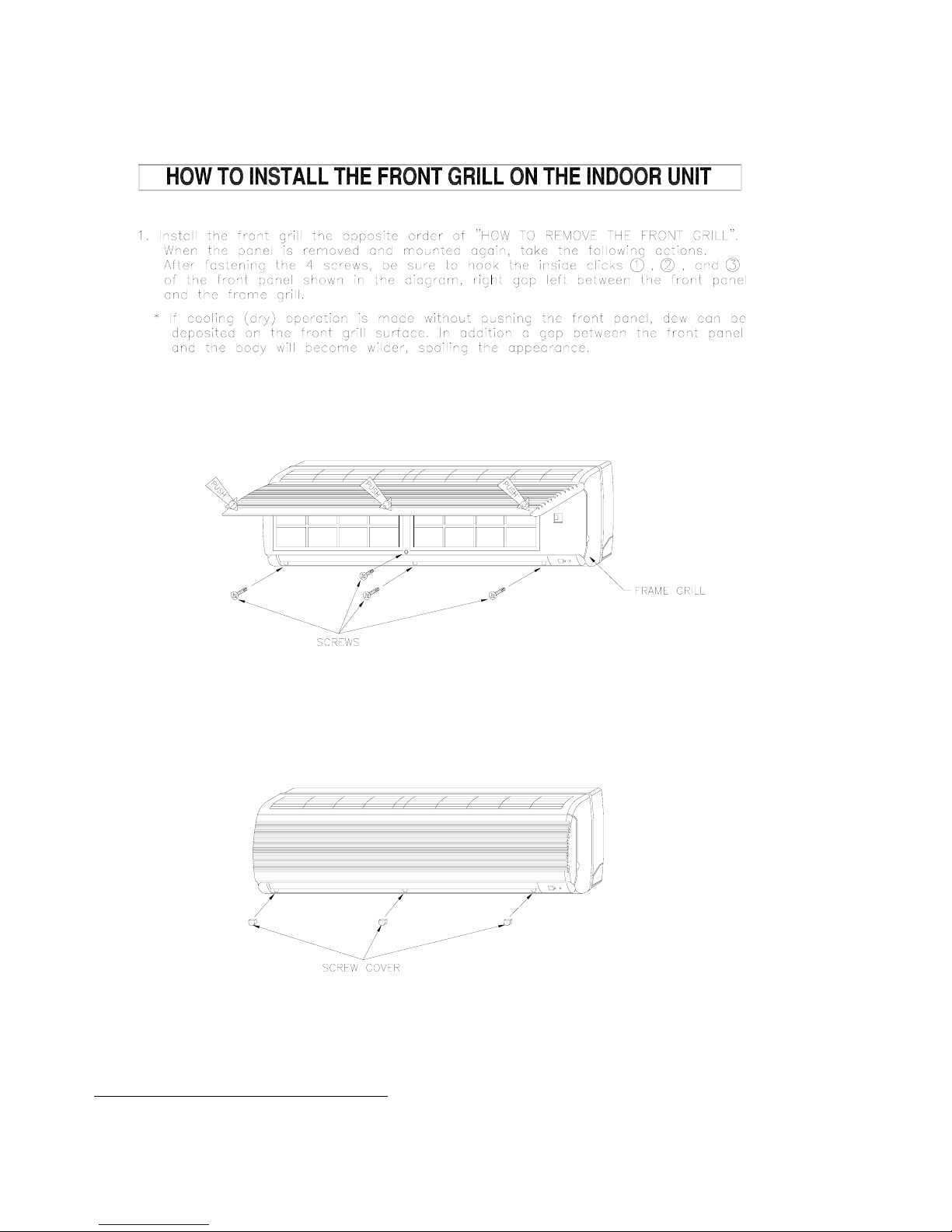

The information on this manual may change without notice
The information on this manual may change without notice
Appendix 1
Indoor FCW-10 FCW-12 FCW-18 FCW-20 FCW-25 FCW-32
MODEL Outdoor SAC-10 SAC-12 SAC-18 SAC-20 SAC-25 SAC-32
Specification
Dry Cycle 999999
Swing Function 999999
Auto Restart 999999
Auto Air Flow 999999
Stop Start Timer 999999
Auto Change Over 999999
Comp Time Delay 999999
Hot Start – Heat Pump 999999
Cold Air Prevention 999999
Cooling 2700 3800 5550 6000 7900 9380Capacity (Kw)
Heating 2850 3960 5300 6120 8210 9505
Indoor 9 10 11 11 17 18Net Weight
(KG) Outdoor 41 45 56 58 72 77
Hi 440 510 765 765 1020 1030
Mid 380 420 650 650 910 920
Air Flow M3
HR
Low 310 390 540 540 820 830
Power Supply V-PH-Hz 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50
Full Load
Amps
A 5 6.5 9.8 10.1 11.0 12.5
Start Amps A 25 33 40 54 65 74
Power Input WATT 930 1150 1800 2105 2490 2850
Noise Level
Outdoor
DB(A) 45 45 58 58 61 61
Noise Level
Indoor
dB(A) 28/32/36 33/36/41 39/41/44 39/41/44 41/44/46 41/44/46
Max Pipe Length (M) 15 15 15 15 15 15
Max Pipe Lift (M) 10 10 10 10 10 10
Liquid 3/8 3/8 3/8 3/8 3/8 3/8Pipe
Size Suction 1/2 1/2 5/8 5/8 5/8 5/8
Gas Charge (KG) 0.9 1.3 1.4 1.9 2.5 2.6
Additional Grams / Meter 60 60 70 70 70 70
H 298 298 305 305 360 360
W 880 880 990 990 1155 1155
Indoor
Dimension
Casing L 180 180 180 180 205 205
H 590 590 590 590 730 730
W 245 245 300 300 366 366
Outdoor Unit
Dimension L 860 860 860 860 950 950
The information on this manual may change without notice
FCW 10 H
The information on this manual may change without notice
Part List
Model : FCW 10 H Issue Date : 02/28/00
Item PART NAME PART No. QTY UM
1 CARTON BOX WQ-09/12S (UN SEEN) AWQ/WJ09/12S 1 PC
2 AIR BUBBLE 130" X 110cm" (UN SEEN) B03 1 PC
3 EVAP COIL-WQ-09(2R X 2CIRCIUT X 7.0 O mm X 20 PLAIN TUBES D502 1 SET
20FPI X COATED SLIT FIN SUCT : 3/8" X LIQ : 1/4") UTM
4 CONNECTING WIRES – FOR HEAT PUMP (UNSEEN) E16 1 SET
5 STEP MOTOR MP35 E57 1 PC
6 FAN MOTOR RPS 16C - 220 V, 50/60Hz E71 1 PC
7 TERMINAL BLOCK (6 POLE) E75 1 PC
8 ON/OFF STICKER E84 1 PC
9 MAIN PCB (HEAT/COOL) "MICON-TECH" E116 1 PC
10 REMOTE HANDSET W/HOLDER (HEAT/COOL) "MICON-TECH" E73 1 PC
11 AUXILIARY SWITCH W/WIRE HARNESS E65 1 PC
12 LAMP BOARD E72 1 PC
13 WIRE GUARD (OPTIONAL) F501 1 PC
14 PIPING CLAMP #1 F115 1 PC
15 ENDSHEET - RH F504 1 PC
16 ENDSHEET - LH F505 1 PC
17 BRACKET MOTOR F18 2 PCS
18 MOUNTING BRACKET F500 1 PC
19 PIPING CLAMP #2 F94 2 PCS
20 E-RING LOCK 5mm. O (SPRING STEEL) F95 2 PCS
21 FLAT WASHER 6mm. O F96 2 PCS
22 FLAT WASHER 15.0mm O F98 1 PC
23 TIE WIRE SMALL 4" (UNSEEN) G02 1 PC
24 TIE WIRE LG 8" (UNSEEN) G03 1 PC
25 INSUL.- BACK SEAL #1 I-17 2 PCS
26 INSUL.- BACK SEAL #2 I-18 2 PCS
27 INSUL. FOAM - DRAIN PAN LEFT I-500 1 PC
28 INSUL. FOAM INSERT - DRAIN PAN RIGHT I-501 1 PC
29 INSUL. FOAM BASE PAN BACK - LEFT I-502 1 PC
30 INSUL. FOAM BASE PAN BACK - RIGHT I-503 1 PC
31 INSUL. FOAM FRONT - 1 I-504 1 PC
32 INSUL. FRONT FOAM - 2 I-505 1 PC
33 INSUL. BASE PAN - BACK I-506 1 PC
34 INSUL. BASE PAN RAIL I-507 1 PC
35 INSUL. BASE PAN TOP I-508 1 PC
36 INSUL. DEFLECTOR - DRAIN PAN I-509 1 PC
37 INSUL. DRAIN PAN RIGHT SIDE I-510 1 PC
38 INSUL. DRAIN STRIP I-511 1 PC
39 INSUL. DRAIN PAN TOP I-512 1 PC
40 INSUL. DRAIN PAN - WATER OUTLET I-513 1 PC
41 INSUL. DRAIN PAN - RIGHT I-514 1 PC
42 GRAY CLOTH WITH RUBBER I-515 1 PC
43 INSUL.- FRAME SIDE I-68 1 PC
The information on this manual may change without notice
44 PACKING FOAM - LH (UN SEEN) I-69 1 PC
45 PACKING FOAM - RH (UN SEEN) I-70 1 PC
46 PACKING FOAM TOP - MIDDLE (UN SEEN) I-71 1 PC
47 PACKING FOAM BTM. – MIDDLE (UN SEEN) I-72 1 PC
48 SEAL BLOCK I-75 2 PCS
49 INSUL. EVAP. SUPPORT BOTTOM - L/R AND TOP - R I-76 4 PCS
50 INSUL. EVAP. SUPPORT TOP - L. H. I-77 1 PC
51 SENSOR HOLDER - WHITE P17 1 PC
52 WIRE RETAINER P176 1 PC
53 HINGE SUPPORT - L. H. P178 1 PC
54 HINGE SUPPORT - R. H. P179 1 PC
55 HINGE - L. H. P180 1 PC
56 HINGE - R. H. P181 1 PC
57 SCREW COVER P185 3 PCS
58 PLASTIC SCREW RIVET F386 (HOLDER) (OPTIONAL) P186 2 PCS
59 EVAP. SUPPORT - L. H. P202 1 PC
60 EVAP. SUPPORT - R. H. P203 1 PC
61 DEFLECTOR W/ HANDLE P206 3 PCS
62 DEFLECTOR W/O HANDLE P207 9 PCS
63 BAR GANG P208 3 PCS
64 CONTROL BOX P210 1 PC
65 LOCK - SIDE P212 2 PCS
66 LOCK - CENTER P213 1 PC
67 LOUVER STICKER (UN SEEN) P216 1 PC
68 LAMPBOARD STICKER P217 1 PC
69 LAMP SLEEVE P218 2 PCS
70 STRAP EVAPORATOR - WHITE (OPTION)(UN SEEN) P221 1 PC
71 DECO PANEL P230 1 PC
72 NYLON PIVOT WITH RUBBER P5 1 PC
73 FRAME GRILL P503 1 PC
74 AIR FILTER P504 2 PCS
75 DRAIN PAN P506 1 PC
76 HORIZONTAL LOUVER P507 1 PC
77 BASE PAN P508 1 PC
78 BLOWER WHEEL 100 mm DIA. X 695 L. P509 1 PC
79 FLEXIBLE, DRAIN HOSE P7 1 PC
80 RUBBER MOTOR R3 2 PCS
81 SCREW M4 X 10 mm (SMALL HEAD) S01 3 PCS
82 SCREW 6 X 3/4" (NICKEL) (POINTED) ( 3.5 x 19 mm.) S08 2 PCS
83 SCREW 8 X 3/4" ( M4 x 16mm.) S11 1 PC
84 SCREW M4 X 12 mm S16 4 PCS
85 SCREW M4 X 10 mm S17 7 PCS
86 SCREW 10 x 11" (POINTED) (UN SEEN) ( 4.7 x 25mm.) S29 4 PCS
87 SCREW 8 X 1/2" ( M4 x 12mm.) S34 17 PCS
DEICE SENSOR”MICON-TECH (UNSEEN) E29 1 PCS
DEICE SENSOR EXTENSION WIRE (UNSEEN) E68 1 PCS
The information on this manual may change without notice
FCW 12
FCW 12 H
The information on this manual may change without notice
Part List
Model No : FCW 12 H Date : 02/28/00
Item PART NAME PART No. QTY UM
1 CARTON BOX WQ-09/12S (UN SEEN) AWQ/WJ09/12S 1 PC
2 AIR BUBBLE 130" X 110cm" (UN SEEN) B03 1 PC
3 EVAP COIL-WQ-12S(2R X 3CIRCIUT X 7.0 O mm X 22 GROOVE TUBE D503 1 SET
18FPI X COATED SLIT FIN SUCT : 3/8" X LIQ : 1/4") UTM
4 CONNECTING WIRES – FOR HEAT PUMP (UNSEEN) E16 1 SET
5 STEP MOTOR MP35 E57 1 PC
6 FAN MOTOR RPS 16C - 220 V, 50/60Hz E71 1 PC
7 TERMINAL BLOCK (6 POLE) E75 1 PC
8 ON/OFF STICKER E84 1 PC
9 MAIN PCB (HEAT/COOL) "MICON-TECH" E116 1 PC
10 REMOTE HANDSET W/HOLDER (HEAT/COOL) "MICON-TECH" E73 1 PC
11 AUXILIARY SWITCH W/WIRE HARNESS E65 1 PC
12 LAMP BOARD E72 1 PC
13 WIRE GUARD (OPTIONAL) F501 1 PC
14 PIPING CLAMP #1 F115 1 PC
15 ENDSHEET - RH F504 1 PC
16 ENDSHEET - LH F505 1 PC
17 BRACKET MOTOR F18 2 PCS
18 MOUNTING BRACKET F500 1 PC
19 PIPING CLAMP #2 F94 2 PCS
20 E-RING LOCK 5mm. O (SPRING STEEL) F95 2 PCS
21 FLAT WASHER 6mm. O F96 2 PCS
22 FLAT WASHER 15.0mm O F98 1 PC
23 TIE WIRE SMALL 4" (UNSEEN) G02 1 PC
24 TIE WIRE LG 8" (UNSEEN) G03 1 PC
25 INSUL.- BACK SEAL #1 I-17 2 PCS
26 INSUL.- BACK SEAL #2 I-18 2 PCS
27 INSUL. FOAM - DRAIN PAN LEFT I-500 1 PC
28 INSUL. FOAM INSERT - DRAIN PAN RIGHT I-501 1 PC
29 INSUL. FOAM BASE PAN BACK - LEFT I-502 1 PC
30 INSUL. FOAM BASE PAN BACK - RIGHT I-503 1 PC
31 INSUL. FOAM FRONT - 1 I-504 1 PC
32 INSUL. FRONT FOAM - 2 I-505 1 PC
33 INSUL. BASE PAN - BACK I-506 1 PC
34 INSUL. BASE PAN RAIL I-507 1 PC
35 INSUL. BASE PAN TOP I-508 1 PC
36 INSUL. DEFLECTOR - DRAIN PAN I-509 1 PC
37 INSUL. DRAIN PAN RIGHT SIDE I-510 1 PC
38 INSUL. DRAIN STRIP I-511 1 PC
39 INSUL. DRAIN PAN TOP I-512 1 PC
40 INSUL. DRAIN PAN - WATER OUTLET I-513 1 PC
41 INSUL. DRAIN PAN - RIGHT I-514 1 PC
42 GRAY CLOTH WITH RUBBER I-515 1 PC
43 INSUL.- FRAME SIDE I-68 1 PC
The information on this manual may change without notice
44 PACKING FOAM - LH (UN SEEN) I-69 1 PC
45 PACKING FOAM - RH (UN SEEN) I-70 1 PC
46 PACKING FOAM TOP - MIDDLE (UN SEEN) I-71 1 PC
47 PACKING FOAM BTM. - MIDDLE (UN SEEN) I-72 1 PC
48 SEAL BLOCK I-75 2 PCS
49 INSUL. EVAP. SUPPORT BOTTOM - L/R AND TOP - R I-76 4 PCS
50 INSUL. EVAP. SUPPORT TOP - L. H. I-77 1 PC
51 SENSOR HOLDER - WHITE P17 1 PC
52 WIRE RETAINER P176 1 PC
53 HINGE SUPPORT - L. H. P178 1 PC
54 HINGE SUPPORT - R. H. P179 1 PC
55 HINGE - L. H. P180 1 PC
56 HINGE - R. H. P181 1 PC
57 SCREW COVER P185 3 PCS
58 PLASTIC SCREW RIVET F386 (HOLDER) (OPTIONAL) P186 2 PCS
59 EVAP. SUPPORT - L. H. P202 1 PC
60 EVAP. SUPPORT - R. H. P203 1 PC
61 DEFLECTOR W/ HANDLE P206 3 PCS
62 DEFLECTOR W/O HANDLE P207 9 PCS
63 BAR GANG P208 3 PCS
64 CONTROL BOX P210 1 PC
65 LOCK - SIDE P212 2 PCS
66 LOCK - CENTER P213 1 PC
67 LOUVER STICKER (UN SEEN) P216 1 PC
68 LAMPBOARD STICKER P217 1 PC
69 LAMP SLEEVE P218 2 PCS
70 STRAP EVAPORATOR - WHITE (OPTION)(UN SEEN) P221 1 PC
71 DECO PANEL P230 1 PC
72 NYLON PIVOT WITH RUBBER P5 1 PC
73 FRAME GRILL P503 1 PC
74 AIR FILTER P504 2 PCS
75 DRAIN PAN P506 1 PC
76 HORIZONTAL LOUVER P507 1 PC
77 BASE PAN P508 1 PC
78 BLOWER WHEEL 100 mm DIA. X 695 L. P509 1 PC
79 FLEXIBLE, DRAIN HOSE P7 1 PC
80 RUBBER MOTOR R3 2 PCS
81 SCREW M4 X 10 mm (SMALL HEAD) S01 3 PCS
82 SCREW 6 X 3/4" (NICKEL) (POINTED) ( 3.5 x 19 mm.) S08 2 PCS
83 SCREW 8 X 3/4" ( M4 x 16mm.) S11 1 PC
84 SCREW M4 X 12 mm S16 4 PCS
85 SCREW M4 X 10 mm S17 7 PCS
86 SCREW 10 x 11" (POINTED) (UN SEEN) ( 4.7 x 25mm.) S29 4 PCS
87 SCREW 8 X 1/2" ( M4 x 12mm.) S34 17 PCS
DEICE SENSOR”MICON-TECH (UNSEEN) E29 1 PCS
DEICE SENSOR EXTENSION WIRE (UNSEEN) E68 1 PCS
The information on this manual may change without notice
FCW 18 H
The information on this manual may change without notice
Part List
Model No : FCW 18 H Date : 28/02/00
Item PART NAME PART No. QTY UM
1 CARTON BOX WQ-12/18S (UN SEEN) AWQ12/18S 1 PC
2 AIR BUBBLE 130 X 110cm" (UN SEEN) B03 1 PC
3 EVAP COIL-WQ-18S(3R X 5CIRCUIT X 7.0 O mm X GROOVE TUBE D06 1 SET
19FPI X COATED PLAIN FIN X SUCT : 1/2" X LIQ : 5/16") UTM
4 CONNECTING WIRES – FOR HEAT PUMP (UNSEEN) E16 1 SET
5 STEP MOTOR MP35 E57 1 PC
6 FAN MOTOR RPS 16C - 220 V, 50/60Hz E71 1 PC
7 TERMINAL BLOCK (6 POLE) E75 1 PC
8 ON/OFF STICKER E84 1 PC
9 MAIN PCB (HEAT/COOL) "MICON-TECH" E116 1 PC
10 REMOTE HANDSET W/HOLDER (HEAT/COOL) "MICON-TECH" E73 1 PC
11 AUXILIARY SWITCH W/WIRE HARNESS E65 1 PC
12 LAMP BOARD E72 1 PC
13 BRACKET MOTOR F18 2 PCS
14 PIPING CLAMP #2 F94 2 PCS
15 E-RING LOCK 5mm. O (SPRING STEEL) F95 2 PCS
16 FLAT WASHER 6mm O F96 2 PCS
17 FLAT WASHER 15.0mm O (UNSEEN) F98 1 PC
18 MOUNTING BRACKET F111 1 PC
19 PIPING CLAMP #1 F115 1 PC
20 WIRE GUARD (OPTIONAL) F114 1 PC
21 END PLATE - LH F116 1 PC
22 END PLATE - RH F117 1 PC
23 TIE WIRE SMALL 4" (UN SEEN) G02 2 PCS
24 TIE WIRE LG 8" (UNSEEN) G03 1 PC
25 INSUL. BACK SEAL #1 I-17 2 PCS
26 INSUL. BACK SEAL #2 I-18 2 PCS
27 INSUL. BASE PAN - BACK I-50 1 PC
28 INSUL. FOAM BASE PAN BACK - LEFT I-51 1 PC
29 INSUL. FOAM BASE PAN BACK - RIGHT I-52 1 PC
30 INSUL. BASE PAN RAIL I-54 1 PC
31 INSUL. BASE PAN TOP I-55 1 PC
32 GRAY CLOTH WITH RUBBER I-58 1 PC
33 DRAIN TUBE FOAM I-59 1 PC
34 INSUL. DEFLECTOR I-60 1 PC
35 INSUL. DRAIN SIDE I-61 1 PC
36 INSUL. DRAIN STRIP I-62 1 PC
37 INSUL. DRAIN TOP I-63 1 PC
38 INSUL. FOAM FRONT - 1 I-64 1 PC
39 INSUL. FOAM FRONT - 2 I-65 1 PC
40 INSUL. FOAM - DRAIN PAN LEFT I-66 1 PC
41 INSUL. DRAIN PAN RIGHT I-67 1 PC
42 INSUL. - FRAME SIDE I-68 1 PC
Table of contents
