Archos Europa User manual

1
EN
Table of Contents
Package Contents.................................................................................................2
ARCHOS Indoor Module.........................................................................................3
ARCHOS Outdoor Module.......................................................................................5
ARCHOS Soil Module..............................................................................................6
Getting Stared......................................................................................................7
ARCHOS Weather Station- First Time Setup.............................................................8
ARCHOS Weather Station- Interface......................................................................10
ARCHOS Weather Station- Managing stations........................................................11
ARCHOS Weather Station- Managing modules........................................................15
Troubleshoting...................................................................................................16
For more information, please consult the FAQs of your product on www.archos.com. Make sure to read them before
considering any product return. Changes can occur in the procedures due to application updates.
Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html
QSG_Weather Station_book.indd 1 18/09/2014 13:17:30

2
EN

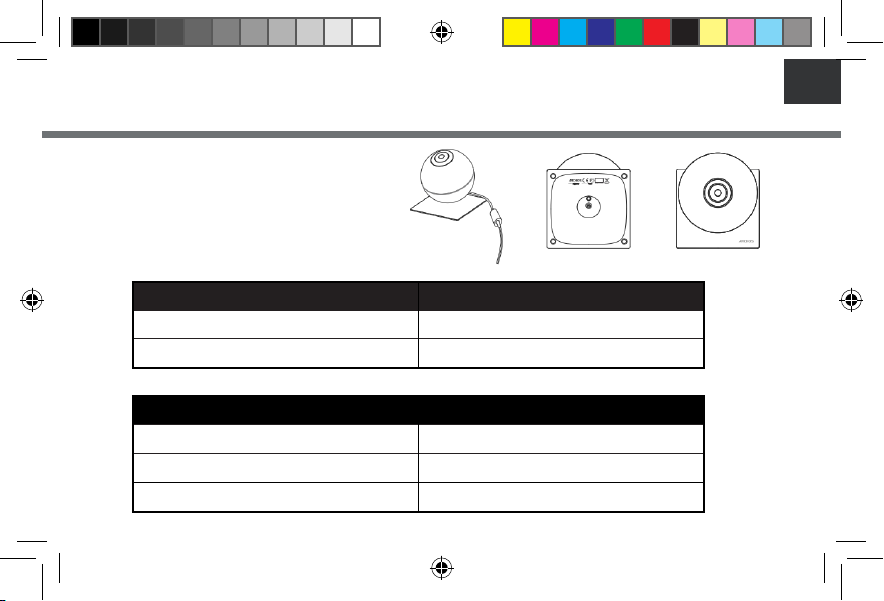

Package Contents
ARCHOS Indoor Module ARCHOS Outdoor Module
2 x AA batteries
AC Adapter QSG Booklet Warranty,
Legal & Safety Booklet
2x CR2032 batteries
ARCHOS Soil Module
QSG_Weather Station_book.indd 2 18/09/2014 13:17:31

3
EN
ACTION LED STATUS
Module in pairing mode and waiting to be connected to device LED blinks Blue
Mobile connected to module successfully Blue LED always on
ACTION LED STATUS
Module in pairing mode and attempting to connect Blue LED Flash almost immediately after power on
Module attempting to connect or lost connexion LED blinks RED
Module connect successfully Green LED on for 10s
Description of the Indoor Module
1. Reset button
2. Pairing indicator & Air quality LED
3. Power Connector
LED state indicators every time you want to reconnect your indoor module or during use.
ARCHOS Indoor Module
QSG_Weather Station_book.indd 3 18/09/2014 13:17:31

4
EN
LED state indicator
Pass your hand over the LED and check the CO2 level according to the LED color
to know your home air quality.
ARCHOS Indoor Module
COLOR AIR QUALITY
Green Good Quality
Yellow Quality could be improved
Red Room should be ventilated
QSG_Weather Station_book.indd 4 18/09/2014 13:17:31

5
EN
1. Pairing indicator
2. Base
3. Reset button
4. Battery holder
Description of the Outdoor Module
ARCHOS Outdoor Module
The pairing is done by inserting the batteries. If no suc-
cess, use the reset button to activate the pairing mode.
2 3 41
QSG_Weather Station_book.indd 5 18/09/2014 13:17:31

6
EN

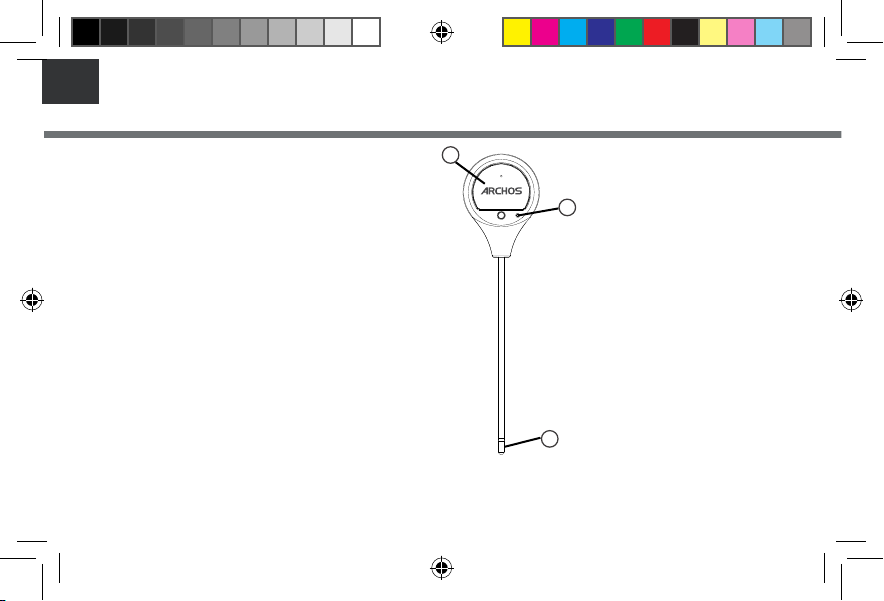

1. Reset button
2. Temperature & Humidity captor
3. Batteries compartment
Description of the Soil Module
ARCHOS Soil Module
2
1
3
QSG_Weather Station_book.indd 6 18/09/2014 13:17:31

7
EN
Getting Started
1. Connect your power cable into the Indoor
Module power connector.
2. Download the ARCHOS Weather Station
Application from Google Play Store or Apple Store
and follow the conguration steps.
3. Put the Outdoor Module into service.
1. Unscrew the Outdoor module
2. Unscrew the Batteries compartment
3. Place two AA batteries
4. Screw back up compartment and close the
Module
4. Put the Soil Sensor into service
1. Unscrew the Batteries compartment
2. Place two CR2032 batteries
3. Screw back up
Your main device has to be permanently
connected to the power supply
1.
2.
3.
QSG_Weather Station_book.indd 7 18/09/2014 13:17:32

8
EN
ARCHOS WEATHER STATION- First Time Setup
The rst time you launch the app, you will need to connect your weather station.
1. Download the ARCHOSWeather Station App from Google Play or Apple Store
2. Switch on theWiFi on your smartphone or tablet.
3. Launch the ARCHOSWeather Stationapp
4. Look for Archos weather stations by clicking on Connect your Weather Station and then select yours.
5. Select your Wi network and send the password to the weather station so that it can connect to internet.
6.Wait for your weather station to connect.
7. Register your weather station and set up your information: location, name
A new Weather Station must be powered ON to be recognized by the application and once selected, the
LED must blink in blue. If it is not the case after a few minutes, perform a long press on the button below
the station until the light blinks in blue.
QSG_Weather Station_book.indd 8 18/09/2014 13:17:32

9
EN
ARCHOS WEATHER STATION- First Time Setup
When your Weather Station is connected, add new sensors.
To pair the Outdoor Module
1. Make sure the two AA batteries are well placed in their support.
2. As soon as the batteries are in the module, it is in pairing mode.
3. Click on“add a new sensor”on your application.
4. Pairing success, if not try again the process and press the reset button.
To pair the Soil Module
1. Make sure the two CR2032 batteries are well placed in their support.
2. As soon as the batteries are in the module, it is in pairing mode.
3. Click on“add a new sensor” on your application .
4. Pairing success, if not try again the process and press the reset button.
QSG_Weather Station_book.indd 9 18/09/2014 13:17:32

10
EN

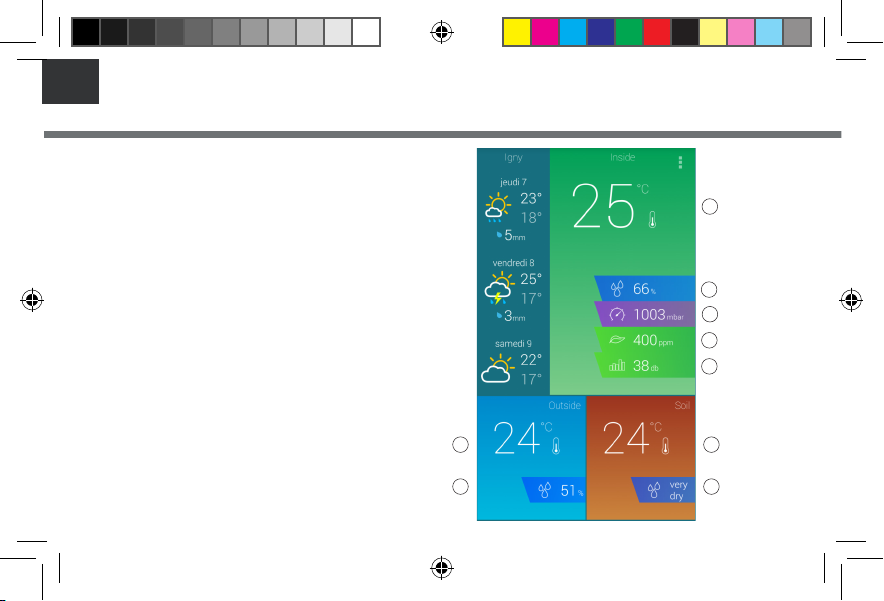

1. Weather Forecast for the next 6 days
2. Indoor sensors
A.Temperature
B. Humidity
C. Atmospheric pressure
D. CO2 level
E. Noise level
3. Outdoor sensors
A.Temperature
B. Humidity
4. Soil sensors
A.Temperature
B. Humidity
ARCHOS WEATHER STATION - Interface
1.
3.
2.
4.
A
AA
B
BB
C
D
E
QSG_Weather Station_book.indd 10 18/09/2014 13:17:33

11
EN
ARCHOS WEATHER STATION- Managing stations
When your are connected on your ArchosWeather Station Application, check your modules’
sensors data at any time.
1. Select the module sensor you’re interested in and tap its icon.
2. Select your scale (1h, 2h, 6h, 12h, 1day, 2 days, 1 week).
3. Follow the evolution over time and compare against previous days/months/years through all the graphics
provided by the application. Each sensor has its dedicated graph.
1 2 3
QSG_Weather Station_book.indd 11 18/09/2014 13:17:33

12
EN
ARCHOS WEATHER STATION - Managing stations
You can add or remove Weather Stations at any time.

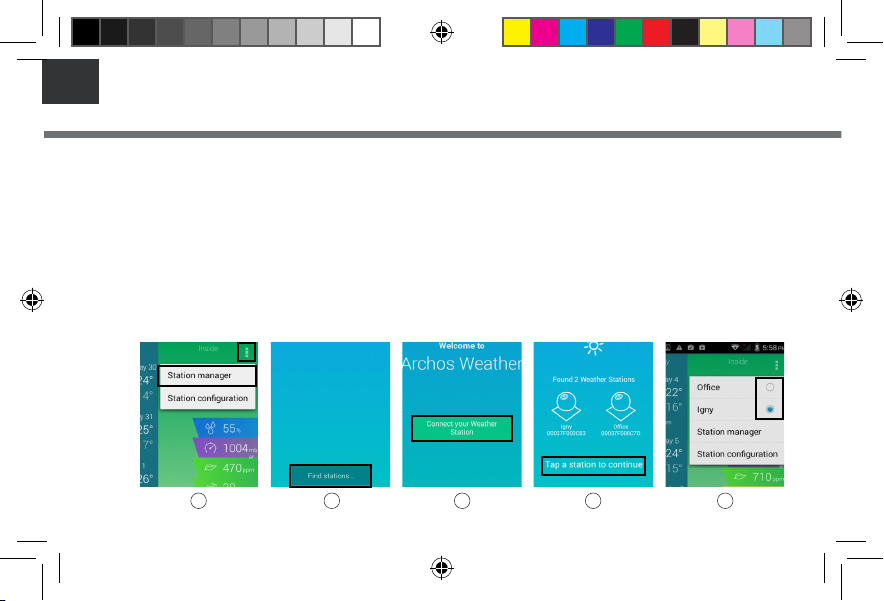

To add a Weather Station
1.Launch the ArchosWeather Station app.
2.Tap (icon avec les 3 points) and select Station Manager.
3. Select Find stations.
4.You are redirected to the ARCHOSWeather Station home page.
5. Select Connect your Weather Station
6. Select the station you want to add.
7.Tap (icon 3 points) and switch between your stations by selecting the one you want.
2 3 5 6 7
QSG_Weather Station_book.indd 12 18/09/2014 13:17:35

13
EN
To remove a Weather Station from the App
1. Launch the ArchosWeather Station app.
2. Select Station Manager on parameter menu.
3. Select a station with a long press on its name.
4. Select Unregister.
2 3 4
ARCHOS WEATHER STATION- Managing stations
QSG_Weather Station_book.indd 13 18/09/2014 13:17:36

14
EN
ARCHOS WEATHER STATION - Managing stations
To connect your Weather Station to another Wi network
1. Launch the ARCHOSWeather Station app.
2. Pass your hand over the Indoor Module to see the green light indicator of air quality.
3. Hold your hand over the Indoor Module for at least 15 seconds.
4.The Indoor Module will blinks blue and the station will turn in Access Point mode.
5.Tap (icon), select Station Manager and then Find stations.
6. Select your Wi network and send the password to theWeather Station so that it can connect to internet.
7.While yourWeather Station is connecting, the Indoor Module blinks red.
8. No need to register your Weather Station again.
56
TIPS:
If you trigger this mode by
accident, you can wait without
doing any action on your ARCHOS
Weather Station and after few
minutes, it will automatically
reconnect
QSG_Weather Station_book.indd 14 18/09/2014 13:17:38

15
EN
ARCHOS WEATHER STATION- Managing modules
To add/remove a ARCHOS Weather Station sensor
1. Launch the ARCHOSWeather app
2. Make sure the sensors are in pairing mode
3.Tap (icon) and select Station Conguration (gure1)
4. Select Add or Remove a peripheral (gure2)
To add a new sensor
1. Select Add a new sensor (gure3)
2. Success, if not, check if the batteries are inserted and try again
To remove a sensor
1. Press the icon of the sensor you want to remove (gure4)
2. Click on OK to remove your sensor (gure5)
2
3 4
5
1
QSG_Weather Station_book.indd 15 18/09/2014 13:17:39

16
EN Troubleshooting
Why can’t I connect to my Weather Station with my mobile device ?
Check if your mobile device and your Weather Station are both connected to the sameWiFi.
Check if your device is paired to your Weather Station
Why aren’t my sensors responding ? No data or no updated data. Are they correctly paired to your Archos
Weather Station ? You can check this information in‘Station Conguration’<‘Peripherals’Check if Wi is ON in your device.
Check if the batteries are not empty for the Outdoor module and soil sensor. In that case you need to change them.
Check if your sensors are enough close to your Indoor Module.
How can I restore myWeather Station to its default settings ?
Use the reset button under your ARCHOS Weather Station.
Go to your ARCHOSWeather application settings: ‘Station manager’<‘Select a station’<‘Unregister
QSG_Weather Station_book.indd 16 18/09/2014 13:17:39

17
Inhaltsverzeichnis
Verpackungsinhalt....................................................................................................18
ARCHOS Innenmodul.................................................................................................19
ARCHOS Außenmodul................................................................................................21
ARCHOS Bodenmodul................................................................................................22
Erste Schritte............................................................................................................23
Ersteinrichtung der ARCHOS Weather Station..............................................................24
Benutzeroberäche der ARCHOS Weather Station.......................................................26
ARCHOS Weather Station - Stationsverwaltung...........................................................27
ARCHOS Weather Station - Modulverwaltung..............................................................31
Fehlerbehebung.......................................................................................................32
Weitere Informationen nden Sie in den FAQs für Ihr Produkt auf www.archos.com.Vor einer Rückgabe des Produkts,
diese unbedingt durchlesen. Aufgrund von Anwendungsaktualisierungen können sich Abläufe ändern.
Konsultieren Sie die Konformitätserklärung auf http://www.archos.com/products/declaration_conformity.html
DE
QSG_Weather Station_book.indd 17 18/09/2014 13:17:39

18
DE
Verpackungsinhalt
ARCHOS Innenmodul ARCHOS Außenmodul
2 x AA-Batterien
Stromadapter QSG-Booklet Booklet für
Garantie-, Rechts- und Si-
cherheitshinweise
2 x CR2032-Batterien
ARCHOS Bodenmodul
QSG_Weather Station_book.indd 18 18/09/2014 13:17:40

19
DE
VORGANG LED-STATUS
Modul in Paarungsmodus und wartet auf Verbindung mit Gerät LED blinkt blau
Mobilgerät erfolgreich mit Modul verbunden Blaue LED leuchtet dauerhaft
VORGANG LED-STATUS
Modul in Paarungsmodus undVerbindungsversuch Blaue LED blinkt kurz nach dem Einschalten
Modul versucht die verloreneVerbindung wiederherzustellen LED blinkt ROT
Modul erfolgreich verbunden Grüne LED leuchtet 10 s auf
Beschreibung des Innenmoduls
1. Reset-Taste
2. LED für Paarungsanzeige & Luftqualität
3. Stromanschluss
LED-Statusanzeigen bei Neuverbindung Ihres Innenmoduls oder während des Gebrauchs.
ARCHOS Innenmodul
QSG_Weather Station_book.indd 19 18/09/2014 13:17:40

20
DE
LED-Statusanzeige
Fahren Sie mit Ihrer Hand über die LED und überprüfen Sie den CO2-Gehalt
anhand der LED-Farbe, um so die Luftqualität Ihres Eigenheims zu bestimmen.
ARCHOS Innenmodul
FARBE LUFTQUALITÄT
Grün Gute Qualität
Gelb Qualität könnte besser sein
Rot Raum sollte gelüftet werden
QSG_Weather Station_book.indd 20 18/09/2014 13:17:41
