AREBOS AR-HE-SP600S User manual

Original User Manual –AREBOS Swimming Pool Pump
1
Swimming Pool Pump
AR-HE-SP600S / AR-HE-SP800S
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

Original User Manual –AREBOS Swimming Pool Pump
2
Table of Contents
1.Introduction and safety instructions....3
2.Installation..........................................7
3.Maintenance.......................................9
4.Technical Data ..................................10
5.Trouble Shooting...............................10

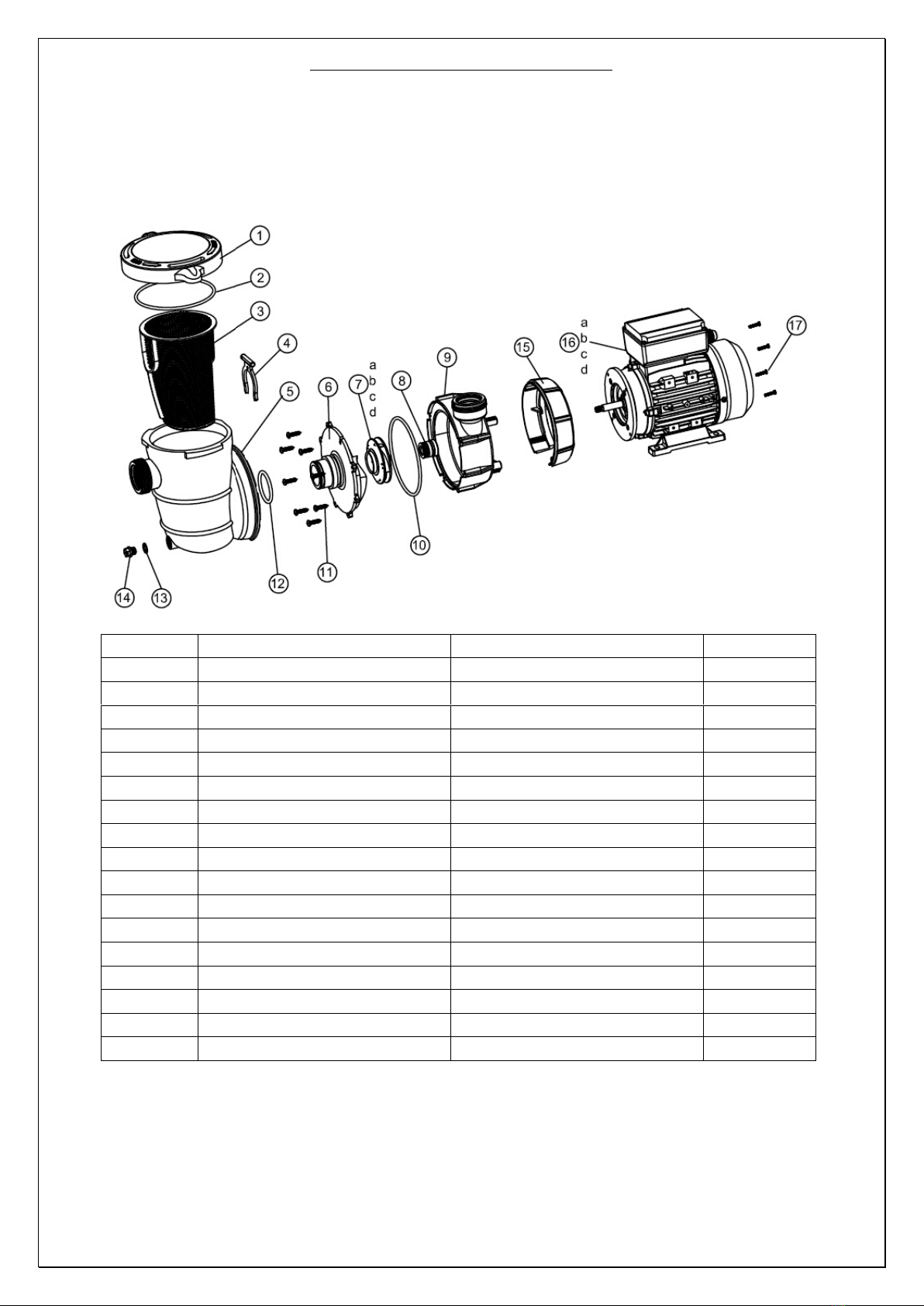

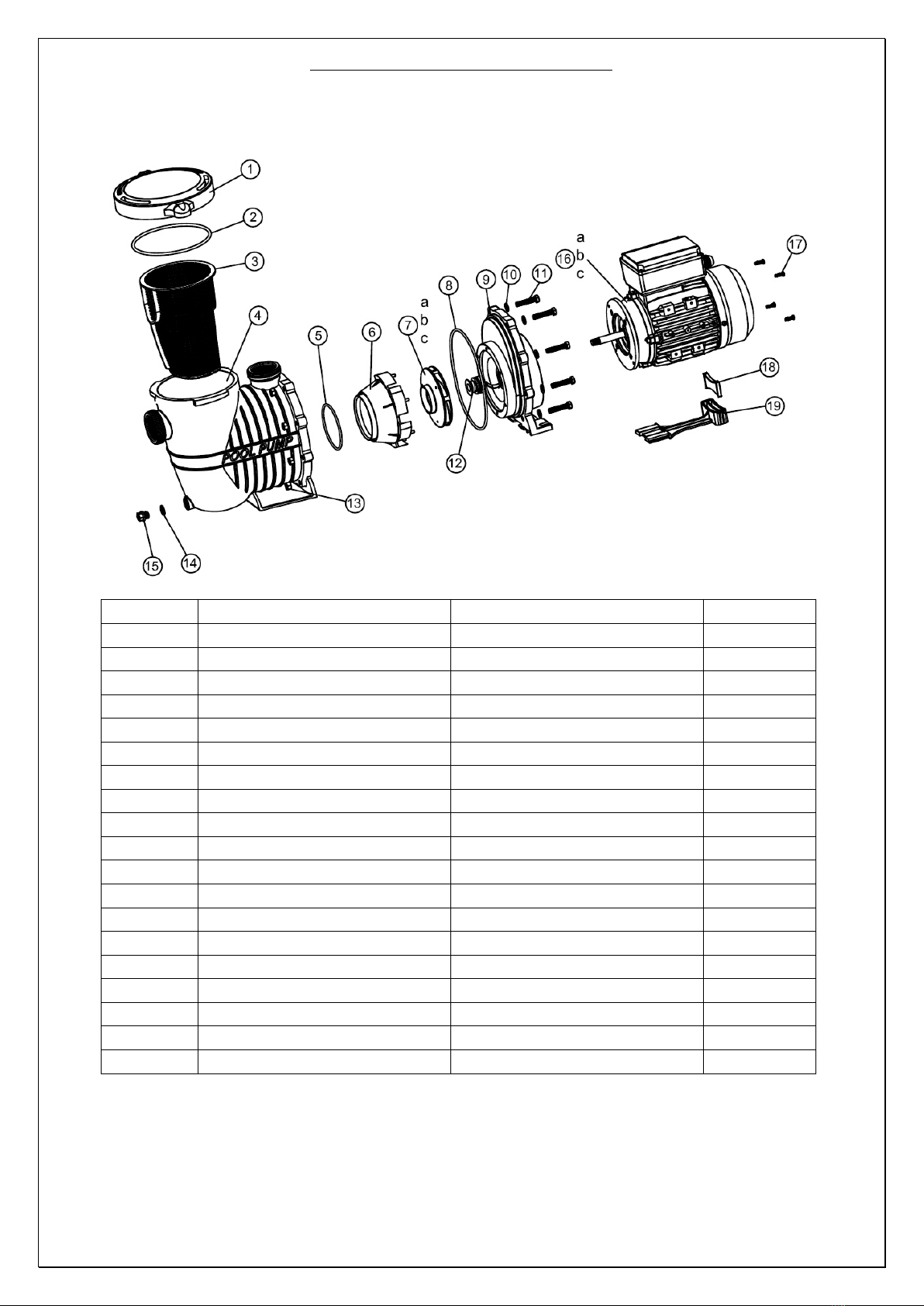

6.Part List.............................................12
7.Environmentally friendly disposal .....14
EU Declaration of Conformity...............15

Original User Manual –AREBOS Swimming Pool Pump
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this instruction manual must
also be handed over. Keep this manual for future reference. The drawings in this manual may not
correspond to the physical objects. Please refer to the physical objects.
1.Introduction and safety instructions
Introduction
•This instruction handbook is intended to familiarise you with the installation, use and
maintenance of the product. To install the unit safely and correctly, please read the
operating instructions before you start.
Explanation of the symbols
Warning! Read the safety instructions carefully. The Failure to follow the
safety precautions can result in serious injury or damage. Keep the operating
instructions in a safe place.
Use caution when using this article.
This product has been tested and certified by TÜV Rheinland.
The symbol "GS" stands for tested safety. Products marked
with this symbol comply with the requirements of the German
Product Safety Act (ProdSG).
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
Note: Pull out the mains plug!
Attention! Make sure the product is grounded!

Original User Manual –AREBOS Swimming Pool Pump
4
General safety instructions
•Your safety is of the most importance to us. Please make sure that you read this instruction
booklet before attempting to install and use the appliance. If you are unsure of any of the
information contained in this booklet, please contact the Retailer where you purchased your
unit.
•WARNING:Read all safety and usage instructions. Failure to follow the safety
information and instructions can cause electric shock, fire and/or serious injury. Keep all
safety and usage instructions for future reference.
•DO NOT use the product until you read the instruction manual.
•Make sure you have read the instruction manual thoroughly and understand the contents
before you start the installation.
•The instructions are in the interest of your safety.
•To operate the device safely, users must read and understand the instructions carefully
before first use.
•Users must follow all safety instructions. Otherwise, you and others may be injured.
•You must retain all application and safety instructions for further reference. If you are sharing
this device with another person, please give it to them.
•Serious injuries with fatal consequences are possible if these hazard warnings are not
observed.
•Please use the device according to the safety and technical requirements stated in the
manual.
•Any application other than that specified in the manual will be considered as an unauthorized
application. As a result, the resulting problems are vendor-independent.
•After opening the package, make sure that the product is complete.
•Check the device for transport damage. Immediately report damage to the carrier with which
the pump was delivered.
•If the pump is damaged or the scope of delivery is not complete, please do not use the
delivery and return it to your dealer.
•For damages caused by non-compliance, there is no warranty or guarantee.
•As a user of this device:
- You may be liable for damages to third parties caused by the use of the device.
- You are responsible for compliance with local safety and installation regulations.

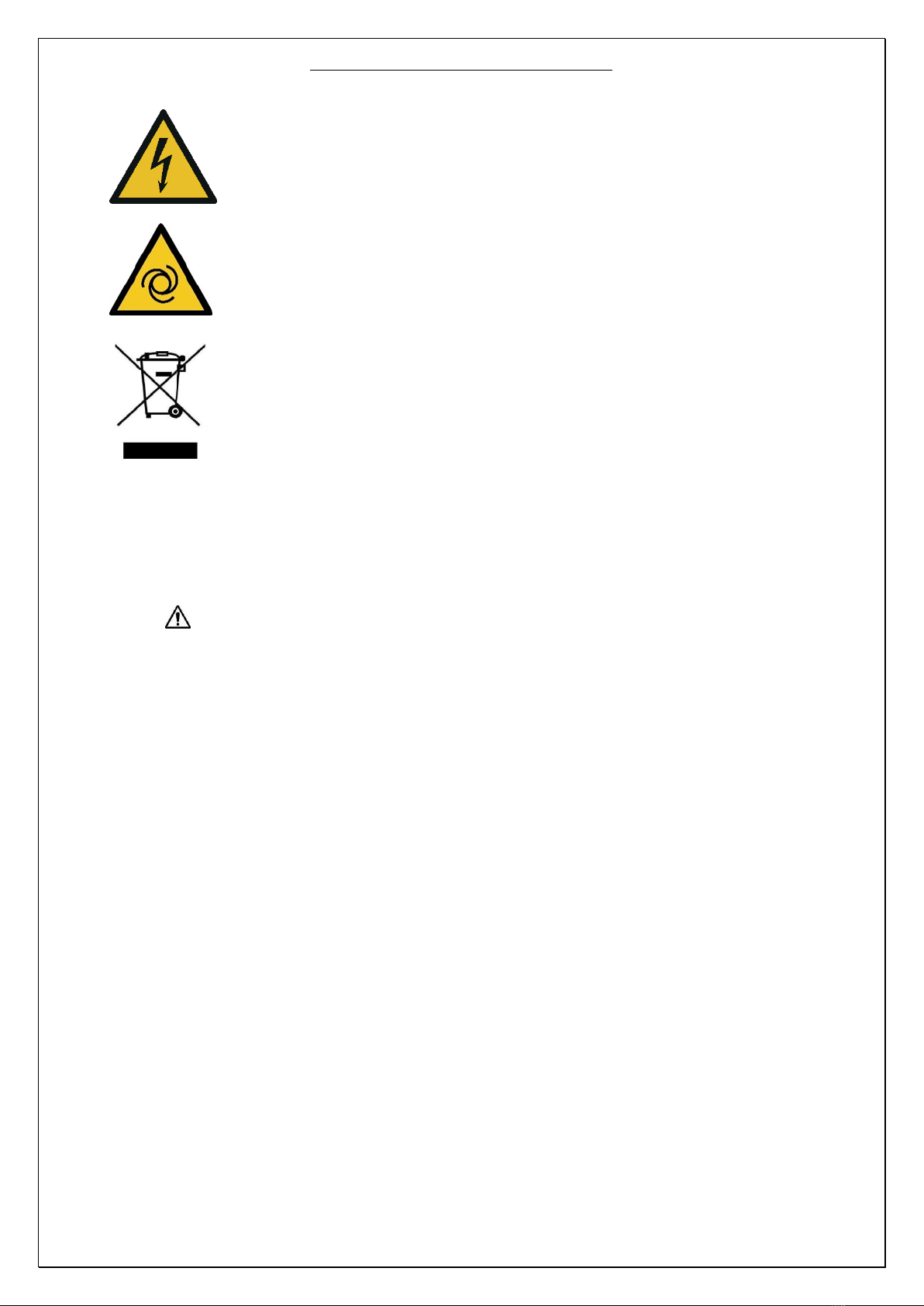

Warning of electrical voltage!
This product must not be disposed of with household waste!
Warning against automatic start!

Original User Manual –AREBOS Swimming Pool Pump
5
•Only use original parts. These replaceable spare parts are designed and manufactured
specifically for the device. If other spare parts are used, the warranty will be void and there is
a risk of injury.
Danger of electric shock
•Make sure that the sockets and their connections are protected against flooding and
moisture. The installation site must have a drain for collecting water or be elevated, so that
flooding is excluded.
•The pump may only be connected to power grids with the appropriate current consumption.
Properly, this is connected to a 230V 50Hz power outlet. Compare also the information on
the type plate.
•The pump may only be connected to sockets that have protective contacts. These must also
be installed, grounded and tested by qualified electricians.
•Attention: The pump should only be connected if the socket is protected by a RCCB (Residual
Current operated Circuit-Breaker) at a rated residual current of not more than 30 mA. If you
have any questions, please ask an electrician.
•If the pump is faulty, disconnect the plug from the socket.
If the pump is still connected to the mains, electric shocks may occur. There is an acute risk
of personal injury and further damage to the device.
•Do not expose the pump or other electrical parts directly to squirting water. Danger of a fatal
electric shock!
•Never touch the plug with wet hands! To disconnect the pump, pull directly on the plug but
not on the power cord.
•A possibly required extension cable must have a sufficient conductor cross-section. The cable
drum must be unrolled completely.
•Do not kink, squeeze, pull on or drive over the power and extension cables to prevent cable
breakage. Protect them from sharp edges.
•Lay the extension cables so that they do not get into the liquid to be pumped.
•The power cable of the pump must not be used to lift, move or fix the pump.
•Before each use, check the pump, power cord and power outlet for defects. If the power
cord is damaged, unplug it immediately. Please do not use the device if the power line is
damaged.
For your protection, please read these important instructions first.
WARNING
This equipment must be installed and serviced by a qualified technician.
Improper installation can create electrical hazards which could result in
property damage, serious injury or death. Improper installation will void the
warranty.
General safety rules
1. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

Original User Manual –AREBOS Swimming Pool Pump
6
2. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a
similarly qualified person in order to avoid a hazard
3. The pump must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA
4. The products mentioned in this manual are specially designed for the pre-filtering and re-
circulation of water in swimming pools and spas.
5. They are designed to work with clean water at a temperature not exceeding 40℃
6. The installation should be carried out in accordance to the safety instructions of swimming
pools, especially Standard HD 384.7.702, and the specific instructions for each facility.
7. The compulsory rules on accident prevention should be carefully followed.
8. Any modification of the pump requires the prior consent of the manufacturer. Original
replacement parts and accessories authorized by the manufacturer ensure a high level of
safety. The manufacturer of the pump assumes no liability for the damage and injuries caused
by un-authorized replacement parts and accessories.
9. During operation, some parts of the pump are subject to dangerous electric voltage. Work may
only be performed on each pump or on the equipment connected to it after disconnecting
them from the main power and after disconnecting the starting device.
10. The user should make sure that assembly and maintenance tasks are carried out by qualified
authorized persons and that these persons have first carefully read the instructions for service
and installation.
11. The operating safety of the pump is only guaranteed if the installation and service instructions
are correctly followed.
12. The limit values stated in the technical table should not be exceeded under any condition.
13. In the event of defective operation or fault, contact the technical support department of the
manufacturer or its nearest authorized agents.
14. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person to avoid a hazard.
15. The pump must not be used when people are in the water.
16. The pump must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
17. Children should be under close supervision to prevent them from playing with the pump.
18. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. The pump must be protected from running dry.
LOCATION
•The pump must be installed and placed to an enough distance away from the pool or water
source, to avoid the water from the pool or water source, to avoid the water pouring or
flowing onto the pump.
•The pump must also be in a position that enables easy access for periodic servicing. Care
must also be taken to position the pump in an area that is free from flooding in a well
ventilated and dry area.

Original User Manual –AREBOS Swimming Pool Pump
7
2.Installation
Adopt the latest technology when designing and manufacturing our pumps, a few simple precautions
during installation will ensure years of trouble free operation.
1. The pump suction line should not be smaller than 1 1/2" (40mm imperial) or 50mm true
metric.
2. The suction line is to have as few bends or elbows as possible. There must not be an air traps
on the suction line.
3. Installation shall arrange on a solid, flat foundation with the pump bolted securely to it.
4. The pump electrical cable must be wired for the proper voltage and current in accordance
with the wiring instructions.
5. All wiring (electrical) work must be carried out by licensed electricians and must be installed in
accordance to the local codes.
6. The motor must be grounded.
7. The weight of the plumbings and fittings is to be independently supported and not carried by
the pump.
8. The maximum total head (Hmax) of the pump (in metres) shown on the pump label should be
noted by the installer.
9. The permissible temperature is > 0˚C and < 40˚C. The pump should never be operated outside
of these temperatures, or damage may occur.
IMPORTANT ELECTRICAL NOTICE
The electrical installation is to be done by a licensed electrician.
Each pump requires a circuit breaker to separate the pump from the electrical supply.
The open contact distance of the circuit breaker is to be no less than 3mm.
The pump is to be supplied by an isolating transformer or supplied through a residual current device
(RCD) with a rated residual current not exceeding 30mA.
Check the pumps name plate for the following: Voltage, Amp draw and Cycle.
The power cord, including the ground wire shall have a quality of 245 IEC66 (HO7RN-F) for models
greater than 1kW power input.
For models less than 1kW input the quality shall be 245 IEC57 (H05RN-F).
All installations must be comply with local codes, based on IEC 364-7-702 requirements.
•RESPECT THE MINIMUM GAUGE GIVEN IN THE CHART OF THE TECHNICAL MANUAL.

Original User Manual –AREBOS Swimming Pool Pump
8
ELECTRICAL CONNECTION
Check that the information on the nameplate corresponds to the power supply.
Employ a competent electrician to ensure wiring installation is made in accordance with any local
electrical codes. Every motor requires either a fused disconnect switch or a circuit breaker.
A SINGLE PHASE MOTOR has a built in thermal overload switch.
PRIMING
The pump will prime and re-prime providing the filter tank water and there is sufficient supply
from the suction point. (It is for pump AR-HE-SP800S)
If you lose water from the filter tank it will be necessary to re-fill it before starting.
1. Remove the translucent lid and fill the filter tank with water.
2. Replace the lid ensuring the o-ring is correctly located and start the pump.
After you have done this allow a few minutes (maximum) running for the pump to start delivering
water.
WARNING
High suction lift or long suction lines will require additional time to prime and can severely affect the
performance of the pump. If the pump will not prime, repeat step 1 and 2 above.
The pumps are required AR-HE-SP600S worked or installed below the water level.
Mechanical seals if running dry can be damaged rapidly and may need to be replaced.
ENSURE that there is always adequate water in the filter tank before you start up.
If you are unable to prime the pump please see the trouble-shooting guide.
ENSURE that all suction and discharge valves are open before you start the pump, otherwise will
result in damage to the pump.
Pump Start Up
Do not operate pump until it has been primed as water acts to cool and lubricate the seal. For pumps
without strainer bodies and locater above water, close suction line valve and fill pump with water in
order to prime. For pumps with strainer bodies and located above water, prime by removing strainer
cover and filling strainer body with water. Pumps located below water level will selfprime if all piping
is also below water level. After pump has been primed, energize motor and open all suction and
discharge line valves. It may take some time for pump to remove air from suction lines. If no flow is
observed in five minutes, stop the motor and re-prime. If the pump fails to operate, check for air
leaks. Refer to Trouble Shooting section.
After about ten minutes of operation, check the return fittings for air bubbles. A continuous flow of
air indicates leaks in suction line. Locate and correct any leaks immediately.
CONTROLLING THE OUTPUT
Keep the gate valve in the suction line fully open during operation. Should it be necessary to control
the output, use a valve in the return line.
Caution: Do not retighten strainer Ring-Lok during operation.
Caution: Do not operate pump with closed suction or discharge valves.

Original User Manual –AREBOS Swimming Pool Pump
9
3.Maintenance
The strainer basket in the filter tank should be inspected and cleaned at regular intervals.
1. Remove lid and lift out basket.
2. Remove debris and hose off with clean water if necessary.
3. Inspect the lid gasket, lubricate with SILICON based grease only if needed. If it is damaged, pls
replace.
4. Replace the strainer.
5. Re-prime the filter tank.
6. Correctly locate the O-ring.
7. Replace the lid (hand tighten) only.
8. Switch on pump.
In Climates where the pump may be exposed to frost or freezing, care must be taken to ensure the
pump is protected from damage.
It is recommended that if the pump is not used during winter period it should be drained completely
and store pump in a dry location. Do not replace the drain plug. Store it in a safe place when not use.
An example would be store plug in the filter tank basket.
When you re activate the pump ensure all seals and O-rings are in operational condition, re-grease, if
necessary, replace if unsure of condition.
Check that the motor shaft moves freely before re-activation.
WARNING
1. When connecting electric cables to the motor of the pump, be careful to correctly arrange
them inside the connection box, verify that no bits of cable are left inside the box on closing it.
See that the ground wire is correctly connected. When connecting the motor, follow the
wiring diagram supplied with the pump.
2. Be especially careful that no water enters the motor or electrical parts under voltage.
3. In the event that the planned use is not as specified, adaptations and supplementary technical
rules may be necessary.
4. Before starting the pump, verify the calibration of the electrical protection devices of the
motor and that the protections against electrical and mechanical contacts are correctly
positioned and attached.
5. It is advisable to follow the steps listed below before handling the pump in any way.
a. Turn off the voltage to the pump.
b. Lock starting devices.
c. Verify that there is no voltage in the circuits, including ancillary devices and auxiliary
circuits.
d. Wait until motor stops completely.
The above list should be considered indicative and not binding for the purpose of safety; specific
safety rules may exist in particular regulations.
REGULARLY VERIFY
1. The correct attachments of the mechanical parts and of the support screws of the pump.
2. The correct position, attachment and condition of the supply cables and of the insulating parts.
3. The temperature of the motor. In the event of any excessive high, stop immediately and have
it repaired.

Original User Manual –AREBOS Swimming Pool Pump
10
4. The vibration of the pump. In the case of any excessive high, stop immediately and have it
repaired.
CAUTION
Owing to the complexity of the cases covered, the instructions for installation, use and maintenance
contained in this manual do not attempt to examine all possible and imaginable cases of service and
maintenance. If supplementary instructions are required or if special problems arise, do not hesitate
to contact the distributor or to address directly the manufacturer of the pump.
4.Technical Data
TYPE
Input
power
H．Max
Q．Max/min
V
HZ
IP
REMARK
AR-HE-SP600S
600W
8M
265L
220~240
50
IPX5
Single- speed
AR-HE-SP800S
800W
12M
250L
5.Trouble Shooting
SYMPTOMS
PROBABLE CAUSE
WHAT TO DO
Pump will not
prime
Suction air leak
Make sure water level is correct through suction
points. Ensure
baskets and strainers are free of debris. Tighten all
fittings/unions on
the suction side of the pump, remove and replace
mechanical seal.
No water in the pump
Make sure the filter tank if full
Closed valves or
blocked lines
Open all valves in system, clean skimmer and pump
basket, check
pump impeller of blockage
Motor will not
run
No power to motor
Check that all electrical switches are on. Ensure the
circuit breakers
are properly set. Check if timer is set properly. Check
motor wiring at
terminals
Pump jammed
With power switched off turn pump shaft (should
spn freely).

Original User Manual –AREBOS Swimming Pool Pump
11
Low flow
Dirty filter
Backwash or clean cartridge.
Dirty skimmer and
pump strainer
Clean skimmer and pump strainer.
Suction air leak
See 1
Closed valve or blocked
line
See 1
Motor runs hot
Low or incorrect voltage
Supply to be correct by electrician.
Motors running hot to touch is normal. Thermal
overload protector will function to turn them off if
there is an overload or excessive high temperature
problem.
Installed in direct
sunlight
Shield from weather
Poor ventilation
Do not tightly cover or enclose motor
Noise pump
operation
Bad bearing
Have electrician replace
Air leak in suction
See 1
Suction blockage
Locate and clean blockage
Disturbance in impeller
Contact supplier
Cavitations
Improve suction, reduce suction lift, reduce number
of fittings, increase pipe size, increase discharge
pressure and reduce flow by throttling discharge
valve.
Motor overload
cuts out
Motor not connected
properly
Have electrician check wiring.
Low incoming voltage
Voltage at motors should be no more than 6% above
or below nameplate voltage. Have electrician check
voltage, ensure pump is not running on an extension
cord, Report low supply to authorities.
Over load due to
binding in pump or
wrong size impeller
Contact supplier
Leaking
Leak between pump
housing and pump
cover
Change a new O-ring between pump housing and
pump cover
Leak between pump
and motor
Change a new pair of mechanical seal
WARNING
If the pump is within the stated warranty period and you experience faults always contact your
supplier.
Failure to do this may void warranty. Refer to warranty documentation supplied with pump.
All electrical work is to be carried out by a Qualified Electrician; under no circumstances should you
attempt repairs on the electrical components of pumps unless you are qualified to do so.

Original User Manual –AREBOS Swimming Pool Pump
12
6.Part List
Parts Listing: AR-HE-SP600S
Ref. No.
Part No.
Description
Qty
1
647252772000
Cover
1
2
65431042080
O-ring
1
3
647252704001
Basket
1
4
647252705080
Clip
1
5
647252703080
Strainer housing
1
6
647252702080
Pump cover
1
7
647252771
Impeller
1
8
65028003000
Seal assembly
1
9
647252701080
Pump housing
1
10
65431040080
O-ring
1
11
65212016000
Screw ST5.5X25
8
12
65431029080
O-RING
1
13
65432002080
Gasket
1
14
648860105080
Drain plug
1
15
647252708080
Motor mounting plate
16
65023002000
0.75HP motor
17
65226020000
Screw P+8#-32*5/8 UNC
4

Original User Manual –AREBOS Swimming Pool Pump
13
Parts Listing: AR-HE-SP800S
Ref. No.
Part No.
Description
Qty
1
647252772000
Cover
1
2
65431042080
O-ring
1
3
647252704001
Basket
1
4
647254201080
Pump housing
1
5
65431032080
O-ring
1
6
647254203080
Diffuser
1
7
647254271
Impeller
1
8
65431075080
O-ring
1
9
647254202080
Pump cover
1
10
65244005000
Gasket M8
8
11
65221009000
Screw M8X40
8
12
65028003000
Seal assembly
1
13
65231004106
Nut M8
8
14
65432002080
Gasket
1
15
648860105080
Drain plug
1
16
65023002000
0.75HP motor
1
17
65226020000
Screw P+8#-32*5/8 UNC
4
18
647254205080
Supporting
19
647254204080
Mounting foot

Original User Manual –AREBOS Swimming Pool Pump
14
7.Environmentally friendly disposal
Warning! from the risk of suffocation! Packaging material is dangerous for children. Never let
children play with packaging material.
Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
The symbol of the crossed-out dustbin on a Waste electrical or electronic
equipment indicates that it must not be disposed of with household waste at
the end of its life. Collection points for waste electrical and electronic
equipment are available free of charge in your area. You can obtain the
addresses from your city or local government. You can find out about other
return options created by us on our website www.arebos.de.
The separate collection of Waste electrical or electronic equipment is intended
to enable the reuse, recycling or other forms of recovery of Waste electrical or
electronic equipment and to avoid the negative consequences of disposal on
the environment and human health.
Our customer service number: Tel. [phone]
Fax: [phone] / E-Mail: [e-mail]
Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071

Original User Manual –AREBOS Swimming Pool Pump
15
EU Declaration of Conformity
We, the
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany,
hereby declare that the equipment described below, by virtue of its design and construction and in
the versions placed on the market by us, complies with the relevant essential health and safety
requirements of the EU directives.
Product name: AREBOS Swimming Pool Pump
Model name: 4252023111072 / 4252023111089
Article number: AR-HE-SP600S / AR-HE-SP800S
Should the appliance be modified without our consent, this declaration of conformity will lose its
validity.
Directives
This device complies with the following EU/EC directives:
AR-HE-SP600S
2006/42/ EC Machinery Directive
AR-HE-SP800S
2014/35/ EU Low Voltage Directive
EU Standard:
AR-HE-SP600S
EN 60335-1:2012+A11+A13+A1+A14+A2
EN 60335-2-41:2003+A1+A2
EN 62233:2008
EN ISO 12100:2010
EK1 527-12 Rev.2
AR-HE-SP800S
EN 60335-1:2012+A11
EN 60335-2-41:2003+A1+A2
EN 62233:2008
AfPS GS 2014:01 Par.3.1
Date/Signature Manufacturer/Place: Würzburg, November 17, 2022
Signature:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Representative of these instructions for use/technical data:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
