500 Watt Hammer Drill
instruction manual
pDi13ye3
ORIGINAL INSTRUCTIONS

HELPLINE NO 08448012949
2
ORIGINAL INSTRUCTIONS
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar

HELPLINE NO 08448012949
3
ORIGINAL INSTRUCTIONS
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool
bits etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5. SERVICE
a) Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
HAND DRILL SAFETY
INSTRUCTIONS
1.Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
2.Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
ADDITIONAL SAFETY RULES
FOR HAMMER
Always wear a dust mask.
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Warning
Double insulation
Wear eye protection
Wear ear protection
Wear dust mask
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice.

HELPLINE NO 08448012949
4
ORIGINAL INSTRUCTIONS
COMPONENT LIST
1. Chuck
2. Depth gauge
3. Drill/Impact action selector switch
4. Forward/reverse selector switch
5. Switch lock button
6. Chuck key
7. Variable speed control
8. On/Off switch
9. Auxiliary handle
* Not all the accessories illustrated or described are included in standard delivery.
1 2 3
4
7
9
8
5
6

HELPLINE NO 08448012949
5
ORIGINAL INSTRUCTIONS
TECHNICAL DATA
Type PDI13YE3 (PDI-designation of machinery, representative of Impact Drill)
Rated voltage 230-240V~50Hz
Input power 500W
No load speed 0-3000/min
Chuck capacity 13mm
Drilling capacity
Steel 10mm
Concrete 13mm
Wood 25mm
Protection class /II
Weight 1.9kg
NOISE INFORMATION
A weighted sound pressure LpA=95dB(A)
A weighted sound power LwA=106dB(A)
KpA&KwA 3.0dB(A)
Wear ear protection when sound pressure is over 80dB(A)
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 60745:
Impact drilling into concrete Vibration emission value ah = 13.95m/s2
Uncertainty K =1.5m/s²
Drilling into metal Vibration emission value ah = 3.07m/s2
Uncertainty K =1.5m/s²
WARNING: The vibration emission value during actual use of the power tool can differ from
the declared value depending on the ways in which the tool is used dependant on the following
examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
To use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should
also take account of all parts of the operating cycle such as the times when the tool is switched
off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure
level over the total working period.

HELPLINE NO 08448012949
6
ORIGINAL INSTRUCTIONS
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10oC or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
Auxiliary handle 1
Depth gauge 1
Chuck key 1
Masonry drill bit (6mm) 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use
good quality accessories marked with a well-known brand name. Choose the type according to the work
you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist
you and offer advice.

HELPLINE NO 08448012949
7
ORIGINAL INSTRUCTIONS
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
The machine is intended for impact drilling in
brick, concrete and stone as well as for drilling in
wood, metal and plastic. Machines with electronic
control and right/left rotation are also suitable for
thread-cutting.

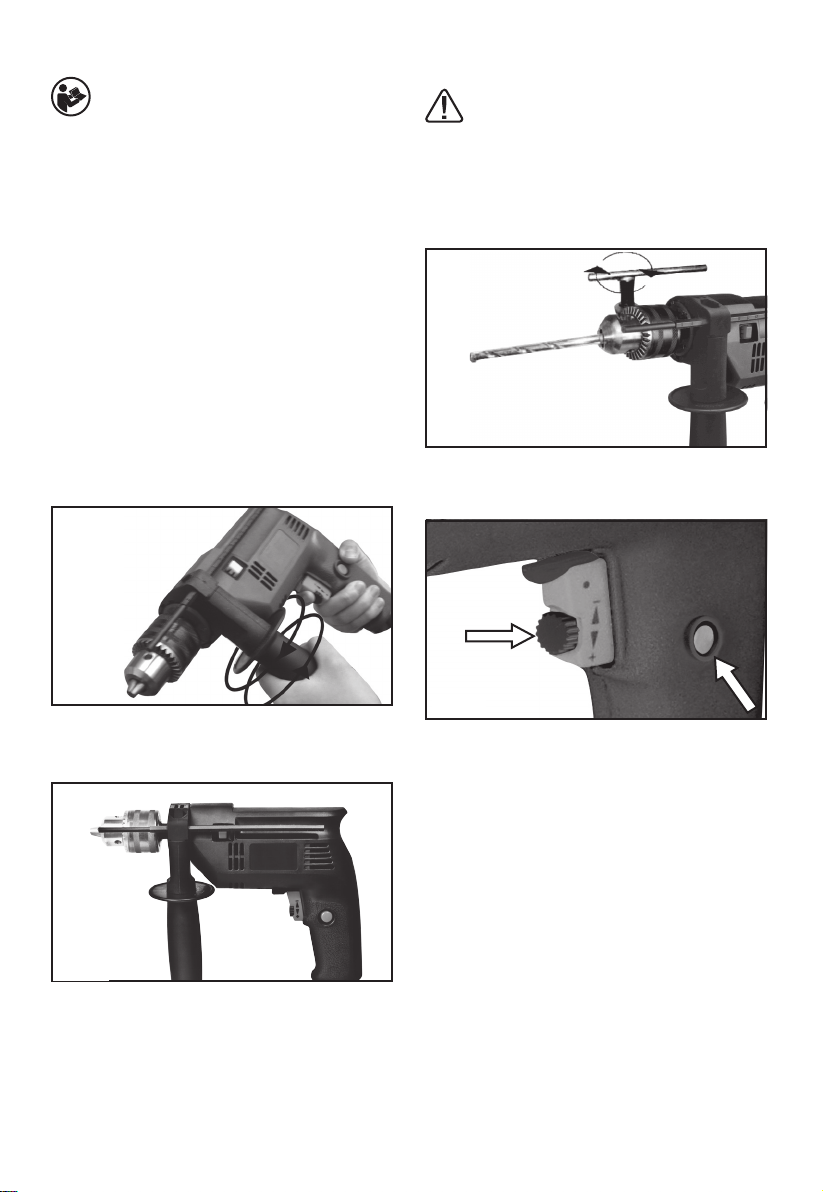

1. INSTALLING THE AUXILIARY HANDLE
(See Fig. A)
For your personal safety we recommend using
the auxiliary handle at all times.
To t the handle, loosen the bottom of the handle
anti-clockwise and slide the clamping loop over
the handle collar. Rotate the handle around the
handle collar until the handle is in the desired
position. Tighten fully. If you are right handed t
the handle as shown in A. If you are left handed
t the handle the other way round.
2. INSTALLING THE DEPTH GAUGE
(See Fig. B)
Fig.B
The depth gauge can be used to set a constant
depth to drill. To use the depth gauge, loosen the
handle by rotating the bottom section of handle
anti-clockwise. Insert the depth gauge through
hole in handle. Slide the depth gauge to required
depth and tighten fully.
3. INSERTING A TOOL INTO CHUCK
(See Fig. C)
WARNING: Before installing tool, remove
mains plug from mains supply.
Remove chuck key from key storage tab at base
of drill handle, place key into chuck, turn key anti-
clockwise to undo/loosen chuck, inset drill/tool
and rmly tighten chuck by turning key clockwise.
Remove key and replace in storage tab at base of
drill handle.
Fig.C
4. OPERATING THE ON/OFF SWITCH
(See Fig. D)
Fig.D
Press the on/off switch in for operation, release
switch to stop.
If you wish to use the drill continuously the switch
lock button can be pushed in after the on/off
switch has been depressed. To release the lock
button simply depress on/off switch fully, the
button will automatically release.
5. VARIABLE SPEED CONTROL SELECTOR
(See Fig. E)
The maximum speed can be altered by turning
the speed control. Turn clockwise to increase and
anti-clockwise to decrease speed. The speed
of the drill varies with the amount of pressure
applied to the on/off switch, i.e. more pressure for
higher speed.
Fig.A

HELPLINE NO 08448012949
8
ORIGINAL INSTRUCTIONS
Fig.E
6. CHANGING ROTATIONAL DIRECTION
(See Fig. F)
To change the rotational direction, push the
forward/reverse selector switch to the “R” position
indicated on your drill. The rotation will now
be forward rotation. Push the forward/reverse
selector switch to “L” position indicated on your
drill. The rotation will be reverse rotation.
Fig.F
Reverse rotation
(L)
Forward rotation
(R)
NOTE: Never change the forward/reverse
switch whilst the drill in operation or the on/
off switch is locked.
7. DRILL/IMPACT ACTION SWITCH
(See Fig. G)
When drilling masonry and concrete push the
drill/impact action selector switch into the hammer
position “ ”. When drilling wood, metal, plastic
push the switch into the drill position “ ”.
Fig.G
Hammer Drill
WORKING HINTS FOR YOUR
IMPACT DRILL
1. DRILLING MASONRY AND CONCRETE
Select the drill/impact action selector switch to the
“hammer symbol” position. Tungsten carbide drill
bits should always be used for drilling masonry,
concrete etc with a high speed.
2. DRILLING STEEL
Select the drill/impact action selector switch to
the “drill symbol” position. HSS drill bits should
always be used for drilling steel with a lower
speed.
3. SCREW DRIVING
Select the drill/impact action selector switch to the
“drill symbol” position. Use a low speed to drive in
or remove screws.
4. PILOT HOLES
When drilling a large hole in tough material (i.e.
steel), we recommend drilling a small pilot hole
rst before using a large drill bit.
5. DRILLING TILES
Select the drill/impact action selector switch to the
“drill symbol” position to drill the tile. When tile has
been penetrated, switch over to “hammer symbol”
position.
6. COOL THE MOTOR
If your power tool becomes too hot, set the speed
to maximum and run no load for 2-3 minutes to
cool the motor.
MAINTENANCE
1. Your power tool requires no additional
lubrication or maintenance. There are no user
serviceable parts in your power tool.
2. Never use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth.
3. Always store your power tool in a dry place.
4. Keep the motor ventilation slots clean.
5. If you see some sparks ashing in the
ventilation slots, this is normal and will not
damage your power tool.
6. If the supply cord of this power tool is
damaged, it must be replaced by a specially
prepared cord available through the service
organization.

HELPLINE NO 08448012949
9
ORIGINAL INSTRUCTIONS
TROUBLESHOOTING
1. If your drill will not operate, check the power at
the mains plug.
2. If the drill is not cutting properly, check the
drill bit for sharpness, replace drill bit if worn.
Check that the drill is set to forward rotation for
normal use.
3. If a fault can not be rectied return the drill to
an authorized dealer for repair.
PLUG REPLACEMENT
Your Power Tool is supplied with a tted plug,
however if you need to t a new plug follow
the instruction below.
IMPORTANT
The wires in the mains lead are coloured in
accordance with the following code:
Blue = Neutral Brown = Live
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
The wire which is coloured blue must be
connected to the terminal which is marked
with N.
The wire which is coloured brown must be
connected to the terminal which is marked with
the letter L .
If a 13 AMP (BS 1363/A) Plug is used, a 13 AMP
Fuse must be tted, or if any other type of plug is
used a 13 AMP Fuse must be tted, either in the
Plug or Adaptor, or on the Distribution Board.
NOTE: If a moulded plug is tted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed to
prevent engaging into a socket.
If the supply cord is damaged it must be replaced
by a service agent or a similarly qualied person
in order to avoid hazard.

HELPLINE NO 08448012949
10
ORIGINAL INSTRUCTIONS
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
If faults can not be remedied, contact the Helpline on 08448012949
GUARANTEE
This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 12 months. This does not
cover the product where the fault is due to misuse, abuse, use in contravention of the instructions,
or where the product has been the subject of unauthorised modications or alterations, or has been
the subject of commercial use. In the event of a problem with the product within the guarantee period
please return it to your nearest Argos store. If the item is shown to have an inherent defect present at
the time of sale, the store will provide you with a replacement. Your statutory rights remain unaffected.
Guarantor: Argos Ltd, MK9 2NW
Issue1 4/2012
