Service Manual for Volumetric Infusion Pump
ARGUS 707 V
Made in Switzerland
ARGUS Medical AG, CH-3627 Heimberg / Switzerland
(a member of the CODAN group)

14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 1 / 48
TABLE OF CONTENTS
1. INTRODUCTION ...........................................................................................................4
1.1. General ............................................................................................................................. 4
2. PUMP CONFIGURATIONS...........................................................................................4
2.1. General ............................................................................................................................. 4
2.2. Interrogation mode (without ARGUS service) ................................................................... 5
2.3. Configuration mode (without ARGUS service).................................................................. 6
2.4. First activation of a PIN code (write protection) ................................................................ 7
2.5. Changing an existing PIN code......................................................................................... 8
2.6. Address list of the pump configuration (without ARGUS service) ..................................... 9
2.7. Index list of the pump configuration (with ARGUS service) ............................................ 10
2.8. Special configuration options (with ARGUS service) ...................................................... 14
2.9. Medication list ................................................................................................................. 15
3. Serial communication of the pump ..........................................................................18
3.1. General ........................................................................................................................... 18
3.2. Serial communication protocol........................................................................................ 18
4. ARGUS service...........................................................................................................19
4.1. General ........................................................................................................................... 19
4.2. ARGUS service – Configuration...................................................................................... 20
4.3. ARGUS service - Calibration (volumetric pums only) ..................................................... 21
4.4. ARGUS service - Toolbox............................................................................................... 22
5. SOFTWARE UPDATES ..............................................................................................26
5.1. General ........................................................................................................................... 26
5.2. Requirements for a software update............................................................................... 26
5.3. Software update procedure............................................................................................. 26
5.4. Safety aspects................................................................................................................. 28
6. MAINTENANCE ..........................................................................................................29
6.1. General ........................................................................................................................... 29
6.2. Recalibration ................................................................................................................... 29
6.3. Pressure calibration ........................................................................................................ 30
6.4. Pressure control measurement....................................................................................... 35
6.5. Volume calibration .......................................................................................................... 36
6.6. Pump specifications ........................................................................................................ 37
6.7. Fault codes ..................................................................................................................... 38
7. REPLACEMENT OF PARTS.......................................................................................39
7.1. General ........................................................................................................................... 39
7.2. Disassembling of the ARGUS 707 V............................................................................... 39
7.3. Spare parts ..................................................................................................................... 43
8. WIRING DIAGRAMM...................................................................................................46
9. BLOC SCHEMATIC ....................................................................................................46
10. SAFETY STANDARD CHECK....................................................................................47
11. REPAIR ORDER FORM..............................................................................................48

INTRODUCTION
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 2 / 48

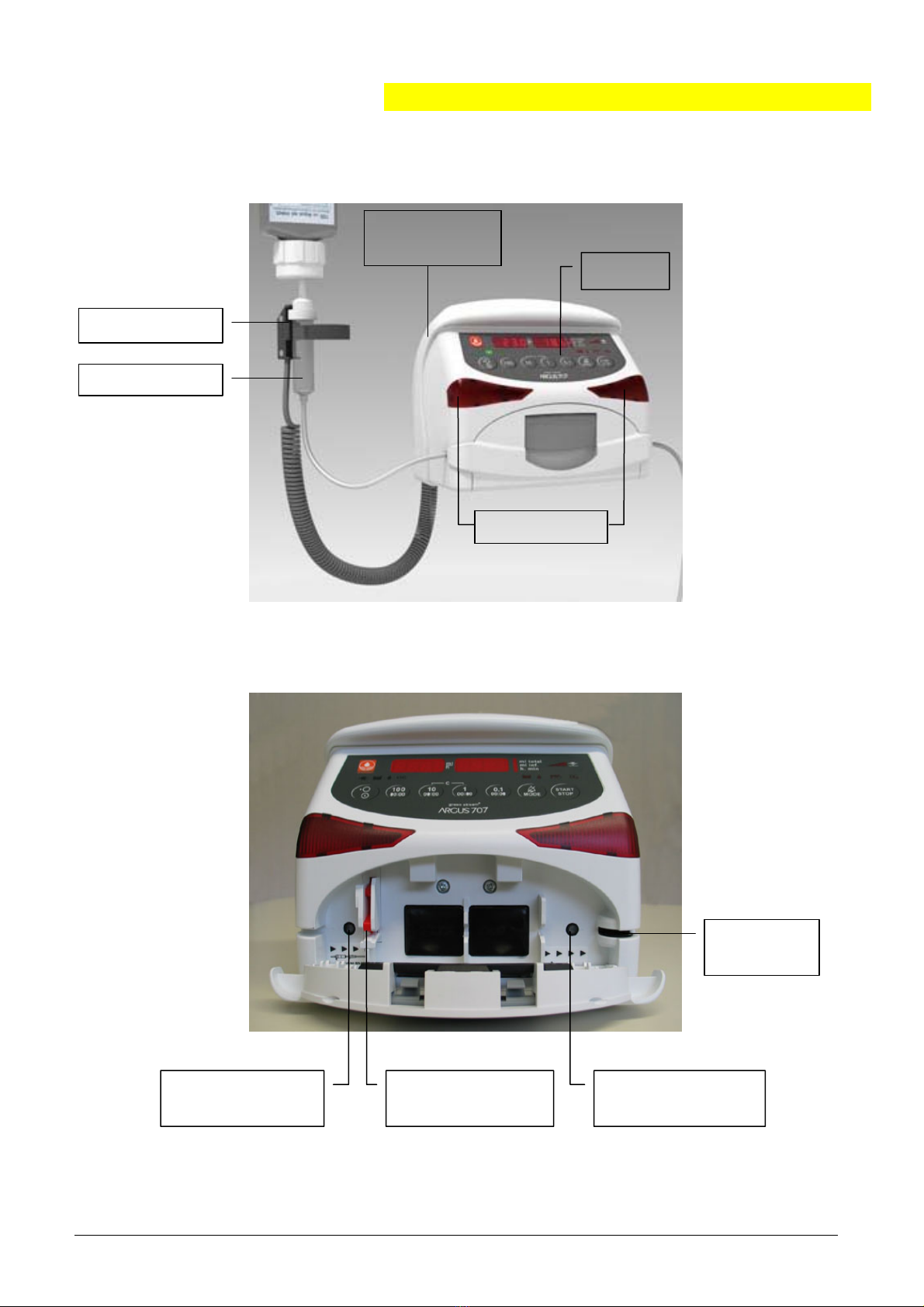

Global alarm
Display
Drop detector
Dro
p
chambe
r
Park area for
drop detector
Air bubble
detector
Pressure sensor
„downstream“
automatic
„free-flow“-clamp
Pressure sensor
„upstream“

INTRODUCTION
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 3 / 48

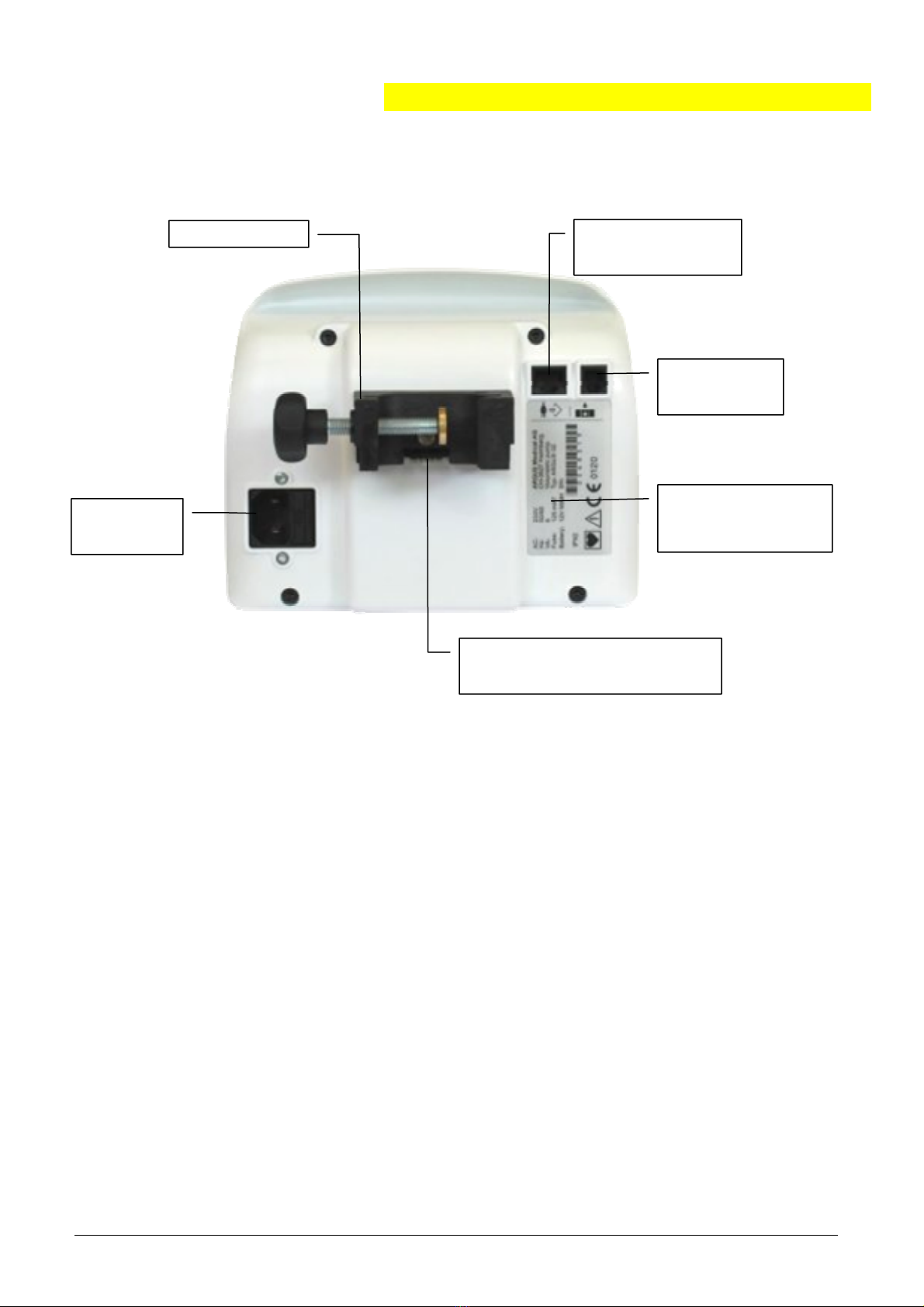

AC power
connection
DC-connection & QUICK
®
100
Docking Station interface
Staff alert and
RS-232-connection
Drop detector
connection
Identification plate
with pump serial
number
Universal clamp

INTRODUCTION
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 4 / 48
1. INTRODUCTION
1.1. General
IMPORTANT!
This service manual is intended for the exclusive use of authorized persons who
have been trained by ARGUS Medical AG in the maintenance and repair of the
ARGUS 707 V infusion pump.
The service manual is meant to be used together with the user manual.
IMPORTANT!
ARGUS Medical AG shall not assume any responsibility for any manipulations
which have been carried out on the ARGUS 707 V infusion pump by a non-
authorized person.
CAUTION!
The ARGUS 707 V infusion pump may only be used with spare parts, accessories,
consumables and IV-sets with Luer-Lock connections recommended by ARGUS
Medical AG. The functional safety of the pump is not guaranteed if non approved
materials are used. The safety of the patient may be endangered.
This manual contains the latest data available. It is subject to further modifications
in accordance with technical improvements.
2. PUMP CONFIGURATIONS
2.1. General
CAUTION!
The configuration possibilities with the “ARGUS service” PC utility tool and without
PC assistance constitute a modification of the pump and may only be carried out by
authorized persons!
CAUTION!
After changing the configuration a function check and a control measurement has to
be performed!

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 5 / 48
2. Press the
“START/
STOP” key.
4. To quit the interro-
gation mode press
the “ON/OFF” key
at least 2 seconds.
3. Enter the requested address (see
chapter 2.6), e.g. 5. The pro-
grammed value of the address 5
appears in the right hand display.

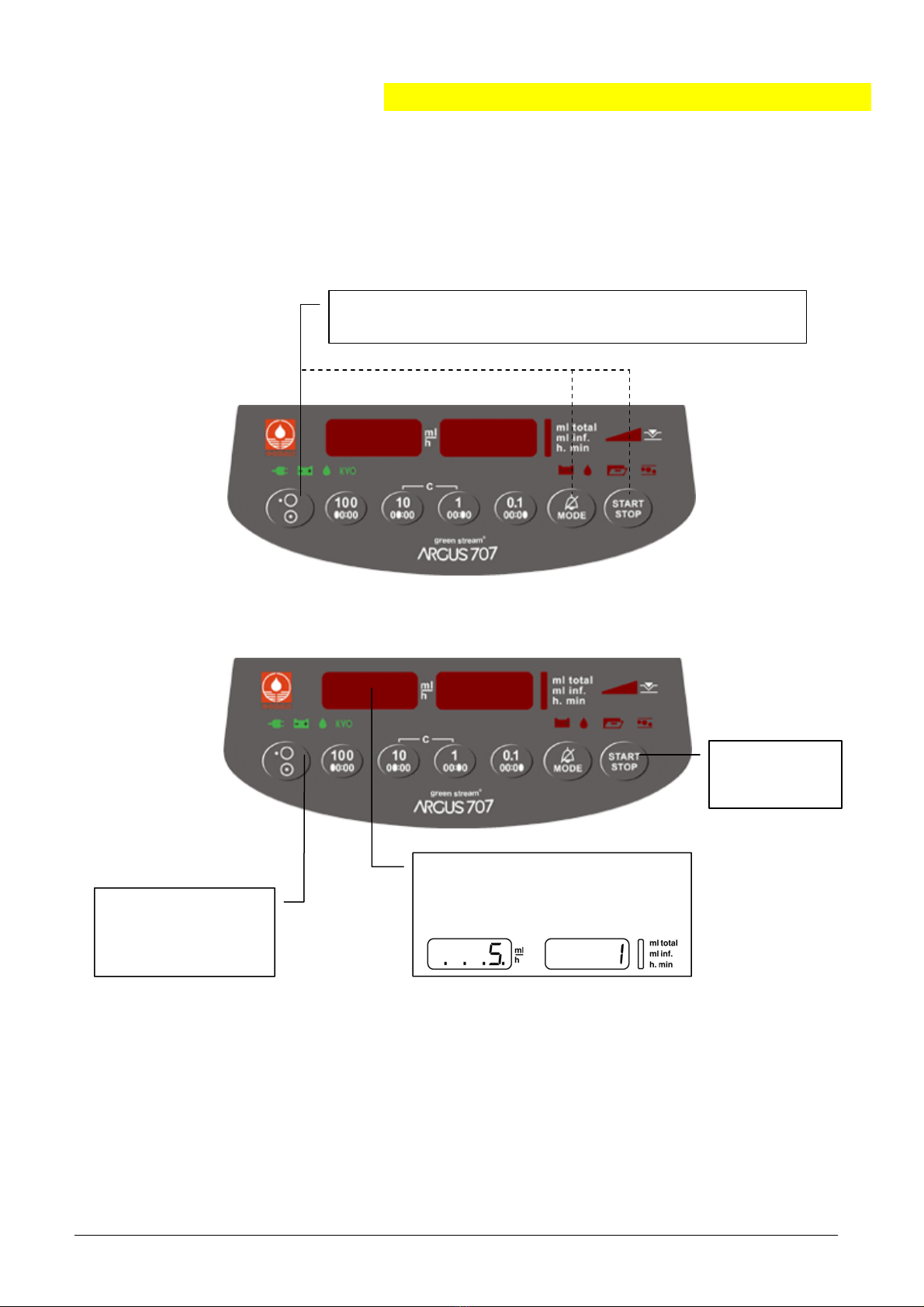

2.2. Interrogation mode (without ARGUS service)
With the interrogation mode you can read the present keypad configuration of the
pump without the possibility to modify any configurations. For a complete overview,
please take the “ARGUS service” PC-tool!
Flashing decimal points indicate which display is ready to accept an input by the
keys 100, 10 & 1.
In the interrogation mode the left hand display shows the address and the right
hand display shows the according value configured at this address. Please refer
to chapter 2.6. where the meanings of the addresses are explained.
To modify any configuration data you have to go into the configuration mode.
1. To enter into the interrogation mode, switch the pump on while
keeping the keys “MODE” and “START/STOP” pressed.
70
7
R
o
P
g
1
... .
5

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 6 / 48
5. Enter the PIN Code. If no PIN code
was configured, no entry is required
2. Press key “START”
3. Press key “MODE”
4. Press key “START” again.
The display will show “Cod ----“

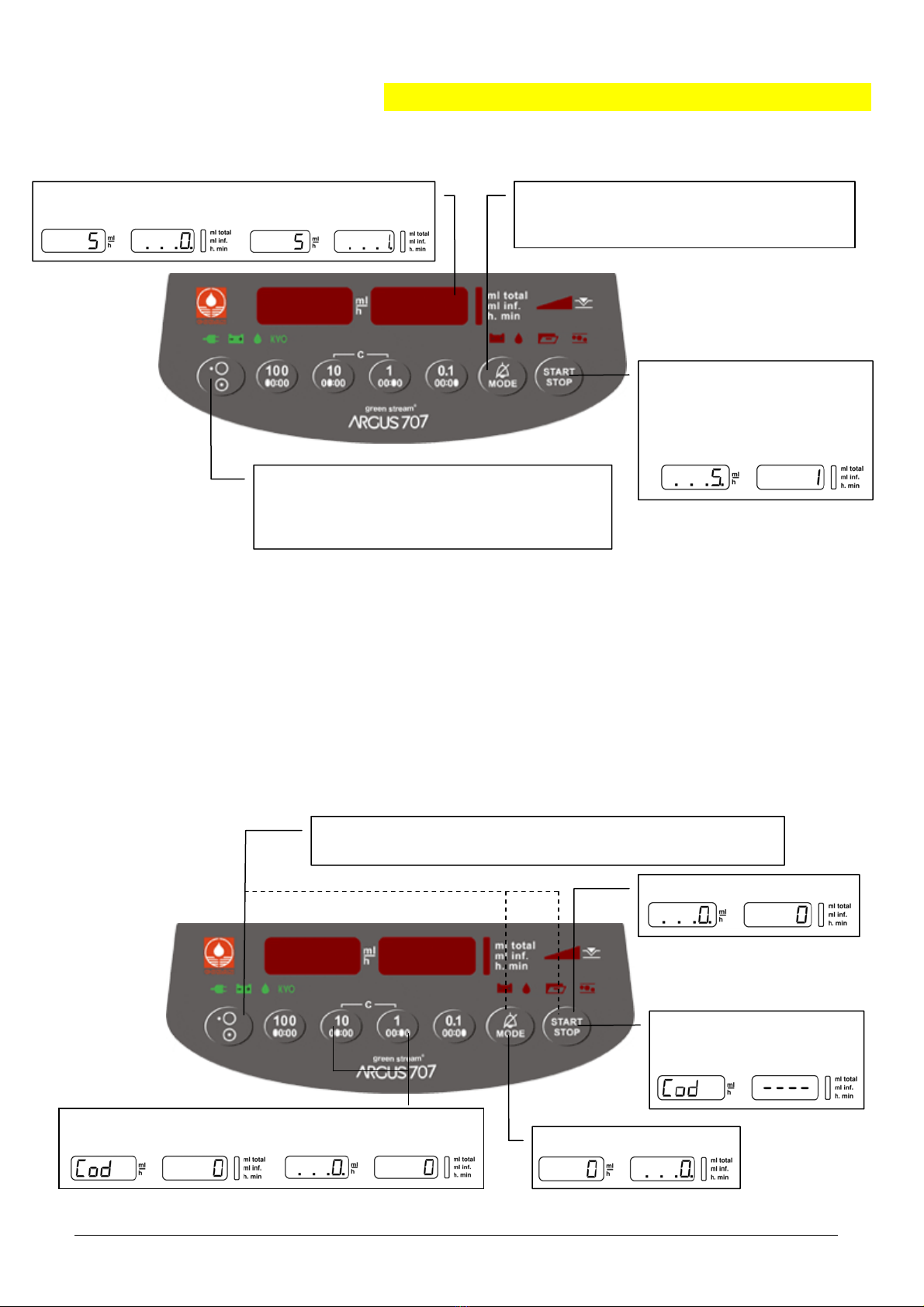

2.3. Configuration mode (without ARGUS service)
The configuration mode permit you to modify the pump keypad configuration
manually using the keypad. Please refer to chapter 2.6. where the meaning of the
adresses are explained. To have access to all configuration options, please use the
“ARGUS service” PC-tool!
2.3.1. Step 1
2.3.2. Step 2
You have now access to all addresses in the list of chapter 2.6.
Select therefore any address in the left display (see next page).
Cod
---
-
70
7
p
1. To enter into the configuration mode, switch the pump on
while keeping the keys “MODE” and “START/STOP” pressed.
6. Press key “START”
to acknowledge the
entered PIN code
If the PIN was not
accepted, the display
will change back to
point 5.
r
o
g

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 7 / 48
7. After entering an address e.g. 5 press the
key “MODE”. The flashing decimal points
will change to the right hand display.
9. Press key “START” to ac-
knowledge the value en-
tered. The flashing decimal
points change back to the
left hand display.
8. Enter now the value on the right hand display. The
range of the value is given by the table in chap.2.6
10.To quit the configuration mode press the
“ON/OFF” key at least 2 seconds.
Changes in configuration become active,
after the pump is switched on normally again.
2. Press key “START”
3. Press key “MODE”
4. Press key “START”
again. The display will
show “Cod ----“.
2.3.3. Step 3
Important remark:
Invalid values entered will be corrected automatically by the pump to the maxima or
minima value allowed for the according address!
2.4. First activation of a PIN code (write protection)
The activation of a PIN code allows you to protect the configuration from unauthor-
ized access. To activate the PIN code, enter into the configuration mode.
5
... .
1. To enter into the configuration mode, switch the pump on
while keeping the keys “MODE” and “START/STOP” pressed.
70
7
5. Press “MODE” key (Code “0” will be set) then “START”
key to acknowledge the entered PIN code “0”.
R
o
P
g
0

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 8 / 48
8. Press key “START” to
acknowledge to new PIN.
6. Press the “MODE” key.
The flashing decimal
points will change to the
right hand display
CAUTION!
After you switch the pump OFF and ON again you can enter into the configuration
mode only, if you enter the correct PIN code.
e.g.
Please note: The interrogation mode can always be accessed without the PIN.
2.5. Changing an existing PIN code
Enter the configuration mode using present PIN, select add. “0” and set the new
code.
Enter actual PIN code and confirm with “START” key.
Press “MODE” key (#0). The flashing decimal points
will change to the right hand display.
Enter the new PIN code and press the “START/STOP”
key to acknowledge the entered code.
0
7. Enter now the new PIN Code (max. 4 digit number).
Please remember this code, it will never be visible again!
e.g.
... .
0

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 9 / 48
2.6. Address list of the pump configuration (without ARGUS service)
The following list declares the possible configuration options which can be
performed on the pump keypad without using the PC.
All these options can also be configured by the PC-Software “ARGUS service”.
Address Default Function Unit Range
left display
Index
PC
right display
1 2 No Key ON/OFF only at stop valid - 0=No / 1=Yes
2 10 No Operation without drop detector - 0=No / 1=Yes
3 11 No Recall of the last used ml/h rate - 0=No / 1=Yes
4 19 No Buzzer at start - 0=No / 1=Yes
5 44 Yes Automatic pressure release - 0=No / 1=Yes
6 49 No Alarm acknowledge with key MODE - 0=No / 1=Yes
100 361 5 Key ON/OFF delay time • 0.1 s 0 - 31
101 362 8 Display brightness level 2 - 15
102 363 7 Buzzer volume level 5 - 10
103 316 9 Default pressure limit (IV-set 1) • 100 mbar 1 - 10
104 318 20 Drop rate window centre (IV-set 1) Drops/ml 10 - 65
200 317 250 Air bubble size (IV-set 1) µl 50 - 1000
399 - 707 Enter the calibration menu (volume) - 123
- 707 Enter the calibration menu (pressure) - 1234
Note!
The address does not correspond with the index used by the “ARGUS service” tool.

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 10 / 48
2.7. Index list of the pump configuration (with ARGUS service)
Index PC Add. Default Function Unit Range
1 Yes Run indication by running decimal point - No / Yes
2 1 No Key ON/OFF only at stop valid - No / Yes
3 No Rate change allowed only at STOP - No / Yes
4 No Key STOP delayed # 361 - No / Yes
5 No Second entry of rate # 3=Yes - No / Yes
6 No Static alarm (staff alerting system) - No / Yes
7 No Display elapsed time in run mode # 8=No - No / Yes
8 No Display remaining time # 7=Yes - No / Yes
9
10 2 No Operation without drop detector - No / Yes
11 3 Yes Recall of ml/h rate at next power on - No / Yes
12 No Recall of ml total at next power on - No / Yes
13 No Recall of ml inf. at next power on - No / Yes
14 No SBS (step by step function) - No / Yes
15 No Display VTBI (volume to be infused) - No / Yes
16 No Display “Set-X” if only one set is enabled - No / Yes
17 Yes KVO (KOR) enabled # 60 - No / Yes
18 No Drop alarm only if bottle empty # 10=No, →trA - No / Yes
19 4 No Buzzer at start - No / Yes
20 No Menu Clr (clear ml inf.) # 15=No - No / Yes
21
22 No Menu trA (transport) # 10, 18=No - No / Yes
23 Yes Menu PrL (pressure alarm limit) - No / Yes
24 Yes Menu CAP (battery capacity) - No / Yes
25 No Menu SEt Fill (prime IV set)
26 No Menu InF (ml inf. since last power on) - No / Yes
27 No Menu dLo (data lock) - No / Yes
28 No Menu Stb (stand by) - No / Yes
29 No Menu Med (medication name) - No / Yes
30 No Menu tM (timer alarm) - No / Yes
31
32 No Menu boL (bolus release) - No / Yes
33 No Menu boLr (bolus rate) # 32=Yes - No / Yes
34 No Menu tot (bolus total) # 32=Yes - No / Yes
35
36
37
38 No Automatic bolus application # 32, 34=Yes - No / Yes
39 No Neonatology mode accessible in PrL menu - No / Yes
40
41 No Clear ml/h after infusion completed - No / Yes
42 No Clear ml total after infusion completed # 41=Yes - No / Yes
43 No Air volume accumulated - No / Yes
44 5 Yes Automatic pressure release after occlusion - No / Yes
45 Yes Pressure display ON (LED bar graph - 20/40/60/80/100%) - No / Yes
46 No Pressure display with indicator # 45=Yes - No / Yes
47 No Stand by- and battery pre alarm low volume - No / Yes
48 No Flashing numeric display at alarm - No / Yes
49 6 No Alarm acknowledge only with key MODE - No / Yes

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 11 / 48
50 No Start with ≥1 bar pressure allowed - No / Yes
51 Yes Enable upstream occlusion detection - No / Yes
52
53
54
55 No Select RJ-45 connector for serial interface - No / Yes
56 Yes Medication display alternate # 29=Yes - No / Yes
60 No KVO only after infusion completed - No / Yes
65 No Clear and continue # 15=No - No / Yes
101 Yes Set 1 enabled - No / Yes
102 No Set 2 enabled - No / Yes
103 No Set 3 enabled - No / Yes
104 No Set 4 enabled - No / Yes
105 No Automatic return on default set 1 after power up # 101=Yes - No / Yes
201 1065 Correction at 1 ml/h ratio 900 - 1100
202 1054 Correction at 3 ml/h ratio 900 - 1100
203 1044 Correction at 5 ml/h ratio 900 - 1100
204 1035 Correction at 10 ml/h ratio 900 - 1100
205 1027 Correction at 25 ml/h ratio 900 - 1100
206 1020 Correction at 50 ml/h ratio 900 - 1100
207 1014 Correction at 75 ml/h ratio 900 - 1100
208 1008 Correction at 100 ml/h ratio 900 - 1100
209 999 Correction at 150 ml/h ratio 900 -1100
210 988 Correction at 200 ml/h ratio 900 - 1100
211 976 Correction at 250 ml/h ratio 900 - 1100
212 967 Correction at 300 ml/h ratio 900 - 1100
213 952 Correction at 400 ml/h ratio 900 - 1100
214 942 Correction at 500 ml/h ratio 900 - 1100
215 925 Correction at 750 ml/h ratio 900 - 1100
216 910 Correction at 999 ml/h ratio 900 - 1100
217 1000 Correction at 1200 ml/h
SET 1
Do not change
these values unless
explicitly trained
ratio 1000-1100
221 1065 Correction at 1 ml/h ratio 900 - 1100
222 1054 Correction at 3 ml/h ratio 900 - 1100
223 1044 Correction at 5 ml/h ratio 900 - 1100
224 1035 Correction at 10 ml/h ratio 900 - 1100
225 1027 Correction at 25 ml/h ratio 900 - 1100
226 1020 Correction at 50 ml/h ratio 900 - 1100
227 1014 Correction at 75 ml/h ratio 900 - 1100
228 1008 Correction at 100 ml/h ratio 900 - 1100
229 999 Correction at 150 ml/h ratio 900 -1100
230 988 Correction at 200 ml/h ratio 900 - 1100
231 976 Correction at 250 ml/h ratio 900 - 1100
232 967 Correction at 300 ml/h ratio 900 - 1100
233 952 Correction at 400 ml/h ratio 900 - 1100
234 942 Correction at 500 ml/h ratio 900 - 1100
235 925 Correction at 750 ml/h ratio 900 - 1100
236 910 Correction at 999 ml/h ratio 900 - 1100
237 1000 Correction at 1200 ml/h
SET 2
Do not change
these values unless
explicitly trained
ratio 1000-1100

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 12 / 48
238
239
240
241 1065 Correction at 1 ml/h ratio 900 - 1100
242 1054 Correction at 3 ml/h ratio 900 - 1100
243 1044 Correction at 5 ml/h ratio 900 - 1100
244 1035 Correction at 10 ml/h ratio 900 - 1100
245 1027 Correction at 25 ml/h ratio 900 - 1100
246 1020 Correction at 50 ml/h ratio 900 - 1100
247 1014 Correction at 75 ml/h ratio 900 - 1100
248 1008 Correction at 100 ml/h ratio 900 - 1100
249 999 Correction at 150 ml/h ratio 900 - 1100
250 988 Correction at 200 ml/h ratio 900 - 1100
251 976 Correction at 250 ml/h ratio 900 - 1100
252 967 Correction at 300 ml/h ratio 900 - 1100
253 952 Correction at 400 ml/h ratio 900 - 1100
254 942 Correction at 500 ml/h ratio 900 - 1100
255 925 Correction at 750 ml/h ratio 900 - 1100
256 910 Correction at 999 ml/h ratio 900 - 1100
257 1000 Correction at 1200 ml/h
SET 3
Do not change
these values unless
explicitly trained
ratio 1000-1100
258
259
260
261 1065 Correction at 1 ml/h ratio 900 - 1100
262 1054 Correction at 3 ml/h ratio 900 - 1100
263 1044 Correction at 5 ml/h ratio 900 - 1100
264 1035 Correction at 10 ml/h ratio 900 - 1100
265 1027 Correction at 25 ml/h ratio 900 - 1100
266 1020 Correction at 50 ml/h ratio 900 - 1100
267 1014 Correction at 75 ml/h ratio 900 - 1100
268 1008 Correction at 100 ml/h ratio 900 - 1100
269 999 Correction at 150 ml/h ratio 900 - 1100
270 988 Correction at 200 ml/h ratio 900 - 1100
271 976 Correction at 250 ml/h ratio 900 - 1100
272 967 Correction at 300 ml/h ratio 900 - 1100
273 952 Correction at 400 ml/h ratio 900 - 1100
274 942 Correction at 500 ml/h ratio 900 - 1100
275 925 Correction at 750 ml/h ratio 900 - 1100
276 910 Correction at 999 ml/h ratio 900 - 1100
277 1000 Correction at 1200 ml/h
SET 4
Do not change
these values unless
explicitly trained
ratio 1000-1100
310 999.9 Max. flow rate ml/h 1 - 999.9
311 999 Max. prime rate ml/h 1 - 999
312 1200 Max. bolus rate ml/h 1 - 1200
313 10 Max. bolus total ml 1 - 999
314 10 Upstream occlusion sensitivity factor 0 - 60
315 20 Air summation volume • 50 µl 2 - 40
316 103 7 Downstream default pressure limit PrL • 100 mbar 1 - 10
317 200 250 Air bubble size µl 50 - 1000
318 104 20 Drop rate window center drops 10 - 65
319
Set 1 parameters

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 13 / 48
320 999.9 Max. flow rate ml/h 1 - 999.9
321 999 Max. prime rate ml/h 1 - 999
322 1200 Max. bolus rate ml/h 1 - 1200
323 10 Max. bolus total ml 1 - 999
324 10 Upstream occlusion sensitivity factor 0 - 60
325 20 Air summation volume • 50 µl 2 - 40
326 7 Downstream default pressure limit PrL • 100 mbar 1 - 10
327 250 Air bubble size µl 50 - 1000
328 20 Drop rate window center drops 10 - 65
329
Set 2 parameters
330 999.9 Max. flow rate ml/h 1 - 999.9
331 999 Max. prime rate ml/h 1 - 999
332 1200 Max. bolus rate ml/h 1 - 1200
333 10 Max. bolus total ml 1 - 999
334 10 Upstream occlusion sensitivity factor 0 - 60
335 20 Air summation volume • 50 µl 2 - 40
336 7 Downstream default pressure limit PrL • 100 mbar 1 - 10
337 250 Air bubble size µl 50 - 1000
338 20 Drop rate window center drops 10 - 65
339
Set 3 parameters
340 999.9 Max. flow rate ml/h 1 - 999.9
341 999 Max. prime rate ml/h 1 - 999
342 1200 Max. bolus rate ml/h 1 - 1200
343 10 Max. bolus total ml 1 - 999
344 10 Upstream occlusion sensitivity factor 0 - 60
345 20 Air summation volume • 50 µl 2 - 40
346 7 Downstream default pressure limit PrL • 100 mbar 1 - 10
347 250 Air bubble size µl 50 - 1000
348 20 Drop rate window center drops 10 - 65
349
Set 4 parameters
350
351 4 Air volume summation time • 8 min 1 - 8
361 100 5 Key ON/OFF delay time # 4 • 1/10 s 0 - 31
362 101 8 Display brightness level 2 - 15
363 102 10 Buzzer alarm volume level 5 - 10
364
365 103 150 Pressure step for neonatology mode # 39=Yes mbar 60 - 250
366 1 Pressure display unit (mbar / mmHg / kPa / cmH2O / Psi) Enum 1 - 5
367
368 200 300 Battery capacity (discharge time) min 45 - 300
369 5 Automatic menu fall back delay time sec 5 - 30
390 0 Last service date in year year 0 - 99
391 0 Last service date in month month 0 - 12
392 0 Last service date in day day 0 - 31
393 0 Service interval in months (0 = disabled) month 0 - 24
394 0 Service interval in hours of operation (0 = disabled) hour 0 -10000
395
396 0 Pump serial number xxx 8 yyy xxx 8 yyy
397
398
- 399 707 Enter the calibration menu / clears protection key - 123/4

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 14 / 48
518 2
Permissions for serial communication
0 = none, 1 = query only, 2 = parametrising, 3 = remote control Enum 0 - 3
522 No Allow change of ml total while infusing # 65=No - No / Yes
523 15 Alarm lamp brightness level 2 - 15
524 Display a department info text (after power up) char 1-16 ASCII

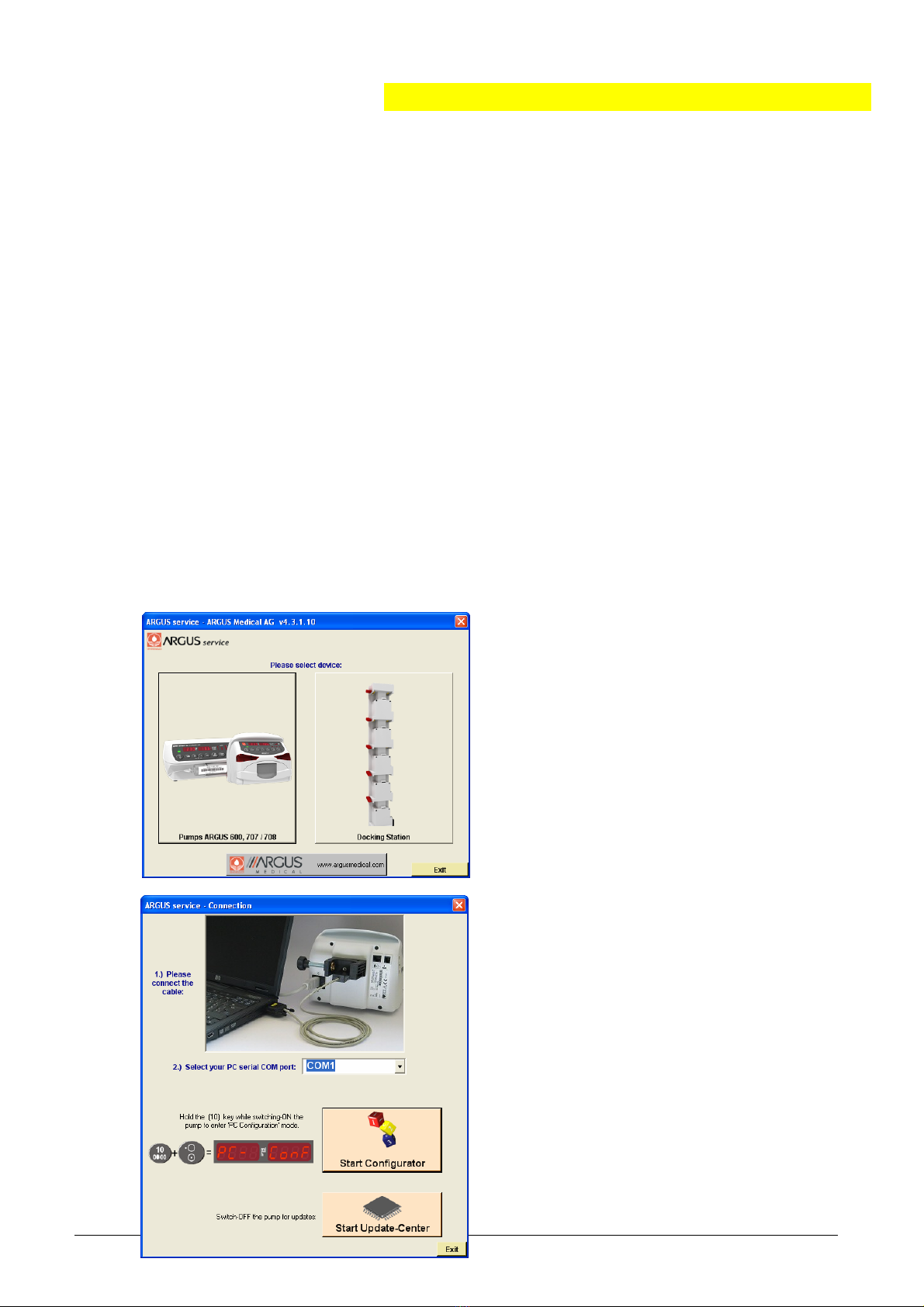

Using the “ARGUS service” tool, the complete and detailed pump configuration
can be done.
2.8. Special configuration options (with ARGUS service)
Enabling a new IV set
Follow the steps below to enable and configure a new IV set:
a) write “Yes” in the corresponding index 101, 102, 103, 104
b) make sure the set definitions (index 201 to 277) correspond to the IV sets used.
In case of doubt, contact ARGUS Medical AG or your local dealer.
c) configure the set parameters (index 310 to 349 and 351)
d) perform a complete set calibration as per chapters 6.3. to 6.5.

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 15 / 48
2.9. Medication list
2.9.1. General
To display medication names, index 29 (menu "MEd") must be set to "Yes". The se-
lected medication name can be displayed also in alternate mode (rate, ml inf./ med.
name) during infusion, for that set index 56 to “Yes”.
After enabled special function “Med” the following medication names can be se-
lected via pump keypad (see user manual).
2.9.2. User medication
32 user medication names can be custom defined. Choose between capital and
small letters for a better displayed medication name. Because of the 7-segment
pump display some characters maybe difficult to read.
Index
PC Default Function Unit Range
561 UserM 1 User med. name 1 char 1 - 8 ASCII
562 UserM 2 User med. name 2 char 1 - 8 ASCII
563 UserM 3 User med. name 3 char 1 - 8 ASCII
564 UserM 4 User med. name 4 char 1 - 8 ASCII
565 UserM 5 User med. name 5 char 1 - 8 ASCII
566 UserM 6 User med. name 6 char 1 - 8 ASCII
567 UserM 7 User med. name 7 char 1 - 8 ASCII
568 UserM 8 User med. name 8 char 1 - 8 ASCII
569 UserM 9 User med. name 9 char 1 - 8 ASCII
570 UserM 10
User med. name 10 char 1 - 8 ASCII
571 UserM 11
User med. name 11 char 1 - 8 ASCII
572 UserM 12
User med. name 12 char 1 - 8 ASCII
573 UserM 13
User med. name 13 char 1 - 8 ASCII
574 UserM 14
User med. name 14 char 1 - 8 ASCII
575 UserM 15
User med. name 15 char 1 - 8 ASCII
576 UserM 16
User med. name 16 char 1 - 8 ASCII
577 UserM 17
User med. name 17 char 1 - 8 ASCII
578 UserM 18
User med. name 18 char 1 - 8 ASCII
579 UserM 19
User med. name 19 char 1 - 8 ASCII
580 UserM 20
User med. name 20 char 1 - 8 ASCII
581 UserM 21
User med. name 21 char 1 - 8 ASCII
582 UserM 22
User med. name 22 char 1 - 8 ASCII
583 UserM 23
User med. name 23 char 1 - 8 ASCII
584 UserM 24
User med. name 24 char 1 - 8 ASCII
585 UserM 25
User med. name 25 char 1 - 8 ASCII
586 UserM 26
User med. name 26 char 1 - 8 ASCII
587 UserM 27
User med. name 27 char 1 - 8 ASCII
588 UserM 28
User med. name 28 char 1 - 8 ASCII
589 UserM 29
User med. name 29 char 1 - 8 ASCII
590 UserM 30
User med. name 30 char 1 - 8 ASCII
591 UserM 31
User med. name 31 char 1 - 8 ASCII
592 UserM 32
User med. name 32 char 1 - 8 ASCII

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 16 / 48
2.9.3. Defined medication
Index PC Def. Function Range Index PC Def. Function Range
600 Yes Enable medication No / Yes 660 No Fotemustine No / Yes
601 No Actilyse No / Yes 661 No Furosemid No / Yes
602 No Actrapid No / Yes 662 No Gemcitabine No / Yes
603 No Adrenaline 0.1 No / Yes 663 No Glucose 5% No / Yes
604 No Adrenaline 0.2 No / Yes 664 No Glucose 10% No / Yes
605 No Adriamycine No / Yes 665 No Glucose 30% No / Yes
606 No Ajmalin No / Yes 666 No Glucose - n/saline No / Yes
607 No Alfentanil No / Yes 667 No Glycerin No / Yes
608 No Alimta No / Yes 668 No Granisetron No / Yes
609 No Alizapride No / Yes 669 No Hartmann`s No / Yes
610 No Alteplase No / Yes 670 No Heparin No / Yes
611 No Alupent No / Yes 671 No Hydroxycarbamide No / Yes
612 No Ambroxol No / Yes 672 No Ifosfamide No / Yes
613 No Aminophylline No / Yes 673 No Immunoglobulin No / Yes
614 No Amiodaron No / Yes 674 No Insulin No / Yes
615 No Amphotericine No / Yes 675 No Irinotecan No / Yes
616 No Amrinone lactate No / Yes 676 No Isoproterenol HCL No / Yes
617 No Antibiotic No / Yes 677 No KCL No / Yes
618 No Aprotinin No / Yes 678 No Ketamin No / Yes
619 No Arterial line No / Yes 679 No Labetalol No / Yes
620 No Atracurium No / Yes 680 No L-asparaginase No / Yes
621 No Bleomycine No / Yes 681 No Lidocain No / Yes
622 No Blood No / Yes 682 No Liothyronin No / Yes
623 No Bretylium No / Yes 683 No Lipids No / Yes
624 No Bupivacne No / Yes 684 No Lomustine No / Yes
625 No Capecitabine No / Yes 685 No Magnesium No / Yes
626 No Carboplatin No / Yes 686 No Maintenance line No / Yes
627 No Carmustine No / Yes 687 No Mannitol No / Yes
628 No Cefazolin sodium No / Yes 688 No Metaraminol bitartrate No / Yes
629 No Central line No / Yes 689 No Methohexital sodium No / Yes
630 No Ceruletid No / Yes 690 No Methotrexate No / Yes
631 No Chlormethine No / Yes 691 No Methyldopate hcl No / Yes
632 No Cisplatine No / Yes 692 No Metoclopramide No / Yes
633 No Cladribine No / Yes 693 No Metopimazine No / Yes
634 No Clomethiazol No / Yes 694 No Midazolam No / Yes
635 No Clonidin No / Yes 695 No Milrinone No / Yes
636 No Cyclophosphamide No / Yes 696 No Mitoguazone No /Yes
637 No Cytarabine No / Yes 697 No Mitomycine No /Yes
638 No Dacarbazine No / Yes 698 No Mitoxantrone No /Yes
639 No Dactinomycine essai cliniq. No / Yes 699 No Mivacurium chloride No /Yes
640 No Daunorubicine liposomale No / Yes 700 No Morphin No / Yes
641 No Diltiazem No / Yes 701 No Nacl 0.9% No / Yes
642 No Dobutamin No / Yes 702 No Nacl 0.45% No / Yes
643 No Docetaxel No / Yes 703 No Nalbuphin No / Yes
644 No Dopamine No / Yes 704 No Naloxone No / Yes
645 No Dopexamine No / Yes 705 No Nicardipine No / Yes
646 No Doxapram hcl No / Yes 706 No Nifedipin No / Yes
647 No Doxorubicin No / Yes 707 No Nimodipin No / Yes
648 No Droperidol No / Yes 708 No Nitroclycerin No / Yes
649 No Ecteinascidine No / Yes 709 No Nitroprussiate No / Yes
650 No Edrecolomab No / Yes 710 No Noradrenalin No / Yes
651 No Epidural No / Yes 711 No Norepinephrine bitartrate No / Yes
652 No Epirubicine No / Yes 712 No Nutriflex No / Yes
653 No Esmolol No / Yes 713 No Omeprazole No / Yes
654 No Etoposide No / Yes 714 No Omipressin No / Yes
655 No Fentanyl No / Yes 715 No Ondansetron No / Yes
656 No Flecainide No / Yes 716 No Oxaliplatine No / Yes
657 No Fludarabine No / Yes 717 No Oxytocin No / Yes
658 No Fluimucil No / Yes 718 No Paclitaxel No / Yes
659 No Fluorouracil No / Yes 719 No Pentoxityllin No / Yes

PUMP CONFIGURATIONS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 17 / 48
720 No Phentolamine No / Yes 761 No Urokinase No / Yes
721 No Phenylephrin No / Yes 762 No Vasopressine No / Yes
722 No Pirarubicine No / Yes 763 No Vecuronium No / Yes
723 No Plicamycin No / Yes 764 No Verapamil No / Yes
724 No Procainamide No / Yes 765 No Vinblastine No / Yes
725 No Procarbazine No / Yes 766 No Vincristine No / Yes
726 No Propafenon No / Yes 767 No Vindesine No / Yes
727 No Propofol No / Yes 768 No Vinorelbine No / Yes
728 No Prostaglandin e1 No / Yes 769 No User defined med. 1 No / Yes
729 No Raltitrexed No / Yes 770 No User defined med. 2 No / Yes
730 No Rapilysin No / Yes 771 No User defined med. 3 No / Yes
731 No Remifentanyl No / Yes 772 No User defined med. 4 No / Yes
732 No Risordan No / Yes 773 No User defined med. 5 No / Yes
733 No Ritodrine hcl No / Yes 774 No User defined med. 6 No / Yes
734 No Rituximab No / Yes 775 No User defined med. 7 No / Yes
735 No Rocuronium bromide No / Yes 776 No User defined med. 8 No / Yes
736 No Ropivacane No / Yes 777 No User defined med. 9 No / Yes
737 No Salbutamol No / Yes 778 No User defined med. 10 No / Yes
738 No Somatostatin No / Yes 779 No User defined med. 11 No / Yes
739 No Streptokinase 36000 ie No / Yes 780 No User defined med. 12 No / Yes
740 No Streptokinase 1000 ie No / Yes 781 No User defined med. 13 No / Yes
741 No Streptokinase 3000 ie No / Yes 782 No User defined med. 14 No / Yes
742 No Streptokinase 6000 ie No / Yes 783 No User defined med. 15 No / Yes
743 No Streptokinase No / Yes 784 No User defined med. 16 No / Yes
744 No Streptozocine No / Yes 785 No User defined med. 17 No / Yes
745 No Succinylcholine chloride No / Yes 786 No User defined med. 18 No / Yes
746 No Sufentanil No / Yes 787 No User defined med. 19 No / Yes
747 No T.P.N No / Yes 788 No User defined med. 20 No / Yes
748 No Tegafur No / Yes 789 No User defined med. 21 No / Yes
749 No Temozolomide No / Yes 790 No User defined med. 22 No / Yes
750 No Terbutaline No / Yes 791 No User defined med. 23 No / Yes
751 No Theopyllin No / Yes 792 No User defined med. 24 No / Yes
752 No Thiotepa No / Yes 793 No User defined med. 25 No / Yes
753 No Tirofiban No / Yes 794 No User defined med. 26 No / Yes
754 No Tolazolin hcl No / Yes 795 No User defined med. 27 No / Yes
755 No Topotecan No / Yes 796 No User defined med. 28 No / Yes
756 No Trastuzumab No / Yes 797 No User defined med. 29 No / Yes
757 No Trimethaphan camsylate No / Yes 798 No User defined med. 30 No / Yes
758 No Umbilical arterial catheter No / Yes 799 No User defined med. 31 No / Yes
759 No Umbilical venous catheter No / Yes 800 No User defined med. 32 No / Yes
760 No Urapidil No / Yes
REMARK :
Via barcode reader all medication names can be selected, even if they are not released in
the configuration.

Serial communication of the pump
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 18 / 48
3. SERIAL COMMUNICATION OF THE PUMP
3.1. General
The ARGUS 708 Volumetric pump has two serial interfaces on board. One is wired
to the docking interface connector and one is connected to the RS232 connector.
Important remark!
Only the RS232 connector is galvanic separated. The docking interface on the
pump is a non galvanic isolated interface! Do not use the docking interface on the
pump together with the interface cable (part 10.093) on a patient!
If the pump is intended to be monitored as a standalone pump on a patient, use the
RS232 connector (RJ45, beside the drop detector connector). To use it, configure
this connector as the default serial interface (refer index #55 in the configuration).
If the pump is docked into a docking station ARGUS 60 M or ARGUS 100 M, the
software switches automatically to the docking interface and the docking station
builds the separation device (galvanic isolation) then.
3.2. Serial communication protocol
The following characteristics are basics for all the ARGUS devices (volumetric
pumps, syringe pumps, docking stations with V4.xx and PCs) which are intended to
communicate with the device mentioned in this service manual.
• Full-duplex RS232, currently 4800Baud for single pumps,
9600 Baud for docking stations (also on master/slave-link).
• Simple master (host/PC) – slave (device) communication (host does polling).
• The host has to repeat the request if there is no valid response.
• Uses a checksum (CRC-8).
• Binary data transmission, thus no ASCII/text parsing.
• Fast & direct communication with pumps on ARGUS docking station.
• Specified timeouts during remote mode.
• Basic framing technique used as in the Serial Infrared Link Access Protocol (Ir-
LAP) Version 1.1.
Please contact your local distributor or ARGUS Medical AG for the complete serial
communication protocol description.

ARGUS service
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 19 / 48
4. ARGUS SERVICE
4.1. General
The new ARGUS service utility is a high and user friendly PC software which can
configure and upgrade pumps over PC serial COM port. With this Windows based
software you can also set pump clock, change PIN code, read and print out history
and easily replicate pump configurations, and so on. The modern and clearly struc-
tured design of this self-describing PC-tool allows a very easy and rapid modifica-
tion of the ARGUS 600 Syringe pump, the ARGUS 707 & 708 Volumetric pump and
the ARGUS docking station. This software may be available from your local distribu-
tor or directly from ARGUS.
REMARK:
“ARGUS service” may only be used with software versions greater or equal to 4.00.
CAUTION!
The infusion pump has to be disconnected from the patient before and while the se-
rial interface cable is connected to the pump.
The connection of the A707 over the serial interface RS-232 can be done by con-
necting the interface cable (REF 10.093) to the serial interface outlet of the serial
PC-COM port.
Start the ARGUS service
Press the button which confirm to your
previously connected device
(ARGUS pump or docking station).
Hold the “10” key while switching-ON the
pump.
Select “Start Configuration” (see next
chapter) or “Start Update-Center” (see
chapter 5.3.2.).
