Aristel GW-NEOS-TC35A5-Q1 NEOS3000A User manual

ARISTEL NETWORKS PTY. LTD
NEOS3000A GSM
Least Cost Wireless
Router
For model GW-NEOS-TC35A5-Q1 or later
Operating Manual.
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 1

ARISTEL NETWORKS PTY. LTD
Introduction
Thank you for purchasing the NEOS3000A product from Aristel Networks Australia. The

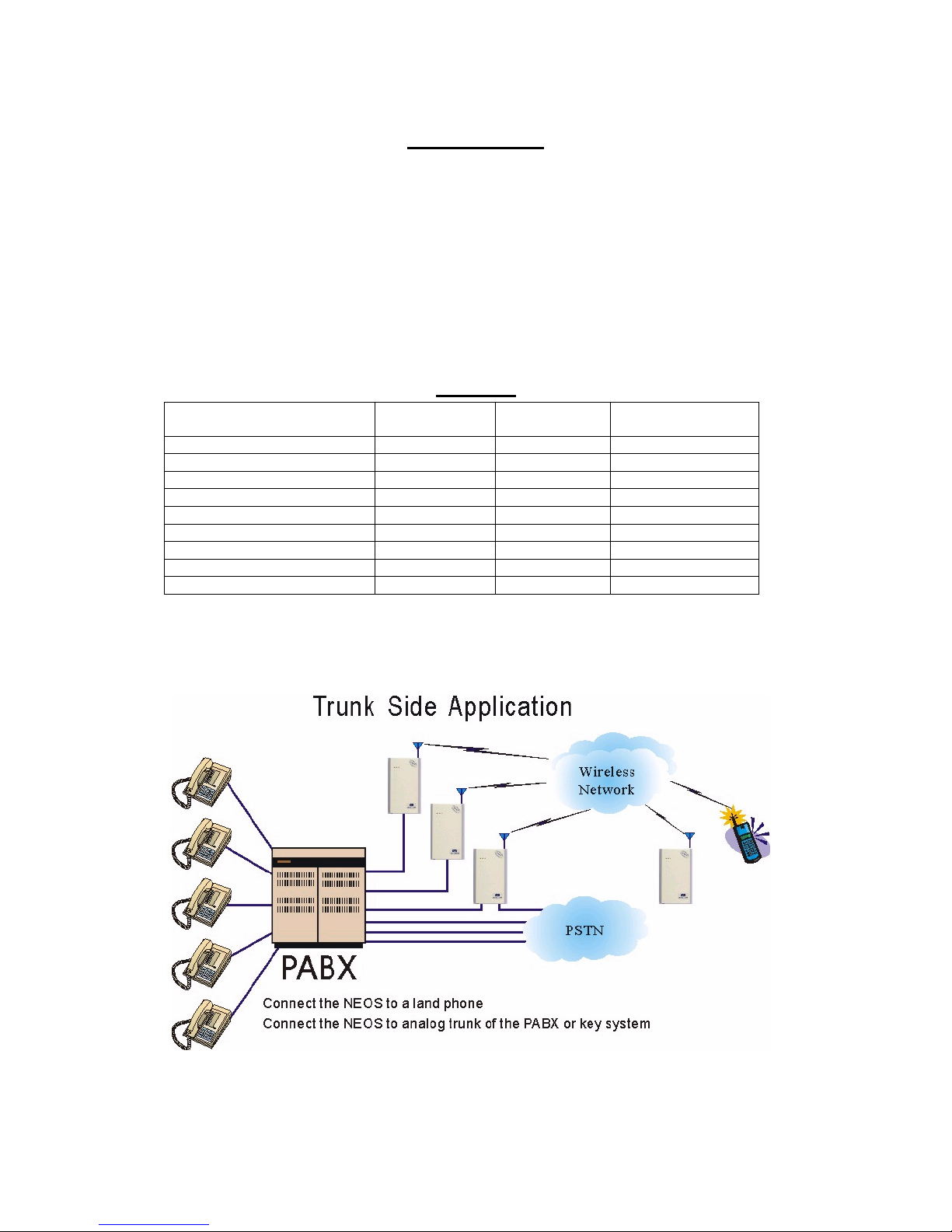

NEOS3000A allows you to take advantage of “mobile to mobile” cheaper rates when using your “land-
line” telephone or telephone system. The NEOS3000A can distinguish between your calls to mobile
numbers and your calls to land-line numbers. It will then use the least cost network for the call.
You can reprogram the system at any time should you:
1. Change your mobile contract
2. Need more mobile phones
3. Change any of your mobile numbers
4. Or any other reason
No expensive Technician “service visit” is required for programming. You can do it yourself very
simply.
Parts List
DESCRIPTION QUANTITY
REQUIRED STANDARD (INCLUDED) OPTIONAL (NOT INCLUDED)
NEOS3000A 1 YES
DC 12V/1A ADAPTER 1 YES
PHONE CORD 1 YES
PHONE SOCKET 1 YES
MALE SMA ANTENNA 1 YES
OPERATING MANUAL 1 YES
DISPLAY 1 YES
DATA CABLE 1 YES
SCM50 1 YES
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 2

ARISTEL NETWORKS PTY. LTD
Installation

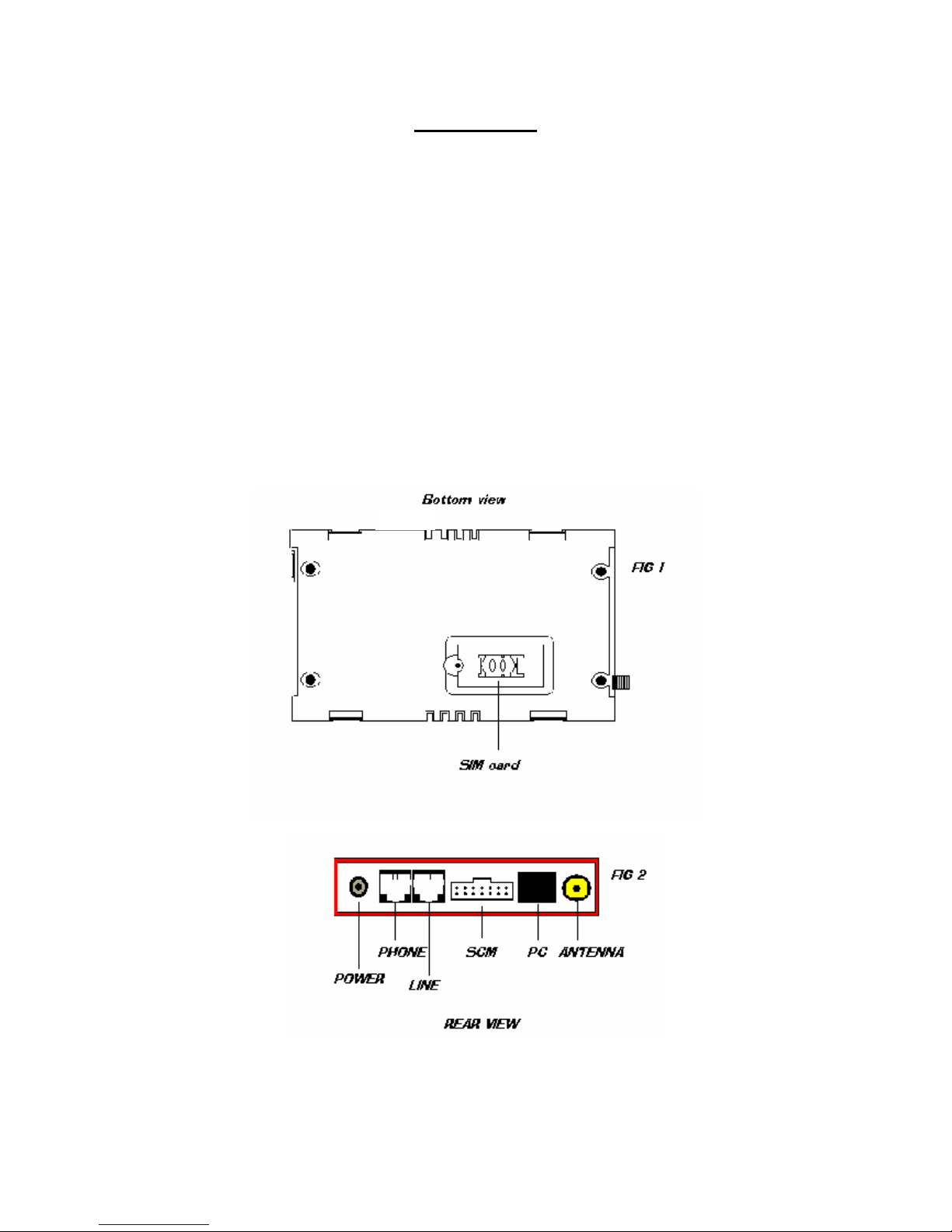

1. SIM card installation (Fig 1)
1.1 Remove the 12V adaptor from the NEOS3000A
1.2 Remove the SIM card cover from the bottom of the unit
1.3 Slide the SIM card holder towards the front of the unit
1.4 Lift up the holder
1.5 Insert the SIM card (Note orientation of notched corner)
1.6 Replace holder and slide towards the rear of the unit to lock in place
1.7 Replace cover and power adaptor
2. Connecting the Antenna (Fig 2)
2.1 Screw on the antenna cord to the connector on the front of the unit
2.2 Place antenna away from electrical/electronic systems (computers, microwave
ovens, etc)
3. Connecting the Telephone line and Telephone system (Fig 2)
3.1 If connecting to a phone line, plug the line into the connector marked LINE.
Plug your telephone into the connector marked PHONE. Go to step 3.3
3.2 If connecting to a phone system, plug the PBX CO line connection into the
connector marked PHONE.
3.3 Connect the power adaptor into the connector marked PWR
3.4 The red POWER indicator should be on.
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 3

ARISTEL NETWORKS PTY. LTD
LED status indicators (FIG 3)
LED Position LED colour LED Activity Description
1 RED ON OR OFF DC POWER IS ON
OR OFF
2 YELLOW ON PSTN LAND LINE IS
IDLE
2 YELLO OFF PSTN LANDLINE IS
DISCONNECTED
2 YELLOW CONTINUOUS
FLICKER
PSTN LAND LINE IS
BUSY/TALKING
3 GREEN ON THE MOBILE (GSM)
LINE IS IDLE
3 GREEN FLASH THE MOBILE (GSM)
LINE IS
BUSY/TALKING
3 GREEN OFF NO SIM CARD
4 GREEN ON GSM LINE IS BUSY
4 GREEN FLASH NO SIM CARD OR
NETWORK
SEARCHING
4 GREEN CONTINUOUS
FLICKER IN SERVICE
4 GREEN OFF GSM POWER OFF
2&3 GREEN & YELLOW FLASH 3 PER
SECOND SET-UP MODE
2&3 GREEN & YELLOW FLASH ¼ SEC ON &
¾ SEC OFF PROGRAMMING MODE
Using the NEOS3000A
Stand-alone (no Telephone System)
Programme the codes to be sent to Mobile network
Lift off the handset
Listen for dial tone. (Check system connections if no dial tone is heard)
Dial the desired number
Connected as an exchange line on a Telephone System
Select the exchange line connected to the NEOS3000A (Manual or Auto LCR)
Listen for dial tone. (Check system connections if no dial tone is heard)
Dial the desired number
NOTE! If using a system, the NEOS3000A can be left in the default condition.
No programming is required
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 4

ARISTEL NETWORKS PTY. LTD
Entering programming mode
Plug a telephone (SLT) into the “PHONE” socket and unplug the “LINE” connection, Lift off
the handset. You will hear continuous dial tone. Dial * * * * #. You will hear “Beep, Beep,
Beep” repeated continuously. The green and yellow LEDs flash. You have 10 seconds to
enter the password. Enter the password (default = 1234#) You will hear a “Der” tone (this is
“set-up” tone) repeated every 2 seconds. The green and the yellow LEDs will slow flash.
System programming can now be commenced. See chart below. If a feature is correctly
programmed, the green and the yellow LEDs will flash once and a Beep tone will be heard. If
the input was incorrect, the green and the yellow LEDs will flash three times and three Beep
tones will be heard. If you make an incorrect entry, hang up for less than 2 sec. to return to
set-up mode To end programming, hang-up for more than 2 sec. or press * * 0 0 #
Programming Features
Factory Default Settings
Press 9 9 9 to reset the unit back to Factory Default Settings
Feature Function Code
Description
＊＊＊＊＃
Enter the setup mode from the normal mode.
Pick up the handset of phone and hear the dial tone. Press『＊＊＊＊＃』to enter setup
mode. The password (default=1234#) must be entered within 8 seconds. Otherwise
it will return to normal mode.
Setup Mode
＊＊００＃ To exit the programming mode and return to normal mode.
When program is finished please press『＊＊００＃』to exit the setup mode and you will
hear dial tone.
０ＸＸＸＸＸＸＸＸ＃
Set the password. It must be 4 to 8 digits not including #. The default is『１２３４#』.
Example: Set０８７６５４３２１＃, the password becomes ８７６５４３２１# from １２３４#.
９１３ Disable the password.
You do not need to enter the password after pressing『＊＊＊＊＃』to enter
programming mode.
password
９１４ Enable the password.
You need to enter the password after pressing『＊＊＊＊＃』to enter programming
mode.
９１５ Disable LCR dialling. It is the default setting.
You can make any call via the mobile trunk
９１６
Enable LCR.
You can only call through the mobile trunk when the prefix of the dialled number
matches the permissible dial number.
Routing function: The matched numbers are called through mobile trunk other
numbers are called through PSTN.
８０ＸＸＸＸ＃
Add a new permissible dialling number.
The permissible dialling number is 1 to 4 digits and a maximum of 50 dialling numbers.
Example: Set８００９１２＃. The numbers of 0912xxxxxx go through mobile trunk other
numbers go through PSTN.
７０ＸＸＸＸ＃ Delete a saved permissible dialling number.
Permissible
dialling
９９８ Delete all the saved permissible dialling numbers.
８１ＸＸＸＸ＃
Add a new limit dialling number via PSTN line.
The limit dialling number is 1 to 4 digits with a maximum of 20 numbers.
Example: Set８1０２０４＃. The numbers of 0204xxxxxx can not call through PSTN.
７１ＸＸＸＸ＃ Delete a saved limit dialling number via PSTN line.
Limit dialling
from PSTN
９９７ Delete all the saved limit dialling numbers via PSTN line.
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 5

ARISTEL NETWORKS PTY. LTD
９００ Disable outgoing time limit. It is the default condition.
９１１ Disable end the call. NEOS will emit a reminder tone 30 seconds before the time as set,
but will not end the call.
９１２ Enable end the call. NEOS will emit a reminder tone 30 seconds before the time as set
and end the call at that time.
９０Ｘ Set the time of an outgoing call. Ｘis 1 to 9 minutes. The default is ３minutes.
９６３ Disable the polarity reversal on answer for outgoing call. It is the default condition.
９６４ Enable the polarity reversal on answer for outgoing call.
９６７ Disable the polarity reversal on answer for incoming call. It is the default condition.
Time limit
&
call signal
９６８ Enable the polarity reversal on answer for incoming call.
９６０ Set the dial tone as 523Hz.
９６１ Set the dial tone as 400Hz.
９６２ Set the dial tone as 350Hz+440Hz.It is the default condition.
９２７ Disable the false ring back tone. It will be silent without reminder tone (DU DU) and
false ring back tone.
９２８ Set the reminder tone (DU DU) after dialling.
９３３ Set the reminder tone (DU DU) then false ring back tone after dialling.
９３４ Set false ring back tone after dial. There is no reminding tone (DU DU). It is the default
condition.
９３９ Set the false ring back tone as 400Hz.
９６９ Set the false ring back tone as 440Hz+480Hz.It is the default condition.
９２９ Set the reorder tone as 400Hz after the call party ends the call.
Tone
frequency
９３０ Set the reorder tone as 480Hz+620Hz after the call party ends the call. It is the default
condition.
９２５ Disable manual selection of the mobile trunk. It is the default condition.
９２６ Enable manual selection of the mobile trunk.
６１Ｘ＃
Set the access code of manually selecting the mobile trunk. X is 0 to 9 and ＊. 9 is
default.
You can enable the selection of the mobile trunk by pressing 9 then dialling the number
when 926 is enabled and 619# is set.
Example: After enabling 926, dial ９０５０９１２３１２３, it will call０５０９１２３１２３
through the mobile trunk.
５７１ Disable automatically detecting PSTN line. NEOS assumes the PSTN line is connected
and the routing function is activated.
Router
selection
５７０ Enable automatically detecting PSTN line. NEOS detects if the PSTN line is connected.
５７３ Disable speed dialling through the phone book of SIM. It is the default condition.
５７４ Enable speed dialling through the phone book of SIM.
Speed dial
５２Ｘ Set the speed dialling code. X is 0 to 9 and ＊. ＊is default.
Example: Set 574 and 52＊. When you dial ＊１０ NEOS will call using the 10th number
of the SIM card via the mobile trunk.
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 6

ARISTEL NETWORKS PTY. LTD
６５Ｘ＃ Set the forward number on busy. Ｘis the forward number from 1 to 10 digits. 65＊# is
cancelled the function.
６３Ｘ＃
Enable dialler function for mobile international call.
NEOS will transfer the international calls through mobile by a specified operator. 63＊#
is used to cancel the function.
Example: Set ６３３＃.When dialling００２８６２９８２０３１５６, NEOS will
call００３８６２９８２０３１５６through mobile.
６６Ｘ＃
Enable the dialler function for long distance call and international call via PSTN.
NEOS will transfer all the calls of long distance and international through PSTN via
specified operator. 66＊# is cancel.
Example: Set６６３＃. When dial０２８５２９８２０３, NEOS will call１８０３０２８５２９８２０３
through PSTN.
Transfer
dialler
５８Ｘ
Enable auto-add predigit function. Ｘis the add number and is only 1 digit. 58＊is to
cancel the function.
It is used if the customer has no PABX but uses a virtual PBX of the network operator.
Example: Before programming:- The customer needs to dial 9to seize an outgoing
PSTN line then dials the number. Set５８９, the customer dials ＊to seize a line then
makes a call. NEOS will add 9before the dailled number to make the call via the PSTN
trunk.
６２Ｘ＃
Set the digits of MVPN group. Ｘis 1 to 9 digits, ＊is cancel. 62*# is the default.
When you call the MVPN number, you need to press # to end dialling.
Example: Set ６２３＃. When dialling １２３＃ NEOS will call １２３ via the mobile trunk.
If you dial １２３ the NEOS will call １２３ through PSTN.。
９３１ Disable barring incoming call. NEOS will ring for an incoming call.
９３２ Enable barring incoming call. NEOS will bar the incoming call. It is the default
condition.
９１７ Enable call waiting. You can press HOOK or FLASH to hold the call and answer the
other call.
９１８ Disable call waiting. It is the default condition.
others
９９９ Restore all factory defaults.
６７ＸＸＸＸＸＸ＃ Enable searching specified network. ＸＸＸ+ＸＸＸ is the MCC+MNC. XXXXX and XXXXXX
both are available.
Enable the RSSI (received signal strength indicator). When you set 572 please check
the LED of MO and CO as below. Press ＃to escape.
MO
LED CO LED RSSI Network Quality
ON ON
－51db ～
－64db BEST
ON OFF
－65db ～
－82db BETTER
OFF ON
－83db ～
－95db GOOD
５７２
OFF OFF
－96db ～POOR
９３７ Disable calling line identification (CLIR). Enable calling party to prevent presentation of
its line identity to called party.
９３８ Enable calling line identification (CLI). Show the number of calling party. It is default.
Adjust the volume of receiver. Ｘis 0 to 4. ５３３ is default. It represents level 3.５３Ｘ
Adjust the volume of transmitter. Ｘis 0 to 4. ６０２#is default. It represents level 2.６０Ｘ＃
６４Ｘ＃
Set the code of caller ID.
Ｘ：＊＝cancel
１＝DTMF. 641#. It is default.
２＝V.23 FSK
３＝BELL 202
９２３ Disable assign specified carrier of SIM. It is the default condition.
９２４ Enable assign specified carrier of SIM.
NEOS calls through the same carrier of the SIM only. If you change the SIM to a
different carrier NEOS will bar the call.
５９１ Disable assign specified SIM. It is the default condition.
network
５９２ Enable assign specified SIM.
NEOS calls through the SIM only. If you change another SIM NEOS will bar the call.
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 7

ARISTEL NETWORKS PTY. LTD
Set the waiting period after dialling. ＸＸ is 00 to 83 seconds. The default is 57 seconds.
9557#
９５ＸＸ＃
Set the times of fake ring back tone. ＸＸ is 01 to 99 times. The default is 20 times.
6920#
６９ＸＸ＃
Set the delay period between dialled number and fake ring back tone.
Ｘis 1 to 9 and ＊(=10), unit is 0.5 seconds. Default is 3, the time period is 1.5
seconds. 543
５４Ｘ
５０Ｘ Set the inter-digit time during dialling. Ｘis 0 to 9 seconds. Default is 4 seconds. Set
５００ is 0.5 seconds. 504
５１Ｘ
Technical
programming
Set the send delay time. Ｘis 0 to 9 seconds. Default is 0. It represents 0.5 seconds.
510
Set the digits of send number. ＸＸ is 02 to 31 digits. The default is 10 numbers. 591９４ＸＸ＃
X=0, Disable the Hot Line function. X=1, Enable the Hot Line function.
32X#
Hot Line 33X# X= Hot Line Number, Set the Number from 3 to 13 digits.
FREQUENTLY ASKED QUESTIONS
FAQ 1. The Power light does not come on after power up.
Action. Check the power adapter and power cord/socket for correct operation
FAQ 2. How do I check the LED status?
Action. Check figure 3 on page 4
FAQ 3. When I pick up the phone I cannot hear dial tone.
Action. Check that the phone is OK and operating correctly
Check that the phone line (cord) is connected
Check the pattern of the LED lights for more information in figure 3
FAQ 4. When I pick up the phone I hear music
Action. The SIM is not registered to the network
The SIM is not operating correctly. Plug it into a mobile phone and check for operation
FAQ 5. I cannot hear the other party’s voice
Action. Retry the call. It could be a network connection problem
The signal strength may be too low for proper transmission and reception. Relocate the antenna
FAQ 6. When I dial the mobile number, there is no answer
Action. Mobile network is still searching for mobile phone
Check that line and antenna are connected correctly
FAQ 7. I cannot dial via the PBX system
Action. Power off the NEOS unit. If you cannot make a call via the PBX, the connection to the PBX or
the PBX may be faulty. Consult your local PBX dealer.
If you can make a PBX call with the NEOS powered off, consult your NEOS dealer
Aristel Networks Pty. Ltd
Unit 1 / 25 Howleys Rd.
Notting Hill
Victoria
3168
Tel: [phone]
Fax: [phone]
Web: www.aristel.com.au
Email: [email protected]
Model GW-NEOS-TC35A5-Q1 or later Operating manual Ver. 1.2 November 2005 page 8
