Arrow Storage Products BGR1210FG Use and care manual

Exterior Dimensions Interior Dimensions
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall)
Size Size Width Depth Height Width Depth Height
12' x 10' 141 1/8" x 111 3/4" 146 1/8" 117" 103 1/4" 141 1/8" 111 3/4" 102"
12' x 17' 141 1/8" x 198" 146 1/8" 203 1/4" 103 1/4" 141 1/8" 198" 102"
12' x 24' 141 1/8" x 284 1/4" 146 1/8" 289 1/2" 103 1/4" 141 1/8" 284 1/4" 102"
12' x 31' 141 1/8" x 370 1/2" 146 1/8" 375 3/4" 103 1/4" 141 1/8" 370 1/2" 102"
3,7 m x 3,0 m 358,5 cm x 283,8 cm 371,2 cm 297,2 cm 262,3 cm 358,5 cm 283,8 cm 259,1 cm
3,7 m x 5,2 m 358,5 cm x 502,9 cm 371,2 cm 516,3 cm 262,3 cm 358,5 cm 502,9 cm 259,1 cm
3,7 m x 7,3 m 358,5 cm x 722,0 cm 371,2 cm 735,3 cm 262,3 cm 358,5 cm 722,0 cm 259,1 cm
3,7 m x 9,4 m 358,5 cm x 941,1 cm 371,2 cm 954,4 cm 262,3 cm 358,5 cm 941,1 cm 259,1 cm
BUILDING DIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS
PIECES TO AVOID A MISHAP. FOR SAFETY SAKE,
PLEASE READ SAFETY INFORMATION PROVIDED IN
THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
WEAR GLOVES WHEN HANDLING METAL PARTS.
726260919
Model No.
Owner's Manual & Assembly Instructions
BW01b
Storage Area: 12'x10' 110 Sq. Ft. 801 Cu. Ft. (10,2 m222,7 m3)
12'x17' 194 Sq. Ft. 1419 Cu. Ft. (18,0 m240,2 m3)
12'x24' 278 Sq. Ft. 2037 Cu. Ft. (25,8 m257,7 m3)
12'x31' 362 Sq. Ft. 2655 Cu. Ft. (33,6 m275,2 m3)
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or assist@arrow-
sheds.com
Do not return to dealer, they are not
equipped to handle your requests.
* Size rounded o to the nearest foot
BGR1210FG BGR1217FG
BGR1224FG BGR1231FG

BEFORE YOU BEGIN....
BW02
Owner's Manual
Before beginning construction, check local building codes regarding footings, location and
other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the use of an Arrow
Anchoring Kit as an eective method of securing your building to the ground (Available
by mail order or at your local dealer) or you may construct a base and anchoring system of
your choice. Your assembly instructions provide information on a few methods commonly
used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with
the numbers on the parts list.
•If you nd that a part is missing, include the model number of your building and contact:
Arrow Shed, LLC Customer Service Department
1101 North 4th Street Breese, Illinois 62230
•Separate contents of the carton by the part number while reviewing parts list. The rst few steps
show how to join related parts to make larger sub assemblies which will be used later.

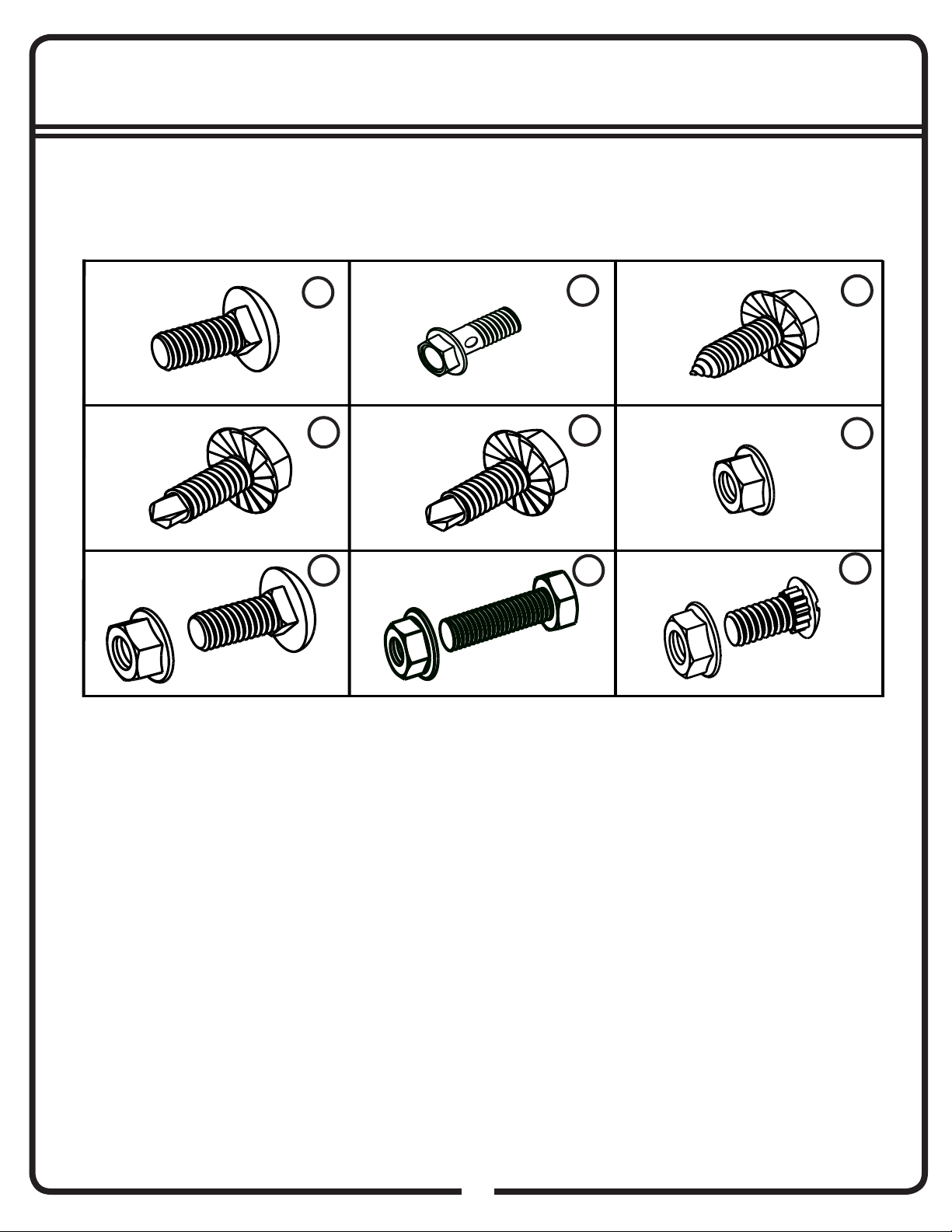

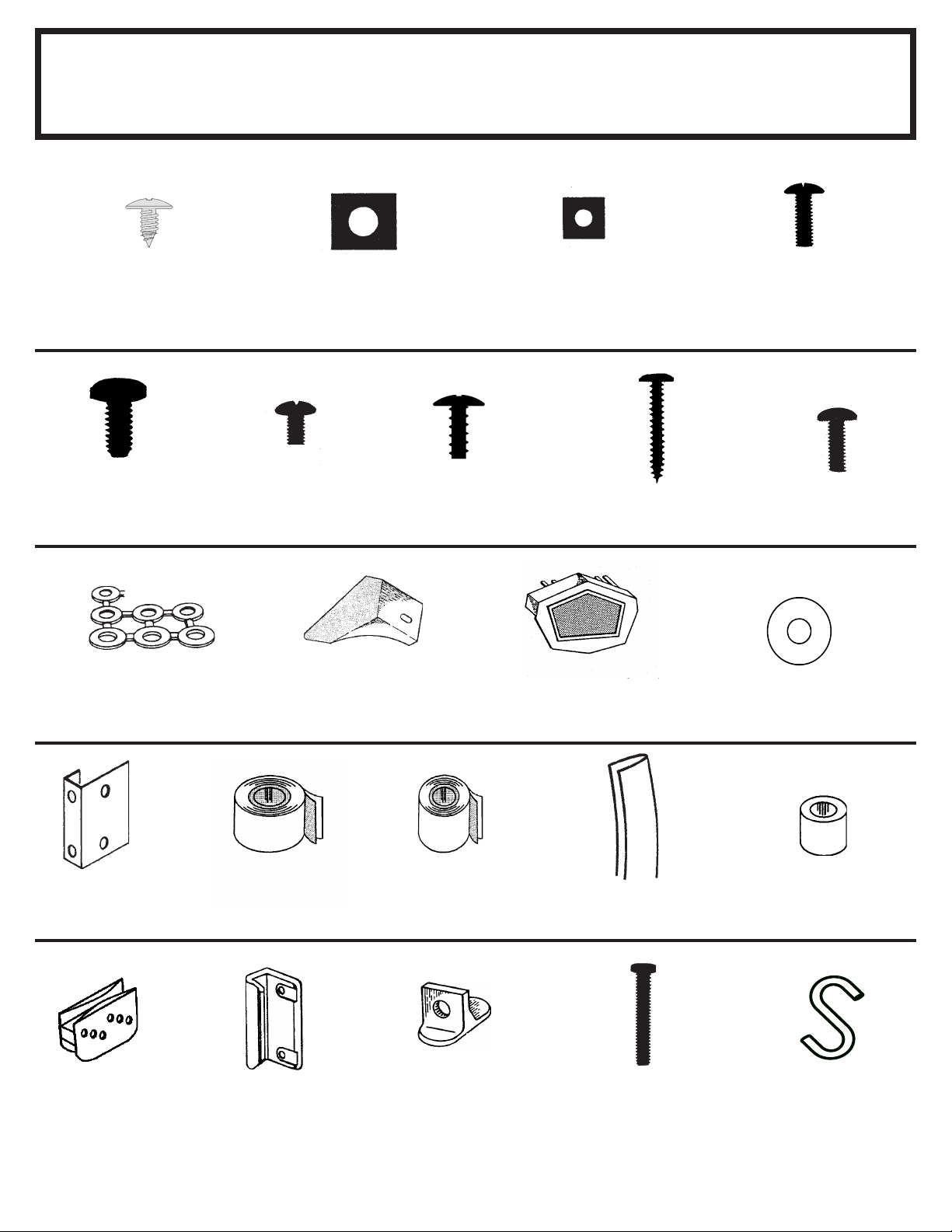

•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
1-800-851-1085 or [e-mail]
2

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.

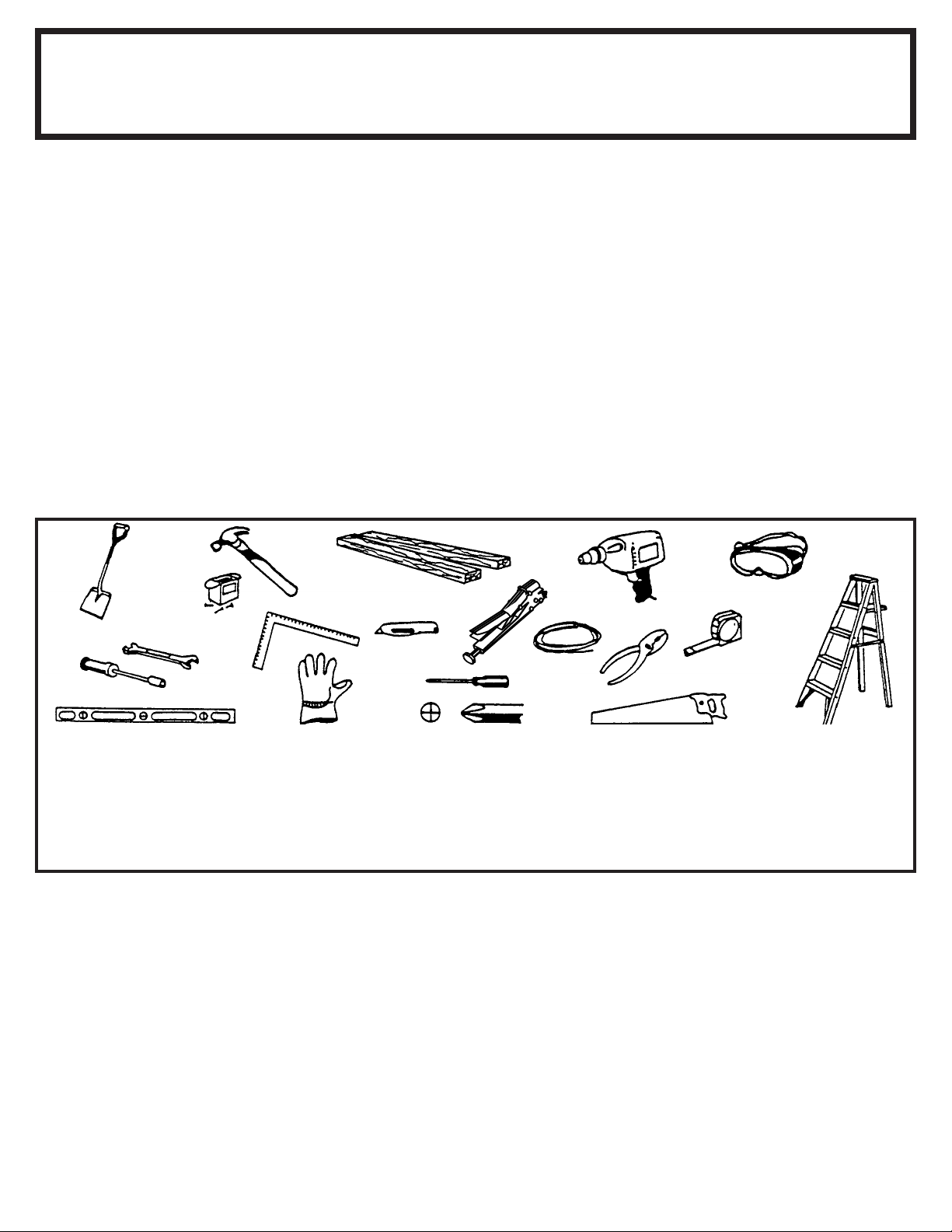

Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
• Locking Pliers
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
BW04
3

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your
building.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if
parts are missing because any building left
partially assembled may be seriously damaged
by light winds. Call 1-800-851-1085 or assist@
arrowsheds.com
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction dicult and unsafe.
SAFETY FIRST....
A05
safety edge
safety edge
sharp edge
sharp edge
4

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather inltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash o inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
CARE & MAINTENANCE....
BW05
5

6

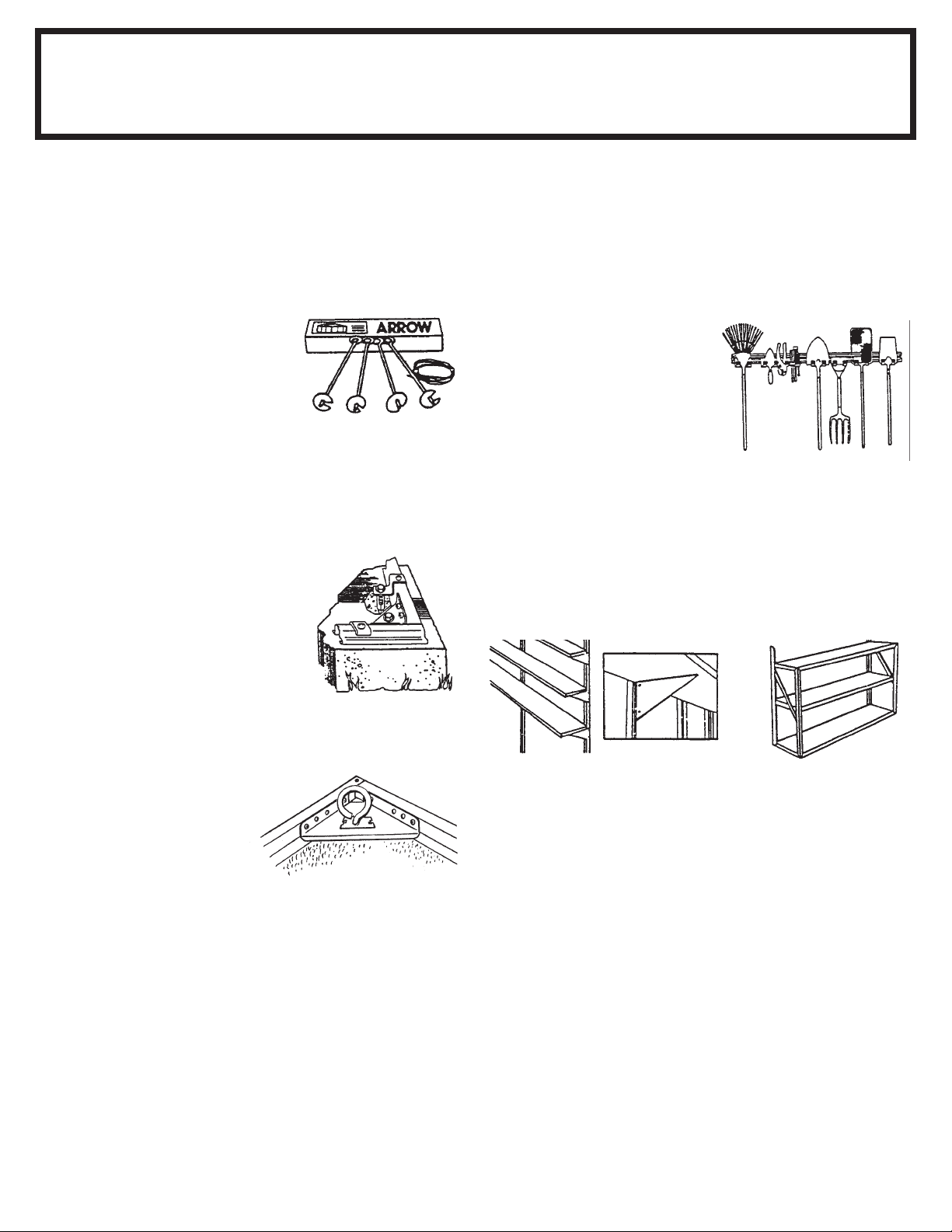

ACCESSORIES....
BW06 Web
* Some drilling required to t buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the oor. Fits all
Arrow buildings.*
SHELF UNITS
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which t over the oor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus ve heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cableclamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.

We recommend that you purchase accessory items from your local storage building dealer whenever possible;
however, because the full line of accessories is not always available from all dealers, Arrow is oering them
to you on a direct basis.
There are two ways to order Arrow Storage Building Accessories:
SPECIAL NOTE:
If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no
one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.
ORDERING ACCESSORIES....
A08 02/13
Option 1
Accessories can be purchased
through
arrowsheds.com
Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.
7

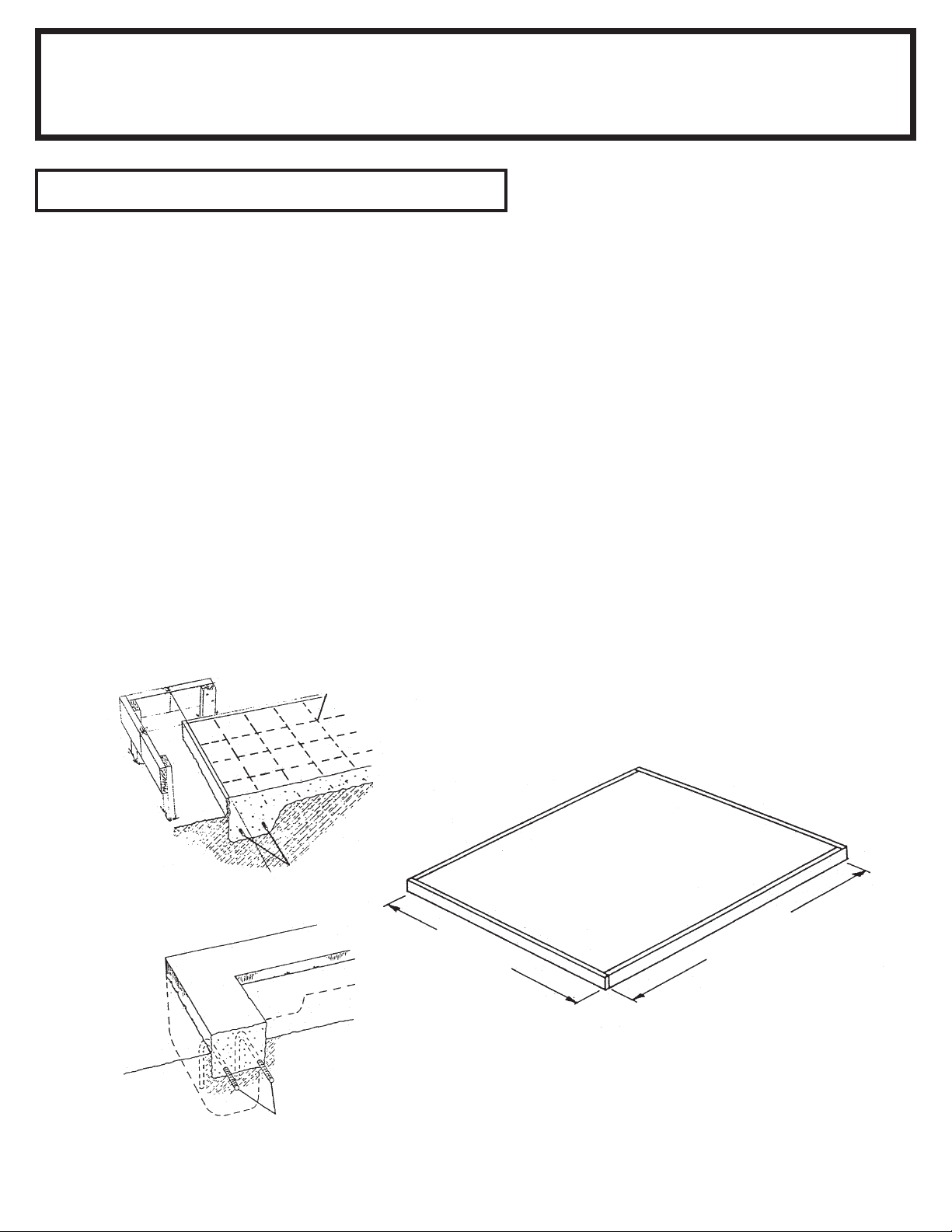

The Base For Your Building
Base
BW08
Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.
The following are the recommended materials for your base.
 2 x 4's (38 mm x 89 mm) (will be removed once the concrete cures)
 Concrete  Sheet of 6 mil plastic
 We recommend for a proper strength concrete to use a mix of:
1 part cement  3 parts pea sized gravel  2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 2x4 (38 mm x 89 mm)
lumber.
5. Pour in concrete to ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Before beginning construction, check local building codes
regarding footings, location and other requirements.
141 1/8"
358,5 cm
FRONT (ROLL-UP DOOR)
10' - 111 3/4" 283,8 cm
17' - 198" 502,9 cm
24' - 284 1/4" 722,0 cm
31' - 370 1/2" 941,1 cm
Note: Finished Slab dimensions, with lumber removed.
Reinforcing
Rods
Reinforcing
Rods
Optional Footer Type of Foundation
Welded Wire
Fabric
8

It is important that the entire oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
BX10
Arrow Anchoring Kit: (Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Arrow Anchoring Kit: (Model No. AK4 or 60298)
Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and
installation instruction.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.
9

Remove from bag of screws
and save for Step 28
67545
Weather Stripping (1)
66769
Door Slide (2)
66382
Lower Door Guide (2)
7972
Door Handle
Lock Bracket (1)
66265
Edge Trim (4)
(Carton 4)
66646
Washer (600)
(320) (Carton 4)
66444
Roof Trim Cap
(2 right & 2 left)
66446 (Arrow Logo)
Peak Cap (2)
66610 (No Slot)
#10-32x7/16" (11 mm)
Bolt (2)
65914
#6Ax7/8"(22 mm) Screw (5)
(Packed with Screws)
65900A
#10Bx1/2" (13 mm) Black
Screw (4)
(Packed with Screws)
65408
#10-32x1/4" (6 mm)
Bolts (4)
65989
1/4-20x1/2" (13 mm) Hex
Head Bolt (8)
(Packed with Screws)
Hardware for Building
BW11a
66098
Plastic Spacer (5)
65004
#8Ax5/16" (8 mm) Screw (403)
(190) (Carton 4)
65106
#10-32 Square Nut (200)
(184) (Carton 4)
65101
1/4-20 Square Nut (12)
(Packed with Screws)
65943
#10-32x7/16" (11 mm) Bolt (194)
(184) (Carton 4)
67293
Weather Stripping (1)
(Carton 4)
66260
Handle (2)
67488 (2)
3/16 x 1 5/16" (33 mm)
Heavy "S" Hook
66464 (2)
1/4-20x1 1/2" (38 mm)
Hex Head Bolt
10
65020
1" Washer (8)

Parts List
Assembly Part Part Carton 3
Key No. Number Description Carton 1 Carton 2 CHI Door Carton 4
1 7855 Truss Lower Chord 2
2 7856 Truss Upper Chord 2
3 6382 Center Gable Brace 2 8
4 7739 Truss Diagonal 4
5 6381 Mid Gable Brace 4 4
6 6380 Outer Gable Brace 4 4
7 7738 Splice Plate 1
8 7834 Right Front Frame 3
9 7837 Side Frame 4
10 7914 Side Frame 4
11 8532 Right Rear Frame 3
12 8531 Left Rear Frame 3
13 7835 Left Front Frame 3
14 7857 Truss Support 2
15 7824 Corner Wall Panel 4
16 7825 Front Wall Panel 2
17 7822 Main Wall Panel 7 6
18 6228 Frame Support 4
19 7917 Truss Column 2
20 7839 Front Column 2
21 7831 Lintel 1
22 7915 Side Top Angle 2
23 7838 Side Top Angle 2
24 7823 Medium Wall Panel 1
25 10462 Roof Beam 6
26 7912 Roof Beam 6
27 7942 Right Gable 2
28 7943 Left Gable 2
29 10460 Right Track Support 1
30 10461 Left Track Support 1
31 6372 Gable Strut 2 2
32 7827 Left Roof Panel 2
33 7826 Right Roof Panel 2
34 7828 Middle Roof Panel 4 6
35 7843 Ridge Cap 1 1
36 6874 Ridge Cap 1
37 5220 Side Roof Trim 2 2
38 6014 Side Roof Trim 2
39 7845 Left Rake 2
40 7846 Right Rake 2
41 7913 Spring Support Bracket 2
42 7830 Right Door Jamb 1
43 7829 Left Door Jamb 1
44 7517 Lower Door Track 1
45 7560 Ramp 1
46 7950 Side Wall Channel 1
47 7949 Side Wall Channel 1
48 7951 Support Column 1
49 7958 Door Track 1
50 7946 Door Jamb 2
51 7948 Door Wall Brace 1
52 10474 Door 1
53 3719 Door Handle Brace 1
54 7947 Vertical Door Brace 1
55 10497 Horizontal Door Brace 2
56 8530 Splice Channel 1
Carton #4 of the 12' x17' (3,6 m x 5,0 m) can be deleted for a complete 12' x10' (3,6 m x 2,8 m) building, or more than one carton #4 may be used to extend depth in mul-
tiples of 7' (2,2 m).
BW12
11

Assembly by Key No.
BW13
MAIN
WALL
PANEL
CORNER
WALL
PANEL
12

17
Components for Door
01FF
13
Door Section with
weather stripping
#1 End Hinge #3 End Hinge
#2 End Hinge
#1 Center Hinge
Door Lock
Assembly
Top
Fixture
Bottom
Fixture Right
Bottom
Fixture Left
Roller
Inside Step
Plate
Door Section
222
313
11
1 1 2
10

17
Components for Door
02FF
14
Snap Latch
Keeper
Cable
Vertical Track
Flag Angle
Left
Flag Angle
Right
Snap Latch
Horizontal Curve
Track Right
Horizontal Curve
Track Left
Spring
Cable
Safety
Cable
S Hook Cable Clip Pulley
Clevis
Track Bracket
22 1
112
4 1 1
2 2 2
2 2 4
2
Extension Spring

17
Hardware for Door
03FFa
15
Hex Bolt with
Hole
1/4” Self
Drilling Screw
1/4” Sheet
Metal Screw
10-24 x 5/8”
Bolt
1/4” Wiz Nut
1/4” x 5/8” Track Bolt
& Hex Nut
3/8” x 1-1/2” Bolt
& Hex Nut
3/8” x 3/4” Carriage Bolt
& Hex Nut
1/4” Self
Drilling Screw
Red
21 42
481
2 4 14

1 Assemble 1/2 truss at a time,
using #10-32x7/16" (11 mm) bolts
and square nuts, on all connections
loosely.
2 Attach truss lower chord to truss
upper chord.
3 Attach 2 center gable braces to
the upper and lower chords at the
opposite end of truss.
4 Attach 2 truss diagonals to upper
and lower chords.
5 Attach 2 mid gable braces to up-
per and lower chords.
6 Attach 2 center gable braces to
upper and lower chords at middle of
truss.
7 Attach 2 outer gable braces to
upper and lower chords. Mount with
short leg of brace.
Step 1
BW14
 Parts Needed For 
Truss Assembly 12x17, 12x24 & 12x31
(3,7 m x 5,2 m / 3,7 m x 7,3 m / 3,7 m x 9,4 m) ONLY
 7855 Truss Lower Chord (2)
 7856 Truss Upper Chord (2)
 6382 Center Gable Brace (8)
 7739 Truss Diagonal (4)
 6381 Mid Gable Brace (4)
 6380 Outer Gable Brace (4)
 7738 Splice Plate (1)
6382
6382
7739
7856
Short
Mounting
Leg
#10-32 Square Nut
#10-32x7/16" (11 mm) Bolt
7855
6380
6381
7738
Edge Trim
Mounting Flange of Brackets
Must Face Towards Center
Of Truss Assembly
IMPORTANT:
Square Up
Half Truss
8 Square up 1/2 truss, adjust and
tighten.
9 Make other half and square.
10 Splice both halves together
with splice plate and fasten center
gable braces together, using 3 bolts
and nuts.
11 Cut the 4 pieces of edge trim in
half and slip over the bottom edges
of gable braces. This trim is a must
to protect against injury from the
sharp edge.
NOTE
The day before construction of the building, complete the
sub-assemblies so they will be ready. EXAMPLE: Truss,
oor frames, roof beams, gables, side and overhead doors.
Set the assemblies aside, so they will not get damaged.
The remainder of the building assembly requires more than
1 work session and more than 1 person. Do not continue
beyond this point if you do not have enough time to complete
the wall assembly and can tie down the assembly overnight.
Complete the roof and doors on the following day.
Make 1 assembly for the 12x17 (3,7 m x 5,2 m)
Make 2 assemblies for the 12x24 (3,7 m x 7,3 m)
Make 3 assemblies for the 12x31 (3,7 m x 9,4 m)
16

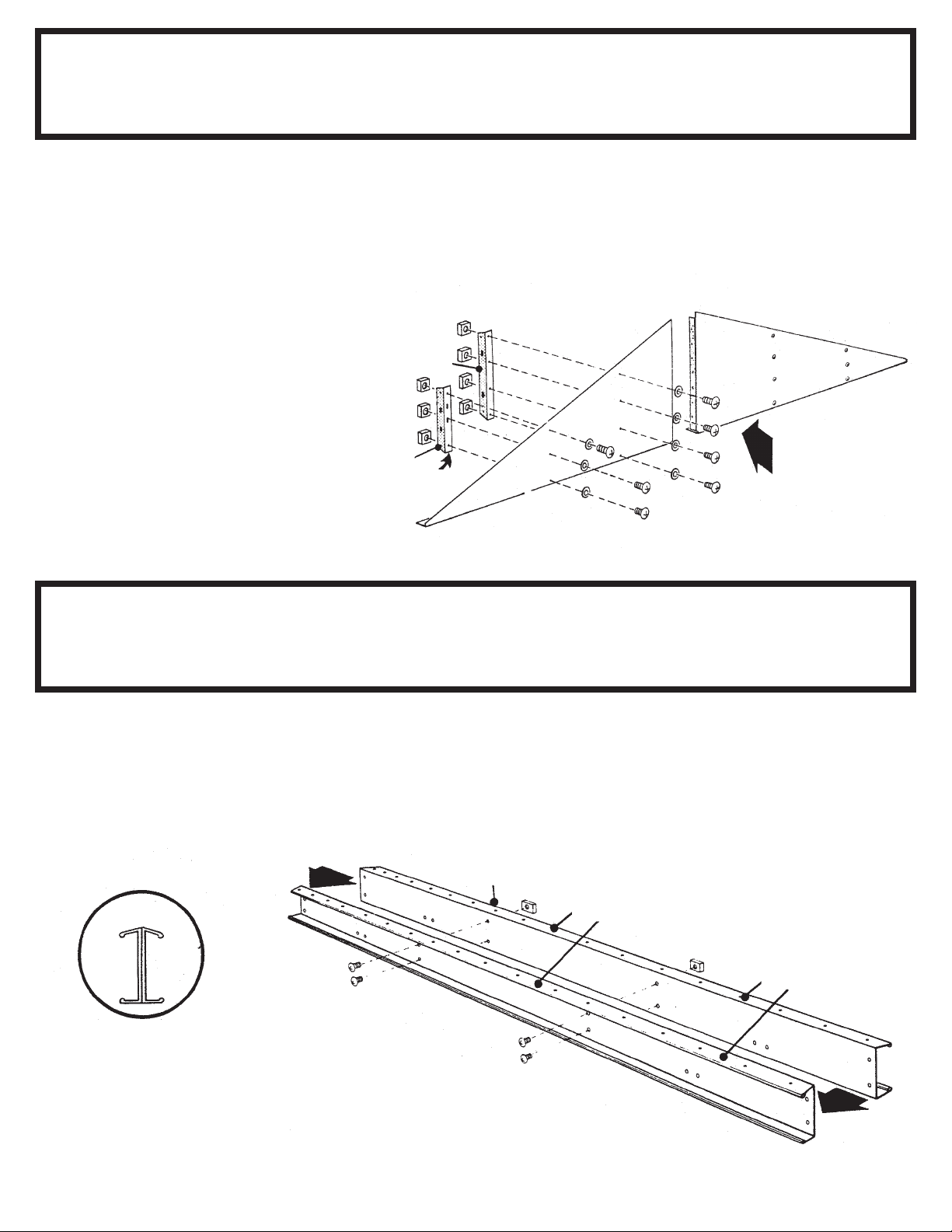

The gables go on top of the front and
rear walls to support the roof beams.
The gables are packed nested to-
gether and might be mistaken as
1 piece. Carefully separate them
before continuing.
1 Position mid and outer gable
braces on right and left gables.
Short mounting ange of brace must
face center of gable. Fasten using
#10-32x7/16" (11 mm) bolts, washers
and square nuts. Assemble 2 sets
of gables.
Step 2
BW15
 Parts Needed For 
Gables All Sizes
 6381 Mid Gable Brace (4)
 6380 Outer Gable Brace (4)
 7942 Right Gable (2)
 7943 Left Gable (2)
7912
#10-32 Square Nut
#10-32x7/16" (11 mm) Bolt
10462
Short Mounting Flange
Must Face Towards
Center of Gable
Step 3  Parts Needed For 
Roof Beam Assemblies
 10462 Roof Beam (2) (All Sizes)
 7912 Roof Beam
(2) 12x17 (3,7 m x 5,2 m)
(4) 12x24 (3,7 m x 7,3 m)
(6) 12x31 (3,7 m x 9,4 m)
The roof beams join the gables to the
truss and supports the roof panels.
1Align the holes on 2 roof beams,
back-to-back and fasten using 4
#10-32x7/16" (11 mm) bolts and
square nuts.
Small Holes
on Top
7942
7943
6380
6381
#10-32x7/16" (11 mm) Bolt
#10-32 Square Nut
Washer
FRONT
Assembled
End
View
17

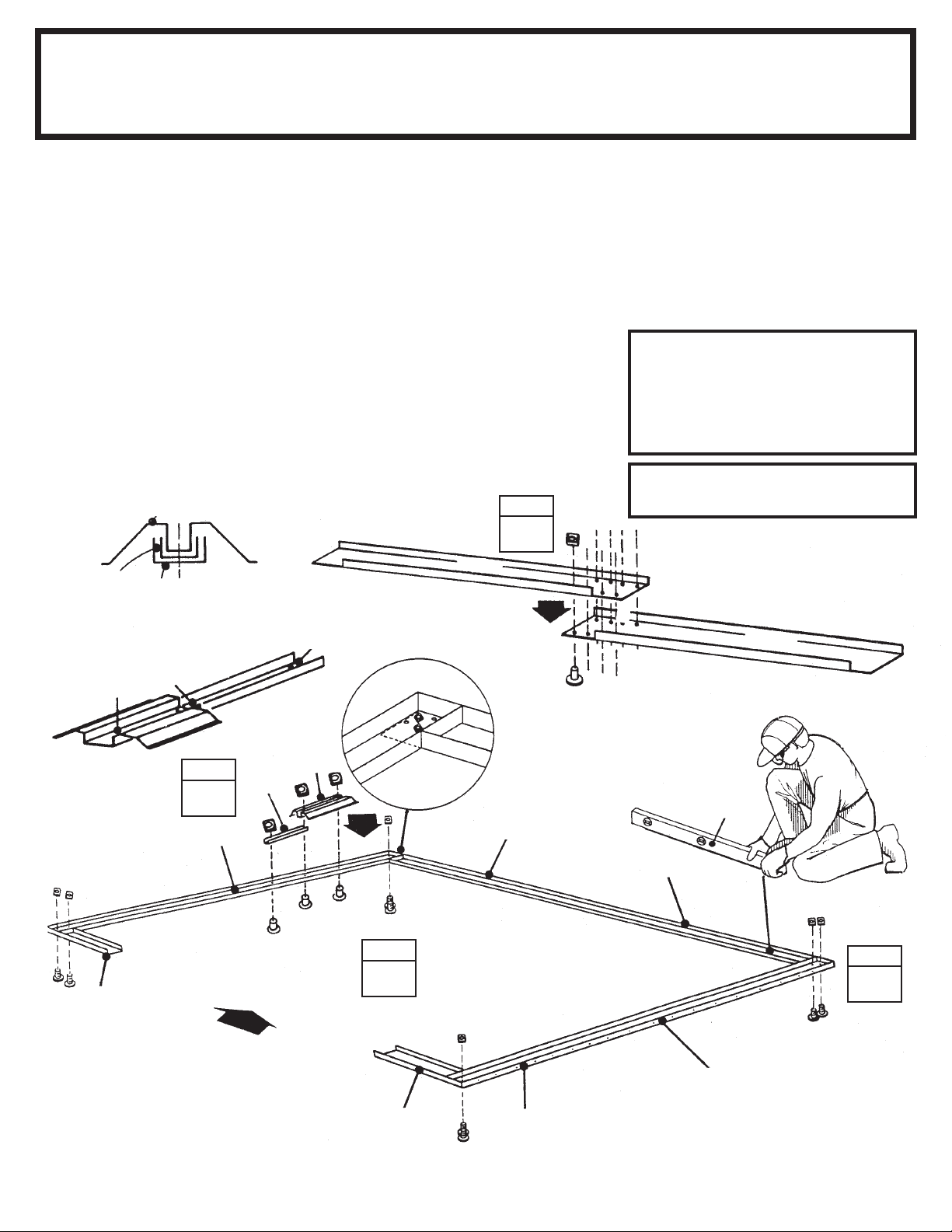

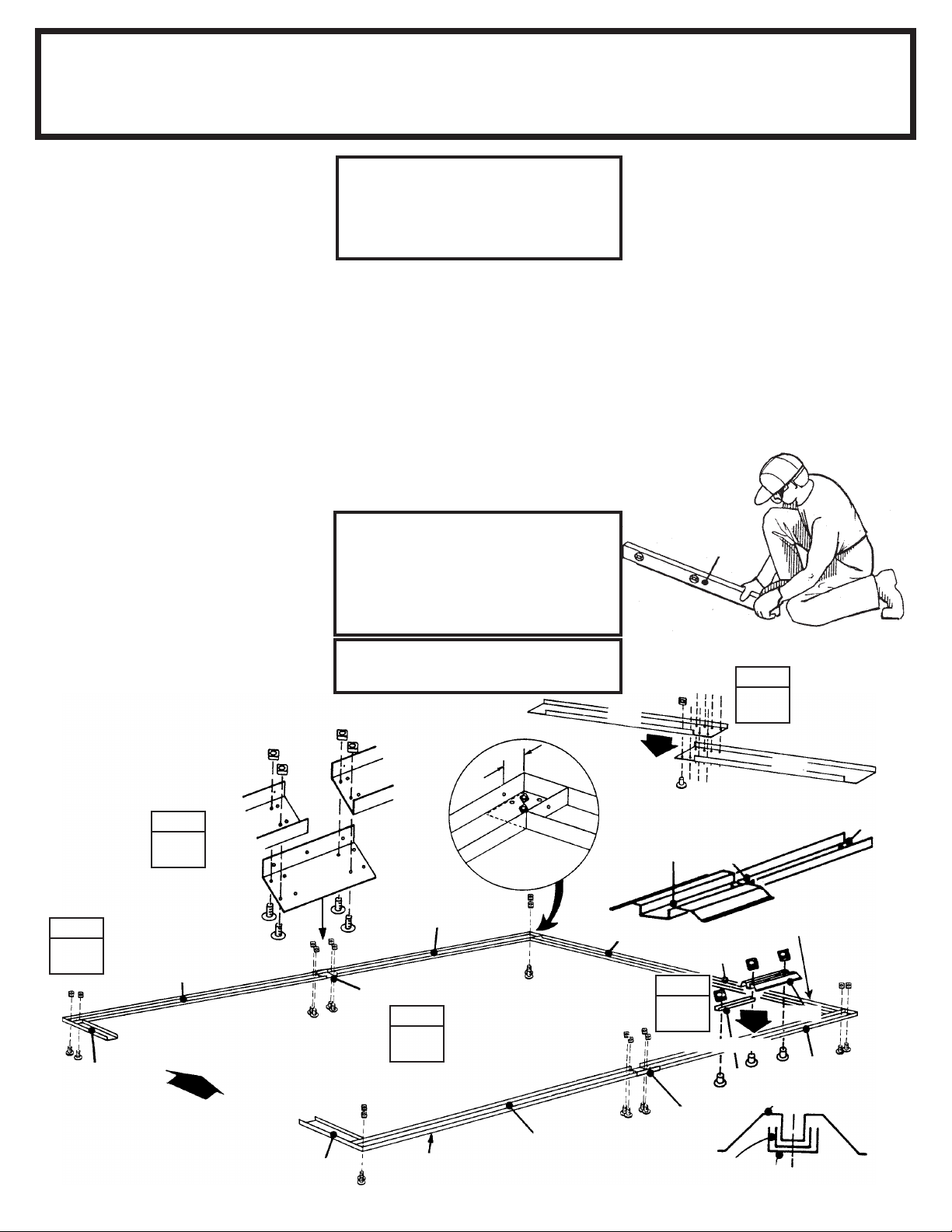

The rear oor frame is made up of 2
pieces. The holes in these pieces will
align when the pieces are positioned
with correct amount of overlap. The
illustration below shows the proper
overall length for the rear.
1 Overlap right and left rear frames,
align holes, and fasten using 8 bolts
and nuts. Make 3 assemblies. Use
1 assembly for this step.
Step 4
BW16
 Parts Needed For 
Floor Frame Assembly
12x10 (3,7 m x 3,0 m)
 8532 Right Rear Frame (1)
 8531 Left Rear Frame (1)
 7837 Side Frame (2)
 7834 Right Front Frame (1)
 7835 Left Front Frame (1)
 7517 Lower Door Track (1)
 7560 Ramp (1)
#10-32 Square Nut
#10-32x1/4" (6 mm)
Bolt
7837
8531
4 Select location of side door
on either side, toward the rear of
building. Install lower door track
and ramp, notch toward outside,
using 1/4" (6 mm) bolts and nuts,
as shown. See Step 12 for Rear
Door Installation.
2 Position oor frames as shown
and fasten at each corner using 2
bolts through the bottom and nuts
on top.
3 Measure the oor frame diago-
nally. When the diagonal measure-
ments are equal, the oor frame is
square.
7834 Position with small holes
toward outside of building
7835
FRONT
7837
7517
7560
8532
Level
#10-32x7/16" (11 mm) Bolt
SIDE
REAR
Slot
Notch toward outside
of building
Side Frame
7517
7560
8531
Rear Frame 140 7/8" 357,8 cm
8532
STEP
1
STEP
4
STEP
3
STEP
2
NOTE
Do not fasten the oor frames to
your foundation at this time. You
will anchor the building after it is
erected.
The oor frame must be square
and level or holes will not align.
18

The rear oor frame is made up of 2
pieces. The holes in these pieces will
align when the pieces are positioned
with correct amount of overlap. The
illustration below shows the proper
overall length for the rear.
1 Overlap right and left rear frames,
align holes, and fasten using 8 bolts
and nuts. Make 3 assemblies. Use
1 assembly for this step.
2 Position floor frames as shown
and fasten at each corner using 2
bolts through the bottom and nuts
on top. When installing side frame
7914, be sure set of holes 1" (2,5 cm)
in from end of frames are installed
toward rear of building.
3 Fasten side frames together with a
truss support using 4 bolts through
the bottom and nuts on top.
Step 5
BW17
 8532 Right Rear Frame (1)
 8531 Left Rear Frame (1)
 7914 Side Frame (see below)
 7857 Truss Support (see below)
#10-32 Square Nut
#10-32x7/16" (11 mm) Bolt
IF YOU ARE BUILDING A 12x24
(3,7 m x 7,3 m)
Fasten additional side frame 7914 and
truss support 7857 to side frame 7914
using the side connection. Position rear
frame at rear of assembly and fasten
using the rear corner connection.
IF YOU ARE BUILDING A 12x31
(3,7 m x 9,4 m)
Fasten 2 additional side frames 7914
and truss supports 7857 to side frame
7914 using the side connection. Positon
rear frame at rear of assembly and fasten
using the rear corner connection.
4 Measure the oor frame diago-
nally. When the measurements are
equal, the oor frame is square.
5 Select location of side door on
either side, toward the rear of build-
ing. Install lower door track and
ramp, notch toward outside, using
1/4" (6 mm) bolts and nuts. See
Step 12 for Rear Door Installation.
7834 Position with small holes
toward outside of building
FRONT
#10-32x1/4" (6 mm) Bolt
STEP
4
STEP
1
NOTE
Do not fasten the oor frames
to your foundation at this time.
You will anchor the building
after it is erected.
The oor frame must be square
and level or holes will not align.
 7837 Side Frame (2)
 7834 Right Front Frame (1)
 7835 Left Front Frame (1)
 7517 Lower Door Track (1)
 7560 Ramp (1)
7837
7857
7517
7835
7837
7914
7857
7837
7914
STEP
3
STEP
2
Rear Frame 140 7/8"
357,8 cm
Slot
Notch toward outside
of building
8531
8532
8531
8532
Level
7560
7914
7560
Side Frame
7517
SIDE
REAR
7857
NOTE
Position of holes, and fasten at
the 1st set of holes. See side
connection.
STEP
5
Level
 Parts Needed For 
Floor Frame Assembly
12x17, 12x24 & 12x31
(3,7 m x 5,2 m / 3,7 m x 7,3 m / 3,7 m x 9,4 m)
1"
2,5 cm
19
