Asada 1.5CFM-BL User manual

AIR CONDITIONING TOOL
CORDLESS VACUUM PUMP１．５CFM
【Read through this manual carefully before using the pump.】
INSTRUCTION MANUAL

CORDLESS VACUUM PUMP 1.5CFM
1
SAFETY PRECAUTIONS



 


 
 
 


  
 
  


󱐰

CLASSIFICATION OF CAUTIONS
WARNING



   
   

CAUTION
    


CORDLESS VACUUM PUMP 1.5CFM
2
SAFETY PRECAUTIONS 
COMPONENTS OF THE MACHINE 
  
  
  
 
OPERATION BATTERY CARTRIDGE AND CHARGER  
   
  
  
 
  
 
 
 
 
 
OPERATION 
   
 
  
 
  
MAINTENANCE & INSPECTION
  
  
 
  
TECHNICAL INFORMATION
 
CE DECLARATION OF CONFORMITY  
  
CONTENTS

CORDLESS VACUUM PUMP 1.5CFM
3


CAUTION IN USE
WARNING
◆ Only qualied persons are allowed to disassemble the pump.
◆ Do not modify the pump.
 
◆ Do not put a nger or a stock to the turning part of motor.
 
 Do not touch the pump part during or soon after operation.
 
◆ Wear protective glasses and gloves during operation.
◆ Avoid contact with refrigerant, blindness and injuries may result to
operator.
◆ The power source should be AC220-240V.
 
 
◆ Do not operate the pump in rain or with wet hands.
 
◆ Always ground the pump.
 
◆ Always inspect the power plug and plug in securely.
 

CORDLESS VACUUM PUMP 1.5CFM
4
WARNING
◆ Do not use the power cord concurrently with other electrical equipments
and avoid overload connection.
◆ Do not pull the power cord to disconnect from the outlet.

◆ Do not use the pump in an area where gasoline, thinner or any other
combustible gas may exist.

◆ When unattended, blackout or servicing, switch o󱐯 and unplug the pump.

◆ The pump should be used in a well-ventilated area especially in a
small space.

◆ Use or store the pump on a horizontal position.

◆ Be careful about oil leakage. Make sure no vacuum pump oil leaks.
Failure to do so may result in re
◆ Always switch o󱐯 the pump before installing of the battery cartridge.
Installing of the battery cartridge when pump switches on, it may lead to
accident.
◆ Recharge only with the charger specied by the manufacturer.
A charger that is suitable for one type of battery cartridge may create
a risk of re when used with another battery cartridge.
◆ Use the pump only with specically designated battery cartrdiges.
Use of any other battery cartridge may create a risk of injury and re.

CORDLESS VACUUM PUMP 1.5CFM
5
WARNING
◆ When battery cartridge is not in use, keep it away from other metal objects.

 
◆ Under abusive conditions, liquid may be ejected from the cartridge;
avoid contact.

 
 
◆ Do not disassemble, repair and alter a pump, a charger, a battery
cartridge.
It may lead to generation of heat and abnormal working, and may lead to
injury.
◆ Ask for repairs, if smothing is wrong such as body is abnormally hot.
◆ Do not alter a pump as this is adapted for relevant safety standard.
Other safety caustions

◆ Before operation, check damage on a battery cartridge and other parts.
Check if pump works correctly and perfome prescribed function.
If something is wrong, do not use a pump and ask for repairs.
◆ Stop operation immediately when a pump works not correctly or gets
damage.
Operation under abnormal condition may lead to smoke, re, electric
shock and injury.
(Example)

 
 
 
 
◆ In case something is wrong such as a pump does not start by turning on
switch,remove a battery cartridge immediately, ask for repairs.

CORDLESS VACUUM PUMP 1.5CFM
6
WARNING
◆ Use only the accessories or attachments given in this manual and our
catalogs.
 
◆ Do not use a battery cartridge which operating time has become
exessively shorter.
◆ Do not throw a used battery cartirdge away as general garbage.
 
◆ Do not charge in an area where gasoline, thineer or any other cobustible
gas may exist.
 
 Do not do following things. These may lead to re.


  

◆ A charger has a charging terminal in a battery cartridge installing part.
Foreigh substances such as metal objects and water should be away
from charger.
 
◆ Do not use a charger other than charging.
◆ Immediately disconnect the plug and stop the charging if something is
wrong with a battery cartridge or charger.
 
◆ Do not throw a battery cartridge in re and heat.
 
◆ Do not drive a nail into a battery cartridge and shock, disassemble and
alter a battery cartridge.
 

CORDLESS VACUUM PUMP 1.5CFM
7
WARNING
◆ Do not store the pump and battery cartridge in locations where the
temperature may reach or exceed 50℃ (122℉ ).
◆ The pump is stored in indoor ambient temperature 5℃ ～ 40℃ .
◆ Use charger under the condition of normal rated power.
Do not use transformer, DC power and engine generator.
 
◆ Do not charge a battery cartridge where ambient temperature is lower
than 10℃ or higher than 40℃ .

◆ Charge a battery cartridge in a well-ventilated area.
Do not cover a battery cartridge and charger with fabric.

◆ When not in use, disconnect the charger plug from power outlet.

◆ Always drain your vacuum pump of all uids before shipping to prevent
the damage of the container.
◆ Always cover the intake port with cap to keep any dust from entering
the pump.

CORDLESS VACUUM PUMP 1.5CFM
8
◆ An extension cord used should be a length of 30m or less when its
diameter is 2.0㎡ .
 
◆ Do not let visitors touch the pump.
 
 
◆ Do not use the pump for purposes other than the original intent.
  
 
◆ Do not use the pump when the result is unpredictable.
◆ Do not overload the pump.
 
◆ Keep your work bench and area tidy and well lit.
 
◆ Do not operate the pump when you cannot concentrate on your work
due to fatigue, drinking, medication and so on.
◆ When not in use, the pump should be stored in dry and high or locked-up
place – out of reach of children.
◆ Use only the accessories or attachments given in this manual and our
catalogs.
 
◆ If you have dropped or hit the pump accidentally, carefully check for
damage, crack or deformation.
◆ Always check for deformation, corrosion and so on in each part of the
pump.
◆ Immediately stop the pump if something is wrong with the pump (unusual
smell, vibration, sound) and refer to“ MAINTENANCE & INSPECTION”.
Do not disassemble the pump without reason and ask for repairs.

CAUTION

CORDLESS VACUUM PUMP 1.5CFM
9

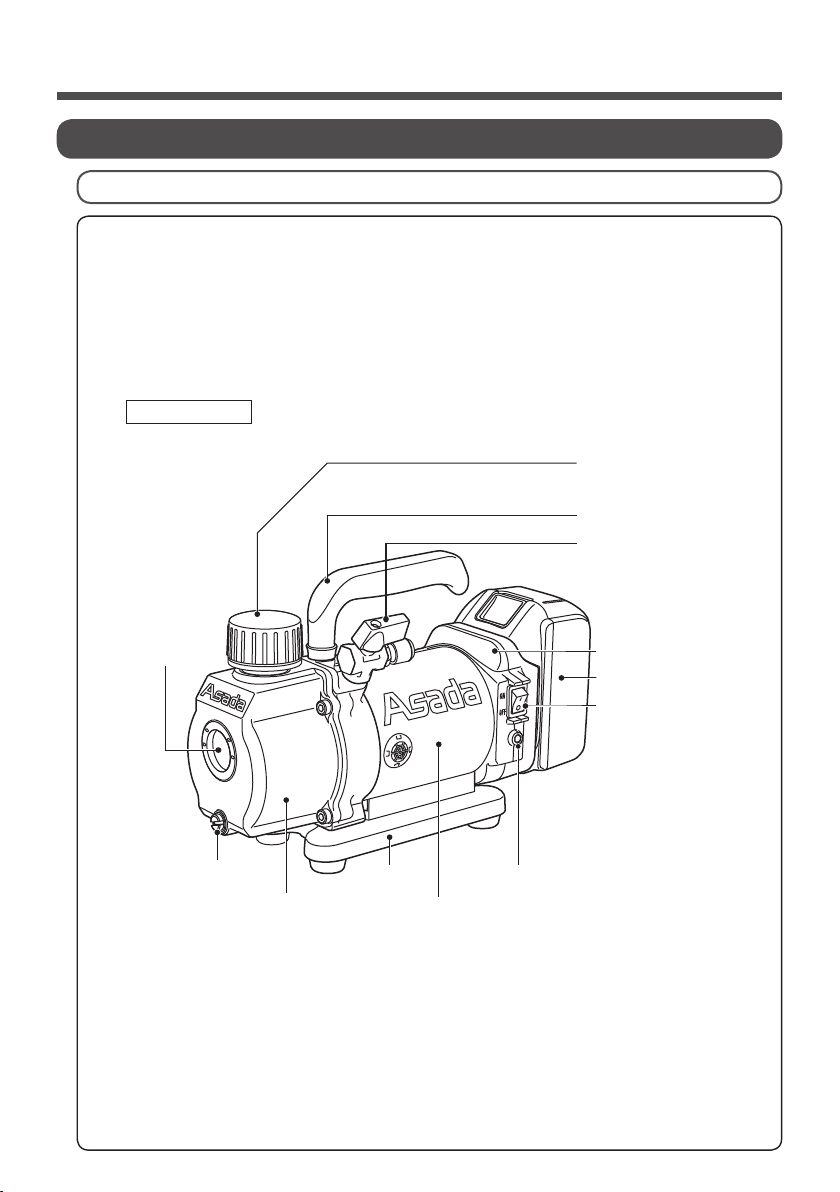

COMPONENTS OF THE MACHINE
Main Parts
MotorOil tank
Oil fill ／
exhaust cap
1.5CFM-B
Base
Intake shut-off
valve
Handle
Battery holder
Sight glass
Battery cartridge
LED lamp
Power switch
Oil drain plug

CORDLESS VACUUM PUMP 1.5CFM
10
 

 
 



 
 
 
 
 
 

Specication





◦ Due to our continuing program of research and development, the specications
herein are subject to change without notice.
◦ Specications and battery cartridge may di󱐯er from country to country.
Vacuum pump for air evacuation of closed systems.
(air conditioners, tanks, etc).
This equipment is specially designed for HVAC&R systems.
The single stage of these pumps make it feasible to achieve the nal
vacuum level requested.
Big sight glass and low oil level design avoids running without oil and
ensures reliable usage.
Besides, the check valve avoids any oil mixture due to the backow after a
power interruption or any other process interruption.
■ Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
Warning: hot surface!
Do not touch around this symbol.
Touching the surface may cause burns or injuries.
Only for EU countries
Do not dispose of electric equipment or battery pack together with
household waste material!
In observance of the European Directives, on Waste Electric and Electronic
Equipment and Batteries and Accumulators and Waste Batteries and
Accumulators and their implementation in accordance with national laws,
electric equipment and batteries and battery pack(s) that have reached
the end of their life must be collected separately and returned to an
environmentally compatible recycling facility.

CORDLESS VACUUM PUMP 1.5CFM
11
 


  
  
  
  


 

 
  
 
  
  
  
  


  
  
  
 

  
  
  

 



 
 
 
Standard Accessories
Optional Accessories

CORDLESS VACUUM PUMP 1.5CFM
12
OPERATION BATTERY CARTRIDGE AND CHARGER

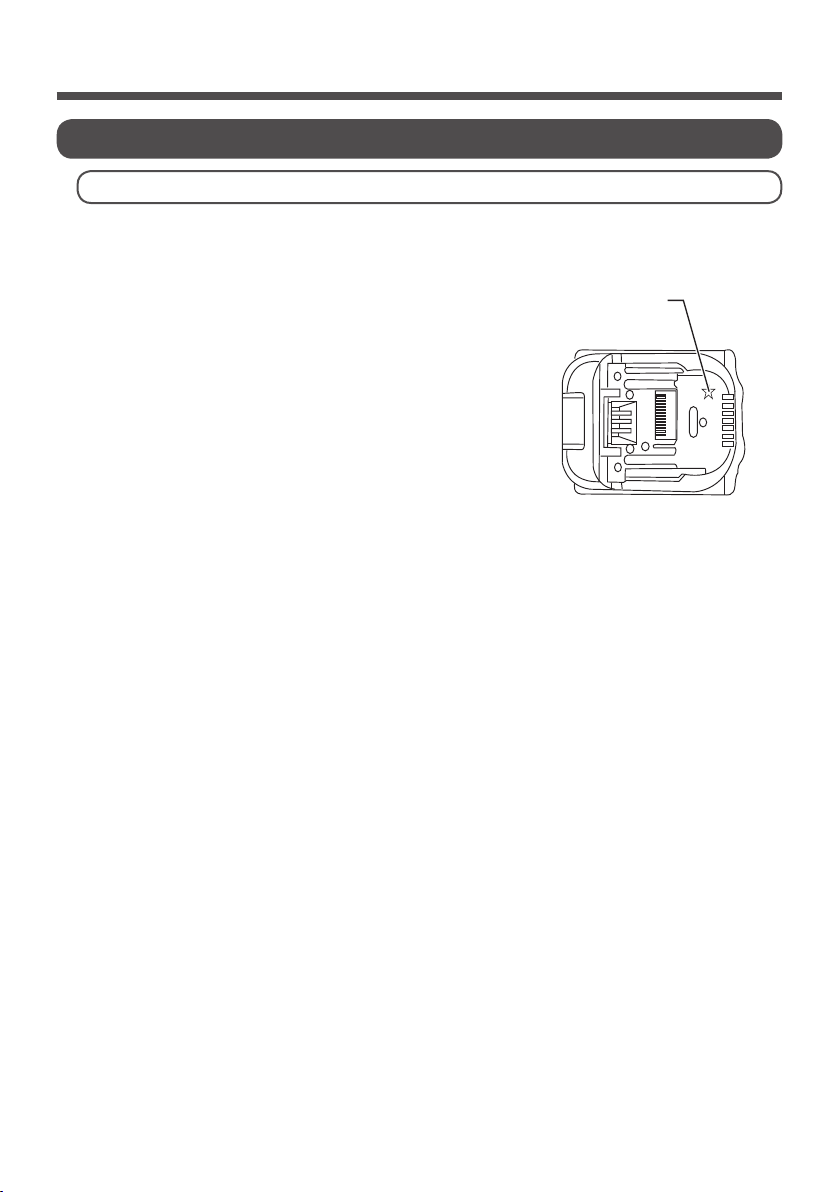

Battery Protection System
  

󱐯

  


󱾀
  

󱐯
  

󱾀   
   
   

󱾀   


󱾀    
󱐯
   

󱾀   


󱾀



󱾀

★marking

CORDLESS VACUUM PUMP 1.5CFM
13
Charging Battery Cartridge
󰴤 
 
 

󰴥 
 
 
 
 
 
 

󰴦    

   




󰴧

󰴨

Battery cartridge
Terminal cover
Charging
indicator light
Yellow
Green
Red

CORDLESS VACUUM PUMP 1.5CFM
14

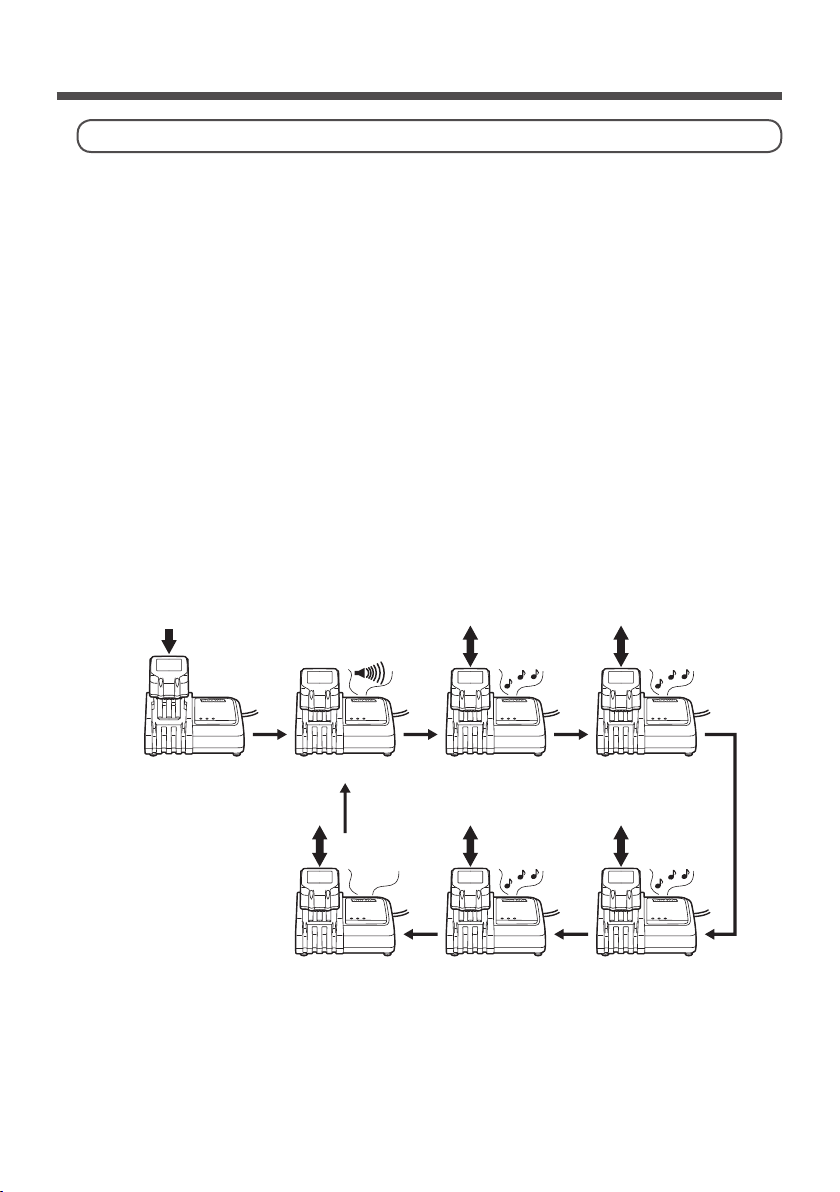

Changing Melody Of Completed Charging
󰴤   

󰴥

󰴦   

   
   

󰴧

  

󰴨
Silent mode
Beep!
Melody 4 Melody 3
Buzzer（※） Melody 1 Melody 2
 

CORDLESS VACUUM PUMP 1.5CFM
15

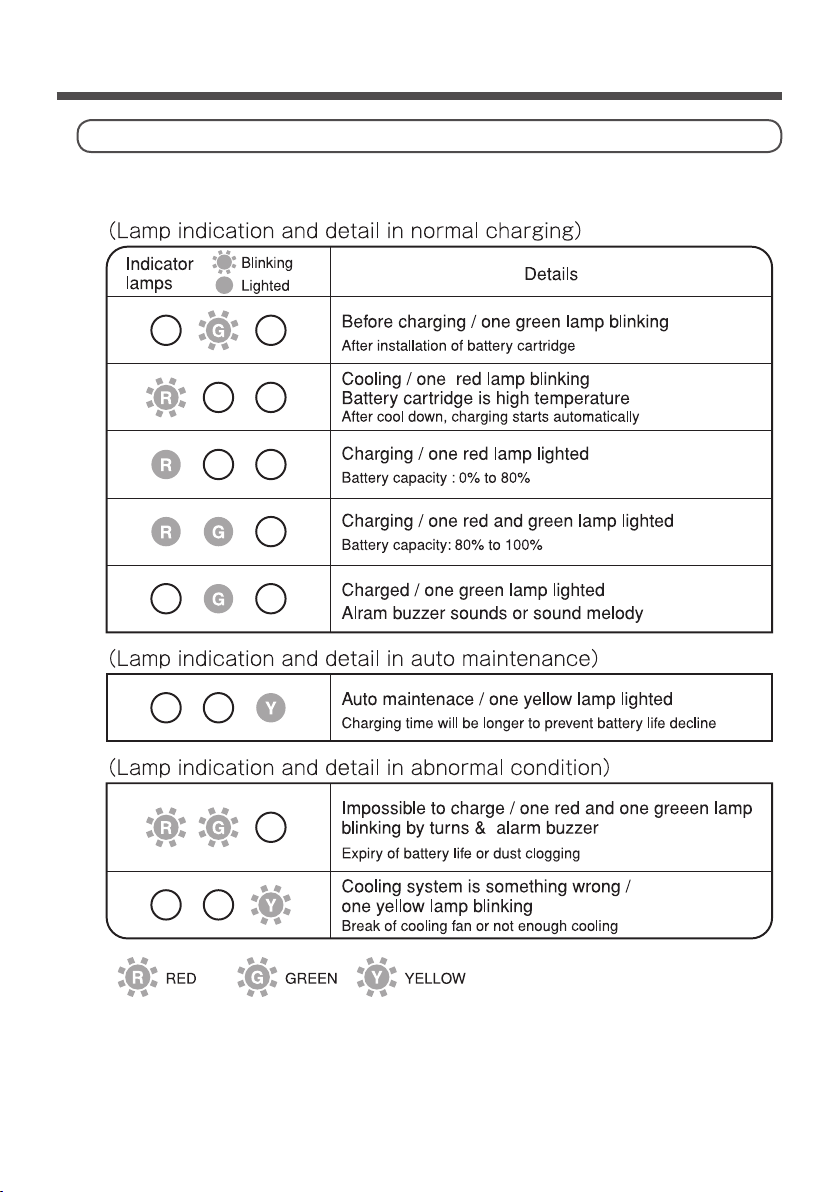

Charging Indication Lamps


CORDLESS VACUUM PUMP 1.5CFM
16
  





   






  




 
   

 
 
 
 




    

Caution In Use
Cooling System

CORDLESS VACUUM PUMP 1.5CFM
17
Conditioning Charge
 
  

  


 
 
 
 
  
To Maintain Battery Life
    



 
  

   

Inspection, Repair, Storage Of Charger

󱐰

 
 
 
 
 

CORDLESS VACUUM PUMP 1.5CFM
18
Installing Or Removing Battery Cartridge
󰴤 
  

󰴥 
 
  
  

  
  

Red part
Battery
cartridge
Button
2
1
Always install the battery cartridge fully until the red indicator
cannot be seen. If not, it may accidentally fall out of the pump,
causing injury to you or someone around you.
WARNING

CORDLESS VACUUM PUMP 1.5CFM
19

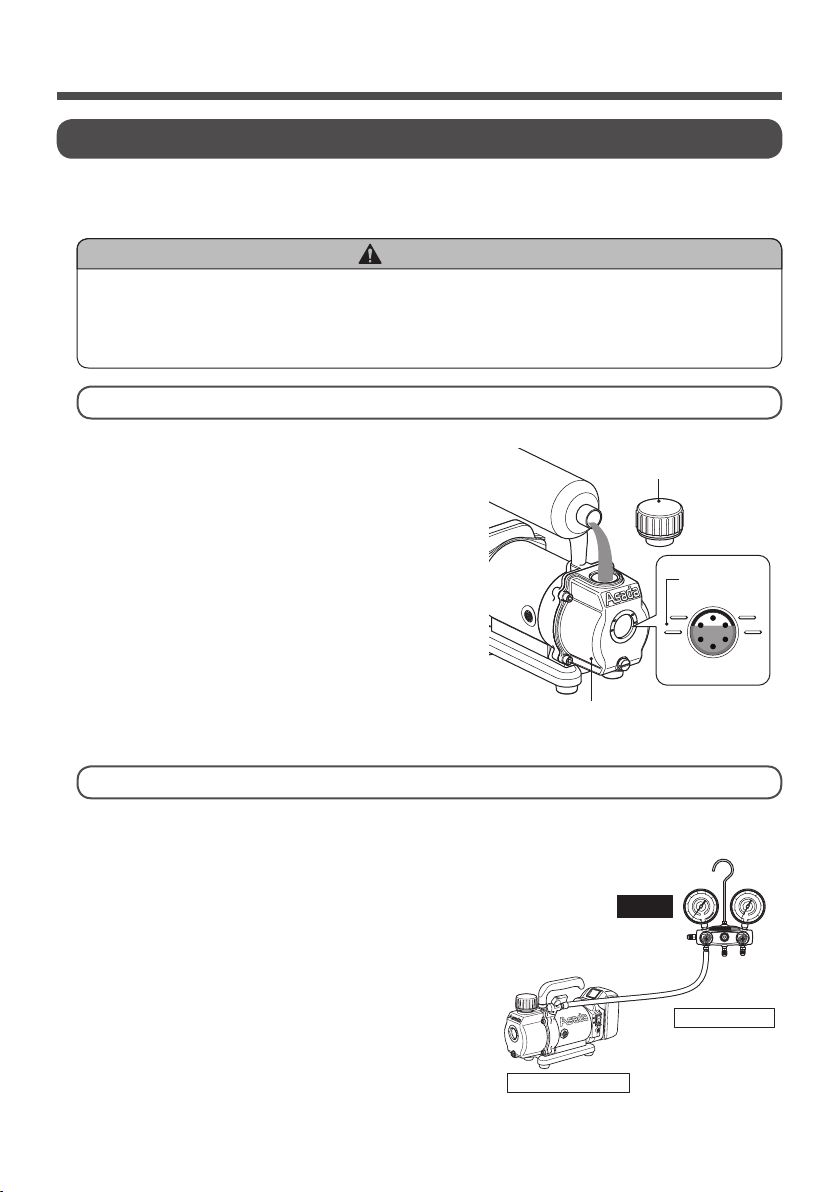

Adding Oil
󰴤

  
  
󰴥   
  

  
  
  
  
    
  
Sight glass
Level line
Oil fill/exhaust cap
Oil tank


Checking Performance
󰴤 
  

󰴥  

󰴦󱐯
󰴧
󰴨  
  
  

󰴩󱐯
Intake
Low
side valve
Close
Vacuum pump
Manifold
OPERATION
Operating the pump in the condition without oil added will
damage the pump. In addition, the oil tank will become hot and
may result in burns or other accidents.
WARNING
