Ascend Group A3 User manual

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
Applicable model:A3, Y3, A3X GPS watch
Disclaimer:
The information in this document is subject to change without notice.
The manufacturer makes no representations or warranties with respect to the contents
hereof and specifically disclaims any implied warranties of merchant-ability or fitness for
any particular purpose.
The manufacturer reserves the right to revise this publication and to make changes from
time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
Product parameters
GSM:850/900/1800/1900MHz
GPRS:Class12
MHz/L1,1575.42MHz C/A code
GPS watch /GPS positioning
accuracy:5-15 meters
Base station location accuracy:
100 ~ 1000 meters
GPS channel number:22 channel
input voltage/ electric current:5V-0.35A
Content in Box
The watch ×1
USB charging line ×1
The instructions ×1
1.Preparation before use
(1)Check all the accessories if they are complete.
(2) Prepare a 2G GSM SIM Card which can support GSM and GPRS&CALL ID
function into the GPS Tracker.
If your sim card has pin code, unlock the SIM card on your mobile phone!
(3)Install the mobile application (APP) on the phone,you can ask the dealer if
you don't know
how to download it.
(4)The bar code and QR code is used to registered users.
2.Product function
● GPS+ LBS locating outdoor and indoor
● You can control watch via mobile application(APP)
● GPRS real-time positioning, tracking, monitoring
●Phone book
● Two way voice communication
● Remote voice monitoring
● Health
● Foot mark
● Alarm clock
● Geo-fence
● SOS for help
● Tamper alert: warning if watch was taken down

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
● Warning if low power
● Remote Power Off
●Touch to add the friends (Optional)

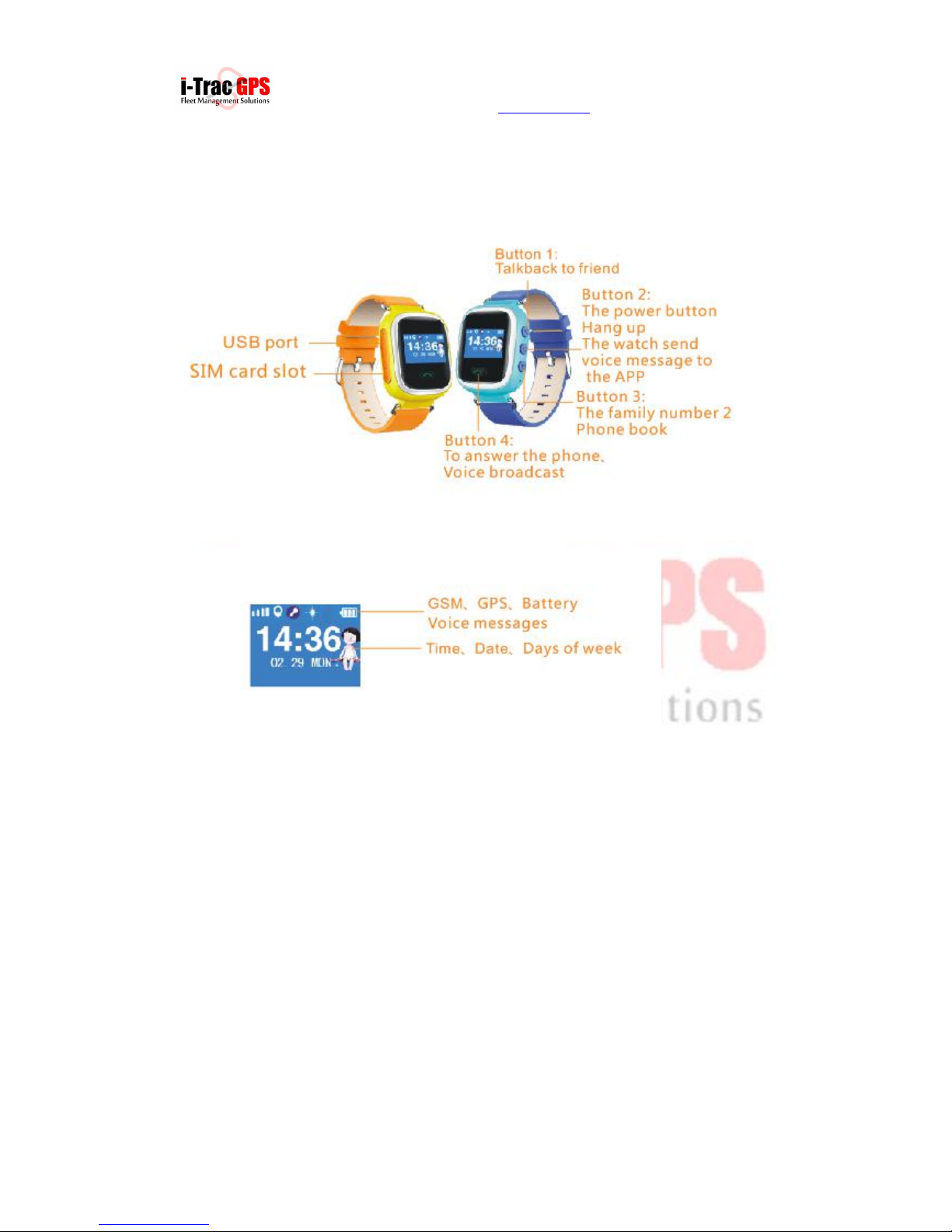

Instruction of buttons
The picture above is for reference only, please make adjust depends on the
real watch
Button 1：
Press it to enter the “touch to add friend” interface. The watch( don’t have
friend) can add friend by touching. Long press it to start recording, then release
the watch for send the message
Button 2：
Long press for power on;
In the main interface,long press for voice recording, release for sending
the voice message to the APP;
Short press for hang up the incoming call.
Button 3：
Short press enter the phone book, then short press for choose phone
number, long press for dialing;
The phone number in the phone book can make double talk with the

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
watch .
If you have set the family number 2 in the APP, you can long press 3
seconds to dialing the family number 2 directly.
Button 4：
If you have set the sos number on the app, long press it to call sos number.
When you have incoming call, short press to answer the incoming call.
when you got voice message,short press for play the voice message
3. Register the GPS watch on mobile application
Step 1: Prepare a 2G GSM SIM Card which can support GSM and GPRS
into the GPS Tracker.
Note: In most countries, the 3G 4G SIM card which can down support
2G&GPRS is fine too.

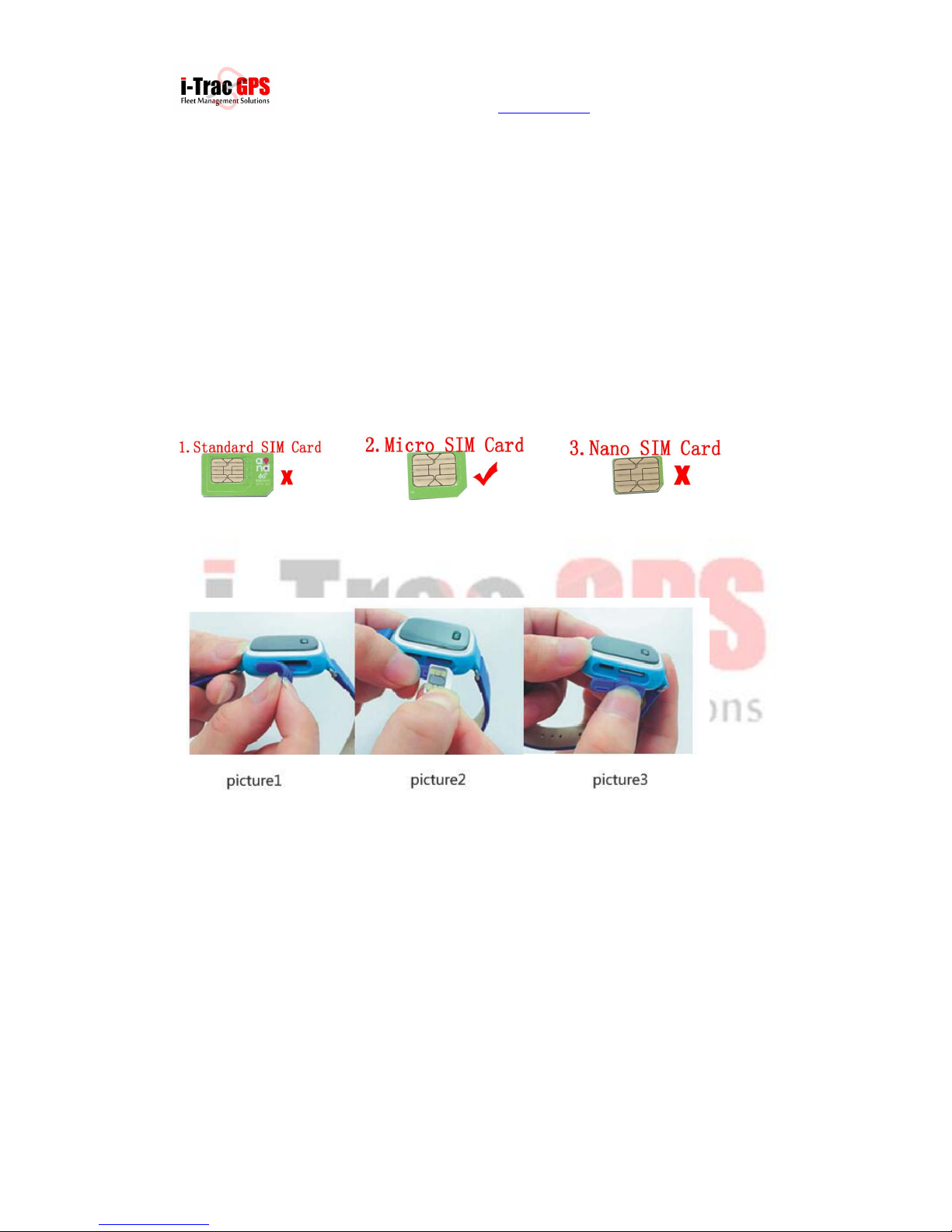

Step 2: Install in the GPS watch.
Note: If your sim card has pin code, unlock the SIM card on your mobile phone!
Step 3: Download “setracker” from apple shop or google play store, and
install in your mobile phone.

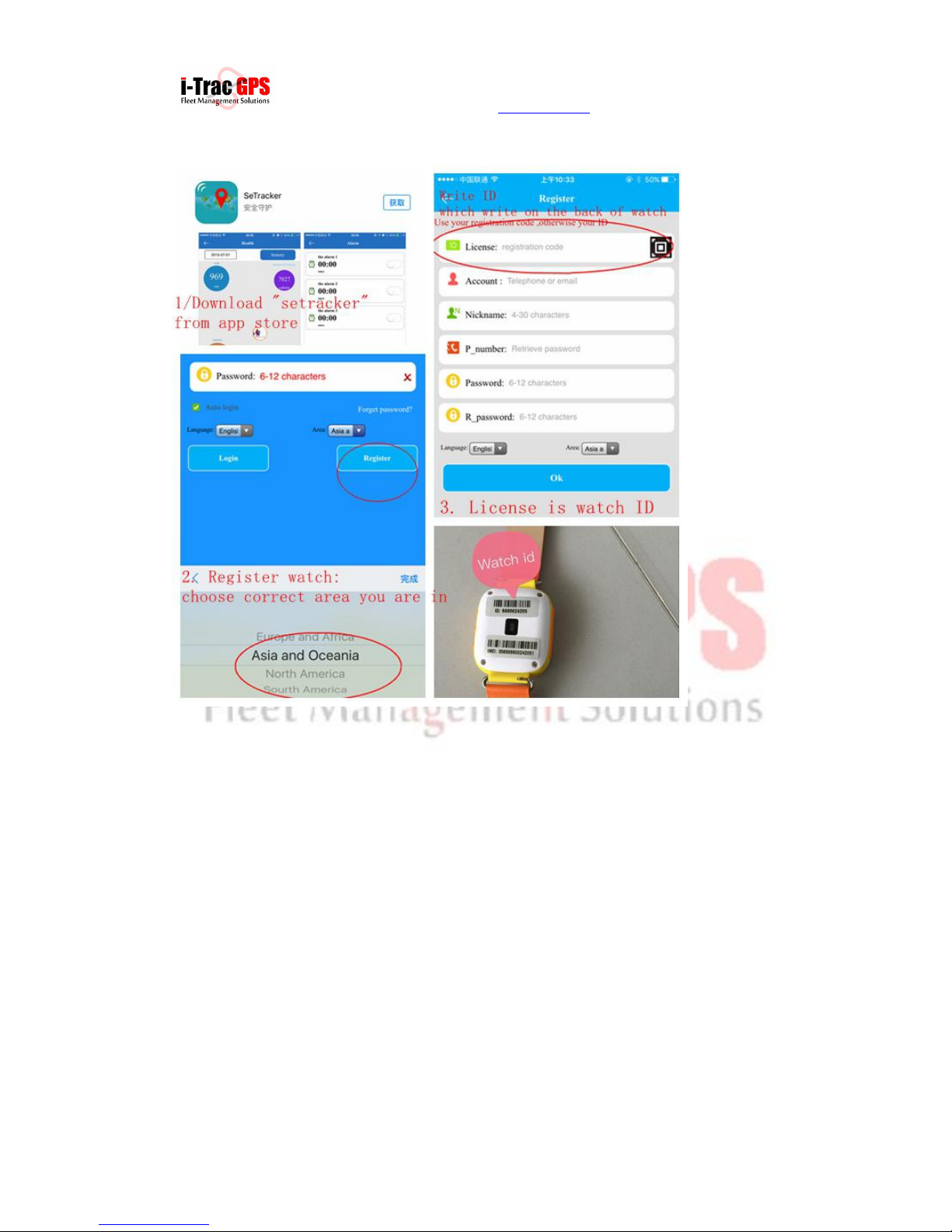

Step 4: Register the watch on the “setracker” app:
Area: we have 5 different servers, please choose the correct continent.
This is very important.
Example: if you are in Turkey, choose area “Asia and Oceania”.
License: we have paste the license on the back cover of the watch, scan or
fill out license number to register, do not use IMEI; If no license number,
use ID which we pasted on the back cover of watch to register.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
Other fields like “account” “nickname”etc are defined via yourself.
Step 5: Set APN
Use your mobile phone, send below sms command to the GPS watch tracker
SIM. Make sure you get a set success reply.
Command format:
pw,123456,apn,apn name,apn username,apn password,mccmnc#
Example: India GSM operator BSNL SIM card , the APN name is bsnlnet, user
name null, password null, MCC=404, MNC=80
Then send sms command: pw,123456,apn,bsnlnet,40480#
APN will set sucessfully.
Example: China GSM operator China mobile SIM card , the APN name is
cmnet, user name null, password null, no need MCC MNC

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
Then send sms command: pw,123456,apn,cmnet#
APN will set sucessfully.
Remark: Each operator’s APN information is different, please contact the
operator for their own APN and MCC MNC information, thanks.
Step 6: Set ip and port:
When register, the “area” column,
If you choose “Europe and Africa” , send sms command:
pw,123456,ip,52.28.132.157,8001#
If you choose “Asia and Oceania”
pw,123456,ip,54.169.10.136,8001#
If you choose “North America”
pw,123456,ip,54.153.6.9,8001#
If you choose “South America”
pw,123456,ip,54.207.93.14,8001#
4. Mobile Application Functional menu interface
Enter the correct account and password in the APP interface and click
login, then you can enter the main interface. The picture is shown as
Below.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
4.1 Function description
(1)Intercom: watches and app can do voice dialogue.Mobile phone can
also send text to watches, the text can be read in watch directly.
App sends the voice: after start the recording, APP starts recording,
then sent it to watch. The longest speech is for 15 seconds.Press the
SOS key to play it.
Watch recording: Press the power button for 3 seconds to start
recording, then sent the tape after loosen the watch,the longest
recording is for 15 seconds.APP receive voice prompt information
(The time of receiving voice is related to network status).
(2)Map: check the position of the watch at any time
The interface of map can display the location of the watch and mobile
phone APP.Click on "localization" watch then start real-time positioning
for 3 minutes, upload interval is 10 seconds and restore to the default
operating mode after 3 minutes.

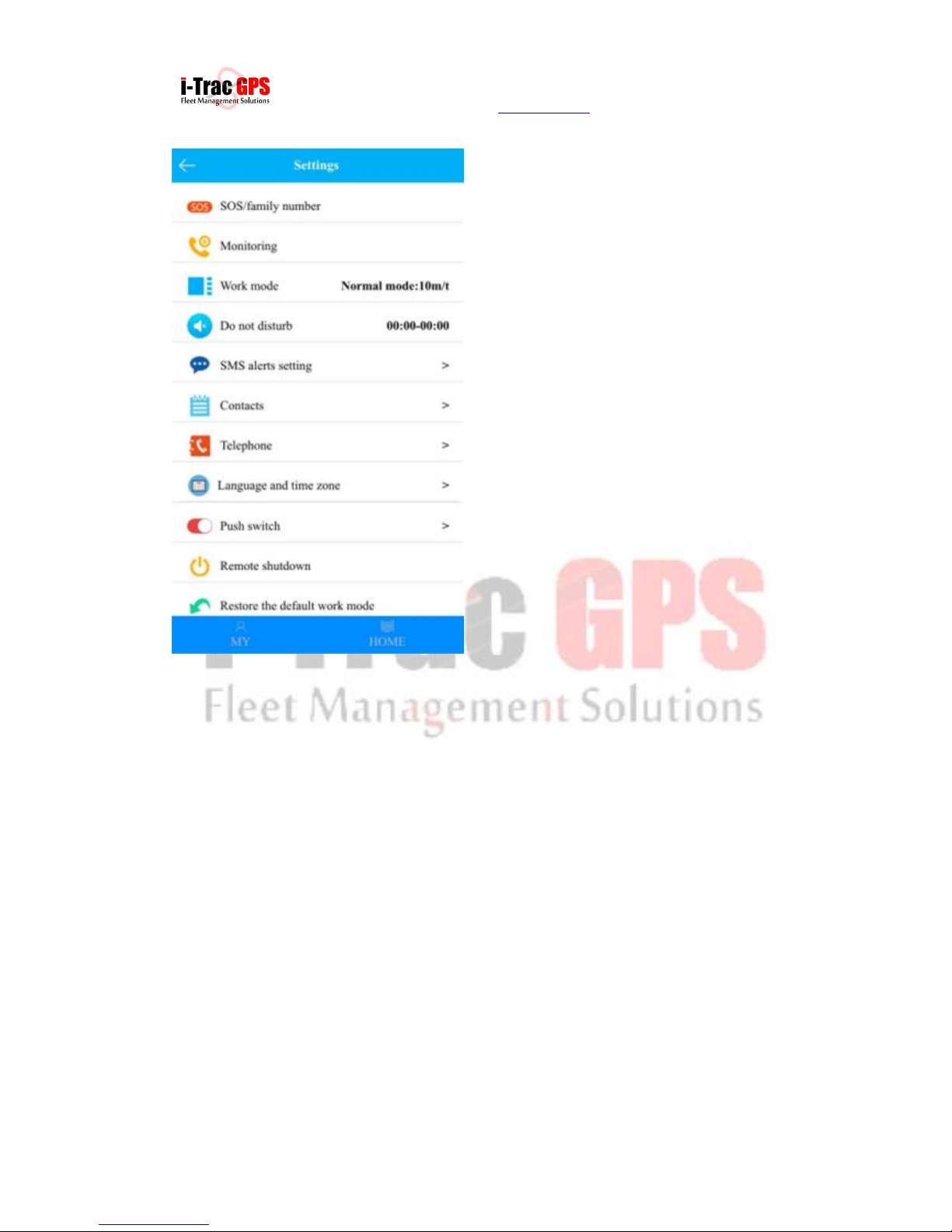

(3) Setting: set all the parameters of the watch.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
①Set SOS number: After GPS watch connected to the app, you can
choose 3 phone numbers in your phone book to save as emergency contact
persons. In emergency, you can long press the SOS key for 3 seconds
to trigger alarm., GPS tracker will call phone number 1, if the call is answered,
it won't dial any more; Otherwise, it will call phone number 2, if not answered,
then call phone number 3, repeat 2 times the stop calling.
②Monitoring: You can set a monitoring number, watch will call this monitoring
phone number, this phone number can listen voice around the watch.
③Don't disturb period: You can set 3 time period, watch will block all calls on
this period.
④SMS alerts Settings: low power, SOS, Remove the watch .
⑤Contacts: You can set a contacts list included 10 person.
⑥The phone book：The watch can set 10 phone numbers, and
these 10 phone numbers can dial the watch with each other, is a
two-way conversation.
⑦Restore the default work mode: reset to factory mode: The Watch GPS
module is open 24 hours per day, update location every 10 minutes.
⑧Remote power off: The watch can’t power off by the power off key when
it is power on and normal working, it can turn off via app only.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
⑨Touch to add the friends:Add or delete friends by touch the watch(optional
function)
(4)Electronic fence：Fence minimum radius is 500 meters, it will trigger
the alarm when the watch is outside the fence.
(5)Love reward: Select the number of hearts on the app and click the
confirm key, then the information will be sent to watch. And the screen
will show love hearts and number.
(6)Watch alarm: can set three alarm clock.
(7)Looking for watch: You can send this instruction when your watch lost,
the watch will ring the bell for a minute, then you can look for your watch,
and you can press any key to stop ringing the bell.
4.2 My
Attention: You can find the ID number in the equipment list, if this ID do not
match the ID on the back cover of the watch, the watch will not be able to link
the APP.
"Help" document listed all the functions and detailed instructions, please read
help menu if you need help.
5. Watch alarm instructions
Once device receives any alarm, alarm notice will be sent to the client phone,
click the notice, the client will see the list of alarm details and view them.
6.Watch working mode functions
Three basic working mode: The normal mode, the power saving mode
and the following mode.
Normal mode:upload interval is 600 seconds(default)
Power saving mode:upload interval is 3600 seconds
Following mode:upload interval is 60 seconds
7.Device related instructions
7.1 SOS emergency alarm
In emergency, you can long press the SOS key for 3 seconds
to trigger alarm., GPS tracker will call phone number 1, if the call is answered,
it won't dial any more; Otherwise, it will call phone number 2, if not answered,
then call phone number 3, repeat 2 times the stop calling.
7.2 Warning for taking off the watch
The terminal strap is equipped with the sensor switch, user should wear
the watch for at least 3 minutes, then it will alarm if the strap was taken
off, and terminal will send a alarm message to the center number (The
default setting is off), and send a alarm notification to the APP.
7.3 Low power alarm

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
If the power percentage is less than 20%, it will trigger alarm, and
send a alarm message to the center number. At the same time it will
send a alarm notification to the APP.
7.4 Health
7.4.1 Smart pedometer
A vibration sensor mounted on the device, when the client are doing
healthy exercise, and reach a moving limit, smart pedometer application
program will begin. Client could know their movement through the APP.
7.4.2 Sleep Management
Based on the upturned frequency of the device, the device can determine
whether a reasonable night sleep of the client. The default detection time
for 10:00 p.m. to 7:00 a.m. of the following day. Data could be viewed on
the APP.
7.4.3 Physical activity
Calculating according to the steps, step and weight, and the interval and
weight can be set up
7.4.4 Sports journey
According to the result of step and step distance calculation, the interval can
be set .
7.5 Talk-back
Long press the button 2 to start recording,then release for send the message
to the APP . When you got voice message, the watch will show voice symbol,
short press the button 4 play the message, After you read all the message, the
message will delete automatically. and the voice symbol will disappear.
7.6 Remote monitoring
First, you need set the monitoring number, and send opening voice monitoring
instructions to device , then device will dial to the monitoring number, turn to
auto answer state. And for one-way conversation, device can't hear voice of
the other side.
7.7 Turn off the watch
The watch can turn off by below methods:
Remove SIM card then press power off key to turn off
Remote turn off by APP
No power
8.Trouble Shooting
1) Register fail:
1If the APP reminds “device not exist or already registered”, please
contact manufacturer or agent to solve it;
2If the APP reminds “the account is already registered”, please
change a new account to register.
2) GPS watch can't connect to internet on the APP, check below problem.
1Check if you have installed the SIM card correct
2Check if you choose correct continent , and set ip port correct.

Ascend Group Co.,ltd (i-Trac ),www.i-trac.cn, Tel: [phone]
3Make sure you set the SIM card APN correct.
4Make sure your SIM card supports 2G GPRS function.
5Make sure you use the correct license code to register the APP.
3) NO GSM signal
Make sure you install SIM Card correct
The watch can supports 2G GSM sim card only, make sure
you use correct sim card
9. QR code scanning entrance
