English
1
B365M Phantom Gaming 4
Intel
B365
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX12V1
Top:
RJ-45
Top:
Central/Bass
Center:
REAR SPK
Top:
LIN E IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC I N
HDLED RESET
PLED PWRBTN
PANEL1
1
COM1
1
1
HD_AUDIO1
SATA3_2_3
SATA3_4_5
RoHS
7
10
11
USB5_6
1
18
USB3_4
1
17
SATA3_0
14 3
25
PS2
Keyboard
/Mouse
PCIE2
21 15 1619
M2_3
CT1
CHA_FAN2/
WP
CPU_FAN2/
WP
2
2324
AUDIO
CODEC
Ult r a M.2
PC Ie Ge n3 x 4
USB 3.1 Gen1
T: USB3
B: USB4
USB 3.1 Gen1
T: USB1
B: USB2
BIOS
ROM
26
USB 2.0
T: USB1
B: USB2
RGB_LED1
1
RGB_LED2
1
A_RGB_LED1
1
20
8
USB3_5_6
1
CHA_FAN3/
WP
B365M Phantom Gaming 4
CPU_FAN1
CLRMOS1
1
22
1
TPMS1
CHA_FAN1/
WP
SATA3_1
PCIE1
LAN
HDMI1
DP1
USB 3.1 Gen 1
USB31_TC_1
PCIE3
CMOS
Battery
M2_1
M2_2
5
9
12
14
ATXPWR1
SPK_CI1
1
CPU
DRAM
VGA
BOOT
13
6

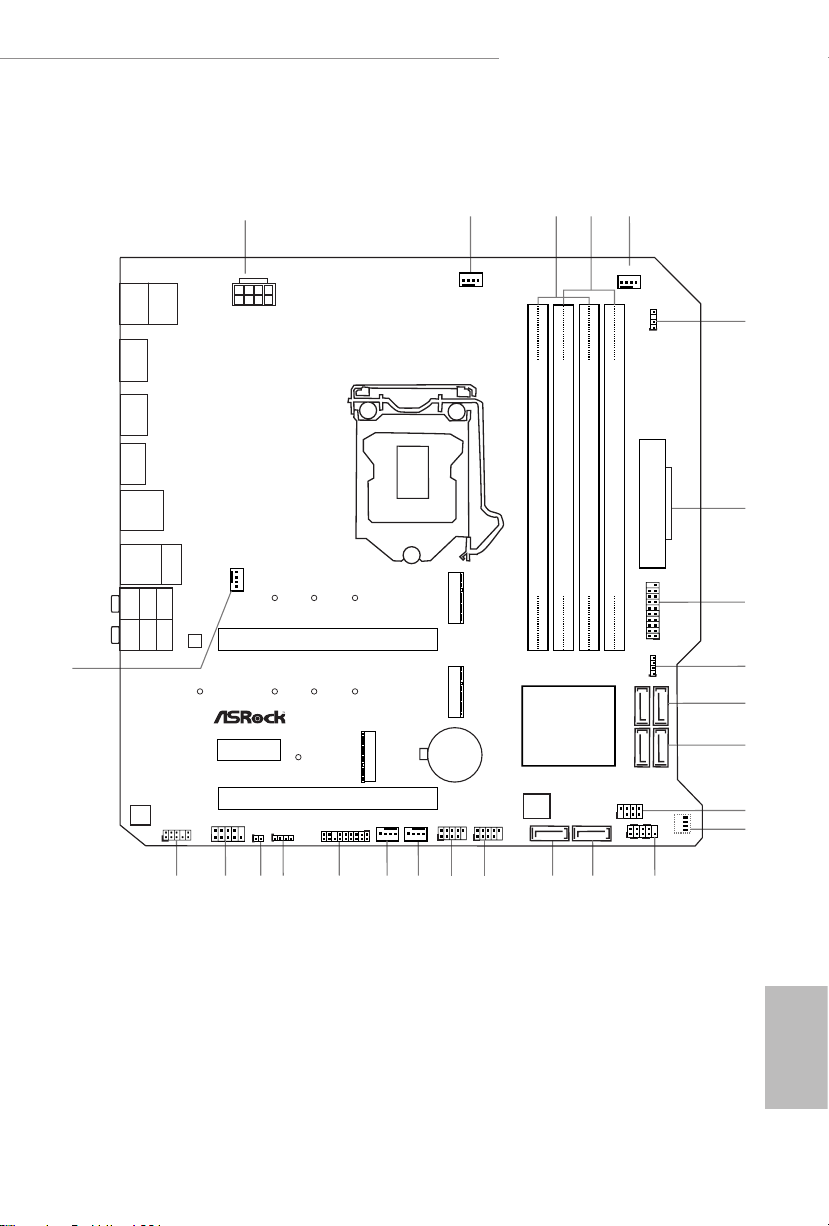

Motherboard Layout

English
2
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
6 Addressable LED Header (A_RGB_LED1)
7 ATX Power Connector (ATXPWR1)
8 USB 3.1 Gen1 Header (USB3_5_6)
9 RGB LED Header (RGB_LED2)
10 SATA3 Connectors (SATA3_2_3)
11 SATA3 Connectors (SATA3_4_5)
12 Power LED and Speaker Header (SPK_PLED1)
13 Post Status Checker (PSC)
14 System Panel Header (PANEL1)
15 SATA3 Connector (SATA3_0)
16 SATA3 Connector (SATA3_1)
17 USB 2.0 Header (USB5_6)
18 USB 2.0 Header (USB3_4)
19 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
20 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
21 TPM Header (TPMS1)
22 RGB LED Header (RGB_LED1)
23 Clear CMOS Jumper (CLRMOS1)
24 COM Port Header (COM1)
25 Front Panel Audio Header (HD_AUDIO1)
26 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English
3
B365M Phantom Gaming 4

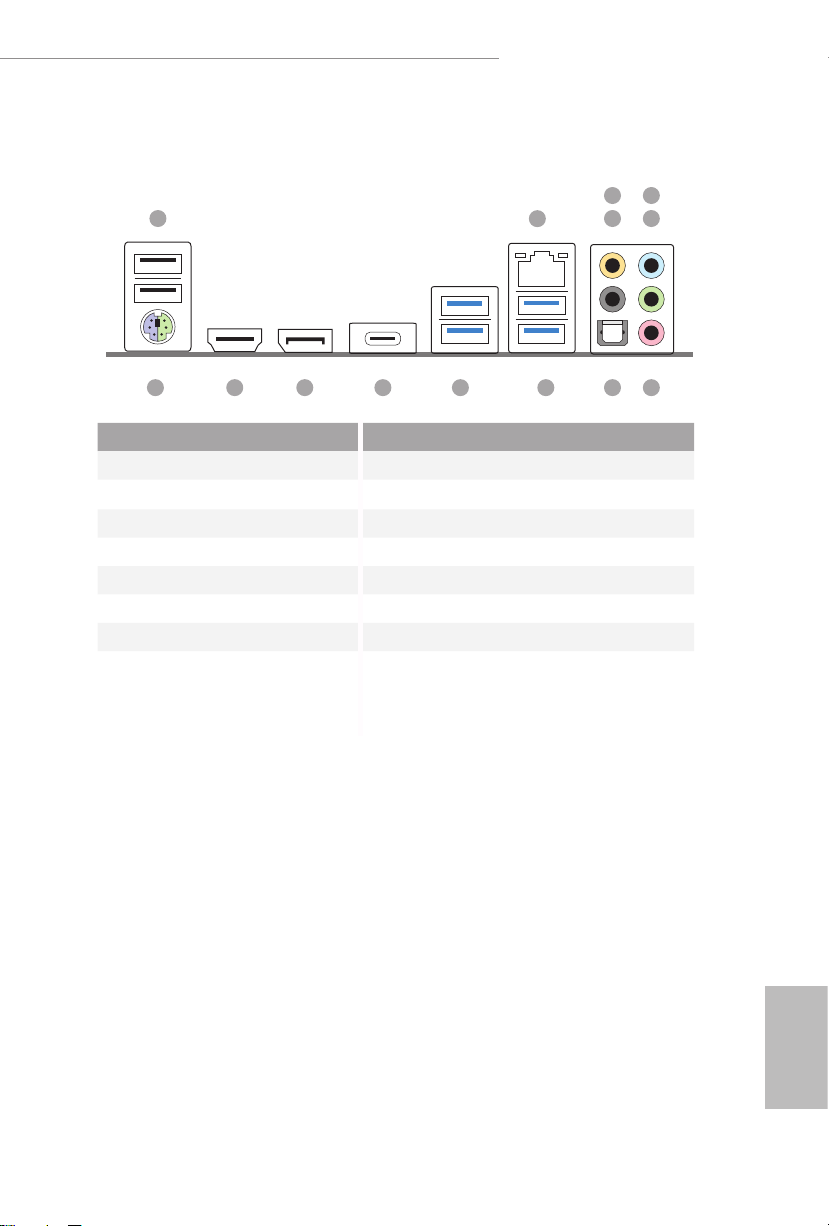

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 8 Optical SPDIF Out Port
2 LAN RJ-45 Port* 9 USB 3.1 Gen1 Ports (USB3_1_2)
3 Central / Bass (Orange) 10 USB 3.1 Gen1 Ports (USB3_3_4)
4 Rear Speaker (Black) 11 USB 3.1 Gen1 Type-C Port (USB3_TC_1)
5 Line In (Light Blue) 12 DisplayPort 1.2
6 Front Speaker (Lime)** 13 HDMI Port
7Microphone (Pink) 14 PS/2 Mouse/Keyboard Port
7814 13 12
4
3
1 6
5
11 10 9
2

English
4
Chapter 1 Introduction
ank you for purchasing ASRock B365M Phantom Gaming 4 motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock B365M Phantom Gaming 4 Motherboard (Micro ATX Form Factor)
• ASRock B365M Phantom Gaming 4 Quick Installation Guide
• ASRock B365M Phantom Gaming 4 Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Socket (Optional)
• 1 x Stando for M.2 Socket (Optional)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No.6)
Rear Speaker
(No. 4)
Central / Bass
(No. 3)
Line In
(No. 5)
2V -- -- --
4V V -- --
6V V V --
8V V V V
ACT/LINK LED
SPEED LED
LAN Port

English
5
B365M Phantom Gaming 4
Chapter 1 Introduction
ank you for purchasing ASRock B365M Phantom Gaming 4 motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock B365M Phantom Gaming 4 Motherboard (Micro ATX Form Factor)
• ASRock B365M Phantom Gaming 4 Quick Installation Guide
• ASRock B365M Phantom Gaming 4 Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Socket (Optional)
• 1 x Stando for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

English
6
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 9th and 8th Gen Intel® CoreTM Processors (Socket
1151)
• Supports CPU up to 95W
• Digi Power design
• 8 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel® B365
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 2666/2400/2133 non-ECC, un-buered
memory
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16
(PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
* Supports NVMe SSD as boot disks
• 1 x PCI Express 3.0 x1 Slot (Flexible PCIe)
• Supports AMD Quad CrossFireXTM and CrossFireXTM
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® UHD Graphics Built-in Visuals : Intel®
Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® UHD Graphics
• DirectX 12

English
7
B365M Phantom Gaming 4
• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)
• Dual graphics outputs: HDMI and DisplayPort 1.2
• Supports HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant
HDMI monitor is required)
• Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI and
DisplayPort 1.2 Ports
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• PCB Isolate Shielding
• Gold Audio Jacks
• Supports DTS Connect
LAN • Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

English
8
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone (Gold Audio Jacks)
Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
17), NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will
be disabled.
• 1 x Ultra M.2 Socket (M2_1), supports M Key type
2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32
Gb/s)**
• 1 x Ultra M.2 Socket (M2_2), supports M Key type
2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel® OptaneTM Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector • 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
• 1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and
CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

English
9
B365M Phantom Gaming 4
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
(Supports ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU, GT, DRAM, PCH 1.0V, VCCIO , VCCSA, VCCST
Voltage Multi-adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
ter Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
Water Pump Fans
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
VPPM, PCH 1.0V, VCCSA, VCCST
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

English
10
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
11
B365M Phantom Gaming 4
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
12

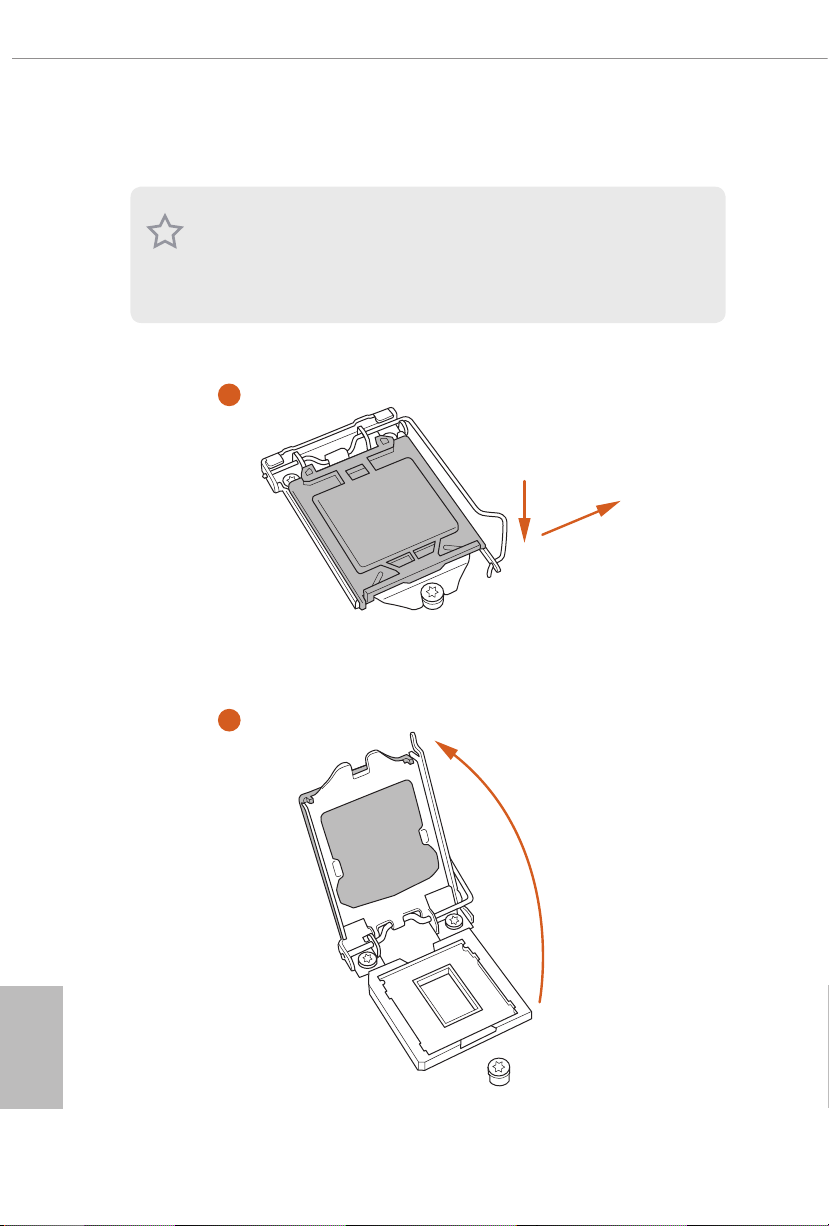

2.1 Installing the CPU

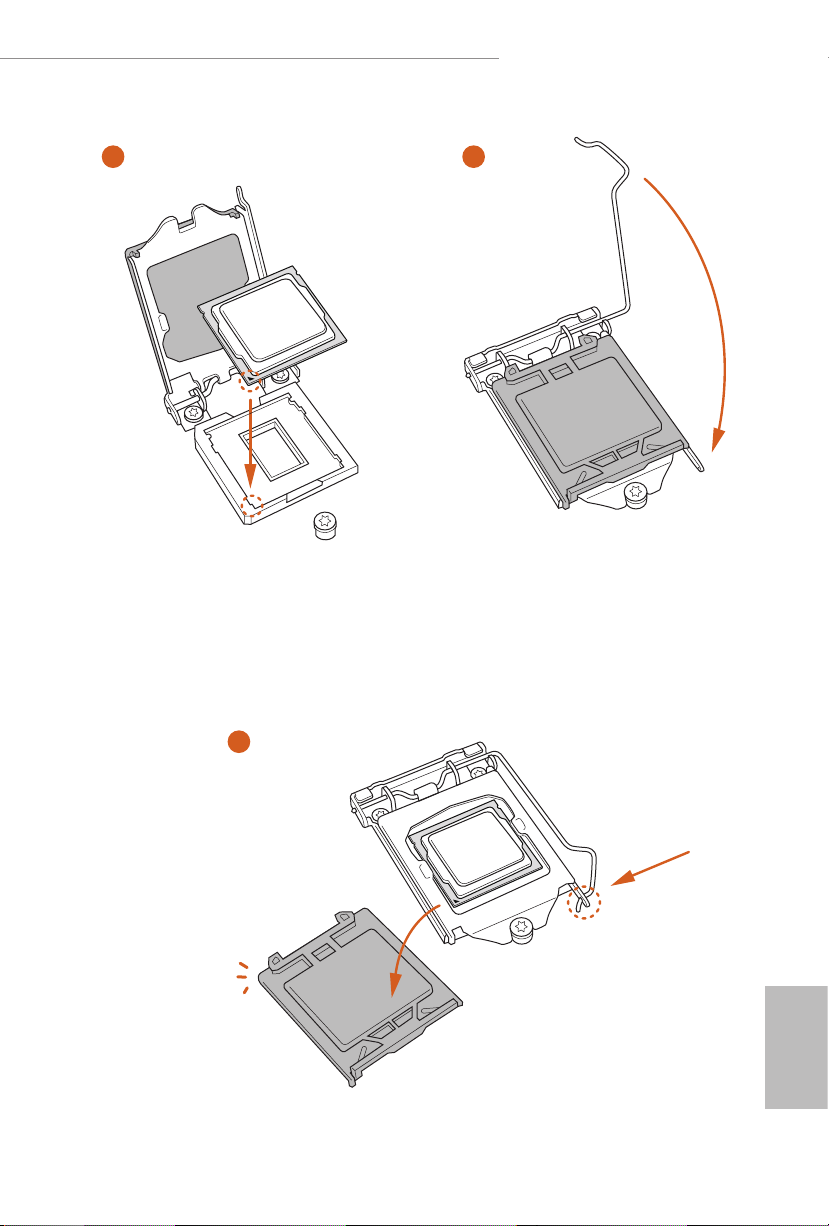

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
13
B365M Phantom Gaming 4
4
5
3

English
14
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

English
15
B365M Phantom Gaming 4

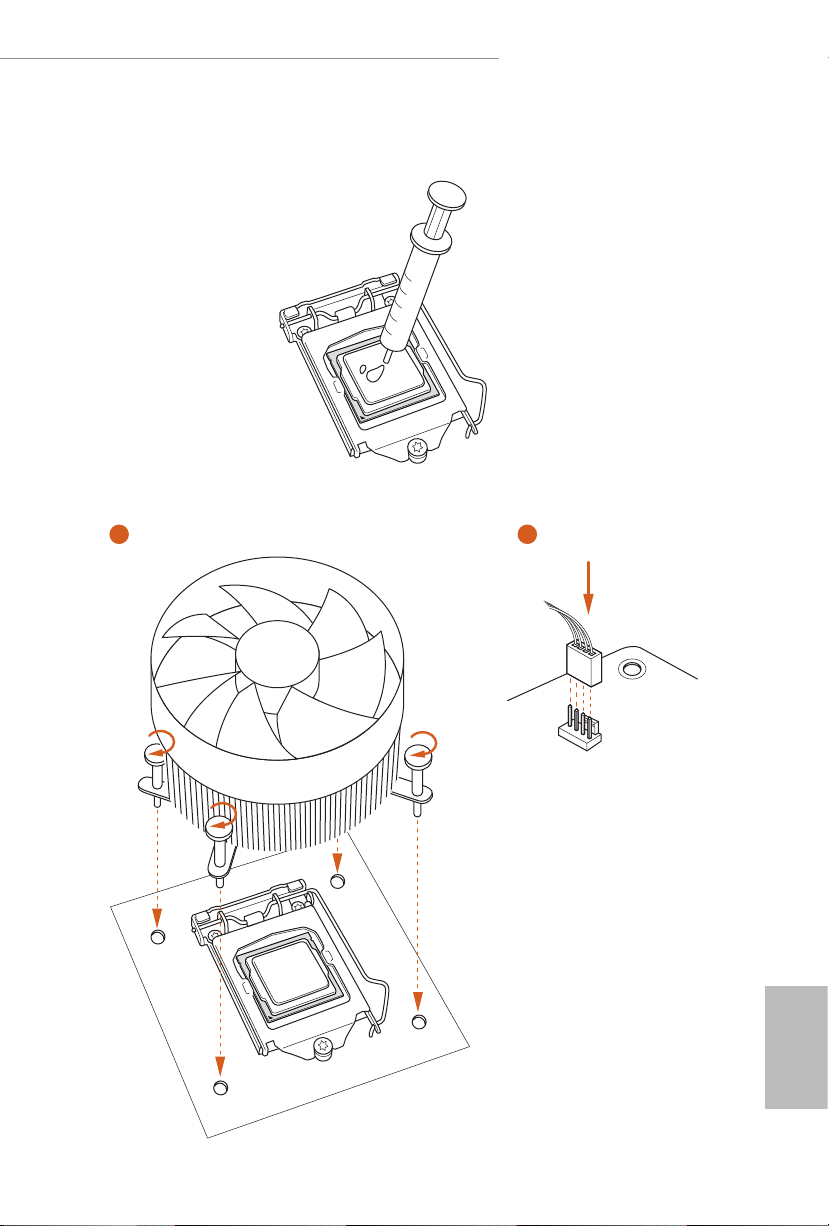

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
16
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
1Populated Populated
2Populated Populated Populated Populated
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DIMM may be damaged.

English
17
B365M Phantom Gaming 4
1
2
3

English
18
2.4 Expansion Slots (PCI Express Slots)
ere are 3 PCI Express slots on the motherboard.
PCIe slots:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.
PCIe Slot Congurations
For a better thermal environment, please connect a chassis fan to the motherboard’s
chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using
multiple graphics cards.
Before installing an expansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIE1 PCIE3
Single Graphics Card x16 N/A
Two Graphics Cards in
CrossFireXTM Mode x16 x4
