ASROCK K7VT4A PRO User manual

1
K7VT4A+
User Manual
Version 1.0
Published May 2004
Copyright©2004 ASRock INC. All rights reserved.

2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
ASRock Website: http://www.asrock.com

3
Contents
1. Introduction ....................................................... 4
1.1 Package Contents................................................................ 4
1.2 Specifications...................................................................... 5
1.3 Motherboard Layout ............................................................ 7
1.4 ASRock I/OTM .......................................................................................................................... 8
2. Installation ......................................................... 9
Pre-installation Precautions ......................................................... 9
2.1 CPU Installation .................................................................... 10
2.2 Installation of CPU Fan and Heatsink .................................. 10
2.3 Installation of Memory Modules (DIMM)............................... 11
2.4 Expansion Slots (PCI and AGP Slots) ................................. 12
2.5 Jumpers Setup .................................................................... 13
2.6 Onboard Headers and Connectors .................................... 15
3. BIOS Setup ......................................................... 17
3.1 BIOS Setup Utility ................................................................. 17
3.1.1 BIOS Menu Bar .......................................................... 17
3.1.2 Legend Bar ................................................................ 18
3.2 MainMenu ............................................................................ 18
3.3 Advanced, Security, Power, Boot, and Exit Menus ........... 20
4. Software Support .............................................. 21
4.1 Install Operating System ...................................................... 21
4.2 Support CD Information ........................................................ 21
4.2.1 Running Support CD .................................................. 21
4.2.2 Drivers Menu ............................................................. 21
4.2.3 Utilities Menu .............................................................. 21
4.2.4 ASRock “PC-DIY LiveDemo” Program ...................... 21
4.2.5 Contact Information .................................................... 21
Appendix ............................................................... 22
1. Advanced BIOS Setup Menu............................................... 22
2. Security Setup Menu ........................................................... 27
3. Power Setup Menu .............................................................. 28
4. Boot Setup Menu ................................................................. 29
5. Exit Menu .............................................................................. 30

4
1. Introduction
Thank you for purchasing ASRock K7VT4A+ motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-
step installation guide. Chapter 3 and 4 contain basic BIOS setup and support CD
information. More information of advanced BIOS setup can be found in Appendix on
page 22 for advanced users’ reference.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change
without notice. In case any modifications of this manual occur, the
updated version will be available on ASRock website without further
notice. You may find the latest memory and CPU support lists on
ASRock website as well. ASRock website http://www.asrock.com
1.1 Package Contents
1 x ASRock K7VT4A+ Motherboard
(ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm)
1 x ASRock K7VT4A+ Quick Installation Guide
1 x ASRock K7VT4A+ Support CD
1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)
1 x 3.5-in Floppy Drive Ribbon Cable
1 xASRock I/OTM Shield

5
1.2 Specifications
Platform: ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm
CPU: Supports Socket A (462 pins) for
AMDAthlonTM / AthlonTM XP / DuronTM processor
Chipsets: North Bridge: VIA KT400A, FSB@333 MHz
South Bridge: VIAVT8235CD, supports USB 2.0, ATA 133
Memory: 2DDRDIMMSlots:DDR1andDDR2
PC3200 (DDR400) for 1DDRDIMM slot, Max. 1GB
PC2100(DDR266)/PC2700(DDR333)for2DDRDIMMslots,
Max. 2GB
IDE: IDE1:ATA133 / UltraDMA Mode 6
IDE2:ATA133 / UltraDMA Mode 6
Supports up to 4 IDE devices
Floppy Port: Supports up to 2 floppy disk drives
Audio: 5.1 channels AC’97 Audio
LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor: CPU temperature sensing
Motherboard temperature sensing
CPU overheat shutdown to protect CPU life
(ASRock U-COP)(see CAUTION 1)
CPU fan tachometer
Chassis fan tachometer
Voltage monitoring: +12V, +5V, +3.3V, Vcore
PCI slots: 5 slots with PCI Specification 2.2
AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)
USB 2.0: 6 USB 2.0 ports:
includes 4 default USB 2.0 ports on the rear panel,
plus one header to support 2 additional USB 2.0 ports
(see CAUTION 3)
ASRock I/OTM:1 PS/2 keyboard port, 1 PS/2 mouse port,
1 serial port: COM1, 1 parallel port: ECP/EPP support,
1 RJ-45 port,
4 default USB 2.0 ports,
Audio Jack: Line Out / Line In / Microphone + Game port
BIOS: AMI legal BIOS, Supports “Plug and Play”,
ACPI 1.1 compliance wake up events,
SMBIOS 2.3.1 support,
CPU frequency stepless control
(only for advanced users’ reference, see CAUTION 4)
OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

6
CAUTION!
1. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC system.
2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!
It may cause permanent damage!
3. Power Management for USB 2.0 works fine under Microsoft®Windows®
XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®
98/ME. Please refer to Microsoft®official document at
http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx
4. Although this motherboard offers stepless control, it is not recommended
to perform over clocking. Frequencies other than the recommended CPU
bus frequencies may cause the instability of the system or damage the
CPU. The CPU host frequency of this motherboard is determined by the
jumper-setting. You must set the FSB jumper according to yourAMD CPU
before you use the “Manual” option as the FSB setting in BIOS setup to
perform over clocking. Please check page 22 for details.

7
17.8cm (7.0 in)
DDR 1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
5
PCI2
PCI3
PCI4
PCI5
PCI1
21
1.5V_AGP1
USB45
1
17
SPEAKER1
1
16
HDLED RST
PLED PWRBTN
1
PANEL1
IR1
1
2MB
BIOS
20
FLOPPY1
SUPER
I/O
AUDIO1
1
JR1
JL1
CLRCMOS2
VIA
VT8235
CPU_FAN1
CHA_FAN1
CMOS
BATTERY
PS2_USB_PWR1
1
IDE1 IDE2
USB2.0
5.1CH
ATA133
FSB333
K7VT4A+
VIA
KT400A
CHIPSET
ATXPWR1
AUX1
CD1
Mic
In
GAME AUDIO1
MIC IN
LINE OUT
GAME_ AUDIO1
Line
In
LINE IN
USB 2.0
PORTS
LAN
PARALLEL PORT
PS/2
MOUSE
PS/2
KEYBOARD
SERIAL
PORT
(COM1)
30.5cm (12.0 in)
LAN
PHY
AUDIO
CODEC
12 36
4
7
8
9
10
11
12
13
15
1819
22
24
23
25
1
1
1
1
FID3
FID2
FID1
FID0
FID4 1
26
DDR400
AGP 8X
1
1
PWR_LED1
14
USB 2.0
PORTS
1FSB_SEL0
1
1FSB_SEL1
FSB_SEL2
J1
SOCKET 462

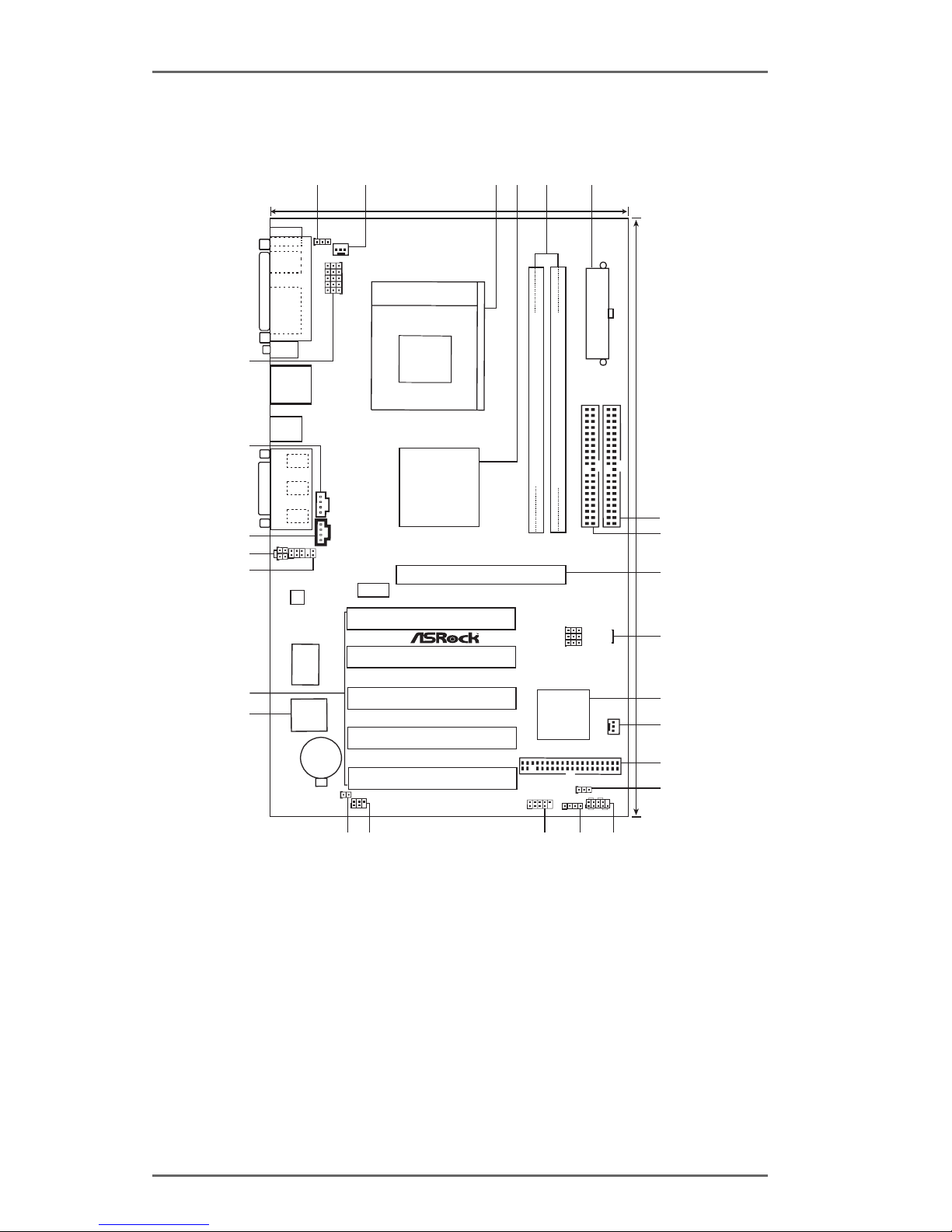

1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 14 Power LED Connector (PWR_LED1)
2 CPU Fan Connector (CPU_FAN1) 15 System Panel Connector (PANEL1)
3 CPU Socket 16 Chassis Speaker Connector (SPEAKER 1)
4 North Bridge Controller 17 USB 2.0 Connector (USB45, Blue)
5 184-pin DDR DIMM Slots (DDR1- 2) 18 Infrared Module Connector (IR1)
6 ATX Power Connector (ATXPWR1) 19 Clear CMOS Jumper (CLRCMOS2)
7 Secondary IDE Connector (IDE2, Black) 20 Flash Memory
8 Primary IDE Connector (IDE1, Blue) 21 PCI Slots (PCI1- 5)
9 AGP Slot (1.5V_AGP1) 22 Front Panel Audio Connector (AUDIO1)
10 FSB Select Jumpers 23 JR1 / JL1 Jumpers
(FSB_SEL0,FSB_SEL1, FSB_SEL2) 24 Internal Audio Connector: CD1 (Black)
11 South Bridge Controller 25 Internal Audio Connector: AUX1 (White)
12 Chassis Fan Connector (CHA_FAN1) 26 J1 Jumper (FID0, FID1, FID2, FID3, FID4)
13 Floppy Connector (FLOPPY1)

8

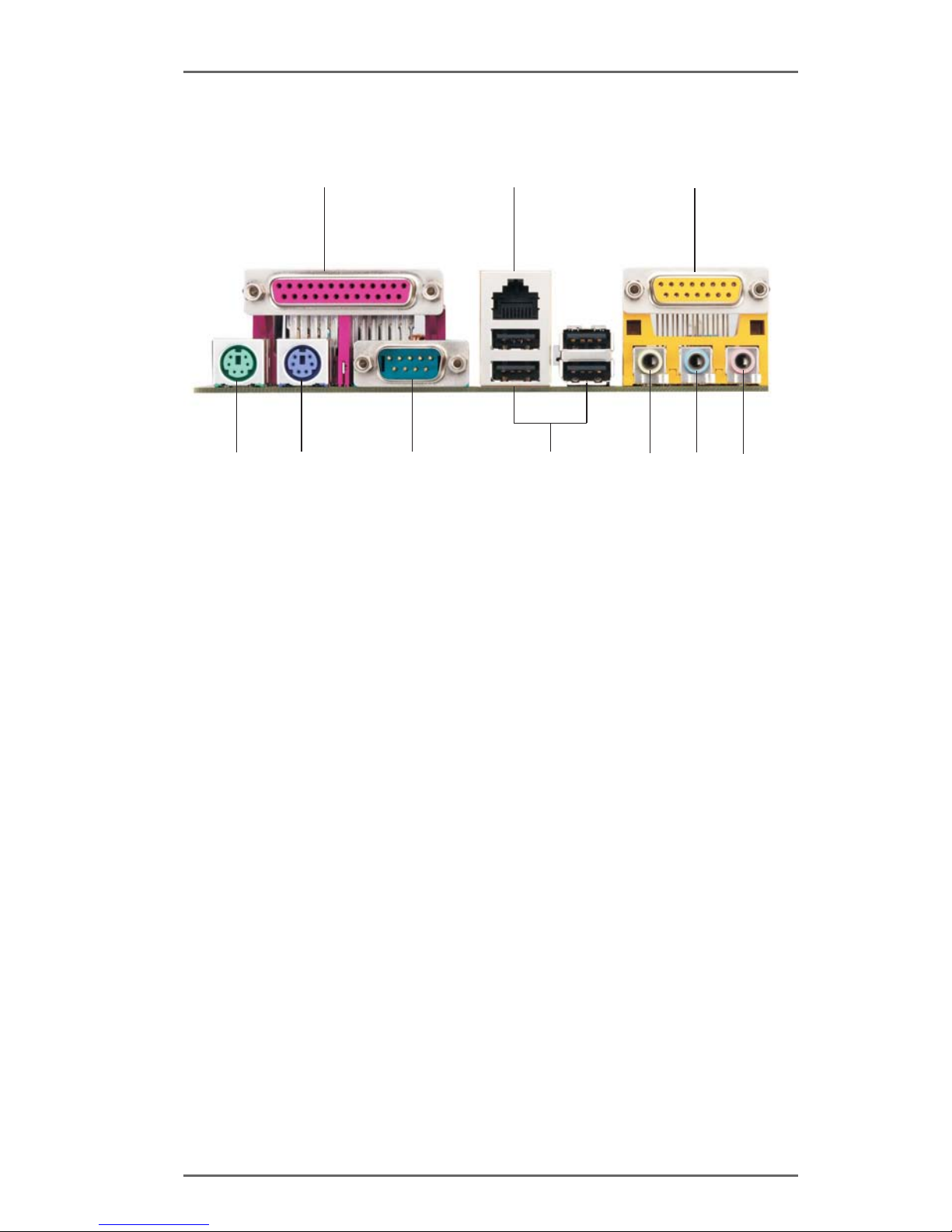

1.4 ASRock I/OTM
1 Parallel Port 6 Line Out (Lime)
2 RJ-45 Port 7 USB 2.0 Ports
3 Game Port 8 Serial Port (COM1)
4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)
5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)
12
3
4567
8
910

9
2. Installation
K7VT4A+ is an ATX form factor (12.0-in x 7.0-in, 30.5 cm x 17.8 cm) motherboard.
Before you install the motherboard, study the configuration of your chassis to en-
sure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
Before you install or remove any component, ensure that the
power is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
1. Unplug the power cord from the wall socket before touching any
component.
2. To avoid damaging the motherboard components due to static
electricity, NEVER place your motherboard directly on the carpet or
the like. Also remember to use a grounded wrist strap or touch a
safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-
static pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard
to the chassis, please do not over-tighten the screws! Doing so may
damage the motherboard.

10
2.1 CPU Installation
Step 1. Unlock the socket by lifting the lever up to a 90oangle.
Step 2. Position the CPU directly above the socket such that its marked corner
matches the base of the socket lever.
Step 3. Carefully insert the CPU into the socket until it fits in place.
The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it firmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side tab
to indicate that it is locked.
2.2 Installation of CPU Fan and Heatsink
AMDAthlonTM /AthlonTM XP/DuronTM family CPUs with a speed of 600 MHz and
higher require larger heatsink and cooling fan. Thermal grease between the
CPU and the heatsink is also needed to improve heat transfer. Make sure that
the CPU and the heatsink are securely fastened and in good contact with
each other. Then connect the CPU fan to the CPU_FANconnector (CPU_FAN1,
see page 7, No. 2). For proper installation, please kindly refer to the instruc-
tion manuals of the CPU fan and heatsink vendors.
Step 1 Step 2, 3 Step 4

11

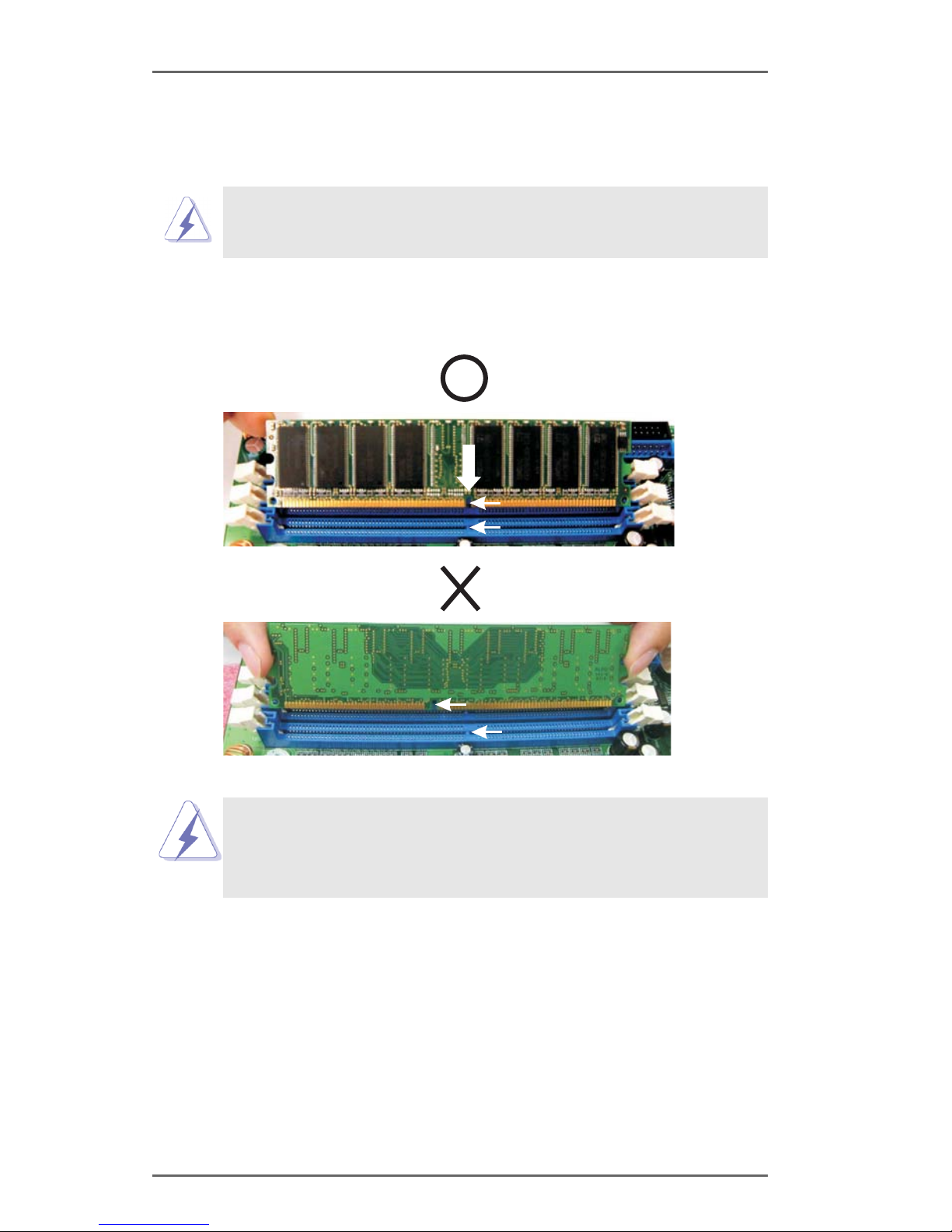

2.3 Installation of Memory Modules (DIMM)
K7VT4A+ motherboard provides two 184-pinDDR (Double Data Rate) DIMM slots.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align aDIMM on the slot such that the notch on theDIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into
the slot at incorrect orientation.
Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
notch
break
notch
break

12
2.4 Expansion Slots (PCI and AGP Slots)
There are 5 PCI slots and 1 AGP slot on K7VT4A+ motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
AGP slot: TheAGP slot is used to install a graphics card. TheASRock AGP slot has
a special design of clasp that can securely fasten the inserted graphics
card.
Please doNOT use a 3.3VAGP card on theAGP slot of this motherboard!
It may cause permanent damage! For the voltage information of your
graphics card, please check with the graphics card vendors.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use.
Keep the screws for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

13

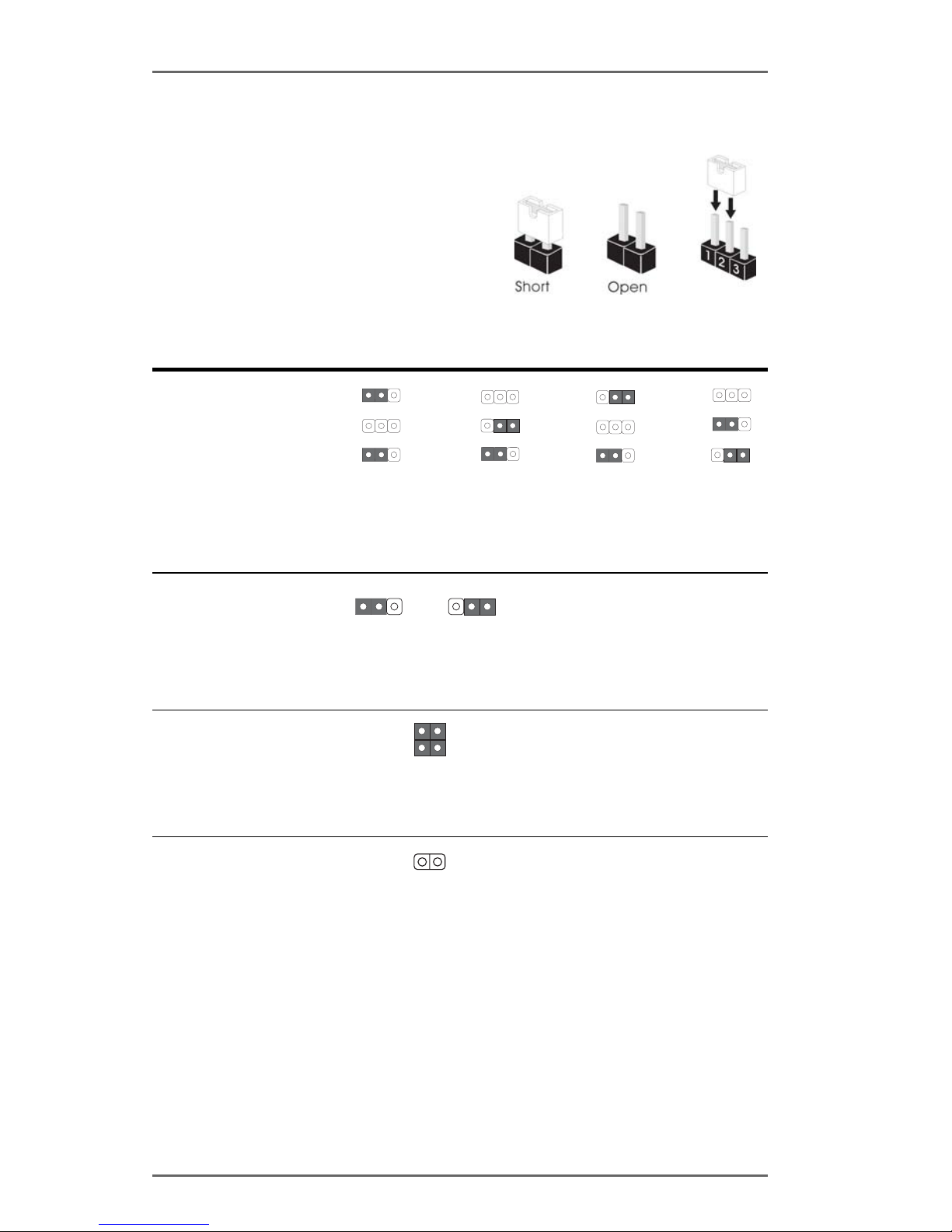

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on the pins, the jumper is “Open”.
The illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting
FSB Select Jumpers
(FSB_SEL0,
FSB_SEL1,
FSB_SEL2)
(see p.7item 10)
Note: The CPU FSB frequency of this motherboard is determined by jumper-setting. You must
adjust “FSB Select Jumpers” according to the FSB of your AMD CPU. Please follow the
figures above to set the CPU FSB frequency.
PS2_USB_PWR1 Short pin2, pin3 to enable
(seep.7 item1) +5VSB (standby) for PS/2 or
USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power
supply.
JR1 / JL1 Jumpers
(seep.7item 23)
Note: If JR1 and JL1 Jumpers are short, both the front panel and the rear panel audio
connectors can work.
Clear CMOS Jumper
(CLRCMOS2)
(seep.7item 19)
Note: CLRCMOS2 allows you to clear the data in CMOS. The data in CMOS includes system
setup information such as system password, date, time, and system setup parameters. To
clear and reset the system parameters to default setup, please turn off the computer and
unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper
cap to short the Clear CMOS jumper for 5 seconds. After shorting the Clear CMOS jumper,
please remove the jumper cap. However, please do not clear the CMOS right after you
update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS,
you must boot up the system first, and then shut it down before you do the clear-CMOS
action.
+5V
1_2
+5VSB
2_3
JR1
JL1
2-pin jumper
FSB 200MHz
1_2
FSB_SEL1
FSB_SEL2
1_2
FSB_SEL0
OPEN
FSB 266MHz
1_2
FSB_SEL1
FSB_SEL2
FSB_SEL0 OPEN
2_3
FSB 333MHz
FSB_SEL1
FSB_SEL2
2_3
FSB_SEL0
OPEN
1_2
FSB 400MHz
1_2
FSB_SEL0
FSB_SEL1
2_3
FSB_SEL2
OPEN

14

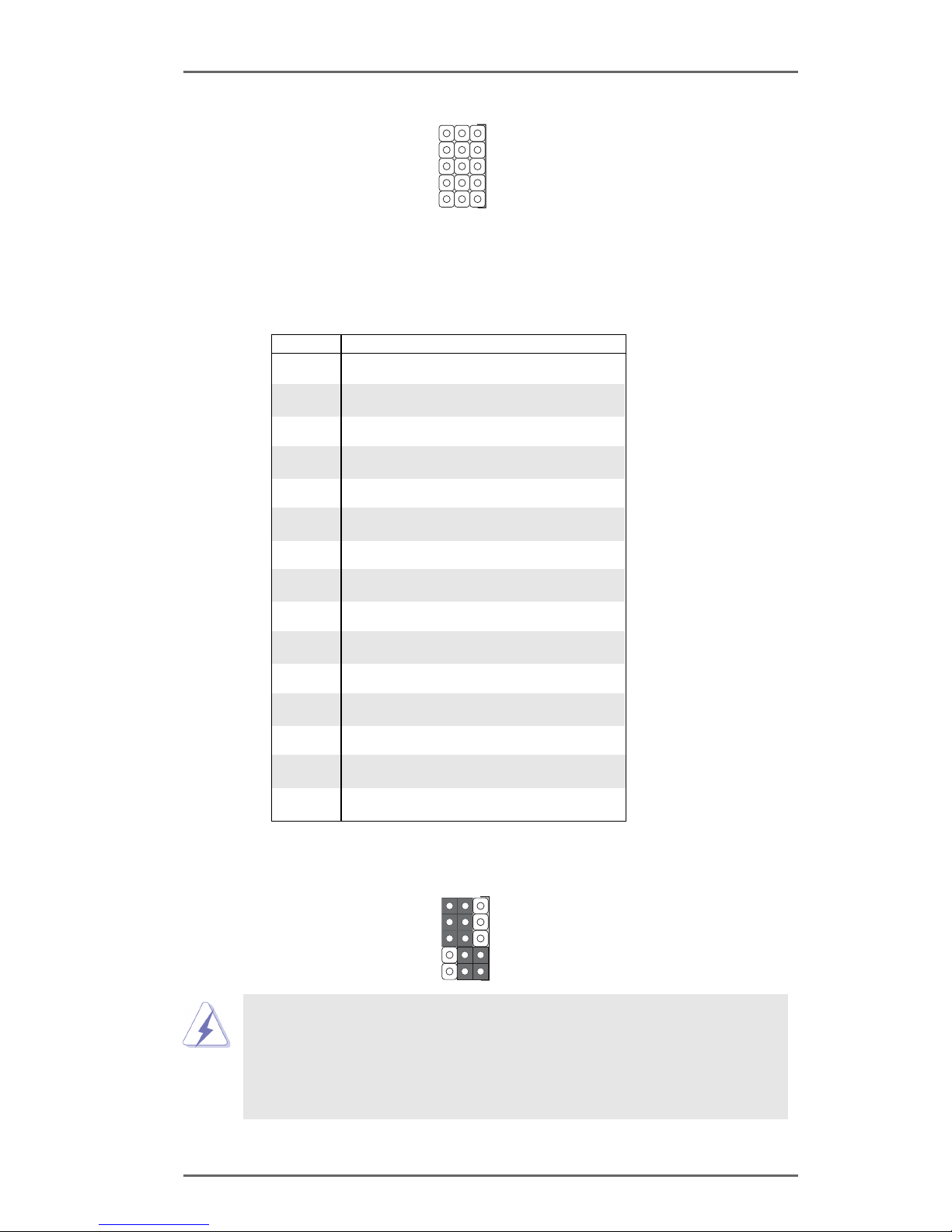

J1 Jumper
(FID0, FID1, FID2, FID3, FID4)
(seep.7item 26)
Note: The set of J1 jumper is only for advanced users to adjust the multiplier of CPU. Please
follow the table below to adjust the multiplier of CPU. However, the system will work well
without the adjustment of multiplier. You do not have to adjust the multiplier for normal
usage.
Multiplier FID0 FID1 FID2 FID3 FID4
5x 2-3 2-3 1-2 2-3 2-3
5.5x 1-2 2-3 1-2 2-3 2-3
6x 2-3 1-2 1-2 2-3 2-3
6.5x 1-2 1-2 1-2 2-3 2-3
7x 2-3 2-3 2-3 1-2 2-3
7.5x 1-2 2-3 2-3 1-2 2-3
8x 2-3 1-2 2-3 1-2 2-3
8.5x 1-2 1-2 2-3 1-2 2-3
9x 2-3 2-3 1-2 1-2 2-3
9.5x 1-2 2-3 1-2 1-2 2-3
10x 2-3 1-2 1-2 1-2 2-3
10.5x 1-2 1-2 1-2 1-2 2-3
11x 2-3 2-3 2-3 2-3 2-3
11.5x 1-2 2-3 2-3 2-3 2-3
12x 2-3 1-2 2-3 2-3 2-3
12.5x 1-2 1-2 2-3 2-3 2-3
13x 2-3 2-3 1-2 2-3 1-2
13.5x 1-2 2-3 1-2 2-3 1-2
14x 2-3 1-2 1-2 2-3 1-2
15x 2-3 2-3 2-3 1-2 1-2
16x 2-3 1-2 2-3 1-2 1-2
16.5x 1-2 1-2 2-3 1-2 1-2
17x 2-3 2-3 1-2 1-2 1-2
18x 1-2 2-3 1-2 1-2 1-2
19x 1-2 2-3 2-3 2-3 1-2
20x 1-2 1-2 2-3 2-3 1-2
21x 1-2 1-2 1-2 2-3 1-2
22x 1-2 2-3 2-3 1-2 1-2
23x 2-3 1-2 1-2 1-2 1-2
24x 1-2 1-2 1-2 1-2 1-2
Forexample,“AthlonXP2000+”isan1666MHzCPU: 12.5(Multiplier)X133MHz(Externalfrequency)=1666MHz
J1 jumper setting:
The jumper caps are not provided by ASRock. Please understand thatASRock
does not guarantee and support the adjustment of multiplier. These jumpers
setting may not apply to all multiplier-locked or even some unlocked AMD
CPU. Frequencies other than the recommended CPU bus frequencies may
cause the instability of the system or damage the CPU.
1
1
1
1
1
FID4
FID3
FID2
FID1
FID0
1
1
1
1
1
FID4
FID3
FID2
FID1
FID0

15
2.6 Connectors
Connectors are NOT jumpers. DO NOT place jumper caps over these
connectors. Placing jumper caps over the connectors will cause perma-
nent damage of the motherboard!
Connector Figure Description
FDDConnector
(33-pinFLOPPY1)
(seep.7item 13)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE Connector (Blue) Secondary IDE Connector (Black)
(39-pinIDE1, seep.7 item 8) (39-pin IDE2, seep.7 item7)
80-conductor, ATA 66/100/133 cable
Note: If you use only one IDE device on this motherboard, please set the IDE
device as “Master”. Please refer to the instruction of your IDE device vendor
for the details. Besides, to optimize compatibility and performance, please
connect your hard disk drive to the primary IDE connector (IDE1, blue) and
CD-ROM to the secondary IDE connector (IDE2, black).
USB 2.0 Connector ASRock I/OTM provides you 4
(9-pinUSB45) default USB 2.0 ports on the rear
(seep.7item 17) panel. If the rear USB ports are
not sufficient, this USB 2.0
connector is available to support
2 additional USB 2.0 ports.
Infrared Module Connector This connector supports an
(5-pin IR1) optional wireless transmitting
(seep.7item 18) and receiving infrared module.
USB_PWR
USB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
DUMMY
GND
+5V
IRTX
IRRX
1
IDE1
PIN1
IDE2
PIN1
FLOPPY1
Pin1
connect the black end
to the IDE devices
connect the blue end
to the motherboard
thered-striped sideto Pin1

16

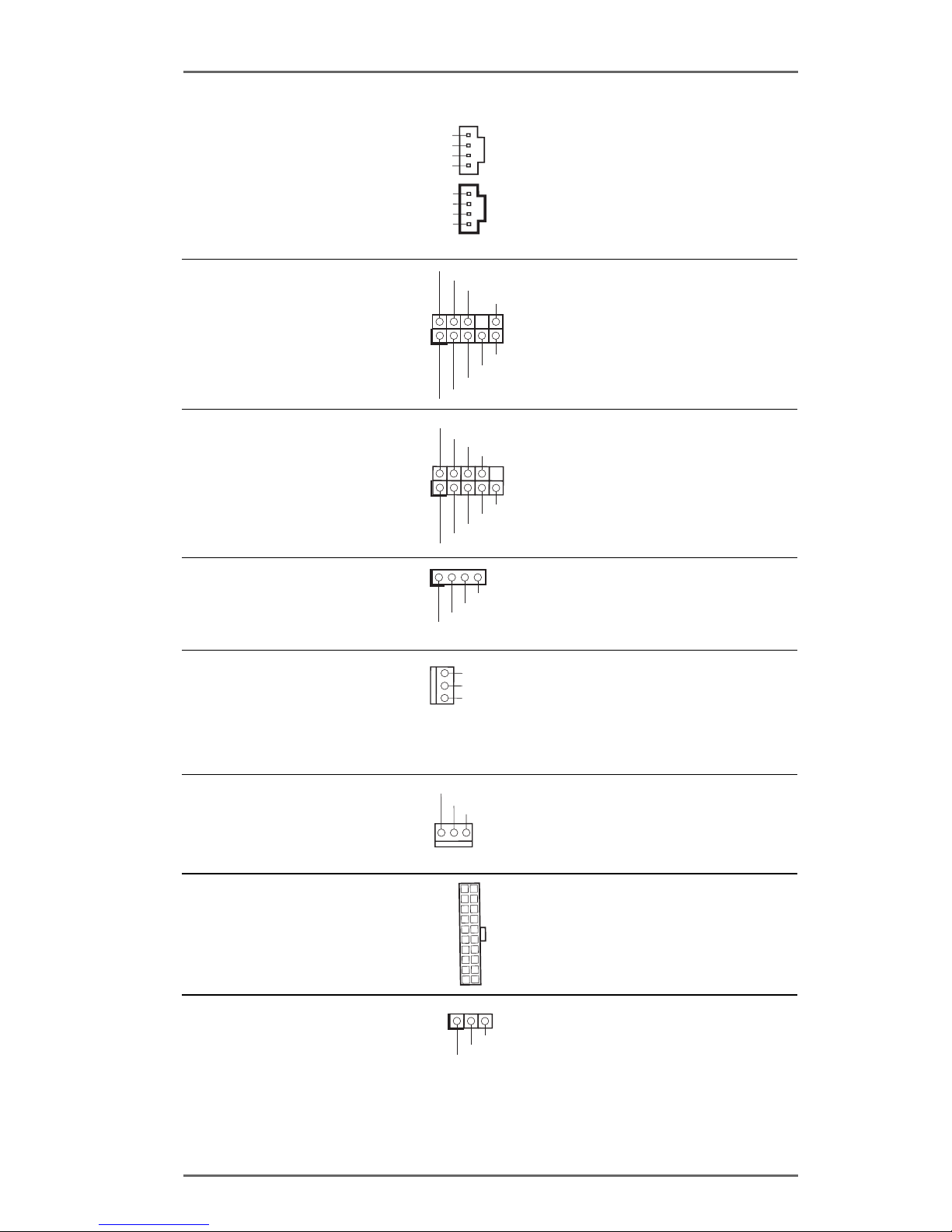

Internal Audio Connectors These connectors allow you to
(4-pin CD1, 4-pin AUX1) receive stereo audio input from
(CD1:see p.7 item24) sound sources such as a CD-
(AUX1:see p.7 item25) ROM, DVD-ROM, TV tuner card,
or MPEG card.
Front Panel Audio Connector This is an interface for front panel
(9-pin AUDIO1) audio cable that allows conve-
(seep.7item 22) nient connection and control of
audio devices.
System Panel Connector This connector accommodates
(9-pinPANEL1) several system front panel
(seep.7item 15) functions.
Chassis Speaker Connector Please connect the chassis
(4-pinSPEAKER 1) speaker to this connector.
(seep.7item 16)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(seep.7item 12) match the black wire to the
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(3-pin CPU_FAN1) to this connector and match
(seep.7 item2) the black wire to the ground pin.
ATX Power Connector Please connect an ATX power
(20-pinATXPWR1) supply to this connector.
(seep.7 item6)
Power LED Connector Please connect a 3-pin power
(3-pinPWR_LED1) LED cable to this connector.
(seep.7item 14)
+5V
DUMMY
DUMMY
SPEAKER
1
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
GND
+12V
CHA_FAN_SPEED
CPU_FAN_SPEED
GND
+12V
1
PLED+
PLED+
PLED-
CD-R
GND
GND
CD-L
AUX-R
GND
GND
AUX-L
CD1
AUX1

17
3. BIOS Setup
3.1 BIOS Setup Utility
This section explains how to use the BIOS Setup Utility to configure your system.
The Flash Memory on the motherboard stores the BIOS Setup Utility. You may run the
BIOS Setup when you start up the computer. Please press <F2> during the Power-
On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST will continue
with its test routines.
If you wish to enter the BIOS Setup after POST, restart the system by pressing
<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis.
You may also restart the system by turning the system off and then back on.
The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,
which allows you to scroll through its various sub-menus and select among the
predetermined choices.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for reference
purpose only, and may not exactly match what you see on your
screen.
3.1.1 BIOS Menu Bar
The top of the screen has a menu bar with the following selections:
MAIN Sets up the basic system configuration
ADVANCED Sets up the advanced features
SECURITY Sets up the security features
POWER Configures Power Management features
BOOT Configures the default system device that is used
to locate and load the Operating System
EXIT Exits the current menu or the BIOS Setup
To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.
3.1.2 Legend Bar
At the bottom of the Setup Screen is a legend bar. The following table lists the keys
in the legend bar with their corresponding functions.

18
Navigation Key(s) Function Description
<F1> Displays the General Help Screen
<ESC> Jumps to the Exit menu or returns to the upper menu
from the current menu
/ Moves cursor up or down between fields
/ Selects menu to the left or right
+ / - Increases or decreases values
<Enter> Brings up a selected menu for a highlighted field
<F9> Loads all the setup items to default value
<F10> Saves changes and exits Setup
3.2 Main Menu
When you enter the BIOS Setup Utility, the following screen appears.
System Date [Month/Day/Year]
Set the system date that you specify. Valid values for month, day, and year are
Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move
between the Month, Day, and Year fields.
System Time [Hour:Minute:Second]
Set the system to the time that you specify. Use keys to move between
the Hour, Minute, and Second fields.
Floppy Drives
Use this to set the type of floppy drives installed.
IDE Devices
Use this to configure IDE devices.
AMIBIOS SETUP UTILITY- VERSION 3.31a
Main Advanced
Security
Power
Boot
Exit
System Date
System Time
Floppy Drives
IDE Devices
BIOS Version
Processor Type
Processor Speed
L1 Cache Size
L2 Cache Size
Total Memory
DDR1
DDR2
[ Setup Help ]
K7VT4A+ BIOS P1.00
AMD Athlon(tm) XP 2600+
Month: Jan - Dec
Day: 01-31
Year:1980-2099
F1:Help
Esc:Exit F9:Setup Defaults F10:Save & Exit
+/-:ChangeValues
Enter:Select Sub-Menu
:Select Item
:Select Menu
2133 MHz
128 KB
256 KB
512 MB
None
512 MB /200 MHz (DDR400)
20:07:40
31 2003 Fri
Oct

19
AMIBIOS SETUP UTILITY- VERSION 3.31a
Main
Type
Cylinders
Heads
Write Precompensation
Sectors
Maximum Capacity
LBA Mode
Block Mode
Fast Programmed I/O Modes
32 Bit Transfer Mode
Ultra DMA Mode
[ Setup Help ]
F1:Help
Esc:Previous Menu F9:Setup Defaults F10:Save & Exit
+/-:ChangeValues
Enter:Select Sub-Menu
:Select Item
Primary IDE Master
Off
Off
Auto
Off
Auto
Select how to set the
parameters of drive,
Or
Select [AUTO] to set
all HDD parameters
automatically.
Auto
TYPE
To set the type of the IDE device, first, please select “IDE Devices” on Main
menu and press <Enter> to get into the sub-menu. Then, select among
“Primary IDE Master”, “Primary IDE Slave”, “Secondary IDE Master”, and
“Secondary IDE Slave” to make configuration of its type. Below are the
configuration options.
[USER]: It allows user to manually enter the number of cylinders, heads,
and sectors per track for the drive.
Before attempting to configure a hard disk drive, make sure you
have the correct configuration information supplied by the drive
manufacturer. Incorrect settings may cause the system to fail
to recognize the installed hard disk.
[Auto]: Select [Auto] to automatically detect hard disk drive. If auto-
detection is successful, the BIOS Setup automatically fills in the
correct values for the remaining fields on this sub-menu. If the auto-
detection fails, it may due to that the hard disk is too old or too new.
If the hard disk was already formatted on an older system, the BIOS
Setup may detect incorrect parameters. In these cases, select [User]
to manually enter the IDE hard disk drive parameters.
After entering the hard disk information into BIOS, use a disk utility,
such as FDISK, to partition and format the new IDE hard disk
drives. This is necessary so that you can write the data into or
read the data from the installed hard disk. Please make sure to set
the partition of the Primary IDE hard disk drives to make them
active.

20
[CD/DVD]: This is used for IDE CD/DVD drives.
[ARMD]: This is used for IDEARMD(ATAPI Removable MediaDevice),
such as MO.
Cylinders
This is used to configure the number of cylinders. Refer to the drive
documentation to determine the correct value.
Heads
This is used to configure the number of read/write heads. Refer to the
drive documentation to determine the correct values.
Write Pre-compensation
Enter Write Pre-compensation sector. Refer to the drive documentation to
determine the correct value.
Sectors
This is used to configure the number of sectors per track. Refer to the
drive documentation to determine the correct value.
Maximum Capacity
This field shows the drive’s maximum capacity as calculated by the BIOS
based on the drive information you entered.
LBA Mode
This allows user to select the LBA mode for a hard disk > 512 MB under
DOS and Windows; forNetware and UNIX user, select [Off] to disable the
LBA mode.
Block Mode
Set the block mode to [On] will enhance hard disk performance by reading
or writing more data during each transfer.
Fast Programmed I/O Modes
This allows user to set the PIO mode to enhance hard disk performance by
optimizing the hard disk timing.
32 Bit Transfer Mode
It allows user to enable 32-bit access to maximize the IDE hard disk data
transfer rate.
Ultra DMA Mode
Ultra DMA capability allows improved transfer speeds and data integrity
for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA
capability.
3.3 Advanced, Security, Power, Boot, and Exit Menus
Detailed descriptions of these menus are listed in the Appendix. See page 22.
