ASROCK P85 Pro3 User manual

User Manual

Version 1.0
Published May 2013
Copyright©2013 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 5
1.4 Motherboard Layout 8
1.5 I/O Panel 10
Chapter 2 Installation 11
2.1 Installing the CPU 12
2.2 Installing the CPU Fan and Heatsink 15
2.3 Installing Memory Modules (DIMM) 16
2.4 Expansion Slots (PCI and PCI Express Slots) 18
2.5 Jumpers Setup 19
2.6 Onboard Headers and Connectors 20
Chapter 3 Software and Utilities Operation 24
3.1 Installing Drivers 24
3.2 A-Tuning 25
3.3 Intel® Rapid Start Technology 29
3.4 Intel® Smart Connect Technology 34
3.5 Start8 39
Chapter 4 UEFI SETUP UTILITY 42
4.1 Introduction 42
4.1.1 UEFI Menu Bar 42

4.1.2 Navigation Keys 43
4.2 Main Screen 44
4.3 OC Tweaker Screen 45
4.4 Advanced Screen 52
4.4.1 CPU Conguration 53
4.4.2 Chipset Conguration 55
4.4.3 Storage Conguration 57
4.4.4 Intel® Rapid Start Technology 58
4.4.5 Intel® Smart Connect Technology 59
4.4.6 Super IO Conguration 60
4.4.7 ACPI Conguration 61
4.4.8 USB Conguration 63
4.4.9 Trusted Computing 64
4.5 Tools 65
4.6 Hardware Health Event Monitoring Screen 68
4.7 Boot Screen 69
4.8 Security Screen 72
4.9 Exit Screen 73
Chapter 1 Introduction
ank you for purchasing ASRock P85 Pro3 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality
and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• ASRock P85 Pro3 Motherboard (ATX Form Factor)
• ASRock P85 Pro3 Quick Installation Guide
• ASRock P85 Pro3 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x I/O Panel Shield

P85 Pro3
1
English
Chapter 1 Introduction
ank you for purchasing ASRock P85 Pro3 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality
and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• ASRock P85 Pro3 Motherboard (ATX Form Factor)
• ASRock P85 Pro3 Quick Installation Guide
• ASRock P85 Pro3 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

2
English
1.2 Specications
Platform • ATX Form Factor
• All Solid Capacitor design
CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /
Pentium® / Celeron® in LGA1150 Package
• Digi Power Design
• 4 Power Phase Design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel® B85
• Supports Intel® Small Business Advantage 2.0
Memory • Dual Channel DDR3 Memory Technology
• 2 x DDR3 DIMM slots
• Supports DDR3 1600/1333/1066 non-ECC, un-buered
memory
• Max. capacity of system memory: 16GB
(see CAUTION)
• Supports Intel® Extreme Memory Prole (XMP)1.3/1.2
Expansion
Slot
• 1 x PCI Express 3.0 x16 slot
• 2 x PCI Express 2.0 x1 slots
• 3 x PCI slots
Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• TI® NE5532 Premium Headset Amplier (supports up to 600
Ohms headsets)
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111G
• Supports Wake-On-LAN
• Supports LAN Cable Detection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE

P85 Pro3
3
English
Rear Panel
I/O
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x Serial Port: COM1
• 1 x Parallel Port (ECP/EPP support)
• 1 x Coaxial SPDIF Out Port
• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jack: Line in / Front Speaker / Microphone
Storage • 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot
Plug
• 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot
Plug
Connector • 1 x IR header
• 1 x Power LED header
• 1 x TPM header
• 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
• 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
• 1 x Power Fan connector (3-pin)
• 1 x 24 pin ATX power connector
• 1 x 8 pin 12V power connector
• 1 x Front panel audio connector
• 1 x SPDIF Out connector
• 2 x USB 2.0 headers (support 4 USB 2.0 ports)
• 1 x USB 3.0 header (supports 2 USB 3.0 ports)
BIOS
Feature
• 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
• ACPI 1.1 Compliance Wake Up Events
• SMBIOS 2.3.1 Support
• CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Support
CD
• Drivers, Utilities, AntiVirus Soware (Trial Version), Cyber-
Link MediaEspresso 6.5 Trial, Google Chrome Browser and
Toolbar, Start8

4
English
Hardware
Monitor
• CPU/Chassis/Power Temperature Sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-
Adjust by CPU Temperature)
• CPU/Chassis Fan Multi-Speed Control
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant
Certica-
tions
• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjust-
ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-
party overclocking tools. Overclocking may aect your system’s stability, or even cause
damage to the components and devices of your system. It should be done at your own
risk and expense. We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
Due to limitation, the actual memory size may be less than 4GB for the reservation
for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-
ing systems do not have such limitations. You can use ASRock XFast RAM to utilize
the memory that Windows® cannot use.

P85 Pro3
5
English
1.3 Unique Features
ASRock A-Tuning
A-Tuning is ASRock’s multi purpose soware suite with a new interface, more new
features and improved utilities, including XFast RAM, Dehumidier, Good Night
LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.
ASRock Instant Flash
ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM. is conve-
nient BIOS update tool allows you to update the system BIOS in a few clicks without
preparing an additional oppy diskette or other complicated ash utility. Just save
the new BIOS le to your USB storage and launch this tool by pressing <F6> or
<F2> during POST to enter the BIOS setup menu to access ASRock Instant Flash.
Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le
system.
ASRock APP Charger
Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch
charge up to 40% faster than before on your computer. ASRock APP Charger allows
you to quickly charge many Apple devices simultaneously and even supports
continuous charging when your PC enters into Standby mode (S1), Suspend to RAM
(S3), hibernation mode (S4) or power o (S5).
ASRock XFast USB
ASRock XFast USB can boost the performance of your USB storage devices. e
performance may depend on the properties of the device.
ASRock XFast LAN
ASRock XFast LAN provides faster internet access, which includes the benets
listed below. LAN Application Prioritization: You can congure your application’s
priority ideally and add new programs to the list. Lower Latency in Game: Aer
setting online game’s priority higher, it can lower the latency in games. Trac
Shaping: You can watch Youtube HD videos and download simultaneously. Real-
Time Analysis of Your Data: With the status window, you can easily recognize
which data streams you are currently transferring.

6
English
ASRock XFast RAM
ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space
that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM
shortens the loading time of previously visited websites, making web surng faster
than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another
advantage of ASRock XFast RAM is that it reduces the frequency of accessing your
SSDs or HDDs in order to extend their lifespan.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If
power loss occurs during the BIOS updating process, ASRock Crashless BIOS will
automatically nish the BIOS update procedure aer regaining power. Please note
that BIOS les need to be placed in the root directory of your USB disk. Only USB 2.0
ports support this feature.
ASRock OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict internet access
at specied times via OMG. You may schedule the starting and ending hours of
internet access granted to other users. In order to prevent users from bypassing
OMG, guest accounts without permission to modify the system time are required.
ASRock Internet Flash
ASRock Internet Flash downloads and updates the latest UEFI rmware version
from our servers for you without entering Windows®OS. Please setup network
conguration before using Internet Flash.
ASRock System Browser
ASRock System Browser shows the overview of your current PC and the devices
connected.
ASRock Dehumidier Function
Users may prevent motherboard damages due to dampness by enabling
“Dehumidier Function”. When enabling Dehumidier Function, the computer
will power on automatically to dehumidify the system aer entering S4/S5 state.
ASRock Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support
CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver
to your system via an USB storage device, then downloads and installs the other
required drivers automatically.

P85 Pro3
7
English
ASRock Interactive UEFI
ASRock Interactive UEFI is a blend of system conguration tools, cool sound eects
and stunning visuals. e unprecedented UEFI provides a more attractive interface
and more amusment.
ASRock Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds to
logon to Windows 8 from a cold boot. No more waiting! e speedy boot will
completely change your user experience and behavior.
ASRock Restart to UEFI
Windows® 8 brings the ultimate boot up experience. e lightning boot up speed
makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to
enter the UEFI automatically when turning on the PC. By enabling this function,
the PC will enter the UEFI directly aer you restart.
ASRock USB Key
In a world where time is money, why waste precious time everyday typing
usernames to log in to Windows? Why should we even bother memorizing those
foot long passwords? Just plug in the USB Key and let your computer log in to
windows automatically!
ASRock FAN-Tastic Tuning
ASRock FAN-Tastic Tuning is included in A-Tuning. Congure up to ve dierent
fan speeds using the graph. e fans will automatically shi to the next speed level
when the assigned temperature is met.
ASRock Good Night LED
ASRock Good Night LED technology oers you a better sleeping environment by
extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the
Power/HDD/LAN LEDs will be switched o when the system is powered on. Good
Night LED will automatically switch o the Power and Keyboard LEDs when the
system enters into Standby/Hibernation mode as well.

8
English
1.4 Motherboard Layout
Intel
B85
DDR3_B1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
ATX12V1
CMOS
Battery
Super
I/O
ATXPWR1
1
USB3_2_3
LAN
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
CLRCMOS1
1
PLED1
1
1
SPEAKER1
IR1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB4_5
1
USB6_7
1
1
HD_AUDIO1
P85 Pro3
CHA_FAN1
PCI1
RoHS
7
8
9
10
14
16
11
12
1317
19
20
21
22
23 18
15
25
2
CPU_FAN1
34
6
5
1
64Mb
BIOS
24
PWR_FAN1
SATA2_4
SATA2_5
SATA3_2
SATA3_3
SATA3_0
SATA3_1
PCI2
PCIE3
USB 2.0
T: USB0
B: USB1
Audio
CODEC
1
SPDIF1_OUT1
PCIE2
X Fast U S B
X Fast R A M
X Fast L A N
PCIE1
CPU_FAN2
PCI3
Front USB 3.0
TPMS1
1
CHA_FAN2
PS2
Keyboard
PS2
Mouse
PARALLEL PORT
COM1
SPDIF_O1
USB 3.0
T: USB0
B: USB1
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN

P85 Pro3
9
English
No. Description
1 CPU Fan Connector (CPU_FAN2)
2 Power Fan Connector (PWR_FAN1)
3 CPU Fan Connector (CPU_FAN1)
4 ATX 12V Power Connector (ATX12V1)
5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
6 ATX Power Connector (ATXPWR1)
7 USB 3.0 Header (USB3_2_3)
8 SATA3 Connector (SATA3_2)
9 SATA3 Connector (SATA3_0)
10 SATA3 Connector (SATA3_1)
11 SATA3 Connector (SATA3_3)
12 SATA2 Connector (SATA2_5)
13 SATA2 Connector (SATA2_4)
14 Power LED Header (PLED1)
15 Chassis Speaker Header (SPEAKER1)
16 System Panel Header (PANEL1)
17 Chassis Fan Connector (CHA_FAN2)
18 Chassis Fan Connector (CHA_FAN1)
19 USB 2.0 Header (USB6_7)
20 USB 2.0 Header (USB4_5)
21 TPM Header (TPMS1)
22 Infrared Module Header (IR1)
23 Front Panel Audio Header (HD_AUDIO1)
24 SPDIF Out Connector (SPDIF_OUT)
25 Clear CMOS Jumper (CLRCMOS1)

10
English
1.5 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 USB 2.0 Ports (USB_23)
2 Parallel Port 8 USB 3.0 Ports (USB3_01)
3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_01)
4 Line In (Light Blue) 10 Coaxial SPDIF Out Port
5 Front Speaker (Lime) 11 COM Port
6 Microphone (Pink) 12 PS/2 Keyboard Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
3 5
6789
4
1 2
1112 10

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

12
English
2.1 Installing the CPU
1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on
the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
Do not force to insert the CPU into the socket if above situation is found. Otherwise,
the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
2
1
A
B

P85 Pro3
13
English
4
5
3

14
English
Please save and replace the cover if the processor is removed. e cover must be placed
if you wish to return the motherboard for aer service.

P85 Pro3
15
English

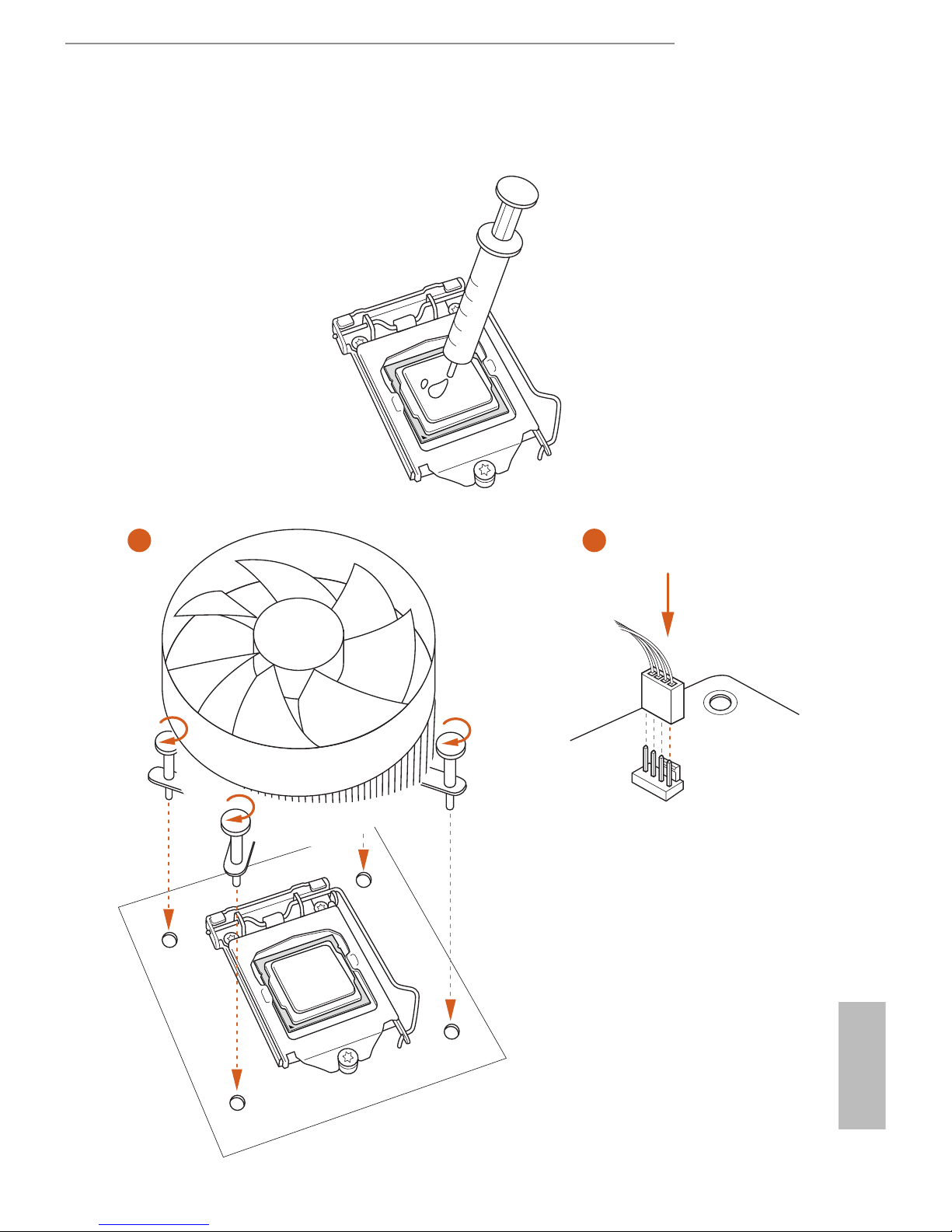

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

16
English
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,
and supports Dual Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot;
otherwise, this motherboard and DIMM may be damaged.
