AST SOC GMP-050 Series User manual

1600 FR
E
BROOKL
Y
Phone (
7
Fax (
7
Web
w
E-Mail
a
MANU
F
MODE
L
SOC G
S
INS
T
E
EWAY BOU
L
Y
N CENTER
,
7
63) 592-20
6
7
63) 592-207
w
ww.as
t
-corp
a
st
@
ast-cor
p
.
F
ACTUR
E
L
GMP
-
050
OC
G
T
RU
C
L
EVARD
MN 55430
6
0
5
.net
net
E
D FOR
G
MP-
C
TIO
050
S
NAL
SERIA
L
RATIO
1:1
S
ERI
E
MA
N
L
NUMB
E
E
S
N
UA
L
#60089-05
E
R
L
 REV: 11/18

CONTENTS
60089-05 CONTENTS
INTRODUCTION
WARRANTY INFORMATION 1
TECHNICAL VIDEOS 1
CUSTOMER SERVICE 1
GENERAL DESCRIPTION OF SYSTEM
INLET ASSEMBLY 2
ELECTRICAL DRIVE MOTOR 3
GEAR METERING PUMPS & OUTLETS 3
DELIVERY HOSES 4
DISPENSE VALVE 4
STATIC MIXER 4
ELECTRICAL CONTROLS 5
UNPACKING, SET-UP & PRE-START CHECKS
SET-UP & PRE-START CHECKS, TIPS, PRECAUTIONS & WARNINGS 6
DAILY OPERATION
START-UP 7
SHUT-DOWN 7
PERIODIC MAINTENANCE
METERING PUMP MAINTENANCE 7
DISPENSE VALVE MAINTENANCE 7
RATIO CHECK 7
TROUBLESHOOTING
TROUBLESHOOTING 7
RATIO CHECK PROCEDURE 8
TROUBLESHOOTING GUIDE 9
SHUT-DOWN PROCEDURES
PUMP CLEANING PROCEDURE 10
SHORT-TERM SHUT-DOWN PROCEDURE 10
END OF SEASON SHUT-DOWN PROCEDURE 11
BILLS OF MATERIAL/DRAWINGS

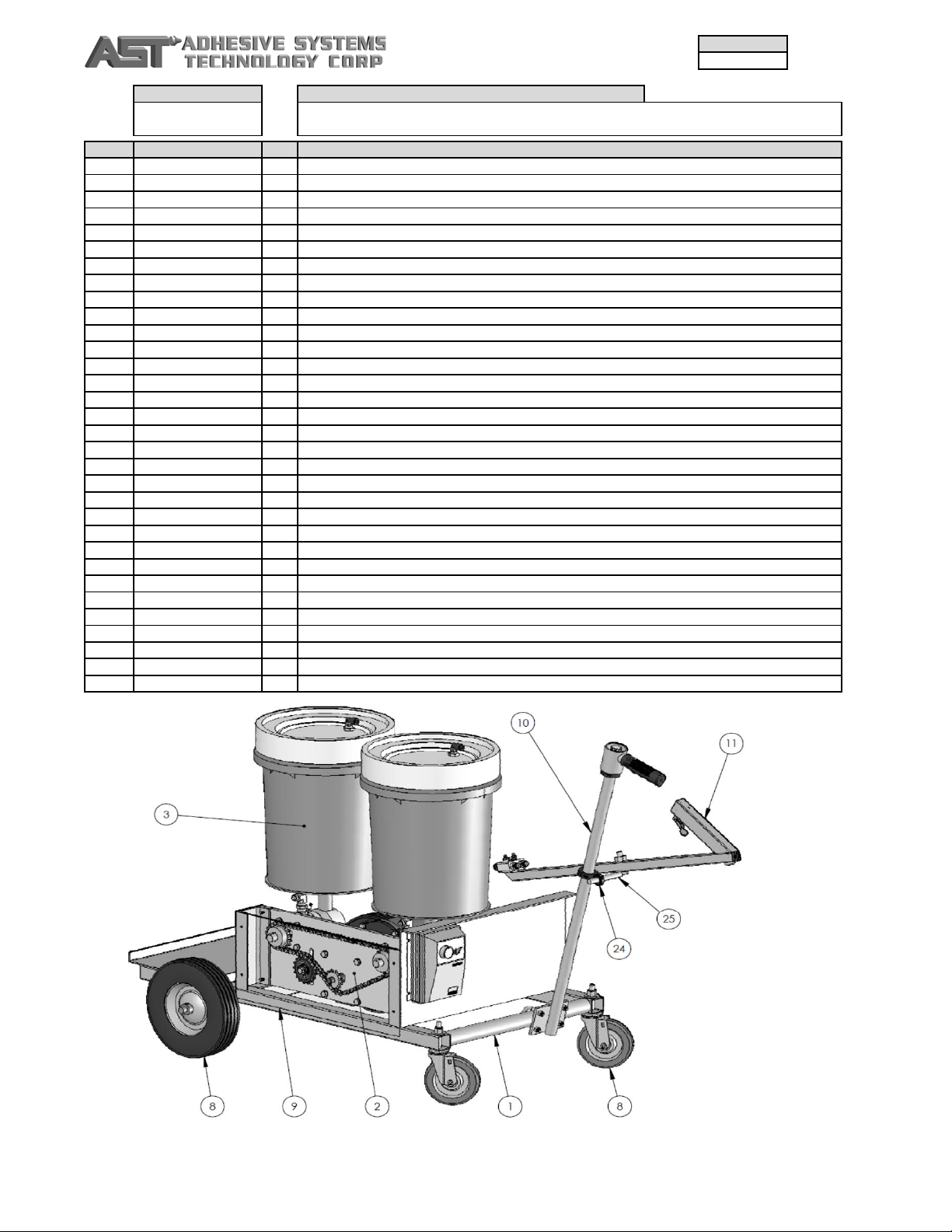

OVERALL 13
DRIVE ASSEMBLY 14
PUMP ASSEMBLY 15
TANK ASSEMBLY 16
WHEEL ASSEMBLY 17
HANDLE ASSEMBLYS 17
DISPENSE ASSEMBLY 18
DISPENSE MANIFOLD ASSEMBLY 19
ELECTRICAL SCHEMATIC/ASSEMBLY 20

INTRODUCTION
60089-05 Page 1
WARRANTY INFORMATION
AST assumes that all persons operating or working on or with
this system have read and understand the following operating
instructions.
 AST guarantees products of its manufacture, and bearing its
name or logo and serial number identification, to be free
from defects in workmanship or materials when used in
accordance with AST instructions, properly maintained, and
not misused.
 AST’s obligation under this warranty is limited to repairing or
replacing, at AST’s sole discretion, a defective AST product.
AST assumes no liability for consequential or contingent
damage of any kind. AST assume no liability for lost work,
business, revenue, profits, materials, or other claims of any
kind.
 This AST Warranty expires for each specific AST product
after two-thousand (2,000) hours of normal usage, or three-
hundred-sixty-five (365) days, whichever first occurs, from
the date of delivery to the first and original purchaser.
 Any claim under this Warranty must be filed with AST
by returning the subject product
to AST, transportation
charges prepaid, within fourteen (14) calendar days
from the date of cause of claim discovery, or from the
date of expiration, whichever first occurs.
AST
reserves the right to disclaim any Warranty claim that
is not in full compliance with
the conditions and
qualifications for such claim under this Warranty
 This AST Warranty does not apply to any result of:
normal use and wear; misuse; negligent use; abrasion;
corrosion; accident; improper assembly or installation;
product rebuilding by any party not authorized by AST; or
other product
tampering.
 A standard commercial component used in or with an
AST product, but not manufactured
by AST, hereby is
expressly excluded from this Warranty, and is covered
under the original manufacturer's warranty, if any.
 Damages for breach of warranty are limited to the
purchase price of the
product.
 AST assumes no liability for consequential or contingent
damage of any kind, including,
but not limited to: loss
of business; loss of production; loss of reputation;
loss related to defective materials or workmanship;
delay in manufacture, repair or replacement;
or
otherwise related to an AST product.
 AST will repair or replace, at normal service or purchase
charges, a damaged AST
product that is damaged by a
cause other than defective materials or workmanship
guaranteed under this Warranty.
 AST is not responsible for labor or material charges
arising from removal or replacement
of parts guaranteed
by this
Warranty
 This Warranty is expressly in lieu of any and all other
warranty, guarantee, obligation
or liability, expressed or
implied. Every statutory or implied warranty, including
any warranty of merchantability or fitness for a purpose,
hereby is expressly disclaimed and
rejected.
 EVERY SALE, DELIVERY, AND TRANSFER OF TITLE
AND POSSESSION OF AN
AST PRODUCT MUST
AND SHALL BE WITHIN THE UNITED STATES
OF
AMERICA. EVERY AST WARRANTY OR
GUARANTY IS SUBJECT EXCLUSIVELY TO
THE
JURISDICTION AND LAWS OF THE STATE OF
MINNESOTA,
U.S.A.
CUSTOMER SERVICE
AST customer service & technical support is available Monday-
through Friday, 8AM – 4:30PM CST. For more efficient
service, have your machine’s serial number ready (serial
number can be found on the front page of this instructional
manual AND on a silver tag mounted on the machine).
 REPLACEMENT/SPARE PARTS
o Online: www.ast-corp.net
o Phone: [phone]
o Fax: [phone]
*Same day shipment on most parts
Other services provided by AST include:
 TRAINING: Factory and field training seminars available
 INFORMATION: Complete service & maintenance history
records for each current system, complete engineering &
manufacturing specifications and drawings for all
equipment, and complete inventory of consumable items
are kept by AST.
 SUPPORT: AST provides engineering support to work with
you in maintaining equipment and increasing production.
AST also provides system upgrade support along with field
upgrades, repair & service (both at the factory & in the field)
and preventative maintenance programs.

GE
6008
9
The
G
moto
This
s
appr
o
cons
i
Each
1. I
Each
the u
secu
r
The i
Rem
o
NERAL
D
9
-05
G
MP-050 Met
r. The syste
m
s
ystem is des
o
ved without
e
i
dered misus
e
of the major
s
NLET ASSE
M
inlet assemb
nit (other opti
o
r
e placement.
nlet block co
n
o
ving these 4
D
ESCRIP
T
er-Mix-Dispe
n
m
consists of
s
igned for use
e
xplicit factory
e
under AST
w
s
ections is de
s
M
BLY
l
y consists of
a
o
ns are availa
n
nects the tan
k
bolts will allo
w
T
ION OF
n
se system ha
s
even major s
e
1. Inl
e
2. El
e
3. Ge
4. De
l
5. Di
s
6. Mi
x
7. Co
n
only with the
m
consent and
m
w
arranty.
s
cribed below
a
plastic tank,
ble). The tan
k
k
/inlet assem
b
w
the entire in
l
SYSTE
M
s two gerotor
e
ctions. Each
e
t Assembly
e
ctrical Drive
M
ar Metering P
l
ivery Hoses
s
pense Valve
x
er
n
trols
m
aterial speci
f
m
ay cause p
o
.
lid, and a pu
m
k
s are piped t
o
b
ly to the gear
l
et assembly t
M
type gear me
t
of the compo
n
M
otor & Gear
R
umps
f
ied on the T.
E
o
or results, da
m
m
p inlet block.
o
the gear pu
m
pump. The
b
o
be removed
t
ering pumps
n
ents is descr
R
educer
E
.D. sheet for
m
age the sys
t
.
Typically, 6-
m
p inlets. Ea
c
b
lock is conne
c
d
from the ma
c
(GMP) that a
r
ibed below.
this system.
t
em, or other
p
1/2 gallon HD
c
h tank lid thr
e
c
ted by (4) 5-
1
c
hine.
r
e powered wi
t
Use of other
m
p
roblems, whi
c
PE tanks are
e
ads onto the
1
6”-18 x 2-1/
4
Page
2
t
h an electric
m
aterials is n
o
ch are
supplied with
tank for
4
” bolts.
2
o
t

GE
6008
9
2.
E
The
G
cont
r
3.
G
Each
inlet
b
In op
whe
n
one l
e
from
the g
main
t
Exce
secti
o
Rati
o
spro
c
ratio
side
t
Two
z
the p
to th
e
itself
.
mate
Whil
e
com
p
**Us
e
NERAL
D
9
-05

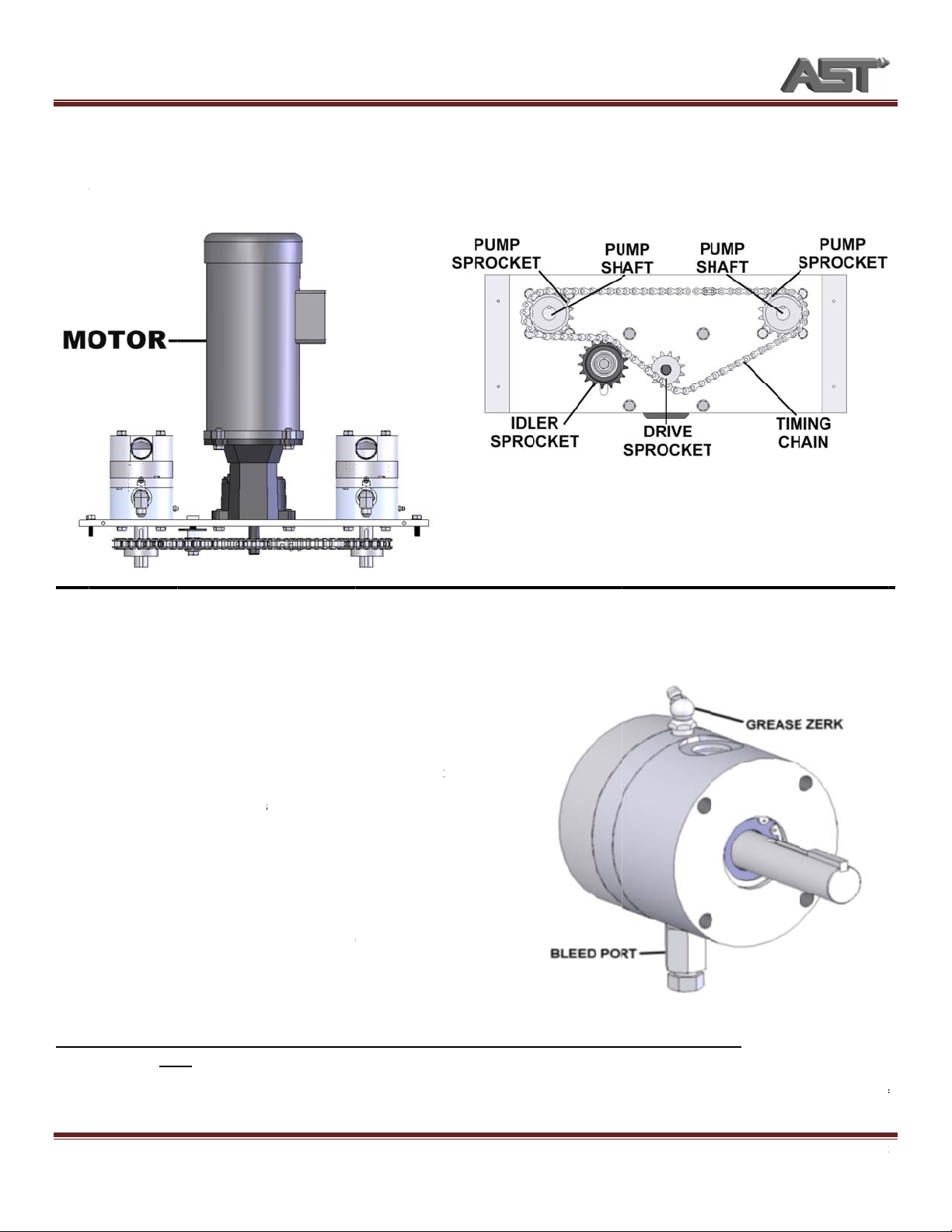

E
LECTRIC D
R
G
MP is driven
r
oller. The in
t
G
EROTOR P
U
AST gear m
e
b
lock with air
eration the p
u
n
turned, drive
e
ss tooth tha
n
the inlet to th
e
ears. Precis
e
t
ain a positiv
e
ssive wear or
o
n of the pum
o
s are simply
a
c
ket. Exampl
e
by volume. I
n
t
o obtain a wi
d
z
erks for lubri
c
ump shaft is
p
e
pump’s side
.
Both should
rial being dis
p
e
the zerk on
t
p
lete when fre
s
e
caution whe
D
ESCRIP
T
R
IVE MOTOR
by a TEFC 9
0
t
ernal gear re
d
U
MPS & MAT
e
tering pump
c
b
leed port, an
u
mp shaft is c
o
s an outer int
e
n
the outer ge
a
e
outlet of the
e
tolerances p
r
seal as the c
o
physical dam
a
p
will reduce
t
a
function of t
h
e
: a 32 and a
n
some cases,
d
er ratio.
c
ation of the
p
p
rovided for fil
l
outlet is provi
be filled daily
p
ensed. NOT
E
t
he top of the
p
s
h lubricant is
n disassembl
i
T
ION OF
& GEAR RE
D
0
V D.C., vari
a
d
ucer is pre-lu
ERIAL OUTL
c
onsists of a
h
d a material
o
o
nnected to a
n
e
rnal driven g
e
a
r allowing th
e
pump, which
a
r
event materi
a
o
ntours of ea
c
a
ge to the su
r
he ratio accu
r
h
e number of
t
16-tooth spro
c
dual stage p
u
p
ump are pro
v
l
ing the seal c
ded for lubric
a
with a lubrica
E
: The secon
d
p
ump is filled,
pushed out f
r
i
ng Gerotor p
u
SYSTE
M
D
UCER
a
ble speed el
e
bed and seal
e
E
TS
h
ardened driv
e
utlet hose fitti
n
n
inner drive g
e
ar. The inne
r
e
pump to tra
n
a
re on opposi
t
a
l by-pass as
t
c
h gear are fo
l
r
faces of the
w
r
acy of the sy
s
t
eeth on eithe
r
c
ket will disp
e
u
mps can be
u
v
ided. The ze
r
hamber. The
a
tion of the m
e
nt compatible
d
zerk cannot
b
the bleed val
v
r
om the bleed
u
mp, making
M
(contin
u
e
ctric motor.
e
d.
e
shaft, lube c
h
n
g.
ear which,
r
gear has
n
sfer material
t
e sides of
t
he gears
lowed.
w
orking
s
tem.
r
drive
e
nse at a 2:1
u
sed on one
r
k closest to
zerk closest
e
tering gear
with the
b
e filled witho
v
e at the bott
o
valve.
sure not to g
o
u
ed)
The motor is
f
h
amber with
d
ut opening th
e
o
m of the pum
o
ug
e
or mar a
f
use-protecte
d
d
ual shaft seal
e
bleed port a
t
p must be op
e
ny of the inte
r
d
; which is loc
s, metering g
e
t
the bottom o
f
e
ned. Lubric
a
r
nal surfaces
Page
3
ated inside th
e
e
ar, material
f
the pump.
a
tion is
of the pump.
*
3
e
**

GE
6008
9
4.
D
“A” a
syst
e
repla
poro
s
The
h
gene
5.
D
The
a
mac
h
If a
m
appli
c
“A” a
appli
c
Two
g
lubri
c
disp
e
A ch
e
disa
s
6.
S
Som
e
pum
p
expe
shou
NOT
E
in cro
s
NERAL
D
9
-05
D
ELIVERY H
O
nd “B” materi
a
e
m to the disp
e
cement must
s
ity.
h
oses used h
a
rally resistant
D
ISPENSE V
A
a
pplicator for
t
h
ine compone
m
anually actu
a
c
ator switch.
nd “B” materi
a
c
ator tip. A r
e
g
rease zerks
a
c
ant to preven
e
nsed can be
u
e
ck valve for
e
s
sembled and
S
TATIC MIXE
e
times referre
p
ed through t
h
rience will det
ld be discard
e
E
: When not in u
s
s
sover, or one c
o
D
ESCRIP
T
O
SES
a
ls flow throu
g
e
nsing applic
a
be identical o
r
a
ve a teflon c
o
to most solve
A
LVE
t
he GMP-SP-
0
n
ts to becom
e
a
ted dispense
a
ls are kept s
e
e
taining nut f
o
a
re located o
n
t
material pro
b
u
sed. The s
a
e
ach compon
e
cleaned peri
o
R
d to as a “mix
e
h
e elements in
ermine which
e
d & not used.
s
e, the static mix
o
mponent being
T
ION OF
g
h their individ
a
tor. The typ
e
r
of superior s
p
o
re with stainl
e
nts that may
b
0
50 is a manu
e
familiar with
applicator, sy
s
e
parated to th
e
o
rces a tight fit
n
the side of t
h
b
lems inside t
h
a
me lubricant
c
e
nt is located i
o
dically. The
o
e
r nozzle,” th
e
side the tube.
diameter, ele
m
er should be re
m
forced inside th
e
SYSTE
M
ual delivery h
o
of hose used
p
ecifications i
n
e
ss steel brai
d
b
e used to flu
s
ally actuated
d
t
he dispense
a
s
tem operatin
e
point where
of the dispos
a
h
e dispense
m
h
e manifold
w
c
an be used i
n
nside the ma
n
o
-ring inside t
h
e
static mixer
i
Mixers are
a
m
ent quantity
,
m
oved and disca
r
e
manifold port f
o
M
(contin
u
o
ses. The tw
o
will vary, and
n
terms of pr
e
d
ing on the ou
t
s
h the system
.
d
ispense appl
a
ssembly.
g
(“on” and “o
they join toge
t
a
ble mixer no
z
m
anifold. The
s
w
hen not in us
e
n
the pumps.
n
ifold. The c
h
h
e check valv
e
i
s a disposabl
e
a
vailable in a
v
,
and tip open
i
r
ded. Attemptin
g
o
r the other com
p
u
ed)
o
material ho
s
d
are specifica
e
ssure, dimen
s
t
side. They c
a
.
icator or an a
i
o
ff”) signals ar
e
t
her inside th
e
z
zle to the thr
e
s
e can be us
e
e
. Only lubri
c
h
eck valves s
u
e can be repl
a
e
tube that mi
x
v
ariety of dia
m
i
ng size is be
s
g
to use a static
p
onent.
s
es plus contr
o
lly chosen for
s
ional rigidity
u
a
n be damag
e
i
r actuated di
s
e
given when
t
e
disposable
p
e
aded applic
a
e
d to fill the m
a
c
ants compati
b
u
pplied are as
a
ced, if neces
s
x
es parts “A”
a
m
eters and mi
x
s
t. The first m
mixer that has b
o
l air lines join
the applicatio
u
nder pressu
r
e
d if severely
k
s
pense valve.
the operator
p
p
lastic mixer a
t
a
tor block.
a
nifold with a
c
b
le with the m
semblies whi
c
s
ary.
a
nd “B” toget
h
x
ing elements
aterial out of
a
ecome partially
c
Page
4
n
the main
n. Any
r
e, and
k
inked, but ar
e
Please revie
w
p
resses the
t
the
c
ompatible
aterial to be
c
h should be
h
er as they ar
e
(length). Fiel
d
a
static mixer
c
ured can result
4
e
w
e
d

GE
6008
9
7.
C
Ope
r
clos
e
One
c
cloc
k
The
2
arm
a
Repl
a
PO
W
equi
p
NERAL
D
9
-05
C
ONTROLS
r
ation signals
a
e
the dispens
e
c
ontrol for th
e
k
wise will incr
e
2
50G is provi
d
a
ture line is sh
o
a
ce with 10 A
M
W
ER SUPPLY:
p
ment users t
h
D
ESCRIP
T
a
re given by
a
valve when
d
operator to s
e
e
ase the spee
d
d
ed with a fus
e
o
rted to earth
M
P FUSE (Bu
Ground fault
h
e ability to pr
o
T
ION OF
a
trigger switc
h
d
esired.
e
t or adjust is
d
of the motor
e
in AC line 1
ground. As lo
ssman ABC
o
protection is
r
o
vide ground
f
SYSTE
M
h
. This signal
the drive mot
o
& increase t
h
(P1-11). This
ng as 120 VA
o
r Little Fuse
3
r
equired. US
E
f
ault protectio
n
M
(contin
u
will start pum
p
o
r speed cont
r
h
e output of th
e
fuse is sized
t
C input is con
3
14 Series ce
r
E
ONLY UL LI
S
n
to their equi
u
ed)
p
operation a
n
r
oller. Turnin
g
e
pumps.
t
o open in the
nected prope
r
r
amic fuses).
S
TED GFI PL
pment.
n
d air signals
w
g
the speed c
o
event of a sh
o
r
ly, there is n
o
L
UGS designe
w
ill automatic
a
o
ntrol potenti
o
o
rted armatur
e
o
additional fu
s
d to allow por
t
Page
a
lly open and
o
meter
e
or if an
s
ing needed.
t
able
5

UNPACKING, SET-UP & PRE-START CHECKS
60089-05 Page 6
UNPACKING
 Check for shipping damage. File claims with the shipper
for any apparent damage.
 Remove any plugs and caps from both hoses and attach
hoses and tubing to main system as indicated (if hoses
are shipped detached).
 Check for loose bolts, fittings, etc. which may have
loosened during shipping.
SET-UP & PRE-START CHECKS
 Connect motor controller to power supply (120VAC). Use
a ground fault interrupter (not supplied). Using a GFI
Plug will help protect the motor controller and greatly
improve service life.
 If using an extension cord, it must be no longer than 100
feet, 14 gauge. Longer and/or smaller gauge supply may
starve the controller, causing erratic pump performance
and may cause the controller fuse to blow.
 Do a preliminary check of system before filling material
containers. Actuate handle trigger & release signal to
stop.
 Filling containers with material: Make sure respective
materials are poured into designated containers. Fill at
least ½ full & place lid on each container immediately
after filling. Label both containers to assure correct filling.
When filling, place lid on tank not being filled.
 Filling hoses and applicator: Actuate system and slowly
run until allowing materials to flow through both hoses to
the applicator. IF MIXER NOZZLE HAS BEEN
ATTACHED, REMOVE TO AVOID MATERIAL CROSS-
OVER.
 HOSE FILLING PRECAUTION: Any high point in hose
can hold air and allow an air gap. Slope hose on a
gradual upward slope away from system to applicator
while filling. The dispense valve should also slope
upward in a similar manner until materials flow smoothly
out of both ports of the dispense manifold. In almost all
cases, “A” and “B” materials behave differently and fill at
different rates. Let earlier appearing material flow into
waste container until other material is also flowing freely.
 Establish proper flow of both materials at dispense
manifold WITHOUT THE MIXER ATTACHED. Hold the
top into a waste container and actuate the system.
Observe flow of both materials from the round ports and
continue to run the system until a positive, air free flow is
achieved. Wipe clean and apply compatible lubricant to
the tip and the treaded area to permit easy removal later.
 Attach proper mixer to applicator tip and tighten mixer
nut.
 Purge at least 3 mixer volumes of material and discard
static mixer.
The system is now ready for dispensing meter/mixed
materials!
OTHER TIPS & TIDBITS
 Keep this instruction manual
 Never permit either material tank to get below
approximately 1/3 full.
 A common problem is cross-over (one material crossing
over into the other material’s manifold and/or hose).
Damage and cost from cross over can be avoided by
carefully following instructions.
 Air can be trapped in hoses during filling of an empty
system. To avoid trapping air, arrange the hoses to
obtain a continuous gradual upward slope of the hoses
from the pump outlet to the applicator while the system is
pumping at low speed. Point the dispense assembly
upward to let the material push the air out.
 Two zerks are provided on each side of the dispense
manifold, where the static mixer is attached to the
applicator. These are provided so that the operator can
remove the mixer and fill the ports of the manifold with a
compatible lubricant. This helps prevent problems with
material hardening in the manifold, and should be done
when the unit is left unused for any period of time.
 The gerotor pumps are lubricated in two places. Both
should be lubed daily. When the zerk on the top of the
pump is filled, the bleed valve at the bottom of the pump
must be opened. Lubrication is complete when fresh
lubricant is pushed out from the bleed valve.
 Low material temperature raises the viscosity inside the
system, greatly increasing the work required to pump. If
system is to be used in a cold temperature situation,
material & system should be kept as close to or above
room temperature as possible. Any heating of material
must be regulated no higher than maximum temperature
recommended by material manufacturer.

DAILY OPERATION/DAILY MAINTENANCE/TROUBLESHOOTING
60089-05 Page 7
START-UP
 Check level of materials in containers, making sure level
is always over ¼ filled.
 Clean off applicator dispense head with plastic mixer
nozzle removed
 Verify smooth, air-free flow of both materials by
dispensing material into waste container. Check for two
smooth, consistent streams of material.
 Wipe head clean and coat dispense head with compatible
lubricant.
 Place new plastic mixer nozzle on dispense head with
retaining nut.
 Dispense approximately 2 mixer volumes of material into
waste container.
 Make 2 or 3 test samples to verify performance.
SHUT-DOWN
 Remove static mixer nozzle.
 Trigger applicator to relieve any pressure in lines or
system. Materials may ooze out of applicator.
 Turn off or disconnect motor controller.
 Fill dispense manifold with compatible lubricant. Fill each
zerk until material inside dispense manifold is replaced
with compatible lubricant.
 Lubricate each pump:
o Open bleed valve at bottom of pump.
o Grease zerk at top of pump until material coming out of
bleed port is clean, fresh lubricant.
o Close bleed valve & verify tanks are over 1/3 full.
PERIODIC MAINTENANCE
 Remove and clean any material residue or film with
compatible solvent (damp pad only – do not pour
solvent)
 Lubricate with compatible lubricant.
 If leakage appears at shaft, replace seals.
**Use caution when disassembling the Gerotor pump
making sure not to gouge or mar any of the internal
surfaces of the pump**
DISPENSE MANIFOLD MAINTENANCE
 Clean threads & ports of dispense manifold
 Remove & soak manifold in compatible solvent, if
necessary
 Replace o-rings, packings & seals, if necessary
RATIO CHECK
 Remove retainer cap and/or mixer nozzle
 Trigger applicator; two separate beads of material will
appear; compare for correct volume
 Replace o-rings, packings & seals, if necessary
TROUBLESHOOTING
VERY IMPORTANT: As soon as a problem is noticed,
immediately remove disposable mixer nozzle and try
dispensing material. This may prevent or purge material
crossover if it has not already hardened.
After static mixer is removed, THEN check the following:
 Is the dispense manifold plugged? (Material set up)
 Is there sufficient material in the tanks?
 Is the machine dispensing on ratio?
If ratio is not correct:
 Check if air is entrapped in the pumps or hoses
 Check if the drive chain is loose or worn
 Check if one or both of the pump sprockets are frozen
(Can the sprockets be rotated by hand?)

RATIO CHECK PROCEDURE
60089-05 Page 8
The following is the list of items to check if the equipment is not dispensing the correct ratio. Please note that some items
included in this procedure are not included with all supplied equipment. Please use all safety devices such as but not limited to
gloves and eye protection. When working with solvents do so in a well-ventilated area free of combustible items. Take every
effort not to mar or damage any surfaces that come in contact with materials.
If you suspect the ratio is incorrect and the dispense valve is in good condition, proceed as follows:
 Remove retainer cap and/or mixer nozzle.
 Trigger applicator; two separate beads of material will appear. Dispense each bead into separate cups; compare for correct
volume.
o If ratio is incorrect with mixer off, proceed to Step 3
o If ratio is correct with mixer off, perform additional test to verify results. If ratio is correct again with mixer off, the most
common cause is the metering pumps are worn & need replacement or refurbishing. Contact AST if this occurs.
 If volume is off from Step 2, remove hoses from dispense valve, trigger applicator & dispense each material into separate
cups. Compare volume of material dispensed out of material hoses.
o If ratio is correct, the problem is occurring in the dispense valve. Clean and/or replace seals,
O-rings & packings, if necessary.
o If ratio is incorrect, proceed to Step 4.
 If volume is off from Step 3, remove hoses at the outlet assembly. Trigger applicator and dispense each material into
separate cups. Compare volume of material dispensed out of outlet assembly.
o If ratio is correct, the problem is occurring in the material hoses. Clean and/or replace hoses.
o If ratio is incorrect, proceed to Step 5.
 If volume is still off from Step 4, disassemble & clean pumps. Replace seals & O-rings if necessary.
Other items of note:
 Verify that the air inlet to the tank is in good condition. The air goes into the tank through the 90 degree elbow.
 Check for blockages on the inlet side of the pump with the reduced output. The round inlet block will have to be taken off
the back of the pump. Then, inspect the piping leading from the tank to the inlet block. If a blockage is found, it may not be
necessary to go any farther.
 Clean and rebuild the pump. Check that the inner and outer gears are tight against each other. [Note: be careful not to
damage the inner pump parts when disassembling or cleaning. Replacement parts for the gerotors are available only as a
complete pump!] *Remove all crystallized or partially hardened material from all surfaces that contact the material.
 Check the pump outlet fitting. (The elbow fitting between the pumps and the hoses) for blockages.
**NOTE: Any material that is left in the machine that is partially or completely hardened, or foreign objects, will
eventually cause a problem somewhere and should never be left in the pump**

TROUBLESHOOTING GUIDE
60089-05 Page 9
PROBLEM POSSIBLE CAUSES/AREAS TO CHECK REMEDY
Unit Will Not Run
Check Electrical Supply Verify that requirements are met (115/120v, 100” extension
Check motor controller fuses Replace
Motor / Gear box failure Replace
(ALWAYS remove power when
servicing) Switch in dispense assembly handle Replace if unit runs when bypassed
Unit runs but no flow/low
flow of materials
Improper material supply to pumps Clear obstruction in tank bottom
Worn Pumps Verify that material being used is non-abrasive
Check chain drive Tighten / replace drive chain
Air in material supply Tighten / seal all material fittings
Ratio check NOT okay
 Blockage of hoses
 Blockage in dispense assembly
 Blockage in pump
Clear / replace
Clear / replace
Replace
Rebuild
Plugged hoses or dispense manifold Clear or replace
Too much flow Motor speed control Reduce setting
Check motor speed setting Adjust per controller manual
Irregular flow Check valves sticking / blocked Disassemble & Clean
Blockage at pump inlet Remove tank & inlet; clear
Blockage in hoses Clear / replace
Blockage in static mixer nozzle Replace
Material not curing Material off ratio
1. Check material by hand; mix sample of
A&B in proper ratio
2. Do a system ratio check
Timing sprockets wrong size Correct / replace
A or B pump seals leaking Rebuild pump
A or B check valves sticking (in dispense
assembly) Disassemble, clean & rebuild; use new o-ring
Static mixer worn or plugged Replace
Static mixer does not have enough
elements for proper mix Increase mixer size
Lead in one material coming out of
dispense manifold; Air in material Follow air bleed procedure
Foreign object or cured material in pump
or pump inlet Remove tank & inlet, then clear or rebuild pump

SHUT-DOWN PROCEDURES
60089-05 Page 10
PUMP CLEANING PROCEDURE
The following is the recommended procedure for removing,
inspecting, cleaning and reinstalling GMP pumps. Please
use all safety devices such as but not limited to gloves and
eye protection. When working with solvents do so in a well-
ventilated area free of combustible items. Take every effort
not to mar or damage any surfaces that come in contact
with materials.
 Disassembly
o Remove tank & inlet [assuming all material has been
removed from tanks].
 Open bleed valve on top of inlet block, if supplied.
 Remove tank straps, if supplied.
 Remove (3) of the 4 bolts attaching inlet to back of
pump
 Loosen fourth bolt to allow inlet to come off pump
and drain any remaining material. Remove bolt and
tank after enough material is drained.
 Discard o-ring between inlet & pump (12498).
 Clear any foreign objects, crystallized or partially
hardened material from tank & inlet block.
 Cleaning of residues from pump
o Partially disassemble & clean pump
 Remove four bolts attaching inlet to back of pump.
Back of pump should pull off shaft & front section.
Excessive force should be used only with extreme
caution to prevent damage to the pump (Be careful
to not lose the two alignment pins, which prevent
incorrect assembly of pump. Clean pins if
necessary).
 Clean bolts of any material.
 Prevent any damage to all interior surfaces of pump.
 Carefully remove outer stator ring housing.
Assuming that any crystallized material is located
between stator (internal teeth) and rotor (external
teeth), soak area in contact with material in a
compatible solvent to soften.
 Gently remove & clean stator. Rotor should be
carefully cleaned at this time while still mounted on
pump shaft. Use nylon brushes instead of steel if
possible to preserve surface finished.
 Keep all parts, except for o-rings.
 All residues of old material are to be removed from
all internal surfaces of the pump parts.
 Test to see if pump shaft can be turned.
 Check to see if motor will turn by turning on the
machine briefly.
 Remove chain and turn sprocket. Use a wrench,
if necessary.
 If pump shaft will turn, further disassembly is
unnecessary unless material is leaking from
shaft seals (check behind drive sprocket).
Once completely clean, re-assemble pumps. *Note:
Mechanical side of pumps cannot be assembled
incorrectly if the two (2) guide pins are in place.
Use new o-rings. The use of petrolatum grease is
recommended to lubricate all internal surfaces
immediately before installation and may make re-
assembly easier along with future servicing of
pump.
 Lubricate pumps using zerks supplied. Use only
petrolatum grease for this purpose.
SHORT TERM SHUTDOWN PROCEDURE: The following
is the recommended procedure for storing equipment for a
short period of time. Please note that some items included
in this procedure are not included with all supplied
equipment. Please use all safety devices such as but not
limited to gloves and eye protection. When working with
solvents do so in a well-ventilated area free of combustible
items. Take every effort not to mar or damage any surfaces
that come in contact with materials.
 Pump Unit Dry
o Pump remaining material.
 Remove static mixer and/or spray attachment.
 Operate machine until no material is being
dispensed. Check that hoses are allowed to drain
completely (hoses should lead “downhill” towards
dispense valve).
 Clean dispense valve & reapply layer of compatible
lubricant.
o Flush System
 Use only a cleaning solution most effective for
removing your material. Consult material
manufacturer for recommendations. Carefully
observe all health and safety precautions listed on
all labeling.
 Fill each tank a minimum of 1/3 with a compatible
cleaning solution.
 Set pump speed control to slow setting.
 Operate machine until cleaning solution begins to
come out of the machine.
 Allow machine to sit for a period of time, depending
on the effectiveness of the cleaning solution, not
more than one hour. Most solvents will not damage
any component unless allowed to remain in system.
 Continue pumping cleaning solution into container
until machine is again empty. Observe cleaner as it
is being pumped. As solution is pumped, it should
appear to become clean. If this is not observed, the
same cleaner, after impurities have settled, can be
re-loaded into machine and procedure repeated – if
it is pumped out immediately. Do not allow any
settled material back into system.
(Continued on Page 11)

SHUT-DOWN PROCEDURES
60089-05 Page 11
o Tank/Material Feed System
 Clean & inspect tank lid sealing gaskets. Repair
with RTV Silicone as necessary.
 Check make up air lines from desiccant canister to
tank. Remove or repair any blockages.
 Clean inside of tanks, concentrating on any material
built up that might wind up in pumps.
 Start-up Procedure
o Prepare system for loading
 Pre-season startup checks outlined below should be
performed in advance of any intended use.
 AST assumes previous shut-down procedure was
followed.
 Connect electrical power.
 Test operation of machine. Verify that oil loaded
into machine comes out both ports on the
dispense valve when triggered.
 Operate system until empty.
o Flush system with compatible solvent
 Fill each tank a minimum of 1/3 full with a
compatible cleaning solution.
 Operate and observe behavior of system.
 Verify that flow is coming out of both ports in
dispense valve.
 Operate system until empty. Please not that it is not
harmful to run machine dry.
 If possible, temporarily disconnect material hoses
from dispense valve and allow any trapped solvent
to drain.
 Fill zerks on dispense valve with petrolatum grease
until lubricant coming out of ports is clean.
o Load & Test Material
 Load each material into correct tank. Remember to
keep one lid on while filling the other tank.
 Set motor speed to low (30%) and actuate trigger,
operating system until correct material comes out
both ports of dispense valve.
 Operate system until two streams of material come
out of dispense valve. Release trigger and wipe
manifold.
 Attach static mixer to dispense valve. Make several
test shots of material in small cups or on aluminum
foil and allow curing.
 Discard static mixer, wipe manifold clean, and re-fill
manifold with petrolatum grease.
 Check cured material for flaws and inconsistencies.
 See “Troubleshooting” section in operator’s manual
if any problems are observed.
END OF SEASON SHUTDOWN PROCEDURE
The following is the recommended procedure for storing
equipment for an extended period of time. Please note that
some items included in this procedure are not included with
all supplied equipment. Please use all safety devices such
as but not limited to gloves and eye protection. When
working with solvents do so in a well-ventilated area free of
combustible items. Take every effort not to mar or damage
any surfaces that come in contact with materials.
 Pump Unit Dry
o Pump remaining material.
 Remove static mixer and/or spray attachment.
 Operate machine until no material is being
dispensed. Check that hoses are allowed to drain
completely (hoses should lead “downhill” towards
dispense valve).
 Clean dispense valve & reapply layer of petrolatum
grease.
o Flush System
 Use only a cleaning solution most effective for
removing your material. Consult material
manufacturer for recommendations. Carefully
observe all health and safety precautions listed on
all labeling.
 Fill each tank a minimum of 1/3 with a compatible
cleaning solution.
 Set pump speed control to slow setting.
 Operate machine until cleaning solution begins
coming out of machine.
 Allow machine to sit for a period of time, depending
on effectiveness of cleaning solution, not more than
one hour. Most solvents will not damage any
component unless allowed to remain in system.
 Continue pumping cleaning solution into container
until machine is again empty. Observe cleaner as it
is being pumped. As solution is pumped, it should
appear to become clean. If this is not observed, the
same cleaner, after impurities have settled, can be
reloaded into machine and procedure repeated – if it
is pumped out immediately. Do not allow any
settled material back into system.
o Tank/Material Feed System
 Clean & inspect tank lid sealing gaskets. Repair
with RTV Silicone as necessary.
 Clean inside of tanks, concentrating on any material
built up that might wind up in pumps.
o Re-fill System for Storage
 Fill tanks with compatible oil/lubricant and trigger.

SHUT-DOWN PROCEDURES
60089-05 Page 12
 Start-up Procedure
o Prepare system for loading
 Pre-season startup checks outlined below should be performed in advance of any intended use.
 AST assumes previous shut-down procedure was followed.
 Connect air supply & electrical power.
 Test operation of machine. Verify that oil loaded into machine comes out both ports on the dispense valve when
triggered.
 Operate system until empty.
o Flush system with compatible solvent
 Fill each tank a minimum of 1/3 with a compatible cleaning solution.
 Operate and observe behavior of system.
 Verify that flow is observed coming out of both ports in dispense valve.
 Operate system until empty. Please note that it is not harmful to pump machine dry.
 If possible, temporarily disconnect material hoses from dispense manifold and allow any trapped solvent to drain.
 Fill zerks on dispense valve with petrolatum grease until lubricant coming out of ports is clean.
o Load & Test Material
 Load each material into correct tank. Remember to keep one lid on while filling the other tank.
 Set motor speed to low (30%) and actuate trigger, operating system until correct material comes out both ports of
dispense valve.
 Operate system until two streams of material come out of dispense valve. Release trigger and wipe manifold.
 Attach static mixer to dispense valve. Make several test shots of material in small cups or on aluminum foil and allow
material to cure.
 Discard static mixer; wipe manifold clean, and re-fill manifold with petrolatum grease.
 Check cured material for flaws and inconsistencies.
 See “Troubleshooting” section in operator’s manual if any problems are observed.

# OF ITEMS
BILL OF MATERIALS
32
PRODUCT # PRODUCT NAME
90122-01G
ITEM PART # QTY ITEM DESCRIPTION
1 56537-02B 1 WELDMENT, FRAME, GMP050 (SOC), EXT, W/ GENERATOR & INVERTER PLATE
2 55916-16B 1 DRIVE ASSEMBLY, MAINFRAME, GMP050 (SOC)
3 56552B 2 TANK ASSEMBLY, DISPOSABLE, 6-1/2 GALLON, HDPE, 1 NPT OUTLET
4 12170-3.5 2 NIPPLE, 1 NPT x 3-1/2 LONG, STAINLESS
5 23675A 2 INLET, GEROTOR PUMP, TOP FEED, GMP, ALUMINUM
6 11305 4 WASHER, 5/16 LOCK, INTERNAL TOOTH
7 11843 4 BOLT, 5/16-18 x 2-1/4, HEX, GR5
8 56538 1 ASSEMBLY, WHEEL / HARDWARE, GMP-SP
9 26598A 1 SHROUD, W/ MOUNTING HOLES, GMP-SP, NEW MOUNTING HOLE LOCATIONS
10 56539 1 ASSEMBLY, HANDLE, PIVOTING, GMP-SP
11 56541-01 1 ASSEMBLY, DISPENSE HANDLE, 55696-02C MANIFOLD, GMP-SP-050
12 55625-10 1 SCHEMATIC, ELECTRICAL, GMP-SP-025/050, 14644A MOTOR CONTROLLER
13 13575 2 UNION, 3/4-16 M SAE O-RING x 3/8 F NPSM SWIVEL
14 11485 2 ELBOW, 3/8 M NPT x 6 JIC, 90 DEGREE
15 11299-10 2 HOSE, TEFLON, 3/8 ID x 10’, 6 JIC SWIVEL ENDS
16 33340 8 HOSE, CORRUGATED, 1-1/4 I.D., POLYETHYLENE, PER 24’ LENGTH
17 14707 1 LABEL/ DECAL, B & W “AST 1-3/8 X 4-3/8 X 3.5 MILS, VINYL W/ POLYESTER OVERLAY
18 11447 2 RIVET, POP, 1/8 DIAMETER x 1/16-1/8 GRIP RANGE
19 12627B 1 TAG, SERIAL NUMBER, ALUMINUM
20 11124 2 DECAL, LETTER, A, 3, BLACK
21 11125 2 DECAL, LETTER, B, 3, BLACK
22 11596 REF ZERK, GREASE, 90 DEGREE, 1/4-28
23 12969 REF ZERK, GREASE, 90 DEGREE, 1/8 NPT
24 25225-0816 1 COLLAR WELDMENT, 1/2 ID x 1 ID, 90 DEGREE
25 26636 1 MOUNT WELDMENT, DISPENSE HANDLE, ROUND BAR/ BOLT, SOC GMP
26 13574-04 1 INVERTER, POWER, 12VDC TO 120VAC, 1200 WATT
27 15056 2 TERMINAL, RING, NON-INSULATED, 5/16 DIA, 6 GAUGE
28 15057 1 FUSE, AUTOMOTIVE, 80A, 32V DC
29 15060 1 NUT, WING, 1/2-13, ZINC PLATED STEEL
30 12209 2 O-RING, 1-908, EP
31 12863-06 1 GRIP, CORD, 3/8 ID, 1/2 NPT
32 12865-01 1 NUT, CORD GRIP, SMALL, 1/2 NPT
OVERALL 90122-01G -- Page 13
AST PUMP SYSTEM, PCH GMP050-1616 (SOC)

# OF ITEMS
BILL OF MATERIALS
18
PRODUCT # PRODUCT NAME
55916-16B DRIVE ASSEMBLY, MAINFRAME, GMP050 (SOC), 26191-03 PLATE
ITEM PART # QTY ITEM DESCRIPTION
1 26191-03 1 PLATE, MAINFRAME, PUMP M'TNG, 050 (SOC) LOW PROFILE, SLOTTED M'TNG HLS
2 14684 1 MOTOR, 1/2 HP, 90VDC, 1150 RPM, 56C W/ REMOVEABLE BASE
3 55477H 2 PUMP ASSEMBLY, GEROTOR, .594 CU IN / REV, LUBER, EXTENDED SHAFT
4 14516-1216 2 SPROCKET, No. 40 CHAIN, 3/4 BORE, 16 TEETH, TYPE “B
5 26277-18 1 SPACER/ HUB, IDLER SPROCKET, .638 O.D. X .39 I.D. X 1-1/8 LONG
6 14495 1 IDLER SPROCKET, #40 CHAIN, 17 TOOTH, .640 BORE, BALL BEARING
7 33674 3.25 CHAIN, No. 40, STEEL, 1/2 PITCH, ROLLER, FT
8 14333 1 CONNECTING LINK, #40 CHAIN, STEEL
9 12705 8 BOLT, 3/8-16 x 1, HEX, GR5
10 11306 12 BOLT, 5/16-18 x 1, HEX, GR5
11 11754 8 WASHER, 3/8 LOCK, INTERNAL TOOTH
12 11139 1 BOLT, 3/8-16 x 2, HEX, GR5
13 14488 1 NUT, T- SLOT, 3/8-16, 7/16 WIDE SLOT, 7/8 OAL
14 11305 12 WASHER, 5/16 LOCK, INTERNAL TOOTH
15 14516-1012 1 SPROCKET, No. 40 CHAIN, 5/8 BORE, 12 TEETH, TYPE “B
16 13865-7.5A 1 REDUCER, GEAR, INLINE, 56C/56C, 7.182:1
17 14227-06 1 WASHER, FENDER, HARDENED, 13/32 ID x 1-5/8 OD x 1/8 THICK, (3/8 NOM.)
18 11177 1 WASHER, 3/8 SAE FLAT, STEEL
DRIVE ASSEMBLY 55916-16B -- Page 14

# OF ITEMS
BILL OF MATERIALS
23
PRODUCT # PRODUCT NAME
55477H GEROTOR PUMP ASSEMBLY, 0.594 CU IN / REV, W/ PRY POINTS, EXT’ SHAFT
ITEM PART # QTY ITEM DESCRIPTION
1 12640 1 RING, RETAINING, 1-7/16”, INTERNAL
2 23514 1 RING, SEAL RETAINING, GEROTOR
3 23515 1 ADAPTOR, SEAL RETAINING, GEROTOR
4 11651 1 O-RING, 1-026, EP
5 12637-12 2 SEAL, FLOUROCARBON ( VITON ), 3/4” ID, 3/16” CROSS SECTION
6 26602A 1 OUTLET BLOCK, GEROTOR PUMP, 55477H
7 12498 1 O-RING, 1-035, EP
8 11596 REF ZERK, GREASE, 90 DEGREE, 1/4-28
9 11756 1 ZERK, GREASE, 45 DEGREE, 1/4"-28 UNF
10 11433 1 VALVE, BLEED, 1/8" M NPT
11 23666-03 1 KEY, 1” L x 3/16” SQUARE
12 13811 2 O-RING, 1-039 EP
13 13594 2 BUSHING, TEFLON LINED STEEL, 3/4” ID, 7/8” OD x 3/4” L
14 14097-07 1 KEY, 1/8” SQUARE, 7/16” LONG
15 25157-01D 1 SHAFT, GEROTOR PUMP, .59 CU. IN. / REV, SINGLE ELEMENT, EXTENDED
16 14942 1 INNER/ OUTER ELEMENT SET, GEROTOR PUMP, PUMP REBUILD PARTS
17 26603 1 FLANGE, ECCENTRIC RING, GEROTOR PUMP, 55477E
18 26601A 1 INLET BLOCK, GEROTOR PUMP, 55477H
19 12914 2 RING, RETAINING, 3/4, EXTERNAL, LOW-CLEARANCE C-STYLE, STAINLESS
20 13595 2 PIN, DOWEL, STEEL, 1/4 DIAMETER x 1-1/8 L
21 11923 4 BOLT, 1/4-20 x 1-3/4, SHCS
11170 1 ELBOW, 1/8 NPT, STREET, 90 DEGREE
13212 1 ZERK, GREASE, BUNA SEAL, STRAIGHT, 1/8 NPT
PUMP ASSEMBLY 55477H -- Page 15

# OF ITEMS
BILL OF MATERIALS
9
PRODUCT # PRODUCT NAME
56552B TANK ASSEMBLY, DISPOSABLE, 6-1/2 GALLON, HDPE, 1 NPT OUTLET
ITEM PART # QTY ITEM DESCRIPTION
1 14742-24 4 BOLT, 1/4-20 x 1-1/2 BHCS, 18-8 STAINLESS
2 14665-16 1 FLANGE, PIPE, 1 NPT, BLACK IRON
3 26617-10 1 DISC, OUTSIDE, TANK SUPPORT, 10-3/4 OD, 10 GA. STEEL
4 26621 1 CONTAINER, 6-1/2 GALLON, HDPE, W/ MTG HOLES AND OUTLET PORT
5 26618-12A 1 DISC, TANK SUPPORT, 10 OD, 12 GA. STEEL
6 11047 4 NUT, 1/4"-20, HEX, NYLOCK
7 11465-16 1 FITTING, BULKHEAD, 1/4 NPT x 1 LONG, NICKEL PLATED
8 11303 1 TUBE FITTING, 1/4 M NPT x 3/8 TUBE, 90 DEGREE
9 11055 8 WASHER, 1/4 SAE FLAT, STEEL
TANK ASSEMBLY 56552B -- Page 16

# OF ITEMS 5
BILL OF MATERIALS
PRODUCT # PRODUCT NAME
56538 ASSEMBLY, WHEEL / HARDWARE, GMP-SP
ITEM PART # QTY ITEM DESCRIPTION
1 11217 2 WHEEL, 10 x 2.75, 5/8 BORE
2 11198 2 COLLAR, SHAFT, 5/8 ID, SET SCREW LOCKING
3 13228A 2 CASTER, 5 DIAMETER x 6-1/4 OAH, SWIVEL, GRAY, 1/2 THREADED STEM
4 11009 2 WASHER, 1/2 SAE FLAT, STEEL
5 11050 2 NUT, 1/2" - 13, HEX, NYLOCK
# OF ITEMS 3
PRODUCT # PRODUCT NAME
56539 ASSEMBLY, HANDLE, PIVOTING, GMP-SP
ITEM PART # QTY ITEM DESCRIPTION
1 26596 1 WELDMENT, HANDLE, LOWER, PIVOTING, GMP-SP
2 56548 1 ASSEMBLY, HANDLE, CLAMP ON, POT MTG, GMP (SOC)
3 14617 2 BOLT, U, ROUND, 1-1/2 ID
WHEEL ASSEMBLY - HANDLE ASSEMBLY 56538 & 56539 -- Page 17

# OF ITEMS
BILL OF MATERIALS 9
PRODUCT # PRODUCT NAME
56541-01 ASSEMBLY, DISPENSE HANDLE, 55696-02C MANIFOLD, GMP-SP-050
ITEM PART # QTY ITEM DESCRIPTION
1 55696-02C 1 MANIFOLD ASS’Y, 7/8-9, INTERNAL BALL, .150 PORTS, No. 6 W/ BALL VALVE
2 11972 2 RIVNUT, 1/4-20, STEEL
3 11563 1 PLUG, PLASTIC, SQUARE, 1, 16 GA TUBE
4 12718 1 ACTUATOR, PUSH BUTTON, LEVER ACTING
5 12905A 1 SWITCH, PUSHBUTTON, SPST, MOMENTARY, N / O, #6-32
6 14428 1 PLUG, PLASTIC, RECTANGULAR, RIBBED, 1-1/2 x 1, 14-16 GA TUBE
7 23761A 1 COVER, ELECTRICAL SWITCH, GMP-025
8 26600 1 WELDMENT, HANDLE / GUN ASSEMBLY, GMP-SP
9 13025 1 GRIP, CORD, SNAP-IN, NYLON, 3/8 ID, 3/4 OD
DISPENSE ASSEMBLY 56541-01 -- Page 18
