Astivita BODI60SIS User manual

BODI60SIS
12 place settings
half-load function

Compartment A:
With each wash cycle.
Compartment B:
For programmes with pre-wash only.
(Follow the user instructions!)
Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
Running the dishwasher
Fill the detergent dispenser
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Switchon theappliance
Fordetailed operatingmethod read thecorresponding content onthe instruction manual.
Switch off the appliance
Turn off the water tap,
unload the baskets Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing theprogramme
Add forgotten dishes in the
dishwasher.
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn offthe applianceusingthe On/Off Button.
If the appliance is switched
off during a wash cycle.
Openthe door carefully.
Hot steam may escape
when the door is opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the On/Off button to stop washing , Then press this button to reset .
3. Turn the selector to select a new programme.
4. Restart the dishwasher.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the door
completely.
4.Add forgottendishes.
5.Close the door
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
Turn on the water tap and press the Start/Pause Button. The machine will start working
after about 10 seconds.
Close the door, turn the Washing Program Selector to select a desired programme.
( See the section entitled Operatin instruction )“”
Press the On/Off button to switch on the appliance, Open the door.
ABC

To review the section on troubleshooting Tips
will help you tosolve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbeforeusingthe
dishwasher,it will help you to use and maintainthe
dishwasher properly.
Pass it on toany subsequent owner ofthe appliance.
Thismanual contains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Keep it as a refer in the later days.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
This appliance isintended tobe used in household
andsimilarapplications suchas:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients inhotels,motels and otherresidential
type environments;
-bed andbreakfast type environments.
Dishwasher Features.................................... ...2
Attention beforeorafter loading the Dishwasher
Baskets..........................................................6
Filtering System.............................................10
Caring forthe Dishwasher..................... .........11.
A Fill the RinseAid Dispenser............. .. ..3、..... ...
B Function of Detergent .........................4、........
...........7 The Method of Loading Normal Dishware
Wash CycleTable...........................................8
Turning on theAppliance................................8
Change the Programme.............. ................9....
AttheEnd of the Wash Cycle...........................9
Before calling for service........................... .....19.
Errorcodes.................................... ..............20.
Technical information.............................. .....21..
Control Panel...................................................2
.................................. 12Installation preparation ...13Aesthetic panel's dimensions and installation
..............15Tension adjustment of the door spring
..............................15Connection of drain hoses ......................... 16Dishwasherinstallation steps
AboutElectricity Connecting...........................17
Cold Water Connection.................................. 18
Start of dishwasher................................ ......18..

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedin the basket
with their points down orplaced in a
horizontalposition.
)
When using your dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupplycordisdamaged, it must bereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 12.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Back View
Front view
Dispenser
CupShelf
Sprayarms
Filterassembly
Inletpipeconnector
Drain pipe
Lower Basket
Inner pipe
Upper Basket
1
beforeusingit forthe first time.
To get the best performance from yourdishwasher, read all operating instructions
4
5
6
7
8
9
3
2
Adjuster
10
8
1
2
3
4
5
6
7
9
10
1. On/Off Button: To turn on/off the power supply.
4. Program indicators: to show which program
you have chosen;
2. Delay Button: ToPress the buttonto delay the
washingtime.
6.Delayindicators:to showthe delay time
(3h/6h/9h)
8. Start /Pause Button: To start the selected
washingprogramorpause the washing program
when the machine isworking.
3. Half load function Button: To select Half load function.
(You can use thisfunctionwhenyouhave only about
or less than 6 place setting dishware, and you will see
lesswater andenergy consumption. This function can
only be used with programs Intensive, Heavy, Normal,
Glassand1 Hour).When Half loadfunctionis selected,
all sprayers would be running and you could load all
baskets.
5.Halfload indicator: Toshow Half loadfunction is
selected or not.
9. Washing Program Selector :To turn the selector
to select appropriate program.
7. Rinse aid warning light:To show
when the dispenser need to be refilled
Water faucet light:toshow when the water
faucet is forgot toturn on.

Before using your dishwasher for the first time:
A. Filltherinseaiddispenser
B. Fill in detergent
Therinse aid isreleasedduringthe final rinseto preventwater from forming dropletson your dishes, which can
leave spots andstreaks. It also improvesdryingby allowing water to rolloff thedishes. Yourdishwasheris
designed to useliquidrinseaids.The rinseaid dispenseris locatedinsidethe door next to thedetergent dispenser.
To fill the dispenser,open the capand pour the rinse aidinto thedispenser untilthe levelindicator turns completely
black.Thevolume ofthe rinseaid containerisabout 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse,ensuring thoroughrinsing, and spot and streakfree drying.
Attention!
Onlyuse branded rinse aid for dishwasher.Never fill the rinseaid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid levelindicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, thewhole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases.You should never let the rinse aid get below 1/ 4 full.
When to Refill the RinseAid Dispenser
RINSEAID DISPENSER
To open the dispenser,turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful notto overfill.
Replacethe cap by inserting it aligned with "open" arrow and turning ittothe closed (right) arrow.
Be careful not to overfillthe dispenser, because this could cause over sudsing. Wipe away anyspills
witha damp cloth. Don't forget toreplace the cap beforeyou close dishwasherdoor.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth toavoid excess foaming
during the nextwash.
1
2
3

Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aiddispensedbyremovingthedispenserlidandrotatingthedialto"5".Ifthe
dishes are still not drying properly or show spots,adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or abluish film on glassware or
knifeblades.
during thenextwash. Don't forget to replacethe cap before you close dishwasher door.
Clean up any rinse aid spilled while during fillingwith an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt andtransport it out of the dishwasher.
Most of the commercial quality detergents are suitable forthispurpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Based on their chemicalcomposition, detergentscan be split in two basic types:
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannotdissolve anddevelop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensurethe completeremoval of detergent residuals.
The dispenser mustbe refilled before the start of each wash cycle followingthe instructions
provided in the wash cycle table .Your dishwasheruses less detergent andrinse aid than
Conventional dishwasher. Generally,onlyone tablespoon of detergent is needed for
a normal wash load.Moreheavilysoiled items need more detergent.Alwaysadd the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkalinedetergents with caustic components
low alkalineconcentrated detergents with natural enzymes
Normally new pulveriseddetergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend tofill salt in the salt container even when
the hardness ofwater isonly6 dH. Ifdetergents without phosphate are used inthe case ofhard water
often white spots appearon dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine doonlybleach a little. Strong and coloured spots will not
be removedcompletely.Inthis case please choose aprogramwitha higher temperature.
°

AmountofDetergenttoUse
ProperUseofDetergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdereddetergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care tokeepitout of reach ofchildren.
Always add the detergentjust before starting eachwash cycle.
Only use branded detergent and rinseaid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Fill the detergent dispenser with detergent.
Themarkingindicatesthedosinglevels ,as
illustratedontheright:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturersdosing andstorage
Recommendations as stated on the detergent packaging.
Close the lid andpress until itlocks inplace.
Ifthedishesare heavily soiled, placeanadditional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
The information about the amount of detergent for the singleprogramme please refer to the Wash Cycle
Table on the page 8.
Pleaseaware, that according to the level soiling andthe specific hardness of water differences are possible.
Pleaseobserve the manufacturer'srecommendations on the detergent packaging.
AB

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsynthetic fibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade ifmachine
washed frequently
Are not suitable Are oflimited suitability
Dishes and itemsof cutlery mustnot lie insideoneanother, orcover eachother.
To avoiddamage to glasses,theymust not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket isdesigned to holdmoredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladedknives stored in an upright position are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upper basket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items suchas cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Consider buyingutensilswhich are identifiedasdishwasher-proof.
Usea mild detergentthatis describedas 'kind todishes'. If necessary,seek further
information from thedetergent manufacturers.
For particular items,select aprogramwithas lowa temperatureaspossible.
To prevent damage, do not take glass andcutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow theseloading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely duringwashing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell asplates,small bowls
andshallowpans (as long astheyarenot too dirty).
Positionthe dishes andcookwareso thatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficulttocleanitemsaretobe placedintothelower
basket: such aspots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
Forbetterstackingofpotsandpans,
the spikes can be folded down as
show in thepicture right.
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by lift up the basket for the upper position, and up
press the handle to lower the upper basket, see the picture
below:

Means: need to fill rinse into the Rinse-Aid Dispenser.
()
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 12 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Open the door slightly 50mm to assist indrying of the dishes after every wash
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It isrecommended toload the lower basket first, then the upperone(see the sectionentitled
Loading the Dishwasher ).
Pour inthe detergent (see the sectionentitled DetergentandRinseAid ).
Insert the plug into the socket. The power supplyis 220-240 VAC /50 HZ, thespecification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the ON/OFF Button, and the ON/OFF light will turn on.
If a programis selected, the response light will light. Press the Start/Pause button, the dishwasher
beginsto start.
“”
“”
Turn theprogram Selector clockwise, the wash program will bechanged asfollowsdirection:
Intensive->Heavy->Normal->Glass->1Hour ;->Rapid
1
2
3
4
5
Normal
Intensive
Heavy
(OrAll )in1
5/25g
(OrAll )in1
5/25g
(OrAll )in1
5/25g
Fornormally soiled loads,
suchas , plates,glasses
and lightly soiledpans.
standarddailycycle.
pots
For theheaviest soiled
loads, suchas pots, pans,
casseroledishes and dishes
thathavebeensittingwith
dried foodon them for a
while.
Ashorter wash for lightly
soiled loads that do not
need drying.
Rapid
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (60 )
Drying
℃
℃
℃
Wash (55 )
Rinse
Rinse(50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse(45 )
℃
℃
165
140
135
40
1.15
0.88
1.4
0.5
18
14.5
10.5
10.5
1Hour
Pre-wash(50 )
wash(60 )
Rinse (55 )
Drying
℃
℃
℃
60 10
0.9
5/25g
20g
Daily wash in only 1 hour.
For lightly andnormally
soiled plates and pans
for everyday.
(*AS/NZS 2007.1)
For heavily soiled loads,
such as pots,plates, glasses
and lightly soiled pans.
Glass
For lightly soiled loads,
such as glasses,
crystal and fine china.
20g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
115
0.8 14.5

If you open the door , the machine will pause. The program lightwill
stop blinking and the buzzerwill soung every minute unlessyou close the door. After
you close the door ,the machine will keepon working after 10 seconds.
during awash cycle
Premise:
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the On/Off button to stop washing , press this button to reset ,Then you can change the programto
the desired cycle setting (see the section entitled " Starting a wash cycle. . ." ).
Then
1
2
When you press the Start/Pause button to pause during washing, the will
stop blinking and the dishwasher will beeping every minute unless you press the
Start/Pause buttonto start.
runningindicator
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut offthe water supply and open the door of the dishwasher.
Wait for a few minutes before unloading thedishwasher toavoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher bypressing the ON/OFF button.
2.Turnoffthewatertap!
Open thedoor carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upperone. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Wash the arms in soapy and warm water and use a soft brush to
cleanthejets.Replace them afterrinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
6
Press the Start/Pause Button to stop the washing.
Press the , the dishwasher will run
after 10 seconds.
Start/Pause Button

The filter preventslarger remnants of food or other objects from getting inside the pump.
Theresidues may block thefilter, inthis case they mustbe removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray arm and washed down todrain.
Larger items, such as pieces of bones or glass, that could block
the drainaretrappedin the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filterandliftout.
Thisfilter holds soilandfood residuesin the sumpareaand
preventsit from beingredepositon the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove thelarger food particlestrapped in the filter aftereach wash cycle by rinsing the semicircular filterand
cup under running water. To remove thefilter device, pull the cup handle in the upwarddirection.
removes food particles from the wash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performancelevel ofthe appliance
and damage dishesand utensils.
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1
2

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neveruse sharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cutoff the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter. Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof waterinto the door lock and electrical components, do not
use a spray cleaner of any kind.
Never usea spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicalswillclogthe sprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entire filter assembly shouldbe cleanedonce a week.
To removethelowerspray arm, pull outthe spray armupward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itis recommendthatyourun awashcycle with the
dishwasher empty and thenremove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition.Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot usesolventsor abrasivecleaningproducts.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwaterana little
vinegar, ora cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odours arenot trapped inside.
After EveryWash
When not inUse for aLongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electricalpower before
installingdishwasher.
Failure to do so can result in death or
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
powercord.
One side of the cabinetsinkshould be chosen tofacilitatethe connection of drain hoses of
thedishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●

Please carefully read the installation instruction.
●Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be somespace
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【Figure2】
Cabinet dimensions
【Figure1】
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1

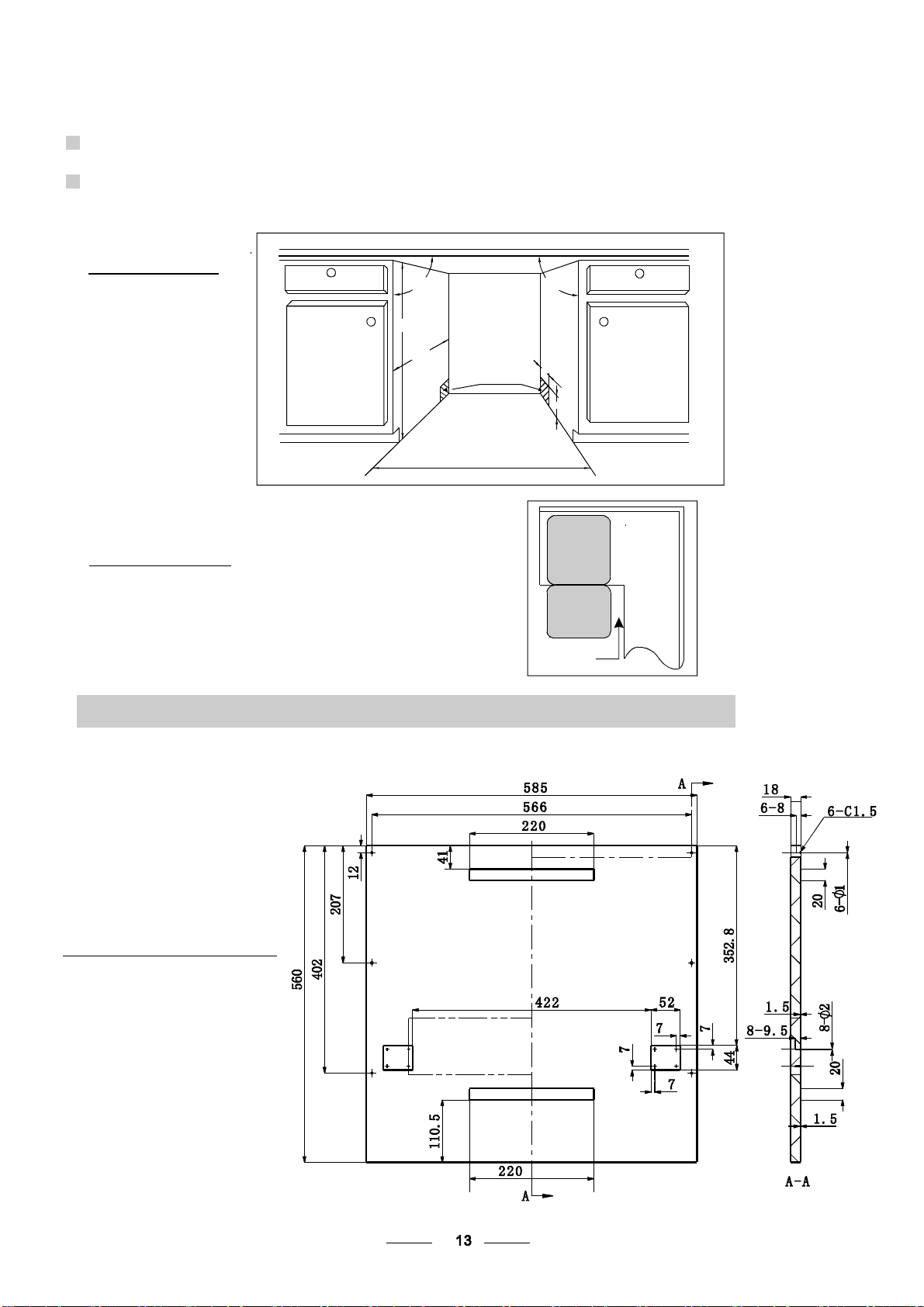

The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【Figure3】
●Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)

Installationof aesthetic panel
【】Figure4a
2magical paster Aand magical paster B be disjoinedon,magical paster A on theaesthetic wooden paneland
felted magical paster B of theouterdoor of dishwasher(see figure 4a).After positioning ofthe panel , fixthepanel
ontothe outer door by screws and bolts(See figure 4b)
Installationof aesthetic
woodenpanel
【】Figure4b
.take away the four
short screws
.pinupthefourlong
screws
1
2

Tension adjustment
ofthe door spring
【】Figure5
Tensionadjustment of the door spring
●
Connection of drain hoses
●
The door springs areset at the factoryto the propertension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strainor relax the steel cable
(seefigure5).
Door spring tension is correct when
the door remains horizontal in the
fullyopenedposition yetrises
toaclosewiththeslightliftofa
finger.
，

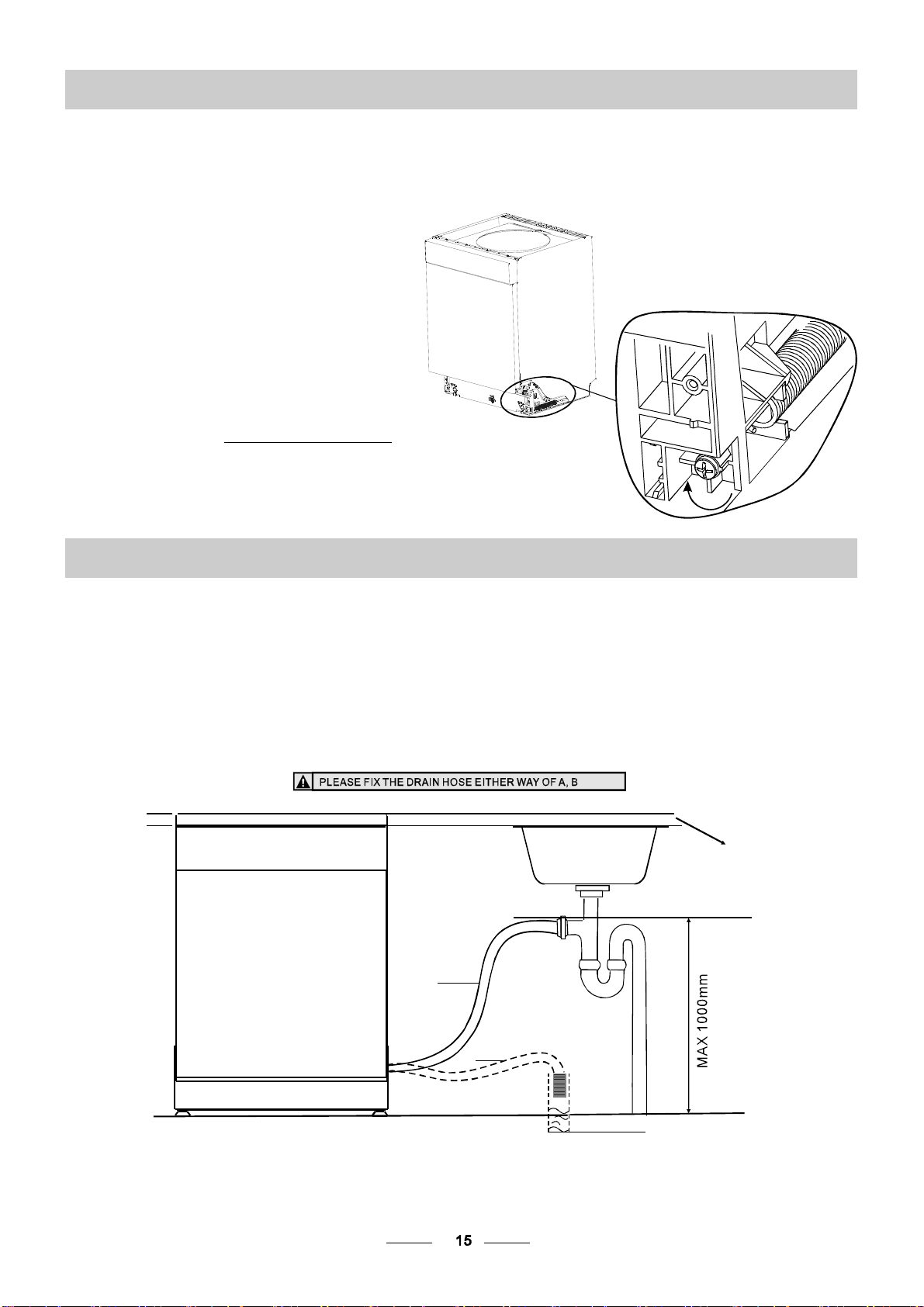

Insert the drainhose into adrainpipe with aminimum diameter of40mm,or letit run into the sink, making sure to
avoid bendingor crimpingit.The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B

【Figure 7】
Dishwasher installation steps
●
1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2).
3 Connect the inlet hose to the cold water supply .
4 Connect the drain hose. Refer to diagram.(Figure 6)
5Connectthepowercord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning
the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust
the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface:Put the right(left) installation hook into the slot of the right(left) side plane and
secure it to the work surface with two woodscrews (Illustration 6).
B. Marble or granite work top:Bend the right(left) installation hook into right-angle,and put it into the
slot of the right(left) side plane and secure it to the work surface with two woodscrews s (Illustration 7).

Dishwasher must be level for proper dish rack operation and wash performance.
Place a spirit level on door and rack trackinside the tub as shown to check thatthe
dishwasheris level.
level the dishwasher by adjusting the three levelling legs individually.
When levelthe dishwasher,please pay attentionnot to let the dishwasher tip over.
1
2
3
Illustration of feet adjustment
【】Figure 8
NOTE:
The maximum adjustment
height ofthe feet is50 mm.
This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing a
pathof least resistance forthe electriccurrent.
This appliance is equipped with a cord having an
equipment-earthing conductor and an earthing
plug.The plug must be plugged into an appropriate
outlet that is installed and earthedin accordance
with all local standards and requirements.
Improper connection of the equipment-
grounding conductor can result in therisk
of an electric shock.Check with a qualified
electrician or servicerepresentative ifyou
are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with
theappliance;Ifitisnotfit fortheoutlet.
Haveaproperoutlet installedbyaqualified
electrician.
Ensurethevoltageand frequencyof thepower being correspondsto
thoseon the rating plate. Only insert the plug into an electricalsocket which isearthed
properly. If the electrical socket to which the appliance must be connectedis not
appropriate for the plug , replace the socket, rather than using aadaptors orthe like as
they couldcause overheating and burns.
Please look at the rating label to knowthe ratingvoltage and connect the dishwasher to the appropriate power supply.
Use therequired fuse 10 amp, time delay fuse or circuit breakerrecommended and provide separate circuit serving
only this appliance.
For personal safety:
DO NOT USEAN EXTENSION CORD ORANADAPTER PLUG WITHTHISAPPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVETHE EARTHING
CONNECTION FROM THE POWER CORD.
Check level side to side
Spirit level
Check level Front to Back
