INTRODUCTION
Thank you for choosing the Astroflex Remote Starter/Security System.
Your System is the result of intensive research by a company specializing in the design of high-quality electronic
automotive products.
It is designed to provide many years of reliable, trouble-free service.
Its advanced microchip circuitry incorporates billions of possible access codes, which makes it virtually impossible
to interfere with another remote control vehicle.
Your Remote Starter offers the ultimate in safety, is simple to use and has many features to make your life easier.
Please read the following instructions carefully so that you understand how your Remote Starter works and can
take advantage of all the features.
Some of the functions described below may not be applicable to your vehicle.
Table of contents
SAFETY PRECAUTIONS _____________________________________________________________________2
BEFORE USING YOUR REMOTE STARTER _____________________________________________________2
THE REMOTE CONTROL ____________________________________________________________________3
USING YOUR REMOTE CONTROL -------------------------------------------------------------------------------------------------------------------3
CONFIRMATION --------------------------------------------------------------------------------------------------------------------------------------- 3
BATTERY REPLACEMENT----------------------------------------------------------------------------------------------------------------------------4
COMMANDS FOR 3006A_____________________________________________________________________5
START COMMANDS----------------------------------------------------------------------------------------------------------------------------------- 6
SECURITY SYSTEM -----------------------------------------------------------------------------------------------------------------------------------9
LOCK/UNLOCK COMMANDS------------------------------------------------------------------------------------------------------------------------14
OTHER COMMANDS ---------------------------------------------------------------------------------------------------------------------------------15
SAFETY CHECKS _________________________________________________________________________19
HOOD SWITCH ---------------------------------------------------------------------------------------------------------------------------------------19
DETECTING “P” AND “N” GEARSHIFT POSITIONS ---------------------------------------------------------------------------------------------19
REPLACING OR BOOSTING VEHICLE BATTERY _______________________________________________19
LIMITED LIFETIME WARRANTY______________________________________________________________20

<>34;"%0
2
SAFETY PRECAUTIONS
Before using this product, carefully read the following safety precautions.
Immediately report any malfunction to the Astroflex dealer that performed installation.
Under no circumstance can this product or its use be modified.
Always turn off main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.
Always turn off main switch when not using your Remote Starter for extended periods of time.
Keep remote controls away from children.
Have your engine tuned regularly to ensure optimum performance of your Remote Starter.
Make sure your windshield wipers are turned off before leaving vehicle.
Regularly check safety features that stop engine (see “SAFETY CHECKS” on page 19.)
Make sure you comply with all local regulations which may prohibit leaving your engine running when
vehicle is unattended in a public place.
Always advise service personnel that your vehicle is equipped with a Remote Starter.
We strongly recommend that you have your Remote Starter checked annually. Contact the dealer in your
area.
BEFORE USING YOUR REMOTE STARTER
Before leaving your vehicle, set the various controls in order to use your Remote Starter later on.
Set heating/air-conditioning controls to desired position. (When the remote starter starts your engine, it will
also turn on your climate control system.)
Turn your windshield wipers to the “OFF” position.
Make sure gearshift is in “P”.

<>34;"%0
3
?aTP\Qd[T CaP]b\XbbX^]?aTbbX]V
2^]UXa\PcX^]
caP]b\XccTS
^]RWP]]T[
2^]UXa\PcX^]
caP]b\XccTS
^]RWP]]T[!
2^]UXa\PcX^]
$bTR bTR bTR $bTR
THE REMOTE CONTROL
Your remote control has been designed to fit the natural contours of your hands so that it is easier to use.
It is powered by long-life lithium batteries.
It can control two vehicles separately.
Up to three additional remote controls can be assigned to your vehicle.
See your dealer for replacement batteries or additional remote controls.
NOTE: The range of your remote control can be affected by a weak battery, interference from nearby metal
structures, hydro poles, or crowded parking lots.
USING YOUR REMOTE CONTROL
Your remote control can transmit on two different
channels, allowing control of two separate vehicles.
Only the “Panic” command is transmitted on both
channels simultaneously.
CHANNEL 1 :
To transmit a command
on channel 1, press desired
button for two seconds.
CHANNEL 2 :
To transmit a command on channel 2, press desired button, then as
soon as a tone is heard or that the LED flashes once, release the button
for a moment then press it again and hold down for two seconds.
A command will not be executed if you do not press button long enough.
Only one command will be transmitted even if a button is pressed for more than two seconds except for the
“Panic” button, which repeats its command for as long as the button is held down.
CONFIRMATION
Each command being
transmitted is confirmed
by both an audible
and a visual signal (LED
indicator), indicating the
successive steps in
the transmission of the
command.
The successive steps
in the transmission
and confirmation of a
command are described in
the opposite table.
?P]XR
BcPac
;^RZ
Cad]Z
;43
D][^RZ
Bc^_

<>34;"%0
4
Legend :
Pressing
This confirmation indicates whether a button was pressed
by mistake and also confirms button was pressed correctly.
To transmit on channel 2, you must press button again
within half a second for command to be transmitted properly.
Preamble This confirmation indicates how long a button must be held down
for a command to be transmitted properly (one second duration).
This confirmation is silent when transmitting on channel 1.
Transmission This confirmation indicates when a command is being
sent to the remote starter (one second duration).
Confirmation This last confirmation indicates that transmission
of command was successfully executed.
Another confirmation is sent by
your remote when you activate
“Panic” mode.
This confirmation is repeated
for as long as button is held
down.
BATTERY REPLACEMENT
We strongly recommend that you keep a replacement set in your
glove compartment.
Your remote is powered by three 3-volt lithium CR-2016 batteries or
equivalent.
To replace the batteries, remove screw on back of remote case,
remove old batteries and replace with new ones.
Make sure that batteries are properly oriented; see illustration
opposite.
1TT_baXbX]VUa^\ [^f c^WXVW
4XVWcUPbcWXVW_XRWTSQTT_bSdaX]VcaP]b\ XbbX^]

<>34;"%0
5
COMMANDS FOR 3006A
COMMANDS BUTTONS CONFIRMATION
(PICTOGRAM)H
ORN LIGHTS SIREN
PANIC 30 / 60SEC. 30 / 60 SEC. 30 / 60 SEC.
START / CONTINUOUS MODE 1n1
STOP 1
LOCK / ARM 1 1/3 os
UNLOCK / DISARM 2 2/4ot
TRUNK 3
ACTIVATE / DEACTIVATE SENTINEL MODE 4/2/3 p
ACTIVATE / DEACTIVATE UTILITY # 1 1
ACTIVATE / DEACTIVATE UTILITY # 2 1
RUNTIME ADJUSTMENT
1 - 4
PRESET TEMPERATURE ADJUSTMENT 1- 4
CAR FINDER 73
DISPLAY REMOTE START FAIL CODES
1 – 15
This confirmation is only sent when the Start command is repeated while the engine is kept running by
the remote starter.
Chirp confirmation; programmable during installation (Enable/Disable).
4 = Activating / 2 = Deactivating / 3 = System not ready
This command terminates runtime, "Panic" mode and alarm condition.
Temporary "Valet" mode is enabled if the command is sent twice in quick succession.
s1 = Arming when there is no violation / 3 = Arming when there is at least one violation.
t2 = Disarming when there is no violation / 4 = Disarming when there is at least one violation.
CONFIRMATION
In all cases, your Remote Starter will confirm that command has been received properly.
This will be done by either sounding horn or flashing parking lights.
In this manual, confirmation signals are written in an abbreviated form; for example:
(horn: 1, lights: 2) Means that horn will sound once and parking lights will flash twice.
Parking light confirmations are mandatory.
Horn and siren confirmations are optional (programmable) and require an extra connection and additional
equipment during installation.
Confirmations are explained in more detail under each command.

<>34;"%0
6
START COMMANDS
STARTING THE ENGINE
To start the engine, press button (horn: 0, lights: 1).
The system automaticallyadjusts ignition duration for your type of vehicle; parking lights flash once (duration: four
seconds) then stay on all the time engine is running.
If more than one command is emitted, each successive start command resets runtime to the beginning, parking
lights flash once to confirm command has been received and horn sounds once to let you know engine is already
running.
Repeating this command will produce an audible confirmation that engine has started, which can be useful if
vehicle is not in sight.
IF ENGINE FAILS TO START
If your system cannot start your engine at first attempt, it will wait for a few seconds and then try again (it could try
again twice depending on reason for failure to start).
After three attempts, it will shut down automatically and wait for new command (see “Start fail Codes“ on page 18).
UPON ENTERING YOUR VEHICLE...
Do not apply brakes; this will stop engine immediately.
Insert ignition key and turn it to “ON” position.
DO NOT TURN IGNITION KEY TO “START” POSITION.
Within 20 seconds, execute Antitheft disarm sequence (if applicable).
See “Antitheft” on page 15.
Drive as usual.
ENGINE RUNTIME
Your engine will stop automatically after a preset time.
Parking lights will stay on as long as engine is running.
Engine runtime is programmable.
WHAT STOPS THE ENGINE
For your safety, engine will not start or will stop if:
Remote control sends a stop message.
Hood is open.
Brakes are applied.
Gearshift is not in “P” or “N”.
Engine is over-revving.
Main switch is OFF.
Security system is in an alarm condition.

<>34;"%0
7
TRIGGER INPUT
Your remote starter is equipped with a negative trigger (pulse)
input.
This input (enabled during installation) can be connected to
another remote control device or to a timer output.
If this input is connected, consult this device's manual or ask your
technician which command controls the start/stop function.
The start/stop commands received on this input are ignored while
the engine is running on a remote start.
All Start/Stop functions controlled by this input behave in the same
way as functions controlled by remote.
CONTINUOUS MODE
The “Continuous Mode“ function allows to remove the key from the ignition while leaving the engine running.
This convenient feature allows you to leave the vehicle for short periods of time while the climate controls remain
on.
To access the “Continuous Mode“, carry out the “Start“ command while the engine is idling.
See “STARTING THE ENGINE“ on page 6.
Parking lights, engine and preset accessories will remain on for the duration of the programmed runtime
(see “ Setting the runtime ” on page 8).
Remove key, exit vehicle and lock doors. All safety devices will remain active.
IF YOU RETURN TO YOUR VEHICLE BEFORE RUNTIME HAS ELAPSED, JUST TURN THE KEY TO
THE “ON” POSITION AND DEPRESS BRAKE PEDAL.

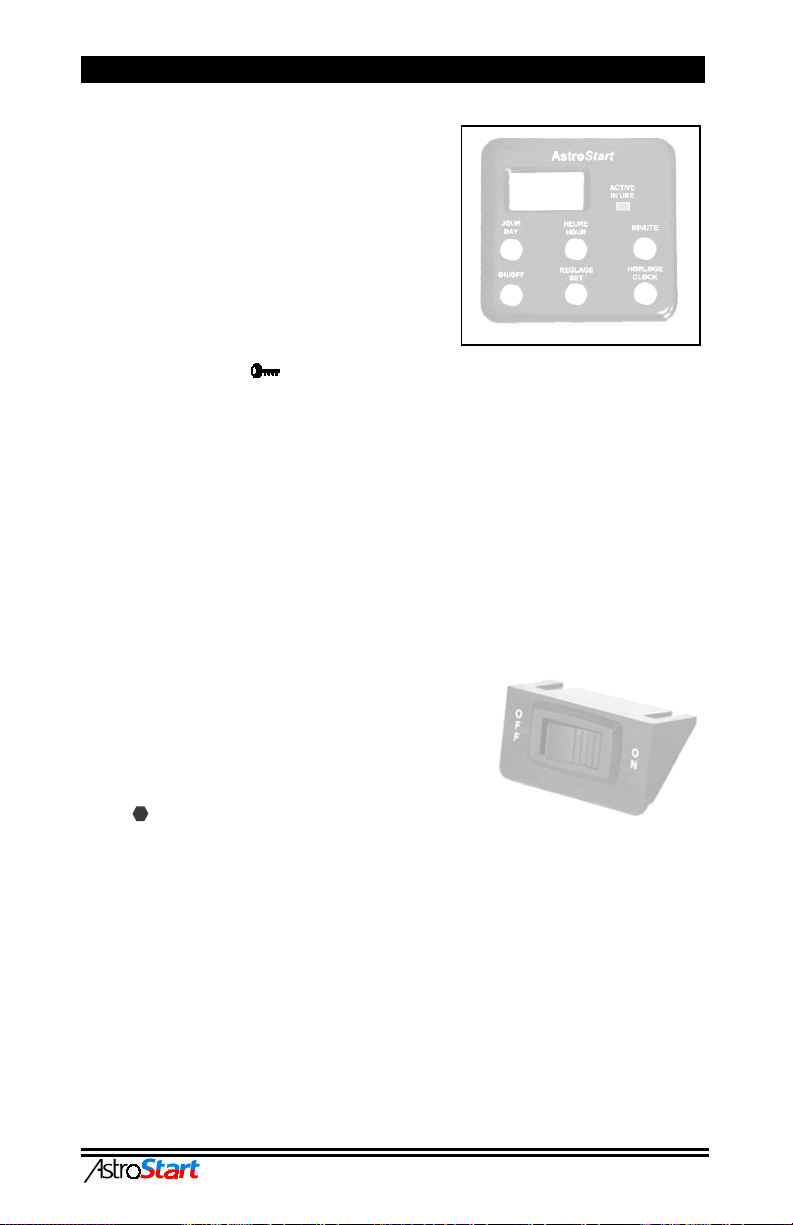

MAIN SWITCH
Main switch is usually mounted under dashboard.
It is an ON/OFF toggle switch that is used to cancel start functions.
It does not disable other commands which remain active.
STOP
When engine is kept running by Remote Starter, you can stop it with this command (lights: 1, siren: 0).
This command is also used to cancel “Panic” mode and alarm condition.

<>34;"%0
8
LOW TEMPERATURE MODE
In Low Temperature(previously called Sentinel) mode, system starts your engine automatically when temperature
falls below a preset level.
Engine will run for programmed runtime, after which system will wait 2½ hours and then start engine again if
temperature is still below preset level.
To activate/deactivate Low Temperature mode, press and buttons simultaneously.
When mode is activated:
Parking lights will flash 4 times, then, if temperature is below preset level, engine will start.
If temperature is above preset level, system waits until it goes below preset level before starting.
If system cannot execute command (for example, hood is open), confirmation will be different (lights: 3)(see “Start
Fail Codes“ on page 18).
When mode is deactivated:
Parking lights will flash twice to confirm that mode is deactivated. Applying brakes also deactivates Low
Temperature mode.
START TEMPERATURE ADJUSTMENT
To change preset temperature at which you want your Remote Starter to start engine, press and buttons
simultaneously (lights: 1 - 4).
Parking lights will flash from 1 to 4 times to indicate selected start
temperature (see table opposite).
If you send command when ignition has been turned on (by Remote
Starter or key), preset start temperature does not change.
However, confirmation is still sent to indicate last selection.
SETTING THE RUNTIME
Press buttons and simultaneously (parking lights: 1 - 4).
Parking lights flash one to four times to indicate selected runtime (see
table opposite).
If you send this command while the ignition circuits are activated (by
remote or key), runtime does not change but confirmation is sent to
indicate last selection.
If Low Temperature mode is already activated when this command is
sent, the command sets or indicates Low Temperature mode runtime.
Note: Runtime is doubled for a diesel engine.
1A runtime of 2 minutes (4 min. for a diesel engine ) is not recommended for most vehicles unless you intend to
drive off immediately after the remote start. This selection is not available in Low Temperature mode.
Number of
Flashes Preset start temperature
1 -5° C (23° F)
2 -15° C (5° F)
3 -20° C (-7° F)
4 -30° C (-22° F)
Number of
flashes Runtime
1 2 minutes 1
2 4 minutes
3 8 minutes
4 18 minutes
