AT&T MERLIN PFC Telephone Instruction Manual

AT&T
MERLIN PFC™ Telephone
Phone•Fax•Copier
Installation and Maintenance

© 1992 AT&T Issue 1
All Rights Reserved February, 1992
Printed in USA
NOTICE
The information in this document is subject to change without notice. AT&T assumes no
responsibility for any errors that may appear in this document.
TRADEMARK NOTICES
MERLIN is a registered trademark of AT&T.
MERLIN LEGEND is a trademark of AT&T.
MERLIN PFC is a trademark of AT&T.
SAFETY INFORMATION
Before installing this product, please read and understand the safety instructions. This booklet
also contains instructions related to safety labels on the product. Such instructions are
identified by a triangle symbol, as follows:
The exclamation point within an equilateral triangle is intended to alert you to the
presence of important operating and maintenance instructions in the literature
accompanying the product. Always follow these basic safety precautions when using
your telephone equipment. These precautions reduce the risk of electric shock to
you and damage to the equipment.
WARNING: indicates the presence of a hazard that can cause death or severe personal
injury if the hazard is not avoided.
CAUTION: indicates the presence of a hazard that will or can cause minor personal
injury or property damage if the hazard is not avoided.

Safety Instructions for Installation Personnel
WARNING: This product should be installed by a qualified technician and must be
properly grounded. Failure to do so can result in a risk of electrical shock, which
may cause serious personal injury. Before product installation, verify that you are
installing the equipment in a properly grounded 3-prong AC receptacle. If not, stop
the installation and contact a qualified electrician.
CAUTION: The telephone wiring between the communications system controller or
control unit and the MERLIN PFC telephone must be installed in the same building.
●
Never install telephone wiring during a lightning storm.
●
Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
●Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
●
Use caution when installing or modifying telephone lines.
Important Safety Instructions
●
Read and understand all instructions.
●
Follow all warnings and instructions marked on the product.
●
This product can be hazardous if immersed in water.
●Do not use liquid cleaners or aerosol cleaners. Unplug this product from the wall outlet
before cleaning. Use a damp cloth for cleaning.
●
Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub, in a wet basement or near a swimming pool.
●Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
●
Never place this product near or over a radiator or heat register.
●Do not block slots and openings in the cabinet, back, or bottom provided for ventilation
and to protect it from overheating. This product should not be placed in a built-in
enclosure unless proper ventilation is provided.
●Do not block the openings by placing the product on a bed, sofa, rug, or other similar
surface.
●This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home or office,
consult your local power company.

●
●
●
●
●
●
●
●
●
This product is equipped with a three-wire grounding-type plug with a third (grounding)
pin. This plug will only fit into a standard ground-type power outlet. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do
not cut or remove the grounding prong or use 2-wire extension cords or adapters to defeat
this safety feature of the product.
Do not allow anything to rest on the power cord. Do not locate this product where the
cord will be abused by persons walking on it.
Do not overload wall outlets and extension cords as this can result in the risk of fire or
electric shock.
Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock.
Never spill liquids of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product. There are no user
serviceable parts inside. Incorrect reassembly can cause electric shock when the unit is
subsequently used.
Unplug this product from the wall, remove the cords from the modular jacks in the unit,
and refer servicing to qualified personnel under the following conditions:
—
—
—
—
—
—
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions because
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance.
Avoid using the product during an electrical storm. There may be a remote risk of electric
shock from lightning.
If you suspect a gas leak, report it immediately, but use a telephone away from the area in
question. The telephone’s electrical contacts could generate a tiny spark. While unlikely,
it is possible that this spark could ignite a heavy concentration of gas. This product is not
approved for use in areas labeled by the Occupational Safety and Health Administration
(OSHA) as "explosive environments." Only "Explosive Atmosphere Telephones" may be
used in such hazardous environments.
SAVE THESE INSTRUCTIONS

Contents
1. Introduction
Overview 1-1
MERLIN PFC Parts List 1-2
Principles of Operation 1-3
2. Installing the MERLIN PFC
Pre-Installation Requirements
Installing the MERLIN PFC
Testing the MERLIN PFC Telephone Connection
Testing the MERLIN PFC Fax Connection
3. Administering the MERLIN PFC
Overview
Administering the MERLIN Communications System
Models 206, 410, or 820
Administering the MERLIN Communications System
Models 1030/3070 With Feature Module 2, 4, or 5
Administering the MERLIN Communications System
Models 1030/3070 With Feature Module 3
Administering the MERLIN Plus Communications System
Administering the MERLIN II Communications System
(For Pooled or Square Operation)
Administering the MERLIN II Communications System
(Behind Switch Mode)
Administering the MERLIN LEGEND Communications System
(For PBX or Key operation)
Administering the MERLIN LEGEND Communications System
(Behind Switch Mode)
Administering the System 25 Communications System
4. Testing the MERLIN PFC Personal Copier and Fax
Overview
Testing the MERLIN PFC Personal Copier
Testing the MERLIN PFC Fax
2-1
2-2
2-6
2-7
3-1
3-1
3-3
3-5
3-7
3-9
3-11
3-13
3-16
3-18
4-1
4-1
4-2
5. Customer Education
5-1

6. Troubleshooting
General Checklist
Common MERLIN PFC Personal Copier and Fax Problems
Detailed MERLIN PFC Troubleshooting
Appendix A. Dip Switch Settings
6-1
6-2
6-6
A-1

1. Introduction
Overview
The MERLIN PFC™ Telephone (Figure 1-1) is the first AT&T telephone that offers the
convenience of a telephone, facsimile, and copy machine right at the user’s desk. It is
uniquely designed to take advantage of all the capabilities of the following communications
systems:
●
●
●
●
●
●
MERLIN Communications System Models 206, 410, and 820
MERLIN Communications System Models 1030 and 3070
MERLIN Plus Communications System
MERLIN
®
II Communications System
MERLIN LEGEND™ Communications System
System 25
Using the Built-In Speakerphone (BIS) on the telephone, the user can make and receive
intercom and outside calls without lifting the handset. In addition, this telephone can access
the advanced features that your communications system provides.
Figure 1-1
MERLIN PFC Telephone
(PhoneŽFaxŽCopier)
Introduction 1-1

MERLIN PFC Parts List
The MERLIN PFC package is shipped with the following parts:
●MERLIN PFC Telephone [phone]) with display, fax, personal copier, and built-in
speakerphone
●
●
●
●
●
Handset (105-519-086)
Handset cord (102-402-518)
Two (D8W) modular telephone cords (103-786-802)
One roll of MERLIN PFC Paper
MERLIN PFC documentation:
—
This MERLIN PFC Telephone Installation and Maintenance (999-500-304) guide
—
The MERLIN PFC User’s Guide (999-500-303)
—MERLIN PFC Technician Fax Testing Sheet
—System Label sheet containing the label for the Automatic Document Feeder Tray and
the FAX label for the modular cord.
1-2 Introduction

PRINCIPLES OF OPERATION
The MERLIN PFC Telephone consists of two modules: a voice module and a facsimile module, each
operating separately from the other. Two ports on the communication system controller are required for
the MERLIN PFC Telephone, two "wire runs" are needed (one for voice and one for facsimile), and
there are two jacks provided on the telephone. The voice jack on the MERLIN PFC Telephone is
labeled Voice Line and requires an analog (ATL) or hybrid port connection. The facsimile jack on the
telephone is labeled
Line and also requires an analog (ATL) or hybrid port connection.
The voice module is identical in operation and administration to a BIS-34D display telephone.
BIS-34D MERLIN PFC
Phone • Fax • Copier
O Power
O Fax Communicating
O Replace Paper
O Fax Error
FAX Stop
Copy
Start
Fax Status
Lights
Fax
Buttons
Volume
Figure 1-1. MERLIN PFC Telephone and Facsimile Buttons and Lights
The MERLIN PFC facsimile panel has four indicator lights and three buttons (see Figure 1-1). All four
lights are controlled by the facsimile module. The Stop and Copy buttons are connected to the
facsimile module and control its operation. The Start button is not connected to the facsimile module
but is connected to a button of the voice module (the fourth button from the bottom on the right). This
button is called FAX on the voice module’s button label sheet. Pressing the
Start button is the same as
pressing the FAX button on the telephone and the two can be used interchangeably. A block diagram of
these two modules is in Figure 1-2.
Introduction 1-3

8-conductor
Facsimile
modular
Dedicated
Jack
phone cord FAX
Fax Line
Facsimile Port
Analog/Hybrid
Voice Port
Analog/Hybrid
Communication
System
MERLIN PFC
Fax Module
Voice
Module
8-conductor
Voice Voice
Jack
modular
phone cord
Other
CO Lines
Figure 1-2. MERLIN PFC Telephone Block Diagram
To send a facsimile the following sequence of operations must occur:
●
Insert the original document in the document feeder, face down.
●
Dial a call to a facsimile machine using the voice module.
●
Transfer the call to the facsimile station, using the transfer function of your communication system.
This can be done using the one touch transfer feature, or pressing
Transfer followed by a station or
intercom button, or
Transfer followed by dialing the facsimile station/intercom number.
The facsimile station will now be rung, and the facsimile module will automatically answer. No ring
will be heard. The facsimile module, sensing an original document in the document feeder, will
enter transmission mode to send the facsimile.
To receive a facsimile automatically:
The document feeder must be empty.
●
●
The call must be dialed directly to the facsimile station or routed by an attendant to that station.
The facsimile station will now be rung, and the facsimile module will automatically answer (as
above). No ring will be heard. The facsimile module, sensing an empty document feeder, will enter
reception mode to receive and print the facsimile.
1-4 Introduction

To receive a facsimile manually:
●
The document feeder must be empty.
●
Answer an incoming call using the voice module. If it is a facsimile call then you will hear the
facsimile tones.
●
Transfer the call to the facsimile station, using the transfer function of your communication system
(as above).
The facsimile station will now be rung, and the facsimile module will automatically answer (as
above). No ring will be heard. The facsimile module, sensing an empty document feeder, will enter
reception mode to receive and print the facsimile.
The purpose of the Start button is to simplify the transfer of a call to the facsimile station. This button
will be programmed as an Intercom Auto-Dial, One Touch Transfer, or Direct Station Select (DSS)
depending on the communications system type. The following table summarizes the operation of the
MERLIN PFC and
Start button programming.
System One-Touch Label Operation
Start Button (FAX)
Type Transfer Program
MERLIN 206, 410 or 820
BTransfer-Start Intercom Auto-Dial
Feature Package 1 or 2
MERLIN 1030 or 3070
AStart Intercom Auto-Dial
Feature Module 2, 4 or 5
EProgrammed Intercom Auto-Dial
MERLIN 1030 or 3070
Conference -
Feature Module 3 Intercom Ring-
Start-Hold
MERLIN Plus AStart One-Touch Transfer
Feature Module 1 or 2
MERLIN II Enabled AStart One-Touch Transfer
Feature Module 1, 2 or 3
Pooled or Square Disabled BTransfer-Start One-Touch Transfer
MERLIN II CProgrammed- One-Touch Transfer
Feature Module 2 or 3 Transfer
Behind Switch
System 25 BTransfer-Start
Direct Station Select
MERLIN LEGEND Enabled AStart One-Touch Transfer
PBX or Key
Disabled BTransfer-Start One-Touch Transfer
MERLIN LEGEND CStart One-Touch Transfer
Behind Switch
Introduction 1-5

2. Installing the MERLIN PFC
Before installing the MERLIN PFC, be sure to review the pre-installation requirements.
Pre-Installation Requirements
WARNING:
Before installing this product, be sure there is a properly grounded
3-prong AC outlet available for the MERLIN PFC power connector. Improper
grounding can result in a serious safety hazard.
WARNING:
The telephone wiring between the communications system controller
or control unit and the MERLIN PFC telephone must be installed in the same
building.
The following pre-installation requirements apply to the MERLIN PFC:
Be sure two analog (ATL) telephone jacks are available from the control unit: one for the
voice station and one for the fax station.
NOTE:
If two analog (ATL) extensions are not available, see the system manager or
●
●
●
●
administrator of the communications system.
Do not wall mount the unit due to the size and operation of the MERLIN PFC.
This MERLIN PFC telephone must be installed in the same building as the
communications system wiring and control unit or system controller. It cannot be used
with an In Range Out of Building (IROB) adjunct.
Verify that the dip switches (located on the bottom of the MERLIN PFC telephone unit)
are set to the factory default as illustrated in Figure 2-1. For more information about the
dip switches, refer to "Appendix A. Dip Switch Settings" at the back of this manual.
DIP Switch 2
DIP Switch 1
Default Factory
Switch Settings
MERLIN PFC
Bottom View
110V AC
Power
Connector
Figure 2-1 Dip Switch Location and Settings
Installing the MERLIN PFC 2-1

Installing the MERLIN PFC
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Unpack the MERLIN PFC telephone, telephone handset, handset cord, the roll of
MERLIN PFC Paper, the two (D8W) modular telephone cords, and documentation from
the shipping carton.
NOTE:
Save the carton for reshipping.
Select a location for the MERLIN PFC near the grounded 115V AC 3-prong outlet and
the two modular telephone wall jacks.
Be sure the On/Off switch located at the back of the unit is in the Off Position (Figure
2-2).
Locate one of the modular telephone cords.
Locate the label sheet (provided) and attach the two FAX labels on each end of the
modular cord. (Figure 2-2).
NOTE:
Keep the label sheet available for installing the appropriate label during the
administration of the communications system.
Insert this modular cord into the Fax jack on the left side of the MERLIN PFC
(Figure 2-2).
Insert the other end of this modular cord into the fax wall jack (Figure 2-2).
Locate the other modular cord and insert one end into the
Voice jack on the left side of
the MERLIN PFC (Figure 2-2).
Insert the other end of this modular cord into the voice wall jack (Figure 2-2).
Locate the handset and insert one end of the handset cord into the handset and the other
end into the handset jack on the left side of the MERLIN PFC (Figure 2-2).
Open the Automatic Document Feeder Tray.
Insert the power cord into a grounded 115V AC 3-prong outlet and press the power
switch to the On position (Figure 2-2). The AC power switch is located on the back of
the unit above the power cord.
2-2 Installing the MERLIN PFC

Automatic
Document
Handset
Feeder
Jack
110V AC
Power
Tray
Connector
Handset
Cord
ON/OFF
Power
Switch
Attach
FAX
Labels
Fax
Jack
To Fax
Wall
Jack
Modular
Other
Voice
Jack
Telephone
To Voice
Wall
Cords
(provided)
Jack
Figure 2-2 Connections for the MERLIN PFC
13.
Install the MERLIN PFC paper roll.
Installing the MERLIN PFC 2-3

1.
2.
3.
4.
5.
6.
Installing the MERLIN PFC Paper Roll
Lift the handset from the unit and place on a flat surface to the side of the unit.

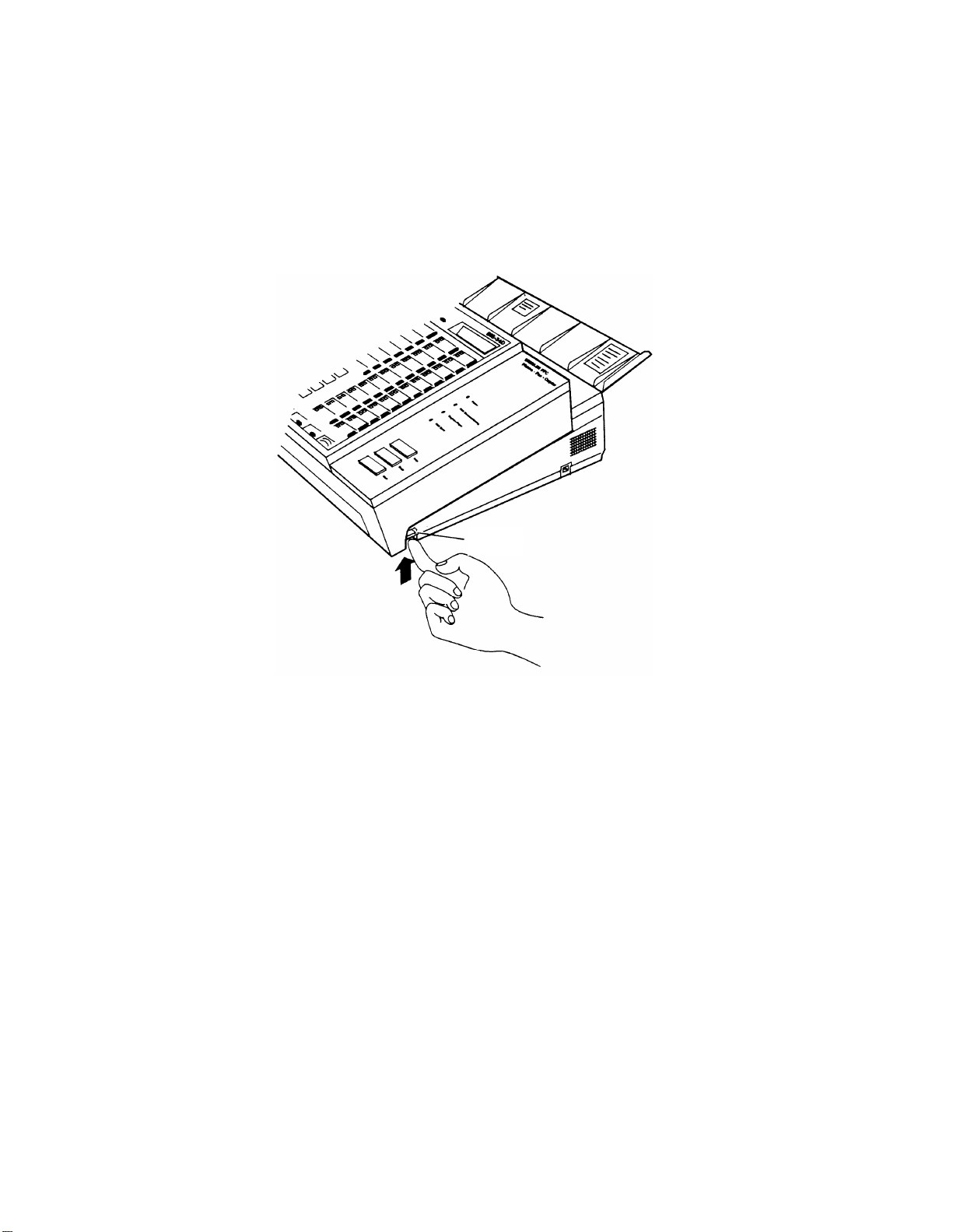

Pull up on the cover release at the right front of the MERLIN PFC (Figure 2-3).
Cover
Release
Figure 2-3 MERLIN PFC Cover Release Location
As the cover is opened, a wire support drops down on the left inside of the unit. Secure
this support into the hole located on the left inside of the unit base (Figure 2-4).
If it is present, remove and discard the protector sheet that protrudes from the Automatic
Document Feeder. (This sheet is used only to protect the MERLIN PFC during
shipping.)
Place the paper in the cradle so it unrolls from the top of the roll.
Feed the paper under the black bar (Figure 2-4).
2-4 Installing the MERLIN PFC

Cover Open Top Cover
Wire
Support
Hole
Fax Paper Roll
Black Bar
(Place paper under
the black bar)
Figure 2-4 Installing the MERLIN PFC Paper Roll
7.
8.
As you close the cover, fold the wire support in place and close the top of the unit
securely by pressing down firmly on both sides of the cover.
The MERLIN PFC feeds a small amount of paper through the bottom of the unit and
cuts it automatically.
Test the MERLIN PFC Telephone connection, according to the instructions on the next
page.
Installing the MERLIN PFC 2-5

Testing the MERLIN PFC Telephone Connection
NOTE:
For the System 25 Communications System, perform this test after the
administration for the MERLIN PFC is complete. To perform administration
procedures, refer to Chapter 3, and the section, "Administering the System 25
Communications System".
After installing the telephone, test the telephone connection, the lights, and ringer as follows:
Slide the T/P switch up to the T (Test) position (Figure 2-5). The Test/Program (T/P)
switch is located on the left side of the MERLIN PFC telephone (Figure 2-5).
The red and green lights next to the telephone’s buttons flash alternately, the telephone
rings, and all 16 block display characters darken.
Test/Program
Switch
Ringer Volume
Switch
NOTE:
Figure 2-5 Location of MERLIN PFC Test/Program (T/P) Switch
If the telephone does not flash or ring and if the display does not darken, refer
to Chapter 6, "Troubleshooting", for more information. If after reviewing this
chapter, assistance is still needed, contact the AT&T Helpline at:
1-800-628-2888.
1.
2.
3.
After the test operation is successful, slide the T/P switch back to the center position for
normal operation.
The telephone alarm sounds three short beeps.
Test the fax connection according to the instructions on the next page.
2-6 Installing the MERLIN PFC

Testing the MERLIN PFC Fax Connection
NOTE:
For System 25 Communications System, perform this test after the administration for
the MERLIN PFC is complete. To perform administration procedures, refer to
Chapter 3, and the section "Administering the System 25 Communications System".
Test the MERLIN PFC fax connection as follows:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Disconnect the two modular cords from the jacks labeled Fax and Voice on the left side
of the MERLIN PFC.
Insert the
FAX modular cord into the Voice jack on the left side of the MERLIN PFC to
test the fax connection.
Pick up the handset and listen for a dial tone.
Replace the handset.
Slide the T/P switch up to the T (Test) position (Figure 2-5). The Test/Program (T/P)
switch is located on the left side of the MERLIN PFC telephone (Figure 2-5).
The red and green lights next to the telephone’s buttons flash alternately, the telephone
rings, and all 16 block display characters darken.
NOTE:
If the telephone does not flash or ring and if the display does not darken, refer
to Chapter 6, "Troubleshooting", for more information. If after reviewing this
chapter, assistance is still needed, contact the AT&T Helpline at:
1-800-628-2888.
After the test operation is successful, slide the T/P switch back to the center position for
normal operation.
The telephone alarm sounds three short beeps.
Disconnect the FAX modular cord from the Voice jack on the left side of the MERLIN
PFC and re-insert this modular cord into the Fax jack on the left side of the MERLIN
PFC.
Reconnect the unlabeled modular cord into the Voice jack on the left side of the
MERLIN PFC.
After the MERLIN PFC telephone has been tested for the telephone and fax connections,
refer to the next chapter, "Administering the MERLIN PFC".
Installing the MERLIN PFC 2-7

3. Administering the MERLIN PFC
This section contains the information to administer an AT&T Communications System for the
MERLIN PFC telephone. Before administering any communications system, read the overview
information below for background about the MERLIN PFC.
Overview
●
●
●
●
●
●
●
●
●
●
●
The MERLIN PFC consists of two basic components:
a BIS-34D telephone
a facsimile machine
The MERLIN PFC operates the same as a BIS-34D telephone set with the addition of a basic
fax machine that can send and receive faxes. The MERLIN PFC fax component does not have
any programmable fax options (for example, time/date stamp, header information, etc.). The
MERLIN PFC is designed to provide easy-to-use telephone, fax, and personal copier functions
right at the user’s desk.
To administer the MERLIN PFC for operation with an AT&T Communications System, refer
to the appropriate section within this chapter:
Administering a MERLIN Communications System Models 206, 420, or 820
Administering a MERLIN Communications System Models 1030/3070
Administering a MERLIN Plus Communications System
Administering a MERLIN II Communications System
Administering a MERLIN LEGEND Communications System
Administering a System 25 Communications System
Administering the MERLIN Communications System
Models 206, 410, or 820
Before administering these communications systems for the MERLIN PFC, verify that the
communications system has:
Two analog (ATL) station ports available on the control unit: one for the voice station and
one for the fax station.
Feature Package 1 or 2 installed.
A dedicated fax line for incoming fax calls (possibly shared for outgoing calls).
After verifying the configuration of the communications system:
●
●
●
●
Install Label B onto the Automatic Document Feeder Tray following the illustration on the
System Label sheet (provided).
Administer the dedicated fax line. Refer to "Administering the MERLIN Communications
System Models 206, 410, or 820 Dedicated Fax Line" in this chapter.
Administer the voice station. Refer to "Administering the MERLIN Communications
System Models 206, 410, or 820 Voice Station" in this chapter.
Administer the fax station. Refer to "Administering the MERLIN Communications System
Models 206, 410, or 820 Fax Station" in this chapter.
Administering the MERLIN PFC 3-1

For more detailed information on administering these communications systems, refer to
MERLIN
®
Communications System Administration Manual: Models 206 and 410 with Feature
Package 1
or MERLIN
®
Communications System Administration Manual: Models 206, 410,
and 820 with Feature Package 2.
Administering the MERLIN Communications System
Models 206, 410, or 820 Dedicated Fax Line
Administer the dedicated fax line for the MERLIN PFC, keeping the following in mind:
●
The Central Office Line dedicated for incoming fax calls must be connected to a line port
on the control unit.
●
If the dedicated fax line is shared (for outgoing calls only), administer the Ringing Option
as
No Ring at all telephones, except for the MERLIN PFC fax station.
Administering the MERLIN Communications System
Models 206, 410 or 820 Voice Station
Administer the voice station for operation with the MERLIN PFC, keeping the following in
mind:
●
Administer line assignments and telephone custom features at the voice station using the
same methods as for a BIS-34D set.
●
Assign the fax line to the voice station.
●Administer the fourth button from the bottom in the last column on the right as an Auto
Dial Intercom button for the intercom number associated with the fax station as follows:
Slide the T/P switch (on the left side of the MERLIN PFC) down to P (Program) to
enter the program mode.
1.
2.
3.
4.
Press the the fourth button from the bottom in the last column on the right.
Dial
*6 and dial the one (for a MERLIN Communication System Model 206) or two
digits assigned as the
Intercom number for the MERLIN PFC fax station.
For example, if the MERLIN PFC fax station is assigned as
Auto Intercom 19, dial
*619.
Slide the T/P switch to the center position to exit the programming mode.
Administering the MERLIN Communications System
Models 206, 410 or 820 Fax Station
Administer the fax station for operation with the MERLIN PFC, keeping the following in
mind:
1.
2.
Disconnect the two modular cords connected to the Fax and Voice jacks on the left side
of the MERLIN PFC and insert the FAX modular cord into the Voice jack on the left
side of the MERLIN PFC.
Slide the T/P switch (on the left side of the MERLIN PFC) down to P (program) to
enter the program mode.
3-2 Administering the MERLIN PFC
