Atexbeam PL-AT800 User manual

70207/EN102:noisreV
PL-AT800
ATEXBEAM
ATEX II 2G Ex ib IIC T4 Gb
ATEX II 2D Ex ib IIIC T150 C Db

INDEX
1. ATEXBEAM PL-AT800 Description 1
2. Features and Benefits 2
3. Enhanced Performance and Safety Features 3
4. Getting started with Operating Instructions 4
5. Operating Status Indications 6
6. Maintenance 7-8
7. Product Specifications 9
8. In the package 10
9. PRECAUTIONS AND WARNINGS 11
10. WARRANTY 11
ATEXBEAM

ATEXBEAM safety lamp is built in compliance with Directive 14/34/EU (Ex-Protection Directive).
It is a self-contained lamp designed with LED technology for durable performance, power
efficiency and structural robustness, and it is powered by wide thermal range Lithium battery.
The Portable rechargeable LED lamp type PL-AT800, is in compliance with standards
ATEXBEAM is approved for use in the zones:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T150°C
Db
ATEXBEAM Description
ATEXBEAM safety lamp is built with a high power LED and is fit by a light-weight, highly compact
and high capacity Lithium Ion battery.
The enclosure of the lamp is made of industrial Polycarbonate resin with excellent impact strength.
And it is anti-static, high heat resistance and has good structural stability. The strength
and dimensional stability of polycarbonate resin are further enhanced with rugged design for
tough work environment.
ATEXBEAM lamp is ergonomically operated with one switch that turns on/off light and to dim
mode. The length of lighting time is increased when the power save mode is activated.
The direction of light beam is adjustable at various angles to meet the users' need.
1
EN 60079- 0:2012/A11:2013 and EN 60079-11:2012.
This equipment can be used in explosion gas atmosphere of IIC and explosion dust atmosphere
of IIIC ,and the equipment protection level is Gb and Db.
ATEXBEAM

ATEXBEAM PL-AT800 Features and Benefits
Lighting time span:
Up to 9 hours lighting time in high power mode
and up to 20 hours in power saving mode
Equipped with light-weight wide thermal range
and high capacity Li-ion battery and it is capable
of being recharged for 300 cycles
Tough plastic enclosure, made of anti-
static industrial resin, is capable of
withstanding knock and impact
Power Failure Mode:
It has auto turn-on function in event of
power outage
Adjustable light beam for user to meet
specific needs at various angles in
working environment
Robust tempered transparent glass
Low battery capacity warning indication
2
Anti-Static Body High Impact
Strength
Industrial Resin
High Capacity
Li-ion Battery
Swivelable Light
Direction and
Auto-Turn on in
event of power failure
ATE
X
BEAM

ATEXBEAM PL-AT800 Enhanced Performance and Safety Features
Power Saving Mode
The power saving feature is to reduce battery
power consumption in order to maximise
lighting time span.
Pressing the switch twice from off position to
activate power saving function (Dim mode) that
outputs less light than the normal light (On mode).
User may select the power saving mode to
gain longer lighting time span when the battery
capacity is running low and when user prefers
less brightness.
Maximising Battery Performance
Maximum Performance
The built-in charging circuit monitors the
charging processes and protects the battery
from being overcharged and over-discharged.
The regulated charging improves battery
lifetime.
Regular discharging and charging the lamp
maximises the life span of the battery
performance
Battery Safety Thermal Cut-Off
In event where battery temperature exceeds
abnormal limit, the battery pack is safely
disconnected and isolated.
The lamp shuts down for safety precaution.
Thermal Cut-Off
power
saving
ATEXBEAM

Getting Started with Operating Instructions

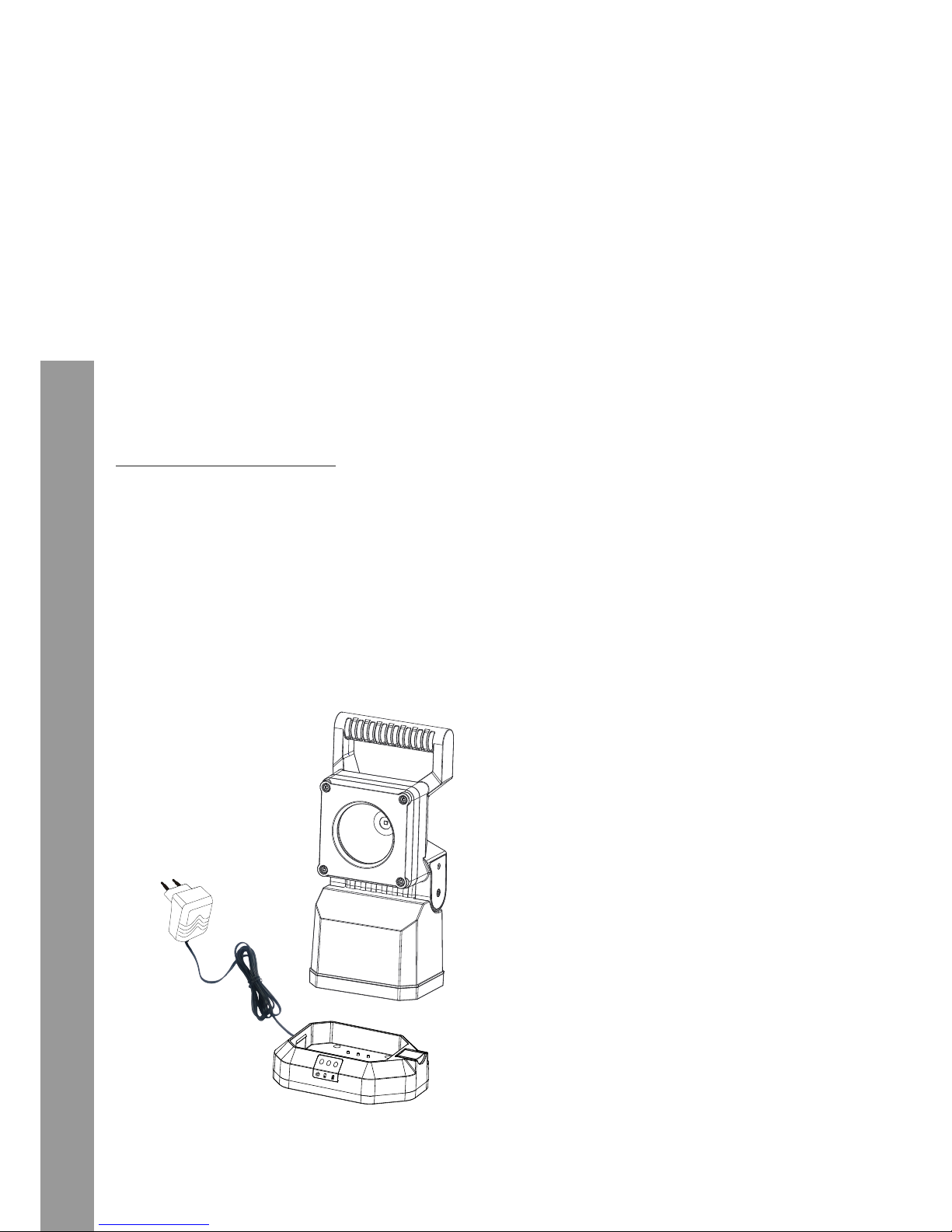

Charging ATEXBEAM PL-AT800 Instruction:
Charging ATEXBEAM PL-AT800 must be carried out with the designated charging station and
only in areas away from potential explosive atmosphere.
Plug the universal power adaptor into a 110Vac (US) or 230Vac (Europe) power outlet.
Connect the DC plug from the power adaptor to the DC socket of the charging station. The power
on LED on front panel of charging station will light up. Place the lamp into the charging station,
LED lights blink as charging process begins.
When all three LEDs light up and blinking stops, the lamp is fully charged
4
ATEXBEAM

Lamp Operating Instructions:
ATEXBEAM PL-AT800 is operated with one soft silicon
power switch located on the back of the lamp.
By pressing the switch, switching sequence cycles
through three lighting modes as shown below:
Press the switch once: Light is on in Full Brightness
Mode
Press the switch twice: Light is in Energy Saving
Mode (Dimmed Light)
Press the switch three: Light is off
Power Failure Mode:
Place ATEXBEAM PL-AT800 in the charging station.
Light turns on in event of power outage (light on
when power fails during charging).
Adjusting angle and direction of light beam:
To adjust light beam at a desired angle, the lamp
head can be swivelled at continuous angles from
vertical 0º to 30º in the front and 90º to the back.
OFF
DIM
ON
power failure
90
3
0
5
ATEXBEAM

Operating Status Indications
Light Indication Of Charging Station:
1) Power ON LED (1st LED) :
The charging station is on when it is connected to
the power-source. The 1st LED turns on.
2) LEDs Blink (1st, 2nd, 3rd LEDs):
The battery is being charged. Blinking LEDs
indicate battery capacity level.
3) All LEDs ON (1st, 2nd, 3rd LEDs) :
The battery is fully charged
The LED Indication Of ATEXBEAM PL-AT800 Lamp:
(LED above the power switch shows the function
status of lamp)
During charging process: The LED indication
remains off.
Battery Low Status Indication:
In use when Red LED flashes rapidly to indicate there
is opproximately one hour lighting time remaining before
battery capacity is fullly discharged.
User Note:
I
Charge the lamp at regular interval to ensure optimum battery performance.
f the battery is fully discharged, the LED light may not turn on.
1st LED
Power ON
LED Flashes
Battery capacity low,
needs to be recharged
2nd
LED
3rd
LED
6
ATEXBEAM

7
ATE X BEAM PL-AT800 Maintenance:
Built-in battery is factory charged up to 30% in capacity
when you buy ATEXBEAM PL-AT800 lamp.
Keeping the lamp charged over continuous period
of time, i.e. overnight, does not damage the battery or
the lamp itself.
When the lamp is not in use, always keep it in the
charging station under charging.
Clean the lamp with wet cloth. Only use diluted
non-caustic detergent to clean the lamp.
Do not use chemical solvent and oil based detergents.
Do not clean the lamp in water.
Always keep the lamp away from hazardous area.

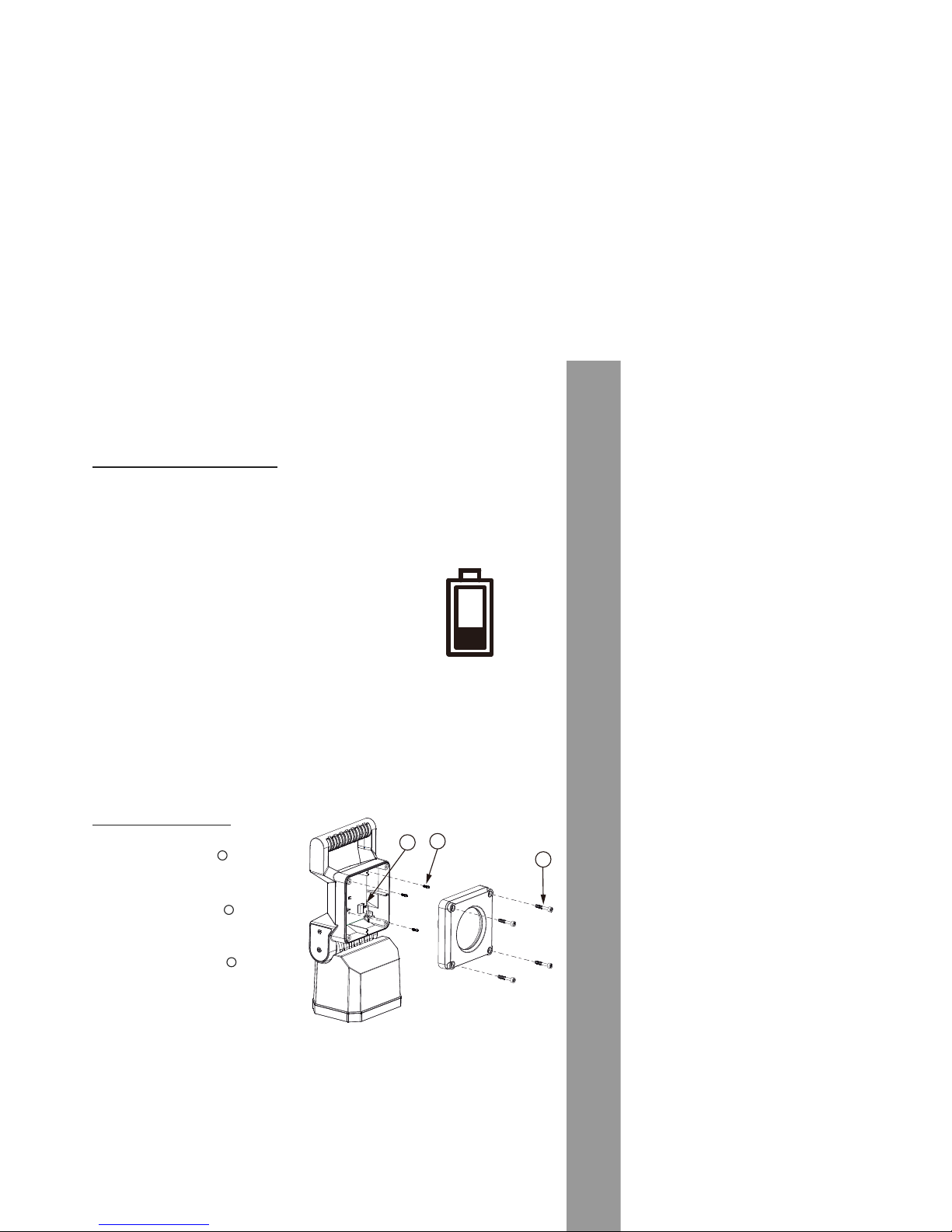

LED Module
Replacements

Remove four screws and then the
Step 1:
square front cover.

Remove three screws to free the
the LED Module replacements.

Unplug the connection
Step 2:
Step 3:
of the
the LED replacements.
30% charged in capacity
1
1
2
2
3
3
ATEXBEAM

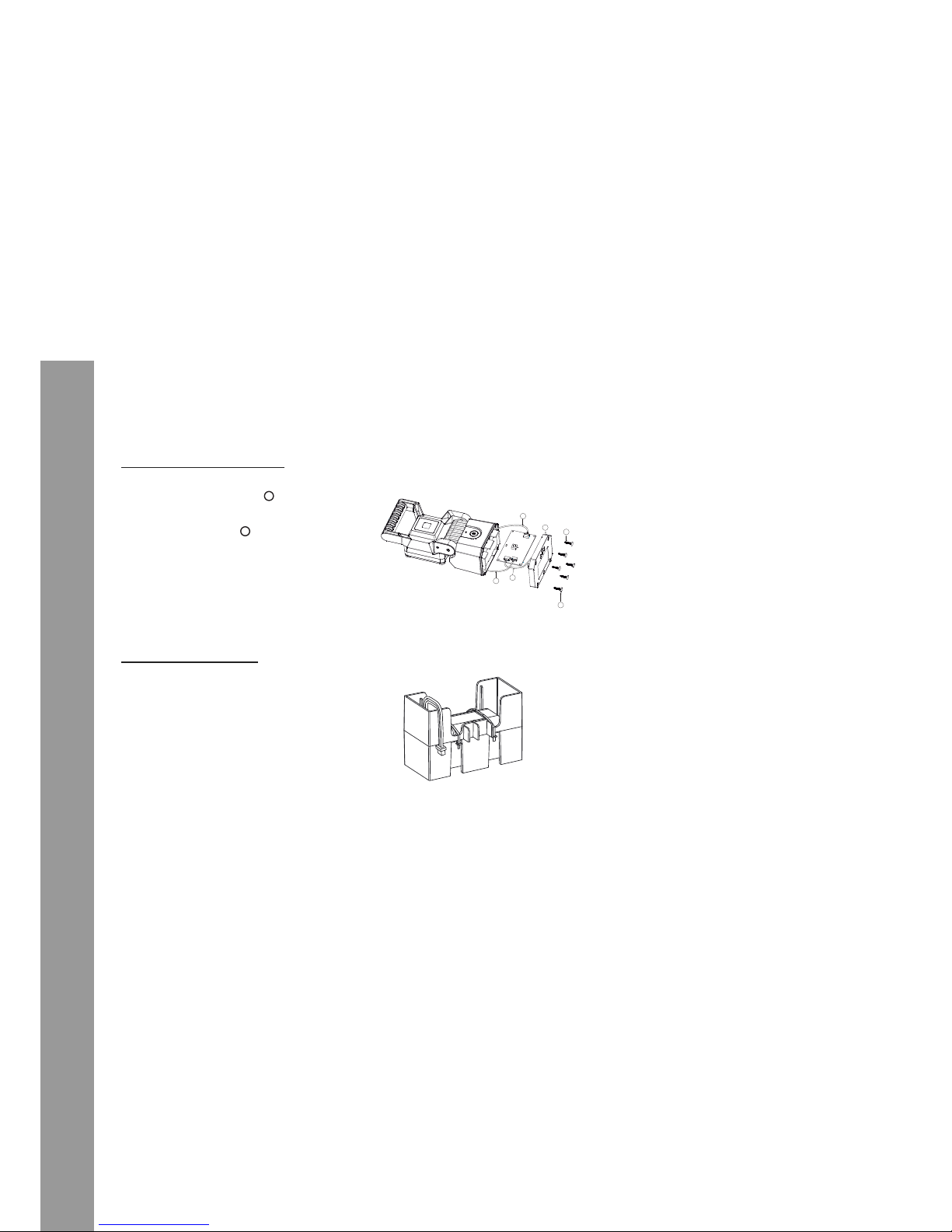

Battery Pack Replacement
Remove six rubber pads from the body cover.
(Refer to fig 2-2 step 1)
(Refer to fig 2-2 step 2)
Remove six screws and then the body cover.
Unplug the
battery connction (refer to fig 2-2 step B)
and remove the whole battery pack (fig 2-3).
Electronic Module Replacement

Rem
Step 1:
Step 2:
Step 3:
ove six rubber pads from the body cover

Remove six screws and then the body cover

Pull out the electronic module and unplug the
connectio
ns of step A / B / C
A
B
C
1
1
2
22
fig 2-2
step 2
step 1
step 2
step A
step B
step C
fig 2-3
8
Before replacing battery pack, refer to and
observe strictly the precautions and warnings.
ATEXBEAM

Product Specifications
Product Model ATEXBEAM PL-AT800
Approval
Equipment Category 2
Pro on Type ib intrinsic safety
Classifion Area
Zone 1, 2 / Gas Group IIC
Zone 21,22/Dust Group IIIC
Temperature
Ambient Temperature
0 ℃ to +40 ℃
T4(Gas)/T150℃(Dust)
Enclosure Material Industrial PC
Lens Tempered glass
epyTmaeB Floodlight
Light Source 1 X 3W High Power LED
Brightness Approx. 275 lumens
LE 30000 hours
Power Source 7.4V 5800mAh Li-ion ery
elcyCgnigrahC 300 cycles
Ligh emiTgn 9 hours in full brightness /
edomgnivas-rewopnisruoh02
Weight 1.065kg
Charger 12V 1000mA (adaptor)
Recharge Time(Empty to Full) 11 hours
9
ATEXBEAM
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T150°C Db
TÜV 16 ATEX 7864 X

In the package
PL-AT800 ATEXBEAM LAMP
CHARGING STATION
UNIVERSAL POWER ADAPTOR
USER MANUAL
DECLARATION OF CONFORMITY
10
ATEXBEAM

PRECAUTIONS AND WARNINGS
Safety use considerations:
1. This lamp shall be used with 12V approved designated adaptor.
2. Do not rub on the plastic enclosure of this lamp
3. This lamp must be protected from mechanical impacts. If damages occurred,
the lamp must be removed from the hazardous area.
WARNING – DO NOT MAKE MODIFICATION ON THE LAMP AND REPLACE PARTS NOT
SPECIFIED FOR ATEXBEAM LAMP.
WARNING – DO NOT CHARGE WITHIN POTENTIALLY EXPLOSIVE ENVIRONMENT
WARNING – AVOID STRONG ALKALINE SUBSTANCES AND SOLUTION.
WARNING – DO NOT DISMANTLE THE LAMP.IN ANY CIRCUMSTANCES. RETURN THE LAMP
TO AUTHORISED SERVICE CENTER.
WARNING – ONLY AUTHORISED PERSONEL IS ALLOWED TO OPEN THE LAMP
WARNING – DO NOT SUBMERGE THE LAMP IN WATER.
WARNING –
–
–
–
ONLY USE SPECIFIED ATEXBEAM CHARGER ADAPTOR AND CHARGING
STATION FOR CHARGING ATEXBEAM LAMP
WARNING ONLY USE MANUFACTURER’S APPORVED BATTERY PACK FOR REPLACEMENT
WARRANTY
When ATEXBEAM lamp PL-AT800 is used under normal conditions and according to
instructions in the user guide, the lamp is under warranty for 3 years period against
manufacturing defect. The warranty period for battery and main lighting LED is 12 months
from date of purchase.
Disclaimer:
The contents of the lamp cannot be altered or changed in any circumstances as this will
void the warranty.
The product is strictly designed for Zone 1, 2, 21, 22.
The built-in battery pack is covered with only 12 months warranty from date of purchase
and manufacturer will not be responsible for replacing the battery pack and the LED module.
11
WARNING DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
WARNING DO NOT OPEN WHEN ENERGIZED
