esotec Solar Globe Light multicolor 20 User manual

3. Function and Intended Use
The solar light is designed for year-round outdoor use. It can either be
mounted using the enclosed earth spike or placed directly on the ground.
This globe isn´t oatable and can´t be placed on of water!
The solar light must be placed free of shade from the sun. A south, east
or west side is recommended. Shady northern sides are not suitable for
solar lights.
The light colour can be changed or xed. This can be adjusted with the IR
remote control included in the delivery.
The built-in rechargeable battery is charged by the solar panel inside. The
luminaire switches on automatically at dusk and off again at dawn or when
the battery is discharged.
2 powerful RGBW light-emitting diodes (LEDs) are used as the light source.
These LEDs guarantee high luminosity with low power consumption and a
service life of over 50,000 hours.
Note: During longer periods without sunlight, the battery may be
insufciently charged by sunlight. However, this does not mean that the
solar light is defective. Wait for the next sunny days and the light will
function appropriately again.
The battery should be replaced every 2-3 years on average!
4. Putting into Operation
1. Carefully remove the parts from the packaging.

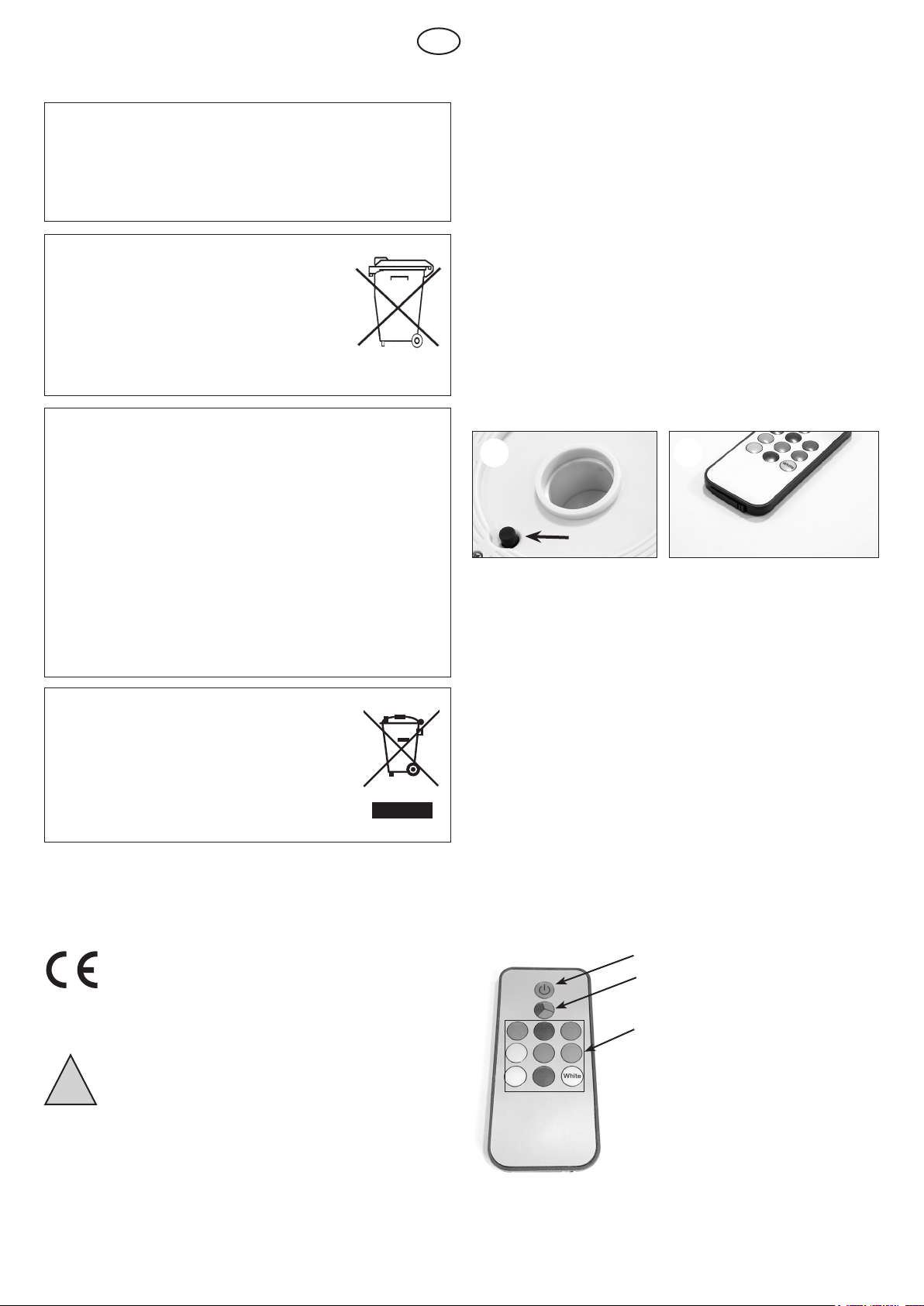

2. Switch ON the globe by pressing the switch on the underside of the
globe (Pic. 1).
3. Find a sunny place for the globe that is as free of shade as possible.
The globe can be placed on the ground, xed with the earth spike or
mounted in an elevated position using the plastic tube.
4. In the dark, take the remote control and pull out the plastic strip at the
bottom to activate it (Pic. 2).
5. The light ball has 9 different light colours, which can be set individually
via the remote control as a continuous light or as an alternating light.
The light is now ready for use!
Note: The duration of illumination is strongly dependent on the intensity
and duration of sunlight during the day. In the winter months, you can
generally expect less lighting time. If the lamp does not light up on the
rst evening, please wait for a sunny day.
Note: The globe can be conveniently controlled at night using the IR
remote control. The IR remote control must be pointed directly at the
globe.
Note: If the globe is switched off via the IR remote control, the battery
will still be charged when the globe is exposed to sunlight.
Functions of the IR remote control:
On/off: Light can be switched ON or OFF.
“Cycle”: The alternating light mode is acti-
vated. The light colours change slowly in a
rhythm of approx. 2 seconds.
“R,G,B ....”: By pressing the key, light
colour is fixed accordingly. To return to
the colour change mode, simply press the
“Cycle” button again.
Operating Instructions
Solar Globe Light multicolor 20
1. Introduction
Dear customer, we thank you for purchasing the Solar Globelight.
With this Solar Light you have purchased a product that complies with the
latest and most up-to-date technology.
This product complies with the European and National
Standards. The relevant certificates of conformity are
deposited with the manufacturer.
To preserve this standard and in order to maintain safety
you must adhere to the use instructions!
2. Security Instructions
In the event of any problems arising or damage occur-
ring from not following these instructions, the warranty
is deemed cancelled. The manufacturer will not be held
responsible for any claims or damages arising from the
misuse of this product.
- For safety reasons and in order to maintain standards (CE) you are pro-
hibited from altering or changing any component in the product.
- Please follow the instructions very carefully.
- This product is for private use only!
Battery take-back
- Batteries must not be discarded into domestic waste.
- The consumer is legally required to return batteries
after use, e.g. to public collecting centers or to battery
distributors.
- Contaminant-containing batteries are labeled with the
sign “crossed-out trashcan“ and one of the chemical
symbols. Used batteries should be disposed environ-
mentally friendly and should not be discarded into
domestic waste. Your dealer is legally required to take
back old batteries.
LiFePO4
GB
Customer support:
If you have problems or questions regarding this product, simply contact us!
esotec GmbH, Industriegebiet Weberschlag 9, D-92729 Weiherhammer
Internet: www.esotec.de
By phone: [phone]
By e-mail for ordering spare parts: [email protected]
By e-mail for questions about the product: [email protected]
Manufacturer item no. 102911
Rechargeable battery notes
- Rechargeable batteries should not be played with by children. Never
leave rechargeable batteries lying around; they could be swallowed
by children or pets.
- Rechargeable batteries must never be short-circuited, disassembled
or thrown into fire. This leads to a danger of explosion!
- Leaking or damaged rechargeable batteries can cause chemical
burns when they come into contact with skin. For this reason, please
make use of suitable protective gloves.
- Rechargeable batteries should only be replaced by structurally iden-
tical rechargeable batteries from the same manufacturer. Normal
batteries must not be used since these are not rechargeable.
- Make sure the rechargeable batteries are inserted with the correct
polarity.
- For long periods of time of non-use (for example, storage), remove
the inserted rechargeable batteries to avoid damages via the leaking
rechargeable batteries.
Disposal:
Dear customer,
please cooperate in avoiding waste. When you intend to
dispose of the product in future, please consider that it
contains valuable raw materials suited for recycling.
Therefore, do not dispose it of with domestic waste but
bring it to a collection point for the recycling of waste
electrical and electronic equipment.
Thank you very much for your cooperation!
!
1. 2.

5. Exchange of the rechargeable Battery
On average, the rechargeable battery in the light globe must be replaced
every 2-3 years with a new one of the same design and type. A LiFePO4
battery of the size (14500) with 3.2 V/ 600 mAh is used here. You can
obtain a replacement battery from your dealer or from the manufacturer at
www.esotec.de.
Please proceed as follows when replacing the battery.
1. Switch off the ball via the button on the underside (picture 1).
2. Loosen the 6 screws on the bottom of the ball with a suitable screwdriver
and carefully remove the bottom part (Pic. 3).
3. Loosen the two screws next to the solar module and carefully remove it
(Pic. 4+5).
4. Remove the battery from the holder and replace it with a new battery of
the same design (Fig. 5).
5. Reassemble the sphere in reverse order and switch on the sphere using
the button on the bottom.
6. Activate the globe again with the IR remote control.
The lamp is now ready for operation again!
6. Malfunctions
1. It is not possible to control the light color of the globe by means of
the remote control!
Remedy: Has the plastic strip on the underside been removed from the
remote control (only for initial operation)?
Remedy: Note that the globe can only be remote-controlled at night!
Remedy: Battery in the remote control too weak or exhausted? Replace
battery with an identical type!
Remedy: No sunshine during the day. If the sky is cloudy and there
is no sunshine, the built-in battery in the globe will not be sufciently
charged! Wait for a sunny day!
Remedy: This is an IR remote control. To control the globe, please point
the remote control towards the globe. 2.
2. Globe has no function!
Remedy: Battery in the globe has reached the end of its life (replace
every 2-3 years at the latest!)?
Remedy: No sunshine during the day. If the sky is cloudy and there
is no sunshine, the built-in battery in the globe will not be sufciently
charged! Wait for a sunny day!
Remedy: Globe switched on?
Remedy: Globe switched off via remote control? Activate the globe
again using the IR remote control.
7. Technical Data
• Solar module: 5 V/ 120 mA, 0.6 Wp crystalline
• Light source: 2 LEDs (RGBW)
• Light colours white: 6500 K
• Light intensity white: 20 lm
• Battery: LiFePO4 3.2 V/ 600 mAh (14500)
• Protection class of globe: IP 44
• Protection class: III
• Temperature range: -10°C to +40°C
• Light duration when fully charged: max. 10 hrs.
Spare battery: LiFePO4, 3.2 V/ 600 mAh (14500) Spare part no.: 901020
You can find all spare parts at www.esotec.de
All spare parts are available under www.esotec.de
