1 Foreword
Before install and use high speed PTZ camera,please read below information carefully,
1.Before installation please read user manual carefully.
2.Please do not test and install the product on unstable flat,make sure the product place on a stable flat and
assembly firmly before operation.
3. Prevent products damage caused by stress, severe vibration and immersion on transportation and storage.
4. Installation of this product must not be reversed;please handle with care,do not squeeze structural
components,Otherwise, they may cause mechanical failure, affecting the overall performance.The transparent
material on the speed dome iris is advanced optical materials,do not touch it,any scratches will affect image quality.
5. Prevent any foreign matter or liquid into camera,to avoid damage on camera.
6. When you make connection,please follow up safety standards,use with a dedicated power supply. RS-485 and
video signal adopt TVS grade lightening protection technique,can effectively prevent damage caused by not more
than 500W lighting,surging and other types of pulse signals.Please keep enough distance away from High-voltage
equipment or cables when RS-485and video signal during transmission.Make lighting and surging protection
measures when necessary.
7. Whether in use or non-use, never allow cameras aimed at the sun or other bright objects。Otherwise, may result
in permanent damage of CCD .
8.Do not use it exceed the temperature, humidity standards.
9. This product do not have user repair parts。When camera has fault,please do not repairit,should find out fault
refer to user manual,if can not find out reason,please send the camera to professional maintanence person. The
maintenance person must be authorized by our company.

2 Product overview
2.1 Product brief description
High speed PTZ camera adopt the latest scientific and technological achievements,best manufacturing
technique,successful developed by years of valued experience,it is a high-performance digital signal processing
(DSP) camera which equips with automatic zoom lens;build-in PTZ and digital decoders,representing a new
generation of high-tech monitoring products. It uses all-digital control, simple and ingenious design, discretional
quickly locate and continuous follow-up scan,it has automatic tracking function,make smart surverillance of
all-round, non-blind spot,Can automatically adapt to the environment and target distance changes in light and dark,
High reliability and long-term stable operation, without maintenance.
High speed PTZ camera is compatible with a variety of control protocols,so it can support a variety of popular
platforms.Match with other system,the connection use methods of different system is not the same,please contact the
system manufacturer or distributors for necessary information.
The various characteristics of the high speed PTZ camera , make it applicable to large-scale industries, active
target object surveillance。Such as power systems, telecommunications sector, banking security, factories and
enterprises, intelligent buildings, intelligent community, urban road monitoring, airports, stations and other
monitoring occasions.
2.2 Performance characteristics
1. Build-in OSD English menu ,through menu to display and change the information and parameter of camera,can
set and incoke presets、pattern scan、area scan and display areaetc.
2. Timing auto- activation function, Can set the ball machine idle for a period of time,then startarea scan,
intermittent scan,continuous scan,pattern scan and invoke presets.
3. Integrated design, compact structure , high reliability.
4. 256 presets.
5. Adopt RS485 control.
6. Precision motor drive, running smoothly and responsive.
7. Horizontal 360°continuous rotation, no surveillance blind area.
8. Rotation speed automatic adjust according to lens’ zoom.
9. Veritial 90°,auto overturn 180°continuous surveillance.
10. Auto focus,auto white balance
11. Backlight compensation,you can see all the objects in a strong light enviroment.
12. Compatible with a variety of control protocol, baud rate adjustable.

User manual
3
13. Wide Dynamic Camera Support(SONY1010、SONY490、SONY990)
4 Technical parameter
Model
ASD-36SO650IR200
Imaging source
1/3 sony CCD
System
PAL/NTSC
Resolution
650TVL
Effective pixel
752(H)ⅹ582(V)
Min. illumination
Color: 0.2 Lux/F1.6 (50 IRE)
B&W :0.02 Lux/F1.6 (50 IRE)
S/N ratio
≥60dB
Backlight
compesation
ON/OFF
White balance
AUTO
Electronic shutter
1/50sec ~ 1/120,000sec
Focal length
f=3.2 to 115.2mm
Optical zoom
36X OPTICAL ZOOM.10X DIGITAL ZOOM
Focus
Auto/manual ,adopt high-performance DSP,achieve all-digital
continuous focus function
Presets
256
Pattern scan
8 channels,each channel can record 100 action
Cruise track
30 presets can join cruise,preset stay time can set
Other scan
Support horizontal scan,frame scan,radom scan
Rotation range
Horizontal 360°unlimited,vertical 180°,auto overturn
Rotation speed
Horizontal and vertical:min. 0.01°,max. 300°/s (can auto adjust
according to zoom times)
Protocol
PELCO D and PELCO P
Menu
Full screen menu
Temperature
control system
Optional
Power supply
DC12V/4A
Dimension
7 inch
Operation
condition
-10℃~+70℃(Optional temperature control components), ﹤
95%RH
Material
Aluminum shell, waterproof ratingIP66

User manual
4
3 Installation
3.1 Speed dome DIP switch settings
High speed dome camera is compatible with a variety of control protocols, baud rate can be adjusted to make it
compatible with more monitoring and control system。Before install the speed dome camera,please adjust the DIP
switch to appropriate code according to your requirements,in order to adjust the baud rate,control protocol,address
code. If there are no special requirements,the speed dome factory default address code is 1,baud rate is 2400BPS
corresponding code,control protocol is PELCO-D corresponding code.
3.1.1 Enter DIP switch settings
Through DIP switch to change BAUD-RATE,PROTOCOL and ADDRESS.Speed dome core, housing and DIP
switch pictures see as below:
Pic 1. DIP cover Pic 2.DIP Switch
3.1.2 DIP switch settings
SW1:Baud rate and control protocol switch
SW2:Address code switch
DIP switch “ON” means “1”,DIP switch “OFF”means“0”,DIP switch left is low position ,right is high position
Baud rate and control protocol setting form:
SW1
Code
point
1
2
3
4
Control
protocol
OFF
OFF
PELCO-P
ON
OFF
PELCO-D
OFF
ON
Reservation
ON
ON
Reservation
Baud
rate
OFF
OFF
AUTO
ON
OFF
2400
OFF
ON
4800
ON
ON
9600
2. SW2 is used for setting speed dome address code。Address adopt binary mode,you can set at total 256 different
speed dome address code, see address code table. The factory default settings shown in Figure 2.

User manual
5
Address
SW2 speed dome address code table
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
4
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
5
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
6
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
7
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
8
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
9
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
10
OFF
ON
OFF
ON
OFF
OFF
OFF
OFF
11
ON
ON
OFF
ON
OFF
OFF
OFF
OFF
12
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
13
ON
OFF
ON
ON
OFF
OFF
OFF
OFF
14
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
15
ON
ON
ON
ON
OFF
OFF
OFF
OFF
16
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
17
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
18
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
19
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
20
OFF
OFF
ON
OFF
ON
OFF
OFF
OFF
21
ON
OFF
ON
OFF
ON
OFF
OFF
OFF
22
OFF
ON
ON
OFF
ON
OFF
OFF
OFF
23
ON
ON
ON
OFF
ON
OFF
OFF
OFF
24
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
25
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
26
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
27
ON
ON
OFF
ON
ON
OFF
OFF
OFF
28
OFF
OFF
ON
ON
ON
OFF
OFF
OFF
246
OFF
ON
ON
OFF
ON
ON
ON
ON
247
ON
ON
ON
OFF
ON
ON
ON
ON
248
OFF
OFF
OFF
ON
ON
ON
ON
ON
249
ON
OFF
OFF
ON
ON
ON
ON
ON
250
OFF
ON
OFF
ON
ON
ON
ON
ON
251
ON
ON
OFF
ON
ON
ON
ON
ON
252
OFF
OFF
ON
ON
ON
ON
ON
ON
253
ON
OFF
ON
ON
ON
ON
ON
ON
254
OFF
ON
ON
ON
ON
ON
ON
ON
255
ON
ON
ON
ON
ON
ON
ON
ON

User manual
6
3.2 Speed dome camera installation

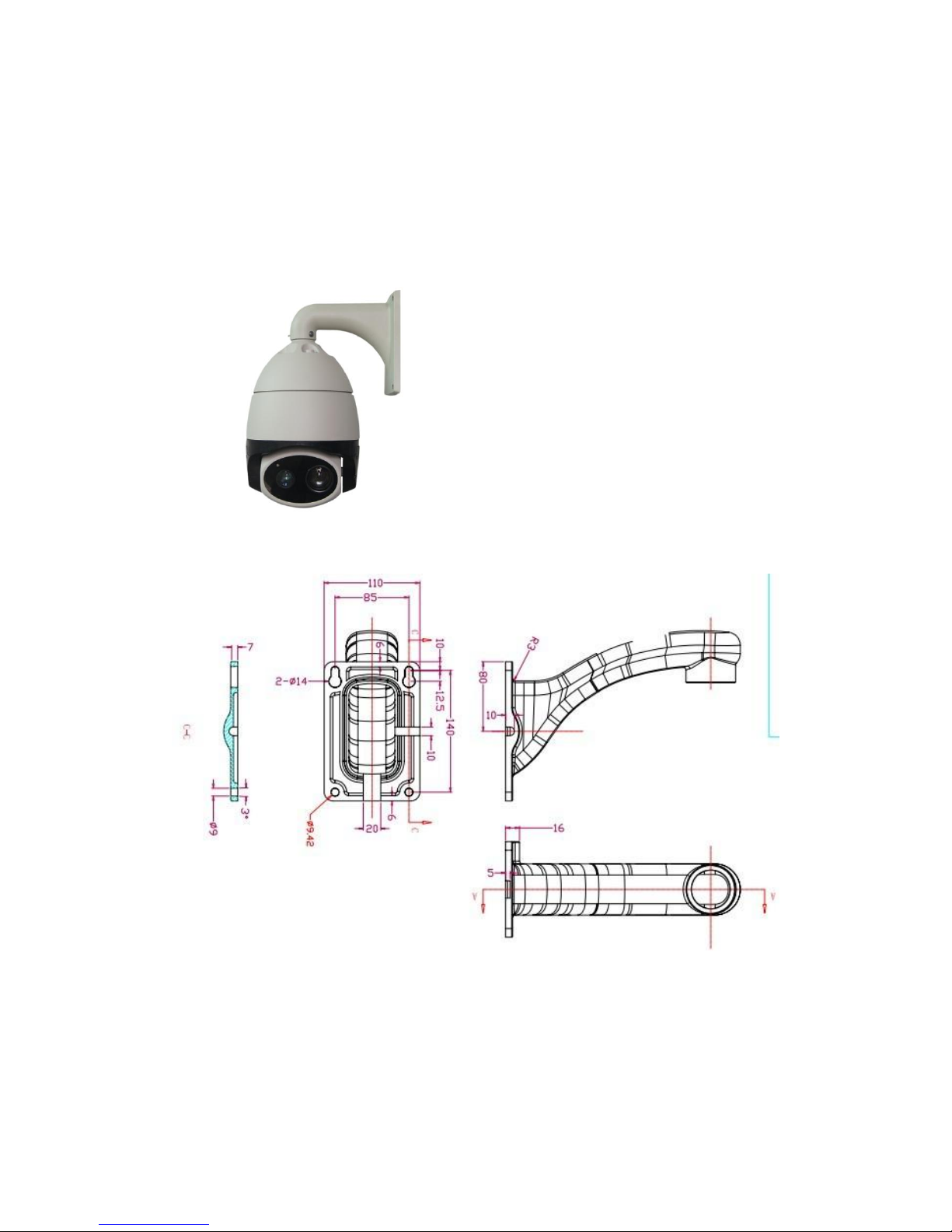

3.2.1 Speed dome install accessories dimension
Product Pic 3-1
Pic 3-1
Bracket size Pic 3-2
Pic 3-2

User manual
7
3.2.2 Speed dome camera installation
Step 1 :Bracket installationq
Pic 3-3 Determine the location of
the mounting screw holes Pic 3-4 Drill holes in the installation
Pic 3-5 Drill holes as required Pic 3-6 Tighten the screws
Be installed in the walls of the ball machine to determine the installation location, according
to the screw hole bracket on the wall with a signal pen draw hole,See Pic 3-3。Drill the hole as Pic
3-4。The expansion of the screw into the hole; the cable through the bracket, align the screw holes
on the bracket and then tighten the nut on the screw, As Pic 3-6。
Step 2 :Installation of the ball machine
3 on the bracket screws loose, align the ball machine frame blank into the head cover and
tighten the bracket screws on the three to prevent the ball machine off.

User manual
8
4 The basic operation of the speed dome camera
Since different platforms of concrete operation methods are not identical, Generally, should
be based on the system manufacturer's operating manual prevail under different
circumstances will have special requirements and methods of the operation, please
contact the dealer to obtain the necessary information.Here only Introduced the
keyboard how to control the ball machine method.
1.Power On Self Test
After the speed dome camera power on, the camera process the horizontal and
vertical movement by auto, Through the self-test to determine speed dome camera
work fine.
Control the camera rotation from top to bottom ,right to left:
After selected one camera, you can manually control the speed dome camera top
to bottom,right to left by the joystick .The joystick control the movement of the
camera, when the joystick shake to the right, the camera is also to right. Similarly,
when the joystick to the left , camera same too.
2. Preset setting
According to the following steps to set preset :
(1) select the camera (more information please read control of the keyboard
manual);
(2) operation joystick, zoom button, focus button, buttons adjust the camera
aperture screen;
(3) Press the number key +PRESET (Enter the specified preset ), save the preset
scene parameters.
3. Call preset
Follow the below step to watch the preset:
(1)select the camera;
(2) Press the number key +PREVIEW (enter the designated preset ), the camera
move to the preset position immediately, the lens zoom, focus and aperture is also
automatically change to the preset parameters; if the input is a special function of the
preset (see "Preset function menu"), the speed dome camera will perform with
special features preset of the corresponding functions (such as: Enter the 80 preset, the
camera auto-tracking feature). Preset function list
Special preset
Specific of function
INVOKE 64/95 PRESET
Enter the ball machine menu
INVOKE 57 PRESET
Enter CAMERA menu
INVOKE 56
PRESET/IRIS-
Forced to exit menu
INVOKE 97/99 PRESET
Start Auto Scan
INVOKE 96 PRESET
OR OTHER PTZ
CONTROL
Off Auto Scan

User manual
9
INVOKE 32 PRESET
Call 1 pattern scan
INVOKE 53 PRESET
Call 2 pattern scan
INVOKE 49 PRESET
Call 3 pattern scan
INVOKE 50 PRESET
Call 4 pattern scan
INVOKE 58 PRESET
Pattern scan 1
SET 51 PRESET
Set the right / left scanning 1 as beging
SET 52 PRESET
Set the right / left scanning 1 as Ending
INVOKE 51 PRESET
Invoke right/left scanning 1
INVOKE 52 PRESET
Invoke right/left scanning 2
INVOKE 93 PRESET
System restart
INVOKE 94 PRESET
Restore the factory parameters
INVOKE 59 PRESET
starts four combination functions (parades preset
points to 64 points)
INVOKE 100 PRESET
OR 1+F1
Manually open the first set of infrared light
INVOKE 101 PRESET
OR 2+F1
Manually open the second set of infrared light
1+F2
Manually close the first set of infrared light
2+F2
Manually close the second set of infrared light
INVOKE 106 PRESET
Infrared light automatically open mode
4.Close-up lens and wide-angle lens
Zoom adjustment, or to narrow the disparity between the camera lens, zoom in or
out the scenery to get close-up and wide-angle effect. Hold down the ZOOM+ , the
camera features are closer to the picture of the object is magnified; hold the ZOOM- ,
the camera features pulled away, the screen object has been reduced. If you press and
quickly release the zoom button, the camera monitor screen only for small changes.
The camera zoom changes depends on the length of time holding down the zoom
button.
5.Lens Focus Control
Focus is adjustable camera images of an object or scene in the clarity of the process.
Hold down the FOCUS+ from the distant objects or scenes clear up near objects
become blurred. Hold down the FOCUS-, proximity to clear up objects or scenes,
distant objects become blurred. Focus button repeatedly until you adjust the monitor
screen objects into clear from the ambiguity. The same as the zoom button, the camera
focused vary depending on the length of time holding down the focus button.
6.Manual Iris Function
The camera aperture to change the brightness of the screen. Hold down the IRIS+ ,
the camera picture change to light, hold down the IRIS- , the camera screen change to
dimmed. The same as the zoom button, the camera light dark vary depending on the
length of time holding down the aperture button.

User manual
10
5 Menu settings
This chapter will introduce the operation of OSD menu.Plug in power,after speed dome
self-test,you will see below information:
VERSION:V10.04
PROTOCOL:PELCO-P/D
BAUD RATE:2400
CAMERA ID:1
HORIZONTAL CHECK OK
VERTICAL CHECK OK
CAMERA CHECK OK
Different surveillance systems has different operation ways,detailed operation
please contact distributor.Here below is an easy introduction of NQJ302 control
keyboard(our company product)to operate OSD menu.
1.Enter main menu:setup No.95 preset,and you will enter OSD main menu.IRIS+
(iris open)is the confirm key,IRIS-(iris close)is the exit key.
2.Enter other menu:Up / down shake the joystick, so that the cursor is pointing
to a menu,press IRIS+enter the menu.
3.Function select:Up / down shake the joystick, so that the cursor is pointing to
a menu,press IRIS+select this function.
4.Parameter select:Up / down shake the joystick to select the parameter,press
IRIS+,then restore.
5.Restore settings:Press IRIS+ ,restore the settings,it is effective if has
corresponding prompt.
6.Does not restore and back to last menu: press IRIS- back to last menu, it is
effective if has corresponding prompt.
7.Exit menu: Up / down shake the joystick,so that the cursor is pointing to exit
option,press IRIS+exit OSD menu.
8.Back to previous menu:so that the cursor is pointing to back option,press
IRIS+ and back to previous menu.
Notes:Different speed dome setting,different display on speed dome.
The following is detailed description of use smart standard control keyboard to
oprate OSD menu:
5.1 Main menu
Speed dome work normally,set No.64/95 preset,enter main menu,screen display
is as Pic 3.1.

User manual
11
Pic 3.1 MAIN MENU
Main menu contents despription:
< CAMERA SETTINGS >
< DOME SETTINGS >
< FUNCTION SETTINGS >
< SYSTEM SETTINGS >
< SPECIAL FUNCTION >
<EXIT>
To enter the menu and the implementation of the various functions of the basic
operation is as follows:
1.On Pic 3.1 MAIN MENU,Up / down shake the joystick or Press ZOOM+
button/ZOOM- button,so that the cursor is pointing to a menu item or function
option;
2.Press FOCUS+ button,enter menu or operate a function option.
5.2 < CAMERASETTINGS >
On Pic 3.1 MAIN MENU,Up / down shake the joystick or Press ZOOM+
button/ZOOM- button,so that the cursor is pointing to CAMERA SETTINGS--->,
then press FOCUS+ button,Enter Pic 3.2 CAMERA SETTINGS
MAIN MENU
CAMERA SETTINGS--- >
DOME SETTINGS --->
FUNCTION SETTINGS--- >
SYSTEM SETTINGS --->
SPECIAL FUNCTION--- >
EXIT

User manual
12
Pic 3.2 CAMERA SETUP
CAMERA SETUP: checking the basic information of the speed dome camera.
Followings are the functions:
LANGUAGE:ENGLISH/Chinese
ZOOMDISP:zoom display,ON/OFF
AGC :Auto Gain,200(160---240/Auto)
BLC :Backlight compensation,ON/OFF
SHUTTER :AUTO---(1/50,1/120,1/250,1/500,1/1000,1/2000--1/10000)
FOCUS :AUTO/MANU/KEYAUTO
BRIGHT :130(60---170)。
COLORSEL:AUTO/BLACK/COLOR
LENINIT :
DEFAULT :
5.3 <DOME SETTINGS>
On Pic 3.1 MAIN MENU,Up / down shake the joystick or Press ZOOM+
button/ZOOM- button,so that the cursor is pointing to DOME SETTINGS--->,then
press FOCUS+ button,Enter Pic 3.3 DOME SETTINGS
CAMERASETUP
LANGUAGE ENGLISH
ZOOMDISP ON
AGC 200
BLC OFF
SHUTTER AUTO
FOCUS AUTO
BRIGHT 130
COLORSEL AUTO
MIRROR OFF
LENINIT ----
DEFAULT ----

User manual
13
Pic 3.3 DOME SETTINGS
On Pic 3.3 DOME SETTINGS,checking the basic information of the speed
dome camera. Followings are the functions:
DOME SETTINGS //Dome Setting
AUTO INVERT //Auto flip ON/OFF
IDLE TIME/MIN // Idle time (minutes):0~255,为0 hoursIdle time
function close
IDLE ACTIVE // Free
activation:NO/PRESET/SCAN/PATT
ERN/TOUR--- No / preset / scan /
pattern / cruise
ACTIVE No. // Air free activation number
REBOOT RUN // Restart function :
NO/PRESET/SCAN/PATTERN/TOU
R/LAST STA---
RUN No. // Restart function number
RETURN //Return
5.4 < FUNCTION SETTINGS >
On Pic 3.1MAIN MENU,Up / down shake the joystick or Press ZOOM+
button/ZOOM- button ,so that the cursor is pointing to FUNCTION
SETTINGS--->,then press FOCUS+ button enter Pic 3.4< FUNCTION SETTINGS >
memu
DOME SETTINGS
AUTO INVERT ON
IDLE TIME/MIN 0
IDLE ACTIVE NO
ACTIVE No.
REBOO TRUN NO
RUN No.
RETURN
FUNCTION SETTINGS
PRESET SETUP --->
TOUR SETUP--->
SCAN SETUP--->
PATTERN SETUP--->
RETURN

User manual
14
Pic 3.4< FUNCTION SETTINGS > Menu
<FUNCTION SETTINGS> checking the basic information of the speed dome
camera. Followings are the functions:
<PRESET SETUP>
<TOUR SETUP>
<SCAN SETUP>
<PATTERN SETUP>
RETURN
5.4.1<PRESET SETUP>
checking the basic information of the speed dome camera. Followings are the
functions:
On Pic 3.4< FUNCTION SETTINGS > memu,Up / down shake the joystick or
Press ZOOM+ button/ZOOM- button,so that the cursor is pointing to PRESET
SETUP--->;then press FOCUS+ button,See Pic 3.4.1:
Pic 3.4.1 <PRESET SETTINGS >
< PRESET SETTINGS > Followings are the functions:
PRESET No.:
PRESET SET:
PRESET CALL:
PRESET DELETE:
RETURN
5.4.2<TOUR SETTINGS>
On Pic 3.4 FUNCTION SETTINGS menu,Up / down shake the joystick or Press
PRESET SETTINGS
PRESET No. 1
PRESET SET
PRESET CALL
PRESET DELETE
RETURN

User manual
15
ZOOM+ button/ZOOM- button ,so that the cursor is pointing to TOUR
SETTINGS---> then press FOCUS+ button,enter Pic 3.4.2 TOUR SETTING。
Pic 3.4.2< TOUR SETTINGS >Menu
< TOUR SETTINGS > Followings are the functions:
TOUR No.:
STAY DELAY:(S):0~255
TOUR SPEED::0~63 SPEED
TOUR SET:
TOUR RUN:
TOUR DEL:
RETURN:
<TOUR SETTING>is used to set the camera automatically preset scan line.
Followings are the functions:
On Pic 3.4.2< TOUR SETTINGS > Menu,Up / down shake the joystick or Press
ZOOM+ button/ZOOM- button,so that the cursor is pointing to STAY DELAY
[(S)0~255S],then press FOCUS+ button/FOCUS- button,Left / right shake the
joystick, select the residence time
2.After,Up / down rocker rocking or press ZOOM+button/ZOOM-button,
make the cursor is pointing to TOUR SET,Press FOCUS+ buton enter,you will
see1~16 number preset,Left / right shake the joystick select No.1 Preset press IRIS+
button to saved,then it will auto to return to Pic 3.4.2,2~16 number preset will be
same setting。Cruise preset positioncan press ZOOM+ button ZOOM- button to
revised,after revised then press IRIS+ button to saved.
3.after,Up / down shake the joystick or press ZOOM+ button/ZOOM- button,
make the cursor is pointing to TOUR RUN.
TOUR SETTINGS
TOUR No. 1
STAY DELAY 4
TOUR SPEED 63
TOUR SET
TOUR RUN
TOUR DEL
RETURN

User manual
16
5.4.3<SCAN SETTINGS>
On Pic 3.4 FUNCTION SETTINGS,Up / down shake the joystick or Press
ZOOM+ button/ZOOM- button ,so that the cursor is pointing to SCAN
SETTINGS,then press FOCUS+button,enter Pic 3.4.3 Scan Setting Function。
Pic 3.4.3 SCAN SETTINGS
< SCAN SETTINGS > 。Followings are the functions:
SCAN No.:
SCAN MODE:(>180°or <180°)
SCAN SPEED::0~63 SPEED
START POSTION:
END POSTION:
SCAN RUN:
SCAN DELETE:
RETURN:
< SCAN SETTINGS > is used to set the camera automatically preset scan line.
Followings are the functions:
1.Select Scan number;
2.On Pic 3.4.3 SCAN SETTINGS,Up / down shake the joystick or Press
ZOOM+ button/ZOOM- button ,so that the cursor is pointing to <START
SCAN SETTINGS
SCAN No. 1
SCAN MODE <180
SCAN SPEED 55
START POSTION
END POSTION
SCAN RUN
SCAN DELETE
RETURN

User manual
17
POSTION>;
3.Press FOCUS+ button,enter SCAN RUN,Up / down shake the joystick,
press IRIS+button to saved;
4. Up / down shake the joystick or press ZOOM+button/ZOOM- button,make the
cursor is pointing to <END POSTION>;
5.Press FOCUS+ button,eneter SCAN DELETE,Up / down shake the joystick,
press IRIS+button to saved;
6. Up / down shake the joystick to select SCAN RUN。
5.4.4<PATTERN SETTINGS>
On Pic 3.1 FUNCTION SETTINGS,Up / down shake the joystick,make the
cursor is pointing to <PATTERN SETTINGS >,then press FOCUS+ button,enter
Pic 3.5 <PATTERN SETTINGS > menu.
Pic 3.5<PATTERN SETTINGS>
<PATTERN SETTINGS> Menu is used to record user-defined scan path。
Followings are the functions:
PATTERN No.:
RECORD NEW PATTERN:
PATTERN RUN:
PATTERN DELETE:
RETURN:
PATTERN SETTINGS
PATTERN No.
RECORD NEW PATTERN
PATTERN RUN
PATTERN DELETE
RETURN

User manual
18
Pattern scan is used to set and clear pattern scan line.
PATTERN No:Select PATTERN No。PATTERN No range 1~4。See as following:
1.On Pic 3.5<PATTERN SETTINGS >,Up / down shake the joystick,make the
cursor is pointing to PATTERN NO.;
2.Up / down shake the joystick or press ZOOM+ button/ZOOM- button,make
the cursor is pointing to < RECORD NEW PATTERN > press FOCUS+ button;
enter PATTERN RUN.
3.Up / down shake the joystick or press ZOOM+ button/ZOOM- button,
RECORD NEW PATTERN 4.Up / down shake the joystick or press ZOOM+
button/ZOOM- button, make the cursor is pointing to < PATTERN RUN >
press FOCUS+ button,PATTERN RUN;
5.5 SYSTEM SETTINGS
On Pic 3.1MAIN MENU,Up / down shake the joystick or press ZOOM+
button/ZOOM- button, make the cursor is pointing to SYSTEM SETTINGS--->,
then press FOCUS+ button,enter Pic 3.6 SYSTEM SETTINGS
Pic 3.6 SYSTEM SETTINGS
< SYSTEM SETTINGS >:
SYSTEM INFORMATION:
<DISPLAY SETUP>:
SYSTEM SETTINGS
SYSTEM INFORMATION
DISPLAY SETUP--->
CLEARANCE FUNCTION--->
FACTORY DEFAULT
SYSTEM REBOOT
RETURN
Table of contents
Other Atis Security Camera manuals
