Atlas Learn AL2430-2PH User manual



CLASSROOM TRAINING MANUAL
PREPARED FOR ST. MARYS
CITY SCHOOL DISTRICT
INCLUDES DVD, PROJECTOR,
CLASSROOM SOUND, INTERACTIVE
WHITEBOARD
PRESENTED BY
CRT TECHNOLOGIES
937-222-9840
WWW.CRTECHCORP.COM

– 5 – AtlasSound.com
Specifications are subject to change without notice.

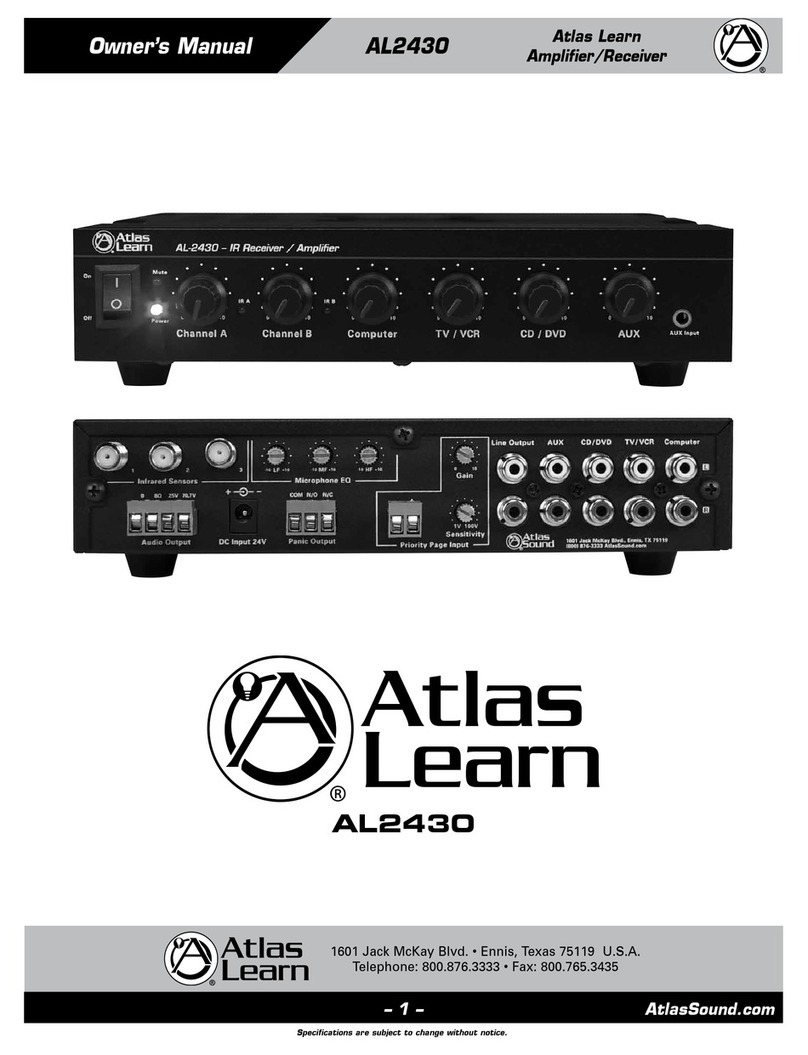

Owner’s Manual AL2430-2PH Wireless Infrared Classroom
Sound Reinforcement System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Introduction
Congratulations and thank you for purchasing the Atlas Sound Model AL2430-2PH Wireless Classroom Sound Reinforcement System.
This new and innovative professional grade audio system has been designed from the ground up to include unique features required
for delivering clear and concise audio to the classroom.
Features
• Works in Conjunction with Secondary Systems to Provide Enhanced Classroom Security
• Provides Excellent Infrared Wireless Sound Reinforcement
• Easily Integrates Into Any Classroom
• Keeps Teachers’ Voices Healthy and Sustainable
• 30 Watts Output at 8Ω, 25V, and 70.7V
• 6 Input Mixer with Priority Page Override
• Patent Pending Pole Mount Design
• Unique Handheld / Lanyard / Body Pack Transmitter Microphone
• System and Microphone Volume Controlled via Transmitter
Applications
The Atlas Learn AL2430 system is an in-classroom sound reinforcement solution designed for use in K-12 and higher education
facilities or where a room constrained public address system is required. This complete audio enrichment package consists of amplifier
/ receiver, wireless microphones, and docking station designed to allow the teacher and students to walk freely around the room with
the infrared microphones / system control units and project their voices through installed speakers.

AtlasSound.com – 6 –
Specifications are subject to change without notice.
Owner’s ManualAL2430-2PH Wireless Infrared Classroom
Sound Reinforcement System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
1. Power Switch
This toggle switch applies power to the AL2430.
2. Power LED
This LED will illuminate when the AL2430 is turned on.
3. Mute LED
This LED will illuminate when the AL2430 source inputs are
muted using MODE 2 of the AL-PH microphone.
(See page 9 for details)
4. IR A LED
This LED will illuminate when an active AL-PH microphone is
set to Channel A.
5. IR B LED
This LED will illuminate when an active AL-PH microphone is
set to Channel B.
6. Channel A
The gain for Mic Channel A is controlled by this rotary control.
7. Channel B
The gain for Mic Channel B is controlled by this rotary control.
8. Computer
The gain for the Computer input is controlled by this rotary
control.
9. TV / VCR
The gain for the TV / VCR input is controlled by this rotary
control.
10. CD / DVD
The gain for the CD / DVD input is controlled by this rotary
control.
11. AUX
The gain for the AUX Input is controlled by this rotary control.
12. AUX Input
This 3.5mm input jack provides unbalance stereo summing
inputs from iPods™/ MP3 players and overrides the input of
the rear panel AUX input.
1
3 6 7 8 9 10 11
2 4 5 12
AL2430 Front Panel Description

– 7 – AtlasSound.com
Specifications are subject to change without notice.
Owner’s Manual AL2430-2PH Wireless Infrared Classroom
Sound Reinforcement System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
13. Infrared Sensors
These three “F” type connectors are for input of the AL-IRDS
antennas.
14. Microphone EQ
These three rotary controls provide equalization of the wire-
less microphones. This 3 band EQ is centered at 100Hz,
3kHz, and 10KHz.
15. Audio Output
For loudspeaker connections, connect using the following
information or proceed to the setup section for typical wiring
diagrams.
COM - Speaker common or negative connection
8Ω- Connect to direct coupled loudspeakers
25V - Connect to transformer coupled, 25V loudspeakers with
a total load impedance of no less than 20.8Ω.
70V - Connect to transformer coupled, 70.7V loudspeakers
with a total load impedance of no less than 167Ω.
16. DC Input 24V
AL2430 power supply input.
(NOTE: Use only supplied power supply)
17. Panic Output
This SPDT relay output is controlled via the PANIC button on
the wireless microphones (See page 9 for details).
18. Priority Page Input
This input accepts line or speaker level input to allow an
external source to override the audio output of the AL2430.
19. Priority Page Sensitivity
This rotary control is used to set the input sensitivity of the
Priority Page Input.
20. Priority Page Gain
Sets audio gain for the Priority Page Input.
21. Line Output
This unbalanced output can be used to feed the AL2430 mix
bus to additional amplifiers or recording devises.
22. AUX Input
This dual RCA summing input is used for the input of auxiliary
audio sources like FM tuners.
23. CD / DVD
This dual RCA summing input is used for the audio input of
CD or DVD Players.
24. TV / VCR
This dual RCA summing input is used for the audio input of
TVs or VCRs.
25. Computer
This dual RCA summing input is for audio from a computer
sound card and is overridden by the front panel 3.5mm input.
15 16 17 18 19
13 14 20 21 22 23 24 25
AL2430 Rear Panel Description

AtlasSound.com – 8 –
Specifications are subject to change without notice.
Owner’s ManualAL2430-2PH Wireless Infrared Classroom
Sound Reinforcement System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
26. Microphone
High quality internal microphone is used when the unit is in
the handheld or lapel configuration.
27. Mode LEDs
These two LEDs indicate the current mode of the AL-PH.
(See page 9 for details)
28. IR LEDs
These separate clusters of IR LEDs ensure quality
communications with an AL-IRDS regardless of which
configuration the AL-PH microphone is in.
29. Battery Cover
Conceals two “AA” rechargeable batteries, IR channel switch
and Lockout mode switch.
30. IR Channel Switch
This slide switch sets the microphone channel “A” or “B”.
31. Lockout Switch
When this switch is set to the Lockout mode the unit works
as a microphone only, no operation buttons function. Also
referred to as "Student Mode".
32. Panic Button
Used in conjunction with the Mode button. A signal is sent to
the AL2430 Receiver / Amplifier to close the "Panic" relay that
sends a message to an external source, like a school's paging
system.
33. Mute Button
Depressing this button in Mode 1 mutes the Microphone
output of the AL2430 Receiver / Amplifier.
Depressing this button in Mode 2 mutes the multimedia
output of the AL2430
34. Power LED
Displays the battery power of the AL-PH.
Green indicates good battery power.
Red indicates Low battery power.
Off indicates the Microphone is turned off.
35. Headset Microphone Input
3.5mm jack for connection of the optional AL-HSM headset
microphone. When connected the internal microphone is
disabled.
36. Belt Clip/Lanyard Clip
Used to attached AL-PH to belt for Headset configuration or
to the included Lanyard for a lapel configuration.
37. Mode Button
Used to switch the AL-PH from Mode 1 or Mode 2 (See page
9 for detailed operation of Modes).
38. Power Button
When the AL-PH is Off holding this button for 3 seconds will
turn the unit on. In the On mode holding this button for 3
seconds will turn the unit Off.
39. Volume Button
Depressing the UP or DOWN button in Mode 1 will raise or
lower the microphone volume, Depressing the UP or DOWN
button in Mode 2 will raise or lower the multimedia volume.
27
28
28
39
38
37
26
36
29
35
34
33
32
3130
AL-PH Wireless Microphone Description

– 9 – AtlasSound.com
Specifications are subject to change without notice.
Owner’s Manual AL2430-2PH Wireless Infrared Classroom
Sound Reinforcement System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
AL-DOCK Description
40. Microphone Charging Receptacles
Holds the Microphones in place while charging.
The microphones can be placed in forwards or backwards.
41. Microphone Charging LEDs
These LEDs indicate the current charging status of each receptacle:
Red = Charging,
Green = Charged.
42. Battery Cover
This provides a charging location for four additional AA size batteries.
43. Additional Battery Charging LEDs
These two LEDs indicate the current charging status of the additional
battery charging locations:
RED = Charging
GREEN = Charged.
AL2430-2PH Function Description
The versatile AL-PH Microphone performs the functions of a wireless microphone and a system remote control. It can be used as
a Handheld Microphone, a Lapel Microhone with included Lanyard(AL-LANYARD), or a Belt Pack Microphone with optional AL-HSM
headset. Each AL-PH has a switch located under the battery door used to set its IR Channel to either A or B. One AL-PH must be set
to Channel A and the other AL-PH must be set to Channel B. The system will not function properly if there are two AL-PHs set to the
same IR channel.
Also located under the battery door is the LOCKOUT switch. When this is engaged all function buttons are disabled and the unit can be
used as a microphone only.
The AL-PH can be set in two different modes that effect the control it has over the AL2430 system.
Mode 1:
• The right side blue LED will be illuminated
• Volume UP / DOWN buttons will control the microphone volume
• The Mute button mutes the microphone
Mode 2:
• Both blue LEDs will be illuminated
• Volume UP / DOWN buttons will control the multimedia inputs on the AL2430 Receiver / Amplifier
• Mute button will mute the multimedia inputs on the AL2430 Receiver / Amplifier
Power and Panic buttons function as described below regardless of microphones mode setting.
The Power button needs to be pressed for three seconds to turn the unit on or off.
When the Panic button is pressed along with the Mode button, a signal is sent to the AL2430 Receiver / Amplifier. This closes its Panic
Output relay. The Panic Output relay can be connected to an external system. For example: the school's Paging / Intercom system to
alert someone of an event in the class room that requires immediate attention.
40
43
41
42

Using the Remote Control 51
Replacing the Batteries
The remote control uses two AA alkaline batteries. Follow these steps
when you need to replace them:
1. Press in the tab to remove the battery cover.
2. Remove the old batteries, then insert the new ones as shown.
3. Replace the battery cover. (It should click into place.)
caution
When replacing batteries,
take the following
precautions:
■Replace the batteries as
soon as they run out. If a
battery leaks, wipe away
battery fluid with a soft
cloth. If fluid gets on your
hands, wash them
immediately.
■Do not expose batteries to
heat or flame.
■Dispose of used batteries
according to local
regulations.
■Remove the batteries if
you won’t be using the
remote control for a long
period of time.
note
The remote control
automatically shuts off when
it detects a button being
pressed more than
30 seconds. This conserves
battery life. It can be
helpful, for example, when
the remote is in a carrying
case and the PPower
button is accidentally
pushed.

50 Using the Remote Control
■Zoom
Displays images using the full width of the projection area and
maintains the aspect ratio of the image. 4:3 ratio images are cut
off on the top and bottom.
■Full
Displays images using the full width of the projection area, but
does not retain the aspect ratio. 4:3 ratio images are elongated
horizontally.
■Through
Displays images as is (aspect ratio and resolution are maintained).
Black bands appear if the resolution is 1280 × 800 or less; images
are cut off if the resolution is over 1280 × 800.
Press the Aspect button repeatedly to cycle through the available
options.
You can also change the aspect ratio using the projector’s Signal
menu. See page 58 for details.

Using the Remote Control 49
Zooming Your Image
Follow these steps to zoom in on a portion of the image:
1. Press the E-Zoom + button on the remote control.
You see a crosshair indicating the center of the zoom-in area.
2. Use the four “arrow” buttons on the remote control to position
the crosshair in the area you want to enlarge.
3. Continue pressing the E-Zoom + button to enlarge the selected
area up to 4 times.
4. While the image is enlarged, you can:
■Use the arrow buttons to pan about.
■Press the E-Zoom – button to zoom out.
5. When you’re done, press the ESC button to return to the original
size.
Changing the Image’s Aspect Ratio
You can use the Aspect button on the remote control to change the
aspect (width to height) ratio, depending on the input signal.
■Auto (video images only)
Automatically sets the aspect ratio according to the input signal.
4:3 ratio images display at 4:3, squeeze-recorded signals display at
16:9, and letterbox signals display at Zoom ratio (described
below).
■Normal
Displays images using the full projection area and maintains the
aspect ratio of the image. 4:3 ratio images project with black
bands on the sides, 16:9 images project with black bands on the
top and bottom, and 16:10 images use the entire projection area.
■16:9
Converts the aspect ratio of the image to 16:9. 4:3 ratio images
are elongated horizontally to fit.
E-Zoom
buttons
Arrow
buttons
Aspect
button

48 Using the Remote Control
Turning Off the Picture and Sound
Press the A/V Mute button on the remote control to turn off the
image and sound and darken your screen. This is useful if you want to
temporarily re-direct your audience’s attention without the distraction
of a bright screen.
To turn off the picture and sound, press the A/V Mute button. The
screen goes dark.
To turn the image and sound back on, press the button again.
You can create an image, such as a company logo or a picture, to
display on the screen whenever you press the A/V Mute button. See
page 67 for more information.
Stopping Action
Press the Freeze button to stop the action in your video or computer
image and keep the current image on the screen. The sound will
continue, however. Also, because the source continues to transmit
signals, you won’t resume the action from the point you paused it.
To restart the action, press the Freeze button again.
A/V Mute
button
Freeze
button

Using the Remote Control 47
Adjusting the Color Mode
You may want to adjust the color mode to select a different setting
that is appropriate for the image you’re projecting and the
environment in which you’re projecting it. Press the Color Mode
button on the remote control.
If you’re projecting computer or RGB video images, the default color
mode is Presentation, which is appropriate for full-color
presentations in bright rooms.
The following table lists the color modes available.
You can also use the projector menu system to change the color mode
in the Image menu (see page 57).
Color mode Description
Dynamic Use for projecting the brightest picture.
Presentation Use when you’re projecting a full-color presentation in
a bright room.
Theatre Use when projecting movies in a dark room.
Photo Best for projecting still images with vivid color in a
bright room (computer input only).
Sports Best for projecting TV programs in a bright room
(component, composite, or S-Video input only).
sRGB Use when projecting computer images conforming to
the sRGB color standard.
Blackboard Choose this fixed color mode when you need to
project against a green blackboard.
Whiteboard Choose this fixed color mode when you need to
project against a whiteboard.
Color
Mode
button

46 Using the Remote Control
Controlling the Picture and Sound
You can use the remote control to select your source, adjust the colors,
temporarily turn off the picture and sound, freeze the action, or zoom
in on the picture. Make sure you have set up your projector and
connected any equipment as described in Chapter 1.
Switching Between Picture Sources
If you’ve connected your projector to more than one computer and/or
video source, you can use the Source Search button on the projector
or remote control to switch between the different sources.
After you select a source, the screen goes dark for a moment before the
image appears. The name of the selected source (such as Computer1
or S-Video) appears briefly on the screen.
Source Search
button

3
45
33
Using the Remote Control
The remote control lets you access your projector’s features from
anywhere in the room—up to 20 feet (6 m) away. For example, you
can turn the projector on and off, freeze the presentation, zoom in on
a portion of your image, and access the menu system. (The projector
menus let you adjust many projector settings; see Chapter 4.)
When using the remote control, stand within 20 feet (6 m) of the
projector. Point the remote control either at the front or back of the
projector or at the screen (the projector’s front sensor can detect
signals bounced off the screen). Press the button for the function you
want to use.
This chapter covers the following information:
■Controlling the picture and sound
■Replacing the remote control batteries

15
RQT9046
Getting Started
Watching Television
This DVD recorder has a tuner which allows it to directly receive and record
analog and terrestrial digital channels. High Definition (HD) programming is
“down-converted” and recorded in Standard Definition (SD).
Preparation:
Turn on the television and select the appropriate video input to suit the
connections to this unit (Example: AV input).
to turn the unit on.
“HELLO” appears on the unit’s display.–
to select desired channel.
You can also select channels with the numbered buttons.
To directly enter channels for analog and digital broadcasts:
Antenna Mode: Cable TV Mode:
e.g., “3”: [0] ➔[3] ➔[OK] e.g., “5”: [0] ➔[0] ➔[5] ➔[OK]
“13”: [1] ➔[3] ➔[OK] “15”: [0] ➔[1] ➔[5] ➔[OK]
To enter the sub channel number for a digital broadcast:
Antenna Mode: Cable TV Mode:
e.g., “3-1”: [3] ➔[-] ➔[1] ➔[OK] e.g., “1-1”: [1] ➔[-] ➔[1] ➔[OK]
“13-1”: [1] ➔[3] ➔[1] ➔[OK] “15-1”: [1] ➔[5] ➔[-] ➔[1] ➔[OK]
The hyphen appears automatically on “Antenna Mode” if you enter two numbers.
•
•
To set Favorite Channels
You can define a Favorite list containing your favorite channels only. (Up to 30 channels)
1. After selecting the desired channel to set
Press [SUB MENU].
2. Press [e, r] to select “Set Favorite”, then press [OK].
3. Press [e, r] to select the position on the list, then press [OK].
−Press [w, q] to change between pages.
−You can also select a list number (1-9 and 0) with the numbered buttons.
To delete the favorite channels registered
Press [e, r] to select the channel on the list, then press [OK].
To select a channel from the Favorite list
1. Press [FAVORITE].
2. Press [e, r] to select a channel, then press [OK].
−Press [w, q] to change between pages.
−You can also select a channel with the numbered buttons.
Notes
It is possible to select a channel from the Favorite list for instant or scheduled
recording (➔17, 18).
If you set “Surf Mode” to “Favorite” (➔47), then only the Favorite channels can be
selected using [CH 1, 2].
You can register channels in the Favorite list from Channel Setting list (➔46, Setting
favorite channels).
•
•
•
Notes
This unit can receive most Basic
Cable television channels. It can not
receive Premium Services that require
additional fees or a separate decoder.
This unit can receive music channels
from digital broadcasters, but you
cannot record them. Data broadcasts
are not for viewing or recording.
Multi-channel surround broadcast is
output in stereo (on 2 channels).
Tips
To zoom in on video
1. Press [SUB MENU].
2. Press [e, r] to select “Zoom In”, then
press [OK].
•
•
•
Basic Operations
DMR-EZ28-PPC(RQT9046-P).indb15DMR-EZ28-PPC(RQT9046-P).indb15 2007/12/0715:25:352007/12/0715:25:35

16
RQT9046
Preparation:
Turn on the television and select the appropriate video input to suit the
connections to this unit (Example: AV input).
Playing Discs
Refer to “Advanced Playback” (➔26, 27) for detailed information on playback.
RAM -R -R DL -RW(V) +R +R DL +RW DVD-V -RW(VR) CD
to turn the unit on.
“HELLO” appears on the unit’s display.–
;
OPEN/CLOSE
to open the tray (Button located on the upper front of the unit).
Insert a disc.–
The tray closes and play begins.–
Stopping Play
Press [gSTOP].
The stopped position is
memorized. (Resume play
function)
The stopped position is cleared
when you press [gSTOP] two or
more times, or press
[;OPEN/CLOSE].
–
–
Pausing Play
Press [hPAUSE].
Press again to restart play.–
Tips
Icons such as “ RAM ” indicate usable discs. Refer to pages 62 and 63.
Notes
RAM -R -R DL -RW(V) +R +R DL +RW -RW(VR)
Playback starts from the most recent recording.
DVD-V CD
Playback starts from the beginning of the disc.
DivX
DivX Menu screen appears (➔29).
The unit takes some time to read the disc before play starts.
Discs continue to rotate while menus are displayed. Press [gSTOP] when you finish to
preserve the unit’s motor and your television screen.
•
•
•
•
•
Playback
DMR-EZ28-PPC(RQT9046-P).indb16DMR-EZ28-PPC(RQT9046-P).indb16 2007/12/0715:25:362007/12/0715:25:36

17
RQT9046
Basic OperationsBasic Operations
Recording Television Programs
Refer to “Important Notes for Recording” (➔20) and “Advanced Recording” (➔21 to 23) for detailed information on
recording.
RAM -R -R DL -RW(V) +R +R DL +RW
Preparation:
Turn on the television and select the appropriate video input to suit the
connections to this unit (Example: AV input).
RAM If the disc is protected, release protection (➔44).
•
•
to turn the unit on.
“HELLO” appears on the unit’s display.–
;
OPEN/CLOSE
to open the tray (Button located on the upper front of the unit).
Insert a disc with enough remaining blank space and press
[;OPEN/CLOSE] again to close the tray.
–
to select desired channel.
Antenna Mode:
e.g. channel 4-2
Cable TV Mode:
e.g. channel 102-45
To select with the numbered buttons (➔15).
When no channel setting is performed on the unit and broadcast is
recorded directly from the cable box or satellite receiver, select a
channel on the connected equipment and press [INPUT SELECT]
to select “IN1” or “IN2”.
–
–
to select the recording mode.
Recording mode should be determined by program length and
available time on the disc (➔21).
Recording mode Remaining time
–
to start recording.
REC
Pausing Recording
Press [hPAUSE].
Press again to restart recording.–
Stopping Recording
Press [gSTOP].
Tips
Icons such as “ RAM ” indicate usable
discs. Refer to pages 62 and 63.
Notes
-R -R DL -RW(V) +R +R DL +RW
It takes about 30 seconds for the unit
to complete recording management
information after recording finishes.
You cannot change the channel or
recording mode during recording.
•
•
DMR-EZ28-PPC(RQT9046-P).indb17DMR-EZ28-PPC(RQT9046-P).indb17 2007/12/0715:25:382007/12/0715:25:38

18
RQT9046
Scheduled Recording
Refer to “Advanced Scheduled Recording” (➔23, 24) for detailed information on scheduled recording.
RAM -R -R DL -RW(V) +R +R DL +RW
Preparation:
Turn on the television and select the appropriate video input to suit the
connections to this unit (Example: AV input).
RAM If the disc is protected, release protection (➔ 44).
Insert a disc with enough remaining blank space.
Confirm that the clock on the unit’s display is set to the correct time.
If connected via a cable box or satellite receiver, set channel on that
equipment before scheduled recording starts.
•
•
•
•
•
CANCEL
S
SUB MENU
Timer Off A
Schedule List Remaining Recording Time
3/26 Tue 12:53 PM
1:58 SPDVD
ChannelNo
Press OK to set new schedule.
Date On
New Scheduled Recording
Off Mode Check
OK
e, rto select “New Scheduled Recording”, then
w, qto move through the items and e, rto set
the items.
Channel/Input TV Station/External Input
To select a favorite channel
(To set Favorite Channels, see page 15.)
1. Press [SUB MENU].
2. Press [e, r] to select “Change Surf Mode”, then press [OK].
3. Press [e, r] to select “Favorite”, then press [OK].
–
Date/Frequency You can set a daily or weekly program.–
On (start time) / Off (end time)
Hold button to change in 30-minute increments.–
Mode Recording mode, see page 21–
Name Press [OK], see page 33.–
To delete all items
1. Press [SUB MENU].
2. Press [e, r] to select “Delete”, then press [OK].
Channel, Caption
Preview of selected
channel
SCHEDULED
RECORDING
Channel/
Input Date/
Frequency
--------
On
-- : -- --
Off
-- : -- --
Mode
--
OK
Name
Number
--
0 9
4-1
4-1 KPO-SD
Remaining Recording Time
3/26 Tue 12:53 PM
1:58 SPDVD
Cancel
Set Channel/Input.
S
SUB MENU
Surf Mode: All
−Repeat steps 2−4 to program other recordings.
when you have finished programming.
“z” lights on the unit’s display.
Scheduled recording can be started only when the unit is turned off.
–
–
Notes
To prevent recording errors
Set a scheduled recording period slightly
longer than the actual program (to make
sure the program is recorded in full).
Be sure to perform step 5 before the
scheduled recording time. When the
unit is turned off, “z” lights on the unit’s
display to indicate scheduled recording
standby has been activated.
“z” flashes when the unit cannot go to
scheduled recording standby. (e.g., a
recordable disc is not in the disc tray)
It does not flash if Quick Start is off.
When scheduled recordings are set to
start one immediately after another, the
unit cannot record the beginning of the
later program.
If two scheduled recording times overlap
the recording that started first always
has priority. The second recording will
start only after the first recording has
finished.
If two starting times is the same the
recording that programmed later always
has priority.
Depending on the Daylight Savings Time
(DST) settings for this unit, scheduled
recordings may be affected when the
seasons change.
•
•
•
•
•
•
•
Tips
Icons such as “ RAM ” indicate usable
discs. Refer to pages 62 and 63.
DMR-EZ28-PPC(RQT9046-P).indb18DMR-EZ28-PPC(RQT9046-P).indb18 2007/12/0715:25:402007/12/0715:25:40

19
RQT9046
Basic OperationsBasic Operations
Important: Once deleted, contents cannot be recovered.
Preparation:
Turn on the television and select the appropriate video input to suit the
connections to this unit (Example: AV input).
Insert the disc containing the recording to be deleted.
RAM If the disc is protected, release protection (➔44).
•
•
•
Delete Navigator
RAM -R -R DL -RW(V) +R +R DL +RW
to select the DVD drive.
With the unit stopped
Playback
Program
Delete
Other Functions
FUNCTIONS Cartridge Protection Off
Disc Protection Off
DVD-RAM
OK
e, rto select “Delete”, then
RAM When the Album View screen is displayed,
press to switch to the Recordings screen.
No.
--
0 9
DELETE Navigator
DVD-RAM Recordings
Page 02/02
Previous
10 10/27 Mon
Next
Delete
07
8 10/27 Mon
08
-- -- --
--
S
SUB MENU Select NextPrevious
Video Picture
B
A
No.
--
0 9
DELETE Navigator
DVD-RAM Recordings
Page 02/02
Previous
10 10/27 Mon
Next
Delete
07
8 10/27 Mon
08
-- -- --
--
S
SUB MENU Select NextPrevious
Video Picture
B
A
e, r, w, qto select the recording, then
wto select “Delete”, then
Tips
To return to the previous screen
Press [RETURN].
To view other pages
Press [e, r, w, q] to select “Previous” or “Next”, then press [OK].
You can also press [u, i] to view other pages.
Multiple editing
Select with [e, r, w, q], then press [hPAUSE]. (Repeat.)
A checkmark appears. Press [hPAUSE] again to cancel.
Delete Recordings During Playback
RAM -R -R DL -RW(V) +R +R DL +RW
During playback
wto select “Delete”, then
•
•
Deleting Recordings
Notes
You cannot delete while recording.
+R +R DL +RW Even if you have set
protection on other equipment, such
recordings are deleted.
Tips
Icons such as “ RAM ” indicate usable
discs. Refer to pages 62 and 63.
RAM Deleting an item increases the
available disc space, for the amount
of space taken up by the item being
deleted.
-R -R DL +R +R DL Available disc space
does not increase after deletion.
-RW(V) +RW Available disc space
increases when you delete the last
recording (the recording space may
increase slightly when other recordings
are deleted).
•
•
•
•
•
•
DMR-EZ28-PPC(RQT9046-P).indb19DMR-EZ28-PPC(RQT9046-P).indb19 2007/12/0715:25:422007/12/0715:25:42

20
RQT9046
Recording of
multilingual
broadcasts
Analog broadcasts:
RAM
Both Main and SAP are recorded.
You can change the audio during playback (➔27, Changing
Audio during Playback).
Main SAP
Hello Hola
If you record from external equipment
(➔24)
Select both “Main” and “SAP” on the
external equipment.
•Main
-R -R DL -RW(V) +R +R DL +RW
Select the Main or SAP audio before
recording.
[➔51, Multi-channel TV Sound (Analog)]
The selected audio only is recorded.
Hello If you record from external
equipment (➔24)
Select “Main” or “SAP” on
the external equipment.
•
Digital broadcasts:
Press [AUDIO] to switch audio. (➔22)
The selected audio only is recorded.
Recording of
Widescreen
broadcasts
RAM
Recorded in 16:9 aspect (Widescreen)
-R -R DL -RW(V) +R +R DL +RW
Recorded in 4:3 aspect
If you have a regular 4:3 aspect TV and you receive 16:9 aspect images from a digital broadcast, they will appear in
the letterbox format (➔77, Letterbox).
•
Copy-once
Recording
It is not possible to record digital broadcasts that allow “One time only recording” onto DVD-R, DVD-R DL, DVD-RW,
+R, +R DL, +RW or 8 cm (3˝) DVD-RAM discs. Use the CPRM (➔77) compatible DVD-RAM.
•
RAM CPRM compatible discs only
When purchasing discs, check that they support CPRM.•
-R -R DL -RW(V) +R +R DL +RW
Yes No
12 cm (5˝)
Playing the
disc on other
DVD players
-R -R DL -RW(V) +R +R DL
The disc must be finalized after recording (➔45).
All DVD-R, etc. discs recorded on this unit must be finalized before they can be played on other DVD players. Once
finalized DVD-R, etc. become “read-only” and can no longer be used for recording. DVD-RW can be reused after
finalizing.
Whether DL discs recorded on this unit can be played on other DVD Players will depend entirely on the capabilities of
that player. 100 % compatibility is not guaranteed to.
CHG
SEARCH
ENTER
OFF
MENU
RETURN
TOPMENUDISPLA
Y
VOL
ON
A.SURROUND
MONITORMODE
PICTUREMODE
REPEAT
OPEN
DCIN9V
ê/I ê CDSEQUENTIAL
DISC
DOUBLERE-MASTER ;º 1 :/65/9 DISCEXCHANGE DISC SKIP < OPEN/CLOSE
1 2345
Record to DVD-R, etc.
Finalize
Play on other DVD equipment
+RW We recommend you create the menu before playing a +RW disc on other equipment (➔45).
RAM DVD-RAM can be played back on Panasonic DVD recorders and DVD-RAM compatible DVD players.
Recording
to DVD-R DL
and +R DL
DVD-R DL and +R DL discs have two layers of recording surface on one side.
-R DL Recordings are divided when recording changes from the first layer to the second. Some images and audio
may be lost at this point.
+R DL Recordings continue through the layer change with only a slight pause similar to what you will see with
commercial DVD-Video discs. Any recording exceeding 8 hours in length is automatically divided whether a layer
change is required or not.
•
•
The second layer
The available
space
The first layer
Recording 1 Recording 2
(Disc inner
side)
Recording/Playback direction
(Disc outer
side)
Layer change:
Recording divided,
some images and
audio lost.
Recording 3
DVD-R DL
Important Notes for Recording
DMR-EZ28-PPC(RQT9046-P).indb20DMR-EZ28-PPC(RQT9046-P).indb20 2007/12/0715:25:452007/12/0715:25:45

21
RQT9046
Advanced FeaturesAdvanced Features
Recording Modes and Estimated Disc Recording Time
Recording Mode
DVD-RAM DVD-R,
DVD-RW, +R,
+RW (4.7 GB)
DVD-R DL*3,
+R DL*3 (8.5 GB)
Single-sided
(4.7 GB)
Double-sided*1
(9.4 GB)
XP (High quality) 1 hour 2 hours 1 hour 1 hour 45 minutes
SP (Standard play) 2 hours 4 hours 2 hours 3 hours 35 minutes
LP (Long play) 4 hours 8 hours 4 hours 7 hours 10 minutes
EP (Extra long play) 8 (6*2) hours 16 (12*2) hours 8 (6*2) hours 14 hours 20 minutes
(10 hours 45 minutes*2)
FR (Flexible Recording) 8 hours maximum 8 hours maximum
for one side 8 hours maximum 14 hours 20 minutes maximum
*1 It is not possible to record or play continuously from one side of a
double sided disc to the other.
*2 When “Recording Time in EP Mode” has been set to “EP-
Extended Play (6H)” in the Setup menu (➔50)
The sound quality is better when using “EP-Extended Play (6H)”
than when using “EP-Extended Play (8H)”.
*3 Refer to “Recording to DVD-R DL and +R DL” (➔20).
EP (6H)*2
EP (8H)
LP
SP
XP
Recording time
Picture quality
Notes
This unit uses variable bit rate (VBR) recording which varies the
amount of data recorded to suit the images, so actual recording
times and remaining recording times shown by the unit will be
different. (-R DL +R DL The difference will be especially noticeable.)
Use a disc with plenty of remaining time to be sure.
When recording to DVD-RAM using EP (8H) mode, play may not be
possible on DVD players, even if they are compatible with DVD-
RAM. In this case use EP (6H) mode.
When the format confirmation screen is
displayed
Important:
Formatting permanently deletes all disc contents (including
computer data), regardless of protection status of disc.
RAM -RW(V) +RW
The following screen may
appear when inserting a new
disc, etc.
Only format the disc if you
intend to use it for recording.
Do not format if you intend to
view pre-recorded material from the disc.
This disc is not formatted properly.
Do you want to format the
disc in DVD Management?
Format
No
Yes
wto select “Yes”, then
Tips
Refer to “Formatting Discs or Cards” (➔44) for more detail of formatting.
It will take several minutes to format the disc. (DVD-RAM may take
up to a maximum of 70 minutes.)
•
•
•
•
FR (Flexible recording mode)
Using “Flexible Recording” is convenient in these kinds of situations:
When the amount of free space on the disc makes selecting an
appropriate recording mode difficult
When you want to record a long program with the best picture quality possible
e.g., Recording a 90 minutes program to 4.7 GB DVD-RAM disc:
4.7 GB
DVD-RAM
4.7 GB
DVD-RAM
4.7 GB
DVD-RAM
4.7 GB
DVD-RAM
A second disc is necessary for
30 minutes of the program.
If you select SP mode, the program will fit on one disc.–
However there will be 30 minutes
remaining disc space.
If you select “Flexible Recording” the program will fit on one disc
perfectly.
–
If you select XP mode, the program will not fit on one disc.–
You can set FR mode when programming scheduled recordings
(➔18) and flexible recording (➔22).
Tips
Maximum number of recordings to a disc
RAM -R -R DL -RW(V) 99 recordings on a disc
+R +R DL +RW 49 recordings on a disc
When removing a Recorded Disc
-R -R DL -RW(V) +R +R DL
After recording, if you
press [;OPEN/CLOSE] to
eject the disc, the following
screen may appear.
Finalizing is necessary to enable playback
of the disc on compatible DVD players.
Once finalized, recordings cannot be added to the disc.
It will take approximately minutes. Start ?
Press "REC" to start finalizing.
Press the OPEN/CLOSE button to postpone
finalizing.The disc can be played only on
this unit.You can Finalize it later.
Finalize
to start finalizing.
or
; OPEN/CLOSE
to eject the disc without finalizing.
Notes
You cannot stop finalizing once you have started it.
Tips
If you want to provide the disc with a name or set play menu select,
select “Disc Name” (➔44) or “Playback will start with:” (➔45) in
“DVD Management” before finalizing.
Refer to “Finalizing” (➔45) for more detail of finalizing.
It will take a few minutes to finalize the disc. (Some discs may
take up to a maximum of 60 minutes.)
•
–
–
•
•
•
Advanced Recording
DMR-EZ28-PPC(RQT9046-P).indb21DMR-EZ28-PPC(RQT9046-P).indb21 2007/12/0715:25:482007/12/0715:25:48
