Atlas LED SM82TEN-B User manual

– 1 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
SM82TEN-B / SM82TEN-WH
Surface Mount Loudspeakers

– 2 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Table of Contents
Introduction ............................................................................................................................................................................................................ 3
Key Features........................................................................................................................................................................................................... 3
Placement .............................................................................................................................................................................................................. 3
Installation .............................................................................................................................................................................................................. 4
8ΩConnections...................................................................................................................................................................................................... 5
Line Matching Transformer Connections................................................................................................................................................................ 6
Maintenance and Care ........................................................................................................................................................................................... 6
Specifications ......................................................................................................................................................................................................... 7
Dimensional Drawings ........................................................................................................................................................................................... 8
Warranty ............................................................................................................................................................................................................... 12

– 3 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Introduction
Thank you for purchasing the AtlasIED SM82TEN Strategy Series®surface mount loudspeakers. The SM82TEN loudspeaker is designed to provide high
fidelity, long life and installation convenience for commercial and residential applications. Their weather-resistant properties make them perfect for use
indoors or out. The SM82TEN is available in either black or white.
Key Features
• Includes internal, high efficiency 70.7V / 100V transformer (may be bypassed by 8Ωoperation)
• Barrier strip input with weather resistant cover
• Bracket included for wall mounting (EN54-24 Mounting Evaluated)
• Also compatible with optional mounting systems (EN54-24 Mounting Not Evaluated)
• Mounting system must be rated to support at least 10 lbs (4.5kg)
Placement
Outdoor Use
The materials used in the construction of the SM82TEN loudspeaker systems are weather resistant. The hardware is brass, the grille is powder-coated
aluminum, and the bracket is zinc plated, powder coated steel. The enclosure itself is shatter resistant. Adhering to these mounting guidelines will
further extend the life of the product when installed outdoors:
• Whenever possible, mount the speaker under an eave or other protective overhang
• Always aim the speaker downward, at a 15-18 degrees angle, to prevent water from accumulating on the speaker cone
• Do not place the speaker in a location where water, snow, or ice will accumulate on the speaker for extended periods of time
Indoor Use
The SM82TEN loudspeaker works very well when it is wall-mounted in indoor applications. When the loudspeaker is placecd on a wall, it can take
advantage of the natural boundary effect that occurs when a loudspeaker system is placed against one or more surfaces. This boundary effect will
provide increased overall output. When mounted against one surface (on a wall), the loudspeaker output will increase by 3dB. When mounted against
two surfaces (on the wall near the ceiling or corner), the loudspeaker output increases by 6dB. When mounted against three surfaces (in a corner near
the ceiling), the loudspeaker output increases by 9dB.
Shelf Mounting (Indoor)
The bottom surface of the SM82TEN is a flat 90° to the speaker baffle to maintain level surface when placing on shelves. All models can also be
horizontally installed in any placement option.

– 4 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Installation
Fixed Install
The SM82TEN loudspeaker includes a versatile yet simple U-bracket designed to provide easy vertical or horizontal installation on almost any surface.
The loudspeaker may be installed using screws or bolts placed through the “Keyhole” shaped holes in the mounting bracket. The center 5/8" hole
allows wire to exit through the bracket when wall mounting, for a clean installation. The unused inserts on the rear of the SM82TEN are 1/4"-20. These
openings can be used with forged eyebolt and approved safety cable (wire rope sling) where redundant support is required for seismic or safety
considerations. These parts are available through multiple sources:
• Eyebolt, Lifting With Shoulder, Steel, Plain Finish, 1/4"-20 Thread Size, 1" Thread Length, 1" Shank Length, 17/32" Shoulder Diameter,
5/32" Shoulder Length, 3/4" Eye Inside Diameter, 11/4" Eye Outside Diameter, 23/8" Overall Length, 500 lb. Working Load Limit
• Galvanized Steel Cable Spool, 1/8"
• Sleeve N Thimble™Kit for 1/8" Cable
• Swage It Tool for 1/16", 3/32", and 1/8" Cable Size
• The mounting knobs included with the SM82TEN may be easily interchanged with standard, 1/4"-20 vandal proof hardware
• TORX Drive Button Head 1/4" Machine Screw, Tamperproof, 1/2" Length
• One-Way Round Head 1/4" Machine Screw, Tamperproof, 1/2" Length
• Spanner Flat Head 1/4" Machine Screw, Tamperproof, 1/2" Length
• Terminal Weather Cover Conduit Connection for 1/2" Length
Overhead Suspension
CAUTION: Suspending any object is potentially dangerous and should be attempted only by individuals who have thorough knowledge of the
techniques and regulations of rigging objects overhead using ONLY hardware approved for this type of installation. AtlasIED strongly recommends
that SM82TEN loudspeakers only be suspended overhead when taking into account all current national, federal, state, and local regulations. It is the
responsibility of the installer to insure that the speaker is installed according to those regulations. If the SM82TEN loudspeaker is suspended, AtlasIED
strongly recommends that the system be inspected at least once a year. If any signs of weakness or damage is detected, remedial action should be
taken immediately.
ATTENTION: La suspension de tout objet est potentiellement dangereuse et ne devrait être accomplie que par du personnel qualifié, compétent et au
fait des différentes loi et restrictions en matière de gréage et en n’utilisant que du matériel approuvé pour ce type d’installation. AtlasIED recommande
fortement que les haut-parleurs SM82TEN ne soit suspendus qu’en tenant compte de la règlementation locale, provinciale et nationale. Il incombe à
l’installateur de d’assurer que l’ouvrage effectuée rencontre les lois et règlementation en vigueur. Si le haut-parleur SM82TEN est suspendu, AtlasIED
recommande fortement que l’installation soit inspectée une fois par année. Si l’installation est endommagée, ou montre des signes de faiblesse, des
actions correctives doivent être entreprises immédiatement.

– 5 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Terminal Cover
The SM82TEN includes a weather-resistant terminal cover with grommet. Remove cover to gain access to the barrier strip. Feed service line through
grommet before terminating to barrier strip. Secure terminal cover (with grommet) over barrier strip when complete. The weather-resistant cover and
grommet must be used in all applications.
8ΩConnections
The SM82TEN loudspeakers include an 8Ωswitch position.
CAUTION: Do not set switch to 8Ωposition when speakers are wired in 70.7V / 100V Systems.
The SM82TEN include a two pole barrier strip housed by a weather-resistant cover. The barrier strip is designed to accept either spade connectors or
bare wire.
Amplifier limitations will dictate how many SM82TEN loudspeakers may be connected. Most consumer amplifiers are rated to operate at a 4Ω
minimum output impedance per channel (check the back panel of the amplifier or the amplifier owners manual to verify). With this arrangement, two
SM Series loudspeakers may be connected in parallel to each channel of the amplifier (two 8Ωloudspeakers per channel = a 4Ωload). (See Figure 1)
Be sure to use good quality, unshielded twisted pair speaker cable to connect the amplifier to the loudspeaker(s) (#14AWG for runs <80', #12AWG for
runs >80'). Standard ZIP style speaker cable may also be used if twisted pair cable is not available.
DO NOT USE SHIELDED INSTRUMENT STYLE (Guitar) CABLES TO CONNECT SPEAKERS.
When making connections, be sure to maintain proper polarity between speakers. (Red wire to red or (+) terminal, black wire to black or (–) terminal
where applicable) AtlasIED offers several auto-former speaker selectors (AtlasIED ASL series) and volume controls (Whisper Touch series) that will
allow you to connect multiple pairs (up to 6) of 8Ωloudspeakers without damaging your amplifier. Contact your dealer or factory for details.
Figure 1
+––
– – ––
+
+
8Ω8Ω8Ω
4ΩEach Channel
Right
AtlasIED HPA602 Amplifier
4Ωper Channel
Left Input
8Ω
+ ++

– 6 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Line MatchingTransformer Connections
The SM82TEN includes a two pole barrier strip housed by a weather-resistant cover. The barrier strip is designed to accept either spade connectors or
bare wire. AtlasIED recommends using #18AWG for wire runs up to 500', #16AWG for wire runs of 500' to 1000', and #14AWG for runs over 1000'.
The weather-resistant cover will except a 1/2" conduit adaptor when terminating a conduit connection. Building codes often dictate that speaker wire
must be plenum rated and run in conduit. Be sure to check local code requirements before installation.
The SM82TEN is equipped with line matching transformers. These types of loudspeakers require an amplifier capable of driving a 70.7V line in order
to ensure that the wattage taps selected will be appropriate. If the amplifier is not rated for 70.7V output, the AtlasIED AF140 autoformer can be used
and configured as a step-up transformer for this purpose. Contact a local dealer for details.
Connect the speaker cable to the (+) and (–) barrier strip terminals on the back of the SM82TEN. Using a small screwdriver, adjust the wattage selector
switch on the back of the SM82TEN to the desired wattage tap.
CAUTION: Do not set switch to 8Ωposition when speakers are wired in 70.7V / 100V Systems.
Quantity of loudspeakers per amplifier will be dictated by the amplifier’s wattage rating (at least 20% headroom should be allowed for extended range
program material) i.e. a 120-watt amplifier will power 6 loudspeakers tapped at 15-watts each.
(6 x 15 = 90 Watts + 20% (120 x 0.2) headroom (24 Watts) = 114 <120W) (See Figure 2)
Maintenance and Care
AtlasIED surface mount loudspeakers have been designed and manufactured for years of trouble-free service. Clean the SM82TEN with a dampened
soft cloth or paper towel. If the loudspeaker is mounted high on a wall or ceiling, use a broom or duster to gently brush it off. Spraying the speaker
with high-pressure water is not recommended and will void the warranty.

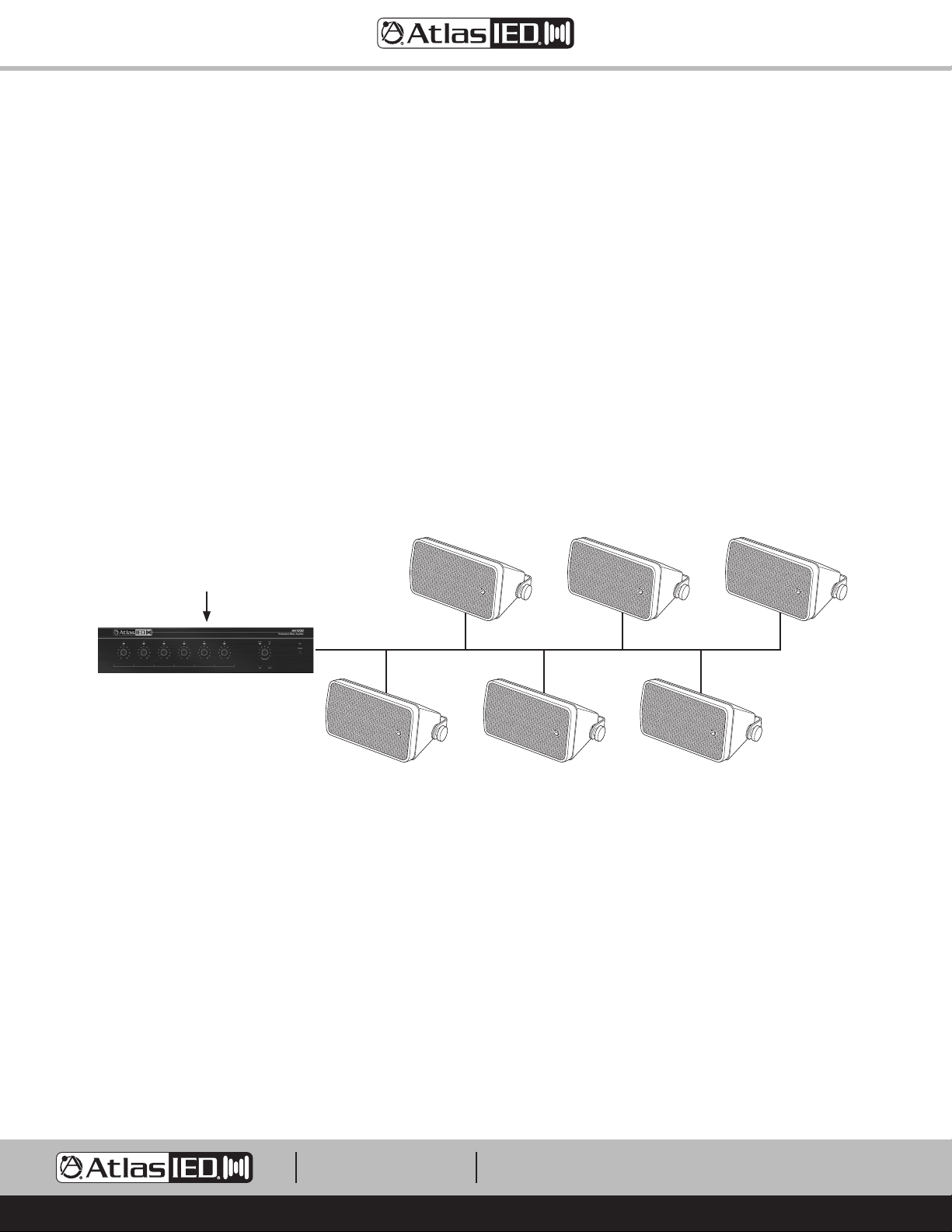

Figure 2
6 x 15 Watts = 90 Watts Total Load on Amplifier
15W Tap
15W Tap
15W Tap
15W Tap
15W Tap
15W Tap
AtlasIED AA120G Amplifier
120 Watt 70.7V Output
Input

– 7 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
System
Type Surface Mount Loudspeaker
Operation Mode Non-Powered Passive
Operating Range (-10dB) 74.5Hz - 20.00kHz
Frequency Response (±5dB) 58Hz - 20kHz
Usable Low Frequency Limit (3dB Down Point) 51Hz
Input Sensitivity at 1W / 4M (EN54-24) 72dB
Max Input Ratings (8Ω)150 W Continuous, 300 W Program
34.6 Volts RMS, 49 Volts Peak
Transformer Taps - 70V 60W (83Ω), 30W (167Ω), 15W (333Ω), 7.5W (667Ω) 3.8W (1333Ω), 1.9W (2632Ω) and Low Impedance (8Ω)
Transformer Taps - 100V 60W (167Ω) RNP, 30W (333Ω), 15W (667Ω), 7.5W (1333Ω) 3.8W (2632Ω) and Low Impedance (8Ω)
Directivity Factor (Q) 13.5 @ 2kHz
Directivity Factor (DI) 11.3 @ 2kHz
Power Handling in 8ΩSwitch Position 150 Watts
Max SPL at 4m EN54-24 (Passive 60W @ 100V) 88.8dB (±3dB)
Transducer Complement
High Frequency 1" Exit Compression Driver
Low Frequency 8" Hycone Treated Woofer
Crossover Frequency 2.2kHz
Crossover Slope 12dB / Octave
Input Connections 2 Pole Barrier Strip with Weather-Resistant Cover
Driver Protection (High Frequency) AtlasIED PolyGuard™
Mechanical
Color White (RAL-9014) or Black (RAL-9011)
Materials UV-Resistant PC / ABS Injection Molded Weatherproof Enclosure.
(Black or White Finish) Perforated Powder Coated Aluminum Grille Matches Enclosure Color
Ingress Protection (EN54-24) IP33C
Weight (Net) 19.98 lbs (9.06kg)
Dimensions 9.07" W x 16.50" H x 8.44" D (230mm x 419mm x 214mm)
Warranty Coverage
Warranty Period 5 Years
Notes:
1. Power: All power figures are calculated using the rated nominal impedance.
2. Frequency response and sensitivity are free field measurements.
3. Recommended power amplification is 1.5X program power
4. RNP - Rated Noise Power

– 8 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

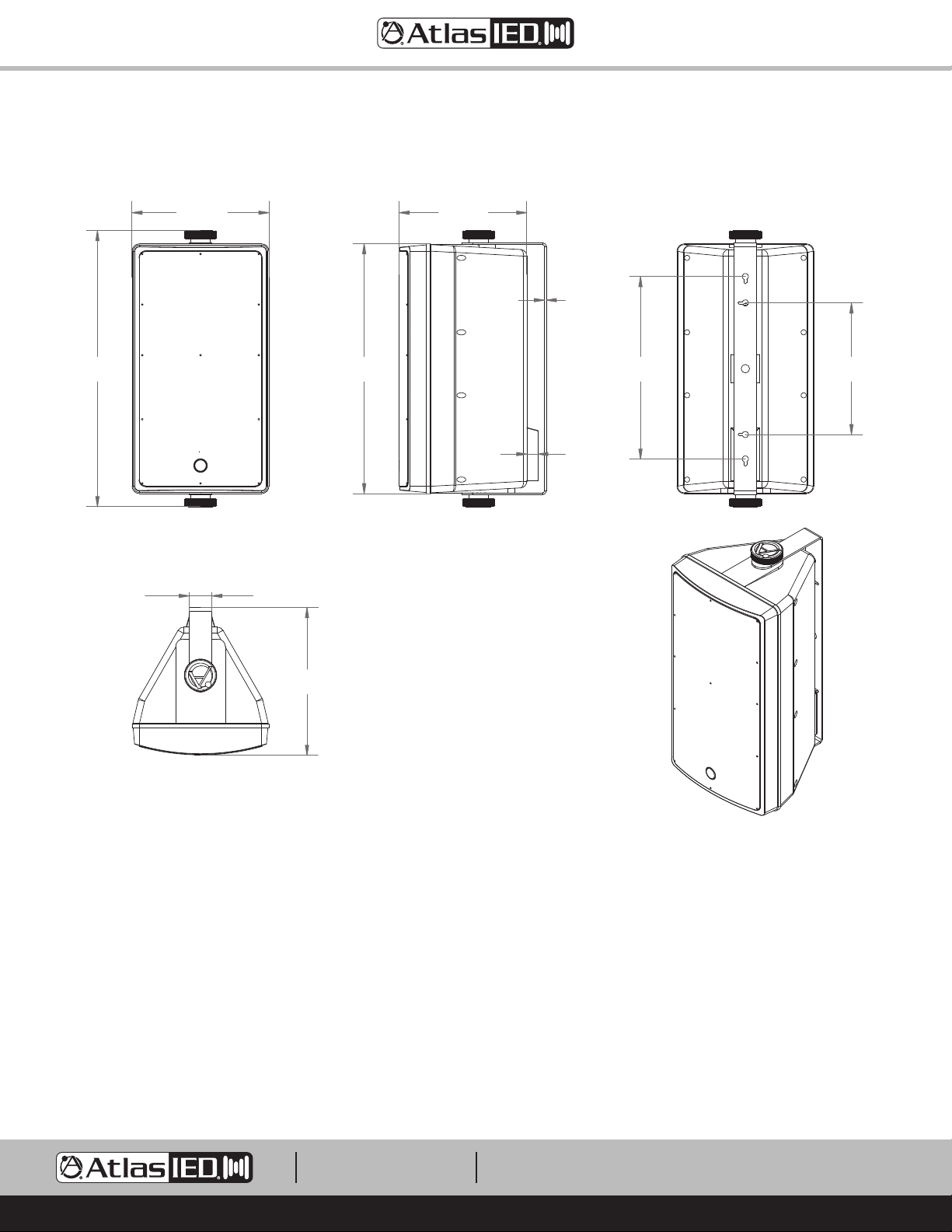

Dimensional Drawings
18.43"
(468.2mm)
16.5"
(419mm)
12.13"
(308.10mm)
8.75"
(222.25mm)
10.33"
(262.3mm)
9"
(228.6mm)
2.15"
(54.6mm)
8.45"
(214.6mm)
0.1"
(3.18mm)
1.3"
(33.02mm)

– 9 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Frequency Response
Frequency (Hz) 4 meters
SPL, LZeq (dB)
100
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000

– 10 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

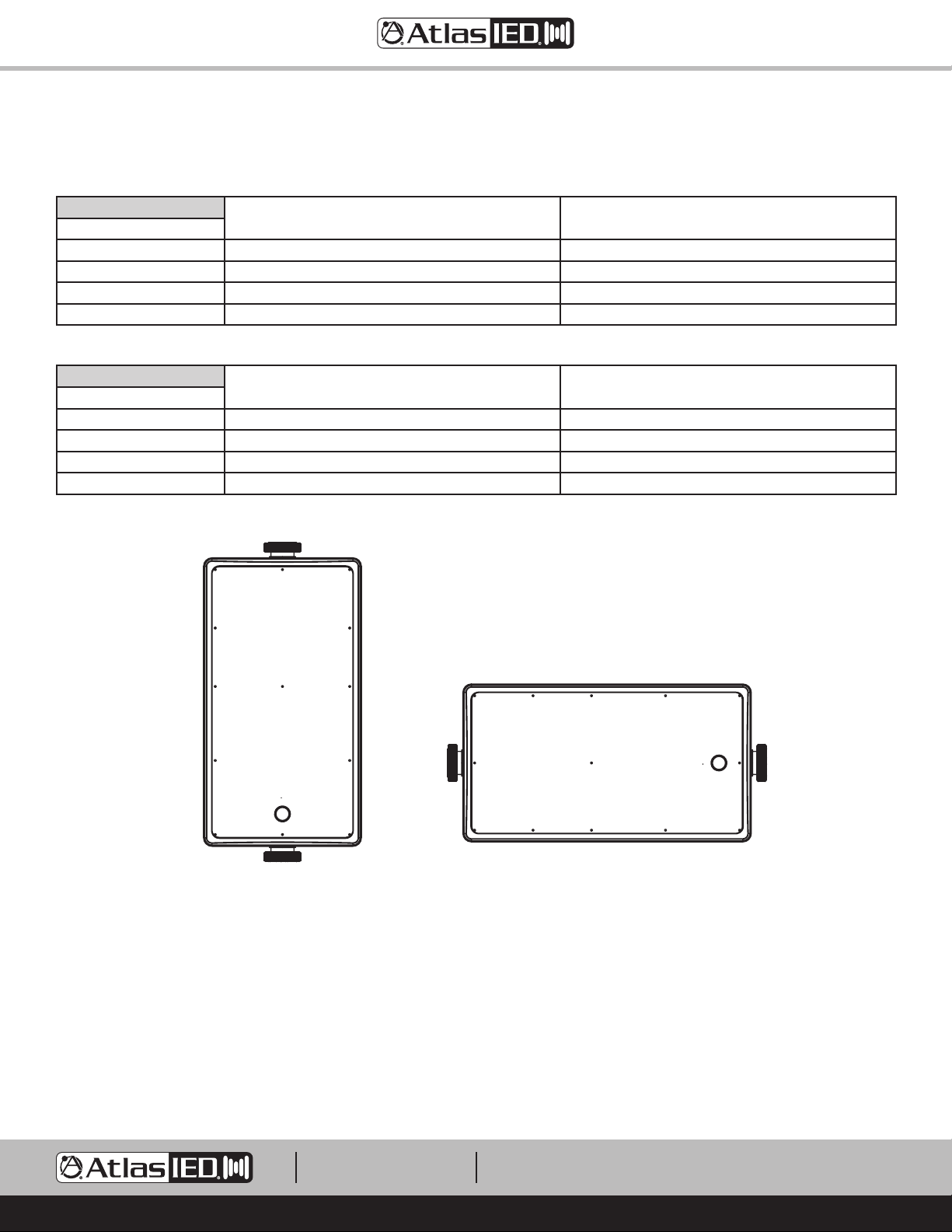

Horizontal (Figure A) Rotated right from the reference axis of the speaker
(6 dB drop angle)
Rotated left from the reference axis of the speaker
(6 dB drop angle)
Center Octave Band (Hz)
500 82° 92°
1000 60° 60°
2000 36° 40°
4000 24° 24°
Vertical (Figure B) Rotated right from the reference axis of the speaker
(6 dB drop angle)
Rotated left from the reference axis of the speaker
(6 dB drop angle)
Center Octave Band (Hz)
500 83° 94°
1000 65° 65°
2000 47° 44°
4000 30° 30°
Reference Axis - A horizontal line running through the center of the speaker, from back to front.
Reference Plane - The facial plane of the speaker.
Reference Point - The intersecting point of the Reference Axis and Reference Plane.
Horizontal Plane - The horizontal plane across the reference point when the device is placed upright.
Figure A Figure B

– 11 –
SM82TEN
Owner’s Manual
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Notes
Atlas Sound LP
1601 Jack McKay Blvd. Ennis, TX 75119 USA
DoP No. 3005
EN 54-24:2008
Loudspeaker for voice alarm systems
for fire detection and fire alarm systems for buildings.
Surface Mount Speakers 60W
SM82TEN Series
Type B
28210843
2222
UK Representative:
POLAR Audio Limited
Unit 3, Clayton Manor, Victoria Gardens,
Burgess Hill, RH15 9NB, UK
[e-mail]
EU representative:
Mitek Europe
23 Rue des Apennins
75017 Paris, France
[email protected]

– 12 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Limited Warranty
All products manufactured by AtlasIED are warranted to the original dealer / installer, industrial or commercial purchaser to be free from defects in
material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for
a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on
electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses
and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the
product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible for defects
caused by improper storage, misuse (including failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water
immersion, lightning discharge, or malfunctions when products have been modified or operated in excess of rated power, altered, serviced or installed
in other than a workman like manner. The original sales invoice should be retained as evidence of purchase under the terms of this warranty. All
warranty returns must comply with our returns policy set forth below. When products returned to AtlasIED do not qualify for repair or replacement
under our warranty, repairs may be performed at prevailing costs for material and labor unless there is included with the returned product(s) a written
request for an estimate of repair costs before any nonwarranty work is performed. In the event of replacement or upon completion of repairs, return
shipment will be made with the transportation charges collect.
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLASIED
SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE
INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT
NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
Service
Should your SM82TEN require service, please contact the AtlasIED warranty department through the online warranty claim process.
Online Warranty Claim Processes
1. Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be
selected.
2. Once selected, you will be prompted to enter your login credentials. If you do not have a login, register on the site. If already logged-in, navigate to
this page by selecting “Support” and then “Warranty & Returns” from the top menu.
3. In order to file a Warranty Claim, you will need:
A. A copy of the invoice / receipt of the purchased item
B. Date of Purchase
C. The product name or SKU
D. The serial number for the item (if no serial number exists, enter N/A)
E. A brief description of the fault for the claim
4. Once all required fields are completed, select the “Submit Button”. You will receive 2 emails:
1. One with a confirmation of the submission
2. One with a case# for your reference should you need to contact us.
Please allow 2-3 business days for a response with a Return Authorization (RA) number and further instructions.
AtlasIED Tech Support can be reached at 1-800-876-3333 or atlasied.com/support.
Visit our website at www.AtlasIED.com to see other AtlasIED products.
A copy of the DoP can be found at www.AtlasIED.com/SM82TEN-(B or WH)
©2022 Atlas Sound L.P. The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs LLC. All Rights Reserved.
All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS006201 RevC 8/22
