ATrack AX7 User manual

AX7
User Manual
Revision: 03
Revision Date: 2012/06/25
ATrack Technology Inc.
3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist.,
Taipei City 11493, Taiwan (R.O.C.)
Tel: [phone]
Fax: [phone]
http://www.atrack.com.tw

Confidential Document
©ATrack Technology Inc.All Rights Reserved. Page 2 of 22
Contents
1.Notification..............................................................................................................................3
1.1.Disclaimer ....................................................................................................................................3
1.2.Copyright......................................................................................................................................3
1.3.Warning........................................................................................................................................3
2.Introduction.............................................................................................................................4
2.1.Package Content .........................................................................................................................4
2.2.AX7 OBD-II Compliant.................................................................................................................4
3.Hardware Features.................................................................................................................5
3.1.OBD-II Protocol............................................................................................................................5
3.2.Micro USB Connection.................................................................................................................5
3.3.Buzzer Operation.........................................................................................................................5
3.4.Power Supply...............................................................................................................................5
3.5.Wireless Relay.............................................................................................................................6
3.6.LED Indication..............................................................................................................................6
4.Configration............................................................................................................................7
4.1.USB Driver Installation.................................................................................................................7
4.2.Configure the AX7 device ..........................................................................................................10

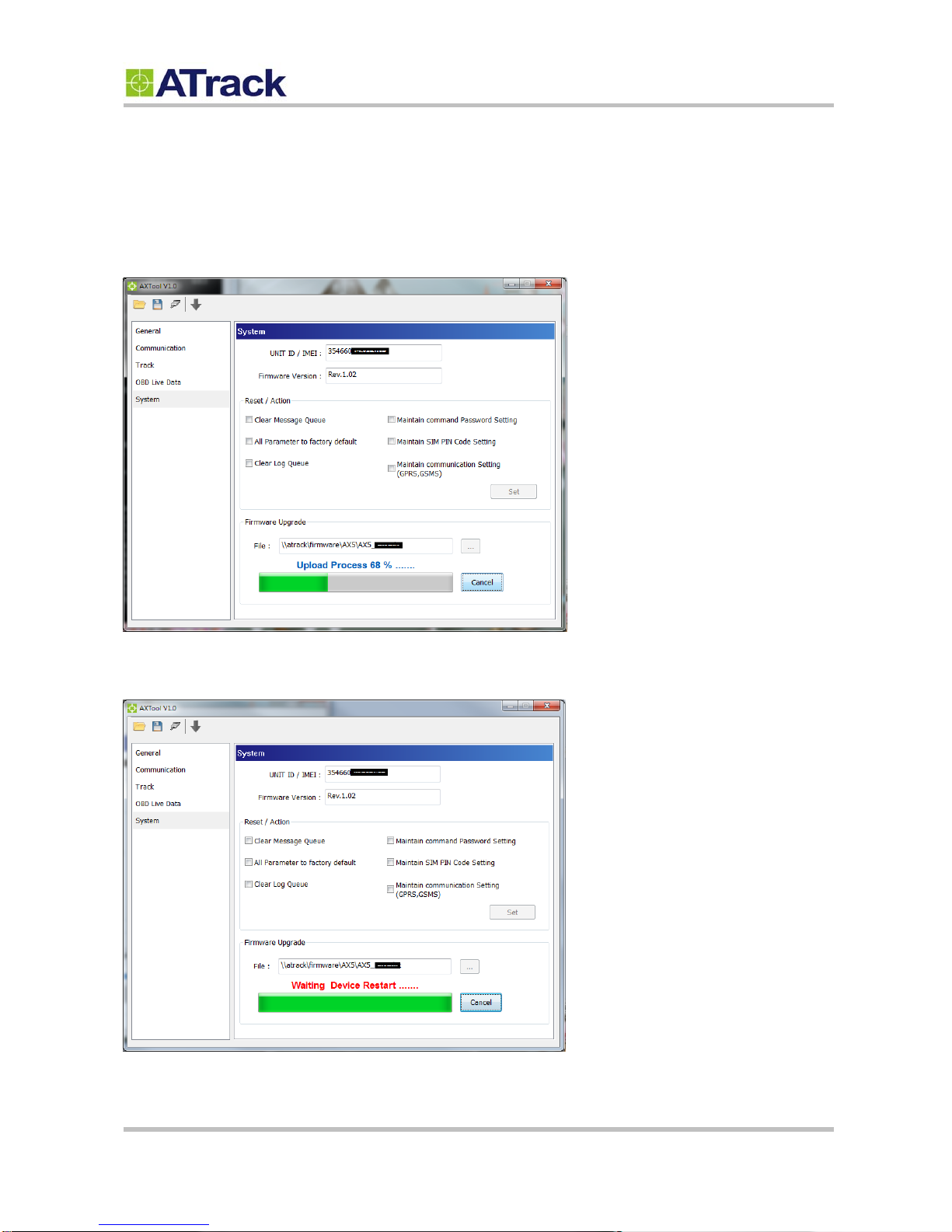

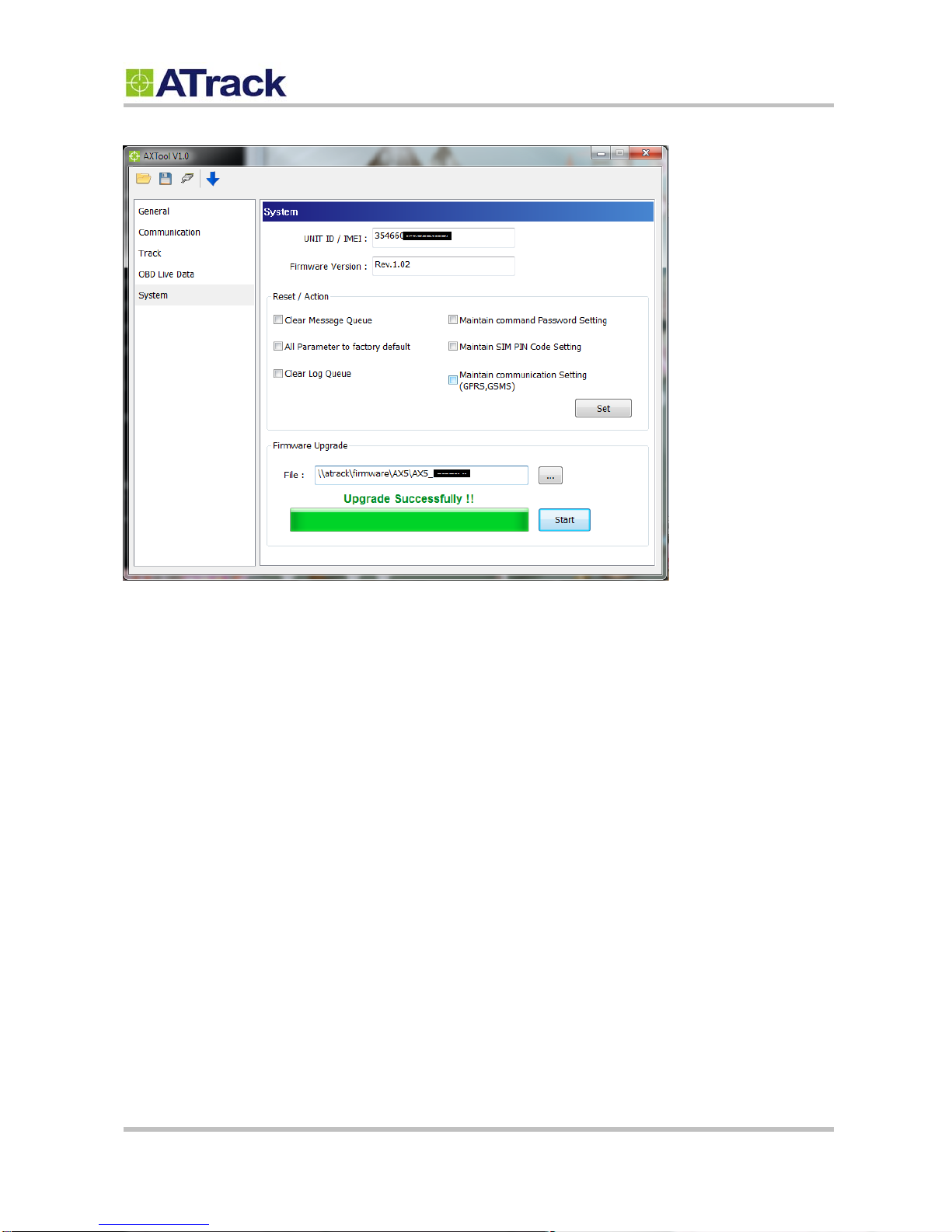

4.3.Firmware Upgrade.....................................................................................................................15
5.Installation.............................................................................................................................17

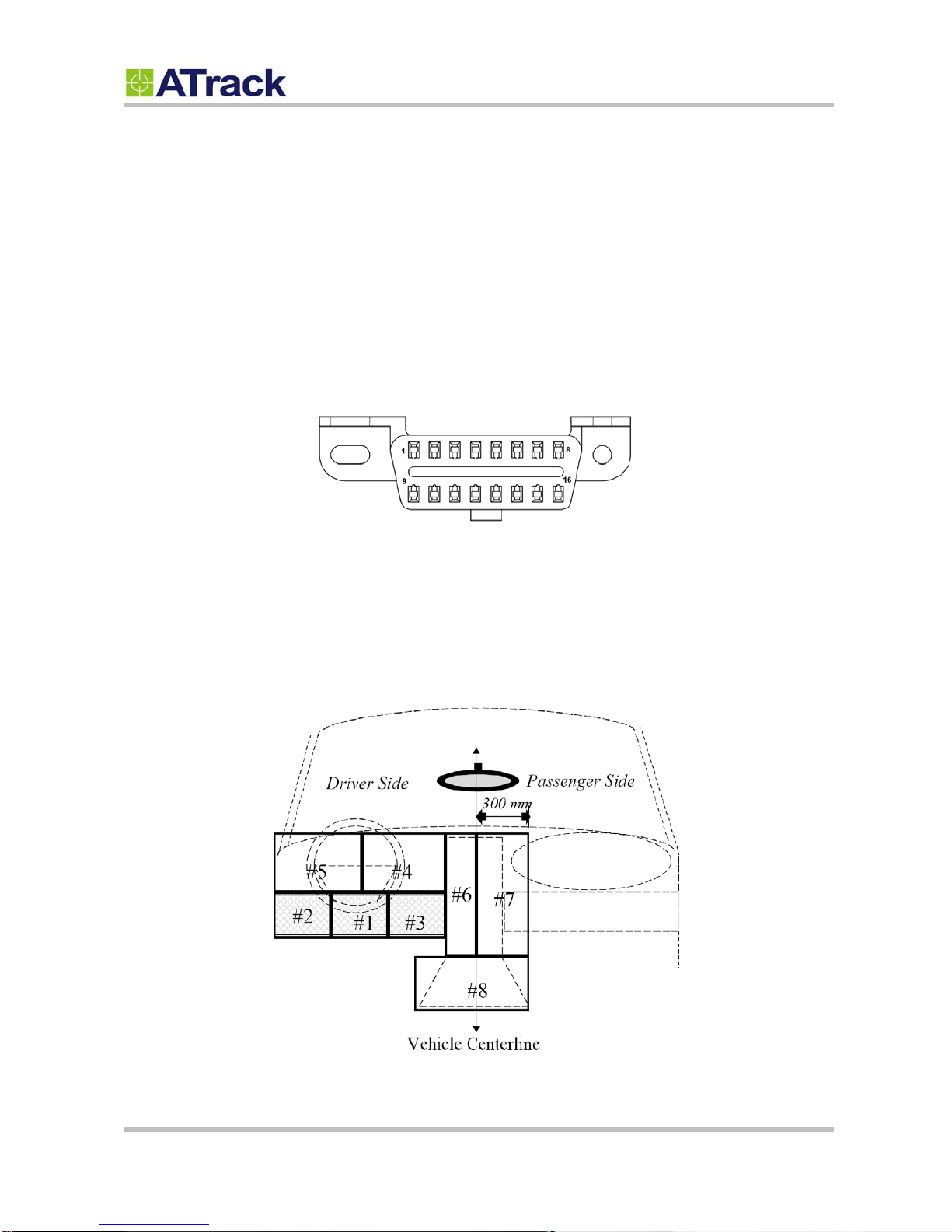

5.1.What is the OBD-II DLC Connector...........................................................................................17
5.2.Using Low Profile OBD-II Extension Cable................................................................................18
5.3.GPS Performance for Installation ..............................................................................................19
5.4.Simple Verification for Installation..............................................................................................20
6.Appendix................................................................................................................................21
6.1.Hardware Specification..............................................................................................................21
6.2.FCC Regulations:.......................................................................................................................22

Confidential Document
©ATrack Technology Inc.All Rights Reserved. Page 3 of 22
1
1. . N No ot ti if fi ic ca at ti io on n
1
1. .1 1. . D Di is sc cl la ai im me er r
This document, and all other related products, such as device, firmware, and software, is developed by
ATrack Technology Inc. thoroughly. At the time of release, it is most compatible with specified firmware version.
Due to the functionalities of the devices are being developed and improved from time to time, the change in
the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology
Inc. is obligated to modify all the documentation without the limitation of time frame. A change notice shall be
released to ATrack Technology Inc. customers upon the completion of document modification.
ATrack Technology Inc. products are not intended to be used as life support or rescue equipments. ATrack
Technology Inc. is not liable for any loss or injury caused by using or referencing to any products. Any possible
means of using or integratingATrack Technology Inc. products shall be avoided.
1
1. .2 2. . C Co op py yr ri ig gh ht t
ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries.
Any or all parts of this document shall not be exposed to non-authorized party without any form of approval
from ATrack Technology Inc. Any forms, including but not limited to oral, copy, or internet sharing, of releasing
or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the
rights of litigation in the violation of such copyright laws.
1
1. .3 3. . W Wa ar rn ni in ng g
Connecting the wire inputs can be hazardous to both the installer and your vehicle’s electrical system if not
done by an experienced installer. This document assumes you are aware of the inherent dangers of working
in and around a vehicle and have a working understanding of electricity.

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 4 of 22
2
2. . I In nt tr ro od du uc ct ti io on n
AX7 GPS Tracking Device is the most advanced and economical diagnostic device for communicating vehicle
information to the GSM/GPRS networks. With integrated high sensitive GPS receiver, the AX7 provides the
fundamental functions with optional advance features for tracing light trucks and passenger vehicles in need
of monitoring location, speed, and many other codes available on the OBD port of vehicles.
2
2. .1 1. . P Pa ac ck ka ag ge e C Co on nt te en nt t

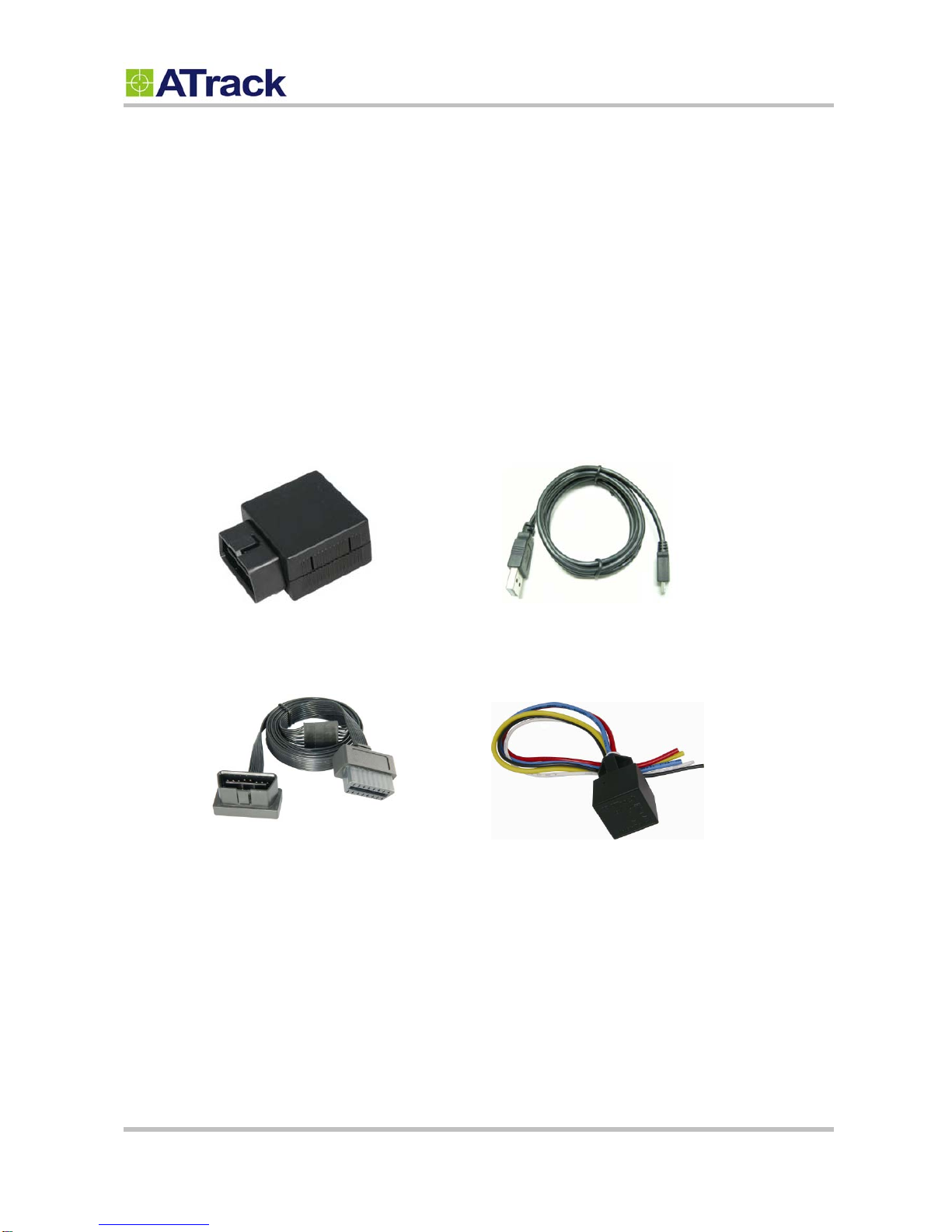

Each package contains the following standard device/accessories:
AX7 Device * 1
USB Cable * 1
Optional accessories:
Low Profile OBD-II Extension Cable
Wireless Relay
2
2. .2 2. . A AX X7 7 O OB BD D- -I II I C Co om mp pl li ia an nt t
OBD-II is a standard that issued by SAE (Society of Automotive Engineers) in the early 1990s. But some
vehicles are not following this standard. ThereforeATrack cannot guarantee the OBD-II performance of the
AX7 with every vehicle. For more information aboutAX7 OBD-II compliance, please refer to “ATrack AX7
OBD-II Compliant Guide” document.

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 5 of 22
3
3. . H Ha ar rd dw wa ar re e F Fe ea at tu ur re es s
3
3. .1 1. . O OB BD D- -I II I P Pr ro ot to oc co ol l
There are five signaling protocols that are permitted with the OBD-II interface. Most vehicles have been
implemented with only one of the protocols. The AX7 features a superior protocol detection algorithm that
ensures the device connects reliably even to vehicles that do not fully conform to the OBDII standards. The
AX7 supported all legislated OBD-II protocols below:
J1850 PWM (Ford vehicles)
J1850 VPW (GM vehicles)
ISO9141-2 (Asian, European, Chrysler vehicles)
ISO 14230-4 KWP
ISO 15765-4 CAN (11/29 bit ID,250/500 Kbaud)

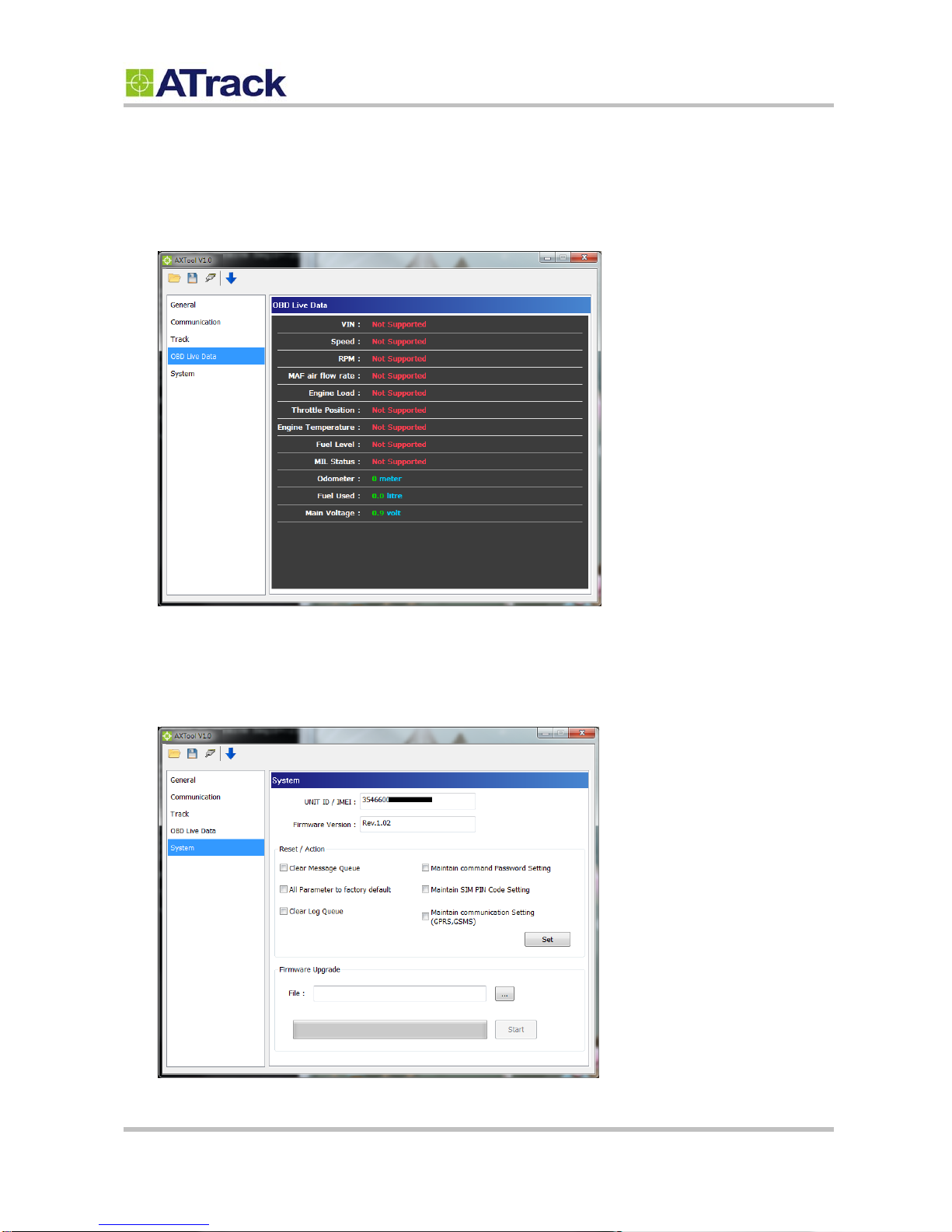

The AXTool has an “OBD Live Data” viewer for showing OBD data in real time. See Section 4.2 for detail
descriptions.
3
3. .2 2. . M Mi ic cr ro o U US SB B C Co on nn ne ec ct ti io on n
The Micro USB can supply power to theAX7 device for parameters setting or firmware upgrade purpose.
When micro USB is connected to your laptop/PC and main power is not applied, the OBD-II and GSM/GPRS
functions will be turned off temporarily.
3
3. .3 3. . B Bu uz zz ze er r O Op pe er ra at ti io on n
The internal buzzer of the AX7 can be configured by any events or triggered by remote GSM/GPRS server.
Refer to AX7 Protocol Document for details.
3
3. .4 4. . P Po ow we er r S Su up pp pl ly y
The AX7 device connects to the OBD-II SAE J1962 connector of vehicle and draws power from the OBD port.
No additional power cabling is required for operation. If the OBD port of vehicle is covered or you need to
installAX7 in another place for better GPS reception, the optional low profile OBD-II extension cable is
required.

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 6 of 22
3
3. .5 5. . W Wi ir re el le es ss s R Re el la ay y
The optional wireless relay is used for immobilizing vehicle when AX7 device is unplugged. Using the short
range RF technology, the Wireless Relay will keep receiving RF data from AX7. Once the Wireless Relay
loses connection from AX7 for 30 seconds, the Wireless Relay will be switched off. For safety reasons it is
recommended to connect the Wireless Relay to control the starter of vehicle. Do NOT use the Wireless Relay
to control fuel pump or power train of vehicle. See the following diagram for the wiring connection of Wireless
Relay.
3
3. .6 6. . L LE ED D I In nd di ic ca at ti io on n
The following table describes the LED operation ofAX7:
LED Indicators Color LED Status Description
OBD Green Solid OFF
Fast blinking
Blinking every 10 seconds
OBD Protocol not found
OBD-II data transmission.
Deep sleep mode
GPS Blue Solid OFF
Blinking every 1 second
Solid ON
GPS power OFF
GPS not fix
GPS Location Fix
GSM Red Solid OFF
Blinking every 1 second
Blinking every 2 second
Blinking twice every 2 second
GSM Power OFF
GSM no signal
GSM registered
GPRS connected

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 7 of 22
4
4. . C Co on nf fi ig gr ra at ti io on n
4
4. .1 1. . U US SB B D Dr ri iv ve er r I In ns st ta al ll la at ti io on n
These instructions illustrate how to correctly install the USB driver in Windows platform. The procedure will
vary for other Windows-based Operating Systems.
1. Connect the Device to the USB port on a Windows-based computer.
2. Install the USB driver.
Connect the device to a USB Port
Supported Operating Systems including Windows 2000, Windows XP, Windows 7 and Windows Vista. When
you connect the device to the computer, you will be prompted to install the driver.
Follow the steps in the next section to install the driver.
Install the USB Driver
The AX7 USB Driver can be requested from ATrack support via email or from the Partner Login section of the
ATrack website at www.atrack.com.tw.
After connecting the device to the computer, follow these steps to complete the installation of the USB driver:
There might be multiple steps to installing the USB driver. Once each step is completed, the next step will
automatically begin itself.
The following screen captures may reflect a different device driver than the one you are installing; however,
the steps in the procedure will remain the same.
1. The Windows Operating System will detect the new USB device.
2. You will see the following screen for no driver found:

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 8 of 22
3. To install the driver, click on "Browse my computer for driver software"
4. Click on "Browse" button, and go to the driver provided/downloaded from ATrack.

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 9 of 22
5. Windows might give a warning about the verification fail. Please click on "Install this driver software
anyway" to proceed.
6. You should be able to see a progress bar running.
7. Once the installation is completed, you should be able to see the COM port showing. This will be the COM
port you use for communicate with theAX7 when USB is plugged in.

Confidential Document
©ATrack Technology Inc. All Rights Reserved. Page 10 of 22
4
4. .2 2. . C Co on nf fi ig gu ur re e t th he e A AX X7 7 d de ev vi ic ce e

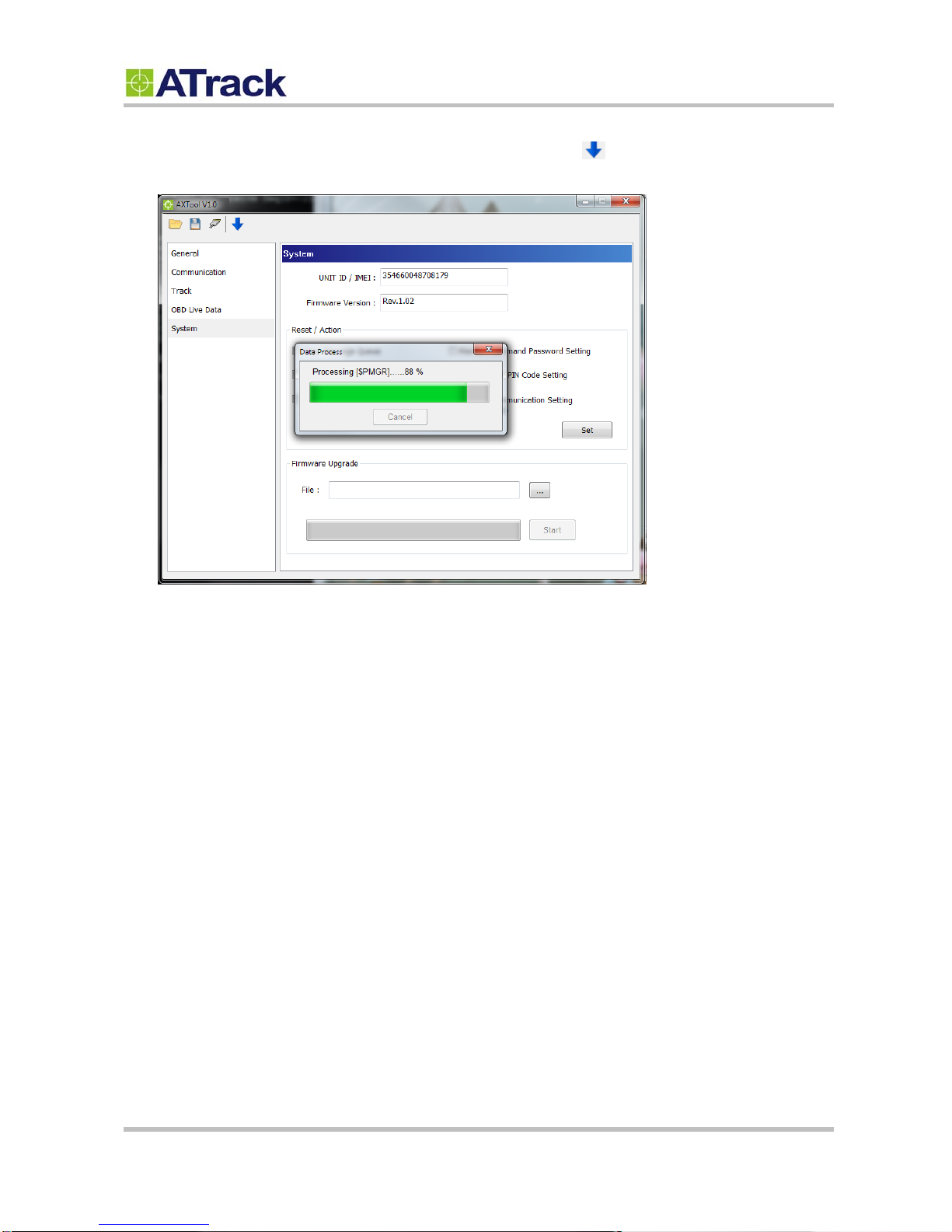

The AXTool is a simple configuration tool for the AX7 device. It is useful for user to setting basic parameters
into the AX7 device. For advanced users, please refer to the ATrack A-Series Protocol Document for detail
descriptions.
General Setting
[Device Password]: The device password is used for protecting device configurations. The maximum
length is 6 characters.
[SIM Card PIN Code]: Enter PIN code of SIM card correctly for register to network property if enabled.
[Position Format]: Select position format for all reports.
[Power Saving Mode]: Enable/Disable power saving mode. When power saving mode is enabled, the
AX7 device will go into deep sleep mode after 1 minute of engine off.
