EVO(a) series user’s manual
Introduction
Thank you for purchasing AudioFocus©. That product is designed and made in Belgium with the highest quality
control and reliability. We hope you’ll be fully satisfied by this device.
EVO(a) serial has been designed for small to middle fixed or touring applications. Our main philosophy is that each
model is available in active or passive version. This manual is made for both versions and is divided in three
subsections: active, passive, and a third section for EVOSubXXa-flex.
Thanks again and good reading, AF team
What’s the difference between EVO and AudioFocus competitors?
-Special EQ
The EVOa integrates more HiFi dynamic features. At the same time, EVOa has flat response for several presets. We
worked very hard on the ‘’extended’’ preset to give possibility to use the EVOa tops without any subs. We use our
own DSP technologies to achieve that point of schedule and reach very high spl and low cutoff frequencies.
-New AudioFocus transducers
The other main difference is that we designed our own transducers with very precise electro-mechanicals
parameters to reach the best stability as possible, and have low distortions and very good transient response in small
cabinets. These loudspeakers have been developed with state of the art companies such as Ciare, Sica or Faitalpro to
achieve high quality transducers you can only find in AudioFocus’ EVO(a) range.

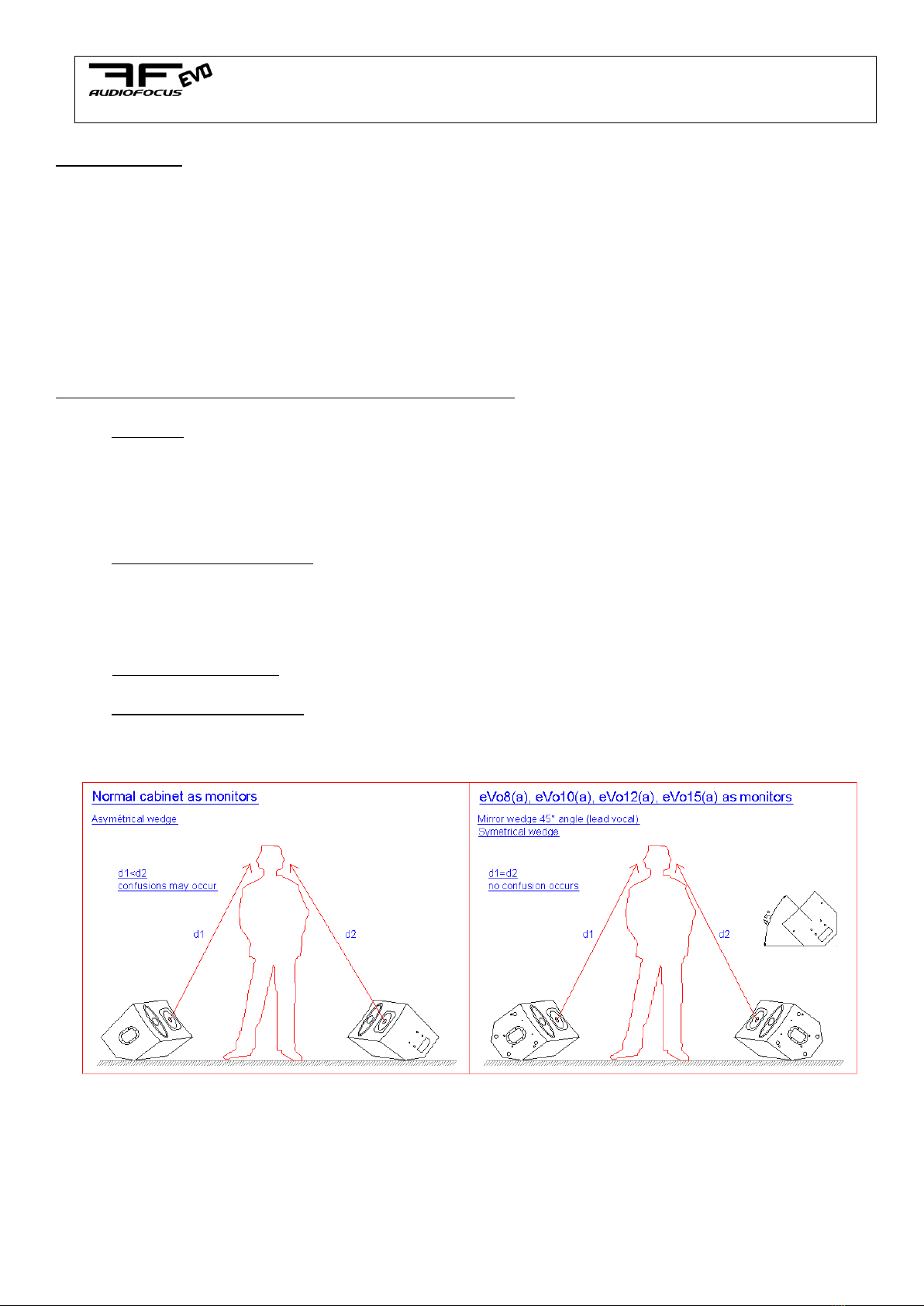

-Wedge/monitor application
The EVO top models can be used for front stage or as wedge (mirror configuration) as described here below:
In asymetrical configuration, the difference of path between acoustical sources and singer may occur in audio
confusions. In symetrical configuration the there’s no delay between the two cabinets. Image of the sound is better
and more precise.

3
-Included Tiltable flange in the top units -Included M20/35mm flange in the sub units
-Full compatibility with Powerdrive accessories (see accessories section of this manual)
-M8 internal inserts for maximum security
Mainly the result of the EVO(a) range is a good summary of the knowledge of AudioFocus’s team since 1998 taking
care of market’s request, customer’s feedback and competitor’s products.
Don’t hesitate to contact us in case of questions (sales@audiofocus.eu) or visit our website (www.audiofocus.eu).
Before starting the system, the user must read the safety instructions present at the end of this manual.

4
1. Active version (EVO8a, EVO10a, EVO12a, EVO15a, EVOSub15a, EVOSub18a)
These models receive two ways digital high efficiency amplifiers. These ‘’green’’ energy amplifiers
includes 4 presets for most of the applications we can meet on pro audio field.

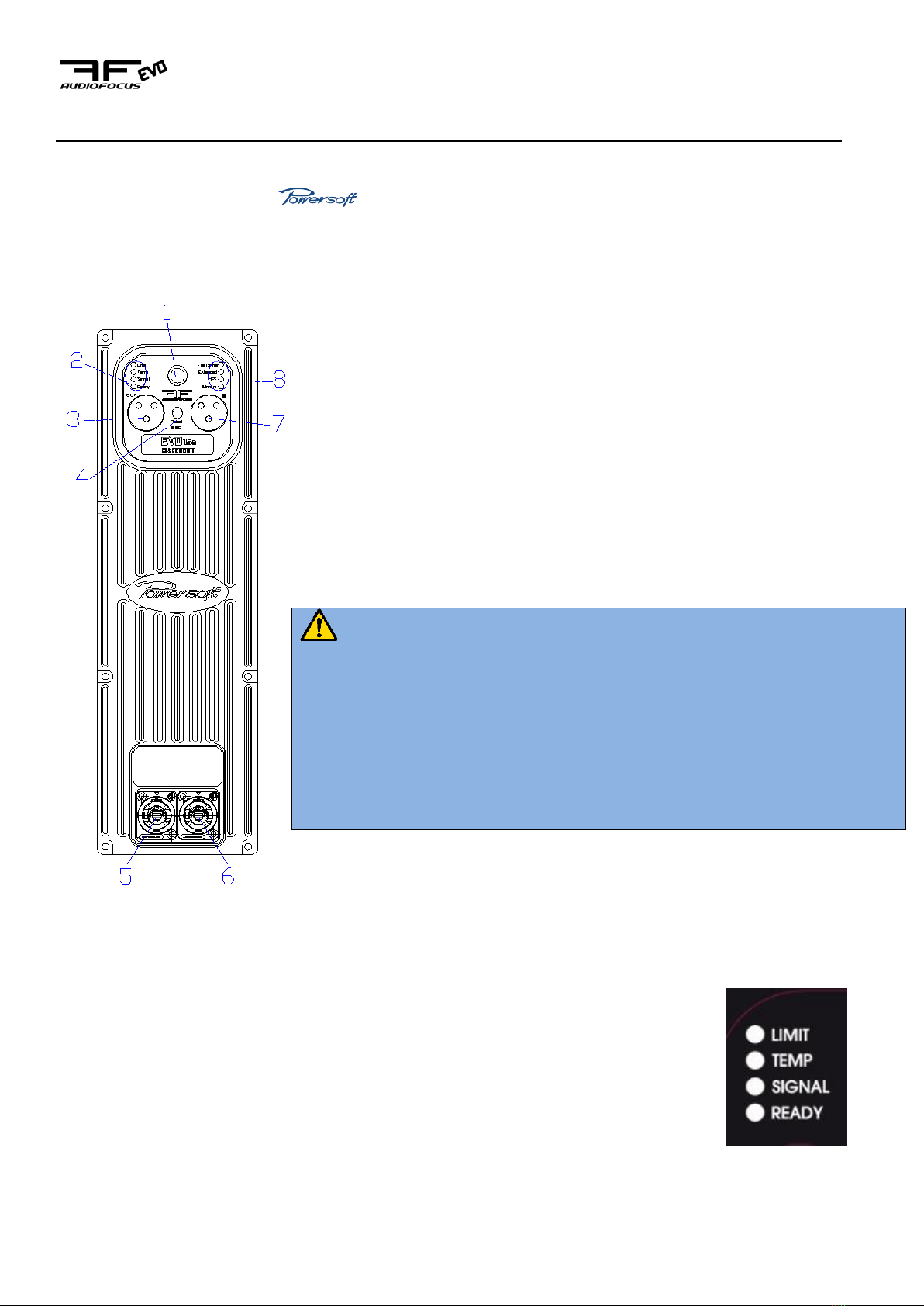

Here’s a description of the rear panel of Subs and Tops units:
Diagnosis and status Leds
Limit: ON when output signal is @-3dBspl of the peak.
Temp: ON when working temperature is too high. The electronics get in protection
(attenuation of signal, and stop if temperature still increases). In case of working in hard
temperature conditions (front of the sun), we invite the user to use our cover to protect the
amplifier against any over-heating problem.
Signal: ON when a signal is detected at the input of the cabinet.
Ready: ON after a few seconds, the system is ready for use.
1. Volume control from -∞ to +6dBu.
2. Diagnosis and status Leds.
3. Balanced output XLR connector (male, 2+, 3-, 1GND).
4. Preset selection switch.
5. IN main power supply connector (powercon)
6. OUT main power supply connectors (powercon)
7. Balanced input XLR connector (female, 2+, 3-, 1GND).
This connector is parallel wired with the input (3) to link some cabinets together.
8. Preset status leds.
1. The main voltage must be ALWAYS earthed to protect user in case of
current losses or bad insulation.
2. ALWAYS replace the fuse with the same type and value (T3.15A/240V).
3. Make sure that the power switch is set to “OFF” before you connect the devices
4. A good cable improves the sound quality. Input cables should be as short as
possible.
5. If long signal cables are necessary, you should use balanced cables.

5
Preset explanations
User has the choice between 4 built-in presets to make the system plug and play. The preset select switch (4)
permits to the user to choose the best preset for his application.
Top units (EVO8a, EVO10a, EVO12a, EVO15a)
Full range : Flat response when the top unit is used alone on a stand.
Extended : A correction is applied on the LF transducer to extend the low
frequency reproduction when the top unit is used alone (without sub).
HPF : Use that preset if the top unit is coupled to a subwoofer.
The top only deliver frequencies from 100Hz to 20kHz.
Monitor : The cabinet deliver a flat signal when placed on the floor. That preset is
made for wedge applications.
Sub units (EVOSub15a, EVOSub18a)
Extended : For subwoofer applications with lower cutoff frequency.
Kick : For bass application with a +3dBspl correction around 70-80Hz.
100Hz : Low pass cutoff frequency is 100Hz, 24dB/octave.
80Hz : Low pass cutoff frequency is 80Hz, 24dB/octave.
Remarks
1. Depending of the Sub/Top ratio, levels of each cabinet must be adjusted to reach the optimal sound result of
the setup.
2. Always use HPF preset for Top units when coupled to a subwoofer.
3. Spl curves are available on request.

6
Examples of configurations
In these examples you can consider all EVO tops and EVOsubs models.
Always use HPF preset for Top units when coupled to a subwoofer.

7
2. Passive version (EVO8, EVO10, EVO12, EVO15, EVOSub15, EVOSub18)
When linking identical speakers together (in parallel), the resulting impedance is divided by the quantity of speakers. The
user must ALWAYS take care about this resulting impedance, and the minimum impedance allowed by the amplifier
1 : Rear serigraphic.
2 : Neutrik Speakon input/output connectors

8

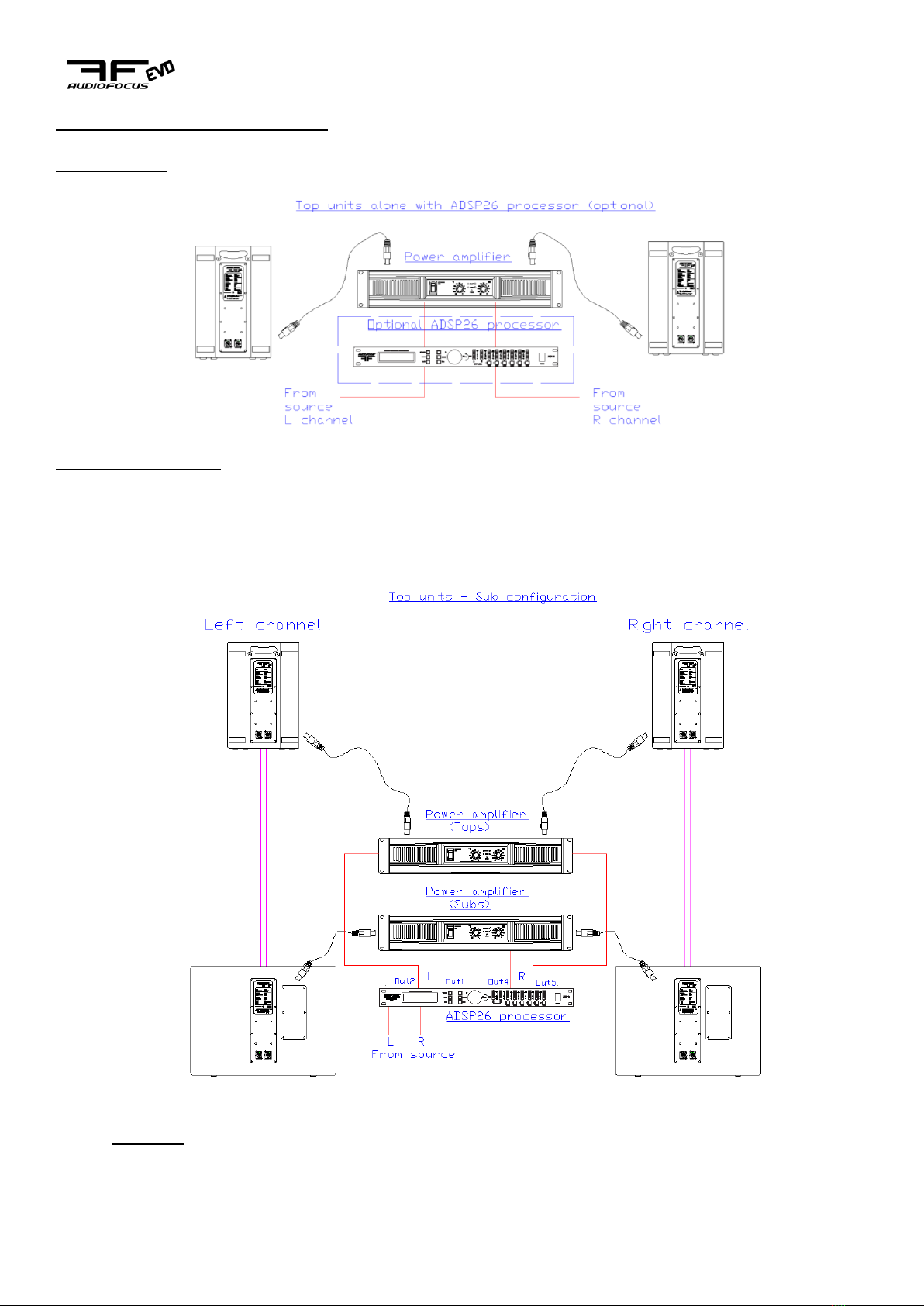

Examples of configurations
Top units alone:
Top + Sub configuration
In that case, one amplifier is used for the Top units and another one for the Sub units. Filtering between Top and Sub
will be made by an ADSP26 AudioFocus© processor or any active X-over. The best way to achieve optimal audio
result is to use ADSP26 AudioFocus© processor that includes the needed presets for your configuration.
-ADSP26 processor is available with integrated presets for all our range. These presets can be recorded in the ADSP26
on demand. If not, our technical staff can send these by email.
-Compressor/limiter functions are integrated in ADSP26. Due to the fact that user can use several kinds of amplifiers, we
cannot calibrate ADSP26’s limiter. The user must do it by him-self taking care of the power handling of AudioFocus’s
cabinet, and the amplifiers’ power.

9
3. Active Sub with auxiliary power outputs (EVOSub15a-Flex, EVOSub18a-Flex)
The best way to have a compact ‘’plug and play’’ system is EVOSubXXa -Flex. It has exactly the same features than
the EVOSubXXa, except that the amplifier module is a double one. So, EVOSubXXa -Flex includes auxiliary power
outputs for Top units.
To ensure a good Top/Subwoofer ratio, SLSubXXa-Flex has 4 presets. That permits coupling EVOSubXXa -Flex with
high, middle and low sensitivity Top units.
Rear connection description
1. The main voltage must be ALWAYS earthed to protect
user in case of current losses or bad insulation.
2. ALWAYS replace the fuse with the same type and value
(T3.15A/240V).
3. Make sure that the power switch is set to “OFF” before
you connect the devices
4. A good cable improves the sound quality. Input cables
should be as short as possible.
5. If long signal cables are necessary, you should use
balanced cables.
1. Left input.
2. Right input.
3. Left output.
(190Wrms/8ohms; 350Wrms/4ohms)
4. Right output.
(190Wrms/8ohms; 350Wrms/4ohms)
5. Bridge output (600Wrms/8ohms).

10
Examples of configurations
- Never use stereo outputs and bridge output at the same time.
- Always respect minimum impedance (4ohms for stereo outputs, 8ohms for the bridge output).
- Coupling with other EVOSubXXa (normal active version) is possible. In that case, user must configure EVOSubXXa in
Extended preset.
- Always consider the power capabilities of the top units wired to the EVOSubXXa -Flex subwoofer.

11
Multi diffusion high quality configurations
Auxiliary power outputs can go down to 4ohms (stereo outputs). So, EVOsub15a-Flex and EVOsub18a-Flex can be
used as managing system for fixed installations.

12
Accessories (not included - sold separately)

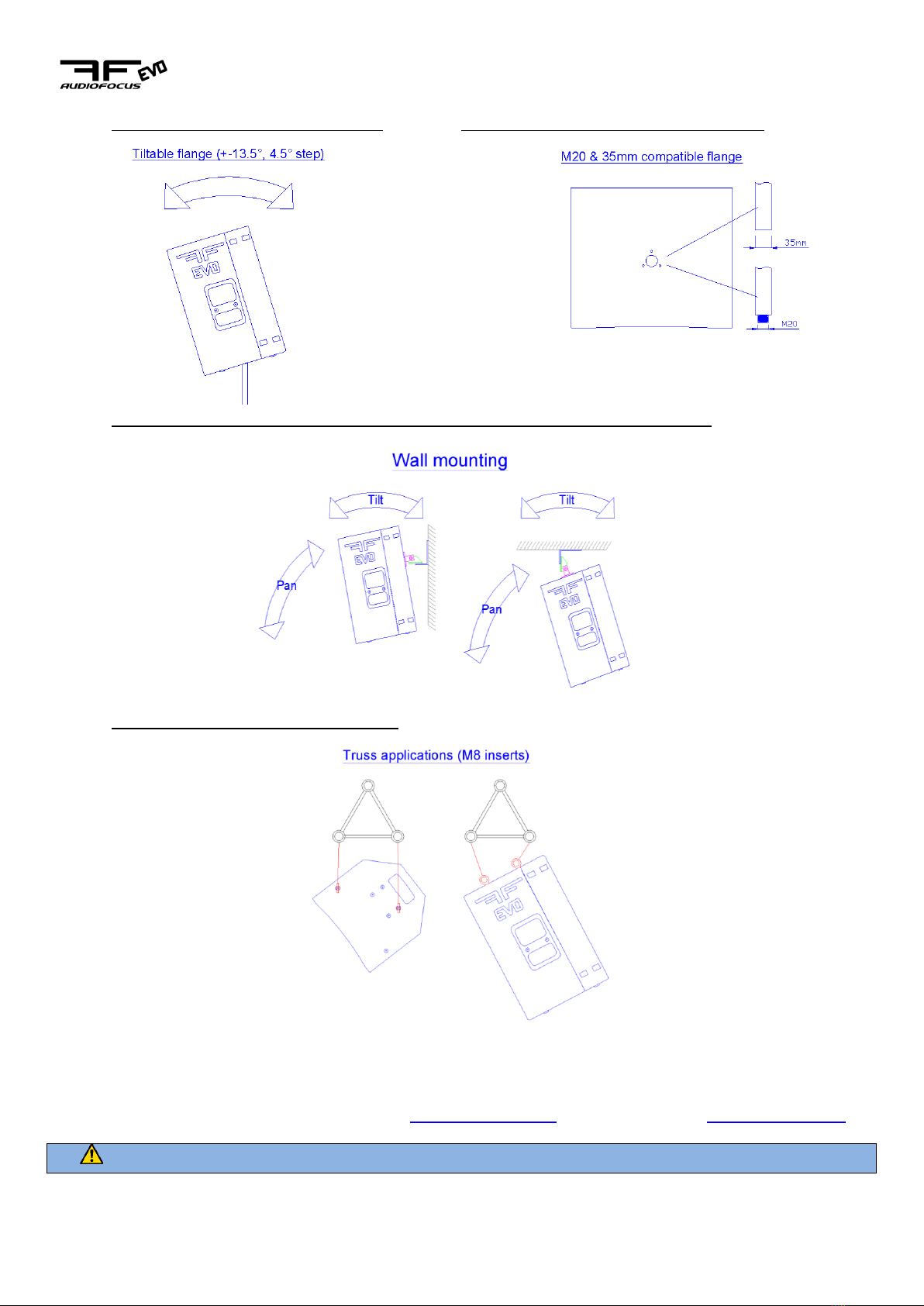

This section describes different solutions for fixing system to truss or walls.
The user should ALWAYS use safety ropes to secure the system. That safety rope can be fixed on an eye bolt
screwed in one of the M8 steel inserts.
-Each cabinet integrates M8 steel inserts to screw M8 eye bolt. With rope or chain, the user can place and
adjust the cabinet (horizontally or vertically).
-Powerdrive hardware accessories (Ceiling bracket)
Without vibration damping system With vibration damping system

14
CAUTIONS!
Keep this device away from rain and moisture!
Every person involved with the installation, operation and maintenance of this device has to:
- Be qualified.
- Follow the instructions of this manual.
- Consider this manual to be part of the total product.
- Keep this manual for the entire service life of the product.
- Pass this manual on to every further owner or user of the product.
- Download the latest version of the user manual from the Internet.
Safety instructions
That device has been CE approved. All the subsets are fully RoHS and CEM compatible.
This speaker-system has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it
is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
Important
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects
or problems.
Please make sure that there are no obvious transport damages. Should you notice any damages on the connection panel or on the casing? Do
not take the speaker-system into operation and immediately consult your local dealer.
DANGER OF BURNING!
The materials used in this speaker-system are normally flammable. If B1 is required at the installation place, the surface must be treated with
an appropriate fire retardant in regular intervals.
DANGER TO LIFE!
A crashing speaker-system can cause deadly accidents. All safety instructions given in this manual must be observed.
Before the speaker-system is switched on all faders and volume controls have to be set to "-∞" or "min" position.
CAUTION: Turn the amplifier on last and off first!
HEALTH HAZARD!
By operating speaker-systems with an amplifier, you can produce excessive sound pressure levels that may lead to permanent hearing loss.
Keep away children and amateurs!
There are no serviceable parts inside the speaker-system. Maintenance and service operations are only to be carried out by authorized
dealers.
Operating determinations
This audio system is a passive or active system which can be used for permanent installations or for mobile use.
This product is only allowed to be connected with appropriate power amplifier and sources. It was designed for indoor use only if not used
with the covers. The covers can help in using the system in extreme conditions but in that case, user must be careful to the good installation of
the cover of the cabinet.
The maximum power of the speaker system must never be exceeded. When operating the speaker system, please make sure that the
loudspeakers always sound well. When distortions can be heard, the amplifier or the loudspeaker is overloaded, or signal is very poor quality.
Overloads can quickly lead to amplifier, speaker or hears damage.
In order to avoid damage, please reduce the volume immediately when distortions can be heard. When speaker systems are destroyed by
overload, the guarantee becomes void.
By operating speaker systems with an amplifier, you can produce excessive sound pressure levels that may lead to permanent hearing loss.
Please refer to the explanations under "Legal instructions".

15
WARNING!
Speaker systems must only be operated by trained persons.
Danger of Life due to crashing speaker systems or hearing loss due to excessive sound pressure levels! The different local conditions have to
be considered in terms of safety rules.
When using smoke machines, make sure that the speaker system is never exposed to the direct smoke jet and is installed in a distance of
0.5 meters between smoke machine and speaker system.
The ambient temperature must be between +3° C and +45° C. Keep away from direct insulation( particularly in cars) and heaters.
The ambient temperature must be between -20°c and +45°c in case of use with the covers. Please avoid any direct radiation from the sun to
ensure a good cooling of the electronics. When the system is used at very low t°, the user has to make a running during a few minutes at
low levels, and increase the level every 3 minutes to ensure good thermal and mechanical features.
This speaker system must only be installed at a solid, plane, anti-slip, vibration-free, oscillation-free and fire-resistant location.
Please note: when using this speaker system in public or industrial areas, a series of safety instructions have to be followed that this manual
can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.
Before installing the system, make sure that the installation area can hold a minimum point load of 8 times the system's load (e.g. weight 20 kg
- point load 160 kg).
The speaker system must never be installed higher than 100 cm without secondary attachment.
For overhead use (mounting height >100 cm), always fix the speaker system with an appropriate safety rope.
DANGER!
This speaker system must only be suspended by experienced and trained persons - Danger to Life due to crashing speaker systems!
If the original speaker system is equipped with an appropriate flange, this speaker system can be installed on top of a subwoofer (satellite
system), on a speaker stand, an appropriate stand or an appropriate wall-mounting. The carrying capacity of the distance-tube, the speaker
stand, the stand or the wall-mounting must never be exceeded.
The Top units must always provide enough stability. The Sub unit base surface must always be sufficiently dimensioned in relation to the top
speaker in order to prevent tilting over.
Operate the speaker system only after having familiarized with its functions. Do not permit operation by persons not qualified for operating
the speaker system. Most damages are the result of unprofessional operation!
Speaker systems must never be transported with cranes. Never stack heavy objects on this speaker system. Persons must never climb onto this
speaker system.
Never use solvents or aggressive detergents in order to clean the speaker system! Rather use a soft and damp cloth.
Please consider that unauthorized modifications on the speaker system are forbidden due to safety reasons!
If this speaker system will be operated in any way different to the one described in this manual, the product may suffer damages and the
guarantee becomes void. Furthermore, any other operation may lead to dangers like crashes, hearing loss etc.
LEGAL INSTRUCTIONS
Operating an amplification system can produce extremely high noise levels that may cause a permanent hearing loss. The legal instructions for
using an amplification system vary from country to country. The user must always inform himself on the legal instructions valid in his country
and apply them to his situation. Always monitor the sound pressure level when operating an amplification system in discotheques, concerts
etc. Never exceed the permissible noise level exposures as specified by your authorities. The monitoring of the noise levels must be
documented in an appropriate way.
Hearing damage caused by high noise levels can be treated as physical injury and persecuted by law. Please note that the organizer is
responsible for keeping to a specified noise level. If this noise level will be exceeded, the event may be cancelled immediately.
If the organizer does not fulfil his safety duties, he is reliable by civil law for any damages occurred, e.g.: Pay the treatment costs of the
damaged person, pay a smart money to the damaged person.
Economic damage caused can be demanded from the operator of the amplification system. If hired persons work with amplification systems:
the noise levels of music events are almost always too high. This is why the entrepreneur has to set up warning signs and provide hearing
protectors. The staff has to use these.
AudioFocus© cannot be made liable for damages caused by incorrect installations and
excessive noise levels.
This manual suits for next models
14
Table of contents
