Audio Note CD Zero Technical manual

CD Zero
CD PLAYER
OWNER’S INFORMATION

1
! IMPORTANT SAFETY INFORMATION !
HUMIDITY: DO NOT STORE OR OPERATE THIS UNIT IN AREAS OF HIGH HUMIDITY, OR IN CLOSE
PROXIMITY TO WATER/DAMPINESS. DO NOT EXPOSE THE UNIT TO LIQUID.
EARTHING: THIS PRODUCT MUST BE EARTHED –ENSURE THAT THE MAINS SUPPLY CABLE IS
EARTHED.
SHOCK: INTERNAL OPERATING VOLTAGES ARE LETHAL! DO NOT REMOVE THE TOP COVER. DO
NOT ATTEMPT TO REPLACE THE FUSE WITHOUT DISCONNECTING THE UNIT FROM THE MAINS
SUPPLY.
SAFETY COMPONENTS: INTERNAL FUSES AND OTHER SAFETY COMPONENTS ARE LOCATED
INSIDE THIS UNIT IN ACCORDANCE WITH BS 60065 REQUIREMENTS.
IN THE EVENT OF SAFETY COMPONENT FAILURE, THEY MUST BE REPLACED WITH THE SAME
PART TYPES ONLY. SUCH REPLACEMENT MUST BE CARRIED OUT BY A QUALIFIED SERVICE
TECHNICIAN.
PRECAUTION
Never touch the power cord with wet hands.
Always pull the power cord out by the plug, not by the cord.
Never expose the system to rain, moisture, excessive heat and magnetism.
Never let an inexperienced person repair or reassemble the unit.
Never put anything, especially metal, into the unit.
Never place excessive weight on the unit.
Always remove compact disc out of the unit before carrying or transportation.
POWER REQUIREMENTS
Power requirements for electrical equipment differ from area to area. Please ensure
that your unit meets the power requirements in your area. The power requirement for your CD
player is marked on the serial number plate on the rear panel.
If you are in doubt, please contact your dealer before plugging the unit into the mains!
CE DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product is in conformity with the following
standards or standardized documents:
BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1st January 1997).
CE 94
Peter Qvortrup
Director
Audio Note (UK) Limited
25 Montefiore Road,
Hove,
East Sussex
BN3 1RD
United Kingdom
Tel: [phone]
Fax: [phone]

2
WARRANTY AND SERVICING
Audio Note warrants this product free from defects in materials and workmanship for 2 years
from original date of purchase from an appointed Audio Note dealer. The valves are warranted
for 3 months. In the event that your Audio Note product requires servicing, please contact your
Audio Note dealer. If the equipment needs to be shipped, please use the original packaging and
include a copy of the sales receipt, with a note, explaining in as much detail as possible, the
problems that you are experiencing with the unit.
Any modification not authorized by Audio Note will invalidate this warranty.
Should you require technical support, new valves or have any questions, please direct them to
your Audio Note dealer first or contact us directly.
Customer Support:
Audio Note (UK) Limited,
25 Montefiore Road
Hove, East Sussex,
BN3 1RD,
United Kingdom
Tel: [phone]
Fax: [phone]
Email: [email protected]
CLASS 1 LASER PRODUCT
This product contains a low power laser device. To ensure continued safety, do not
remove any covers or attempt to gain access to the inside of the product. Refer servicing to
qualified personnel.
Make Your Contribution to Protect the Environment
Used batteries with the ISO symbol for recycling, as well as small accumulators
(rechargeable batteries), mini-batteries (cells) and starter batteries should not be thrown into
the dustbin. Please leave them at an appropriate depot.
This equipment conforms to No. 62/499/EEC, 87/308/EEC standard.
TABLE OF CONTENTS
1 PRECAUTIONS
3 UNPACKING & INSTALLATION
4 LOADING THE DISC
OPERATIONS
6 PROGRAMMING
7 TROUBLESHOOTING GUIDE
SPECIFICATIONS

3
GENERAL

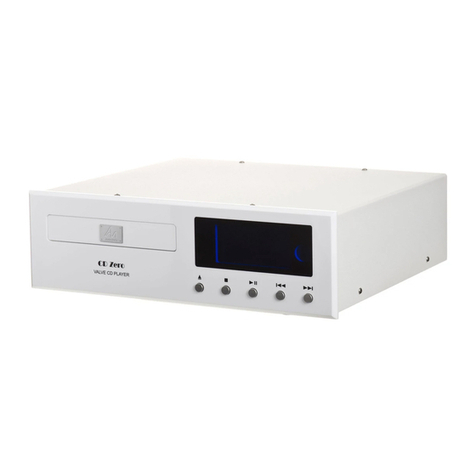

Congratulations on your purchase of the Audio Note CD Zero CD player.
Audio Note is highly critical of the digital medium as presented by compact disc; we
sincerely hope that you too will find this player breaks free from the 'digital mould' that we
are all so accustomed to, and so open a new window on your CD collection.
Please read over this manual carefully in order to obtain the best possible performance
and longevity from your CD player.
UNPACKING & INSTALLATION
Please take care when unpacking the CD Zero . We recommend that you store the
packing materials in case the unit requires shipping at a later date.
Next, select a suitable location for the unit, for example, a dry and dust-free area which
is not exposed to direct sunlight.
Connections:
Connectors on the back of CD Zero unit provide digital and analogue outputs.
Analogue Outputs:
These are the audio signal outputs; one RCA socket is provided per channel. Each socket
is colour coded, with black indicating the left audio channel and red indicating the right
channel. Connect these outputs to your amplifier’s line inputs. The CD player's analogue
outputs may be connected to any line input (such as CD, Aux or Tuner) on your amplifier.
For the best results, we recommend the use of a specifically designed audio cable for
connection between the amplifier and the CD player. Your dealer can advise on suitable type
and quality of cable eg: - Audio Note AN-C is an excellent choice.
Digital Output:
A single RCA connector provides a digital output. The digital output is normally disused,
however, this connector will be necessary should you wish to connect a separate Digital to
Analogue converter, or digital recording/processing equipment to your system.
Mains connector: An IEC power connector is available for connection to the local mains
using the supplied mains cable.
Mains switch is located on the back of the CD Zero just above the mains socket and
turns the unit ON / OFF.
New CD player's sonic performance will start to improve as the internal parts 'bed' in.
The CD player requires about two hundred hours of operation before the bedding in process is
complete.

4
LOADING THE DISC
Turn the power on.
Press the OPEN/CLOSE button and load a disc on the tray
Be sure to load a disc with the tray fully opened.
The label side of a disc should be facing upwards with the disc correctly seated in the
tray.
Press the OPEN/CLOSE button again.
The disc tray will close. Within a few seconds, the number of tracks and the total
playing time of the disc will appear on the display.
Press the OPEN/CLOSE button to unload a disc.
Press the OPEN/CLOSE button again to close the disc drawer.
OPERATIONS
VIA BUTTONS LOCATED ON THE FRONT PANEL
OPEN/CLOSE Press this button to open or close the tray.
PLAY/PAUSE ►▐▐ Press this button to play a disc.
Pressing this button again will pause playback.
Press the button again to resume playback.
STOP ■Press this button to stop playback.
SKIP Press these buttons to go to the previous or the next track.

5
VIA REMOTE CONTROL (batteries are not included)
Batteries suitable for the CD3.1x/II remote control are two
of 1.5V UM-3/R6/AA type and are not included. They should
be bought separately and fitted into the remote control
before operating it. Please ensure that the batteries are
inserted correctly and polarity is right.
PLAY/PAUSE ►
▐▐ - Press this button to play a disc. Pressing this
button again will pause playback. Press the button again to resume
playback.
STOP ■- Press this button to stop playback.
SKIP - Press these buttons to go to the previous or the next
track.
SEARCH - Press these buttons to cue or review a track.
To reverse (review) a track, hold down the SEARCH button. To
cue (fast forward) a track, hold down the SEARCH button.
MEMORY - Use Memory button for programming and reviewing
programs.

6
PROGRAMMING
You may select a number of tracks and store them in the memory in the desired
sequence. The player will then play back only your selection of tracks in the selected
order.
1 Press the MEMORY button. 'MEMORY' will appear on the display.
2 Press the CD SKIP or numbered buttons - To select the desired track to be stored.
3 Press the MEMORY button - The track is now stored in the memory.
Repeat steps 2 and 3 to complete programming.
4 Press PLAY to listen to the programmed tracks.
5 Press STOP once to stop playback.
6 Press STOP second time to clear programming.
A maximum of 32 tracks may be stored.
A particular track in your selection may be replaced with a new one if the original
selection was made in error. Simply store the new track in the program number to be
replaced.
NOTE: Programming may not be made during playback.
TIME button. Press this button to see the elapsing or remaining time of the CD
(Play mode only). Press the TIME button and select the desired TIME DISPLAY for CD
playback.
Each time this button is pressed, selection is as follows:
"EACH REMAIN" the elapsed playing time for the current track
"TOTAL" the total elapsed playing time
"TOTAL REMAIN" the remaining playing time for the current track
REPEAT button. Press this button to listen to the music repeatedly. Press once to
repeat the entire disc. Press twice to repeat the track being played.
RANDOM button. Press this button for random order playback.
NUMBERED buttons. A particular track may be selected for playback by using these
buttons. Example:
To play track No. 3, press the button “3” once.
To play track No. 14, press the buttons “1”and “4” in succession.
To play track No. 20, press the buttons “2” and “0” in succession.
DISPLAY button. Press this button to change the intensity of display or to turn it
on/off.
Press the DISPLAY button once to reduce the intensity of the display. Press the
DISPLAY button twice to turn the display off. To turn the display on, please press
DISPLAY button once again.

7
TROUBLESHOOTING GUIDE
Refer to the relevant sections in the manual for remedy suggestions.
SYMPTOM
CHECK POINT
No sound from the CD player.
Correct input is not selected on the amplifier.
Playback does not start.
The disc is dirty.
The disc is upside down.
The player is in the PAUSE mode.
Moisture condensation has caused the unit to
operate incorrectly.
"NO DISC" appears.
There is no disc loaded or the disc is loaded
incorrectly.
The disc is dirty.
The disc is upside down.
Playback does not start from the first
track.
The player is in the PROGRAM or RANDOM
mode.
Press the STOP ( ■) button to cancel the
program mode or RANDOM button to cancel
random mode.
IMPORTANT INFORMATION
Compact disc player have built-in error compensation circuits to correct minor
manufacturing defects on a disc. In some cases, defects on the disc, which are too large
for the error compensation circuits to handle, may cause the CD player to skip some
tracks during playback. If this problem occurs, play a new disc, normal playback of the
new disc indicates that the previous disc is damaged in some way. However, if the
problem continues, it is best to have the unit serviced.
SPECIFICATIONS
Optical pick-up: 3 beam laser
Semi-conductor laser: 780 nm
Power source: AC 100-120V/220-240V 50/60 Hz
Output impedance Less that 2 kohm
Reference output 3.0V RMS (approx.)
Channel balance Less that 0.25dB
Fuse: 220/240V - 500 mA Slow blow (T type)
100/120V –1A Slow blow (T type)
Dimensions: 300 (W) x 98 (H) x 270 (D) mm
(incl. connectors)
Weight: 3.5 kg
Max power consumption: 48W
