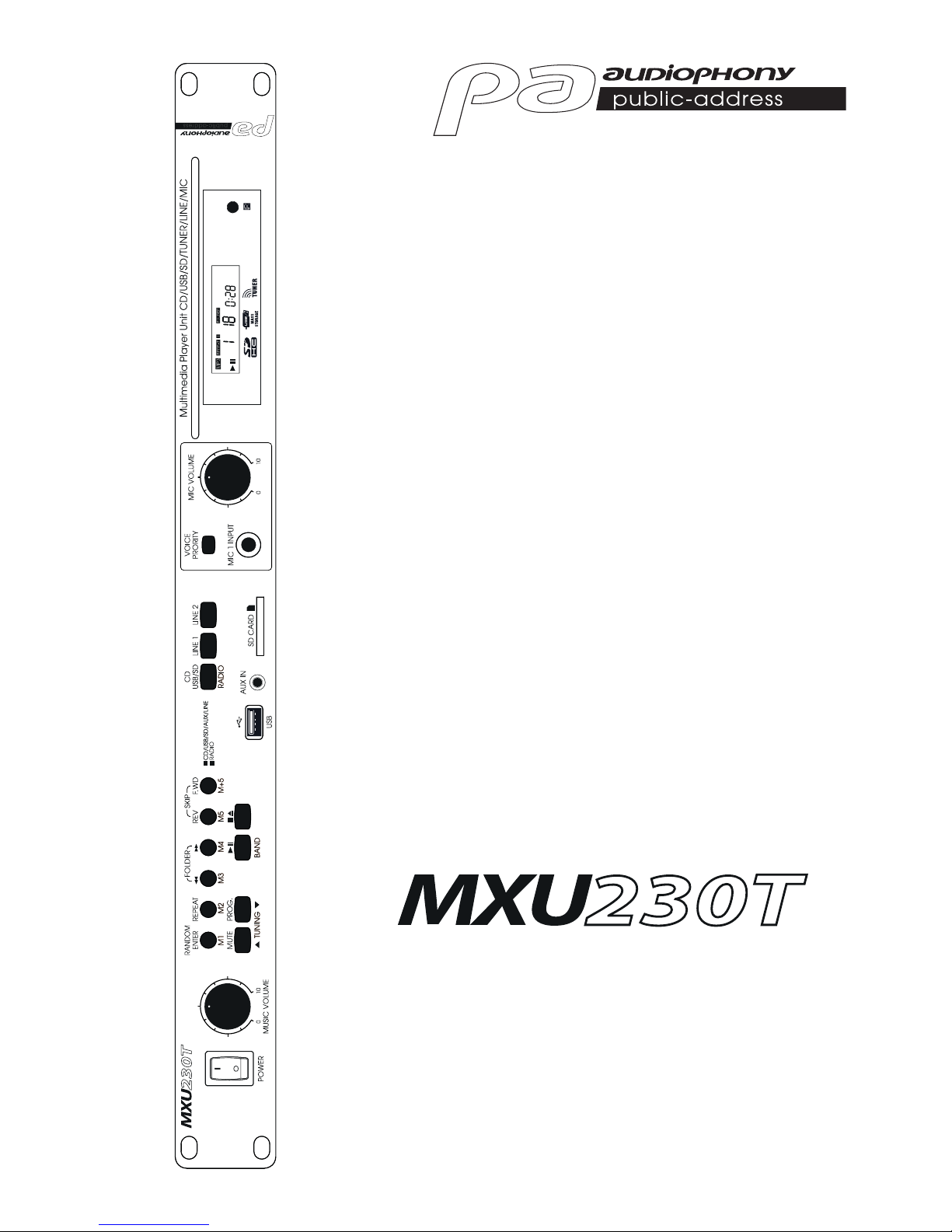

audiophony MXU230T User manual

CD/USB/SD player and Tuner with mic, line level inputs and remote control
USER GUIDE
10182 - May 2014 Version 1.0

MXU230T - CD/USB/SD player and Tuner with mic, line level inputs and remote control
Page 2

AUDIOPHONY PUBLIC ADDRESS English
Page 3
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

MXU230T - CD/USB/SD player and Tuner with mic, line level inputs and remote control
Page 4
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product,
and avoid any overheating risk.
Do not obstruct or cover these vents as it may
result in overheating and potential physical injury or
product damage. This product should never been
operated in a closed non-ventilated area such as a flight case
or a rack, unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed
upon or against them, paying particular attention
to cords at lugs, convenience receptacles and the
point where they exit from the fixture.
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or
maintenance by yourself. Refer all servicing to
qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place.

AUDIOPHONY PUBLIC ADDRESS English
Page 5
- CD/Mp3 player with anti-shock memory (AVM
System)
- USB player with USB Mass Storage plug (FAT32, 16
Go max.)
- SD and SDHC player (16Go max)
Output volume control
- AM and FM tuner with autoscan and 10 recordable
stations
- Priority auxiliary input
- 1 microphone input (at the front)
- 2 microphone inputs (at the rear) with independent
volume settings
- Browse through menus and tracks
- Rewind and fast forward

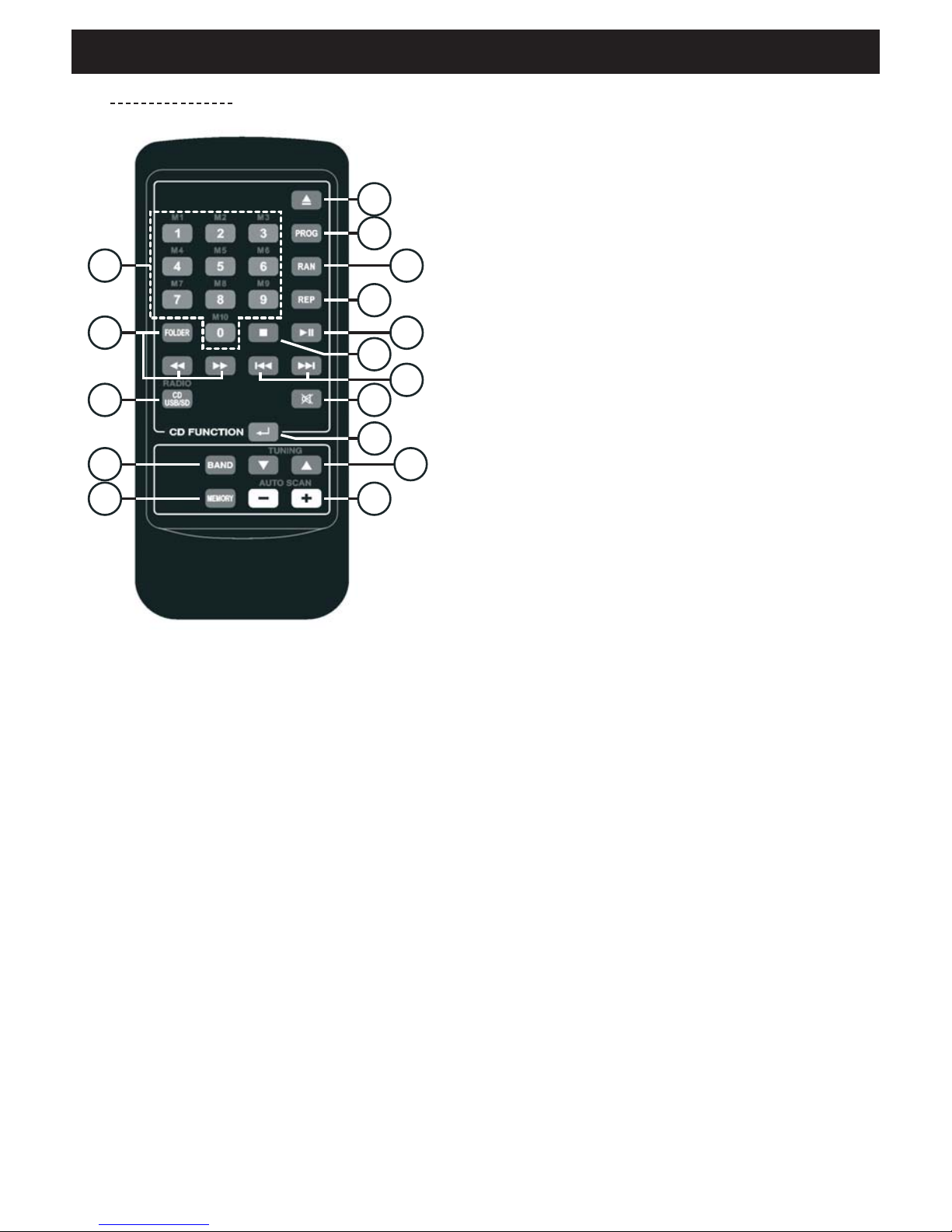

- Supplied with an infrared remote control
- Customisable or random playlist
- 2 RCA Unbalanced outputs (-10dB)
- Remote control functions:
- Source selection (CD, USB, SD or Tuner)
- Play, Pause, Skip, Search
- Program, Random and Repeat functions
- Folder and track selection
- Customisable and recordable stations
- Mute
- CD Eject
3 - Main characteristics
4 - Technical specifications
• Power supply: 230 V AC- 50 Hz ou DC 13,2V
• Power consumption: 26W
2.1 - Compact disks
a - Handling precautions
Please protect the disks in order for dust, fatty deposits and fingerprints not to damage them.
However, if one of your disks is dirty please rub it gently with a dry cloth.
Do not use alcohol, any solvent, antiseptic liquids or silicone-coated clothes.
Handle your disk with precaution and protect its surface, especially while getting it out of its case.
Do not bend the disk.
Do not heat it.
Do not enlarge the hole at the center of the disk.
Do not write on the screenprinted part of the CD.
In the event of the appearance of condensation due to important temperature changes, please let your CD
dry without using any heat source.
b - Storage precautions
Always eject the disk when you are not using it.
Store your disks in the case provided for the purpose, protected from dust and shocks.
Do not store your CDs in places:
- Exposed to sunlight.
- Subject to the accumulation of dust and humid.
- Near heat sources (radiator...).
2 - Our advices
• Player dimension: 482 x 44 x 275 mm
(19" - 1 unit)
• Weight: 3.4 kg

MXU230T - CD/USB/SD player and Tuner with mic, line level inputs and remote control
Page 6
5 - Preparation and installation
5.1 - Checking the contents
The package must contain the following articles:
- The MXU230T
- An infrared remote control
- The user guide
- A double RCA cable
- An antenna set (AM and FM)
- 1 power cord.
5.2 - Installing the unit
a-Set up the MXU230T over a flat surface or within
racks.
b - Please make sure the unit is installed in a properly
ventilated place, unexposed to sunlight rays, excessive
temperatures or humidity.
5.3 - Connecting the unit
a - Turn the unit off (unplug it).
b - Connect the RCA cable to one of the inputs of your
mixing desk.
CAUTION:
Please use the cables supplied. Using other types of
cables might cause severe damages to the unit.
Please make sure the device is OFF before connecting
any sources in order to prevent severe damages.
6 - Compatible medias
The MPU130T is able to read several media formats:
- MP3
- WMA
- CDA
When using the CDA format, please note that the CD
containing the CDA files cannot use any other kind of
files as CDA files cannot be mixed up with MP3 or WMA
files on the same support.
The MP3-Pro, MP4, Wave (etc.) formats are not
supported by this system.
Please only use MP3, WMA or CDA files on your disks
as other formats might damage your device.
We strongly recommend to use high-quality medias,
recorded at low speed.
Notes:
• Some CD-R/CD-RW recorded via CD writer might
not be readable for many reasons such as the disk
characteristics, scratches, stains, condensation etc.
• Some disks might also be impossible to read if
recorded via CD writer due to the parameters of the
operating systems. Please make sure to format your
disks correctly before rewriting. For more details,
please read the user guide supplied with your CD
writer.
6-1 - Compact disks
• This device cannot read partially recorded or not
finalised CD-R or CD-RW.
• For more information about handlig CD-R/CD-RW,
please consult the safety precautions supplied with
each disk.
About CD-R/RW
Due to the very particular structure of CD-R/CD-RW
disks, they should not be let in Pause mode at a precise
point, as it may result in difficulties to resume the
playing.
As a result, we strongly recommend you to use archive
desks to save your most important files.
About DualDisc
This product was designed to comply with the music
CD regulations. However, performances and flawless
reading are not guaranteed if you are using non-com-
pliant CDs.
CAUTION:
This device can be safely operated when placed on
a flat surface not exceeding a 15° slope. Using this
player on excessively steep surfaces might result in
the ejection, deterioration or impossibility to read your
disks.
The LCD display was designed to be read easily when
you are in front of the player. Please set up the unit in
order for the display to be clearly visible.

AUDIOPHONY PUBLIC ADDRESS English
Page 7
6-2 - USB supports and SD cards
The Mpu130T is able to read files stored on USB sup-
ports such as USB keys , USB hard disks, or any other
type of devices compatible with the USB Mass Storage
norm.
Your device can read the following formats stored on
USB support:
- MP3 (VBR or CBR) up to 320kbits/s
- WMA (same characteristics)
Your disks must be FAT-formatted to be compatible with
the Mpu130T. The Mpu130 is unable to read contents
via supports with different formats (NTFS, ...).
Please note that some FAT devices might present com-
patibility issues due to specific commands or functions
they might offer.
That is why we strongly recommend to test the compa-
tibility of a device with the MXU230T before acquiring it.
The MXU230T powers up USB keys and HDD USB-
connected.
However, some disks or keys might require a power
supply unit delivering more power than the Mpu130T.
We strongly recommend to use these devices with their
external power supply unit in order to prevent any kind
of problems or damages.
The USB port of the MXU230T is a USB Mass Storage
port. It cannot be used to read audio fluxes such as
the USB Audio codec under any circumstances. The
Mpu130T is therefore not compatible with the devices
uses such fluxes such as computers, portable players,
USB microphones, etc.
The SD card slot has the same file properties and
restrictions as the USB port. SD HC can be used with
the Mpu130T, subject to not exceed a maximum size of
16 Gb.
6-3 - Playing MP3/WMA files
MP3 files may have two formats: Constat bitrate (CBR) and Variable bitrate (VBR). The MXU230T the reading and DJ
reading of both CBR and VBR MP3 files. However, you might notice that the super-fast search speeds are slower for
VBR files,
in comparison with CBR files. As a result, if speed is an important factor to you, we recommend to use MP3 files in
the CBR format. The MP3 files must meet the following criterias indicated below:
MP3 Format
MPEG-1 Compatible with the Audio Layer-3 sampling rate from 32 kHz, 44,1 kHz,
48 kHz; Bit rate: 32 Kbps at 320 Kbps.
MPEG-2 Compatible with the Audio Layer-3 sampling rate from 16 kHz, 22,05
kHz, 24 kHz, Bit rate: 16 Kbps (stereo) a 160 Kbps.
ID3 Label
Compatible with the ID3 Versions 1.0/1.1/2.2/2.3/2.4. Indicates the title,
album, artist, and genre. Alphanumeric characters and some symbols
only can be displayed.
File extension .mp3, .MP3, .mP3, .Mp3
WMA Format File extension .wma, .WMA

MXU230T - CD/USB/SD player and Tuner with mic, line level inputs and remote control
Page 8
7 - Description of the front and rear panels
[1] POWER switch
Turns the unit ON/OFF.
[2] MUSIC VOLUME Button
Allows you to adjust the volume of music sources
(excluding microphones).
[3] MUTE/TUNING Button
- In CD/USB/SD/LINE mode: Allows you to
momentarily interrupt the audio signal.
- In RADIO mode: Allows you to automatically search
for radio stations. Hold this button for more than
3 seconds to activate the auto scan function. The
MXU230T will then stop at the next radio station
detected.
[4] PROG./TUNING Button
- In CD/USB/SD/LINE mode: Allows you to memorise
up to 10 tracks. To do so, press the PROG. button.
The display will indicate ''PROGRAM''.
* Select a file and press RAN/ENTER, the display
will then indicate: 00 01.
* Repeat these steps for each track.
* Press the PLAY/PAUSE/BAND button to play the
tracks you just saved.
[5] M1 to M+5 Buttons
These buttons are activated only in RADIO mode, they
allow you to save up to 10 radio stations.
* Select a station with the TUNING buttons then
press one of the M1 to M5 buttons for more than
3 seconds.
* To save a station beyond 5, press the M+5
buttons for more than 3 seconds, the display
will then indicate CH. Press one of the M1 to M5
buttons, the display indicates CH8.
* To save a station on M9, press M+5 then press
M3 for more than 3 seconds.
* To listen to a station, press the M1 to M5 buttons.
To listen to a station beyond 5, press M+5 then
press one of the M1 to M5 corresponding button.
[6] RANDOM/ENTER Button
Allows you to activate the random playback function.
ENTER allows you to confirm the changes operated
via the PROG button.

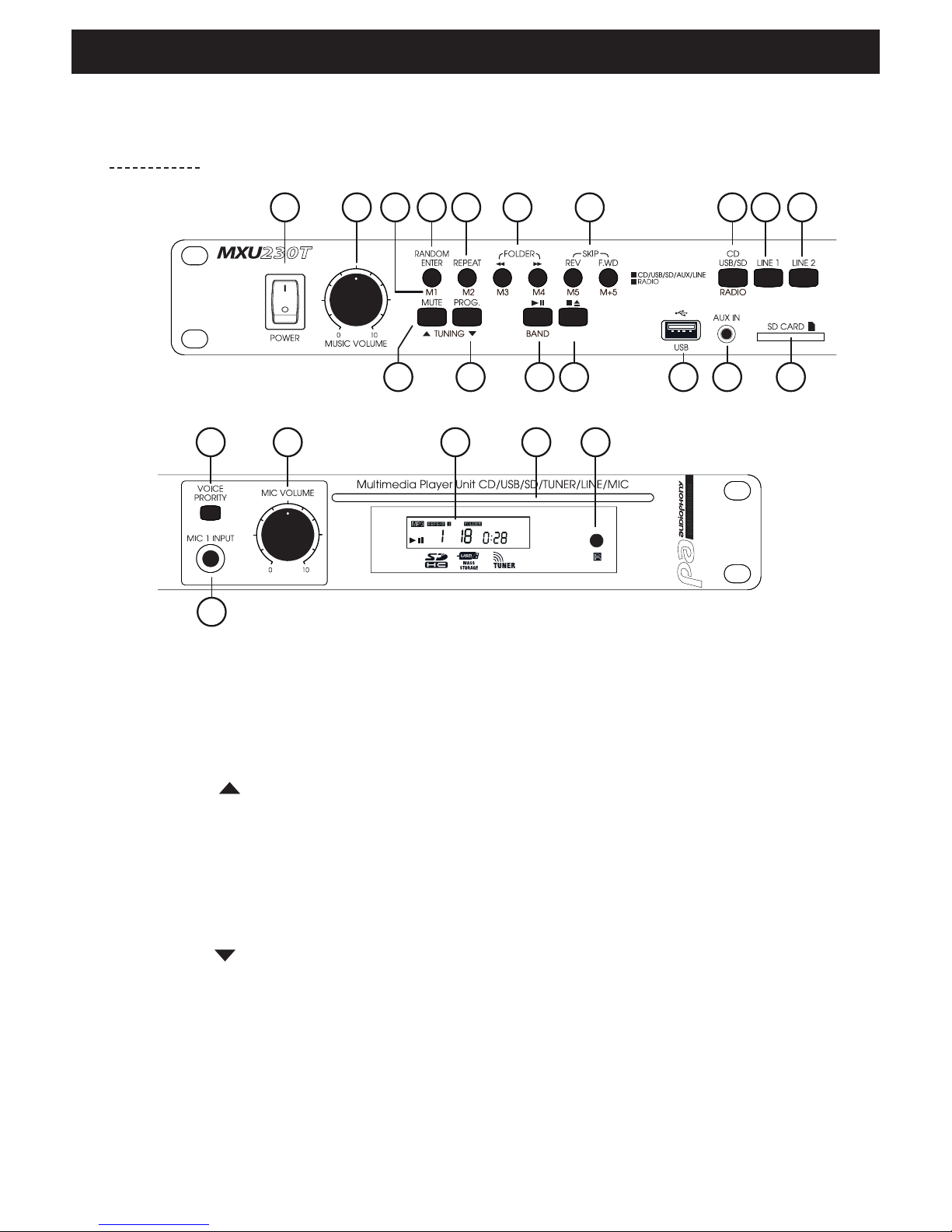

7.1 - Front panel
1 2 65 7 8 11 12 13 14
3 4 9 10 20 21 22
15 16 18 1917
23

AUDIOPHONY PUBLIC ADDRESS English
Page 9
[7] REPEAT button
Allows you to repeat a track or the whole support.
* With traditional supports, pressing this button
once will repeat the current track (REPEAT 1),
while pressing it twice will repeat the whole
support (REPEAT ALL).
* With MP3 files on CDs, USB or SD, pressing
this button once will repeat the current track
(REPEAT), pressing it twice will repeat the current
folder (REPEAT FOLDER), and pressing it 3 times
will repeat the whole support (REPEAT ALL).
[8] FOLDER buttons
These buttons allow you to navigate from a folder to
another.
[9] PLAY/PAUSE/BAND
* In CD/USB/SD mode, allows you to play or pause
the current track.
* In radio mode, it allows you to switch from FM to
AM.
[10] STOP/EJECT Button
* Pressing this button once stops the current track,
the display then indicates the total number of
tracks.
* Pressing it twice ejects the CD.
* Pressing it 3 times allows you to insert a CD.
[11] SKIP Buttons
These buttons allow :
* With a short press to switch from one track to
another.
* With a long press, to move quickly within the
track.
[12] CD/USB/SD/RADIO Button
Allows you to switch from a source to another:
- USB
- SD
- CD
- Tuner
[13] LINE 1 Button
Activates the Line 1 input (at the rear).
[14] LINE 2 Button
Activates the Line 2 input (at the rear).
[15] VOICE PRIORITY Button
Allows you to activate the TALK OVER function,
reducing the volume of any source while you are using
one of the microphones.
[16] MIC VOLUME Button
Allows you to adjust the volume of the microphone
plugged on the front panel (MIC 1 INPUT).
[17] LCD Display
Indicates the current status of the player, the current
radio frequency and programmation steps.
[18] CD Slot In
Allows you to insert a CD.
* Do not insert a 8 cm CD.
* Do not try to push or pull a CD during
the insertion/ejection process as it might
damage the mechanism.
[19] Infrared sensor
Allows the player to receive information from the
remote control.
[20] USB Port
This USB port allows you to insert a Mass Storage
device (key or HDD). Please only use FAT32-formatted,
compatible devices. The maximum size supported is
16 Gb.
[21] AUX IN Input
Allows you to connect your phone, Mp3 player etc.
This is a priority input: when a source is connected,
all other sources will be deactivated (microphones
included).
[22] SD Port
This SD port allows you to insert your SD or SDHC
card. Please only use FAT32-formatted, compatible
devices. The maximum size supported of SD cards is
16 Gb.
[23] MIC 1 INPUT
Allows you to connect a wired microphone via Jack
6.35.

MXU230T - CD/USB/SD player and Tuner with mic, line level inputs and remote control
Page 10

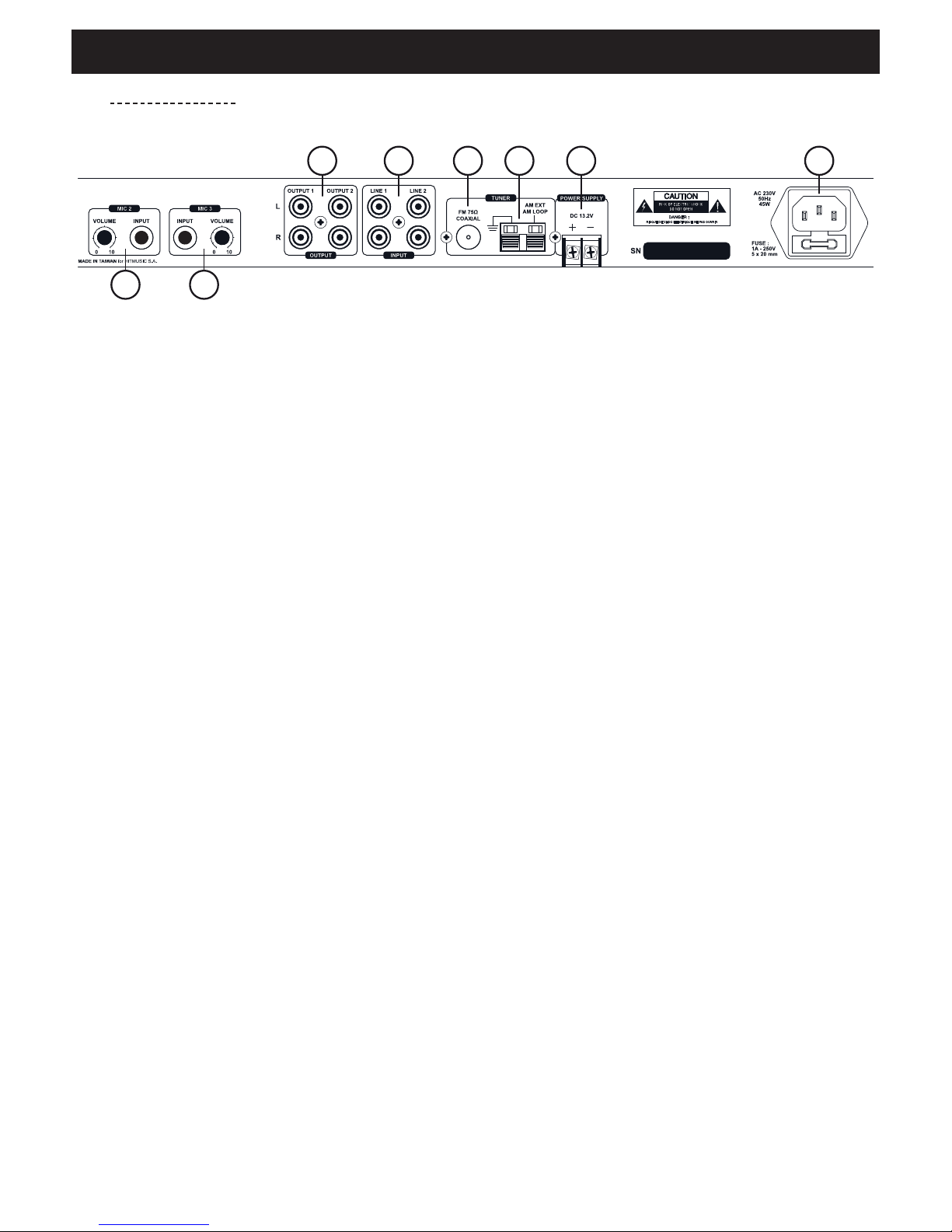

7.2 - Panneau arrière
1 2
3 4 5 6 7 8
[1] MIC 2 input and VOLUME BUTTON
Allows you to connect a wired microphone via Jack
6.35.
[2] MIC 3 input and VOLUME BUTTON
Allows you to connect a wired mic with Jack 6.35
connector.
Adjust the microphone level via the volume control
knob.
[3] Unbalanced OUTPUT 1 and 2
These RCA sockets send an unbalanced analog sygnal
(-10 dB) to your sound system.
The output levels on both these sockets are identical
and depends on the MUSIC VOLUME and MIC
VOLUME settings.
[4] LINE IN 1 and 2 unbalanced inputs
These RCA sockets allow you to connect line level
sources such as a CD player.
[5] FM Antenna connector
Connect your FM antenna cable here.
[6] AM Antenna connector
Connect your AM loop antenna here.
[7] 13.2 V DC Power supply
The Mxu130T can use a 13.2 V DC power supply unit
connected to this socket.
[8] Alimentation 220 V AC
Connect here the supplied 220V power cord.
Note: this connector contains a fuse. If need to replace
the fuse, please only replace it by a new one with the
exact same characteristics.

AUDIOPHONY PUBLIC ADDRESS English
Page 11
7.3 - Remote control
[1] 1 to 10 memory buttons
Allows you to directly access one of the CD player
(or current folder) track. In Tuner mode, allows you
to quickly access the preset frequencies.
[2] FOLDER Buttons
Allow you to move from a folder to another. Folders
are numbered by alphabetical order.
When using an Audio CD, these buttons allow you
to search a specific time within the current track.
[3] Source selection
Allows you to switch from a source to another:
- USB
- SD
- CD
- Tuner
[4] BAND Button
In Tuner mode, allows you to switch from AM to FM
(and vice versa).
[5] MEMORY Button
Allows you to add a frequency to the customisable
frequencies of your device (M1-M10). Press the
MEMORY button then the corresponding M button
to save the current frequency
[6] EJECT Button
Press here to eject the CD.
[7] PROG Button
Allows you to create playlists. Press the
PROG button of your player or remote control.
The display will indicate "PROG". Select the
files you want to insert wit hthe FOLDER
and SKIP buttons. Once the files have been
chosen, press ENTER. Repeat these steps
for each file you want to add to your playlist.
Press PLAY to launch a playlist.
[8] RAN button
Allows you to activate/deactivate the random
playback. The function is activated when the
display indicates RANDOM.
[9] REPEAT Button
Allows you to switch from a Repeat mode to
another:
- REPEAT 1 : The current track will be repeated ad
infinitum
- REPEAT FOLDER : The contents of the current
folder will be repeated ad infinitum
- REPEAT ALL : The contents of the current media
will be repeated ad infinitum
The repeat function is deactivated when none of
these 3 indications appear on the display.
[10] PLAY/PAUSE Button
Allows you to play/pause the current track.
[11] STOP Button
Allows you to stop the current track and eject the
CD from the player. When using a USB key or
SD card, please always press this button before
removing the media from its slot.
[12] SKIP Buttons
Allow you to select a file within a folder, or select a
track on an Audio CD.
[13] MUTE Button
Allows you to interrupt the audio output without
pausing the current track. Press this button to
activate/deactivate this function.
[14] ENTER Button
Allows you to confirm your choice.
[15] TUNING Buttons
In Tuning mode (radio), use these buttons to
modify the receiving frequency. Hold this button to
automatically jump to the next available station.
[16] AUTOSCAN Buttons
In tuning mode (radio), use these buttons to
modify the receiving frequency. The search will
automatically stop at the next frequency received.
1
2
3
4
5
7
9
13
16 15
6
11
14
8
10
12

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
