General
ADVANCED MANUAL / TH Speakers
Index 02
THESIS – The project 03
TH 1.5 violino
Flush mounting without trim ring 04
Flush mounting with trim ring 05
Surface mounting without trim ring 06
Surface mounting without trim ring, with rear bracket 07
Connecting, filtering, suggested positioning/angle 08
TH 3.0 voce
Sizing template 09
Flush mounting 10
Connecting and filtering 11
Suggested positioning/angle and Thesis grille mounting 12
TH 6.5 sax
Sizing template 13
Factory cut-out and flush mounting 14
Connecting 15
Suggested positioning/angle and Thesis grille mounting 16
TH 10 basso
Sizing template 17
Flush mounting 18
Connecting 19
Thesis grille mounting 20
Recommended enclosure specifications 21
Wiring configurations 22
Grille cosmetic options 23
Technical specifications 24
Electro-acoustic parameters 24
Choosing your cable 24
2
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 2

TH 6.5 saxTH 1.5 violino TH 3.0 voce TH 10 basso
ADVANCED MANUAL / TH Speakers
THESIS
The Project
In order to create a system capable of reproducing amazing, rst-class Sound, each acoustical component
must abide to the most elevated standards of quality and design.
The Thesis ampliers offer their best performance when used with speakers designed with the same
philosophy.
Throughout the years Thesis has represented a name referenced to the perfection of electronic design and
performance. Today, technological development has enabled us to push
the envelope in terms of the prestigious Thesis tradition. Creating a supreme product in amplication, the
Audison development team has achieved their ambition of reproducing
an unparalleled Sound.
Target
A speaker’s technical denition as an electromechanical device which converts the electrical
signal provided by the amplication into acoustical pressure waves, cannot alone describe
its mechanical complexity and its emotional role. With the Thesis speakers, the Audison
R&D team have reached a signicant evolution; producing a speaker system that can match
and complement the Audison ampliers sound, worthy of the Thesis nomenclature.
Unique and groundbreaking: Beyond the absolute.
Transparency
The ability to see the heart of the speakers is the chance to call forth the emotions, to
discover what is hidden behind a great acoustical result. Because transparency is not
merely a design element, rather transparency of Sound. Thesis speakers awake the passion
for music listening with a total involvement of the senses: fascinating to the eye, seducing to
the touch, captivating to the ear.
Musical instruments
Like musical instruments are predestined to the creation of sound, Thesis speakers are
esigned for music reproduction. Wind, chord, percussion and electrical instruments along
with the human voice contribute to the creation of the musical message, complex yet
harmonious. In the same way, a system composed by the tweeter violino, the midrange
voce, the woofer sax and the subwoofer basso of the Thesis range become an extraordinary
harmonious group.
A result that goes beyond High Fidelity, a system capable of provoking intense emotions.
Design
Overtaking the intrinsic limits of traditional speakers was the primary goal relating to the
esearch for this project. Thanks to the most advanced FEM (Finite Element Modelling)
software along with measurement and analysis devices such as Klippel®, a mathematical
model was worked out to start the development. This, combined with intense prototype
development, was used in search of the ideal transducer. A big magnet and a rigid cone are
not sufcient to create strong and detailed sound. Sound is generated by the alchemy of
elements that cannot be seen, from the pulsing heart of the speaker.

Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 3

TH 1.5 violino
ADVANCED MANUAL / TH Speakers
66 mm / 2”5/8
31 mm / 1”1/4
66 mm / 2”5/8
23 mm / 15/16”
67 mm / 2”11/16
Do not remove these screws
Flush mounting without trim ring
4
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 4

TH 1.5 violino
ADVANCED MANUAL / TH Speakers
87,3 mm / 3”7/16
77 mm / 3”
1/16
66 mm / 2”5/8
67 mm / 2”11/16
Flush mounting with trim ring
5
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 5

TH 1.5 violino
ADVANCED MANUAL / TH Speakers
17 mm / 11/16”
61 mm / 2”7/16
66 mm / 2”5/8
60 mm / 2”3/8
16 mm / 5/8”
Surface mounting without trim ring
6
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 6

TH 1.5 violino
ADVANCED MANUAL / TH Speakers
66 mm / 2”5/8
60 mm / 2”3/8
16 mm / 5/8”
10 mm / 7/16”
61 mm / 2”7/16
Surface mounting without
trim ring, with rear bracket
7
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 7

/PPರෘ0$;$:*MINIMUM FILTERING
Hi-pass 1.8 kHz @ 12 dB Oct.
Filtering, suggested positioning/angle
Connecting
TH 1.5 violino
ADVANCED MANUAL / TH Speakers
8
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 8

84 mm / 3”5/16
38 mm / 1”1/2
80 mm / 3”3/16
45 mm / 1”13/16
73 mm / 2”7/8
TH 3.0 voce
ADVANCED MANUAL / TH Speakers
Sizing template
9
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 9

73 mm / 2”7/8
89 mm / 3”1/2
Gasket
Factory cut-out and flush mounting
TH 3.0 voce
ADVANCED MANUAL / TH Speakers
10
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 10

/PPರෘ0$;$:*MINIMUM FILTERING
Hi-pass 250 Hz @ 12 dB Oct.
Filtering
Connecting
ADVANCED MANUAL / TH Speakers
TH 3.0 voce
11
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 11

2.5 mm
2.9 x 13 mm
Suggested positioning/angle
and Thesis grille mounting
ADVANCED MANUAL / TH Speakers
TH 3.0 voce
12
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 12

81 mm / 3”3/16 73 mm / 2”7/8
163 mm / 6”7/16
145,5 mm / 5”3/4
4 mm / 3/16”
155 mm / 6”1/8
Sizing template
ADVANCED MANUAL / TH Speakers
TH 6.5 sax
1
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:51 Pagi a 13

168 mm / 6”9/16
147 mm / 5”13/16
Gasket
ADVANCED MANUAL / TH Speakers
TH 6.5 sax
3 mm
3.9 x 22 mm
Factory cut-out and flush mounting
14
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 14

Do not remove these screws
/PPರෘ0$;$:*Connecting
ADVANCED MANUAL / TH Speakers
TH 6.5 sax
15
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 15

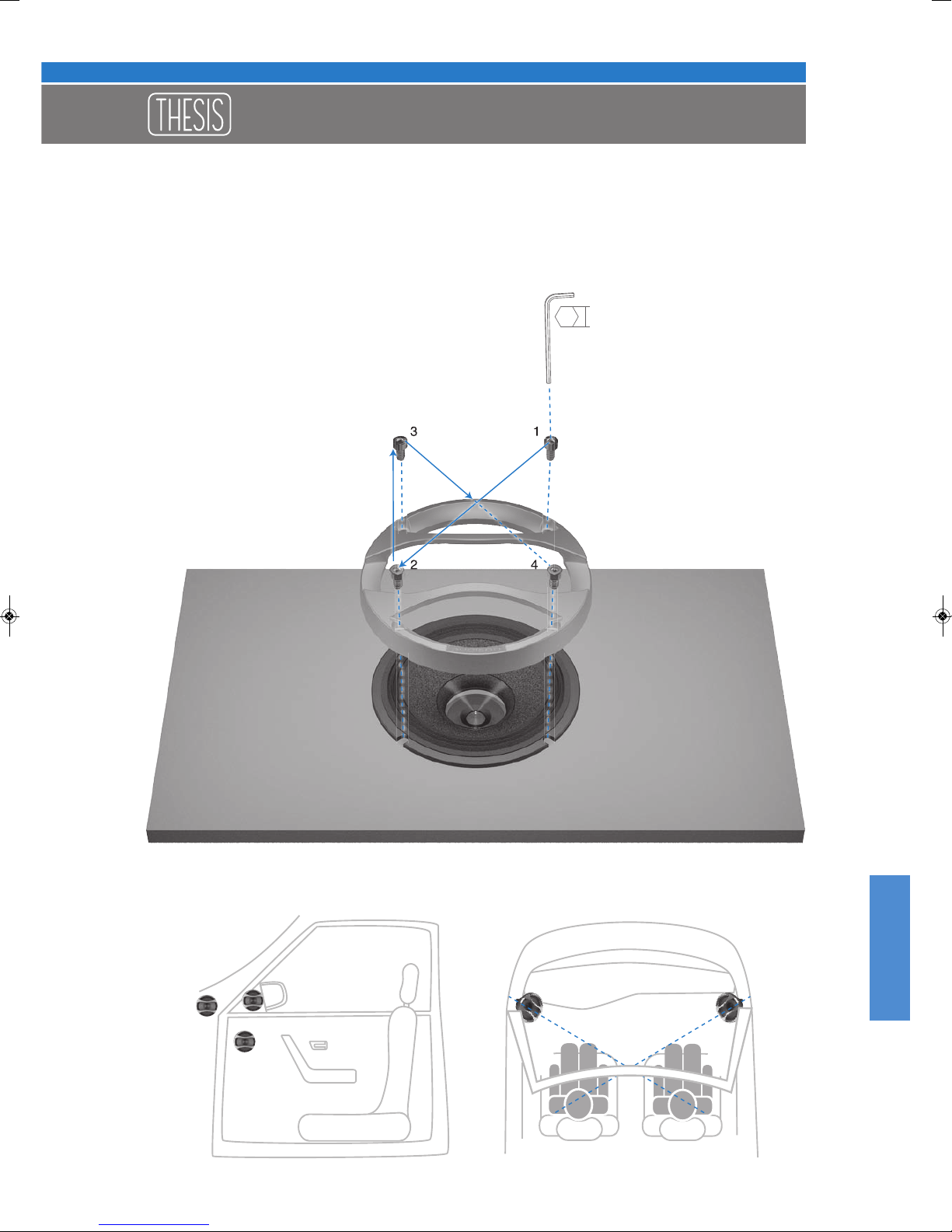

Suggested positioning/angle
and Thesis grille mounting
TH 6.5 sax
3 mm
3.9 x 22 mm
ADVANCED MANUAL / TH Speakers
16
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 16

Template ratio 1:2
Sizing template
TH 10 basso
4,5 mm / 3/16
”
252 mm / 9”
15/16
261 mm / 10”5/16
235 mm / 9”1/4
138 mm / 5”7/16 124 mm / 4”7/8
ADVANCED MANUAL / TH Speakers
17
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 17

268 mm / 10”9/16
Gasket
236 mm / 9”5/16
Flush mounting
TH 10 basso
ADVANCED MANUAL / TH Speakers
18
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 18

TH 10 basso
Connecting
Do not remove these screws
/PPರෘ0$;$:*ADVANCED MANUAL / TH Speakers
19
Esec_Adva ced ma uale TH Speaker_E g_rev_b_Layout 1 03/05/12 14:52 Pagi a 19

4 mm
4,8 x 25 mm
4,8 x 25 mm
4 mm
Thesis grille mounting
TH 10 basso
ADVANCED MANUAL / TH Speakers
20
