HOW TO CHANGE AN AUSSIE TRAVELLER DOOR HANDLE
Step 1 Open the door
Step 2 Separate the outer door, note the current position of inner handle

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A2/10
Step 3 Remove the two screws from the inner handle
Step 4 Remove outer handle ONLY

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A3/10
Step 5 Replace the outer handle, making sure the inner handle is returned to original position
Step 6 Replace the two screws through the inner handle. Note the position of the inner handle.

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A4/10
IF HANDLE SPRING/S ARE BROKEN - Remove outer handle as per above instructions. Then:
Step 1 Remove the top of plate retaining pins (drill, grind or chisel out)
Step 2 Remove the top plate. Note the intact springs in the photo

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A5/10
Step 3 Remove the springs
Step 4 Replace the outer handle and use as per normal until a replacement handle is obtained.

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A6/10
HOW TO REMOVE INNER HANDLE IF REPLACING

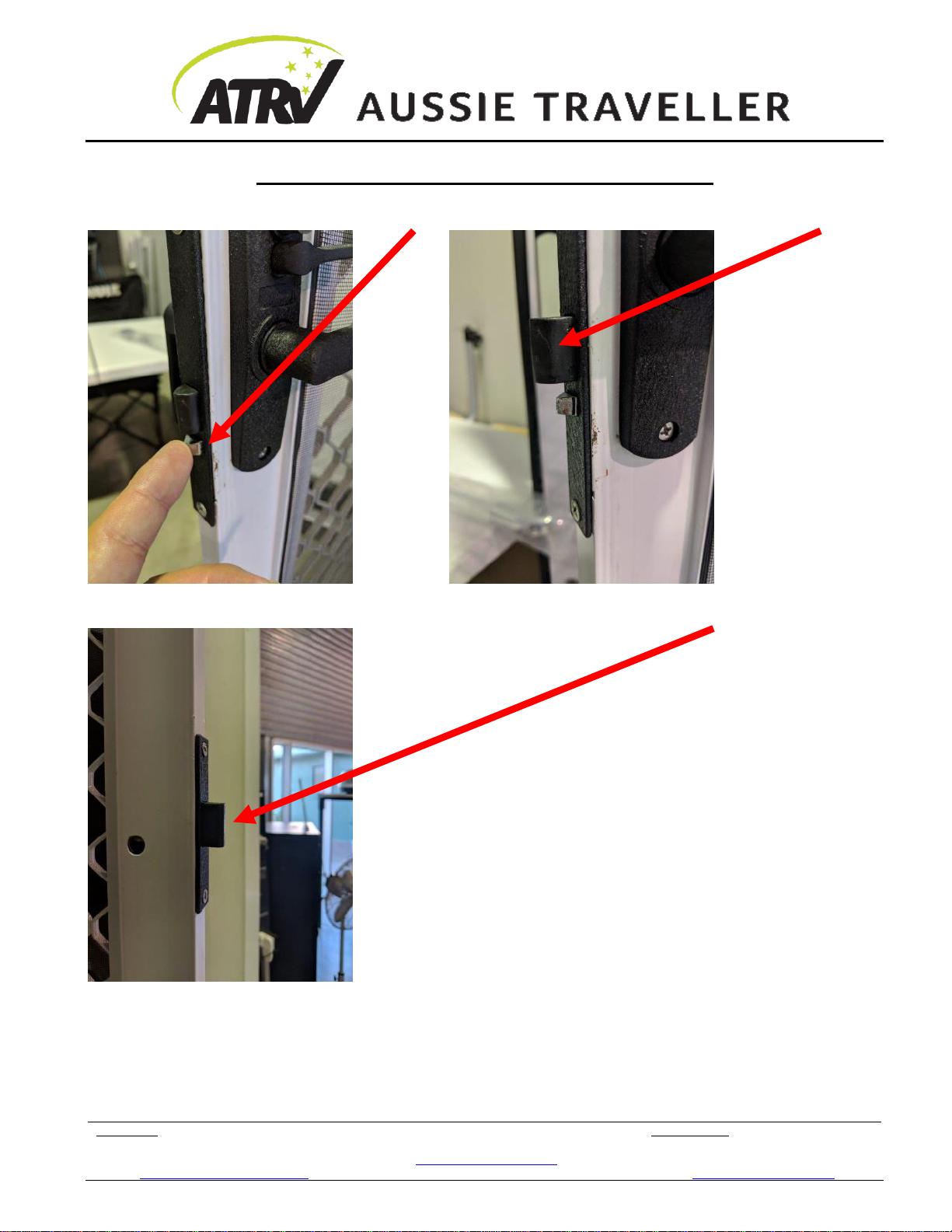

Step 1 Press the silver actuator below the centre tongue to engage tongue. Tongue will be out.
Step 2 Engage the top & bottom lock tongues using door handle, tongues will be out.

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A7/10
Step 3 Turn the lock barrel internal snib (or key) to lock the door
Step 4 Remove the barrel retaining screw

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A8/10

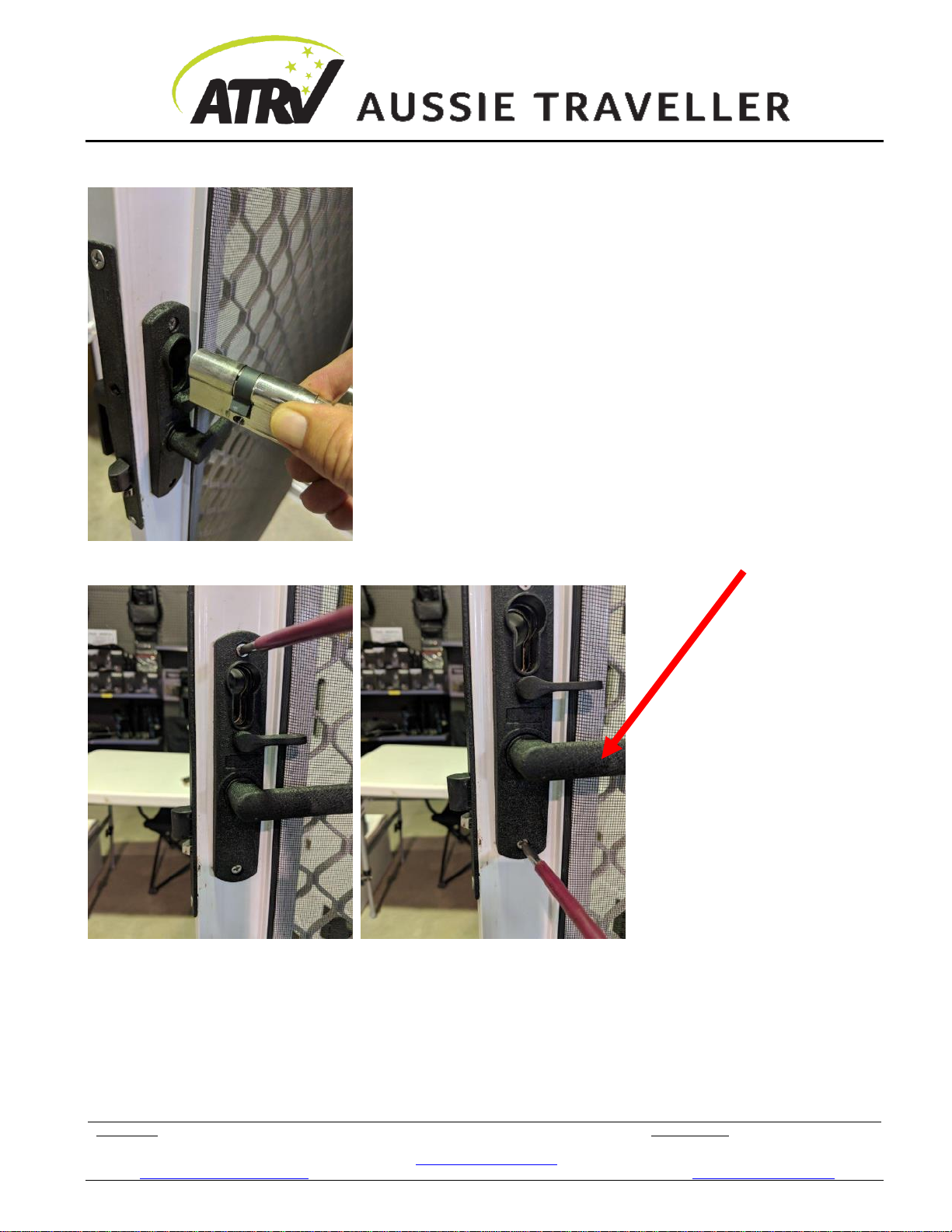

Step 5 Remove the barrel from the door
Step 6 Remove the two handle screws. Take note of the position of the inner handle

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A9/10

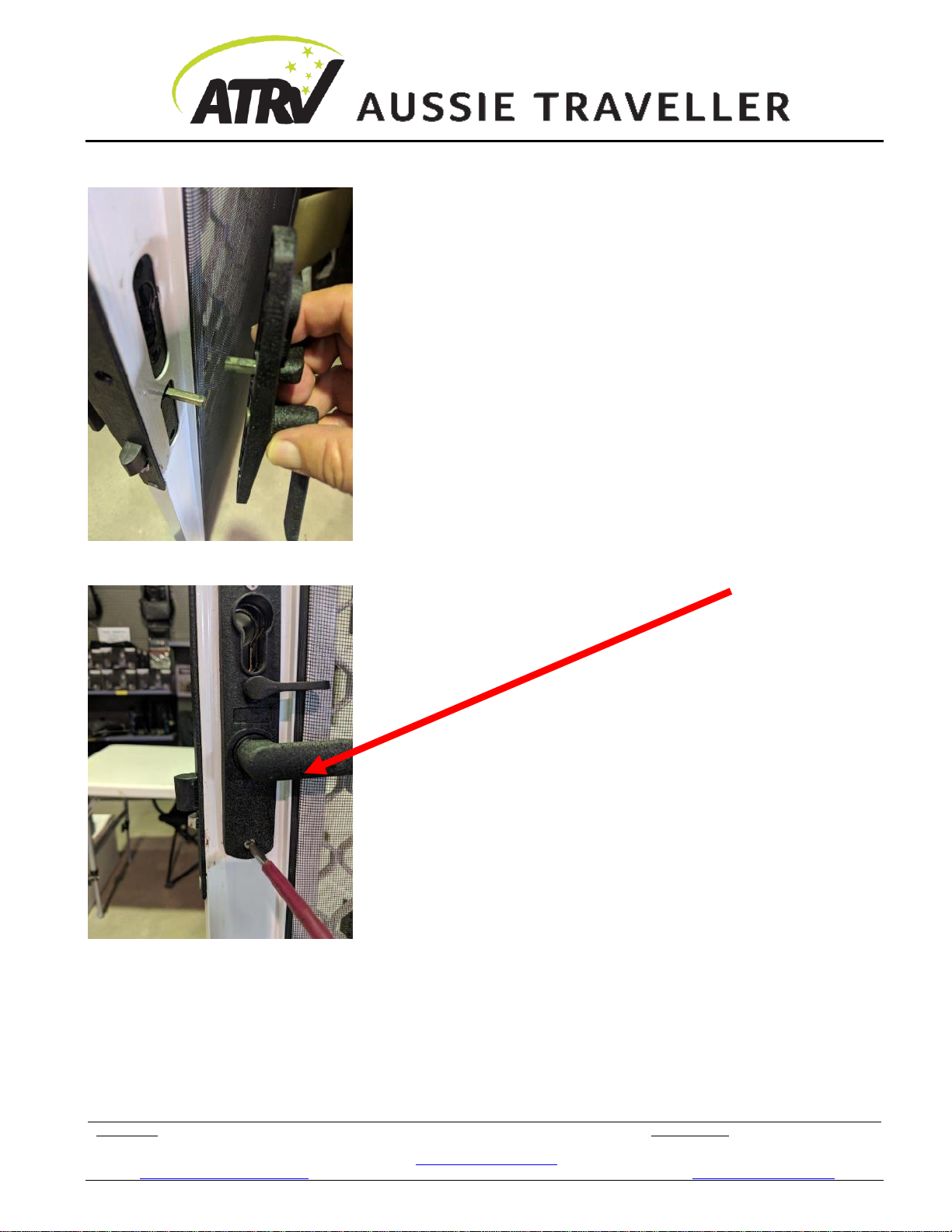

Step 7 Remove the inner handle.
Step 8 Replace Inner Handle making sure handle arm is returned to original position.

Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : [phone] Fax : [phone]
E-mail : [e-mail]
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail: [e-mail]
I00129A10/10
Step 9 Replace the barrel and screw into place
