Mira fight ACE User manual

11115815-W2-C
These instructions must be left with the user
PIVOT AND BI-FOLD DOOR
Installation and User Guide
ACE

2
1115815-W2-C
If you experience any difculty with the installation or operation of your new
enclosure, please refer to ‘Fault Diagnosis’, before contacting Kohler Mira Ltd.
Our contact details can be found on the back cover of this guide.
CONTENTS
Introduction .............................................................................................3
General .................................................................................................3
Guarantee ............................................................................................3
Recommended Usage ..........................................................................3
Pack Contents ......................................................................................... 4
Safety precautions .................................................................................. 5
General .................................................................................................5
Installation ...............................................................................................5
Maintenance...........................................................................................17
General Maintenance .........................................................................17
Cleaning .............................................................................................17
Care ...................................................................................................17
Chrome Parts .....................................................................................17
Spare Parts ............................................................................................ 18
Customer Service..................................................................................20
Note! If being installed as part of an enclosure refer to the Side Panel Installation
and User Guide.

31115815-W2-C
INTRODUCTION
Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly, having done so, keep
it handy for future reference.
The following pages aim to provide comprehensive installation instructions, plus
advice on how to care and maintain your product.
We recommend that the unit is installed by a qualied plumber or engineer.
General
1. Read all of these instructions.
2. Retain this guide for later use.
3. Pass on this guide in the event of change of ownership of the installation
site.
4. Follow all warnings, cautions and instructions contained in this guide.
Guarantee
For domestic installations, Mira Showers guarantee this shower enclosure against
any defect in materials or workmanship for a period of ten years from the date of
purchase.
For non-domestic installations, Mira Showers guarantee this shower enclosure
against any defect in materials or workmanship for a period of one year from the
date of purchase.
For terms and conditions refer to the back cover of this guide.
Recommended Usage
Domestic ü
Light Commercial ü
Heavy Commercial û
Healthcare û

4
1115815-W2-C
PACK CONTENTS
Tick the appropriate boxes to familiarise yourself with the part names and to conrm
that all of the parts are included.
Documentation
q1 x Guarantee Registration Document
q8 x Concealing Caps
q6 x Wall Plugs
q 2 x U Channels
q 6 x Fixing Screws
q 4 x Plastic Covers
q 12 x Screws
(8 required for Pivot and Bi-fold Door)
q 8 x Plastic Washers
q1 x Handle Assembly
q2 x Plugs
(Bi-fold Only)
q 1 x 2.5 mm Hexagonal Wrench
q2 x Door
Splash Guards
q 1 x Pivot Door or
Bi-fold Door
q1 x 3 mm Drill

51115815-W2-C
INSTALLATION
General
1. Care should be taken when drilling into walls and oors to avoid any hidden
pipes or wires.
2. We strongly recommend that all glass panels are moved by a minimum of two
people and that any protective packaging along the glass edges is kept in place
for as long as possible to prevent damage before installation.
3. People not familiar with the tting of Mira enclosures may require the assistance
from another person at certain stages of the procedure. We have indicated
these points in the installation procedure with a caution symbol.
4. Wear protective footwear when lifting panels.
5. Wear safety glasses when drilling.
SAFETY PRECAUTIONS
1
(a) For Bi-fold Door Only - Remove the transit clamps and t the small rubber
plugs where the transit screws had been tted.

6
1115815-W2-C
12 mm
0mm
+
-
(a) Install the shower tray in accordance with the manufacturer’s instructions.
Caution! Make sure that the shower tray is level and that the walls are vertical
and square.
Note! Cover the tray waste to prevent the loss of small parts.
Note! Protect the tray surface during enclosure installation.
2

71115815-W2-C
3
12 mm
x3
6mm
x3
x3
(a) Position the U-channel (handle side) on the wall. Using a spirit level make sure
that it is upright.
(b) Mark the position of the xing holes, then remove the U-channel.
(c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs
(supplied).

8
1115815-W2-C
4
12 mm
x3
x3
6mm
x3
x3
(a) Position the second U-channel (pivot side) on the wall. Using a spirit level make
sure that it is upright.
(b) Mark the position of the xing holes, then remove the U-channel.
(c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs
(supplied).
(d) Position the U-channel on the wall and partially install the xing screws.
(e) Apply silicone sealant according to the manufacturers instructions along the
length of the wall.
(f) Fully tighten the xing screws, making sure that the U-channel is upright.

91115815-W2-C
5
(a) Install the rst U-channel over the door frame and hold in position.
RH
LH
Doors are Reversible for LH
or RH tting

10
1115815-W2-C
6

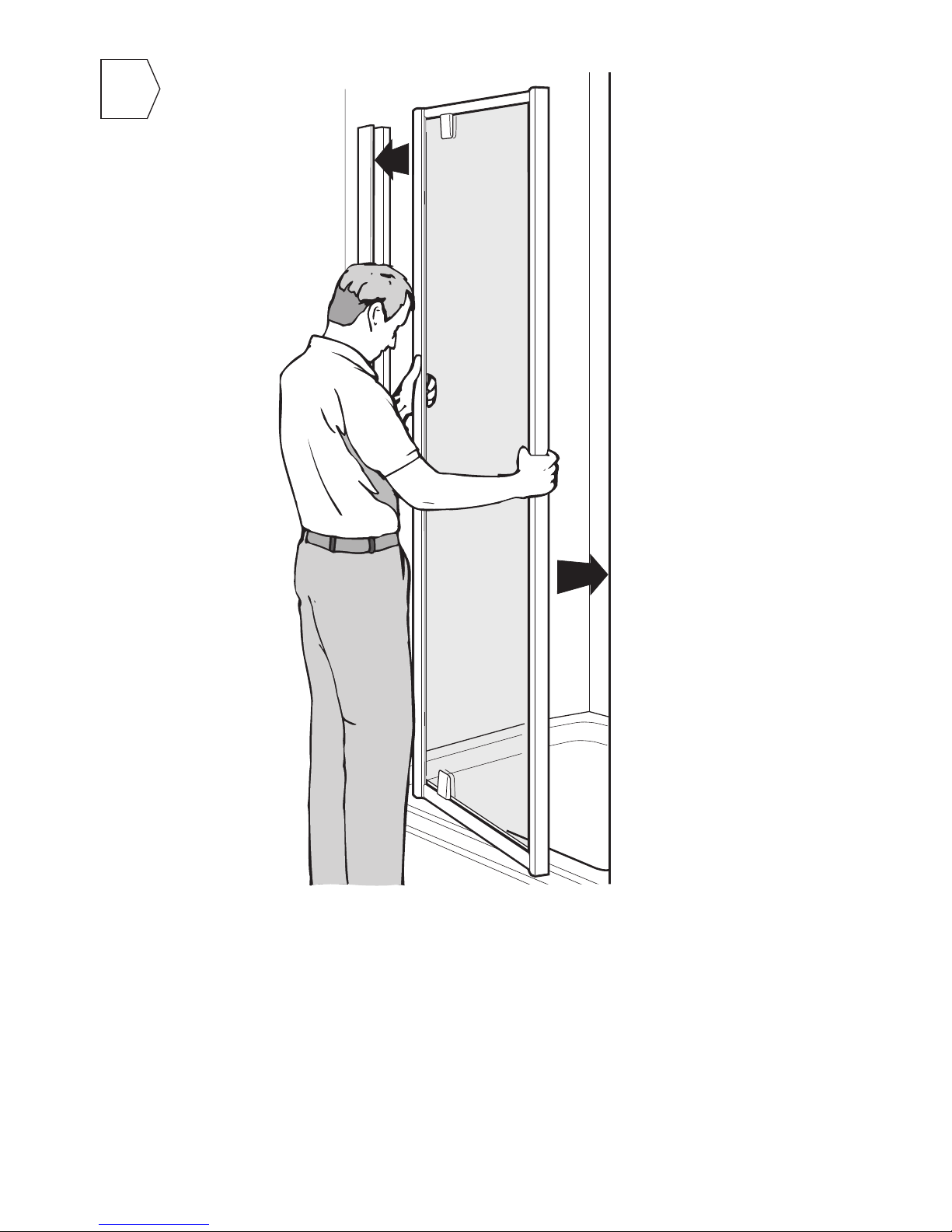

(a) Install the door frame over the U-channel that had been secured to the wall
earlier.
(b) Adjust the door frame so that it is in the correct position.

11 1115815-W2-C
7
x3
(a) Open the door and remove the rubber sealing strip.
(b) Partially install the xing screws.
(c) Apply silicone sealant according to the manufacturers instructions along the
length of the wall.
(d) Fully tighten the xing screws, making sure that the U-channel is upright.
(e) Ret the rubber sealing strip.

12
1115815-W2-C
8
=
(a) Lift up the door frame within the U-channels and apply silicone sealant in
accordance with the manufacturers instructions to the area shown.
(b) Lower the door frame until it sits rmly on the shower tray. Remove any excess
sealant.
(c) Centralise the door frame within the U-channels, making sure that the door
frame is square.

13 1115815-W2-C
9
(a) Drill four 3 mm holes from inside the shower enclosure in the door frame and
through into the U-channel with the 3 mm HSS drill (supplied).
(b) Install the plastic washer and the screw.
(c) Tighten the screws and t the plastic concealing caps.
(d) Repeat the process for the other U-channel.
x4
3mm
x4
x4
L & R

14
1115815-W2-C

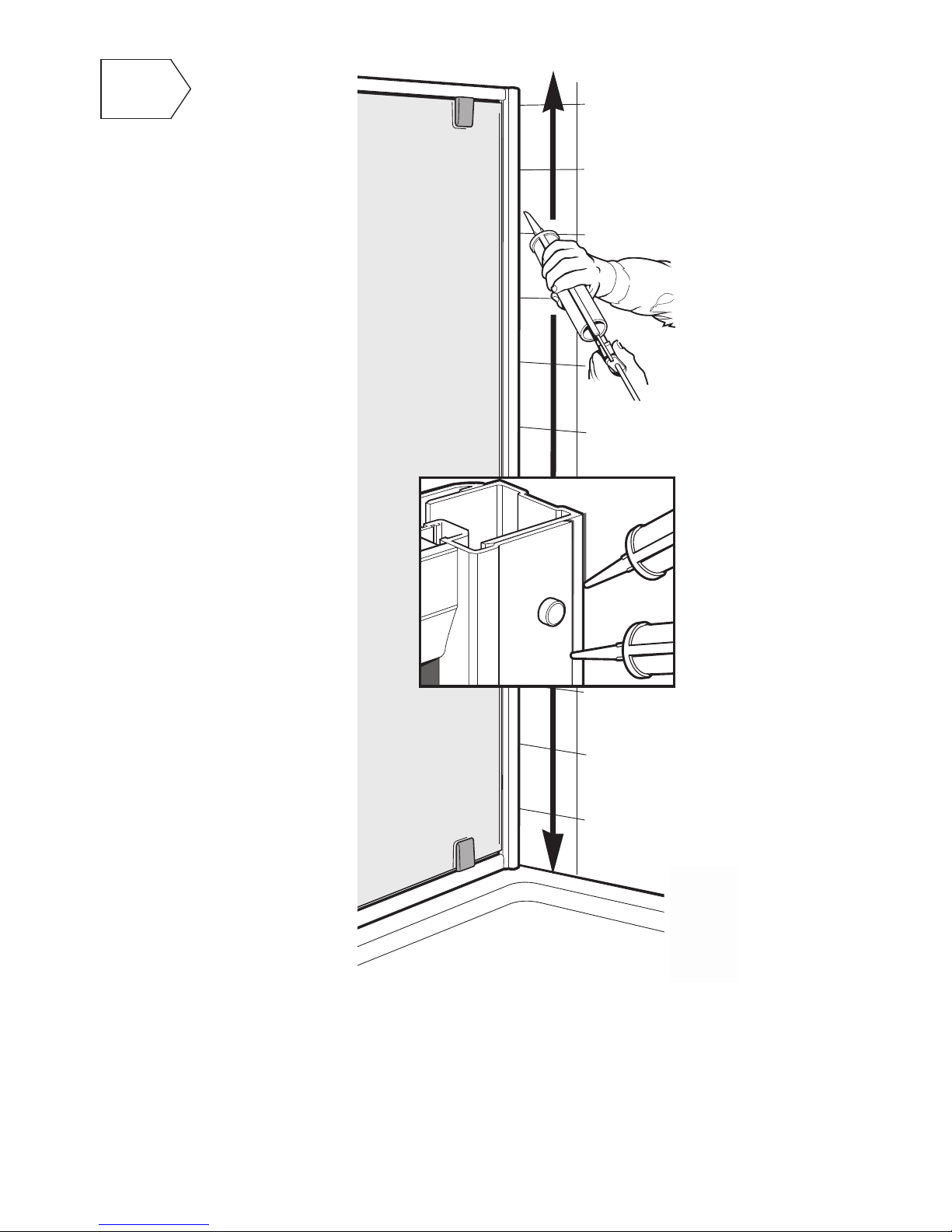

(a) Apply sealant in accordance with the manufacturers instructions along the inner
surfaces of the door frame.
L & R
10

15 1115815-W2-C
11
x2
(a) Partially remove the door sealing strips as shown above.
(b) Apply a small amount of sealant in accordance with the manufacturers
instructions as shown above.
(c) Fit the door sealing strips back in position. Remove any excess silicone
sealant.

16
1115815-W2-C
12
(a) Fit the plastic covers to the top of the extrusions.
(b) Apply sealant in accordance with the manufacturers instructions along the
bottom of the door frame.
(c) Fit the door handle to the door.
(d) For the Pivot Door only - t the splash guards and adjust the door catch if
necessary
(e) Allow the silicone sealant to cure for 24 hours before use.
24hrs
x2
x2
Door Catch
Adjustment
In (Clockwise)
Out
(Anti-clockwise)
Pivot Door Only

17 1115815-W2-C
MAINTENANCE
General Maintenance
Providing the shower enclosure has been correctly installed and is operated in
accordance with the instructions contained in this guide, difculties should not
arise.
If any maintenance is required then it must be carried out by a competent tradesperson
to whom the maintenance instructions are provided.
Before replacing any parts ensure the underlying cause of the malfunction has been
resolved.
Cleaning
Warning! Many household cleaners contain abrasive and chemical substances and
should not be used for cleaning painted, plated or plastic ttings.
These nishes should be cleaned with a mild washing up detergent or soap solution
and then wiped dry using a soft cloth.
Care
To preserve the beauty of your shower enclosure for many years, please observe
the following care instructions:
Rinse glass and frame with clear water after showering. Remove water droplets
with a squeegee. Do not rub dry! To clean your shower hygienically and easily, we
recommend the use of a biodegradable cleanser.
Regular cleansing with a biodegradable cleanser prevents stubborn stains and
ensures a clean and hygienic surface for many years. Do not use scouring or caustic
cleansers under any circumstances! These can damage the surface of the frame,
glass and decorative parts as well as the plastic parts.
Chrome Parts
Use only cleansers expressly specied for chrome!

18
1115815-W2-C
SPARE PARTS
* indicates this component is part of the parts pack.
200004*
202010*
202014*
*
*
200504
208390
202041
204317
202473
200504
204948
202038
202041
202473
202038
202038
202062
204327
204949
200504
202041
202473
204317
202062
200470
200071
200504
208391
308143
202017*
202014*
202010*
200004*
304662
200508*
200484*
200504
204945
202473
202041
202041
202041
202038
202062
204327
204325
202473
202473
204949
204317
202062
308144
200071
200504
200508*
200464*
202017*
304662
200504
204317
202060
204948
202038
202062
202060
202062 200071
1
2
3
3
4
4
4
4
202038
200504
308168*
200470
200071
302325
200652
302328
302328
200470 200470
200470
200470
200470
204124
302325
204325
200652
202157
200470
Bi-fold doo
r
1
762 mm 204617
204619 204621 204846
206812 206813 206814 206815
305222 305224 305226 305228
304700 304702 304704 304945
800 mm 900 mm 1000 mm
234

19 1115815-W2-C
202010*
200004*
304662
200508*
200504
308137
204106
208501
208501
208519
302285
2
4
302461
202156 202063
202040 204365
200471
208502
1
308168
305808
200508*
200004*
304662
202010*
200499
202014*
200464*
202017*
208519
200471
208502
204365
202040
202063
202156
3
302461
202014*
208390*
*
200464*
202017*
205251
208391
308138
* indicates this component is part of the parts pack.
Pivot door
1
762 mm 206806
206807 206808 206809
304676 304678 304680 304936
304706 304708 304710 304938
304742 304743 304744 304940
800 mm 900 mm 1000 mm
234

20
1115815-W2-C
CUSTOMER SERVICE
© Kohler Mira Limited, November 2009
Guarantee of Quality
Mira Showers guarantee your product against any
defect in materials or workmanship, provided that it
is installed and maintained in accordance with the
instructions given in this guide.
To validate the guarantee, please return your
completed registration card within 30 days of product
installation.
Within the guarantee period we will resolve defects,
free of charge, by repairing or replacing parts or
modules as we may choose.
To be free of charge, service work must only be
undertaken by Mira Showers or our approved
agents.
Service under this guarantee does not affect the
expiry date of the guarantee.
The guarantee on any exchanged parts or product
ends when the normal product guarantee period
expires.
Not covered by this guarantee:
Damage or defects arising from incorrect installation,
improper use or lack of maintenance, including
build-up of limescale.
Damage or defects if the product is taken apart,
repaired or modified by any persons not authorised
by Mira Showers or our approved agents.
This guarantee is in addition to your statutory and
other legal rights.
What to do if something goes wrong
If when you fi rst use your enclosure, it doesn’t
function correctly, first contact your installer to check
that installation is satisfactory and in accordance
with the instructions in this manual. We are on
hand to offer you or your installer any advice you
may need.
Should this not resolve the diffi culty, simply contact
our Customer Services Team who will give every
assistance and, if necessary, arrange for our service
engineer to visit. If the operation of your enclosure
declines, please call our Customer Services Team
to talk the diffi culty through, request a service under
guarantee if applicable, or take advantage of our
comprehensive After-Sales service.
As part of our quality and training programme calls
may be recorded or monitored.
Our Customer Services Team is comprehensively
trained to provide every assistance you may need:
help and advice, spare parts or a service visit.
Spare Parts
We maintain an extensive stock of spares and
aim to provide support throughout the product’s
expected life.
Genuine Mira spares can be purchased direct from
Customer Services.
Spare parts will normally be despatched within
three to fi ve working days. Payment can be made
using most major Credit or Debit cards at the time of
ordering. Should payment by cheque be preferred,
a pro-forma invoice will be sent.
All spares are guaranteed for 12 months from the
date of purchase.
Service / Repairs
Our Service Force is available to provide a quality
service at a reasonable cost. You will have the
assurance of a Mira trained engineer/agent, genuine
Mira spare parts and a 12 month guarantee on the
repair.
Payment should be made directly to the engineer/
agent who will accept most major Credit or Debit
cards or a cheque supported by a banker’s card.
To Contact Us
England, Scotland, Wales and Northern Ireland
Mira Enclosures Technical Helpline
Telephone: [phone]
E-mail: [email protected]
Fax: [phone]
By Post: Cromwell Road, Cheltenham,
Gloucestershire, GL52 5EP
Mira is a registered trade mark of
Kohler Mira Limited.
The company reserves the right to alter
product specifications without notice.
www.mirashowers.co.uk
