AUSTRALIAN MONITOR MYMDABCD User manual

INSTALLATION AND OPERATION MANUAL
MYM SERIES
DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES
MYMDABCD
MYMDUALCD
MYMDUALDAB

IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION
PAGE 2 MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and
that no object filled with liquid such as vases shall be placed on the
apparatus.
16. Plug this apparatus to the proper wall outlet and make the plug to be
disconnected readily operable.
17. Mains plug is used as disconnected device and it should remain readily
operable during intended use. In order to disconnect the apparatus from
the mains completely, the mains plug should be disconnected from the
mains socket outlet completely.
18. WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
19. An appliance with a protective earth terminal should be connected to a
mains outlet with a protective earth connection.
20. The apparatus should be disconnected from the mains completely before
speaker wiring. The speaker output should be proper protected from
direct contact and pay attention to speaker connections, terminals and
speaker wiring during normal operation.
1. LISEZ ces instructions.
2. Tenez ces instructions.
3. Notez tous les avertissements.
4. Suivez toutes les avertissements.
5. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.).
6. Nettoyez seulement avec une étoffe sèche.
7. Ne bloquez aucuns troux de ventilation. Installez en accord avec les
instructions du manufacturier.
8. N’installez près aucunes sources de chaleur comme radiateurs, registres
de chaleur, fours ou les autres équipements (y compris amplificateurs) qui
produisent la chaleur.
9. Ne défaites pas le but de sécurité de la fiche polarisée ou base-type. Une
fiche polarisée a deux tranchants avec un plus large que l’autre. Une fiche
de base type a deux a deux tranchants et une troisième pointe de base,
le tranchant large ou la troisième pointe est fourni pour votre sécurité. Si
la fiche donnée ne conforme pas votre prise de contact, consultez un
électricien pour remplacement de la prise de contact obsolète.
10. Protegez le cordon de secteur contre être marchée dessus ou pincez en
particulier aux fiches, aux douilles de convenance, et au point où ils
sortent de l’appareil.
11. Seulement utilisez attachements/accessoires spécifiés par le manufacturier.
12. Utilisez seulement avec un chariot, un stand, un trépied, un support ou
une table indiquée par le manufacturier, ou vendue avec l’appareil. Quand
un chariot est utilisé, faites attention en déplaçant la combinaison
d’appareil/chariot pour éviter de se déséquilibrer.
13. Arrachez la fiche du dispositif durant éclair et orage ou quand pas utilisé
pour longues périodes de temps.
14. Référez au personnel qualifié de service pour toutes
réparations. La réparation est donnée quand le système
a été endommagé à n’importe façon, par exemple un fil
ou une fiche endommagé(e) de la source d’alimentation.
Avoir été exposé à pluie ou humidité, n’opère pas
normalement, ou avoir été tombé.
15. L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures
et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé
sur l’objet.
16. Branchez l’appareil à une source appropriée et faire que la prise à
débrancher soit facilement accessible.
17. La prise du secteur ne doit pas être obstruée ou doit être facilement
accessible pendant son utilisation. Pour être complètement déconnecté
de l’alimentation d’entrée, la prise doit être débranchée du secteur.
18. AVERTISSEMENT: Pour éviter le risque d’incendie ou de chocs électriques,
ne pas exposer cet appareil à la pluie ou à l’humidité.
19. Un appareil avec la borne de terre de protection doit être connecté au
secteur avec la connexiion de terre de protection.
20. Assurez-vous que l’appareil est hors tension avant de connecter les hauts
parleurs. Verifiez que la sortie des enceintes soit protégées contre un
contact physique. Respecter les polarités des terminaux ainsi que le
câblage des enceintes pendant le fonctionnement afin d’assurer une
utilisation sécurisee.

PAGE 3
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
MYM Series
Congratulations on choosing Australian Monitor for your
professional audio source requirements.
The new MYM Series audio sources are 1 unit (1.75”) high,
19” wide, rack mountable units. Each model comprises of a
subset of the following audio features, CD, FM Radio, DAB+
Radio, Bluetooth®Audio, USB Audio and SD/MMC.
MYMDABCD features a DAB+/FM tuner, CD player,
Bluetooth®audio, SD and USB playback.
MYMDUALCD features two CD players, Bluetooth®audio,
SD and USB playback.
MYMDUALDAB features two DAB+/FM tuners, Bluetooth®
audio.
All models can be remotely controlled via the included IR remote
control or RS232 communication port.
Revision 1.1 May 2016
INTRODUCTION 3
FEATURES 4
CONTROLS 5
RS232 CONTROL 10
OUTLOOK & DIMENSIONS 12
SPECIFICATIONS 13
NOTES 15
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT & FULLY INSERT.
CAUTION
THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY.
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).NO
USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within an
equilateral triangle is intended
to alert the user to the
presence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the appliance.
For European Union countries: This symbol on
the product or its packaging indicates that this
product must not be disposed of with other waste.
Instead, it is your responsibility to dispose of your
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical
and electronic equipment.
Please contact your local authority for further details
of your nearest designated collection point.
Rating plate and caution marking are marked on the back enclosure of the apparatus
INTRODUCTION AND CONTENTS

PAGE 4
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
FEATURES
MYMDABCD
• DAB+ Radio
• FM Radio
• CD Player
• Bluetooth®Audio
• USB Input supporting MP3
• SD/MMC Input supporting MP3
• RCA Outputs
• Priority Output
• 30 tuner station presets
• Infrared Control
• RS232 Comms Port
MYMDUALCD
• Dual CD Player
• Bluetooth®Audio
• USB Input supporting MP3
• SD/MMC Input supporting MP3
• RCA Outputs
• Infrared Control
• RS232 Comms Port
MYMDUALDAB
• Dual DAB+ Radio
• FM Radio
• Bluetooth®Audio
• RCA Outputs
• Infrared Control
• RS232 Comms Port
The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc and any use of such marks by Australian Monitor is under license.

PAGE 5
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
1
1 1 21
10
10 10
11
11
13 14 15 17
13
13
14
14 15
15 21
21
22
22
20
20
2
2 2 3
5
5
4
4
CONTROLS
FRONT & REAR PANELS
MYMDABCD Front
MYMDUALCD Front
MYMDUALDAB Front
Rear
Rear
Rear

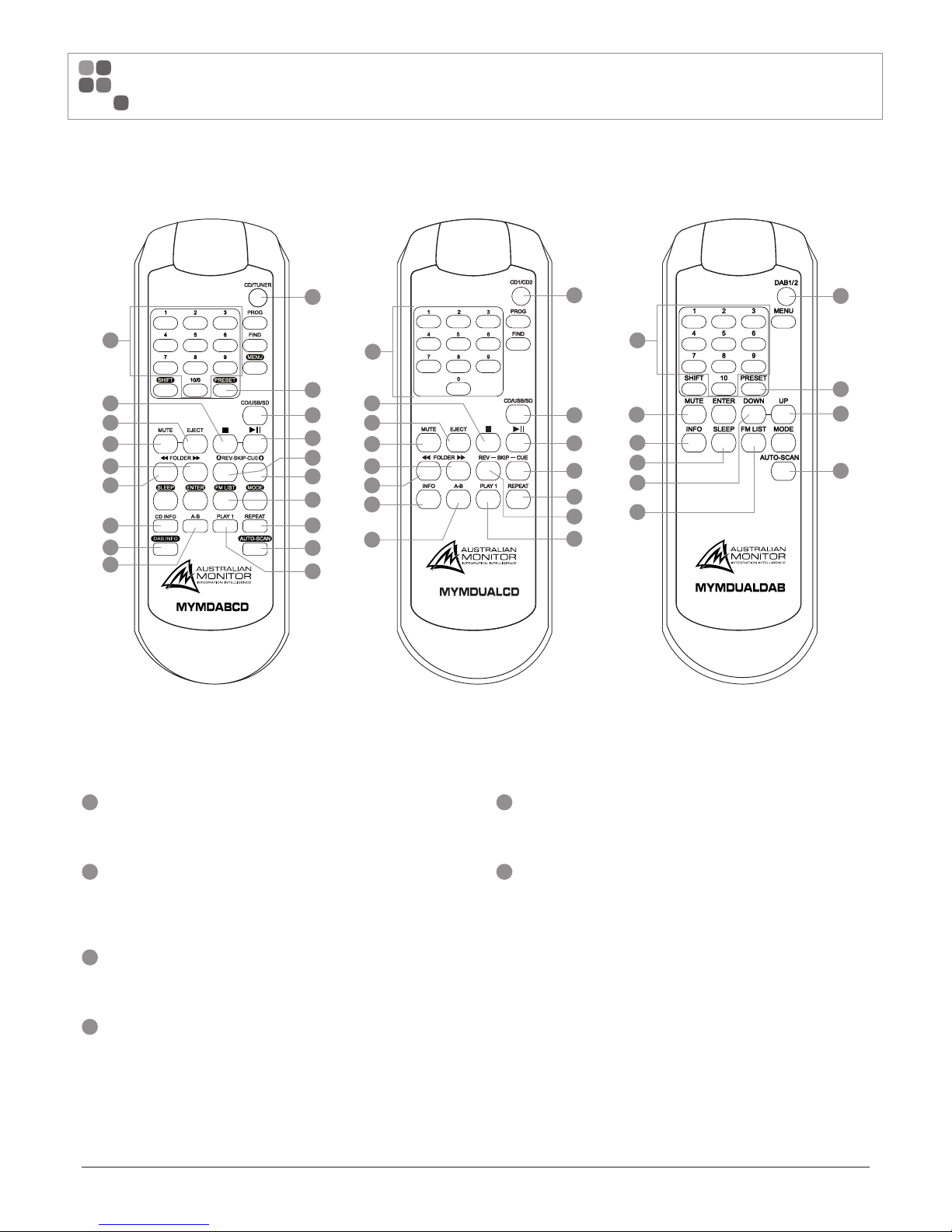

CONTROLS section, with explanations for the above numerical labels, continues on page 6
16
16
18
18
19
19
9
9
6
6 6 4
7
7 7 5
8
8
19 18 16 25
23
23
23
12
12
24
24
24 22
3
3
26

PAGE 6
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
CONTROLS [CONT]
CD
|
USB
|
SD Function
1Play/Pause
When this key is pressed during CD stop, play will start after track search.
When this key is pressed whilst CD is playing, then it is changed to pause.
When this key is pressed whilst CD is paused, then it is changed to play.
2Stop
Press this button to stop play.
3 Funct
When this key is pressed, mode is changed cyclically as follows:
DISC USB CARD
4 Up/Cue
In stop mode: Change the starting play track (file) during stop mode, cyclic to
the first track, if it is in the last track.
In program entry mode: Change to the next track (file) for program select.
In play mode, pause mode, program play mode, random play mode:
Single pressed:
• skip the playing track (file) to next track (file) for normal play/pause mode
• to next program index track (file) for program play/pause mode
• to next random track (file) for random play /pause mode.
Continue pressed: fast forward during play/pause when pressed for more
than 0.7sec.
5 Down/Rev
In stop mode: Change the starting play track (file) during stop mode, cyclic
to the last track, if it is in the first track.
In program Entry mode: Change to the previous track (file) for program
select.
In play mode, pause mode, program play mode: Single pressed:
• skip the playing track (file) to previous track (file) for normal play/pause
mode.
• to previous program index track (file) for program play/pause mode.
Continue pressed: fast reverse during play/pause when pressed for more
than 0.7sec.
6 Folder-Up
In stop mode: Skip the starting play folder to next folder during stop mode,
cyclic to the first folder if it is in the last folder.
In normal play mode: Skip the playing file to the next folder’s first file.
7 Folder-Down
In stop mode: Skip the starting play folder to previous folder during stop
mode, cyclic to the last folder if it is in the first folder.
In normal play mode: Skip the playing file to the previous folder’s first file.
8 Repeat
In mp3 mode and in USB mode: If this key is pushed, PLAY mode is changed
cyclically as shown below:
REPEAT TRACK REPEAT FOLDER
REPEAT ALL
PLAY ALL
RANDOM PLAYINTRO PLAY
In CD mode: If this key is pushed, PLAY mode is changed cyclically as shown
below:
REPEAT TRACK REPEAT ALL
RANDOM PLAYINTRO PLAYPLAY ALL
9 A-B
When first pressing this key in PLAY mode, the player will record A.
When later pressing this key, the player will record B and begin cyclically
playing from A to B.
10 Eject
When this key is pressed, disc is ejected.
11 Prog
Set to programming mode: When in programming mode, [stop] key is
pressed then program is all cleared.
12 Mute
When this key is pressed during CD play, the set will mute the output.
Press again to hear output.

PAGE 7
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
CONTROLS (CONT)
DAB/FM TUNER FUNCTIONS
13 Mode
MODE This key toggles between DAB and FM Tuner mode.
14 Menu Key
Menu key.
15 Info
DAB INFO Shows RDS options, like PTY, PS, CT, RT, PI.
In DAB mode: pressing this key will change the content of the LCD display
such as signal strength, signal error rate, program type, time and date,
channel frequency, transfer rate.
In FM Tuner mode: pressing this key will change the content of the
LCD display such as signal strength, program type, time and date.
16 Enter
Press this key to select what you desired.
17 Sleep
Press SLEEP + Down or UP key to select SLEEP OFF, 15, 30, 45, 60, 90,
then press ENTER to confirm the selection.
18 Up
In FM mode: Press this key to tune higher frequency stations.
Keep pressed for automatic search for the next station.
In DAB mode: Press this key to tune to the next frequency increment.
Keep pressed for continuous frequency increment.
When operating menus, press this key to select the right item.
19 Down
In FM mode: Press this key to tune lower frequency stations.
Keep pressed for automatic search for the next station.
In DAB mode: Press this key to tune to the next frequency decrement.
Keep pressed for continuous frequency decrement.
When operating menus, press this key to select the left item.
BLUETOOTH®FUNCTIONS
20 Pair LED Indicator
When power is on and the Bluetooth®is not paired, the LED will flicker.
When power is on and the Bluetooth®is paired, the LED will be a steady light.
21 Pair
When the Bluetooth®is paired, pressing this key for more than 5 seconds will
cancel the pair.
22 BT Power Play/Pause
When Bluetooth®is paired and in STOP/PAUSE mode, pressing this key will
becomes play mode.
When Bluetooth®is paired and in PLAY mode, pressing this key will change to
PAUSE mode.
In power OFF mode: when this key is pressed, Power is ON.
In power ON mode: long-press this key more than 2 seconds to power OFF.
23 Down
When Bluetooth®is paired and in PLAY mode, pressing this key will play the
previous track.
24 Up
When Bluetooth®is paired and in PLAY mode, pressing this key will play the
next track.
25 FM List
In FM mode: shows a list of available scanned stations.
Use Keys UP or Down followed by the ENTER key to confirm your selection.
26 Priority Output
This output provides signals from all playback modules on board.
The following order of priority should be observed when in play mode:
MYMDABCD Only: Bluetooth®– CD/USB/SD – DAB/FM
BLUETOOTH®PAIRING
The MYM’s Bluetooth®name will show on your device as “Aus Monitor”.
The pin number is 2626.

PAGE 8
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
CONTROLS [CONT]
CD
|
USB
|
SD Module Remote Functions
1CD1/CD2
Use this key to toggle remote control between CD1 module and CD2 module.
2CD/Tuner
Use this key to toggle remote control between CD Module and DAB/Tuner
module.
3 CD/USB/SD
Playback mode is changed DISC – USB – SD.
4 Play/Pause
When this key is pressed:
• duringCDstop,playwillstartaftertracksearch.
• WhenthiskeyispressedwhilstCDisplaying,thenitischangedtopause.
• WhenthiskeyispressedwhilstCDispaused,thenitischangedtoplay.
5 Stop
Press this key to stop play.
6 Cue
In stop mode: Change the starting play track (file) during stop mode, cyclic
to the first track, if it is in the last track.
In program entry mode: Change to the next track (file) for program select.
In play mode, pause mode, program play mode, random play mode:
Single pressed: skip the playing track (file) to next track (file) for normal play/
pause mode, to next program index track (file) for program play/pause mode,
to next random track (file) for random play/pause mode.
Continue pressed: fast forward during play/pause when pressed for more than
0.7sec.
REMOTE CONTROL UNITS
1
2
6
21
7
15
17
14 18
15
21
3
44
6
7
3
10
10
19
19
23
25
11
24
25
22
11
16
20
13 13
20
13
8
9 9
8
12
5 5
12
14
20

PAGE 9
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
7 Rev
In stop mode: Change the starting play track (file) during stop mode, cyclic to
the last track, if it is in the first track.
In program Entry mode: Change to the previous track (file) for program
select.
In play mode, pause mode, program play mode:
Single pressed: skip the playing track (file) to previous track (file) for normal
play/pause mode.
Skip to previous index track (file) for program play/pause mode.
Continue pressed: fast reverse during play/pause when pressed for more than
0.7sec.
8 Folder-Up
In stop mode: Skip the starting play folder to next folder during stop mode,
cyclic to the first folder if it is in the last folder.
In normal play mode: Skip the playing file to the next folder’s first file.
9 Folder-Down
In stop mode: Skip the starting play folder to previous folder during stop
mode, cyclic to the last folder if it is in the first folder.
In normal play mode: Skip the playing file to the previous folder’s first file.
10 Repeat
In mp3 mode and in USB mode: If this key is pushed, PLAY mode is changed
cyclically as shown below:
REPEAT TRACK REPEAT FOLDER
REPEAT ALL
PLAY ALL
RANDOM PLAYINTRO PLAY
In CD mode: If this key is pushed, PLAY mode is changed cyclically as shown
below:
REPEAT TRACK REPEAT ALL
RANDOM PLAYINTRO PLAYPLAY ALL
11 A-B
When first pressing this key in PLAY mode, the player will record A.
When later pressing this key, the player will record B and begin cyclically
playing from A to B.
12 Eject
When this key is pressed, disc is ejected.
13 Mute
When this key is pressed during playback the audio output will mute.
Press again to un-mute output.
14 1-10/0
Use these keys to skip to track number inputed.
Press the play key after track number has been entered.
15 PLAY1
This key will play the curent track once. At the end of the track the player
will pause. Pressing the key play/pause key again will play then next track.
Pressing the PLAY1 key again will cancel this function and the LCD will
indicate PLAY ALL.
16 CD INFO
This feature will show the following information on the LCD:
Remaing Track time – Remaining total disc play time.
17 DAB1/2
Use this key to toggle remote control between DAB1 module and DAB2 module.
18 1-10
Press one of these keys: the tuner will jump to preset station 1-10.
Press SHIFT + one of these keys: the tuner will jump to preset station 11-20.
Press and hold one of these keys: the station is stored into 1-10 preset
memory.
Press SHIFT + hold one of these keys: the station is stored into 11-20 preset
memory.
19 Auto-Scan
In FM Tuner mode: Press and hold for longer than two seconds to activate
full station scan.
In DAB mode: Press and hold longer than two seconds to activate full station
scan.
20 DAB INFO/INFO
Shows RDS options, like PTY, PS, CT, RT, PI.
In DAB mode: pressing this key will change the content of the LCD display
such as signal strength, signal error rate, program type, time and date, channel
frequency, transfer rate.
In FM Tuner mode: pressing this key will change the content of the LCD
display such as signal strength, program type, time and date.
CONTROLS [CONT]
CONTROLS section for Remote Control Units continues on page 10

PAGE 10
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
CONTROLS [CONT]
21 Preset
You can use this key to recall or store the stations in the memory.
Recall the preset station: Press PRESET and UP or DOWN to select one of
1-20 preset stations, then press ENTER key to confirm the selection.
Store a station into memory: Press PRESET and UP or DOWN key to select
1-20 memory position, then press ENTER and hold for two seconds. The LCD
will prompt “Preset ** Saved”.
22 Sleep
Press SLEEP and DOWN or UP key to select SLEEP OFF, 15, 30, 45, 60, 90,
then press ENTER to confirm the selection.
23 UP
Press this key to seek stations increasing in frequency. Hold key for automatic
search for the next station.
In Menu mode: Use this key to scroll through menu options.
24 DOWN
Press this key to seek stations decreasing in frequency. Hold key for automatic
search for the next station.
In Menu mode: Use this key to scroll through menu options.
25 FM LIST
In FM Tuner mode: shows a list of available scanned stations.
Use Keys UP or Down followed by the ENTER key to confirm your selection.
NOTE: Bluetooth®Remote Control Function
There are no remote controls functions for Bluetooth®operation. The front
panel of the DAB/FM Tuner module must be used.
REMOTE CONTROL UNITS (CONT)

PAGE 11
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
RS232 CONTROL
RS-232 SECTION
Each model is capable of being controlled via the rear panel RS232 communications port.
RS232 Port Settings
Baud Rate 9600
Data bits 8
Parity None
Stop bits 1
Flow control None
NOTE: Each command must have a delay of greater than 300ms
except “Autosearch DOWN” and “ Autosearch UP” which must be greater
than 800ms.

PAGE 12
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
RS232 CONTROL (CONT)
Data Format: Byte1, Byte2, Byte3, CR, LF
Answer from device if all ok + O K 0d 0a
Answer from device if not all ok + E R 0d 0a
Byte 12345
ASCII ASCII ASCII HEX HEX
CD1
CD1 SELECT E A Z 0d 0a
FOLDER SKIP - E A A 0d 0a
FOLDER SKIP + E A B 0d 0a
DOWN E A C 0d 0a
UP E A D 0d 0a
STOP E A E 0d 0a
PLAY/PAUSE E A F 0d 0a
EJECT E A G 0d 0a
PROG E A H 0d 0a
ID3 E A I 0d 0a
FIND E A J 0d 0a
MUTE E A K 0d 0a
REPEAT E A L 0d 0a
FUNC DISC,USB,SD E A M 0d 0a
DISPLAY/INFO E A N 0d 0a
A-B E A O 0d 0a
CARD E A R 0d 0a
CD E A S 0d 0a
USB E A T 0d 0a
PLAY 1 E A U 0d 0a
REMAIN E A V 0d 0a
CD/TUNER E A Z 0d 0a
0E A 0 0d 0a
1E A 1 0d 0a
2E A 2 0d 0a
3E A 3 0d 0a
4E A 4 0d 0a
5E A 5 0d 0a
6E A 6 0d 0a
7E A 7 0d 0a
8E A 8 0d 0a
9E A 9 0d 0a

PAGE 13
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
RS232 CONTROL (CONT)
CD2
CD2 SELECT E B Z 0d 0a
FOLDER SKIP - E B A 0d 0a
FOLDER SKIP + E B B 0d 0a
DOWN E B C 0d 0a
UP E B D 0d 0a
STOP E B E 0d 0a
PLAY/PAUSE E B F 0d 0a
EJECT E B G 0d 0a
PROG E B H 0d 0a
ID3 E B I 0d 0a
FIND E B J 0d 0a
MUTE E B K 0d 0a
REPEAT E B L 0d 0a
FUNC DISC,USB,SD E B M 0d 0a
DISPLAY/INFO E B N 0d 0a
A-B E B O 0d 0a
CARD E B R 0d 0a
CD E B S 0d 0a
USB E B T 0d 0a
PLAY 1 E B U 0d 0a
REMAIN E B V 0d 0a
CD/TUNER E B Z 0d 0a
0E B 0 0d 0a
1E B 1 0d 0a
2E B 2 0d 0a
3E B 3 0d 0a
4E B 4 0d 0a
5E B 5 0d 0a
6E B 6 0d 0a
7E B 7 0d 0a
8E B 8 0d 0a
9E B 9 0d 0a
RS232 CONTROL continued over page

PAGE 14
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
RS232 CONTROL (CONT)
DAB2
DAB2 SELECT E C Z 0d 0a
PRESET 1 E C A 0d 0a
PRESET 2 E C B 0d 0a
PRESET 3 E C C 0d 0a
PRESET 4 E C D 0d 0a
PRESET 5 ECE0d 0a
PRESET 6 E C F 0d 0a
PRESET 7 E C G 0d 0a
PRESET 8 E C H 0d 0a
PRESET 9 E C I 0d 0a
PRESET 10 E C J 0d 0a
PRESET E C K 0d 0a
SHIFT E C L 0d 0a
DOWN E C M 0d 0a
UP E C N 0d 0a
MUTE E C O 0d 0a
FMLIST E C P 0d 0a
MENU E C Q 0d 0a
INFO E C R 0d 0a
ENTER E C S 0d 0a
SLEEP ECT0d 0a
FM MODE E C U 0d 0a
AUTOSCAN E C V 0d 0a
Autosearch DOWN E C W 0d 0a
Autosearch UP E C X 0d 0a
DAB MODE ECY0d 0a
DAB1 E C Z 0d 0a
PRESET SAVE 1 E C 1 0d 0a
PRESET SAVE 2 E C 2 0d 0a
PRESET SAVE 3 E C 3 0d 0a
PRESET SAVE 4 E C 4 0d 0a
PRESET SAVE 5 E C 5 0d 0a
PRESET SAVE 6 E C 6 0d 0a
PRESET SAVE 7 E C 7 0d 0a
PRESET SAVE 8 E C 8 0d 0a
PRESET SAVE 9 E C 9 0d 0a
PRESET SAVE 10 E C 0 0d 0a

PAGE 15
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
RS232 CONTROL (CONT)
DAB1
DAB1 SELECT E D Z 0d 0a
PRESET 1 E D A 0d 0a
PRESET 2 E D B 0d 0a
PRESET 3 E D C 0d 0a
PRESET 4 E D D 0d 0a
PRESET 5 EDE0d 0a
PRESET 6 E D F 0d 0a
PRESET 7 E D G 0d 0a
PRESET 8 E D H 0d 0a
PRESET 9 E D I 0d 0a
PRESET 10 E D J 0d 0a
PRESET E D K 0d 0a
SHIFT E D L 0d 0a
DOWN E D M 0d 0a
UP E D N 0d 0a
MUTE E D O 0d 0a
FMLIST E D P 0d 0a
MENU E D Q 0d 0a
INFO E D R 0d 0a
ENTER E D S 0d 0a
SLEEP EDT0d 0a
MODE E D U 0d 0a
AUTOSCAN E D V 0d 0a
Autosearch DOWN E D W 0d 0a
Autosearch UP E D X 0d 0a
DAB2 E D Z 0d 0a
PRESET SAVE 1 E D 1 0d 0a
PRESET SAVE 2 E D 2 0d 0a
PRESET SAVE 3 E D 3 0d 0a
PRESET SAVE 4 E D 4 0d 0a
PRESET SAVE 5 E D 5 0d 0a
PRESET SAVE 6 E D 6 0d 0a
PRESET SAVE 7 E D 7 0d 0a
PRESET SAVE 8 E D 8 0d 0a
PRESET SAVE 9 E D 9 0d 0a
PRESET SAVE 10 E D 0 0d 0a
ASCII ASCII ASCII HEX HEX

PAGE 16
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
OUTLOOK & DIMENSIONS
FRONT
TOP SIDE
BACK
430mm 42mm
31.4mm
55mm
430mm
26mm
6mm 26mm
44mm
430mm
3mm
10.2mm
6mm
9 mm
12mm
DEPTH
MYMDUALDAB 185mm / MYMDABCD & MYMDUALCD 250mm

PAGE 17
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
SPECIFICATIONS
MODEL
MYMDABCD MYMDUALCD MYMDUALDAB CONDITIONS/COMMENTS
CD PLAYER
Maximum Output Level 1.2Vrms 1.2Vrms -1kHz 0dB. ±2dB
Frequency Response 20Hz 20Hz -±1dB
100Hz 100Hz -±1dB
10kHz 10kHz -±2dB
20kHz 20kHz -±3dB
THD+N < 0.15% < 0.15% -Max output. 1kHz. 20kHz BW
Channel Separation (crosstalk) > 60 dB > 60 dB -1kHz. Max Output
Signal to Noise Ratio > 80 dBr > 80 dBr -Max Output, 1kHz, 20kHz BW, A-Weighted
Supported CD Formats CD, CD-R, CD-R/W CD, CD-R, CD-R/W
FM RADIO
Maximum Output Level 0.4Vrms -0.4Vrms
Sensitivity 10uV -10uV emf
Frequency Range 87.5–108MHz -87.5–108MHz
THD+N < 1% -< 1% Max output. 1kHz. 20kHz BW
Channel Separation (crosstalk) > 25 dB -> 25 dB 1kHz. Max Output
Signal to Noise Ratio > 50 dBr -> 50 dBr Max Output, 1kHz, 20kHz BW, A-Weighted
DAB+ RADIO
Frequency Range 174.928–239.2MHz -174.928–239.2MHz
Adjacent Channel Selectivity 31dB -31dB
Far-off Selectivity 49dB -49dB
Sensitivity -96dB --96dB
BLUETOOTH®
Maximum Output Level 1.2Vrms 1.2Vrms 1.2Vrms ±2dB
Frequency Response 20Hz 20Hz 20Hz ±3dB
100Hz 100Hz 100Hz ±2dB
10kHz 10kHz 10kHz ±2dB
20kHz 20kHz 20kHz ±3dB
THD+N < 0.2% < 0.2% < 0.2% Max output. 1kHz. 20kHz BW
Channel Separation (crosstalk) > 60 dB > 60 dB > 60 dB 1kHz. Max Output. 20kHz BW
Signal to Noise Ratio > 60 dBr > 60 dBr > 60 dBr Max Output, 1kHz, 20kHz BW, A-Weighted
USB
File Format FAT32 FAT32 -Supported Audio Formats:
MP2, MP3, WAV, WMA
Maximum Storage Size 32GB 32GB -
Specifications continued over page

PAGE 18
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
SPECIFICATIONS (CONT)
MODEL
MYMDABCD MYMDUALCD MYMDUALDAB CONDITIONS/COMMENTS
CARD READER
File Format FAT32 FAT32 -
Supported Formats SD (1MB–2GB) SD (1MB–2GB) -
Supported Audio Formats:
MP2, MP3, WAV, WMA
SDHC (2GB–32GB) SDHC (2GB–32GB) -
MMC (1MB–32GB) MMC (1MB–32GB) -
Maximum Storage Size 32GB 32GB -
MISCELLANEOUS
Input Connectors Antenna
DB9 - RS232 Control DB9 - RS232 Control Antenna x 2 DB9 - RS232 Control Type F, 75Ω unbalanced antenna input.
Output Connectors 4 x Stereo RCA 3 x Stereo RCA 3 x Stereo RCA
LED Status CD, DAB, Bluetooth®CD, Bluetooth®DAB, Bluetooth®
AC Input 230Vac, 50-60Hz 230Vac, 50-60Hz 230Vac, 50-60Hz ±10%
Power Consumption 20W 25W 15W
AC Power Factor 0.67 0.67 0.58
AC Connector IEC 60320-C14 IEC 60320-C14 IEC 60320-C14
AC Mains Fuse T630mAL 250V T630mAL 250V T630mAL 250V Time Lag, Low Breaking capacity
Dimensions
(W x D x H)
482 x 250 x 44mm
(19” x 9.84” x 1.73”)
482 x 250 x 44mm
(19” x 9.84” x 1.73”)
482 x 185 x 44mm
(19” x 7.28” x 1.73”)
Including rack ears
Shipping Dimensions
(W x D x H)
545 x 515 x 105mm
(21.46 x 20.28 x 4.13”)
545 x 515 x 105mm
(21.46 x 20.28 x 4.13”)
545 x 515 x 105mm
(21.46 x 20.28 x 4.13”)
Net Weight 4 Kg (4.4 lbs) 5 Kg (11 lbs) 3.35 Kg (7.4 lbs)
Shipping Weight 9.5 Kg (20.94 lbs) 9.5 Kg (20.94 lbs) 12.6 Kg (27.78 lbs)
Mounting 1 RU 1 RU 1 RU
Operating Temperature 0°C to 40°C (95% RH) 0°C to 40°C (95% RH) 0°C to 40°C (95% RH)
Finish Powder coated steel Powder coated steel Powder coated steel
Colour Black Black Black
Accessories IR Remote Control
Antenna
IEC Mains cable
Rack mount support
IR Remote Control
IEC Mains cable
Rack mount support
IR Remote Control
Antenna
IEC Mains cable
Rack mount support

PAGE 19
MYM SERIES DAB+ RADIO, CD PLAYER AND BLUETOOTH®SOURCES INSTALLATION AND OPERATION MANUAL
NOTES

ENGINEERED BY AUSTRALIAN MONITOR
Address: 1 Clyde St, Silverwater NSW 2128 Australia.
Website: www.australianmonitor.com.au
International enquiries email: [e-mail]
ABN 35 007 573 417
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Australian
Monitor is under license. Other trademarks and
trade names are those of their respective owners.
