Auto caddy Breeze User manual

Breeze
Electric Golf Buggy
User Manual
WARNING: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND
READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE
YOU OPERATE THE BUGGY

1. Packing List

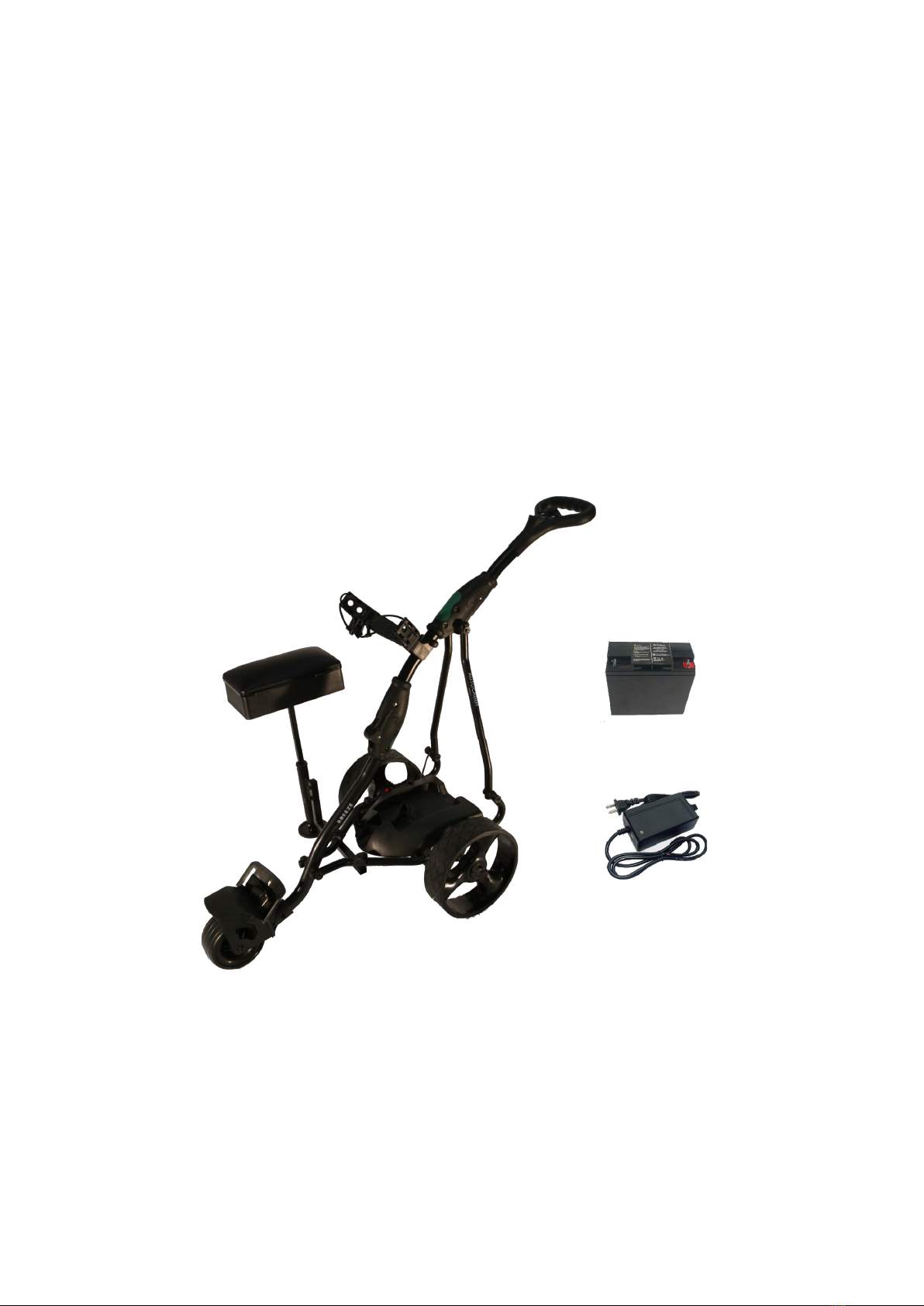

Standard Parts
 1 x Buggy Frame
 2 x Rear Wheels
 1 x Battery Pack (Battery, Bag, Leads)
 1 x Charger
 1 x Box Seat Assembly
 1 x Umbrella Holder
 1 x Scorecard Holder
2. Parts Glossary
1. Handle 2. Upper Holder 3. Battery Tray
4. Lower Holder 5. Front Wheel 6. Rear Wheels
7. Fold part 8. Seat Assembly 9. Battery
10. Charger
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

3. Assembly Instructions
1. Unpack all items carefully and check inventory.

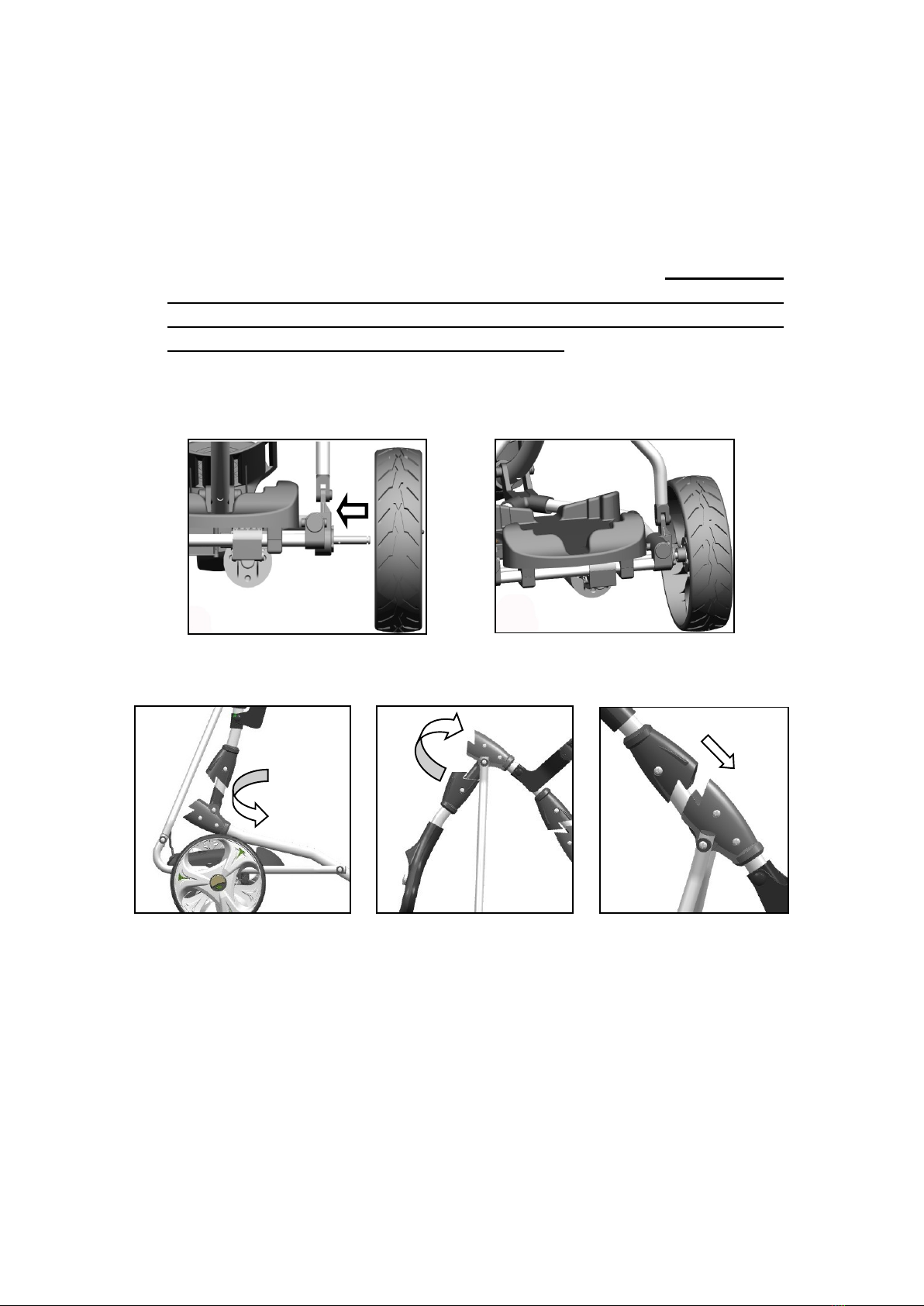

2. Attach wheels to axles by pushing wheel locking button on the outside of
the wheel and inserting the axle extension into the wheel. Make sure to
keep the locking button on the outside of the wheel pushed in during
this process, in order to enable the axle extensions, including the two
pins, to be inserted all the way into the wheel. If not locked in, the wheel
will not be connected to the clutch and will not be propelled. Test the lock by
trying to pull the wheel out. To disassemble the wheels, proceed in reverse
order.
3. Unfolding buggy.
4. Place battery pack on battery tray and fasten Velcro strap around battery
and fasten tightly. Insert battery plug into buggy outlet.

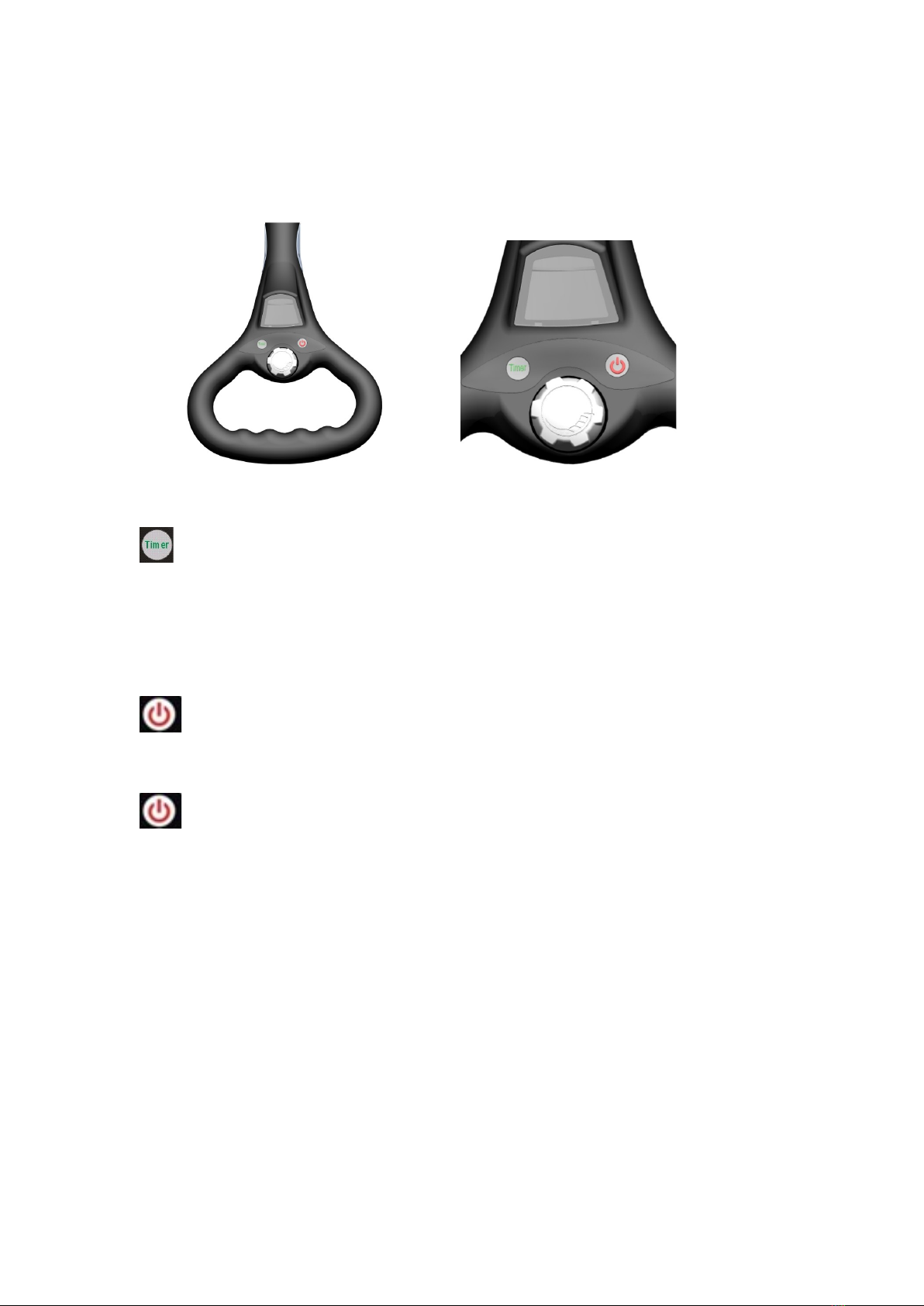

4. Handle Control
Digital handle:
1. New Timer Function (Distance function)
When press one time, the trolley will run 10 Meters and stop
When press two times, the trolley will run 20 Meters and stop
When press three times, the trolley will run 30 Meters and stop
2. New Cruise and Brake Function:
1. ON/OFF button: controls the buggy’s power supply. Press for ~2
seconds to switch the buggy ON or OFF (like a mobile phone operation)
2. Go/stop button. Press one-time trolley will stop; press another time trolley
will start.
Timer and go/stop button: when trolley go from 1-7 speed level, start Timer
function and press go/stop, it is Cancelling Timer function, speed controller
back to former speed level, press another time, trolley will go in former speed
level.
3. Speed controller
Scrolling of the speed button lets you choose your preferred speed to suit your
space perfectly, and the display will show the preferred speed. The speed level
is from 1 to 7

5. Operating Instructions
5.1. Operating your Buggy
To turn the buggy on push the ON/OFF switch to ON. The battery charge LED
should light up.
While holding on to the handle start dialling the speed control with your index
finger slowly forward or clockwise. The buggy will start moving forward. Adjust
the speed seamlessly to the desired pace.
To stop or slow the buggy down either dial the speed control knob backwards
or use the cruise control or On/Off buttons as described previously.
5.2. Battery Use and Care
PLEASE OBEY THESE PRECAUTIONS FOR BATTERY USE & CHARGING
a) Please do not charge the battery in a sealed container or in upside
down position. It is recommended to charge the battery in a
well-ventilated area.
b) Please do not charge the battery near a heater, or where heat
accumulation may occur or in direct sunshine.
c) To prolong the service life of the battery, please avoid complete
discharge and charge the battery after every use. When the trolley is
not in use for an extended period, it is recommended to charge the
battery once a month.
d) The battery’s poles red colour stands for positive, and the black for
negative. In case of battery replacement please reconnect the poles of
the battery correctly. Otherwise your buggy could suffer severe
damage.
e) Please do not disassemble the battery or throw it into a fire.
EXPLOSION!!!
f) NEVER TOUCH THE ELECTRIC POLES OF THE BATTERY!!
SAFETY HAZARD!!
5.3. How to Charge the Battery:
Charge the battery by plugging the charger into the battery and then plug the
charger into the main electricity supply. Charge the battery after each round of
golf. Charging is complete when charger light (See type of charger) changes
colour. Charging the battery takes anywhere between 5 to 12 hours.
Once the battery is charged there is no need to leave it plugged into the
charger. There are two types of battery chargers. The changes in LED in

colours for these different chargers are as follows: the LED light starts as
steady green. If the battery requires charge and while charging the LEDs will
revert to flashing red. When the battery is fully charged, the LED will stop
flashing and revert to steady green.
6. General Maintenance
The steps below will ensure that you get a prolonged and reliable life out of
your golf trolley.
1) The Buggy has been designed so that the user can concentrate on playing
golf, while the buggy does the work of carrying your bag. To keep your golf
trolley looking at its best, we advise that you wipe any mud or grass from the
frame, wheel and chassis after every round with a damp cloth or paper towel.
2) Do NOT use any high-pressure jet washers to prevent moisture entering
the electronic systems, motors or gear boxes of the buggy.
3) Remove the rear wheels every few weeks and remove any debris that
might cause the wheels to drag. You might also apply some lubricant, such
WD-40 to keep moving parts smooth.
4) A four - five-hour round of golf played once a week for 12 months is
equivalent to four years use of a lawnmower, so please inspect your cart at
least once a year thoroughly, and if you notice any symptoms of wear, contact
your golf trolley Service Centre. Alternatively, you can have your buggy
inspected and tuned by our Service Centre, so it’s always in great shape for
the new season.
5) Always disconnect the battery when you store the buggy, and always put
your buggy together before re-connecting the battery. If you are not planning to
play for at least a month, store the battery in a warm and dry place (not on
concrete floor).
All these recommendations will help keep your trolley in top condition and
ensure that it remains reliable, both on and off the links.

7. Trouble Shooting Guide
SYMPTOM ACTION
Buggy does not have
power
– Check all wiring connections and plugs
– Check battery charge
– Check if wheels & clutches are in order
Motor is running but
wheels don’t turn
– Check if wheels are secured to axle by
split pin
– Check right and left wheel position
Buggy pulls to left or
right
– Check if wheel is fitted over the clutch
and latched to axle
– Check if clutch pin is visible at both
sides of the axle
– Check clutch turn freely in one direction
only
Battery lacks power – Check cable connections
– Check charger function
Problems attaching
wheels
– Remove outer cap and adjust quick
release catch

8. WARRANTY
We are proud of our product and its reliability. Our warranty reflects the
confidence we have in the product.
Any failure occurring in normal use within 12 months, (or 200 rounds of golf,
whichever comes first), from the date of purchase will be rectified free of
charge by repair or replacement of the relevant component part, subject to
delivery of the faulty machine to our premises or the premises of an authorised
service agent.
Battery warranty is as provided by the battery manufacturer and is based on
replacement in the event that the measured capacity is determined to be less
than 60% of original specification.
This warranty excludes repairs required as a result of:
 Application of external force.
 Partial or complete immersion.
 Attempted repair by unauthorised persons.
 Fusion of motor or electronics through overload.
 Normal wear and tear (e.g. tyres, upholstery, paintwork)
 Minor appearance defects which bear no effect on the operation of
the unit and are considered by the manufacturer to be within the
accepted standards.
Customer Service
Phone:
[phone]
Mail:
Hillside Buggies
Unit 9 / 10 Stanford Way
Malaga WA 6090
