AUTOPMALL MV720 User manual

MV720 User Manual V2.0
Learn howto set up your new AutopmallTracker
Copyright ©2022 Autopmall | All Rights Reserved

1. Main Features
GPS+ Remotely Cut Off Historical Route Realtime 9-90V Wide
GLONASS+LBS
Vibration
Alarm
/Resume Fuel
Power
Disconnect Alarm
Playback
Geo-fence
Tracking
Overspeed
Alarm
Working Voltage
Lifetime Free
Tracking Platform
2.Specifications
Device Information
Model
MV720
Weight
53g
Dimensions
31mm(L) * 31mm(W) * 57mm(H)
Working Parameters
Working Voltage
DC 9-90V
Working Current
<30 mA
Sleep Current
<15 uA
Battery Capacity
3.7V 80mAh Lion Polymer battery
Working Temperature
-20℃- 75℃
Working Humidity
10%-85%RH non-condensing
Cellular Specifications
Working Frequency
2G GSM/GPRS: 850/900/1800/1900MHz
SIM Card
Nano SIM Card
Cellular Antenna
Built-in
GNSS Specifications
Positioning Type
GPS+GLONASS+LBS
GPS Antenna
Built-in
Cold Start
≤32 Seconds
Hot Start
≤1 Second
Tracking sensitivity
-162 dBm
GPS Channels
64
Position Accuracy
5-10m

3.How to manage the tracker to get online?
Please get a suitable SIM card from your local place. The
SIM card must meet below points:
It must be compatible with the 2G GSM network
Please enable SMS, call, internet data traffic of the SIM card
Enable the caller ID display feature
Remove the PIN code
Use Nano size SIM card for the tracker
Please inquire the SIM card provider for the exact correct APN
information

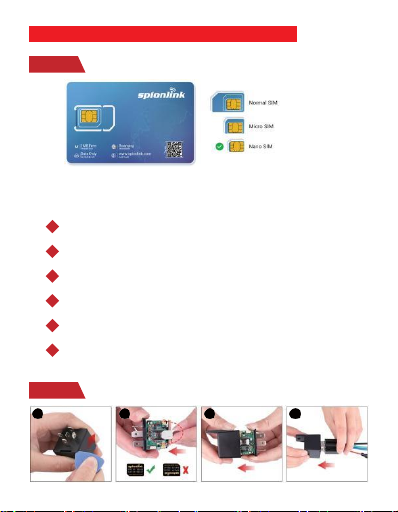

SIM card installation
Step 2
Step 1
1
2
3
4

Wiring
9-90V DC
NOTE : After installed SIMcard correctly, it is very important to
connect the tracker with external power no less than 12V for power supply
before operation!
Configure APN
Please get the exact correct APN name from local SIM card provider.Take the tracker to a
good signal place for operation and configure the APN for it as below:
SMS Command
Format
Reply
Example
Note
apn123456+space+
apn name
apn ok
apn123456 cm net
Please get the exact correct APN name from
local S IM card provider.“cm net” is just an
example of APN name.
apnuser123456+
space+apnuser
apnuser ok
apnuser123456 cmnet
lf the SIM card operator doesn’t have APN user
name,then please ignore this configuration
apnpasswd123456+
space+apnpassword
apnpasswd
ok
apnpasswd123456 123
Step 4
Step 3
+
-
Fuel Pump Line
Pump
Fuel
Car Batt ery
FUEL PUMP LINE VOLTAGE:5V-30V
FUEL PUMP LINE CURRENT:< 60A

Note: The APN information is very important, it must 100% correct to match with the sim card of
the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok" but it will
can't get online!
Indicator status description
LED
Event
State
GSM LED (GREEN)
Searching for network
Solid
Network has been registered
Flash every 1 second
GPS LED (Blue)
GPS is infixing
Solid
GPS has fixed
Flash every 1 second
ALL LED
Device is working but stopped more than 5min
ALL LED TURN OFF
Device has not beenturn on
Deviceran out ofbattery
4. Package Content
GPS Main Unit x 1
Function Cable x 1
Pick x 1
User Guide x 1
Packing Box x 1
Step 5

5. Functions Explanation
Please follow with the quick user guide carefully!
a.
Vibration Alert:
This vibration alert function just work under stationary
status. How to use this function:
* Set admin number by this sms command:
admin123456+space+mobile number with country code
* Enable the device to enter into arm mode by this
sms command: 111
* Conifgure the alarm ways by thissms command:
vibalm123456
For example:
* Keep the device under stationary status more than 5min tolet it enter into sleep arm mode;
* Vibrate the device then the tracker willsend the vibration alarm messages
b. Cut Off Fuel/Resume Fuel
* Set admin number by this sms command:
admin123456+space+mobile number with country code
* Send this sms command from the admin number tocut
off fuel:555
For example:
NOTE
:About the cut off fuel function, firstly please
make sure the fuel circuit isconnecting to main power. Secondly,
it has 3 different performance, please read it carefully:
* If the network signal and satellite signal both are available, when the equipment speed
exceeds 20km/h, the fuel circuit will not be cut off immediately, it will cut off intermittently
till the speed is below 20km/h, then just can becompletely cut off.
* In the tracker has network signal and but no satellite signal, the fuel circuit will becut
off intermittently, after 2, 3 minutes it will becut off completely;
* If the tracker stopped more than 5 minutes, the fuel circuit will be cut off immediately,
and then connected, butif you vibrate the tracker or vibrate the tracker the fuel cirsuit will
be cut off immediately;
MV720
adm in123456 008 6134 ********
admin ok
111
arm ok
vibalm123456
vibrate smsalarm set ok
MV720
adm in123456 008 6134 ********
admin ok
555
cut oil ok

6. Installation Recomendation
Under Front Dash
InsideDoorPedal
Inside thetaillight
component
or plastic 4
1 Inside the head light
2 Inside the front cover
Under the pedal 3
1) The device should face up to the sky.
2) Metal therma barrier of heating layer of the windshield affects the signal.
7. Troubleshooting
Type
Use
Unable to connect to
tracking platform
Check the APN and settings.
Check whrther the data service of SIM card is enabled.
Check the balance ofSIM card.
Tracker shows offline
Check whether external power is still connected.
Check if the vehicle entered netword blind area.
Check the balance of SIM card.
Unabletolocate
Make sure the top side facing upward without metallic things
shielded.
Make sure it’s not in area with no satellite coverage.
Location drift
In area with poor GNSS signal (tall building around or
basement), drifting may happen.
Check whether vibration happens around to trigger the
accelerator.
No command reply
Make sure command format is correct.
Vehicle may be in network blind area.
Make sure SIM card is well inserted and has SMS servi.

8. Full SMS Commands List
Functions
Command Format
Explanation
Set Admin Number
admin123456+space+mobile number
with country code
Please add your country code as prefix
of the admin number
Back to Factory Setting
begin123456
After sent this sms command, all your configuration
will be cleared and the device will get back to
factory default settings
Password Change
password+old password+space+
new password
The password just can be 6 digitals
Restart
rst
After sent this sms command, the configurations
will be saved and the device will restart
APN
apn+123456+apn content
Please get the exact correct APN name from the
SIM card provider of the tracker, "cmnet" is China
Mobile's APN name
apnuser+123456+space+content
If the SIM card operator doesn't have APN user,
then please ignore this configuration
apnuser+123456+space+content
If the SIM card operator doesn't have APN
password, then please ignore this configuration
IP&Port
adminip+123456+space+ip
+space+port
Micodus tracking platform's IP: 47.254.77.28;
Port: 7700
Domain
SZCS,123456,DOMAIN=d.micodus.
net:7700
MiCODUS server domain: d.micodus.net, Port: 7700
Google Maps Link
G123456# or where
V:A: Indicates the device has GPS signal;
V:V: Indicates the device doesn't have GPS signal;
2019-11-26 10:17:01: Date and Time;
S: 000km/h: Speed of the tracker
Bat:5: Battery level of the backup battery of the
tracker, it has 6 levels: "6" means 100% , "5" 80%,
"4" means 60%, "3" means 40%, "2" means 20%,
"1" means 10%;
ACC: off: The status of the car engine;
7201000006: ID number of the device;
S26: GSM signal is 26
G06: GPS signal is 06
p:46000, l:13152, c:63162: p,l,c this 3 parameters
means the LBS code
Data Upload Frequency
upload123456+space+time
Time interval scope: 10-180s
Time Zone
timezone+123456+space+GMT No.
If east time zone, needn't inputsign "+", for example, if
the timezone is East 8, then thesms command should
be sent like this: timezone123456 8

Functions
Command Format
Explanation
Parameter Query
param1
firmware version、ID、IP、port、domain、APN
param2
admin number, SOS number,move distance, overspeed,
auto arm time, auto disarm time, alarm interval
Status
status
BAT:10 GPRS: GSM: GPS:A/V ACC:on/off oil:on/off
power:on/off
Arm
111 or SF
Disarm
000 or CF
Cut Off Fuel
555
Resume Fuel
666
Movement Alarm
move+alarm distance
Movement alarm distance scope: 100-1000m
Overspeed Alarm
speed+123456+space
+speed limit
Overpeed alarm speed scope: 20-150km/h
IMEI Checking
imei+123456
Sleep Mode
sleep123456 time
Ifdevice keep stationary more than 5 minutes the device will
enter into sleep mode automatically, sms commands and
call can wake up it
sleep123456 shock
Ifdevice keep stationary more than 5 minutes the device will
enter into sleep mode automatically, vibration, sms
commands and call can wake up it
sleep123456 off
Cancel sleep mode
Vibration Alarm
vibx,y
x=1-3( 1: SMS alarm, 2: Call alarm, 3: SMS first then Call );
y=1-9,1 is the most sensitive
vibcall+123456
Vibrate call alarm set ok (If device keep stationary more than
5 minutes the device will enter into sleep mode automatically,
vibration, sms commands and call can wake up it)
vibalm+123456
Vibrate sms alarm set ok(If device keep stationary more than
5 minutes the device will enter into sleep mode automatically,
vibration, sms commands and call can wake up it)

9. Any Questions?
E-mail: [email protected]
Skype: MiCODUS
10. Download the APP
Search "MiCODUS" in iOS APP store or Google Play
Store, or just scan the QR code as below to download
MiCODUS APP:
Download on the
APP Store
Download for
Android
