Avantco XHD58 User manual

EARTH DRILL
OPERATORS MANUAL
Document No: 99-95 518001 - Rev 1 Doc Date: 12-12-2013Part No: 51-8901/ 51-8902
www.avanttecno.com
99-95200403 - ISSUE 8 ENGLISH

www.avanttecno.com 22
INDEX
FOREWORD ................................................. 4
Enquiries ............................................... 4
The Machinery Directive (European Community only) ........... 4
Declaration Of Conformity ................................. 4
REGISTRATION .............................................. 6
INTRODUCTION .............................................. 9
SAFETY NOTES ............................................. 10
Protect Yourself ......................................... 10
You May Need........................................... 10
Know Your Equipment .................................... 10
Danger, Warning And Caution.............................. 10
Protective And Safety Devices ............................. 11
Check The Equipment .................................... 11
Hazard Classification (Only applicable to ANSI Safet Labels) .......... 11
Safety Precautions....................................... 12
IDENTIFICATION ............................................ 13
Typical Setup ........................................... 13
MOUNTING - HITCH FITTING.................................. 14
HYDRAULIC CONNECTIONS ................................... 16
Connecting the Multiconnector System...................... 16
Conventional Quick Couplings ............................. 17
Releasing Residual Hydraulic Pressure ..................... 17
Hoses Specifications ..................................... 17
RUNNING-IN ............................................... 18
FITTING THE AUGER......................................... 19
PREPARATION .............................................. 20
WORKING PROCEDURE ...................................... 21
DRILLING WITH FIXED EXTENSIONS ........................... 22
REMOVING A FIXED EXTENSION ............................... 23

www.avanttecno.com 33
STUMP PLANER ............................................ 24
Fitting The Planer ....................................... 24
Engaging Blades ........................................ 25
Cutting Sequence........................................ 25
TRANSPORTATION .......................................... 26
Transportation On Public Highways......................... 26
Transportation Within The Job Site ......................... 26
MAINTENANCE & LUBRICATION ............................... 27
Service Intervals ........................................ 28
Recommended Oil Change Intervals ........................ 29
Recommended Lubricants ................................ 29
Oil Change Procedure .................................... 30
Component Wear ........................................ 31
Auger Tooth Replacement ................................ 32
Shock Lock Teeth........................................ 32
Stump Planer Blade Removal ............................. 33
Sharpening Blades ...................................... 33
Blade Life .............................................. 33
Pilot Replacement ....................................... 33
TROUBLESHOOTING ......................................... 34
WARRANTY STATEMENT ..................................... 36

www.avanttecno.com 44
FOREWORD
Enquiries
Please state the model type and serial number when making enquiries or orders and all written
correspondence. The serial number is recorded on a plate located on the top of the drive unit.
The Machinery Directive (European Community only)
The Machinery Directive 2006/42/EC (formerly 98/37/EEC) provides the harmonisation of the
essential health and safety requirements for machinery, through a combination of mandatory
health and safety requirements and voluntary harmonised standards. Such directives apply only to
products that are intended to be placed on or put into service in the market for the first time.
The manufacturer or the authorised representative must draw up a ‘Declaration of Conformity’.
Declaration Of Conformity
Where Earth Drill Units are supplied in conjunction with Auger Torque Europe Ltd manufactured
mounting frames and Augers to form an Earth Drill Assembly, Auger Torque Europe Ltd
have control over the suitability of the parts supplied. To show this and meet with the lawful
requirements of the Machinery Directive a Declaration of Conformity is issued and a CE mark is
applied to the assembly.
(copy example follows)
Date of
Manufacture
Model: Serial No:
Flow
Range: From To
From To
Pressure
Range:
Max. Back
Pressure:
Weight:
99-5057
Distributed by:

www.avanttecno.com 55
EU Declaration of Conformity
The responsible person:
Name
Position
Company Name Auger Torque Europe Ltd.
Address
Telephone
Fax
Hazelton, Cheltenham,
GL54 4DX, England
++44 (0) 1451 861652
++44 (0) 1451 861660
Declares that the product described:
Manufacturer Auger Torque Europe Ltd.
Model
Serial Number
Conforms to the Machinery Directive 2006/42/EC.
It also complies with the essential health and safety requirements, national standards and
the transposed harmonised standards appropriate for this product.
Signed by: Dated
(The responsible person)

www.avanttecno.com 66
REGISTRATION
Complete this form and keep it with the manual
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
SUPPLIER / DEALER:
DATE SOLD TO SUPPLIER / DEALER:
DATE SOLD TO ORIGINAL END USER:
OWNER OR OPERATOR:
PARENT MACHINE MAKE & MODEL:
Ylötie 1
FI-33470
Ylöjärvi
Finland
Tel. [phone]
Telefax [phone]
E-mail: [e-mail]
Note; Always quote the serial number in any communication with your supplier / dealer

www.avanttecno.com 77
REGISTRATION
For warranty purposes this form MUST be completed and returned to Avant Tecno Oy within 14 days
of purchase by the end user.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
SUPPLIER / DEALER:
DATE SOLD TO SUPPLIER / DEALER:
DATE SOLD TO ORIGINAL END USER:
OWNER OR OPERATOR:
PARENT MACHINE MAKE & MODEL:
Note; Always quote the serial number in any communication with your supplier / dealer
Ylötie 1
FI-33470
Ylöjärvi
Finland
Tel. [phone]
Telefax [phone]
E-mail: [e-mail]

www.avanttecno.com 88
For warranty purposes the form on the reverse of this
page should be completed and returned to;
Avant Tecno Oy
Ylötie 1
FI-33470
Ylöjärvi
Finland

www.avanttecno.com 99
INTRODUCTION
Avant Tecno Oy thank you for purchasing your new product. This operating manual has been
prepared to enable you to operate the equipment in a safe manner.
Avant Tecno Oy Earth Drill Units have been designed for use with specific Avant Tecno Oy mounting
frames, Augers, Auger extensions and Auger wear parts. Provided these are used and maintained
correctly, they will provide a safe and reliable method of boring holes in the earth.
For information on lubrication and maintenance intervals, see pages 27 to 30
Before operating the Earth Drill, please note:
Your Earth Drill comes complete, filled with the correct amount of oil. There is no need to check
the oil level.
Hydraulic hoses must be fitted and tightened to the correct torque (see page 16).
The unit must be run in following the recommended procedure (see page 18).
NOTE:
This operating manual should be used in conjunction with the parent machine’s operating
instructions.
Instruction books should be regarded as part of the machine. They should always be kept safe with
the machine for easy and quick reference.
New or extra copies can be obtained from your Avant Tecno Oy dealer or direct from Avant Tecno
Oy.
Avant Tecno Oy Earth Drill Units have been designed for use with specific parent machines along
with the Avant Tecno Oy range of mounting frames, Augers, Auger extensions and Auger wear
parts. Provided these are used and maintained correctly, they will provide a safe and reliable
method of boring holes in the earth.
Avant Tecno Oy continually strives to improve and increase its range of products and therefore
reserves the right to alter its specifications at any time without notice or obligation. The company
accepts no responsibility for discrepancies which may occur between specifications of its machines
and descriptions thereof contained in its publications.

www.avanttecno.com 1010
SAFETY NOTES
Protect Yourself
Make sure you wear protective clothing and personal safety items.
You May Need
• A Hard Hat
• Safety Goggles
• Hearing Protection
• Foul Weather Clothing
• Reflective Clothing
• Protective Gloves
• Safety Boots
DO NOT wear items of loose clothing, jewellery or other items and tie up any long hair which could
entangle in the controls or other parts of the machine.
Know Your Equipment
Get to know all you how to operate all controls on the machine and the attachments
IF THERE IS SOMETHING IN THE MANUAL WHICH YOU DO NOT UNDERSTAND, CONTACT THE
MACHINE AGENT OR MANUFACTURER AND ASK THEM TO EXPLAIN IT TO YOU.
Danger, Warning And Caution
This symbol below has 3 important meanings when used with the following captions.
DANGER: An IMMINENTLY HAZARDOUS situation that WILL result in DEATH or
VERY SERIOUS INJURY
WARNING: A POTENTIALLY HAZARDOUS situation that COULD result in DEATH
or VERY SERIOUS INJURY
CAUTION: A POTENTIALLY HAZARDOUS situation that MAY result in MINOR
INJURY

www.avanttecno.com 1111
Protective And Safety Devices
Keep all protective devices in place and securely fastened. Make sure all guards, sheilds and safety
signs are properly installed and are in good condition.
Check The Equipment
Before you operate the equipment, take time to check your machine and ensure that all systems
are in good operational order.
• Never operate the equipment with worn, damaged or missing parts. Use only genuine
replacement parts.
• Always ensure that the parent machine is secure and stable with its engine switched off and
hydraulic pipes disconnected before carrying out any maintenance work.
• Check for loose, broken, missing or damaged parts. Have everything put into good repair and
make sure all safety devices are in place.
• Perform all maintenance procedures outlined for the equipment.
• Always protect hands. Select appropriate gloves when handling the equipment during fitting,
removing or adjusting
• Always protect feet with safety boots.
WARNING: Hydraulic fluid under pressure can penetrate the skin or eyes and cause
serious PERSONAL INJURY, BLINDNESS OR DEATH.
Fluid leaks under pressure may not be visible. Use a piece of wood or thick cardboard to
find leaks. DO NOT USE YOUR BARE HANDS.
Wear safety goggles for eye protection.
If any fluid is injected into the skin, it MUST be surgically removed.
SEE A DOCTOR IMMEDIATELY
Make sure all hydraulic lines are correctly installed
Before applying pressure to the hydraulic system be sure all connections are tight and that lines,
pipes and hoses are not damaged. Before disconnecting hydraulic lines, be sure to relieve all
pressure.
Hazard Classification (Only applicable to ANSI Safet Labels)
DANGER: IMMEDIATE HAZARD! - Failure to understand or obey this
information is likely to result in personal injury or death.
WARNING: Failure to follow these instructions may result in personal
injury or death.
CAUTION: Failure to follow these instructions may result in minor
personal injury or damage to the machine or the vehicle.
NOTICE: This is important information for the proper use of this
equipment. Failure to comply may lead to premature equipment
failure.
CLEAN OR REPLACE THE SAFETY LABELS IF THEY CANNOT BE CLEARLY READ OR UNDERSTOOD

www.avanttecno.com 1212
Safety Precautions
NEVER operate or assemble the equipment without fully understanding the operating
instructions of both the equipment unit and the parent machine.
Avant Tecno Oy recommend you receive dealer instruction before operating the unit.
NEVER operate the equipment unless you are in good physical condition and mental
health.
NEVER operate the equipment under the influence of any substance (including drugs &
alcohol) which might impair vision.
NEVER operate the equipment with worn, damaged or missing parts. Use only genuine
replacement parts.

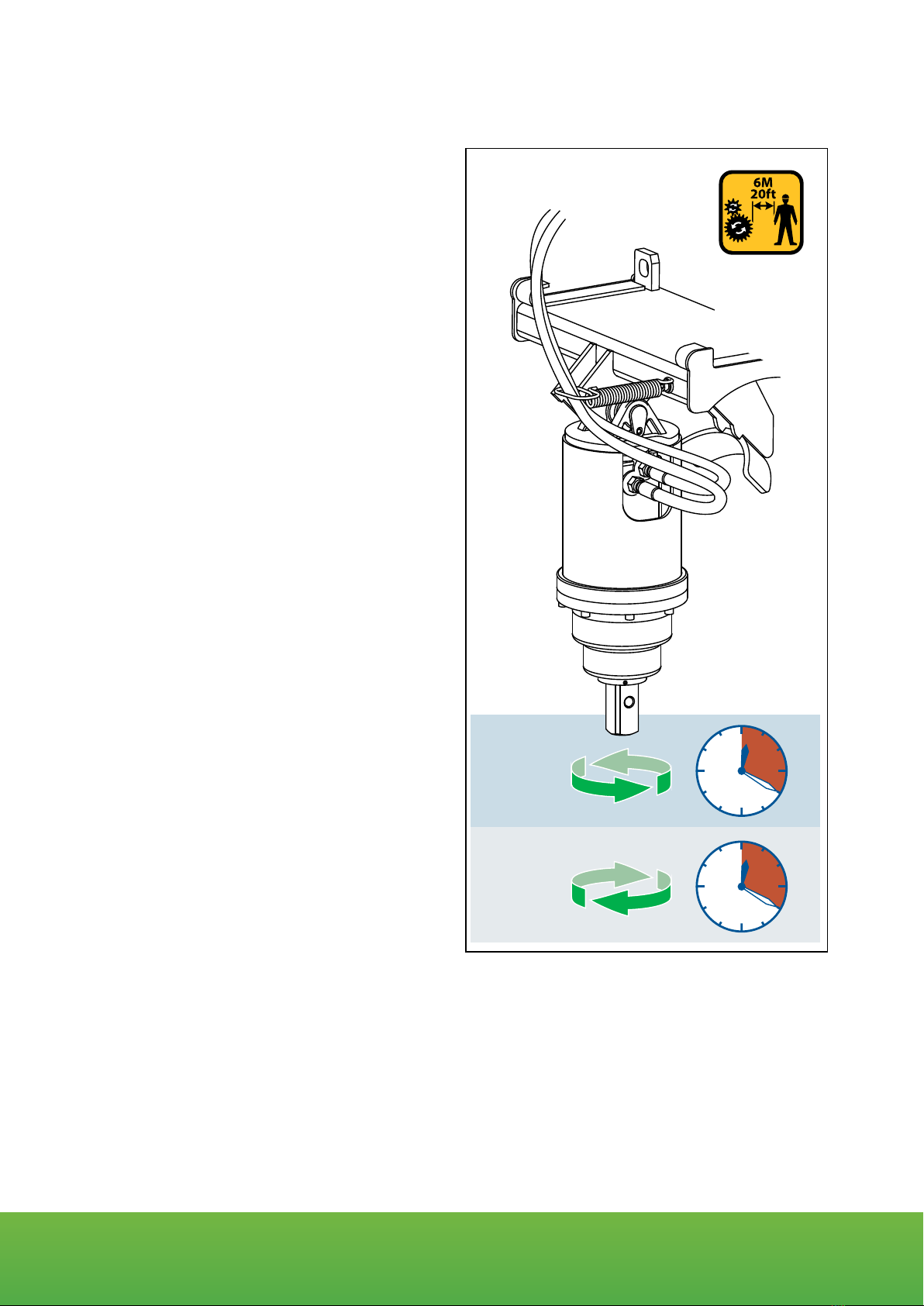

NEVER allow bystanders (including animals) within 6 metres/20 foot of the work area.
NEVER allow minors to operate the equipment.
ALWAYS survey the work area before commencing operations. Check for potential hazards,
eg. Electricity or communication cables etc.
ALWAYS ensure that the parent machine is secure and stable with it’s engine switched off
before carrying out any maintenance work.
ALWAYS ensure the hydraulic oil supply to the attachment is disconnected by uncoupling
the hydraulic hose connectors before fitting, removing or adjusting the equipment
ALWAYS wear head protection and eye protection when working on the unit.
ALWAYS protect hands. Select appropriate when handling the equipment
during fitting, removing or adjusting the unit.
ALWAYS protect feet. Wear approved safety boots.
ALWAYS follow the parent machine instructions regarding noise protection.
STAY ALERT. Should something break, come loose or fail to operate on your equipment,
STOP WORK, lower equipment to the ground, shut off the engine and lock out hydraulic
supply, inspect the machine and have repairs or adjustments made before resuming
operation.

www.avanttecno.com 1313

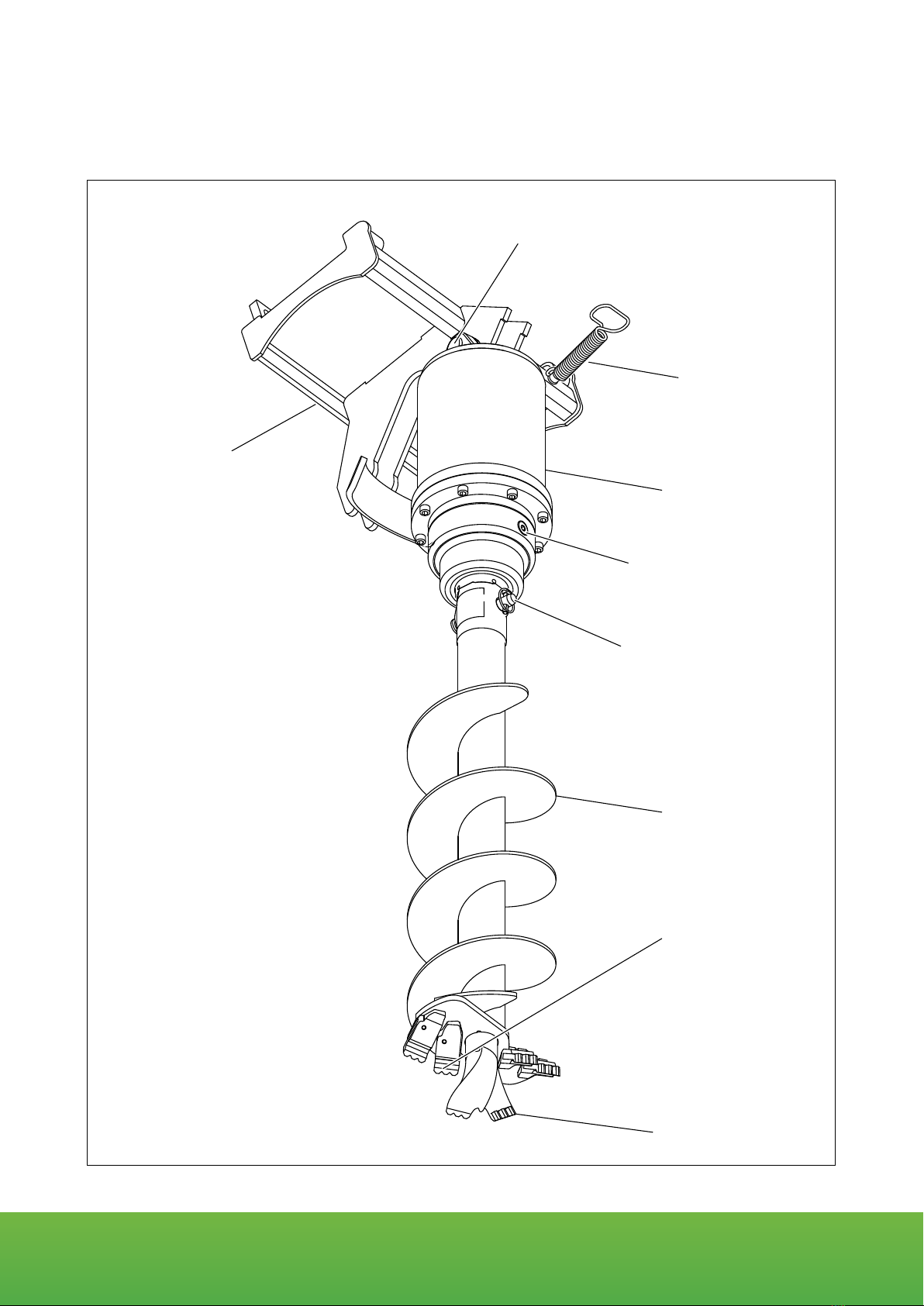

IDENTIFICATION
Typical Setup
Drive Unit
Mounting Pin
Earth Drill
Fill/Drain Plug
Auger Drive Pin
Auger
Auger Tooth
Auger Pilot
Mounting Frame
Hose Retainer

www.avanttecno.com 1414
MOUNTING - HITCH FITTING
SAFETY FIRST
ALWAYS work in pairs (2 skilled operatives) whenever Earth Drill unit components are
being assembled or disassembled from the parent machine. Always check the weight of
the attachment and ensure you have the correct equipment for handling it.
ALWAYS check parent machine:
•Isincorrectworkingorder
•Isparkedcorrectlyonatground
•HasitshandbrakeON.
•Usesuitablyratedliftingequipmentifrequired(seedataplateforweight).
FITTING: Ensure all components are greased on assembly:
Step 1
Lift the quick attach plate locking pins up and turn them
backwards into the slot so that they are locked in the upper
position.
If your loader is equipped with a hydraulic attachment locking
system, see additional instructions about the use of the locking
system from the relevant manuals.
Ensure that the hydraulic hoses are not in the way during
installation.
Step 2
Turn the quick attach plate hydraulically to an obliquely
forward position.
Drive the loader onto the attachment. If your loader is equipped
with a telescopic boom, you can utilise this.
Align the upper pins of the loader’s quick coupling plate so that
they are under the corresponding brackets of the attachment.
Step 3
Lift the boom slightly – pull the boom control lever backward to
raise the attachment off the ground.
Turn the boom control lever left to turn the bottom section of
the quick attach plate onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of pin / pins.
DIN 1284

www.avanttecno.com 1515
Unlocked attachment may fall on the boom or
operator and cause serious injuries. Before
moving or lifting the attachment, ensure that the
locking pins are in the lower position and come
through the fasteners on both sides.
Do not use the automatic return of the locking
pins when the attachment or the boom has
been lifted at a height of over one metre. Excess
tilting increases the risk of toppling over. We
recommend that you lower the attachment onto
the ground and secure the locking manually
Step 4
Swing the frame to the vertical postion.
Working as a pair, lift the Earth Drill in to place
with the port opening facing to the left.
Align hood ears with the hole in the linkage
block.
Secure the Earth Drill with the Pin (1),Washer
(2) and Nylon Insert Nut (3)
Torque to100Nm/74ft-lb.
100Nm/74ft-lb
1
2
3

www.avanttecno.com 1616
HYDRAULIC CONNECTIONS
WARNING:
Hydraulic fluid under pressure can penetrate the skin or eyes and cause serious
personal injury, blindness or death. Fluid leaks under pressure may not be visible. Use
a piece of card or wood to find leaks. DO NOT use your bare hands. Wear safety goggles
to protect your eyes. If any fluid is injected into the skin, it MUST be surgically removed.
Seek immediate medical attention.
All Avant Tecno Oy Earth Drill Units require a
‘flow’ and ‘return’ of hydraulic oil from the parent
machine’s auxiliary hydraulic power supply to
operate. All gearboxes are reversible, but require
the host machine to be fitted with a two-way flow
auxiliary circuit.
When fitting hydraulic hoses, ensure that they
are tightened to the correct torque for the hose
fittings (Fig A).
Ensure that the drilling rotation of the Earth Drill Unit is clockwise.
It is critical that the supply of oil is within the stated flow & pressure limits for the particular
Earth Drill; Refer to the serial plate on the top of the Earth Drill hood (see page 4).
Connecting the Multiconnector System
Align the pins of the attachment connector with
corresponding holes of the loader connector. The
multiconnector will not connect if the attachment
connector is upside down. Connect and lock the
multiconnector by turning the lever towards the
loader.
The lever should move easily all the way to
its locking position. If the lever does not slide
smoothly, check the alignment and position of
the connector and clean the connectors. Also
shut down the loader and release the residual
hydraulic pressure.
To disconnect the multiconnector system, turn off
the auxiliary hydraulics of the loader, and unlock
the multiconnector. To unlock, push the knob on
the side of the connector, and turn the lever to
disconnect.
A
56Nm/41ft-lb
1
/
2
” BSP

www.avanttecno.com 1717
HD35 1/2” / 12.7mm 240Bar / 3480PSI
HD45 1/2” / 12.7mm 240Bar / 3480PSI
XHD58 1/2” / 12.7mm 240Bar / 3480PSI
XHD72 1/2” / 12.7mm 240Bar / 3480PSI
XHD92 1/2” / 12.7mm 240Bar / 3480PSI
Minimum hydraulic hose requirements
Model Minimum internal hose
diameter (in/mm) Minimum working pressure Bar/PSI
Minimum internal diameter
Hoses Specifications
Replacement hydraulic hoses MUST be rated equal or greater than the minimum working pressure.
Conventional Quick Couplings
(alternative couplings for some loader models)
Before connecting or disconnecting the standard quick couplings, the
residual pressure must be released as shown below. The conventional
quick couplings will not connect, if there is pressure in the hydraulic
system.
To connect and disconnect the standard couplings, move the collar at the end of the female fitting.
The hoses should be connected so that the fitting equipped with a coloured cap is connected to the
corresponding fitting of the loader Note that the protective caps on the loader and the attachment
can be fastened to each other during operation to reduce the accumulation of dirt. When
disconnecting the standard quick couplings a small amount of oil may drip from the couplings.
Wear protective gloves and have some cloth at hand to keep the equipment clean.
Make sure that all three couplings are properly connected, otherwise the hydraulic motor of the
mower may get damaged. Before disconnecting conventional quick couplings shut down the loader
and move the auxiliary hydraulics control lever of the loader to its extreme positions to release the
residual pressure of the hydraulic system.
Releasing Residual Hydraulic Pressure
To make sure that there will not be residual pressure in the hydraulic system of the attachment,
shut down the loader engine and move the auxiliary hydraulics control lever of the loader to it’s
extreme positions before disconnecting the couplings. If the fittings will not connect to the loader,
the residual pressure must be released. The residual pressure must be released before handling
the blades of the attachment and before storage of the attachment.

www.avanttecno.com 1818
RUNNING-IN
To maximise the life of the unit, it must be run
in for a period .
To carry out the running in procedure, suspend
the Earth Drill in it’s vertical, working position.
For the duration of the running in procedure,
ensure that no bystanders (including animals)
can get within 6 metres/20 foot of the work
area.
Operate the motor at 30% of rated pressure for
20 minutes in each direction before application
of full operating load.
To further ensure best motor life and maintain
warranty, refer to page 27 for lubrication
instructions.
1
2
20
20

www.avanttecno.com 1919
FITTING THE AUGER
SAFETY FIRST
ALWAYS work in pairs (2 skilled
operatives) whenever Earth
Drill Unit components are being
assembled or disassembled from
the parent machine.
ALWAYS check parent machine:
•Isincorrectworkingorder
•Isparkedcorrectlyonatground
•HasitshandbrakeON, its
hydraulic circuit locked out and its
engine switched OFF.
CHECK that the Auger is the correct model
and type to fit the Earth Drill Unit.
ENSURE that the Auger connections are clean
before fitting.
USE suitably rated lifting equipment if required
(see data plate for weight).
Position the Auger in the vertical work position
and support it so that it cannot fall over.
Position the Earth Drill over the Auger and
align the pin holes.
Lower the Earth Drill Unit onto the Auger
Locate the Auger Drive Pin
Secure the Auger Drive Pin with Linch Pin

www.avanttecno.com 2020
PREPARATION
CONSIDER the topography (e.g. risk of subsidence, slope angle, position to
embankments and any previous excavation).
NOTE the type of soil and its condition to enable selection of suitable teeth and pilot
ALWAYS carry out a site survey and risk assessment BEFORE starting work
AVOID underground hazards, such as water / gas / electricity / communication lines etc.
If in doubt detection equipment and professional advice should always be considered before
carrying out any work.
